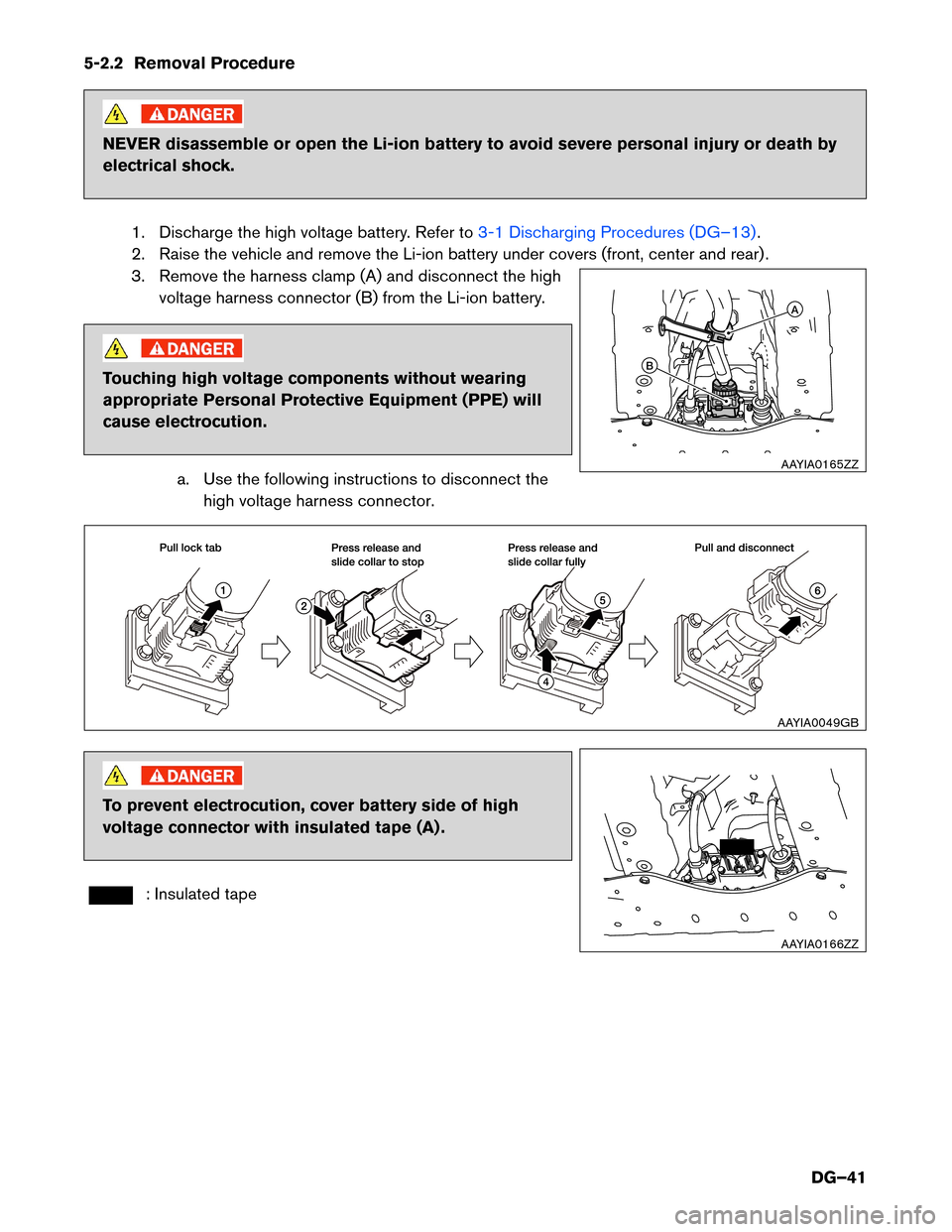

NISSAN LEAF 2014 1.G Dismantling Guide 5-2.2 Removal Procedure
NEVER disassemble or open the Li-ion battery to avoid severe personal injury or death by
electrical
shock.
1. Discharge the high voltage battery. Refer to 3-1 Discharging Proce

Page 42 of 46

NISSAN LEAF 2014 1.G Dismantling Guide 4. Disconnect the cabin heater harness connector (A) from
the Li-ion battery. Touching high voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution

Page 43 of 46

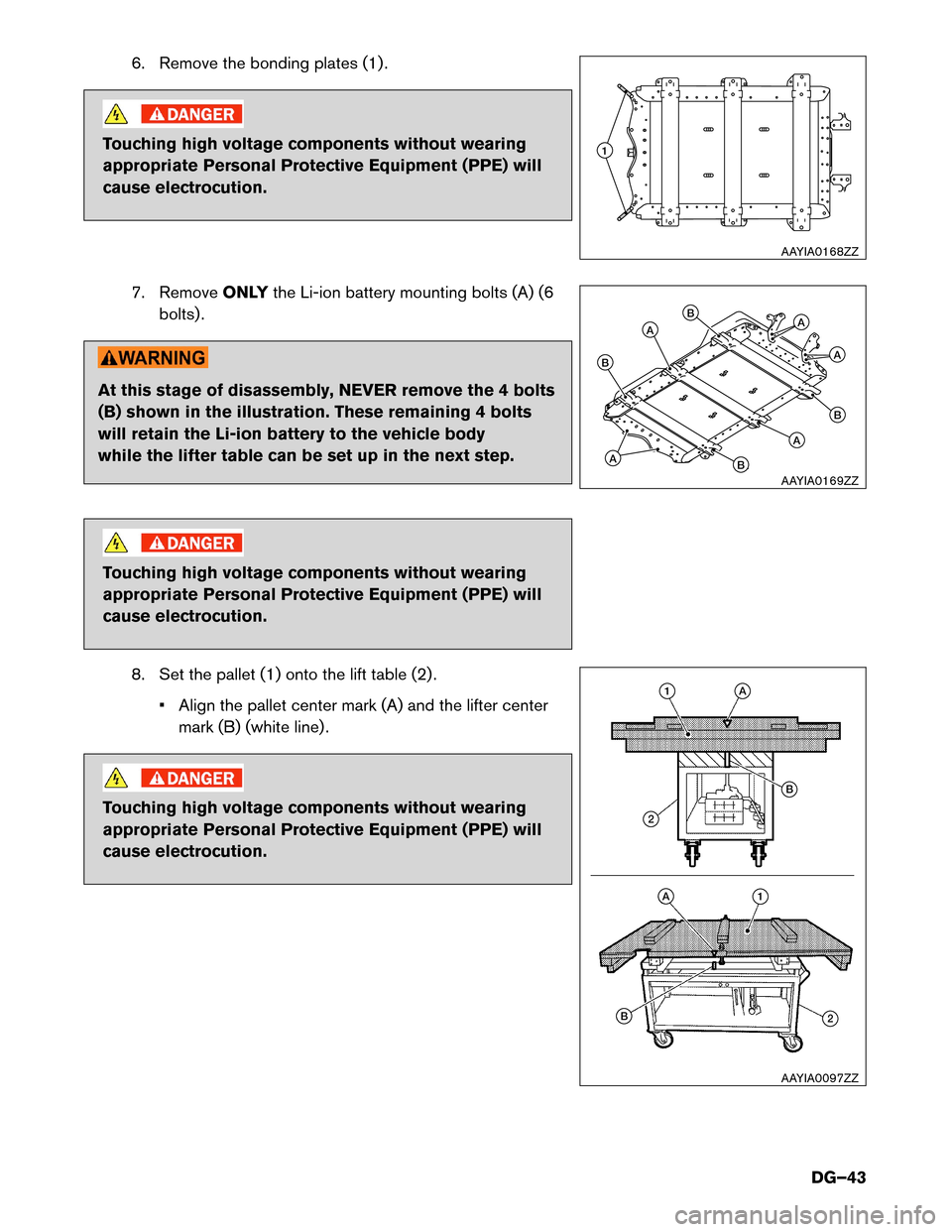

NISSAN LEAF 2014 1.G Dismantling Guide 6. Remove the bonding plates (1) .
Touching high voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
7. Remove ONLYthe Li-ion battery mounting

Page 44 of 46

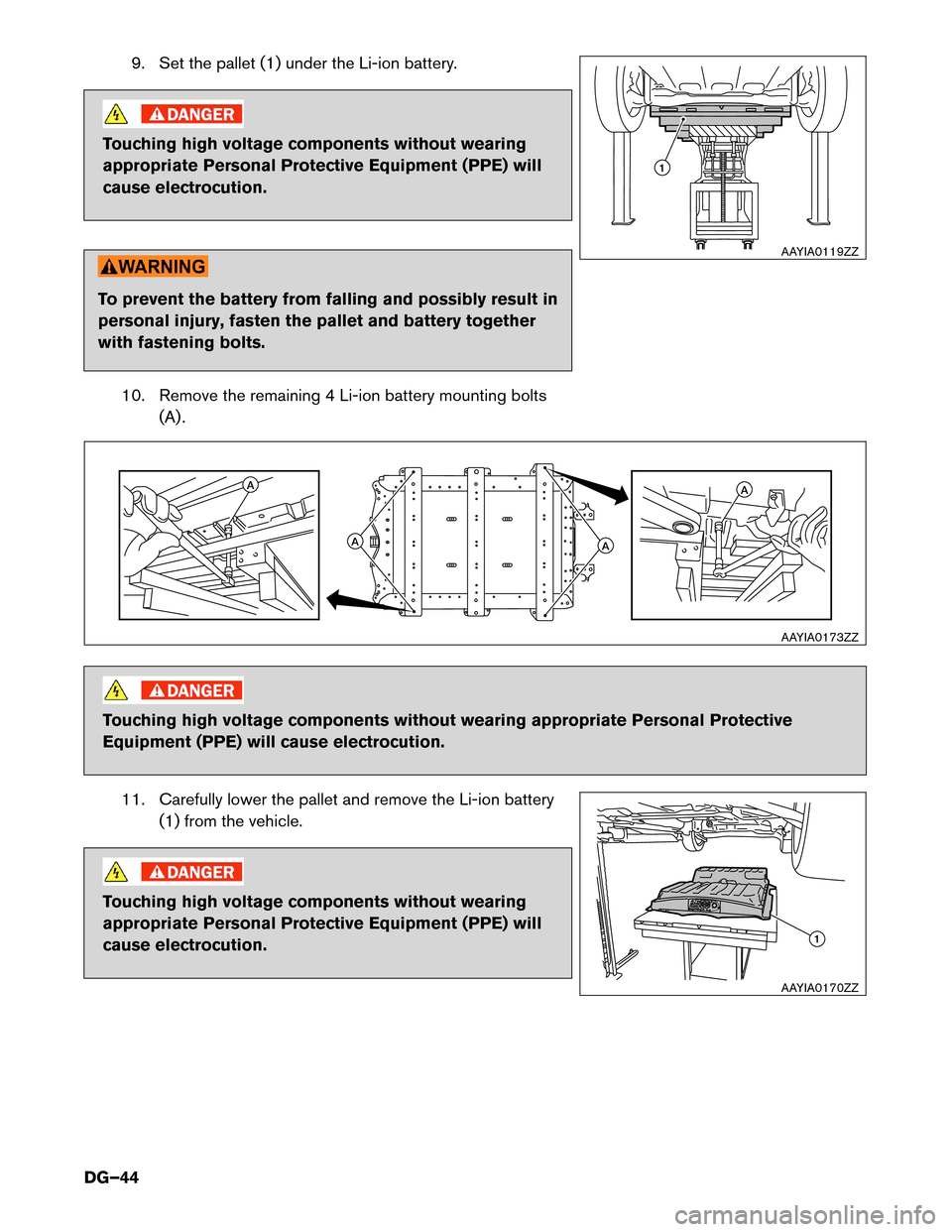

NISSAN LEAF 2014 1.G Dismantling Guide 9. Set the pallet (1) under the Li-ion battery.
Touching high voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution. To prevent the battery from f

Page 45 of 46

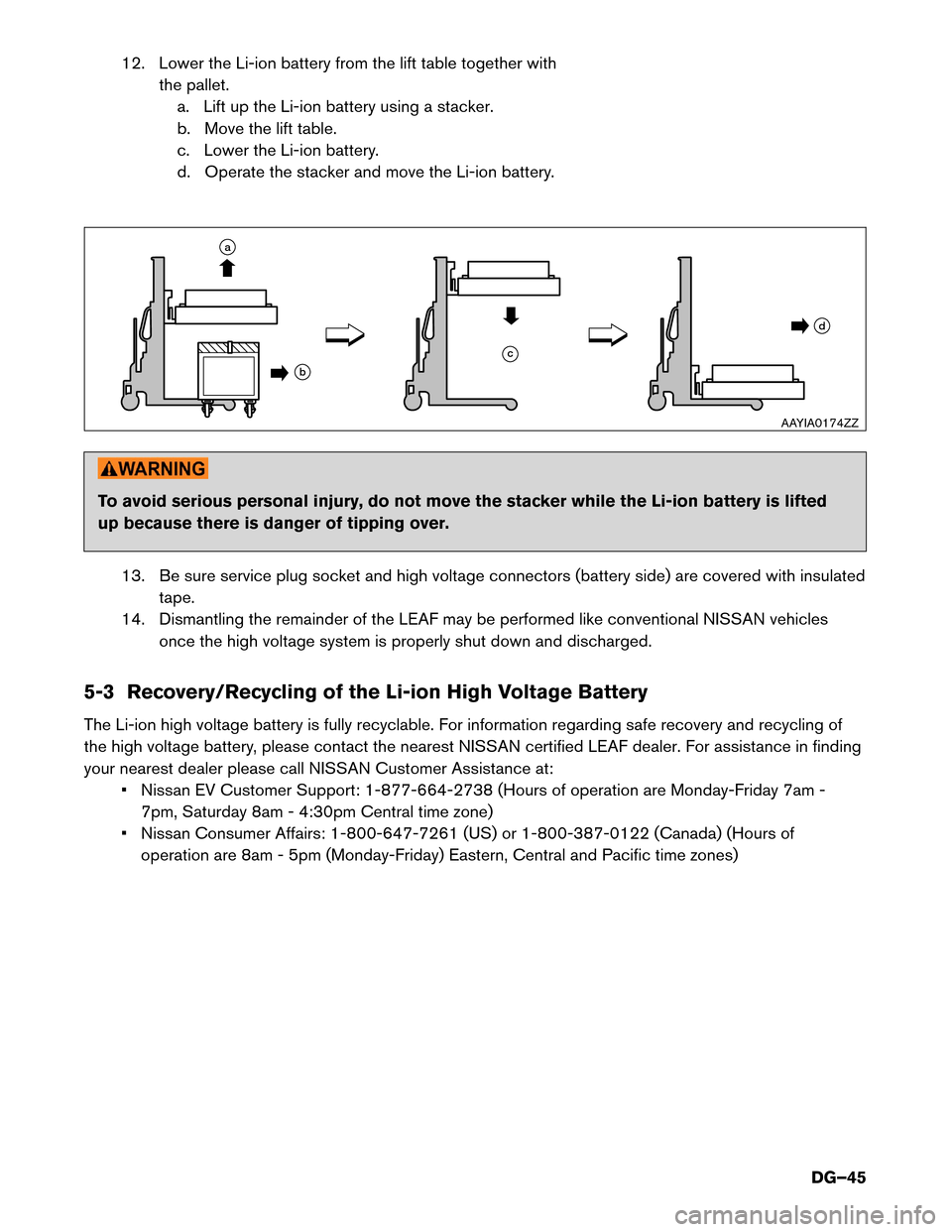

NISSAN LEAF 2014 1.G Dismantling Guide 12. Lower the Li-ion battery from the lift table together with
the pallet.
a. Lift up the Li-ion battery using a stacker.
b. Move the lift table.
c. Lower the Li-ion battery.
d. Operate the stacker an

Page 46 of 46
