2. Touch [Add New].
LNG0021X
3. Touch the appropriate method to search fora location.
“Setting destination” (page 3-17)
LNG0022X
4. When a preferred location is displayed atthe center of the map, confirm the location
and touch [OK]. A message is displayed,
and the location is stored.
Editing charging plug reminder location:
1. Touch [Store charging plug reminder loca- tions].
LNG0023X
2. Touch the preferred stored location from thelist.
LNG0024X
3. Touch the item you would like to set.
Available settings
.[Edit Name]:Changes the name of a stored location.
“How to input letters and numbers”
(page 1-7)
.[Relocate]:
Adjusts the location of the stored loca-
tion.
.[Delete]:Deletes the stored address.
.[OK]:Applies the settings.
Setting time for receiving charge
connector status notifications
GUID-95509E3B-7FE0-4856-96AD-358A12828D54This confirms the charge connector status at the
set checking time. If the charge connector is
then disconnected, a notification is sent to the
preset e-mail address.
CARWINGSTM5-13
Condition: NAM/
Page 172 of 286
Black plate (168,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
5-14CARWINGSTM
1. Touch [Charging Plug Reminder Time].
LNG0025X
2.Touch the preferred checking time. The
indicator of the selected time illuminates.
Available checking times
.5 min.10 min.15 min.30 min.1 hour
3. When the power switch is placed in the OFF position from the ON position, the setting
will be set to ON.
INFO:
When the power switch is placed in the OFF
position from the ACC position, the check time
setting will be reset.
Sending charge connector status
information to Data Center
GUID-A7265620-4E47-42C9-B4F5-C994D226466FIf the system recognizes that the charge
connector is not connected to the vehicle even
though the charge timer function is set, the
system transmits this information to the NISSAN
CARWINGS Data Center. When the NISSAN
CARWINGS Data Center receives the informa-
tion, it will send an e-mail to the specified
address to inform you of the charge connector
status.
LNG0026X
1. Touch [Send unplugged status to Data
Center]. The indicator illuminates when the
item is set.
INFO:
Even if the notification service for the charge
connector status is set, no notification is sent
and no status can be checked under the
following conditions.
. The system will check the connection status
of the charge connector within the period of
time set, but will not check once this period
of time has been exceeded. Therefore, if the
charge connector is removed from the
vehicle after the period of time set, a
notification is not sent.
. The charge connector status notification
does not indicate the start of battery
charging.
. No notification is sent if the vehicle is
outside the communication service area.
. The notification does not include the reason
why the charge connector is disconnected.
. If the vehicle is not used for 2 weeks,
communication with the vehicle is disabled.
. If the power switch is in the ON position, no
notification is sent.
Sending battery charge status in-
formation to Data Center
GUID-4E35BF0B-A71A-4523-A882-BE98AF936E8AIf a battery charge is interrupted before it is
completed, the system recognizes this and
transmits this information to the NISSAN
Condition: NAM/
Page 173 of 286
Black plate (169,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
CARWINGS Data Center. When the NISSAN
CARWINGS Data Center receives the informa-
tion, it will send an email to the specified
address to inform you of the battery charge
status.
LNG0027X
1. Touch [Send charging status to Data Cen-ter]. The indicator illuminates when the item
is set.
Emails that are received from the NISSAN
CARWINGS Data Center inform you of the
following:
. Interruption to battery charge
. Current battery level
. Battery capacity
. Driving range (Two values are shown: when
the air conditioner is on or off)
INFO:
Even if the notification service for the charge
completion is set, no notification is sent and no
status can be checked under the following
conditions.
. The charge interruption notification does not
always indicate the completion of battery
charging.
. This notification does not mean that the
timer charge function did not start at the
time set.
. No notification is sent if the vehicle is
outside the communication service area.
. The notification does not include the reason
why the battery charging was interrupted.
. If the vehicle is not used for 2 weeks,
communication with the vehicle is disabled.
. If the power switch is in the ON position, no
notification is sent.
Restoring default settings for noti-
fications
GUID-9144B37D-5880-40BD-AAAD-6A319ECE24CEAll settings are set to the factory default settings.
1. Touch [Reset All Notifications to Default]. A
confirmation message is displayed.
LNG0028X
2. Confirm the contents of the message, thentouch [Yes].
INFORMATION FEED SETTINGGUID-3D2E926D-340E-4D01-9009-F4FC72E2D867Set the timing of the connection to the NISSAN
CARWINGS Data Center, or edit the list of the
information feeds. You can also delete all the
history of the information feeds used.
1. Touch [Information Feed Setting].
LNG0029X
2. Touch the item you would like to set.
CARWINGSTM5-15
Condition: NAM/
Page 174 of 286
Black plate (170,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

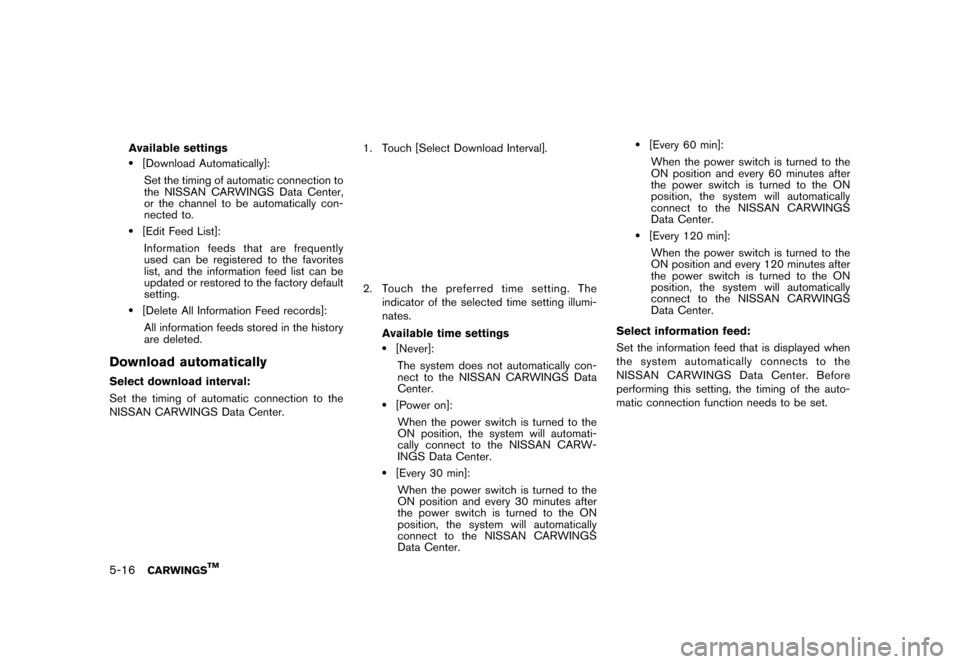

5-16CARWINGSTM
Available settings.[Download Automatically]:Set the timing of automatic connection to
the NISSAN CARWINGS Data Center,
or the channel to be automatically con-
nected to.
.[Edit Feed List]:
Information feeds that are frequently
used can be registered to the favorites
list, and the information feed list can be
updated or restored to the factory default
setting.
.[Delete All Information Feed records]:All information feeds stored in the history
are deleted.
Download automaticallyGUID-5F6C719B-CD03-4EDA-AF07-60B39AF26076
Select download interval:
Set the timing of automatic connection to the
NISSAN CARWINGS Data Center.
LNG0030X
1. Touch [Select Download Interval].
LNG0031X
2. Touch the preferred time setting. The
indicator of the selected time setting illumi-
nates.
Available time settings
.[Never]:
The system does not automatically con-
nect to the NISSAN CARWINGS Data
Center.
.[Power on]:When the power switch is turned to the
ON position, the system will automati-
cally connect to the NISSAN CARW-
INGS Data Center.
.[Every 30 min]:When the power switch is turned to the
ON position and every 30 minutes after
the power switch is turned to the ON
position, the system will automatically
connect to the NISSAN CARWINGS
Data Center.
.[Every 60 min]:When the power switch is turned to the
ON position and every 60 minutes after
the power switch is turned to the ON
position, the system will automatically
connect to the NISSAN CARWINGS
Data Center.
.[Every 120 min]:
When the power switch is turned to the
ON position and every 120 minutes after
the power switch is turned to the ON
position, the system will automatically
connect to the NISSAN CARWINGS
Data Center.
Select information feed:
Set the information feed that is displayed when
the system automatically connects to the
NISSAN CARWINGS Data Center. Before
performing this setting, the timing of the auto-
matic connection function needs to be set.
LNG0032X
Condition: NAM/
Page 175 of 286
Black plate (171,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

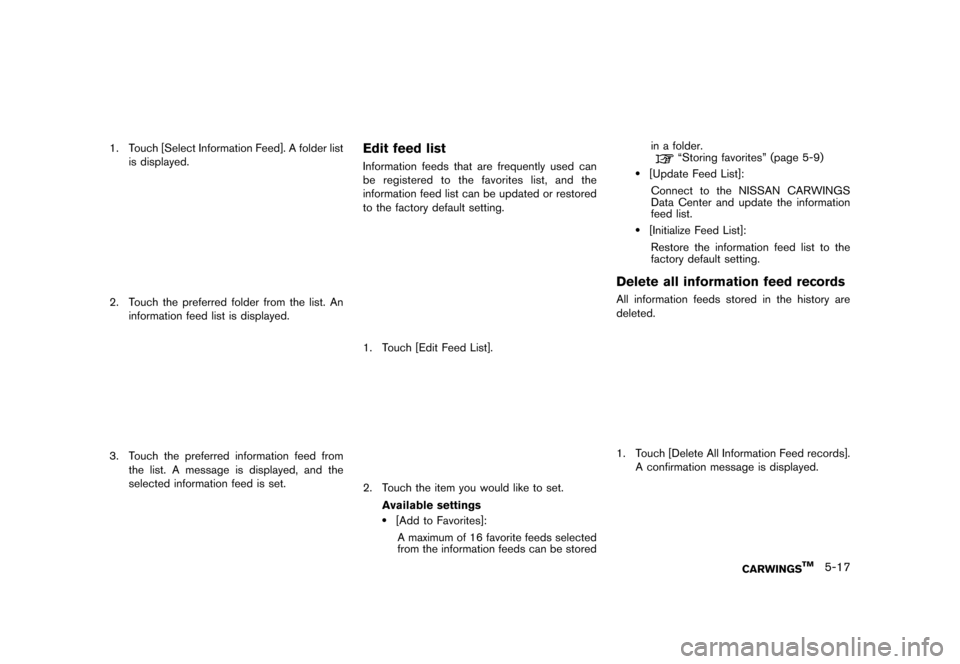

1. Touch [Select Information Feed]. A folder listis displayed.
LNG0033X
2. Touch the preferred folder from the list. Aninformation feed list is displayed.
LNG0034X
3. Touch the preferred information feed from
the list. A message is displayed, and the
selected information feed is set.
Edit feed listGUID-F99B64E4-ED4C-4C15-BC10-5F011B6FDEC7Information feeds that are frequently used can
be registered to the favorites list, and the
information feed list can be updated or restored
to the factory default setting.
LNG0035X
1. Touch [Edit Feed List].
LNG0036X
2. Touch the item you would like to set.
Available settings
.[Add to Favorites]:A maximum of 16 favorite feeds selected
from the information feeds can be stored in a folder.
“Storing favorites” (page 5-9)
.[Update Feed List]:
Connect to the NISSAN CARWINGS
Data Center and update the information
feed list.
.[Initialize Feed List]:Restore the information feed list to the
factory default setting.
Delete all information feed recordsGUID-AD725792-06A7-4710-925B-E6F4FAF6EBA1All information feeds stored in the history are
deleted.
LNG0037X
1. Touch [Delete All Information Feed records]. A confirmation message is displayed.
CARWINGSTM5-17
Condition: NAM/
Page 176 of 286
Black plate (172,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

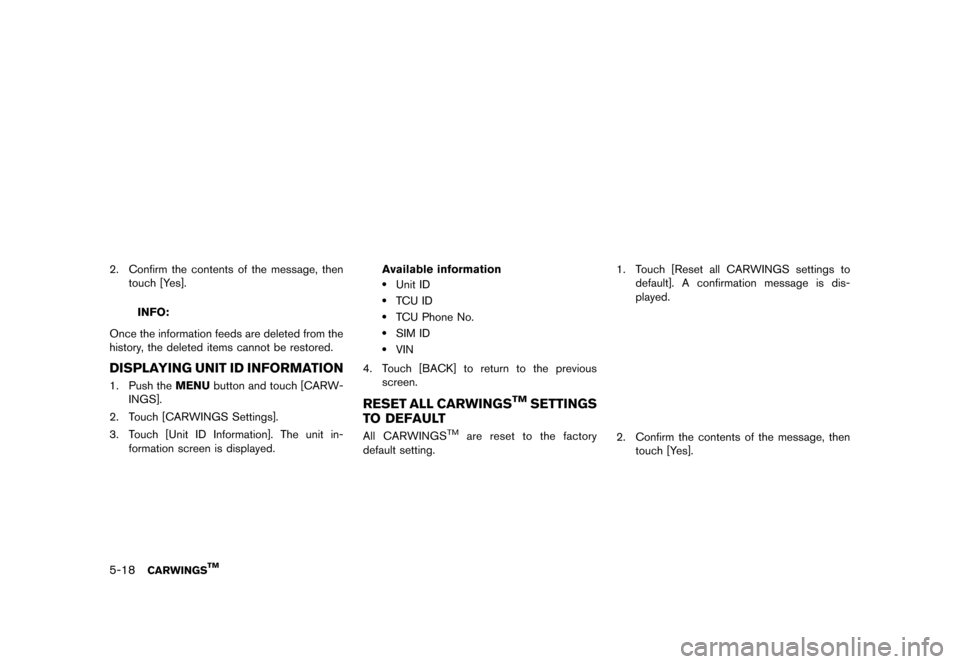

5-18CARWINGSTM
LNG0038X
2. Confirm the contents of the message, thentouch [Yes].
INFO:
Once the information feeds are deleted from the
history, the deleted items cannot be restored.
DISPLAYING UNIT ID INFORMATIONGUID-8741EEAB-0C9B-4A53-A614-CA214B360C841. Push the MENUbutton and touch [CARW-
INGS].
2. Touch [CARWINGS Settings].
3. Touch [Unit ID Information]. The unit in- formation screen is displayed.
LNC0022X
Available information.Unit ID
.TCU ID
.TCU Phone No.
.SIM ID
.VIN
4. Touch [BACK] to return to the previous screen.
RESET ALL CARWINGSTMSETTINGS
TO DEFAULT
GUID-6D2CAE9E-8983-4DAA-A8E3-8A6B0BEDF798All CARWINGSTMare reset to the factory
default setting.
LNG0039X
1. Touch [Reset all CARWINGS settings to default]. A confirmation message is dis-
played.
LNG0040X
2. Confirm the contents of the message, thentouch [Yes].
Condition: NAM/
Page 177 of 286
Black plate (173,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
GUID-A612237F-2B0E-4347-871F-77F4C00A717AThe display may show the following messages on the screen while using the CARWINGSTMservice. If the messages are displayed, follow the on screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.

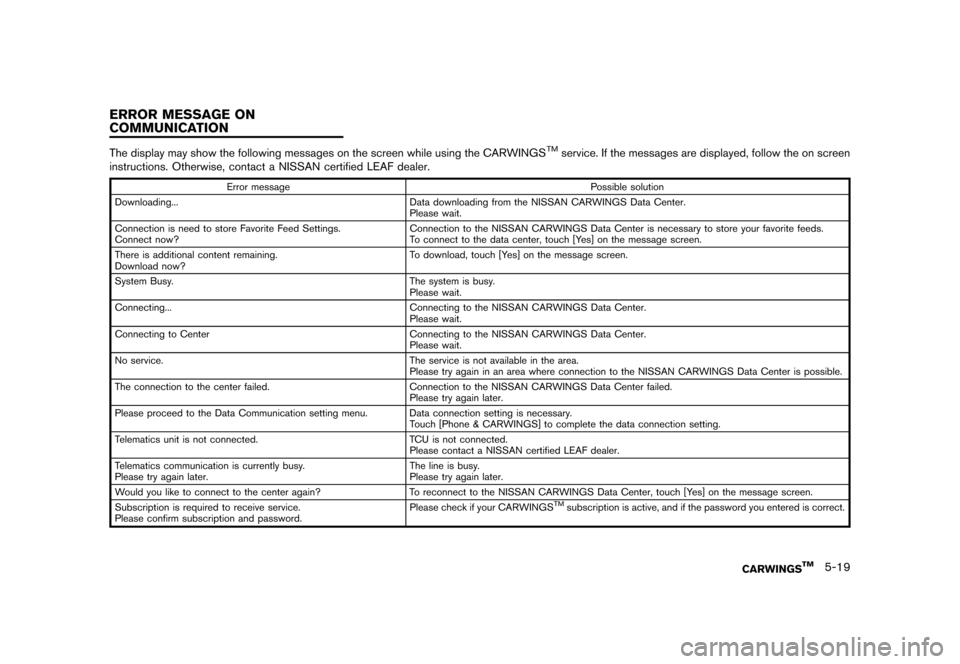

Error message Possible solution
Downloading... Data downloading from the NISSAN CARWINGS Data Center.
Please wait.
Connection is need to store Favorite Feed Settings.
Connect now? Connection to the NISSAN CARWINGS Data Center is necessary to store your favorite feeds.
To connect to the data center, touch [Yes] on the message screen.
There is additional content remaining.
Download now? To download, touch [Yes] on the message screen.
System Busy. The system is busy.
Please wait.
Connecting... Connecting to the NISSAN CARWINGS Data Center.
Please wait.
Connecting to Center Connecting to the NISSAN CARWINGS Data Center.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the NISSAN CARWINGS Data Center is possible.
The connection to the center failed. Connection to the NISSAN CARWINGS Data Center failed.
Please try again later.
Please proceed to the Data Communication setting menu. Data connection setting is necessary. Touch [Phone & CARWINGS] to complete the data connection setting.
Telematics unit is not connected. TCU is not connected.
Please contact a NISSAN certified LEAF dealer.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
Would you like to connect to the center again? To reconnect to the NISSAN CARWINGS Data Center, touch [Yes] on the message screen.
Subscription is required to receive service.
Please confirm subscription and password. Please check if your CARWINGS
TMsubscription is active, and if the password you entered is correct.
CARWINGSTM5-19
ERROR MESSAGE ON
COMMUNICATION
Condition: NAM/
Page 178 of 286
Black plate (174,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
5-20CARWINGSTM
GUID-3C8F9DA8-DBD3-4E5C-9F8B-8E948F862FD6

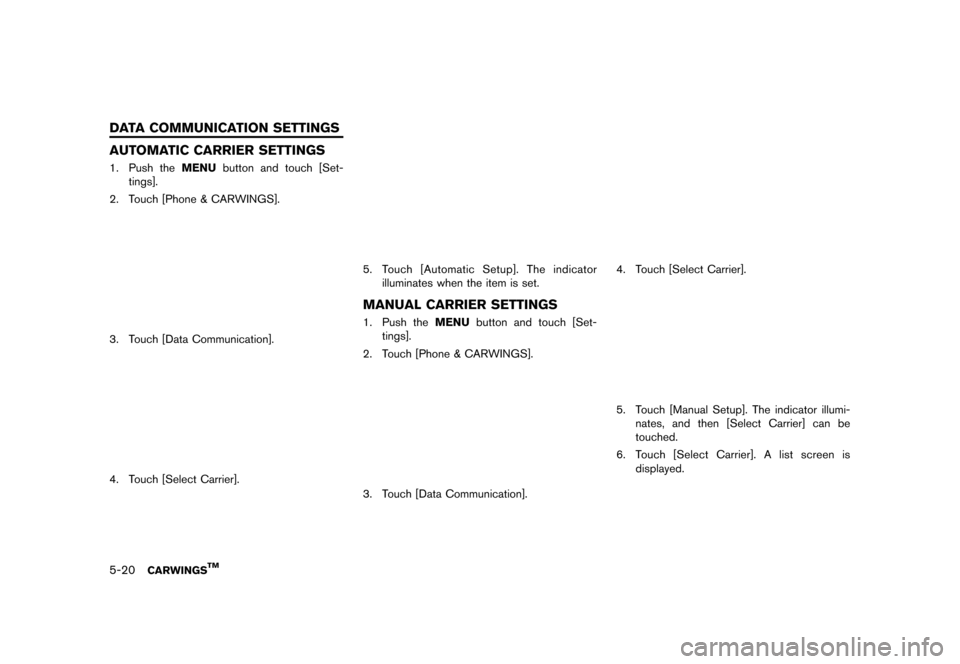

AUTOMATIC CARRIER SETTINGSGUID-A4C708A1-037E-468D-B859-B12809688AE01. Push theMENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
LNG0013X
3. Touch [Data Communication].
LNG0014X
4. Touch [Select Carrier].
LNG0015X
5. Touch [Automatic Setup]. The indicator
illuminates when the item is set.
MANUAL CARRIER SETTINGSGUID-F246C263-22FD-4128-A601-C1C2FC5637481. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
LNG0016X
3. Touch [Data Communication].
LNG0017X
4. Touch [Select Carrier].
LNG0018X
5. Touch [Manual Setup]. The indicator illumi- nates, and then [Select Carrier] can be
touched.
6. Touch [Select Carrier]. A list screen is
displayed.
DATA COMMUNICATION SETTINGS
Condition: NAM/
Page 179 of 286
Black plate (175,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNG0019X
7. Touch the preferred carrier from the list. Theindicator illuminates when the item is set.
CARWINGSTM5-21
Condition: NAM/
Page 180 of 286
Black plate (176,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
5-22CARWINGSTM
MEMO
Condition: NAM/
