NISSAN LEAF 2014 1.G Navigation Manual

Black plate (227,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
How to adjust Around View screenGUID-EC9A2A70-2282-457D-B4B3-E852D86676071. Push theMENUbutton with the Around
View Monitor on.
2. Touch [Display].
3. Touch the preferred setting items.
Available setting items:
. Brightness
. Tint
. Color
. Contrast
. Black Level
Do not adjust the Around View Monitor screen
while the vehicle is moving.
Monitor system9-15
Condition: NAM/

Black plate (228,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
9-16Monitor system
MEMO
Condition: NAM/

Black plate (229,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10 Troubleshooting guide/General systeminformation
Troubleshooting guide ...
........................................................... 10-2
Customer assistance ...
....................................................... 10-2
System unit ...
........................................................................\
. 10-2
Unique EV functions ...
........................................................ 10-4
Navigation ...
........................................................................\
... 10-9
CARWINGS
TM...
............................................................... 10-16
Audio system ...
.................................................................. 10-17
Bluetooth
®Hands-Free Phone System ...
................... 10-23
Voice recognition ...
........................................................... 10-26
Monitor system ...
.............................................................. 10-27 General system information
...
.............................................. 10-29
Current vehicle location ...
............................................. 10-29
Route calculation ...
......................................................... 10-32
Route guidance ...
............................................................ 10-34
Notes on Nav Traffic information ...
............................. 10-38
Map data ...
........................................................................\
10-38
How to handle display ...
................................................ 10-42
How to handle the SD card ...
..................................... 10-43
How to handle CD and USB memory ...
................... 10-43
Condition: NAM/

Black plate (230,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-2Troubleshooting guide/General system information
GUID-AFB09620-BB58-4670-B66F-BCBE6FC473E4
CUSTOMER ASSISTANCEGUID-EA84A59D-8111-427E-AF1B-134B59A3E4B8For assistance or inquiries about the NISSAN Navigation System, or to order updated map data, contact the NISSAN NAVIGATION SYSTEM
HELPDESK. See the contact information on the inside front cover of this manual.
SYSTEM UNITGUID-31400E7C-F4D3-4689-A9F6-88A5A28E5475
Liquid crystal displayGUID-EAA5698F-0334-4DAC-A1E3-D24F8C3455F2
SymptomPossible cause Possible solution
The screen is too dark. The cabin temperature is too low.Wait until the cabin temperature becomes moderate.
Screen brightness is set to the maximum darkness. Adjust the brightness setting of the screen.
“Brightness” (page 1-15)
The screen is too bright. Screen brightness is set to the maximum brightness. Adjust the brightness setting of the screen.
“Brightness” (page 1-15)
A small black spot or a small bright spot appears on the
screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
A dot or stripe pattern appears on the screen. Electromagnetic waves that are generated from neon billboards, high voltage electric power cables, ham
radios or other radio devices equipped to other vehicles
may adversely affect the screen.This is not a malfunction.
Image lag appears on the screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
Image motion displayed on the screen is slow. The cabin temperature is less than 508F (08C) . Wait until the cabin temperature rises to within 508F (08C) and 1228F (508C) .
When looking at the screen from an angle, the screen
lightens or darkens. This is a typical phenomenon for liquid crystal displays. Adjust the brightness setting of the screen.
“Brightness” (page 1-15)
TROUBLESHOOTING GUIDE
Condition: NAM/

Black plate (231,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
SD card memoryGUID-C3ACA7A5-7319-4AE7-9CF1-6AC1274AD93E
SymptomPossible cause Possible solution
The screen turns blue or an error message is displayed. A system malfunction has occurred. Contact a NISSAN certified LEAF dealer for an
inspection.
Troubleshooting guide/General system information10-3
Condition: NAM/

Black plate (232,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-4Troubleshooting guide/General system information
UNIQUE EV FUNCTIONSGUID-F3263912-4925-4CC3-9FE1-1A99A83F03FE
Driving rangeGUID-40E94CD3-9E57-4E98-9A45-B3104A838B32
SymptomPossible cause Possible solution
The driving range cannot be displayed. The power switch is in the ACC position.The driving range can be displayed when the power
switch is in the ON position or when the READY to drive
indicator light is on.
It cannot be displayed because the distance to empty is
too short. Charge the battery. Once the distance to empty
increased it will be displayed.
The driving range is displayed in an oval shape. As a result of the system correcting latitude and longitude, it may not be displayed as a circle.This is not a malfunction.
The distance to empty that is displayed in the lower left
hand side of the driving range and the scale of the map
do not match. As the map is displayed in 2D, the distance to empty
may differ from the actual distance on the road.
This is not a malfunction.
Drive using the numerical value on the lower left hand
side of the screen as a guide.
Condition: NAM/

Black plate (233,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
Charging stationsGUID-F15E01B3-31F1-4790-B4D7-78322AEFCF0A
SymptomPossible cause Possible solution
The charging station icon display setting is off but icons
are still displayed on the map. The charging station displayed has been set as a stored
location.This is not a malfunction.
I searched for charging stations because charge
recommendation guidance and the low battery warning
were displayed, but I could not find any. In an area where the number of charging stations is low,
it may not be possible to find a charging station located
near the vehicle.This is not a malfunction.
Charging station information is not displayed. Information is not provided for all charging stations, so there may be cases when information is not displayed.This is not a malfunction.
Contact charging stations beforehand by phone to
confirm whether they can be used.
Quick charging stations are not displayed. [Quick Charge] may be set to OFF in the [Charging Port
Types to Include in Station Searches] setting. Set [Quick Charge] to ON.
“Unique EV function settings” (page 2-14)
The charging station information displayed is incorrect. The map data is old. Connect to the NISSAN CARWINGS Data Center and update charging station information.
Alternatively, purchase new map data and update the
system.
I went to the charging station that I searched for but the
information was incorrect and I could not charge the
battery. The map data is old.
Connect to the NISSAN CARWINGS Data Center and
update charging station information.
Alternatively, purchase new map data and update the
system.
Charging station facilities have changed, or the EVSE
(Electric Vehicle Supply Equipment) equipped cannot
be used. Contact the charging station by phone beforehand to
check whether facilities can be used.
Troubleshooting guide/General system information10-5
Condition: NAM/

Black plate (234,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-6Troubleshooting guide/General system information

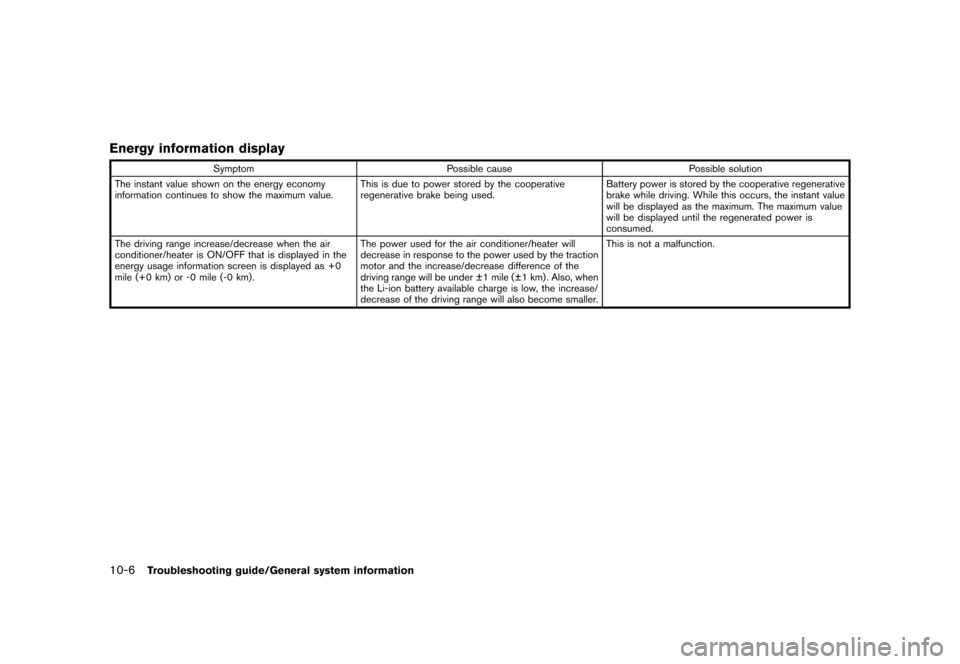

Energy information displayGUID-C68EFC84-3C1B-4BDA-BABC-5E86339C2A9A
SymptomPossible cause Possible solution
The instant value shown on the energy economy
information continues to show the maximum value. This is due to power stored by the cooperative
regenerative brake being used.Battery power is stored by the cooperative regenerative
brake while driving. While this occurs, the instant value
will be displayed as the maximum. The maximum value
will be displayed until the regenerated power is
consumed.
The driving range increase/decrease when the air
conditioner/heater is ON/OFF that is displayed in the
energy usage information screen is displayed as +0
mile (+0 km) or -0 mile (-0 km). The power used for the air conditioner/heater will
decrease in response to the power used by the traction
motor and the increase/decrease difference of the
driving range will be under ±1 mile (±1 km). Also, when
the Li-ion battery available charge is low, the increase/
decrease of the driving range will also become smaller.This is not a malfunction.
Condition: NAM/

Black plate (235,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
Timer functionGUID-5C8BA403-71DB-473D-A3EE-4C389EC5B520
SymptomPossible cause Possible solution
Charging does not start at the time set. Timer charge has not been set to ON. Check on the timer charge screen whether the indicator
for [Timer 1] or [Timer 2] is on.
The EVSE (Electric Vehicle Supply Equipment) is not
connected correctly. Check that the EVSE (Electric Vehicle Supply Equip-
ment) is connected correctly.
The immediate charge switch is in the ON position. Check the immediate charge switch setting.
The power switch is in the ON position. Place the power switch in the OFF position when
setting timer charge.
The air conditioner or heater does not operate at the
time set. The Climete Ctrl. Timer is not set to ON.
On the Climete Ctrl. Timer screen, check whether the
[Timer 1] or [Timer 2] indicator is on.
The EVSE (Electric Vehicle Supply Equipment) is not
connected correctly to the vehicle. Check whether the EVSE (Electric Vehicle Supply
Equipment) is connected correctly to the vehicle.
When the Timer charge is set as the first priority, the
Climate Ctrl. Timer will not operate until the remaining
Li-ion battery power displayed in the meter exceeds 10
segments (80%) . Check the Climete Ctrl. Timer priority setting.
When the Climate Ctrl. Timer is set as the first priority,
the Climate Ctrl. Timer operates only when remaining
Li-ion battery power displayed in the meter is more than
2 segments (15%) . Charge the Li-ion battery so that the remaining Li-ion
battery power displayed in the meter is more than 2
segments (15%) and then, operate the Climate Ctrl.
Timer.
The power switch is in the ON position. Place the power switch in the OFF position when
setting timer charge.
The Climate Ctrl. Timer does not operate immediately. If the departure time set has not yet been reached, or if the departure time set is after Climate Ctrl. Timer has
operated.This is not a malfunction.
The timer charge or Climate Ctrl. Timer screen cannot
be displayed. The power switch is in the ACC position.
This screen can be displayed when the power switch is
placed in the ON position or when the READY to drive
indicator light is on.
A prompting message to update the time setting is
displayed. The system clock has not been set correctly. Set the time setting correctly.
Troubleshooting guide/General system information10-7
Condition: NAM/

Black plate (236,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-8Troubleshooting guide/General system information
SymptomPossible cause Possible solution
Days when you do not want the timer function to
operate cannot be set. All timer functions are set to ON.
Turn off the setting for days where the timer function is
not required.
