Page 21 of 36

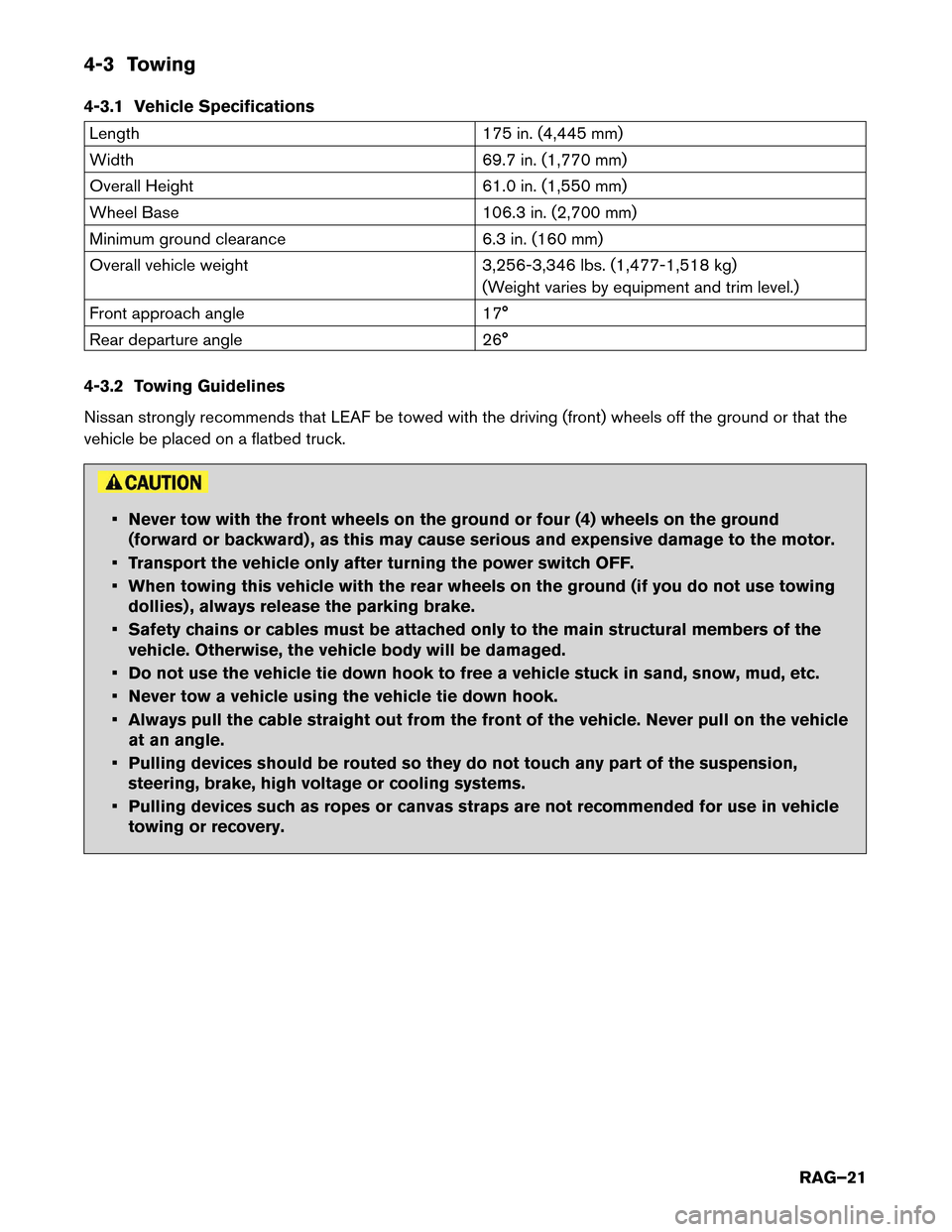

NISSAN LEAF 2016 1.G Roadside Assistance Guide 4-3 Towing
4-3.1
Vehicle Specifications Length
175
 in. (4,445 mm)
Width 69.7 in. (1,770 mm)
Overall Height 61.0 in. (1,550 mm)
Wheel Base 106.3 in. (2,700 mm)
Minimum ground clearance 6.3 in. (160 mm

Page 22 of 36

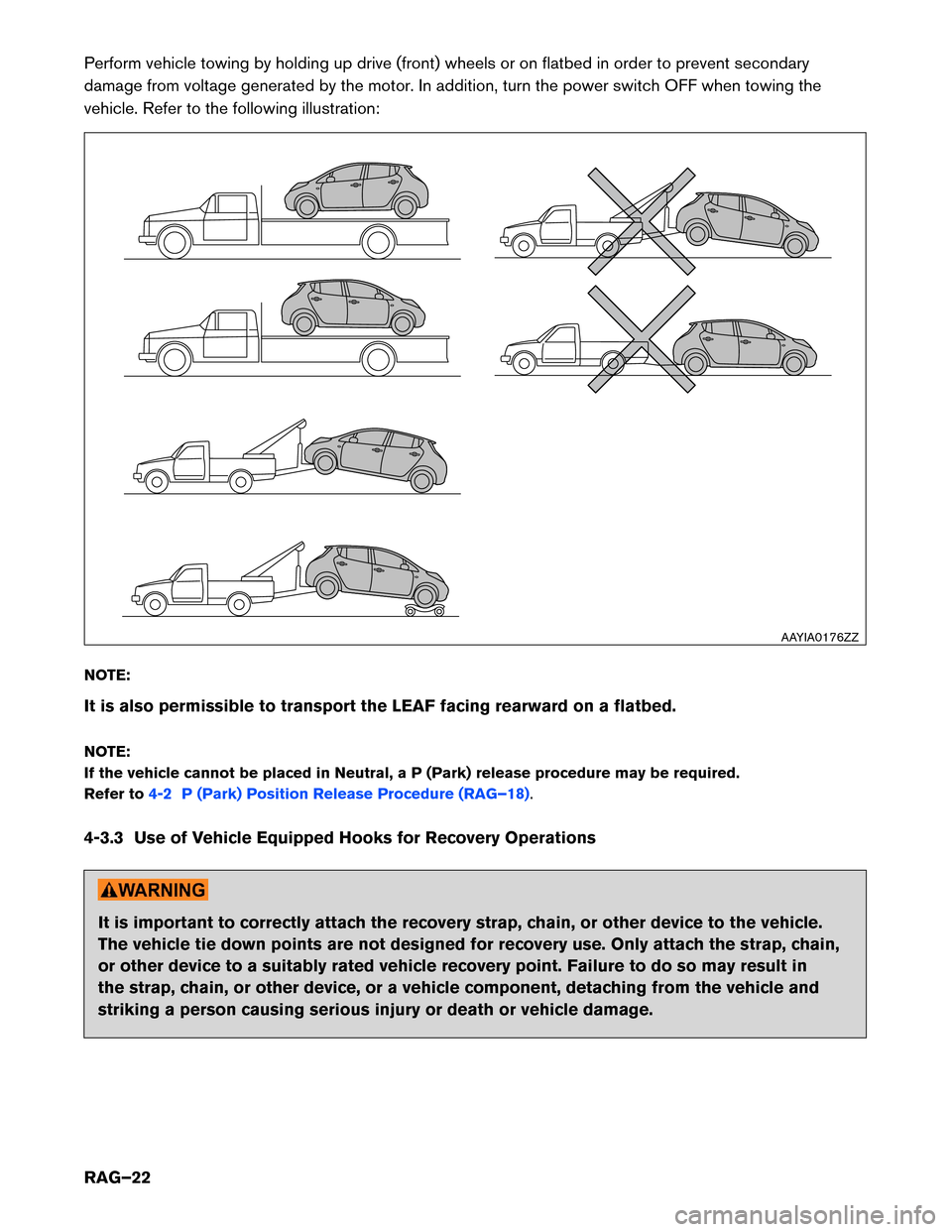

NISSAN LEAF 2016 1.G Roadside Assistance Guide Perform vehicle towing by holding up drive (front) wheels or on flatbed in order to prevent secondary
damage
from voltage generated by the motor. In addition, turn the power switch OFF when towing the

Page 23 of 36

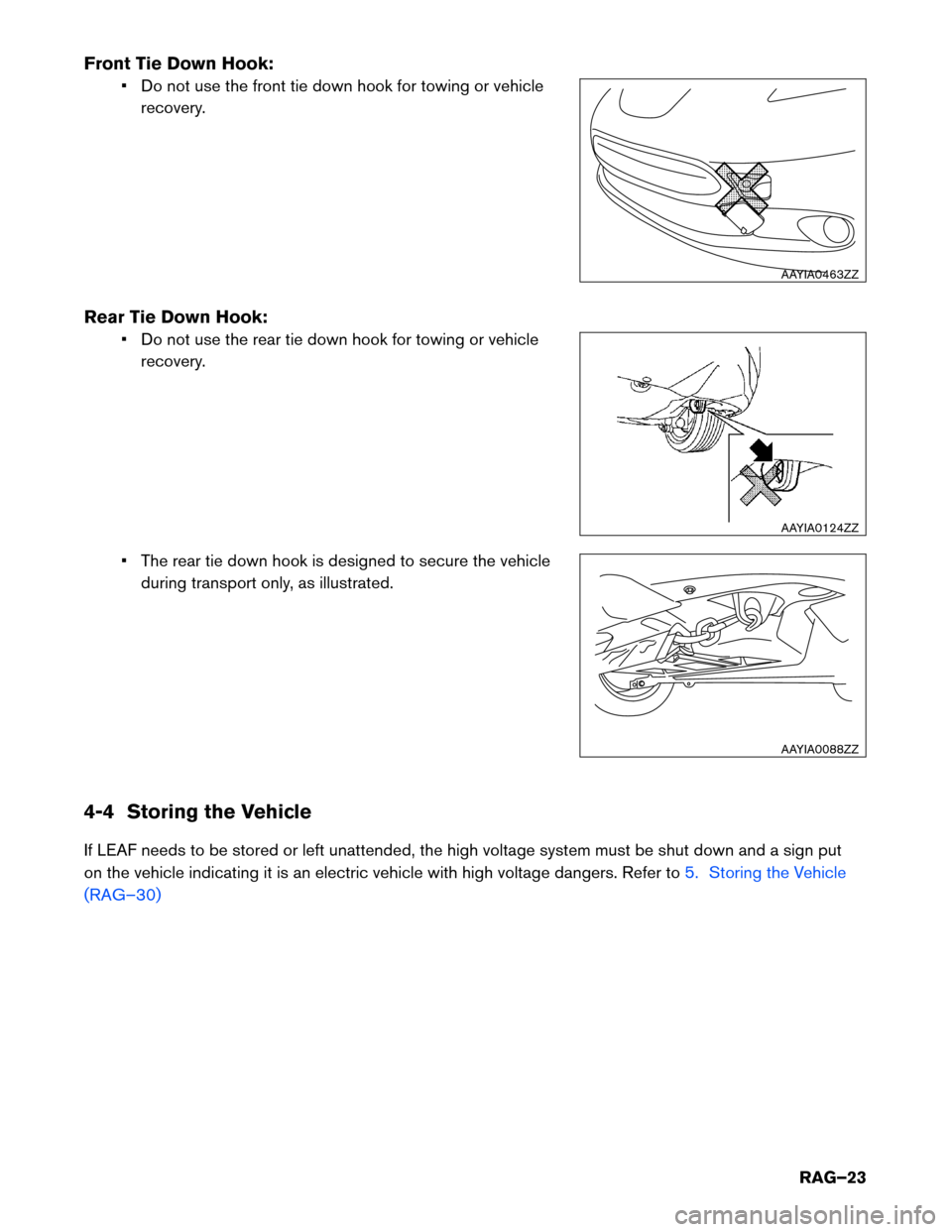

NISSAN LEAF 2016 1.G Roadside Assistance Guide Front Tie Down Hook:
• Do not use the front tie down hook for towing or vehicle
recovery.
Rear Tie Down Hook: • Do not use the rear tie down hook for towing or vehiclerecovery.
• The rear tie do

Page 24 of 36

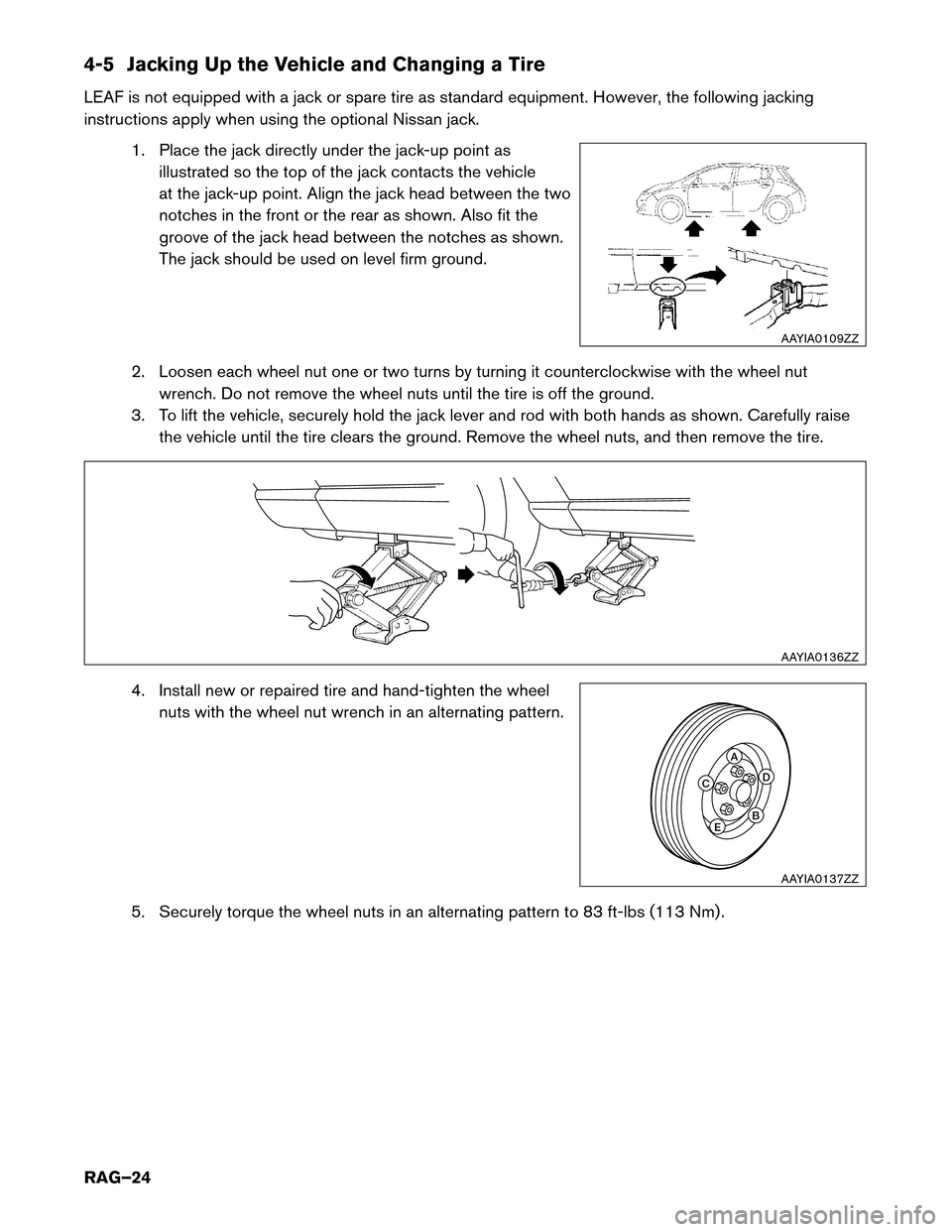

NISSAN LEAF 2016 1.G Roadside Assistance Guide 4-5 Jacking Up the Vehicle and Changing a Tire
LEAF
is not equipped with a jack or spare tire as standard equipment. However, the following jacking
instructions apply when using the optional Nissan ja

Page 25 of 36

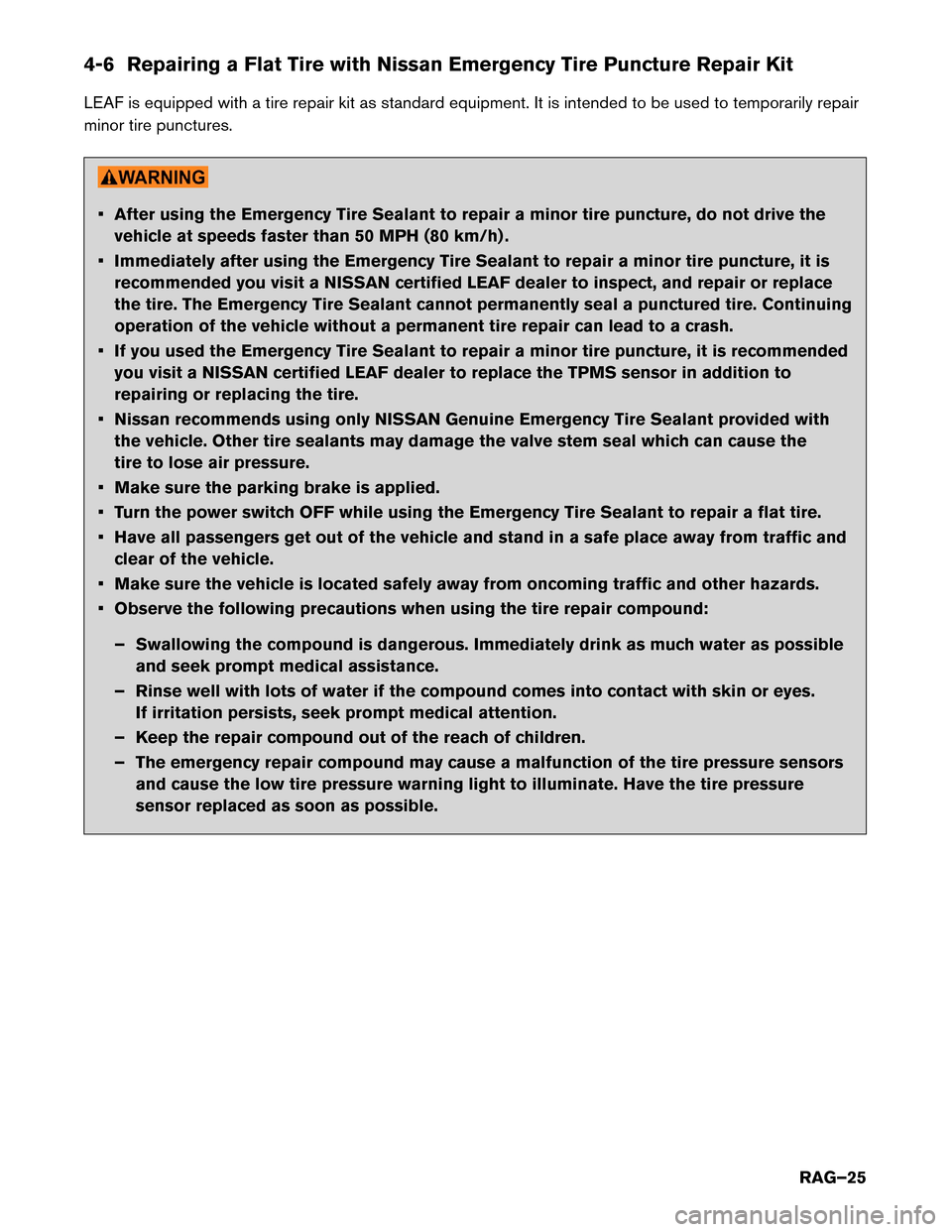

NISSAN LEAF 2016 1.G Roadside Assistance Guide 4-6 Repairing a Flat Tire with Nissan Emergency Tire Puncture Repair Kit
LEAF
is equipped with a tire repair kit as standard equipment. It is intended to be used to temporarily repair
minor tire punct

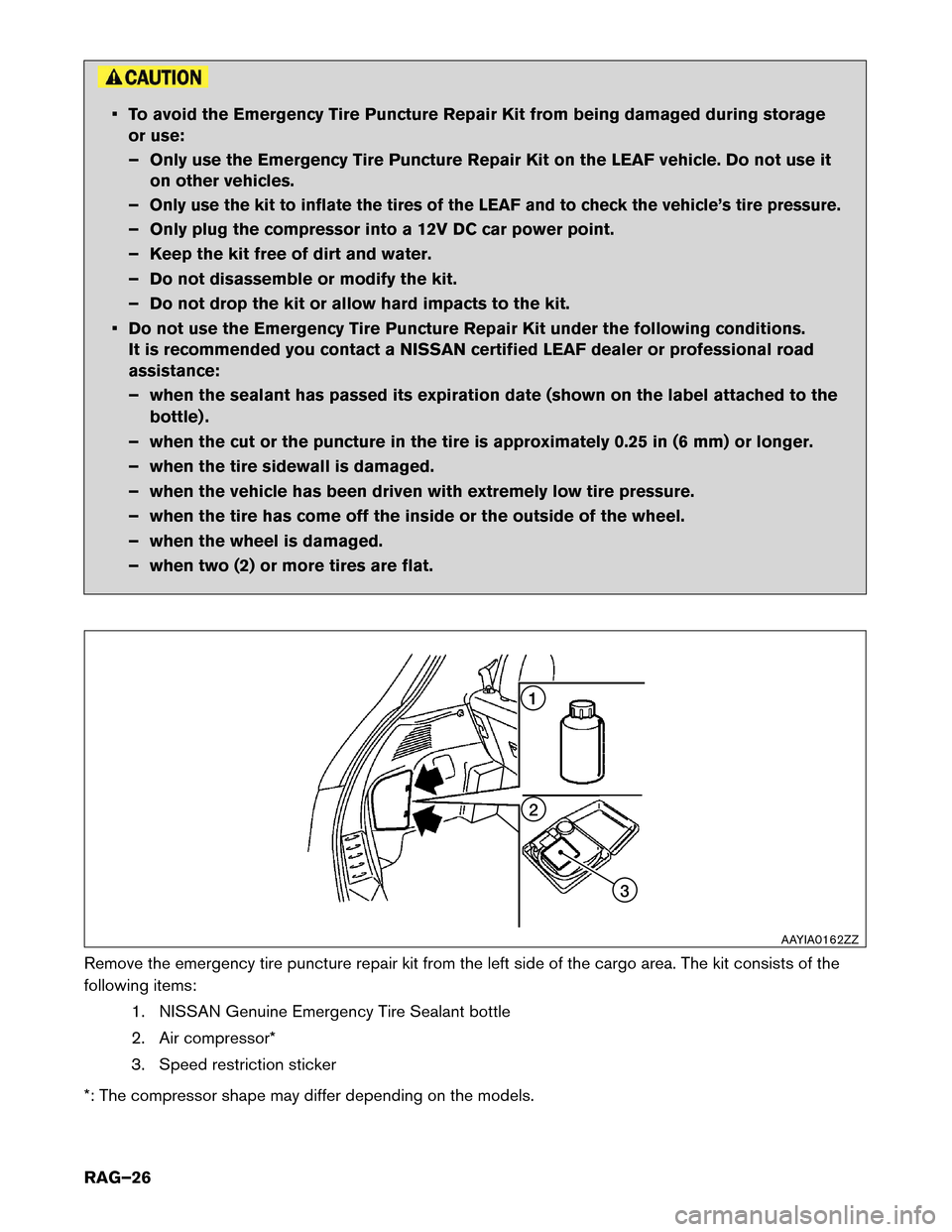

Page 26 of 36

NISSAN LEAF 2016 1.G Roadside Assistance Guide • To avoid the Emergency Tire Puncture Repair Kit from being damaged during storage
or use:
– Only use the Emergency Tire Puncture Repair Kit on the LEAF vehicle. Do not use it on other vehicles.

Page 27 of 36

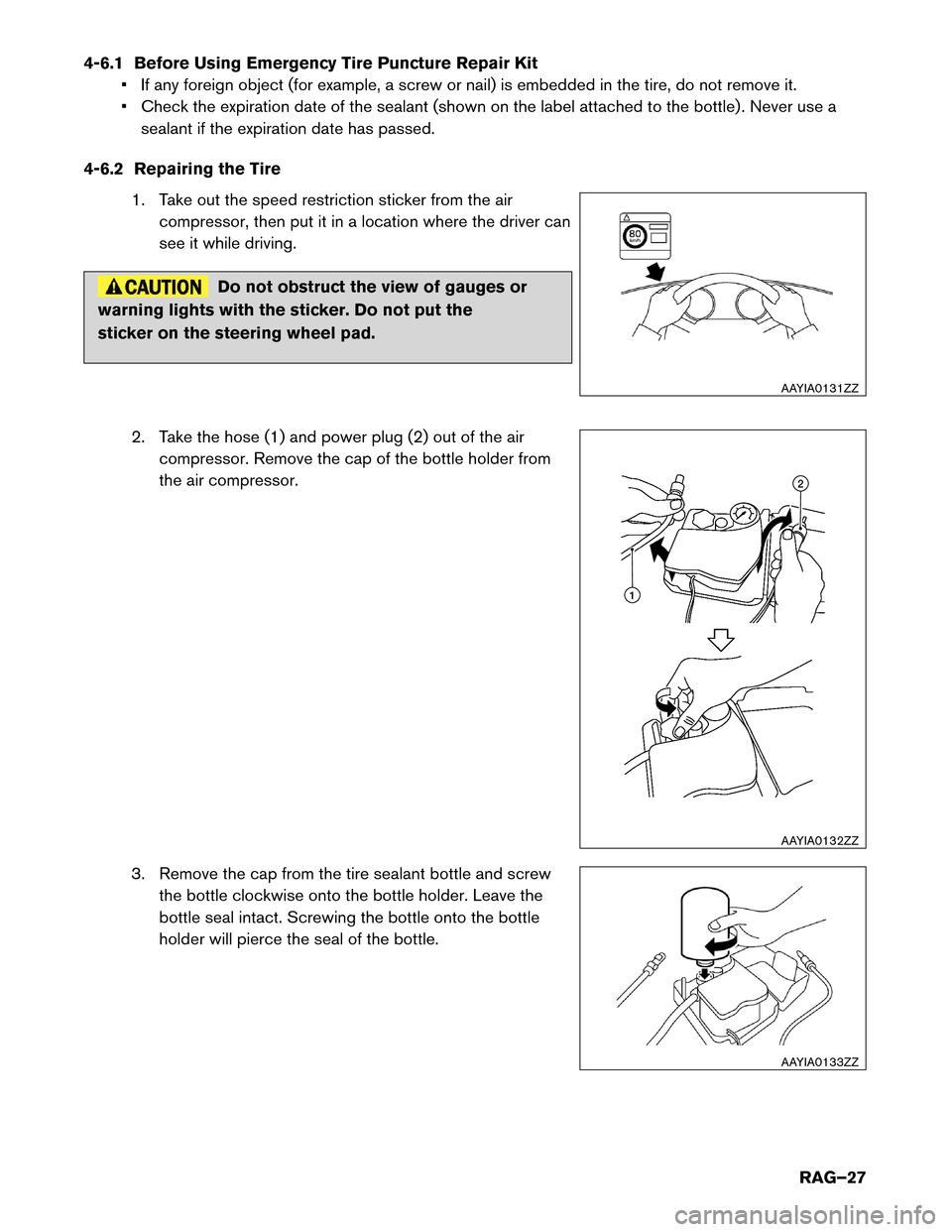

NISSAN LEAF 2016 1.G Roadside Assistance Guide 4-6.1 Before Using Emergency Tire Puncture Repair Kit
• If any foreign object (for example, a screw or nail) is embedded in the tire, do not remove it.
• Check the expiration date of the sealant (

Page 28 of 36

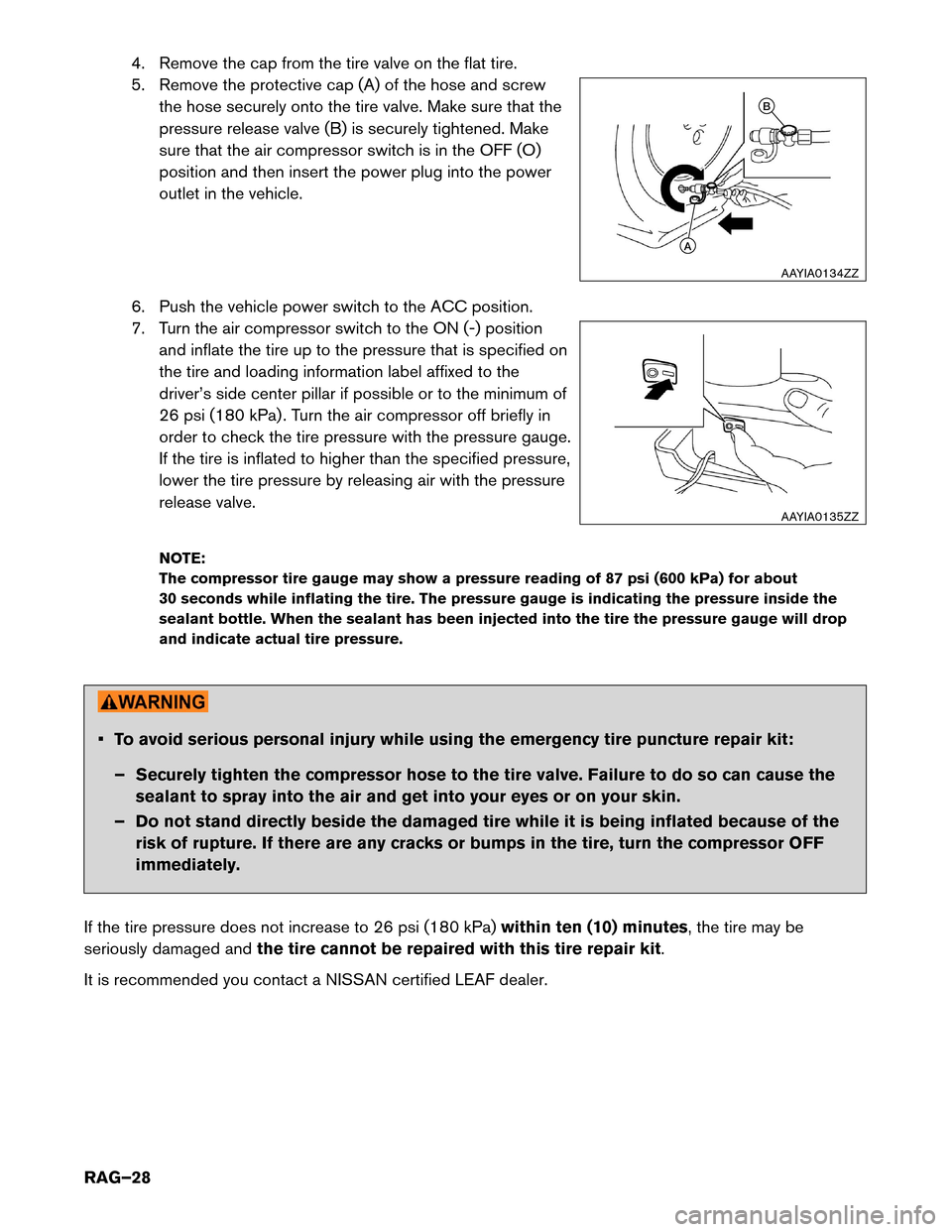

NISSAN LEAF 2016 1.G Roadside Assistance Guide 4. Remove the cap from the tire valve on the flat tire.
5.
Remove the protective cap (A) of the hose and screw
the hose securely onto the tire valve. Make sure that the
pressure release valve (B) is s

Page 29 of 36

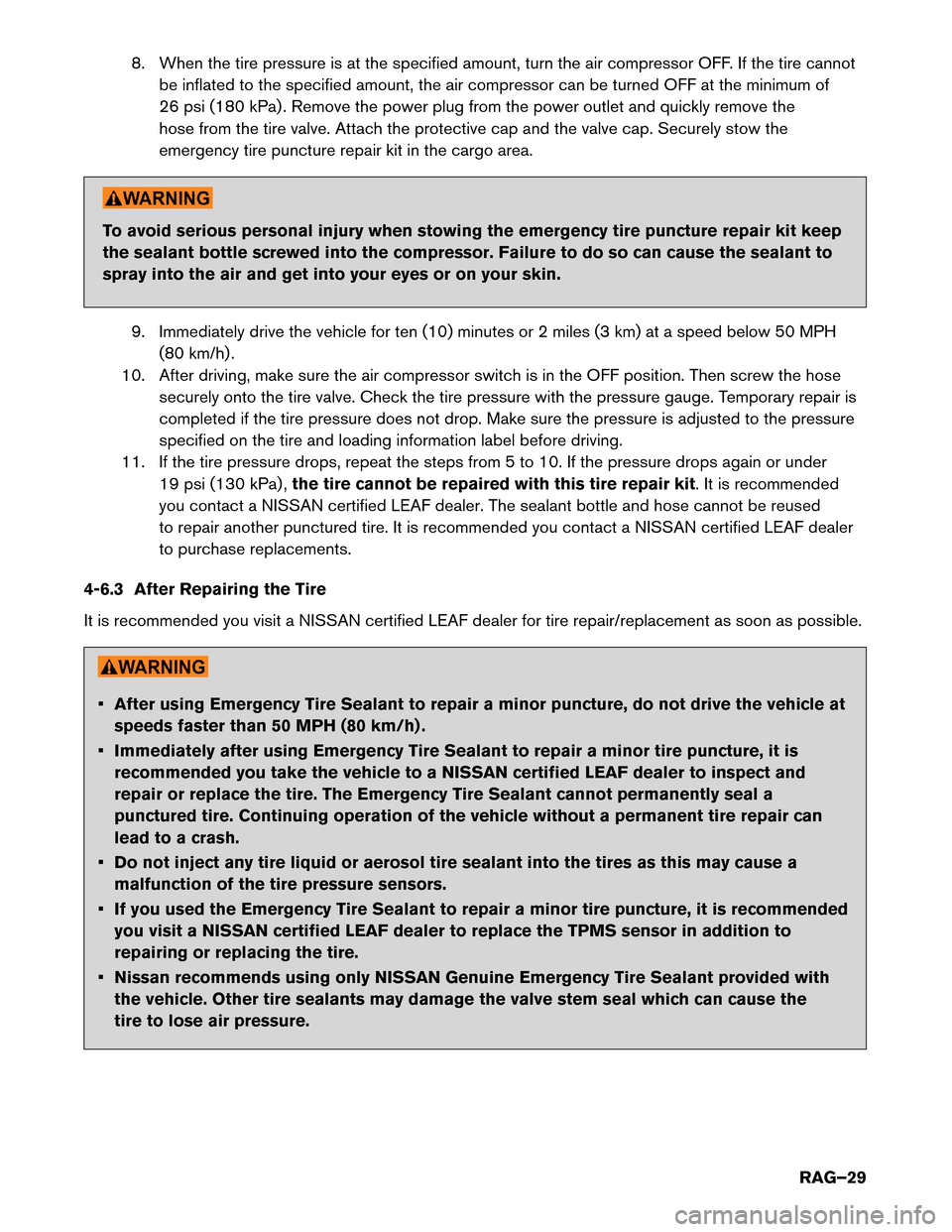

NISSAN LEAF 2016 1.G Roadside Assistance Guide 8. When the tire pressure is at the specified amount, turn the air compressor OFF. If the tire cannot
be inflated to the specified amount, the air compressor can be turned OFF at the minimum of
26 psi

Page 30 of 36

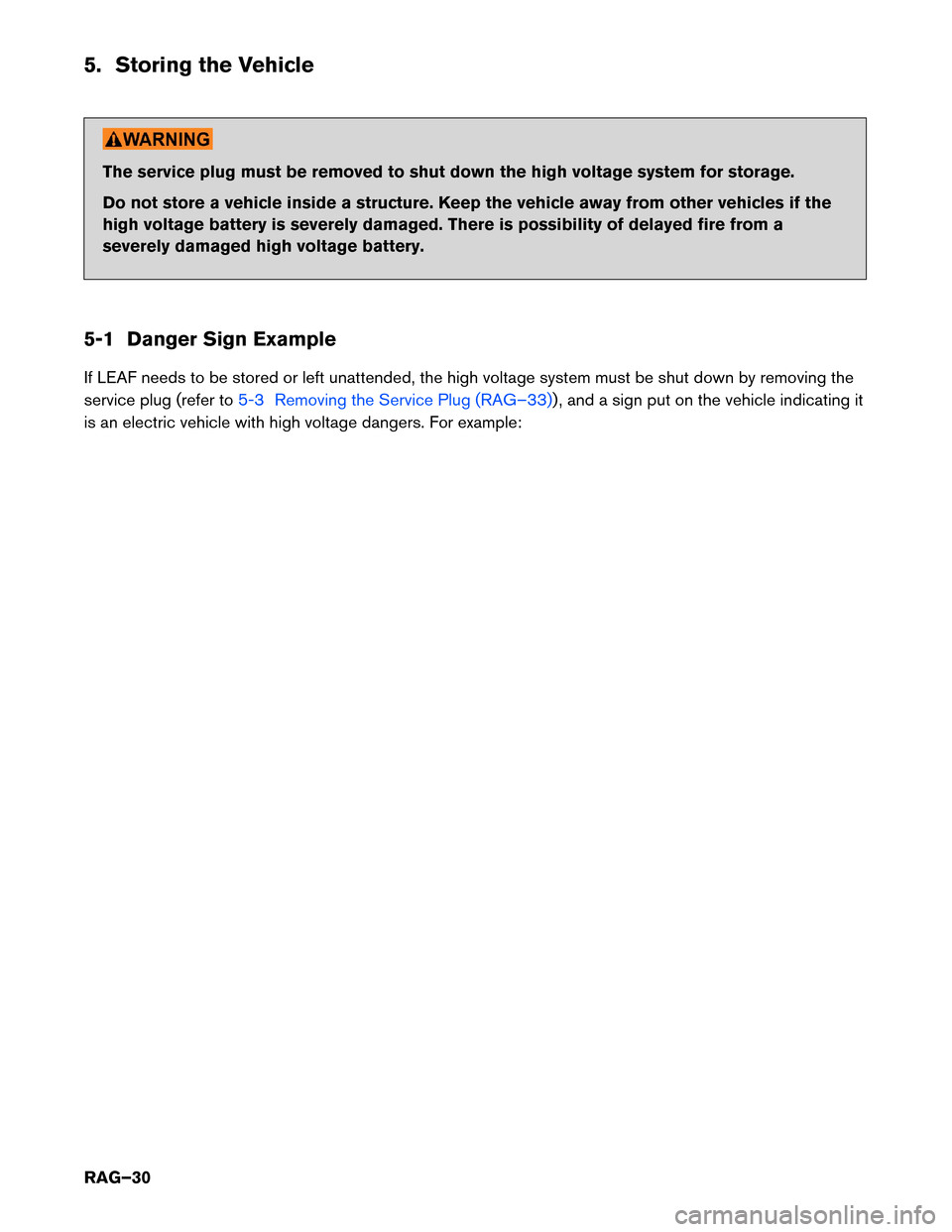

NISSAN LEAF 2016 1.G Roadside Assistance Guide 5. Storing the Vehicle
The service plug must be removed to shut down the high voltage system for storage.
Do
not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
hi
