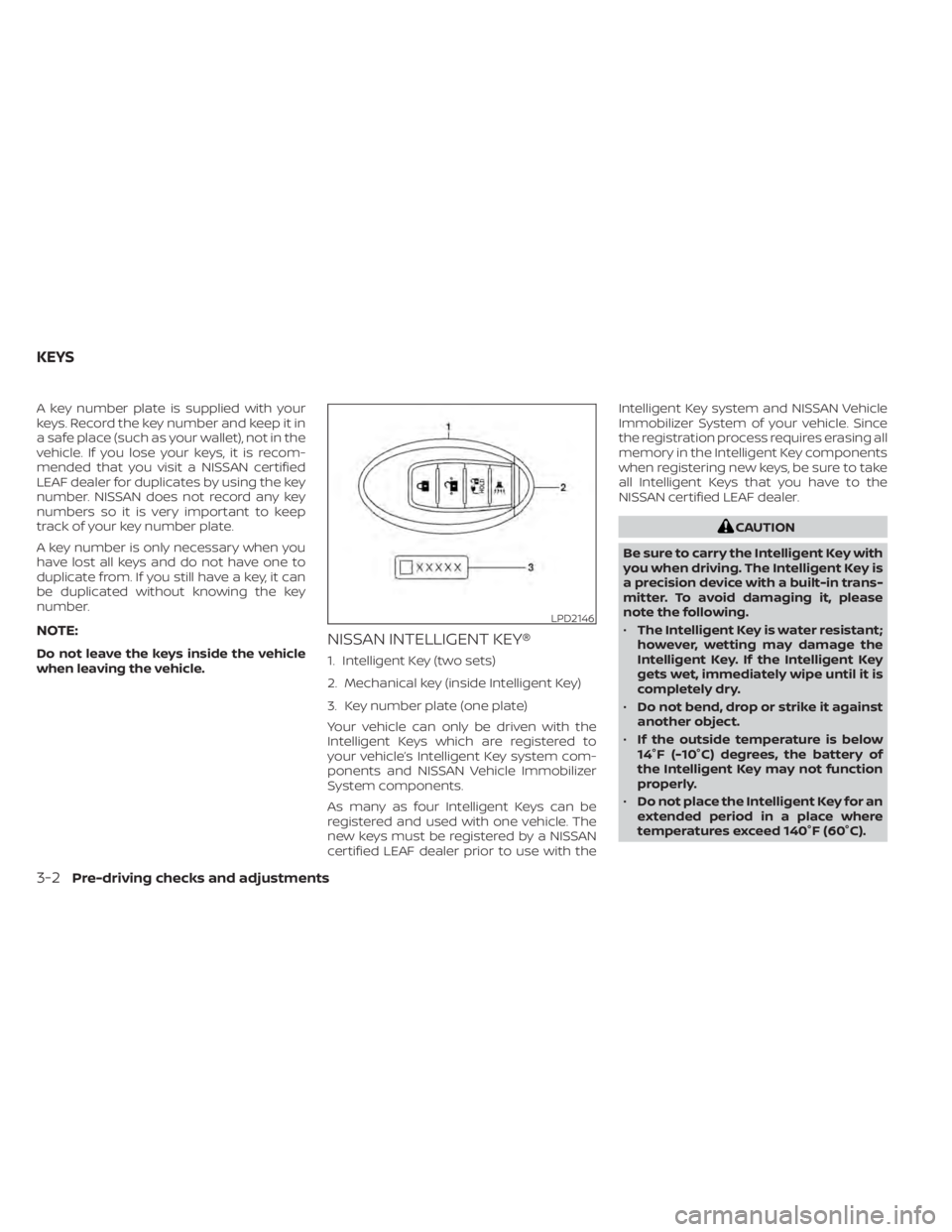

NISSAN LEAF 2020 Owner´s Manual

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN certified
LEAF dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep
track of your key number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.
NOTE:
Do not leave the keys inside the vehicle
when leaving the vehicle.NISSAN INTELLIGENT KEY®
1. Intelligent Key (two sets)
2. Mechanical key (inside Intelligent Key)
3. Key number plate (one plate)
Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and NISSAN Vehicle Immobilizer
System components.
As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered by a NISSAN
certified LEAF dealer prior to use with theIntelligent Key system and NISSAN Vehicle
Immobilizer System of your vehicle. Since
the registration process requires erasing all
memory in the Intelligent Key components
when registering new keys, be sure to take
all Intelligent Keys that you have to the
NISSAN certified LEAF dealer.
CAUTION
Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is
a precision device with a built-in trans-
mitter. To avoid damaging it, please
note the following.
• The Intelligent Key is water resistant;
however, wetting may damage the
Intelligent Key. If the Intelligent Key
gets wet, immediately wipe until it is
completely dry.
• Do not bend, drop or strike it against
another object.
• If the outside temperature is below
14°F (-10°C) degrees, the battery of
the Intelligent Key may not function
properly.
• Do not place the Intelligent Key for an
extended period in a place where
temperatures exceed 140°F (60°C).
LPD2146
KEYS
3-2Pre-driving checks and adjustments

•Do not change or modif y the Intelli-
gent Key.
• Do not use a magnet key holder.
• Do not place the Intelligent Key near
an electric appliance such as a televi-
sion set, personal computer or cellu-
lar phone.
• Do not allow the Intelligent Key to
come into contact with water or salt
water, and do not wash it in a wash-
ing machine. This could affect the
system function.
If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from unau-
thorized use to unlock the vehicle. For
information regarding the erasing pro-
cedure, it is recommended that you
visit a NISSAN certified LEAF dealer.
Mechanical key
To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock
the driver’s door. For additional informa-
tion, refer to “Doors” in this section.
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
master keys which are registered to the
NISSAN Vehicle Immobilizer System com-
ponents in your vehicle. These keys have a
transponder chip in the key head.
The master key can be used for all the
locks.
To protect belongings when you leave a
key with someone, give them the Intelligent
Key only, not the mechanical key.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. A NISSAN
certified LEAF dealer can duplicate your ex-
isting key. As many as four NISSAN Vehicle
Immobilizer System keys can be used with
one vehicle. You should bring all NISSAN
Vehicle Immobilizer System keys that you
have to the NISSAN certified LEAF dealer for
registration. This is because the registra-
tion process will erase the memory of all
key codes previously registered into the
NISSAN Vehicle Immobilizer System. Af ter
SPA2033
Pre-driving checks and adjustments3-3

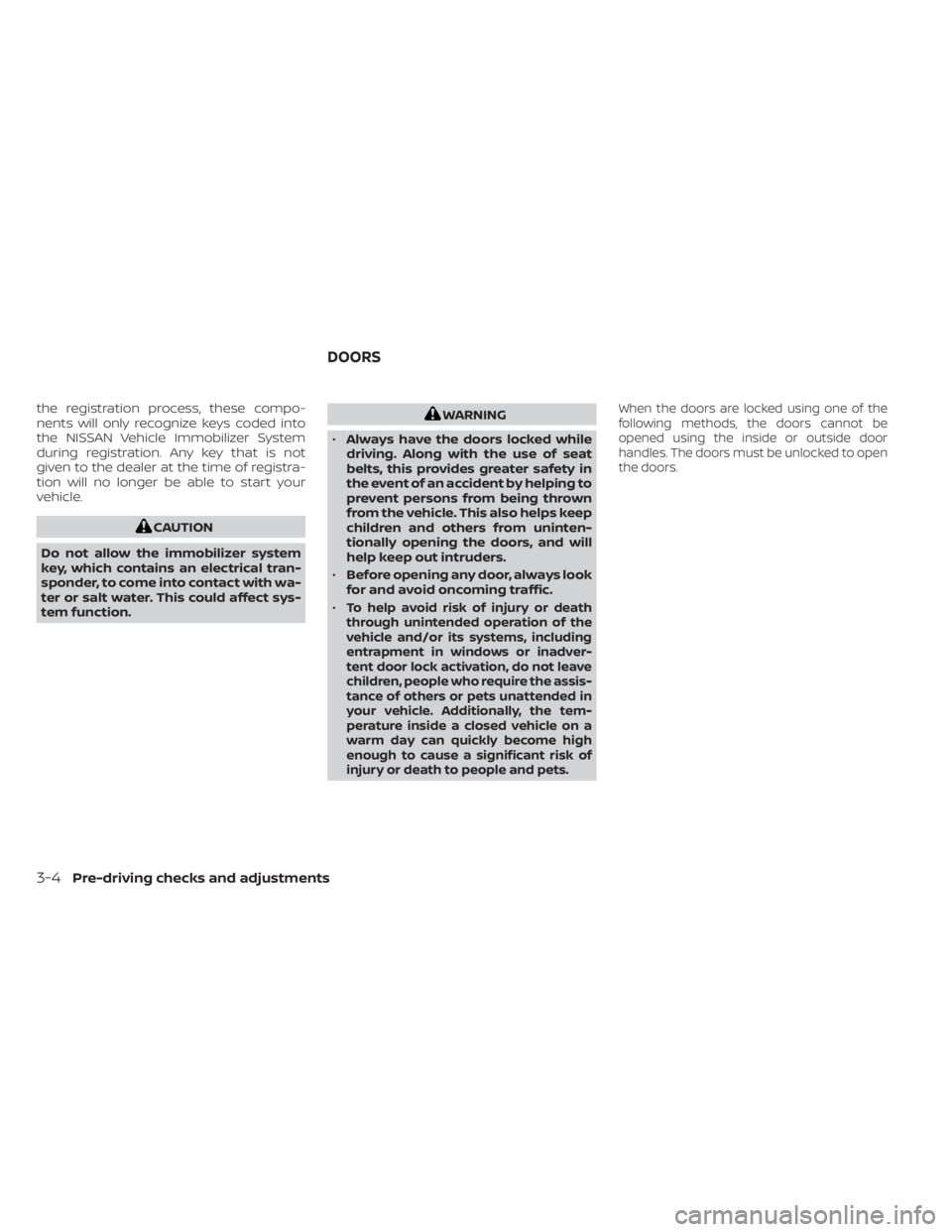

the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any key that is not
given to the dealer at the time of registra-
tion will no longer be able to start your
vehicle.
CAUTION
Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.
WARNING
• Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.
• Before opening any door, always look
for and avoid oncoming traffic.
•
To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.
DOORS
3-4Pre-driving checks and adjustments

LOCKING WITH KEY (driver’s side
only)
To lock the door using the mechanical key,
turn the key toward the front of the vehicle
O1. This will lock all doors and will not acti-
vate the security system. To arm the secu-
rity system, press the
button on the
Intelligent Key.
To unlock the corresponding door using
the mechanical key, turn the key toward
the rear of the vehicle
O2. This will only un-
lock the corresponding door and will not
disarm the security system. For additional information, refer to “Security
systems” in the “Instruments and controls”
section of this manual
LOCKING WITH INSIDE LOCK KNOB
To lock the door without the key, move the
inside lock knob to the lock position
O1
then close the door.
To unlock, move the inside lock knob to the
unlock position
O2.
When locking the door without a key, be
sure not to leave the key inside the ve-
hicle.
SPA2457A
Driver's side
JVC0055X
Pre-driving checks and adjustments3-5

LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’s and front pas-
senger’s door armrests.
To lock the doors, push the power door lock
switch to the lock position
O1.
When locking the door this way, be sure
not to leave the key inside the vehicle.
To unlock the doors, push the power door
lock switch to the unlock position
O2.
Lockout protection
When the power door lock switch is moved
to the lock position while any door is open,
all doors will unlock automatically and a
chime will sound af ter the door is closed.
This function help to prevent the Intelligent
Key from being accidentally locked inside
the vehicle.
AUTOMATIC DOOR LOCKS
• All doors lock automatically when the ve- hicle speed reaches 15 mph (24 km/h).
• All doors unlock automatically when the power switch is placed in the OFF
position.
CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent
the rear doors from being opened acciden-
tally, especially when small children are in
the vehicle.
When the levers are in the lock position
O1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the un-
lock position
O2.
JVC0056XLPD2552
3-6Pre-driving checks and adjustments

WARNING
• Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
• The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises that the radio waves
may affect aircraf t navigation and
communication systems. Do not op-
erate the Intelligent Key while on an
airplane. Make sure the buttons are
not operated unintentionally when
the unit is stored during a flight.
The Intelligent Key system can operate all
the door and the rear hatch locks by using
the remote control function or pushing the
request switch on the vehicle without tak-
ing the key out from a pocket or purse. The
operating environment and/or conditions
may affect the Intelligent Key system op-
eration.
Be sure to read the following items before
using the Intelligent Key system.CAUTION
• Be sure to carry the Intelligent Key
with you when operating the vehicle.
• Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle because it receives ra-
dio waves. The Intelligent Key system
transmits weak radio waves. Environmen-
tal conditions may interfere with the op-
eration of the Intelligent Key system under
the following operating conditions.
• When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station or broad-
casting station.
• When in possession of wireless equip- ment, such as a cellular phone, trans-
ceiver or a CB radio.
• When the Intelligent Key is in contact with or covered by metallic materials.
• When any type of radio wave remote con- trol is used nearby.
• When the Intelligent Key is placed near an electric appliance such as a personal
computer.
• When the vehicle is parked near a parking meter. In such cases, correct the operating condi-
tions before using the Intelligent Key func-
tion or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the
battery’s life is approximately two years. If
the battery is discharged, replace it with a
new one.
When the Intelligent Key battery is almost
discharged, firmly apply the foot brake and
touch the power switch with the Intelligent
Key. Then push the power switch while de-
pressing the brake pedal within 10 seconds
af ter the chime sound.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is lef t near
equipment that transmits strong radio
waves, such as signals from a TV or per-
sonal computer, the battery life may be-
come shorter.
For additional information, refer to “NISSAN
Intelligent Key® battery replacement” in the
“Maintenance and do-it-yourself ” section
of this manual.
Pay special attention that the vehicle bat-
tery is not completely discharged.
As many as four Intelligent Keys can be
registered and used with one vehicle. For
NISSAN INTELLIGENT KEY® SYSTEM
Pre-driving checks and adjustments3-7

information about the purchase and use of
additional Intelligent Keys, it is recom-
mended that you visit a NISSAN certified
LEAF dealer.
CAUTION
• Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with wa-
ter or salt water. This could affect the
functioning of the system.
• Do not drop the Intelligent Key.
• Do not strike the Intelligent Key
sharply against another object.
• Do not change or modif y the Intelli-
gent Key.
• The Intelligent Key may be damaged
if it gets wet. If the Intelligent Key
gets wet, immediately wipe until it is
completely dry.
• If the outside temperature is below
14°F (−10°C), the battery of the Intelli-
gent Key may not function properly.
• Do not place the Intelligent Key for an
extended period in an area where
temperatures exceed 140°F (60°C).
• Do not attach the Intelligent Key to a
key holder that contains a magnet. •
Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computer or cellular phone.
If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may
prevent the unauthorized use of the Intelli-
gent Key to operate the vehicle. For addi-
tional information, it is recommended that
you visit a NISSAN certified LEAF dealer.
The Intelligent Key function can be dis-
abled. For additional information, it is rec-
ommended that you visit a NISSAN certi-
fied LEAF dealer.
NISSAN INTELLIGENT KEY®
OPERATING RANGE OF THE DOOR
LOCK/UNLOCK FUNCTION
The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range from the request
switch
O1.
When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes
narrower, and the Intelligent Key may not
function properly.
LVP0004X
3-8Pre-driving checks and adjustments

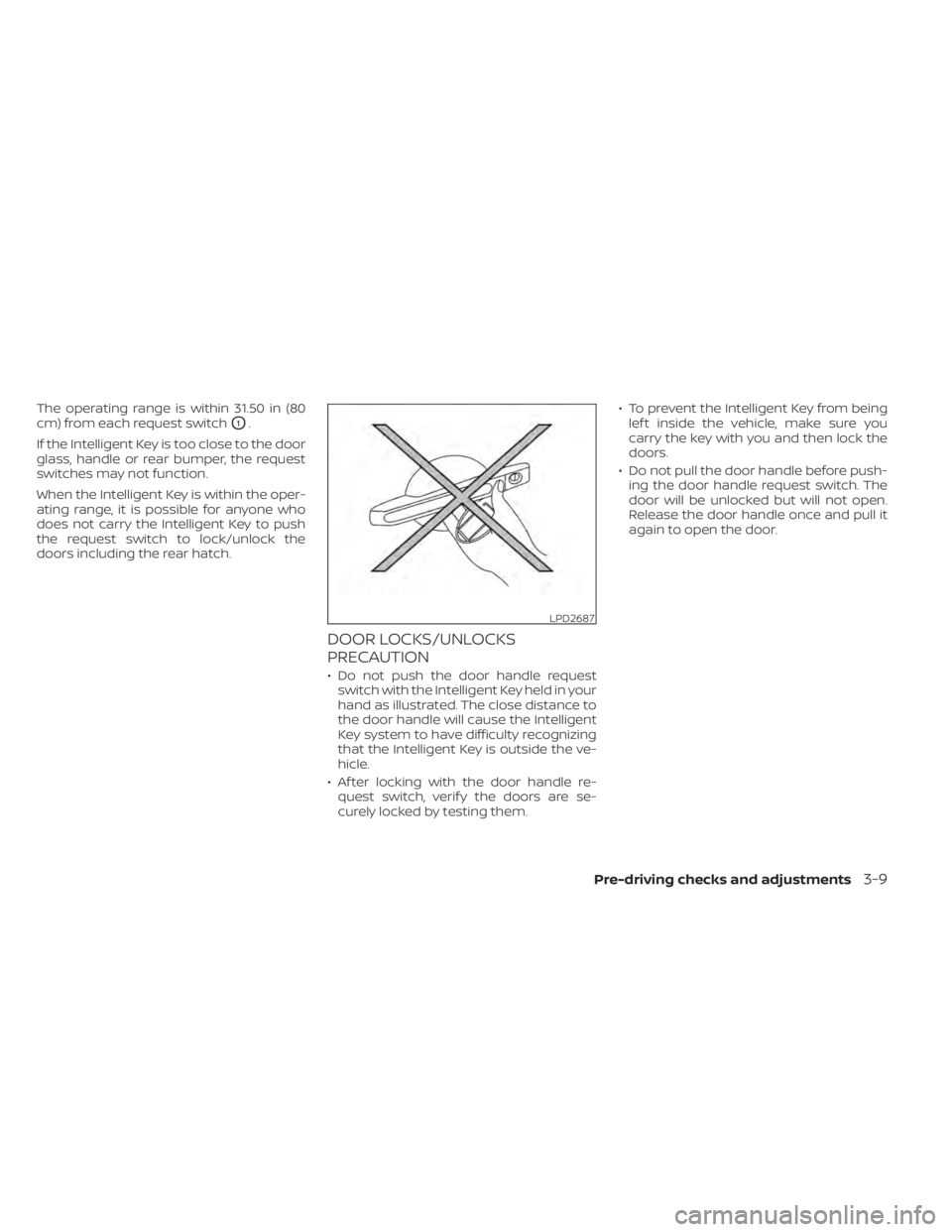

The operating range is within 31.50 in (80
cm) from each request switch
O1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches may not function.
When the Intelligent Key is within the oper-
ating range, it is possible for anyone who
does not carry the Intelligent Key to push
the request switch to lock/unlock the
doors including the rear hatch.
DOOR LOCKS/UNLOCKS
PRECAUTION
• Do not push the door handle request switch with the Intelligent Key held in your
hand as illustrated. The close distance to
the door handle will cause the Intelligent
Key system to have difficulty recognizing
that the Intelligent Key is outside the ve-
hicle.
• Af ter locking with the door handle re- quest switch, verif y the doors are se-
curely locked by testing them. • To prevent the Intelligent Key from being
lef t inside the vehicle, make sure you
carry the key with you and then lock the
doors.
• Do not pull the door handle before push- ing the door handle request switch. The
door will be unlocked but will not open.
Release the door handle once and pull it
again to open the door.
LPD2687
Pre-driving checks and adjustments3-9

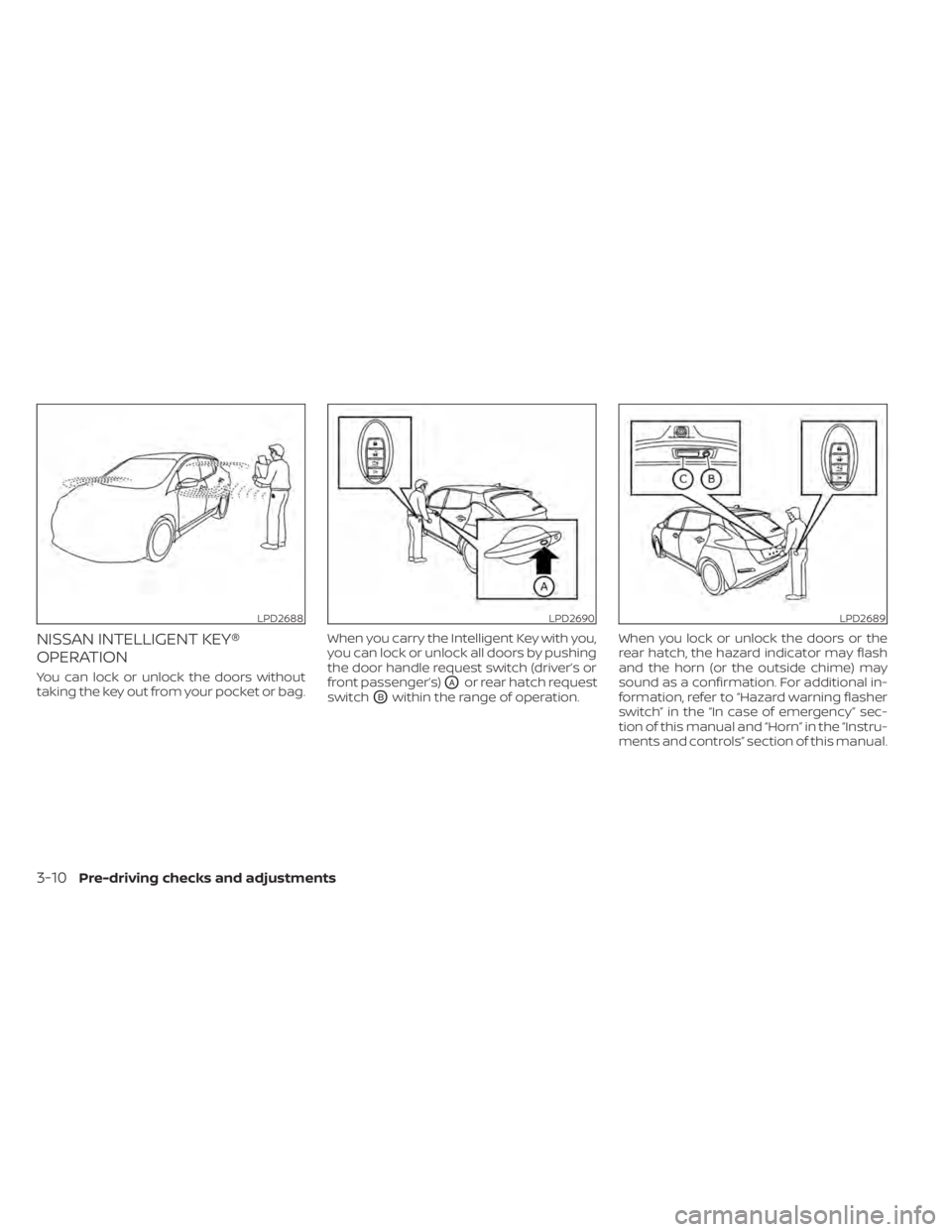

NISSAN INTELLIGENT KEY®
OPERATION
You can lock or unlock the doors without
taking the key out from your pocket or bag.When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch (driver’s or
front passenger’s)OAor rear hatch request
switch
OBwithin the range of operation. When you lock or unlock the doors or the
rear hatch, the hazard indicator may flash
and the horn (or the outside chime) may
sound as a confirmation. For additional in-
formation, refer to “Hazard warning flasher
switch” in the “In case of emergency” sec-
tion of this manual and “Horn” in the “Instru-
ments and controls” section of this manual.
LPD2688LPD2690LPD2689
3-10Pre-driving checks and adjustments

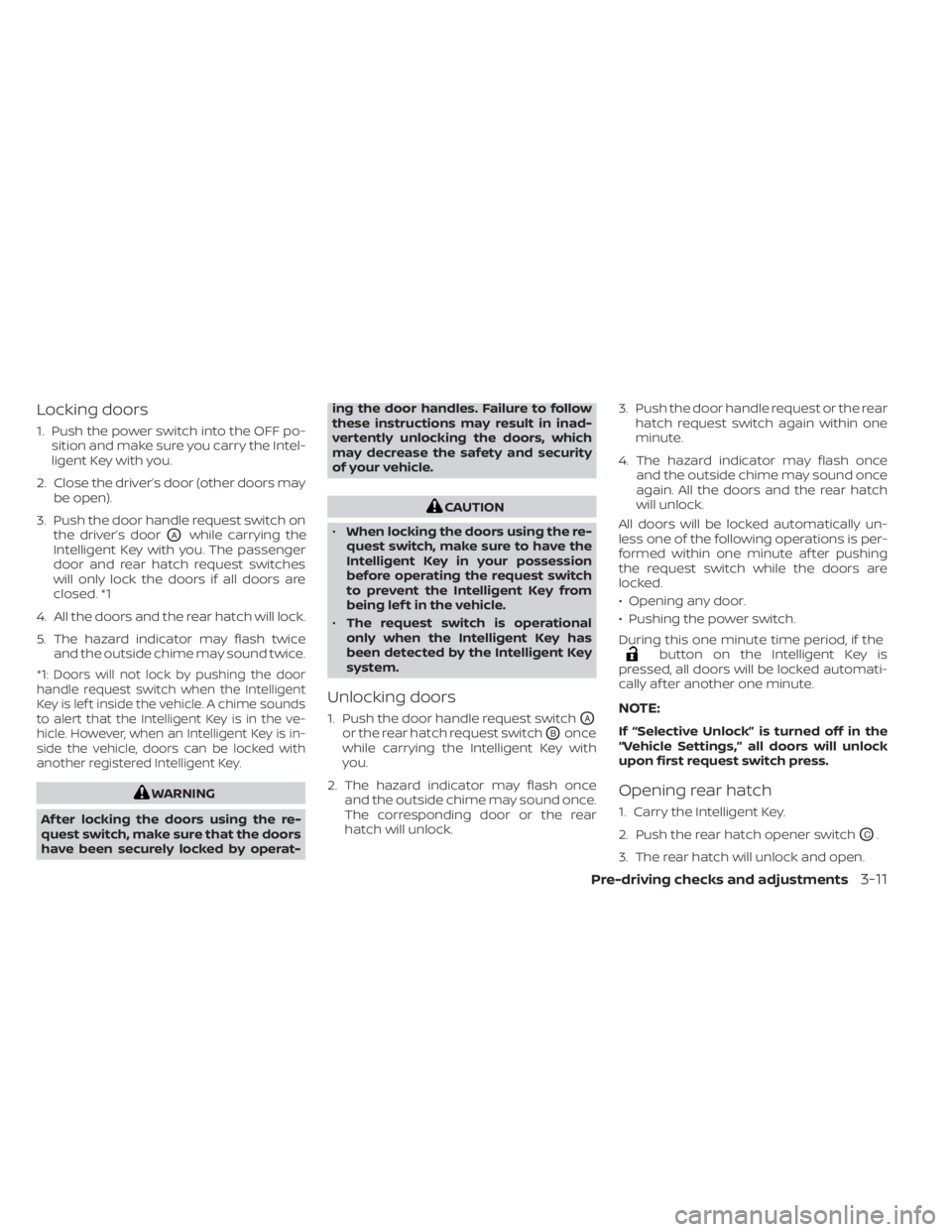

Locking doors
1. Push the power switch into the OFF po-sition and make sure you carry the Intel-
ligent Key with you.
2. Close the driver’s door (other doors may be open).
3. Push the door handle request switch on the driver’s door
OAwhile carrying the
Intelligent Key with you. The passenger
door and rear hatch request switches
will only lock the doors if all doors are
closed. *1
4. All the doors and the rear hatch will lock.
5. The hazard indicator may flash twice and the outside chime may sound twice.
*1: Doors will not lock by pushing the door
handle request switch when the Intelligent
Key is lef t inside the vehicle. A chime sounds
to alert that the Intelligent Key is in the ve-
hicle. However, when an Intelligent Key is in-
side the vehicle, doors can be locked with
another registered Intelligent Key.
WARNING
Af ter locking the doors using the re-
quest switch, make sure that the doors
have been securely locked by operat- ing the door handles. Failure to follow
these instructions may result in inad-
vertently unlocking the doors, which
may decrease the safety and security
of your vehicle.
CAUTION
• When locking the doors using the re-
quest switch, make sure to have the
Intelligent Key in your possession
before operating the request switch
to prevent the Intelligent Key from
being lef t in the vehicle.
• The request switch is operational
only when the Intelligent Key has
been detected by the Intelligent Key
system.
Unlocking doors
1. Push the door handle request switchOA
or the rear hatch request switchOBonce
while carrying the Intelligent Key with
you.
2. The hazard indicator may flash once and the outside chime may sound once.
The corresponding door or the rear
hatch will unlock. 3. Push the door handle request or the rear
hatch request switch again within one
minute.
4. The hazard indicator may flash once and the outside chime may sound once
again. All the doors and the rear hatch
will unlock.
All doors will be locked automatically un-
less one of the following operations is per-
formed within one minute af ter pushing
the request switch while the doors are
locked.
• Opening any door.
• Pushing the power switch.
During this one minute time period, if the
button on the Intelligent Key is
pressed, all doors will be locked automati-
cally af ter another one minute.
NOTE:
If “Selective Unlock” is turned off in the
“Vehicle Settings,” all doors will unlock
upon first request switch press.
Opening rear hatch
1. Carry the Intelligent Key.
2. Push the rear hatch opener switch
OC.
3. The rear hatch will unlock and open.
Pre-driving checks and adjustments3-11
