1. Side and center vents (P. 4-34)
2. Headlight/fog light/turn signal switch
(P. 2-27)
3. Steering wheel switch for audio control
and BluetoothHands-Free Phone
System (if so equipped) (P. 4-84, 4-88)4. Meters and gauges (P. 2-3)
5. Driver supplemental air bag/horn
(P. 1-35, P. 2-32)
6. Security indicator light (P. 2-23)
7. Cruise control main/set switches
(P. 5-18)8. Paddle shift selector (if so equipped)
(P. 5-14)
9. Windshield wiper/washer switch
(P. 2-25)
10. Display screen/Navigation system*
(if so equipped) (P. 4-14)
11. Display screen/Navigation system*
controls (if so equipped) (P. 4-14)
12. Front passenger supplemental air bag
(P. 1-35)
13. Glove box (P. 2-39)
14. Display screen (models without
Navigation system) (P. 4-2)
15. Climate controls (models without
Navigation system) (P. 4-39)
16. Audio system controls (models without
Navigation system) (P. 4-43)
17. Passenger air bag status light (P. 1-44)
18. Audio system controls (P. 4-43)
19. Climate controls (P. 4-39)
20. Shift selector (P. 5-11)
21. Hazard warning flasher switch (P. 2-32)
22. Ignition switch (behind the steering
wheel) (P. 5-7)
23. Tilt/telescopic steering wheel controls
(if so equipped) (P. 3-22)
WIC1446
INSTRUMENT PANEL
0-6Illustrated table of contents
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
11/03/08—debbie


24. Rear control cancel switch
(if so equipped) (P. 2-47)
25. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-35)
26. Outside mirror controls (P. 3-27)
27. Heated steering wheel switch
(if so equipped) (P. 2-34)
28. Trunk lid release switch (P. 3-20)
* Refer to the separate Navigation System
Owner’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


1. Power steering fluid reservoir (P. 8-11)
2. Engine oil filler cap (P. 8-8)
3. Brake fluid reservoir (P. 8-12)
4. Air cleaner (P. 8-17)
5. Fuse block (P. 8-20)
6. Battery (P. 8-13)
7. Fuse/fusible link box (P. 8-20)
8. Engine oil dipstick (P. 8-8)
9. Radiator cap (P. 8-7)
10. Drive belt location (P.8-15)
11. Engine coolant reservoir * (P. 8-7)
12. Windshield washer fluid reservoir *
(P. 8-12)
NOTE:
* Cover removed for clarity.
See the page number indicated in paren-
theses for operating details.
WDI0662
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


Warning
lightName Page
or
Anti-lock Braking
System (ABS) warn-
ing light2-10
or
Brake warning light 2-11
Charge warning
light2-11
Engine oil pressure
warning light2-11
Low tire pressure
warning light2-12
NISSAN Intelligent
Key™ warning light2-13
Seat belt warning
light and chime2-13
Warning
lightName Page
Supplemental air
bag warning light2-13
Indicator
lightName Page
Continuously Vari-
able Transmission
(CVT) indicator light2-14
Continuously Vari-
able Transmission
(CVT) position indi-
cator light2-10
CRUISE main
switch indicator light2-14
Front fog light indi-
cator light (if so
equipped)2-14
Front passenger air
bag status light2-14
Indicator
lightName Page
High beam indicator
light (blue)2-14
Malfunction indica-
tor light (MIL)2-14
Security indicator
light2-15
Slip indicator light 2-15
Turn signal/hazard
indicator lights2-15
Vehicle Dynamic
Control OFF indica-
tor light2-15
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


0-10Illustrated table of contents
MEMO

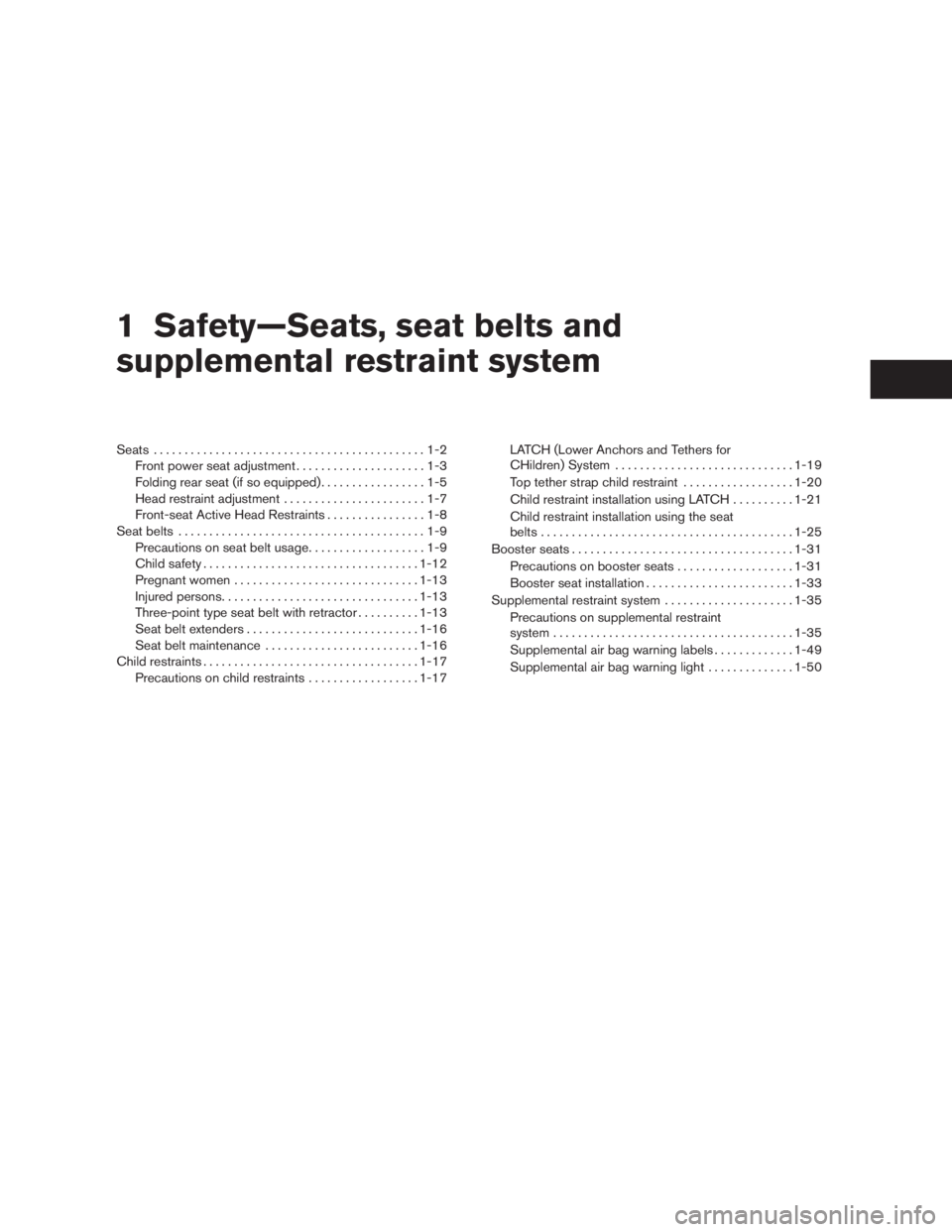

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment.....................1-3
Folding rear seat (if so equipped).................1-5
Head restraint adjustment.......................1-7
Front-seat Active Head Restraints................1-8
Seat belts........................................1-9
Precautions on seat belt usage...................1-9
Child safety...................................1-12
Pregnant women..............................1-13
Injured persons................................1-13
Three-point type seat belt with retractor..........1-13
Seat belt extenders............................1-16
Seat belt maintenance.........................1-16
Child restraints...................................1-17
Precautions on child restraints..................1-17LATCH (Lower Anchors and Tethers for
CHildren) System.............................1-19
Top tether strap child restraint..................1-20
Child restraint installation using LATCH..........1-21
Child restraint installation using the seat
belts.........................................1-25
Booster seats....................................1-31
Precautions on booster seats...................1-31
Booster seat installation........................1-33
Supplemental restraint system.....................1-35
Precautions on supplemental restraint
system.......................................1-35
Supplemental air bag warning labels.............1-49
Supplemental air bag warning light..............1-50
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.●For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
●After adjustment, gently rock in the seat
to make sure it is securely locked.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.●The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


FRONT POWER SEAT
ADJUSTMENT
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
●Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner (if so equipped)”
in “Pre-driving checks and adjustments” for auto-
matic drive positioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the transmission is in P
(Park) .
WRS0860
Safety—Seats, seat belts and supplemental restraint system1-3
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
(manual) or move the switch forward or backward
(power) to adjust the seat lumbar area.
WRS0861
Manual
LRS0862
Power
LRS0238
1-4Safety—Seats, seat belts and supplemental restraint system
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/21/08—tbrooks


Thigh extension (driver’s side only, if
so equipped)
Pull up and hold the lever to extend the front
portion to the desired position.
FOLDING REAR SEAT (if so
equipped)Interior trunk access
For models without a rear center console, the
trunk can be accessed from the passenger side
of the rear seat for loading and unloading, as
shown.
1Push down on the button on the rear parcel
shelf.
2Fold down the passenger side seatback.
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
LRS0863
WRS0866
Safety—Seats, seat belts and supplemental restraint system1-5
