NISSAN MAXIMA 2011 Owner´s Manual

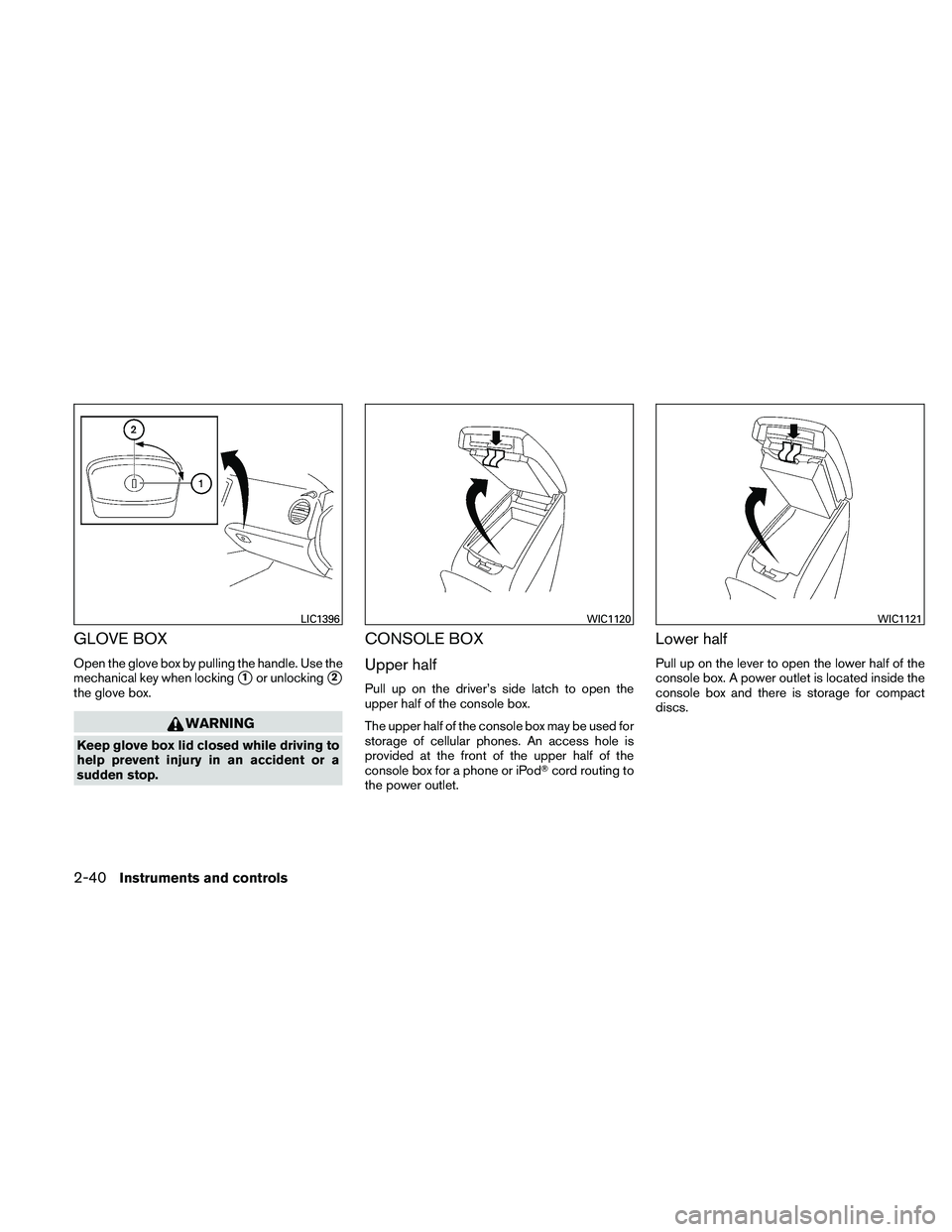

GLOVE BOX
Open the glove box by pulling the handle. Use the
mechanical key when locking
1or unlocking2
the glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
CONSOLE BOX
Upper half
Pull up on the driver’s side latch to open the
upper half of the console box.
The upper half of the console box may be used for
storage of cellular phones. An access hole is
provided at the front of the upper half of the
console box for a phone or iPodcord routing to
the power outlet.
Lower half
Pull up on the lever to open the lower half of the
console box. A power outlet is located inside the
console box and there is storage for compact
discs.
LIC1396WIC1120WIC1121
2-40Instruments and controls

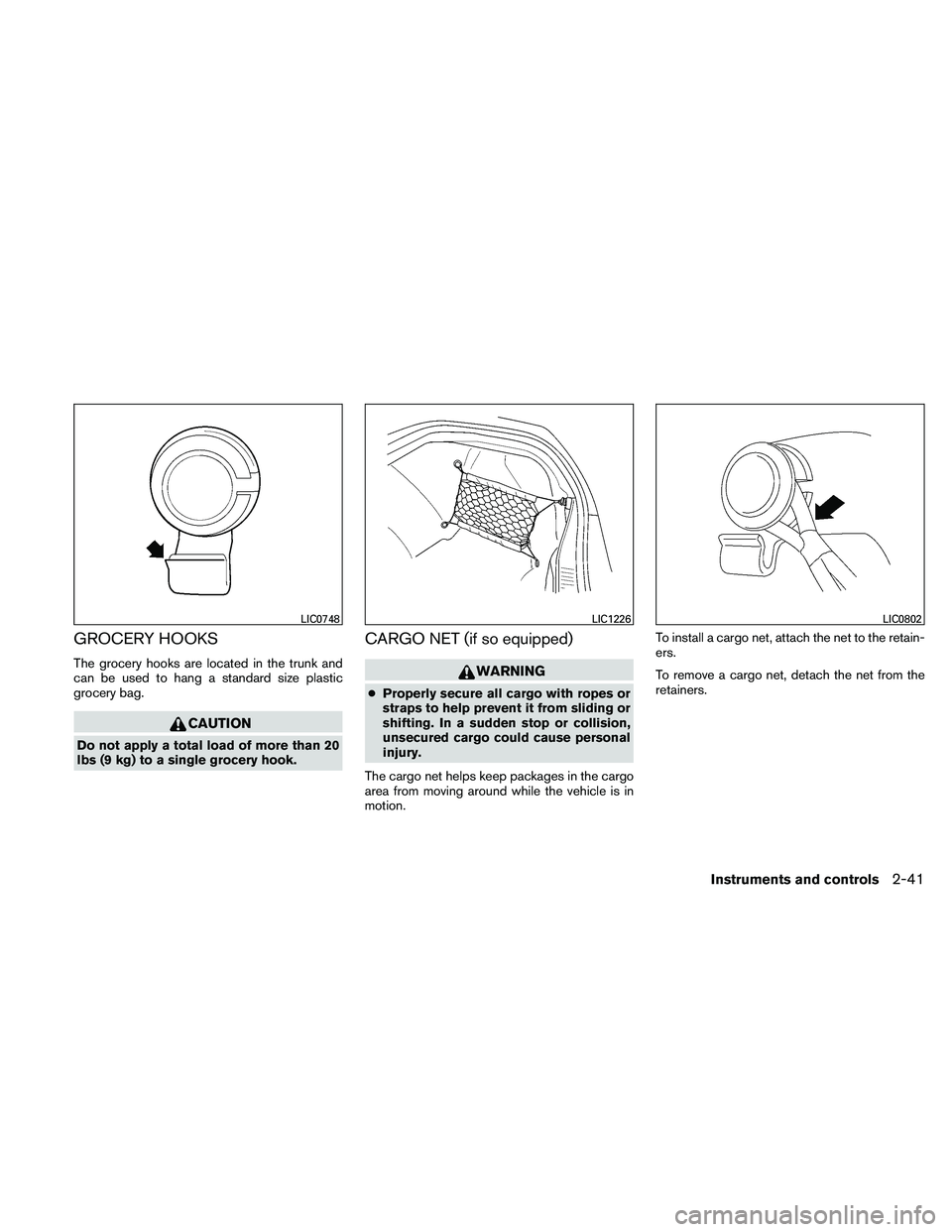

GROCERY HOOKS
The grocery hooks are located in the trunk and
can be used to hang a standard size plastic
grocery bag.
CAUTION
Do not apply a total load of more than 20
lbs (9 kg) to a single grocery hook.
CARGO NET (if so equipped)
WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
The cargo net helps keep packages in the cargo
area from moving around while the vehicle is in
motion. To install a cargo net, attach the net to the retain-
ers.
To remove a cargo net, detach the net from the
retainers.
LIC0748LIC1226LIC0802
Instruments and controls2-41

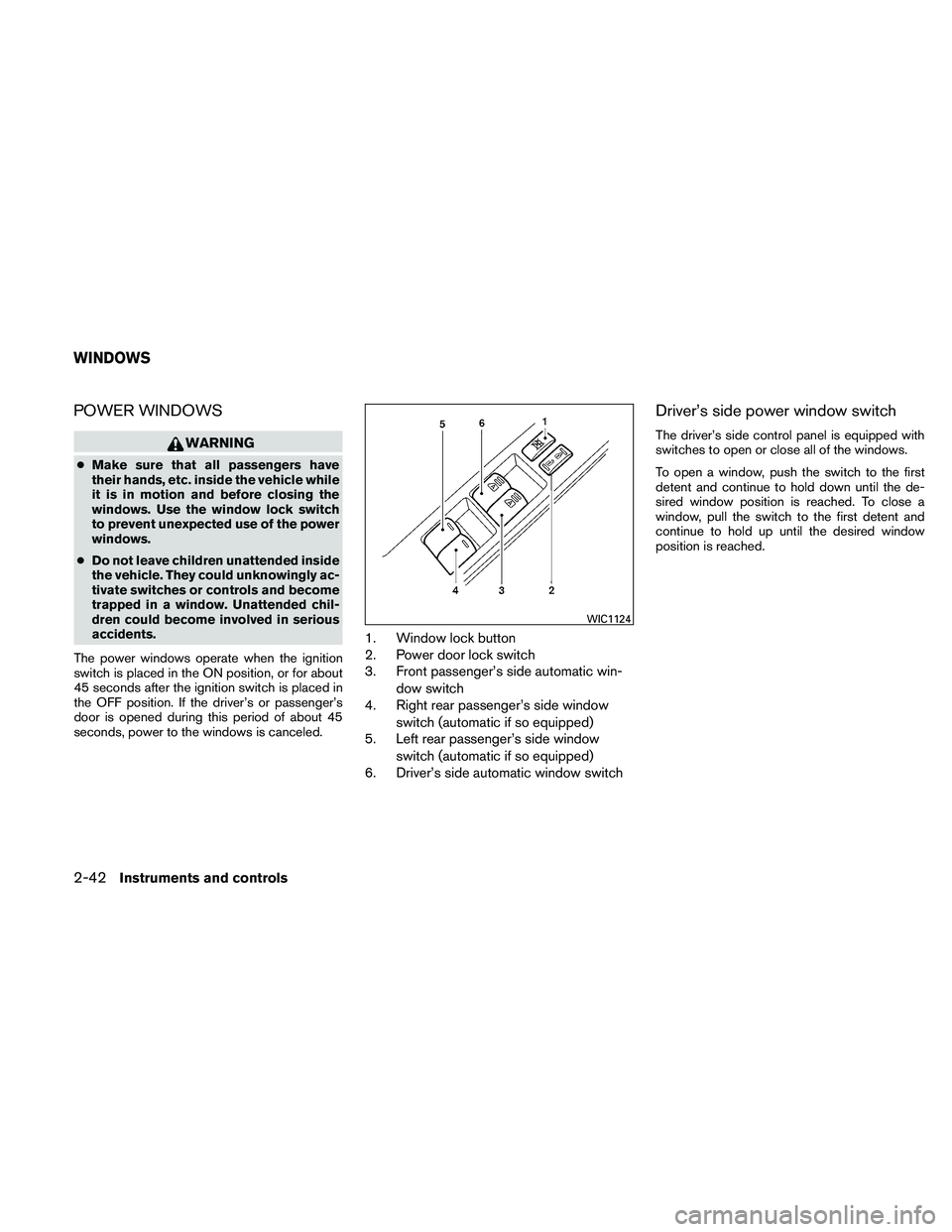

POWER WINDOWS
WARNING
●Make sure that all passengers have
their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch
to prevent unexpected use of the power
windows.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls and become
trapped in a window. Unattended chil-
dren could become involved in serious
accidents.
The power windows operate when the ignition
switch is placed in the ON position, or for about
45 seconds after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
1. Window lock button
2. Power door lock switch
3. Front passenger’s side automatic win- dow switch
4. Right rear passenger’s side window
switch (automatic if so equipped)
5. Left rear passenger’s side window
switch (automatic if so equipped)
6. Driver’s side automatic window switch
Driver’s side power window switch
The driver’s side control panel is equipped with
switches to open or close all of the windows.
To open a window, push the switch to the first
detent and continue to hold down until the de-
sired window position is reached. To close a
window, pull the switch to the first detent and
continue to hold up until the desired window
position is reached.
WIC1124
WINDOWS
2-42Instruments and controls

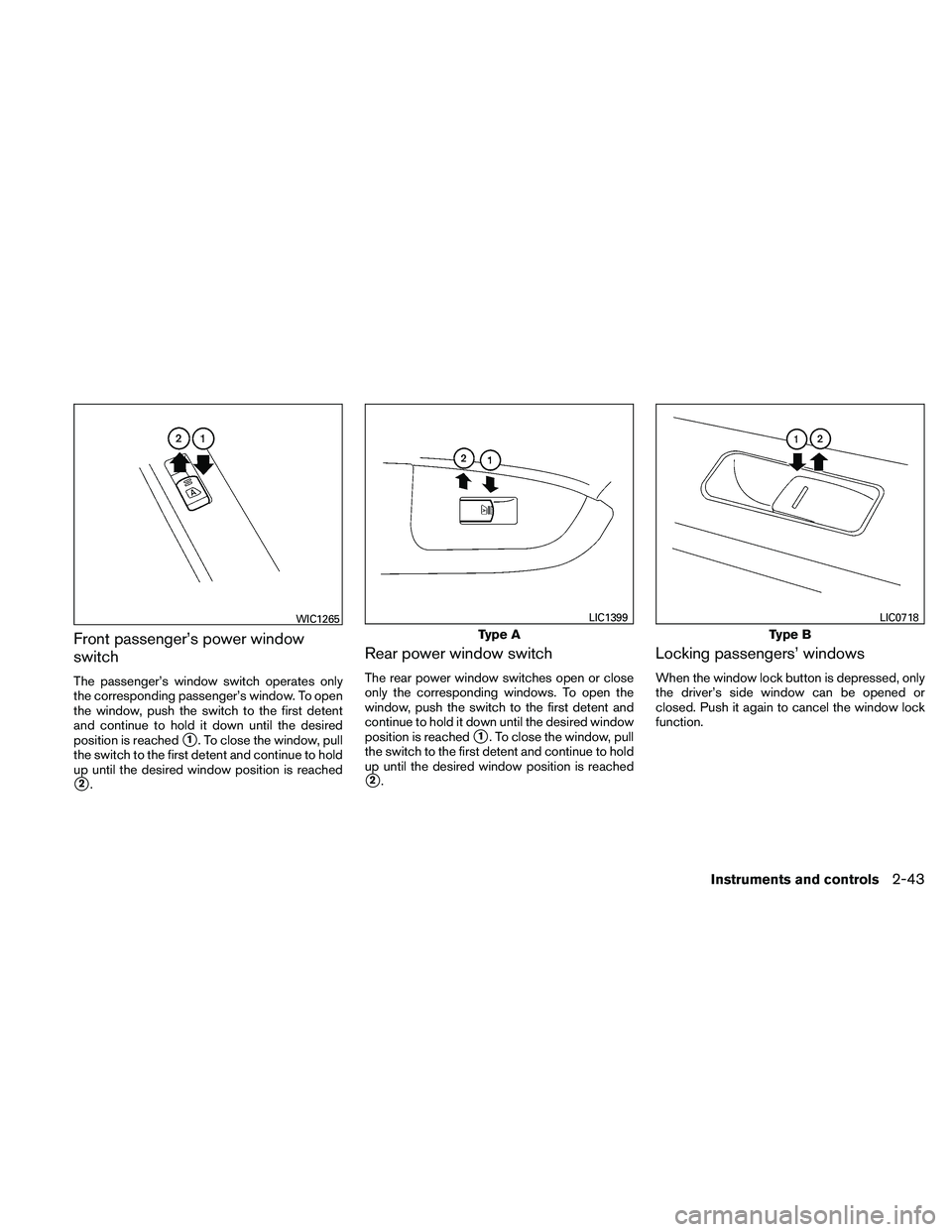

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch to the first detent
and continue to hold it down until the desired
position is reached
1. To close the window, pull
the switch to the first detent and continue to hold
up until the desired window position is reached
2.
Rear power window switch
The rear power window switches open or close
only the corresponding windows. To open the
window, push the switch to the first detent and
continue to hold it down until the desired window
position is reached
1. To close the window, pull
the switch to the first detent and continue to hold
up until the desired window position is reached
2.
Locking passengers’ windows
When the window lock button is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
WIC1265
Type A
LIC1399
Type B
LIC0718
Instruments and controls2-43

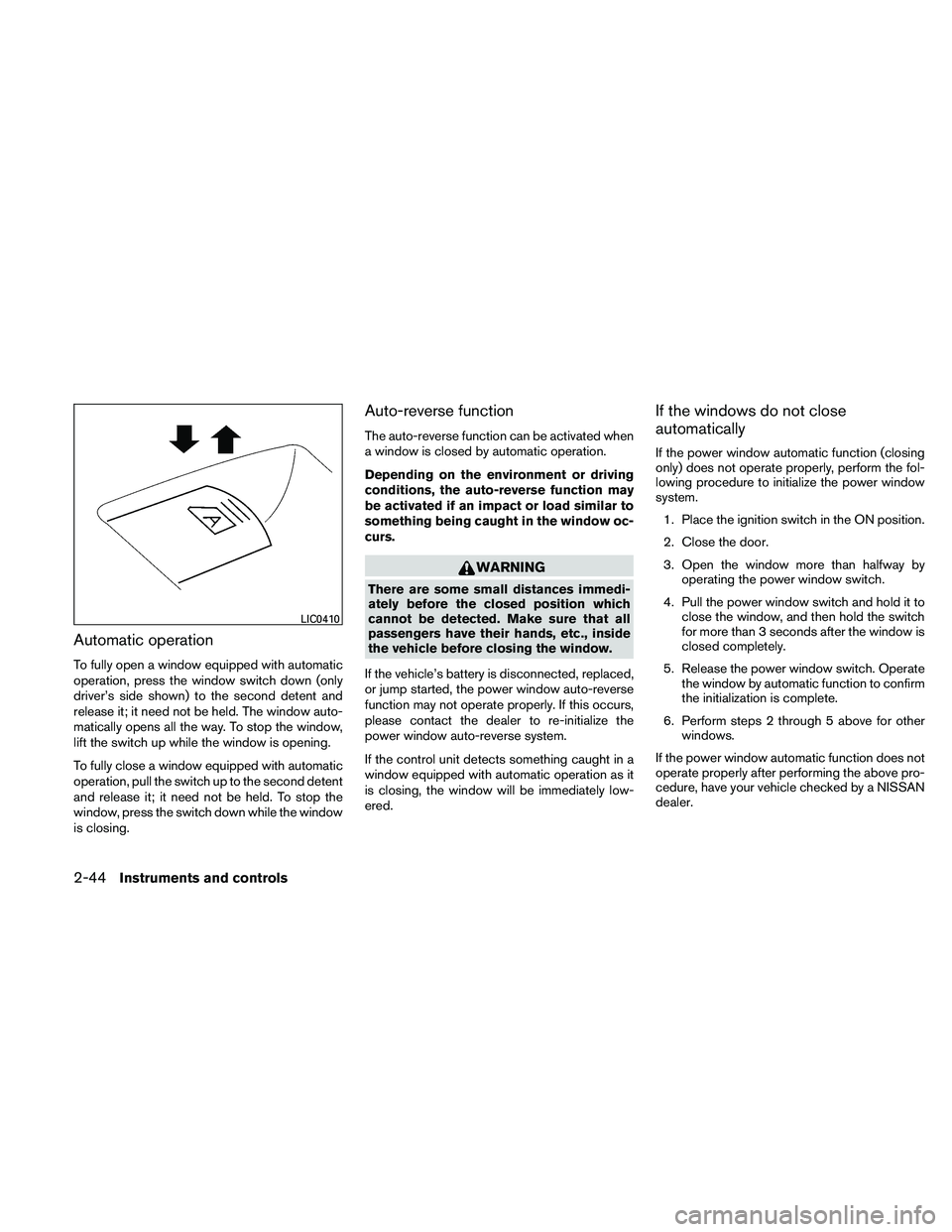

Automatic operation
To fully open a window equipped with automatic
operation, press the window switch down (only
driver’s side shown) to the second detent and
release it; it need not be held. The window auto-
matically opens all the way. To stop the window,
lift the switch up while the window is opening.
To fully close a window equipped with automatic
operation, pull the switch up to the second detent
and release it; it need not be held. To stop the
window, press the switch down while the window
is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact the dealer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system. 1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window more than halfway by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
for more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by automatic function to confirm
the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does not
operate properly after performing the above pro-
cedure, have your vehicle checked by a NISSAN
dealer.
LIC0410
2-44Instruments and controls

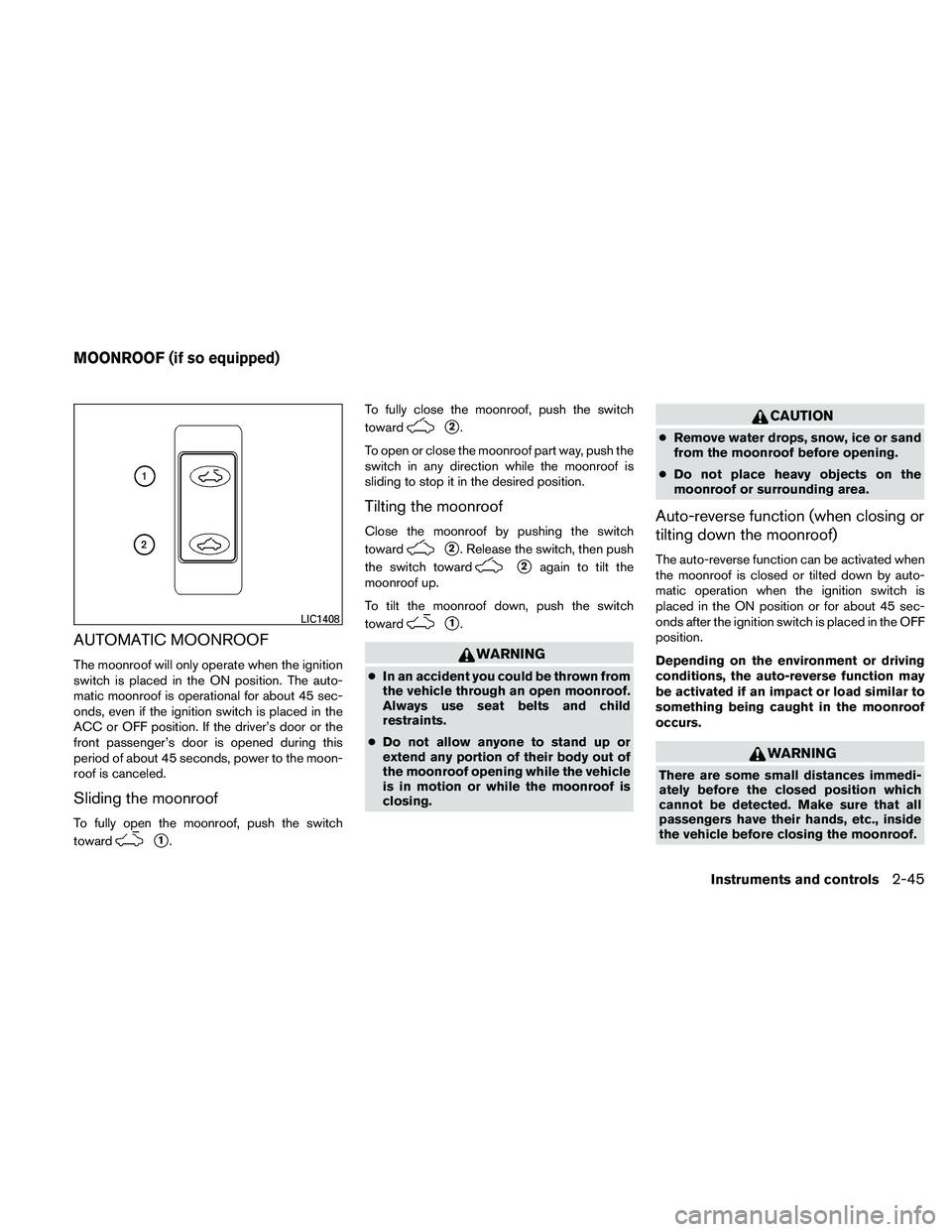

AUTOMATIC MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The auto-
matic moonroof is operational for about 45 sec-
onds, even if the ignition switch is placed in the
ACC or OFF position. If the driver’s door or the
front passenger’s door is opened during this
period of about 45 seconds, power to the moon-
roof is canceled.
Sliding the moonroof
To fully open the moonroof, push the switch
toward
1.To fully close the moonroof, push the switch
toward
2.
To open or close the moonroof part way, push the
switch in any direction while the moonroof is
sliding to stop it in the desired position.
Tilting the moonroof
Close the moonroof by pushing the switch
toward
2. Release the switch, then push
the switch toward
2again to tilt the
moonroof up.
To tilt the moonroof down, push the switch
toward
1.
WARNING
● In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for about 45 sec-
onds after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
LIC1408
MOONROOF (if so equipped)
Instruments and controls2-45

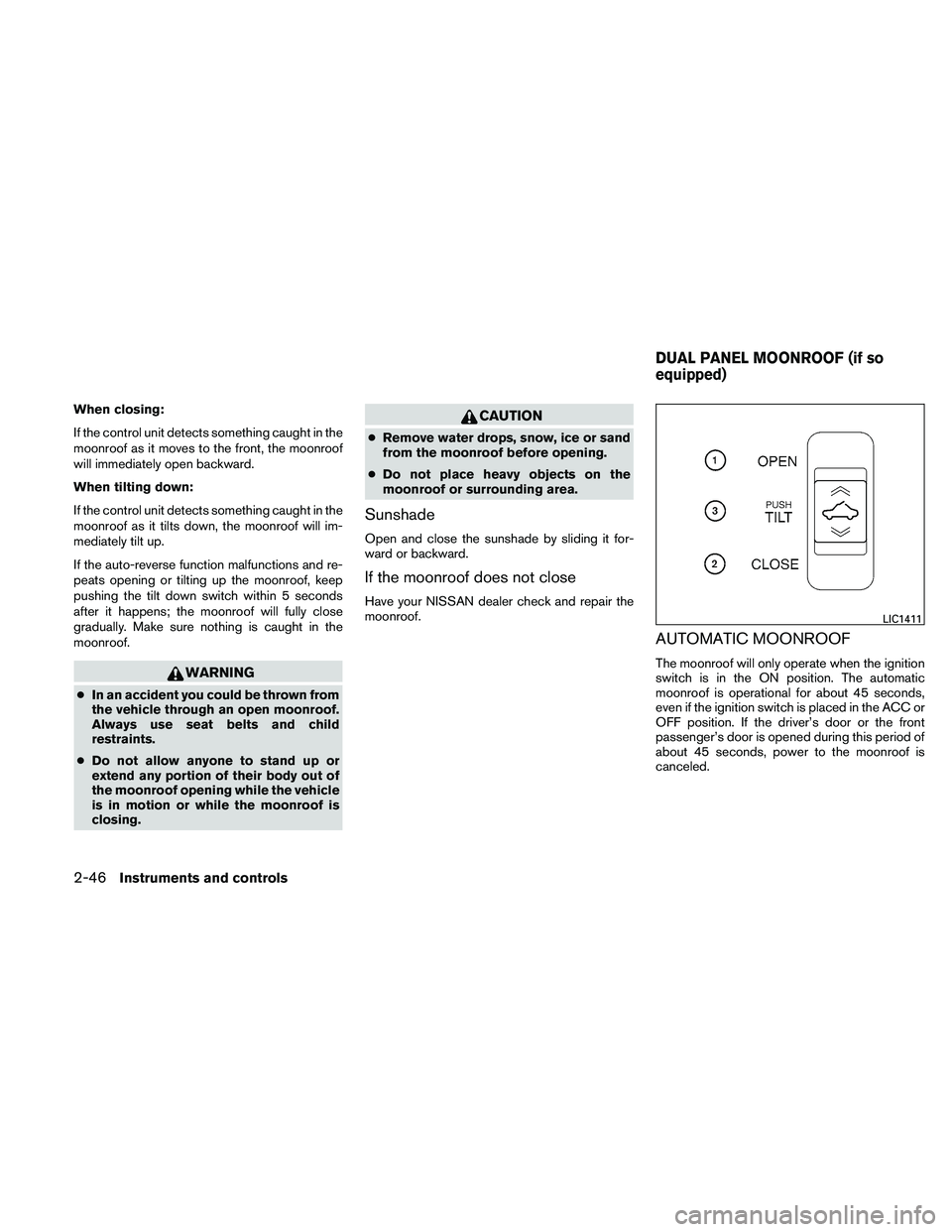

When closing:
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down:
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
Sunshade
Open and close the sunshade by sliding it for-
ward or backward.
If the moonroof does not close
Have your NISSAN dealer check and repair the
moonroof.
AUTOMATIC MOONROOF
The moonroof will only operate when the ignition
switch is in the ON position. The automatic
moonroof is operational for about 45 seconds,
even if the ignition switch is placed in the ACC or
OFF position. If the driver’s door or the front
passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.
LIC1411
DUAL PANEL MOONROOF (if so
equipped)
2-46Instruments and controls

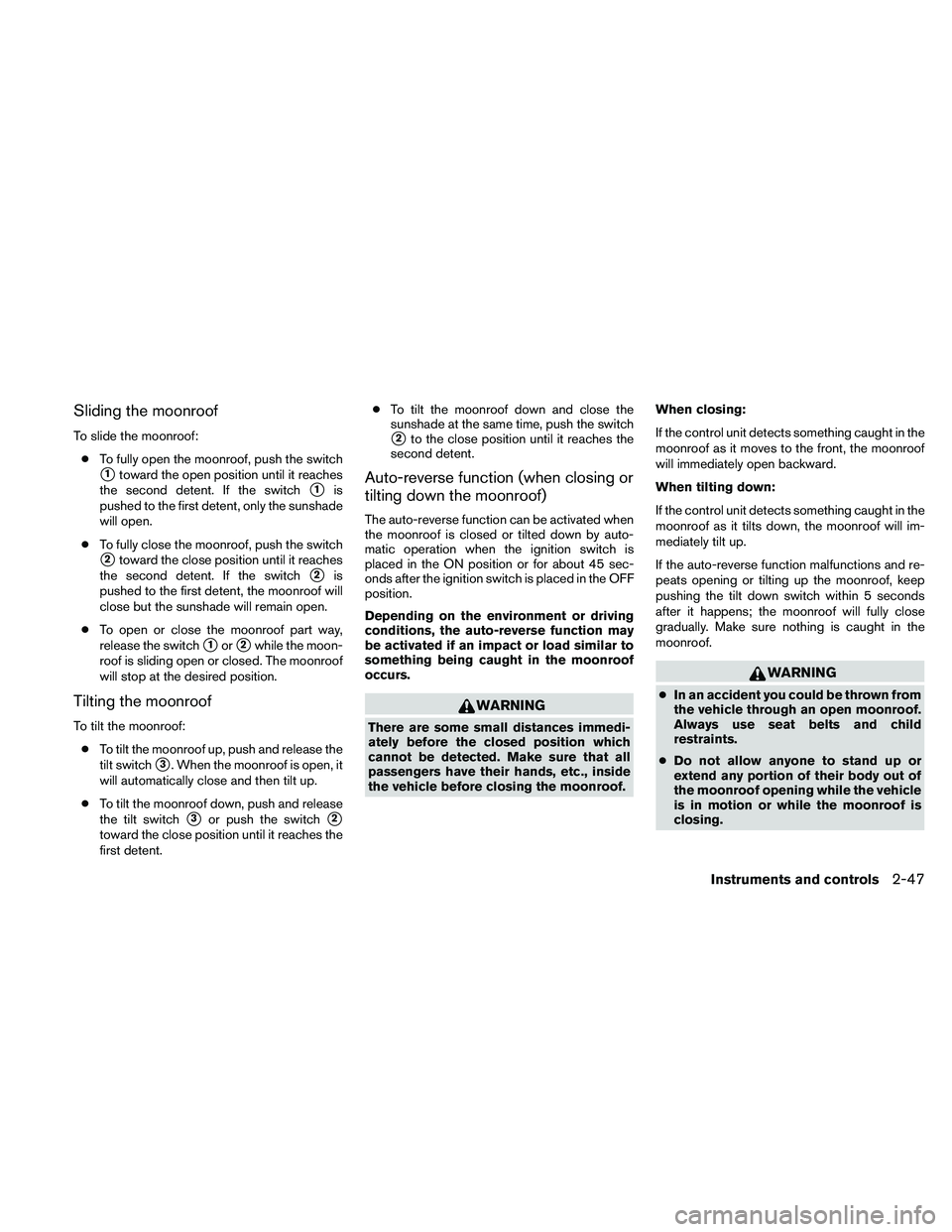

Sliding the moonroof
To slide the moonroof:● To fully open the moonroof, push the switch
1toward the open position until it reaches
the second detent. If the switch
1is
pushed to the first detent, only the sunshade
will open.
● To fully close the moonroof, push the switch
2toward the close position until it reaches
the second detent. If the switch
2is
pushed to the first detent, the moonroof will
close but the sunshade will remain open.
● To open or close the moonroof part way,
release the switch
1or2while the moon-
roof is sliding open or closed. The moonroof
will stop at the desired position.
Tilting the moonroof
To tilt the moonroof:
● To tilt the moonroof up, push and release the
tilt switch
3. When the moonroof is open, it
will automatically close and then tilt up.
● To tilt the moonroof down, push and release
the tilt switch
3or push the switch2
toward the close position until it reaches the
first detent. ●
To tilt the moonroof down and close the
sunshade at the same time, push the switch
2to the close position until it reaches the
second detent.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for about 45 sec-
onds after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof. When closing:
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down:
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●
In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
Instruments and controls2-47

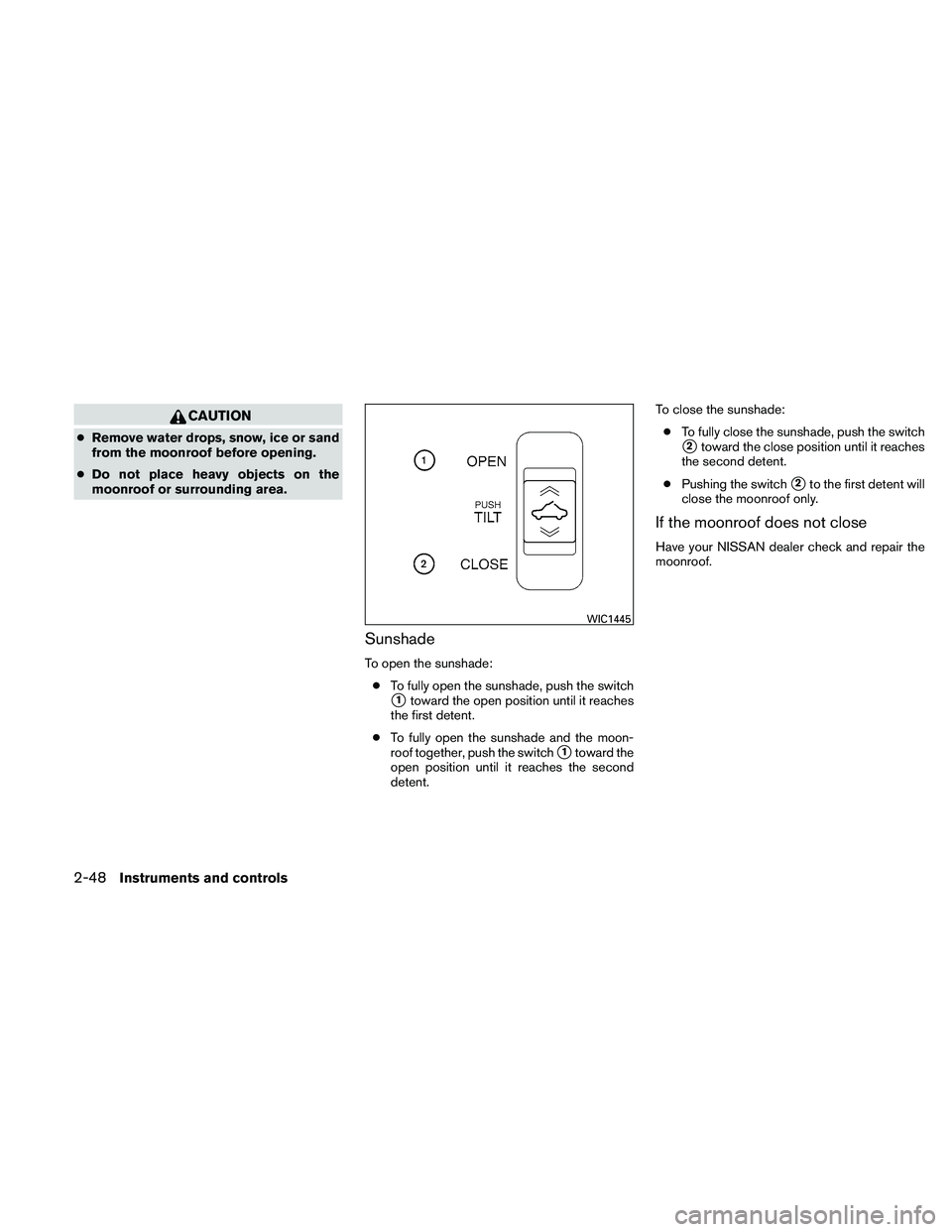

CAUTION
●Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
Sunshade
To open the sunshade:
● To fully open the sunshade, push the switch
1toward the open position until it reaches
the first detent.
● To fully open the sunshade and the moon-
roof together, push the switch
1toward the
open position until it reaches the second
detent. To close the sunshade:
● To fully close the sunshade, push the switch
2toward the close position until it reaches
the second detent.
● Pushing the switch
2to the first detent will
close the moonroof only.
If the moonroof does not close
Have your NISSAN dealer check and repair the
moonroof.
WIC1445
2-48Instruments and controls

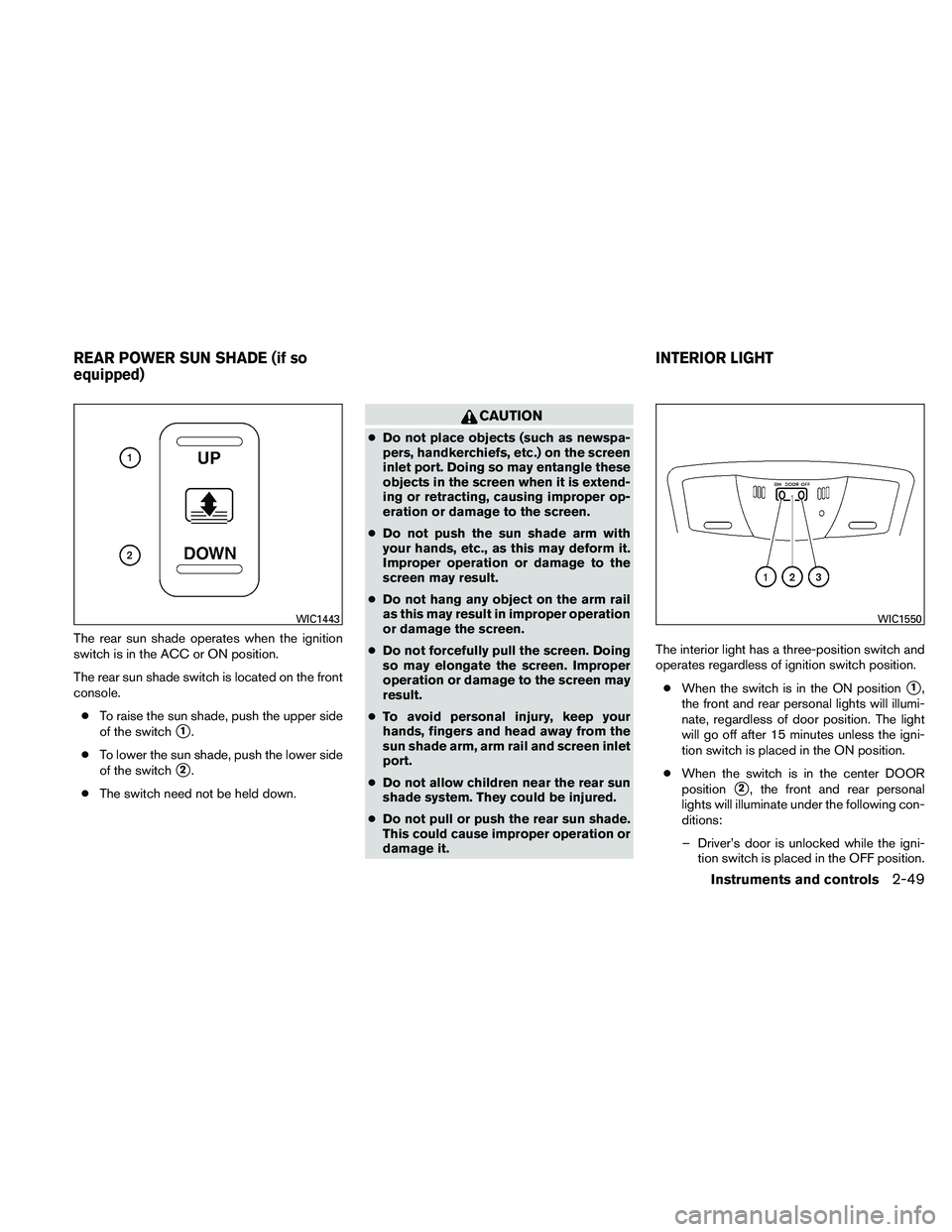

The rear sun shade operates when the ignition
switch is in the ACC or ON position.
The rear sun shade switch is located on the front
console.● To raise the sun shade, push the upper side
of the switch
1.
● To lower the sun shade, push the lower side
of the switch
2.
● The switch need not be held down.
CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the screen
inlet port. Doing so may entangle these
objects in the screen when it is extend-
ing or retracting, causing improper op-
eration or damage to the screen.
● Do not push the sun shade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
screen may result.
● Do not hang any object on the arm rail
as this may result in improper operation
or damage the screen.
● Do not forcefully pull the screen. Doing
so may elongate the screen. Improper
operation or damage to the screen may
result.
● To avoid personal injury, keep your
hands, fingers and head away from the
sun shade arm, arm rail and screen inlet
port.
● Do not allow children near the rear sun
shade system. They could be injured.
● Do not pull or push the rear sun shade.
This could cause improper operation or
damage it. The interior light has a three-position switch and
operates regardless of ignition switch position.
● When the switch is in the ON position
1,
the front and rear personal lights will illumi-
nate, regardless of door position. The light
will go off after 15 minutes unless the igni-
tion switch is placed in the ON position.
● When the switch is in the center DOOR
position
2, the front and rear personal
lights will illuminate under the following con-
ditions:
– Driver’s door is unlocked while the igni- tion switch is placed in the OFF position.
WIC1443WIC1550
REAR POWER SUN SHADE (if so
equipped) INTERIOR LIGHT
Instruments and controls2-49
