Page 371 of 444

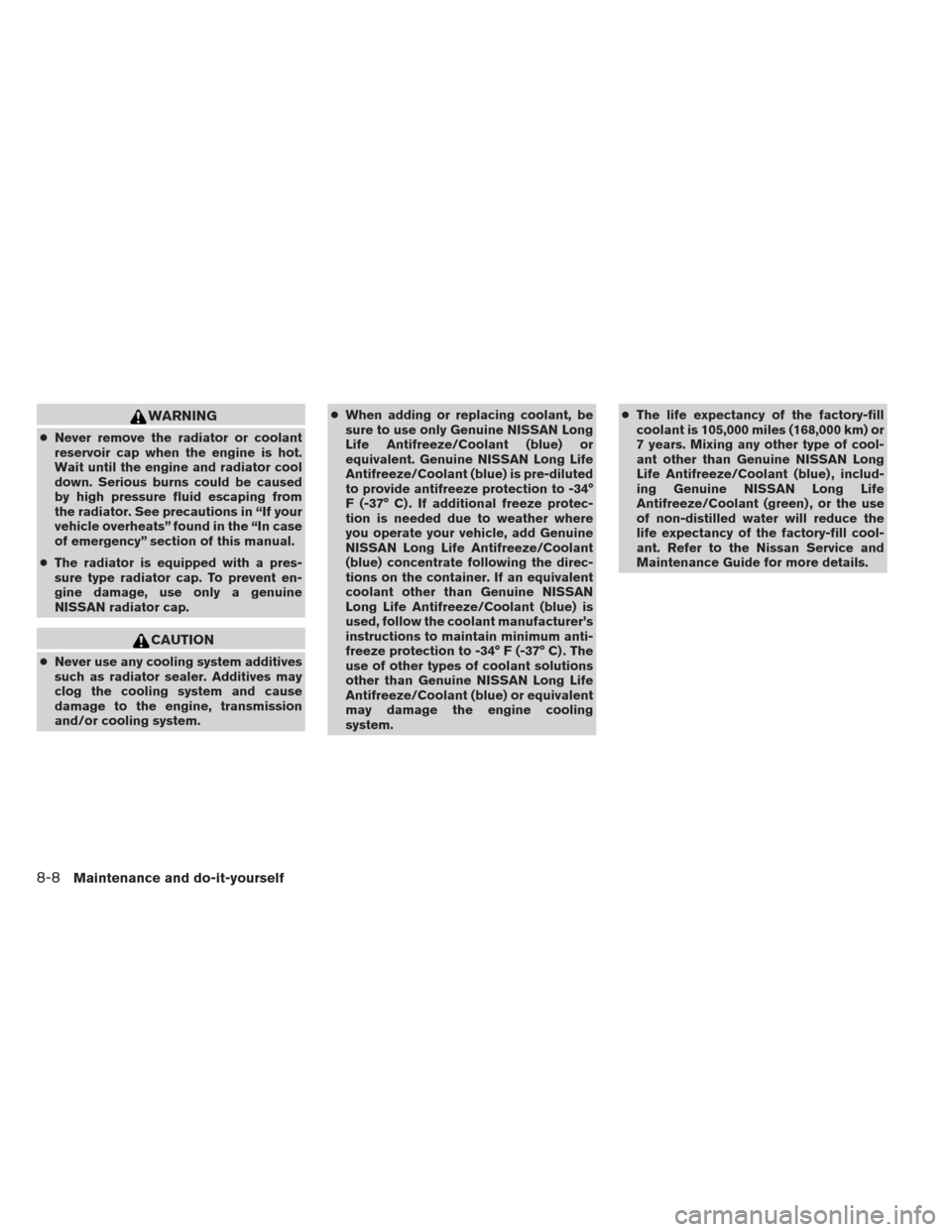

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual WARNING
●Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused
by high pressure fluid escaping from
t

Page 372 of 444

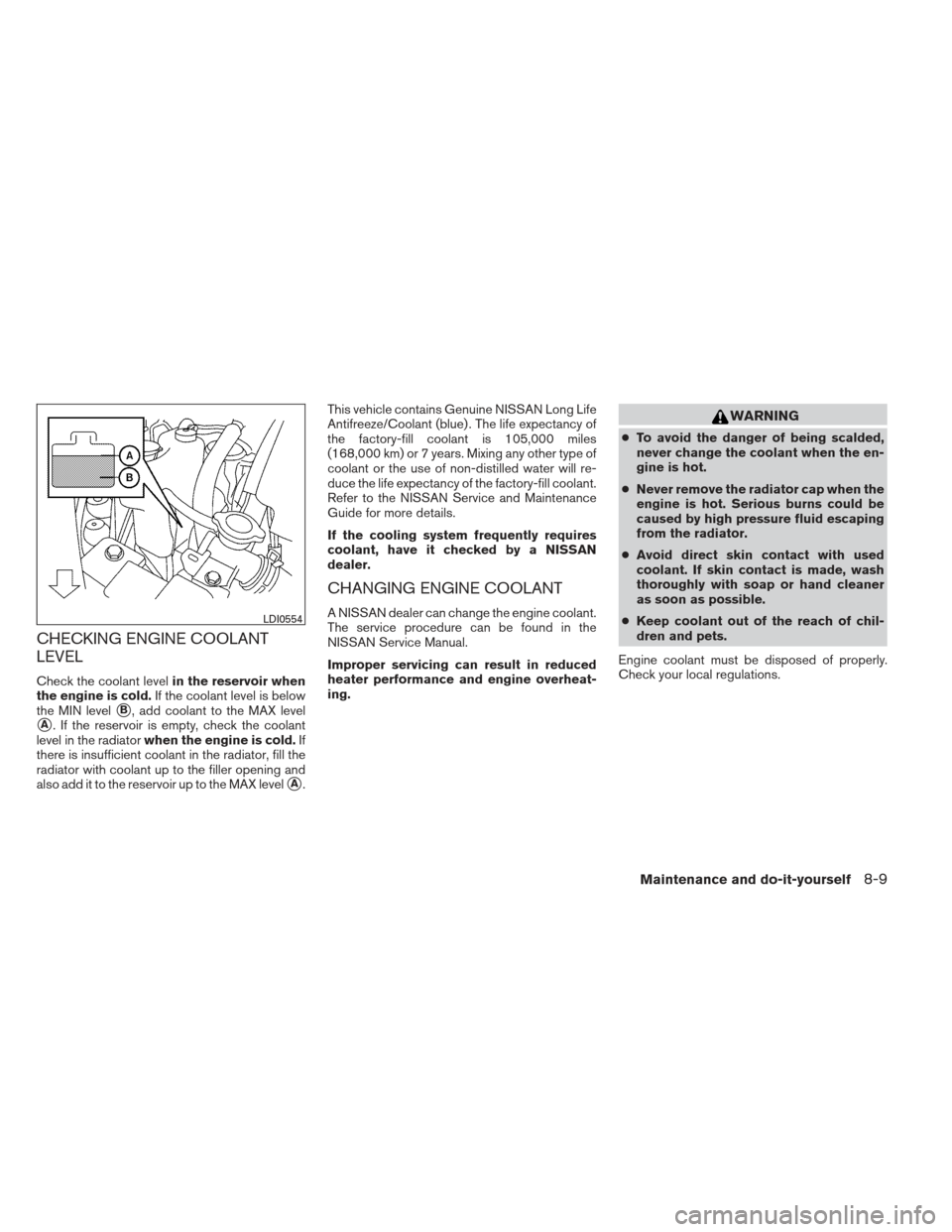

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
B, add coolant to the MAX level
A. If the reservoir is empt

Page 373 of 444

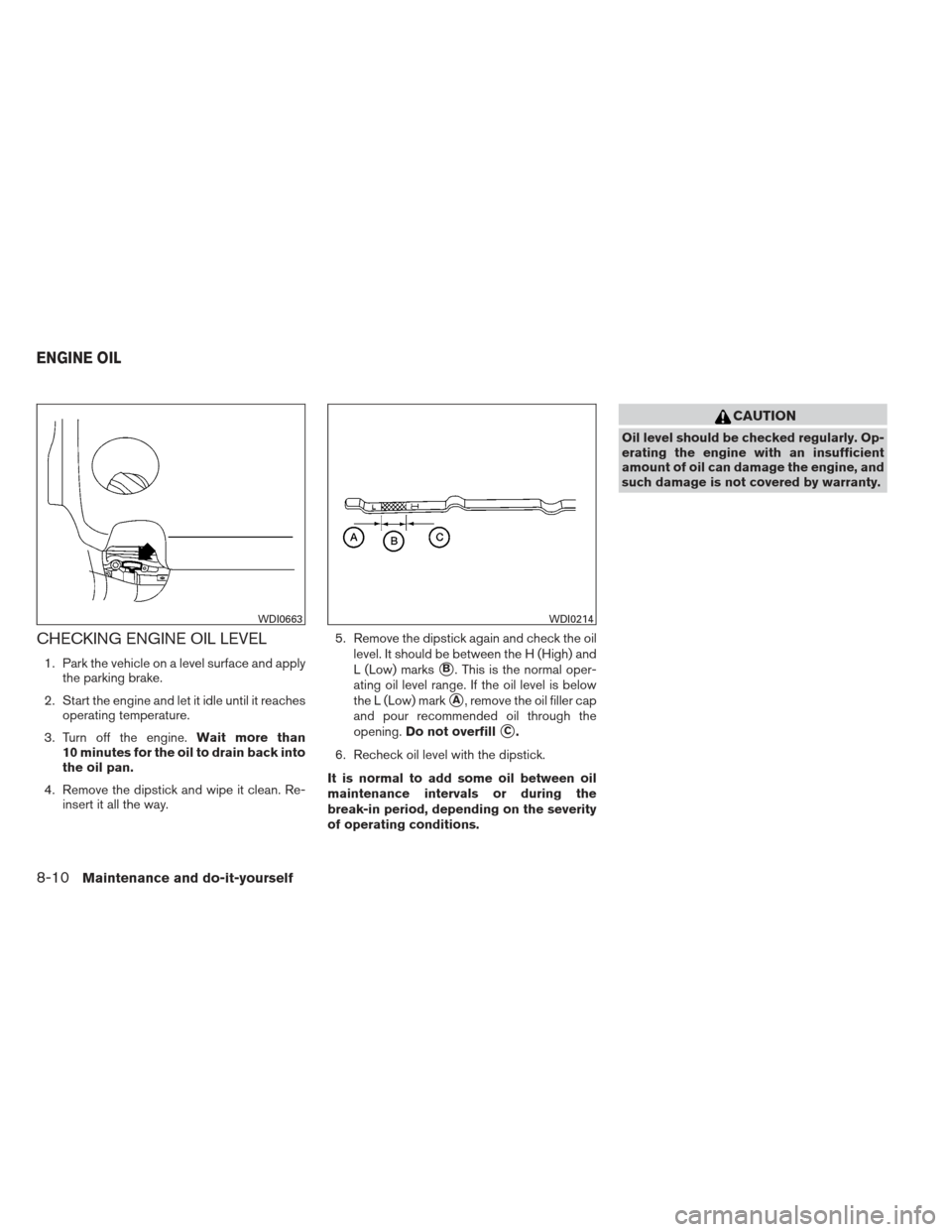

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait mo

Page 374 of 444

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual CHANGING ENGINE OIL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature. 3. Turn the engine off and
wait more

Page 375 of 444

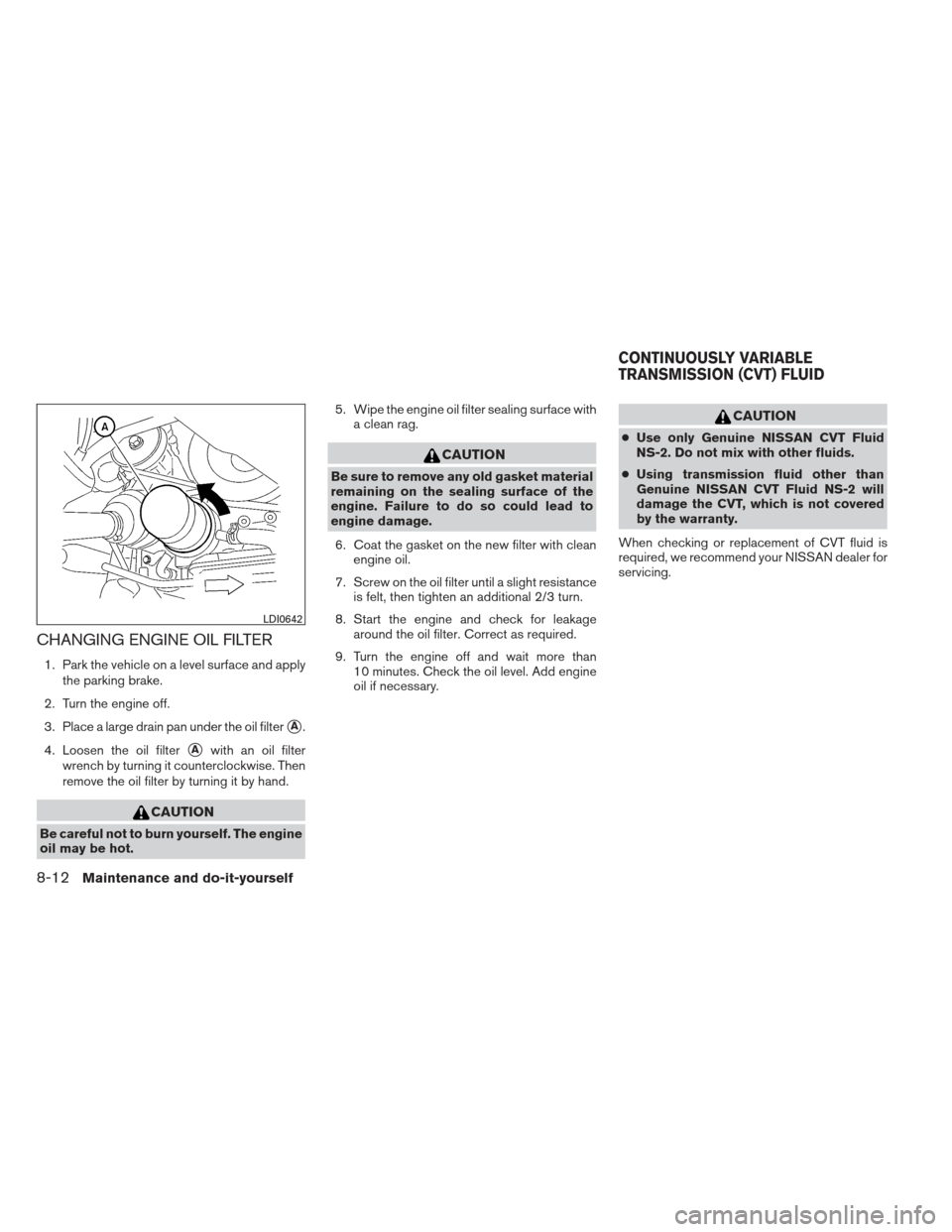

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
A.
4. Loosen the oil filter
Awit

Page 376 of 444

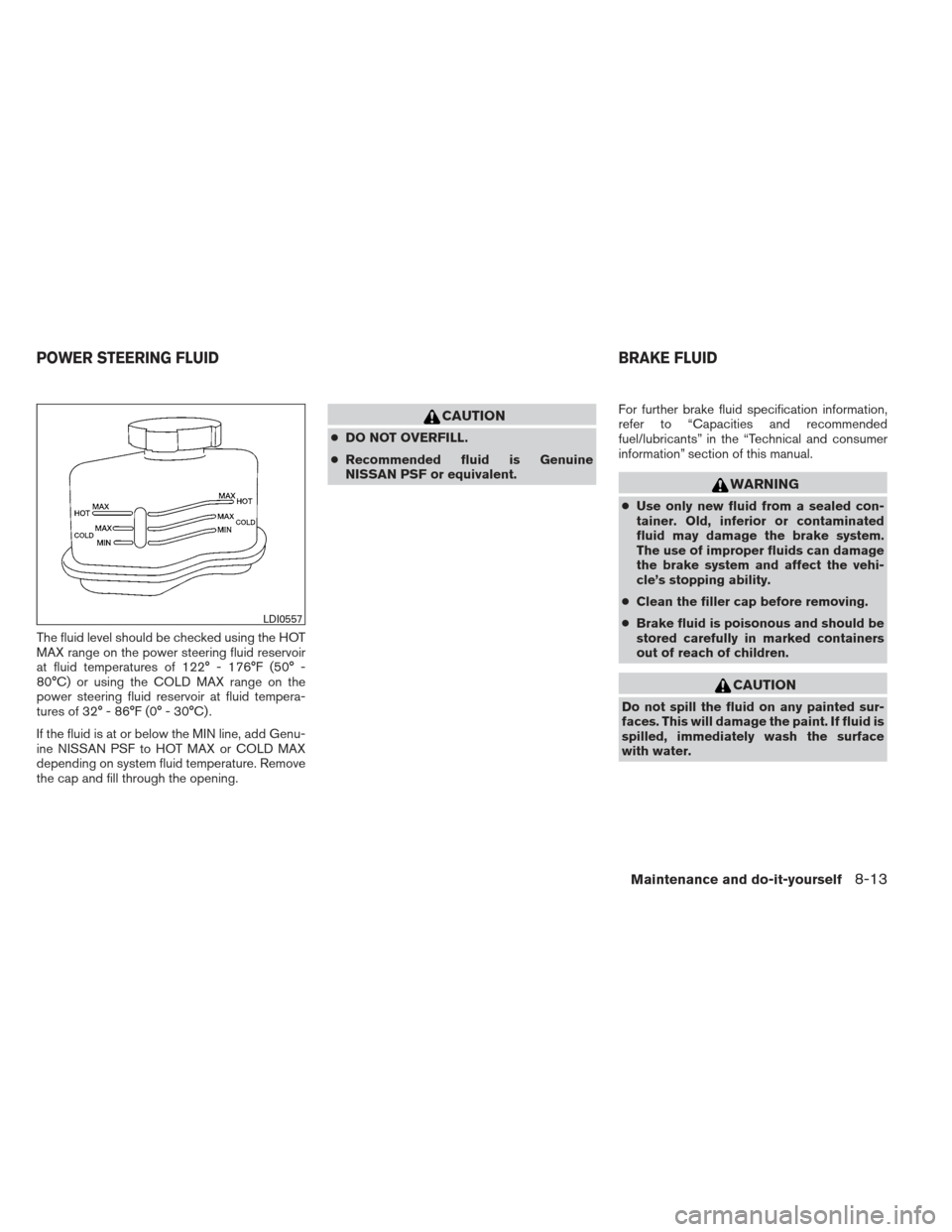

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual The fluid level should be checked using the HOT
MAX range on the power steering fluid reservoir
at fluid temperatures of 122° - 176°F (50° -
80°C) or using the COLD MAX range on the
power steering

Page 377 of 444

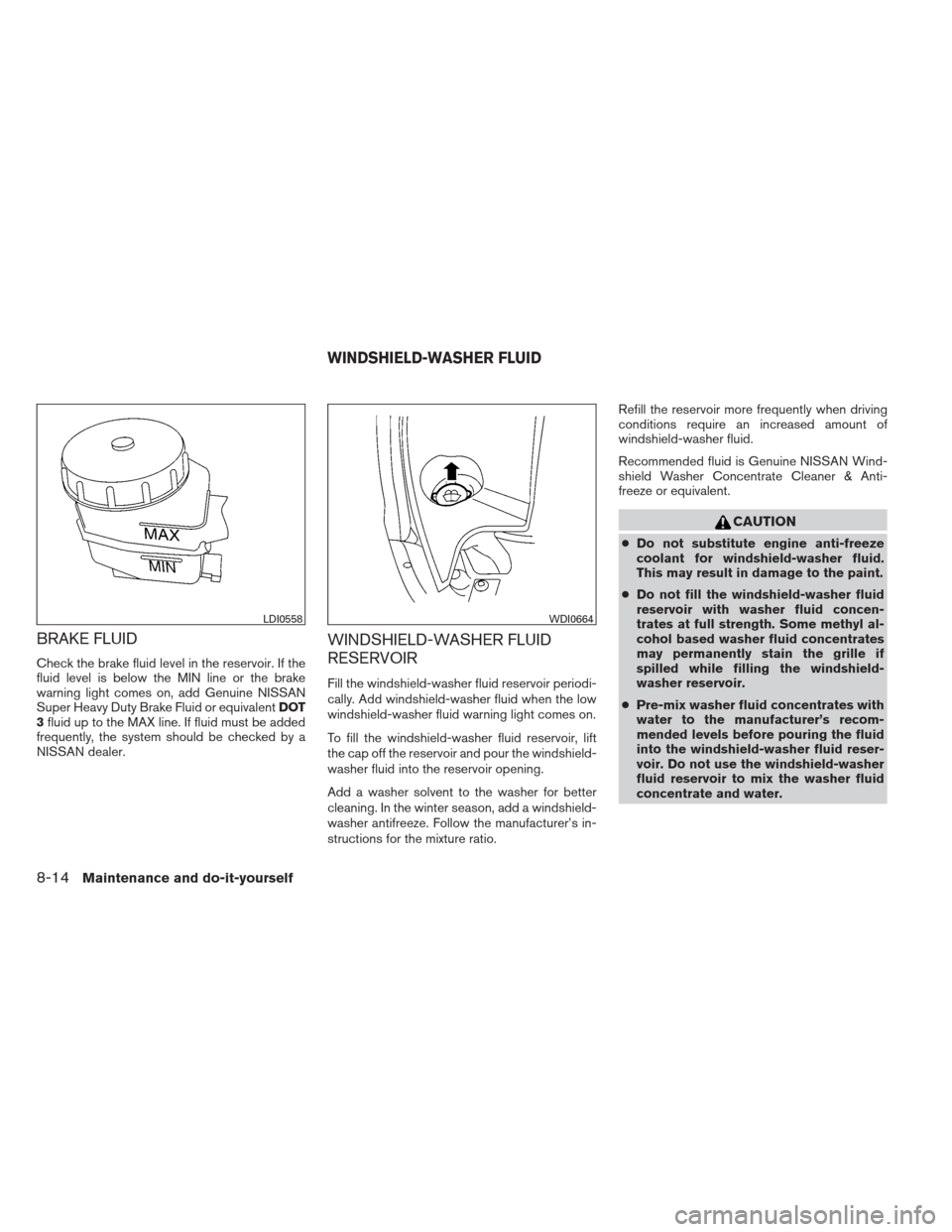

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual BRAKE FLUID
Check the brake fluid level in the reservoir. If the
fluid level is below the MIN line or the brake
warning light comes on, add Genuine NISSAN
Super Heavy Duty Brake Fluid or equivalentDOT

Page 378 of 444

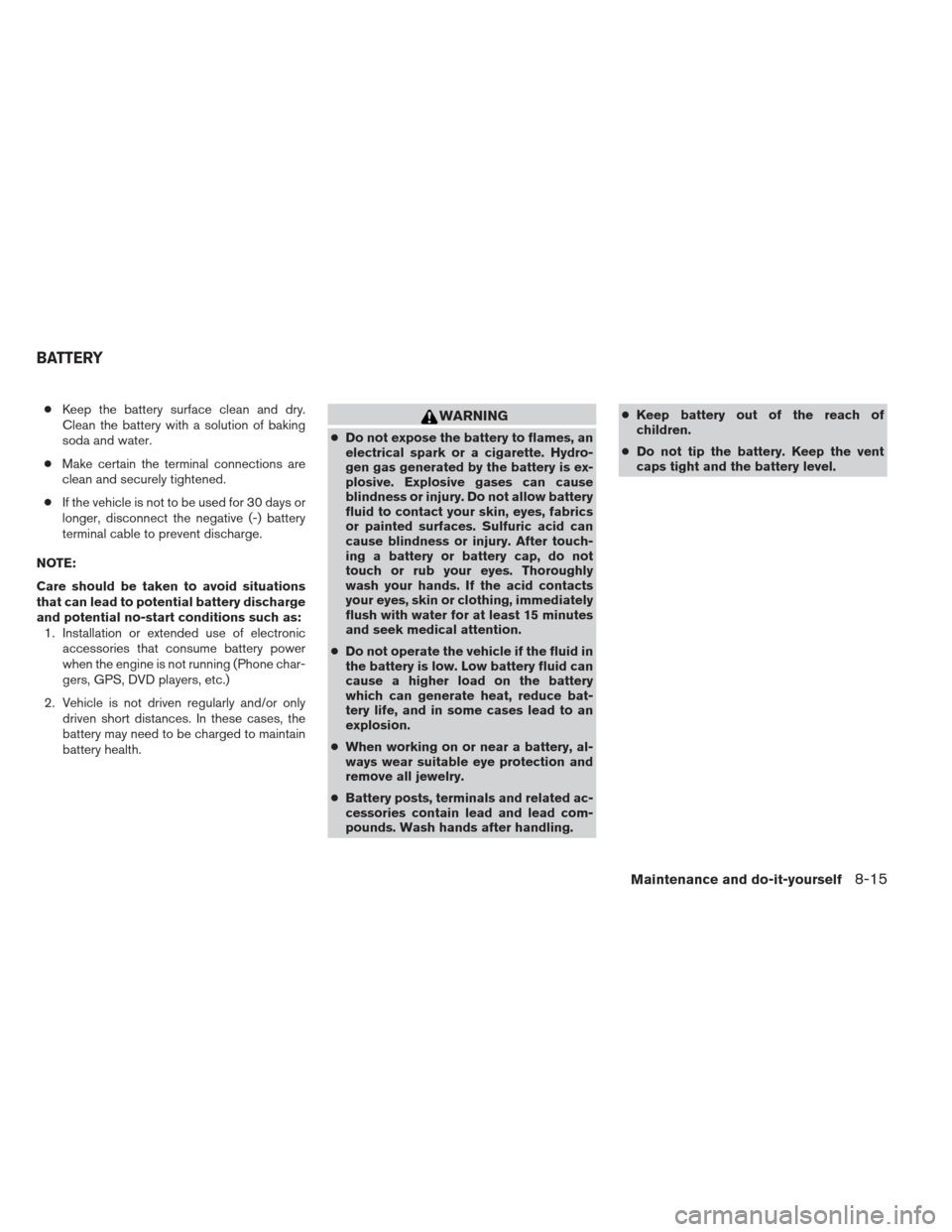

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual ●Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is

Page 379 of 444

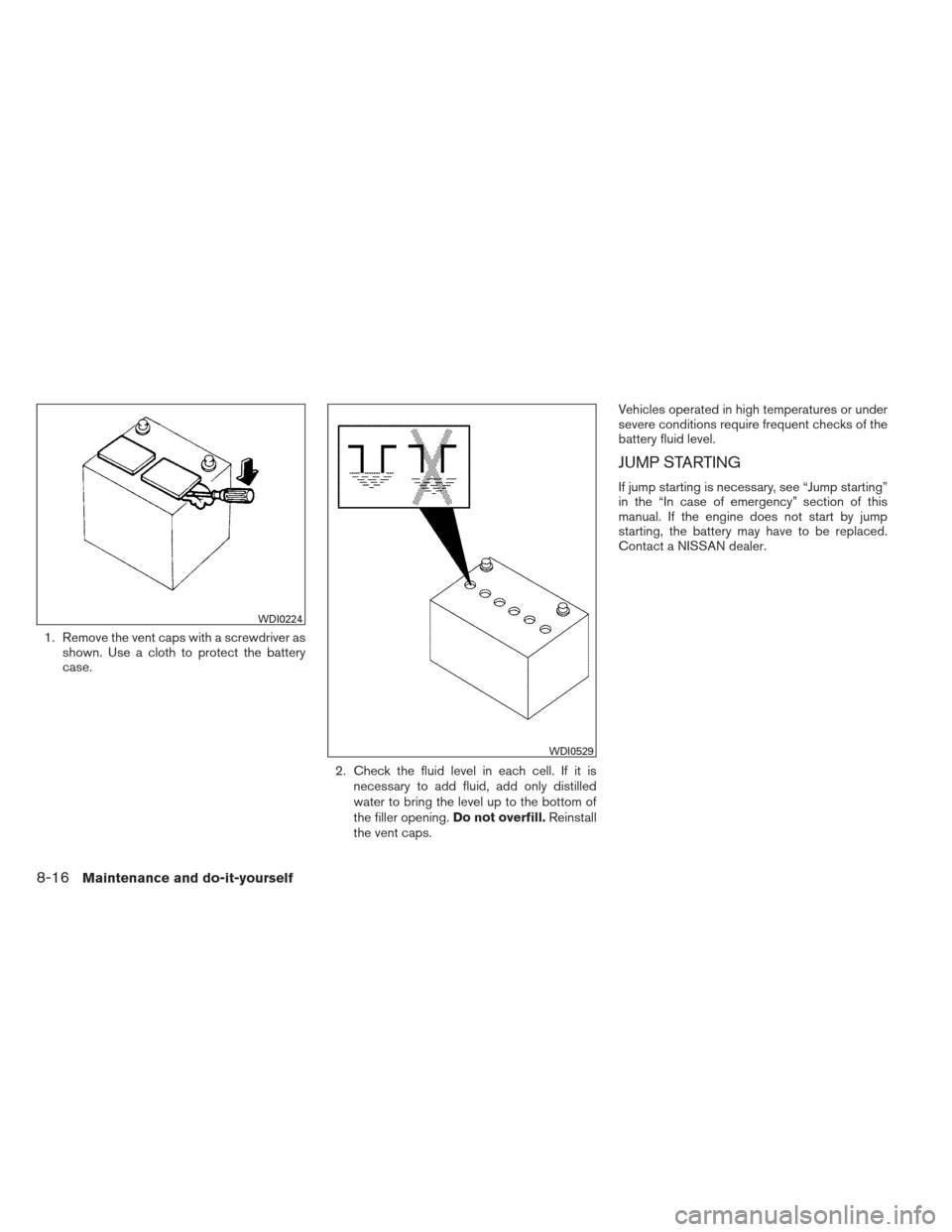

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual 1. Remove the vent caps with a screwdriver asshown. Use a cloth to protect the battery
case.
2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring th

Page 380 of 444

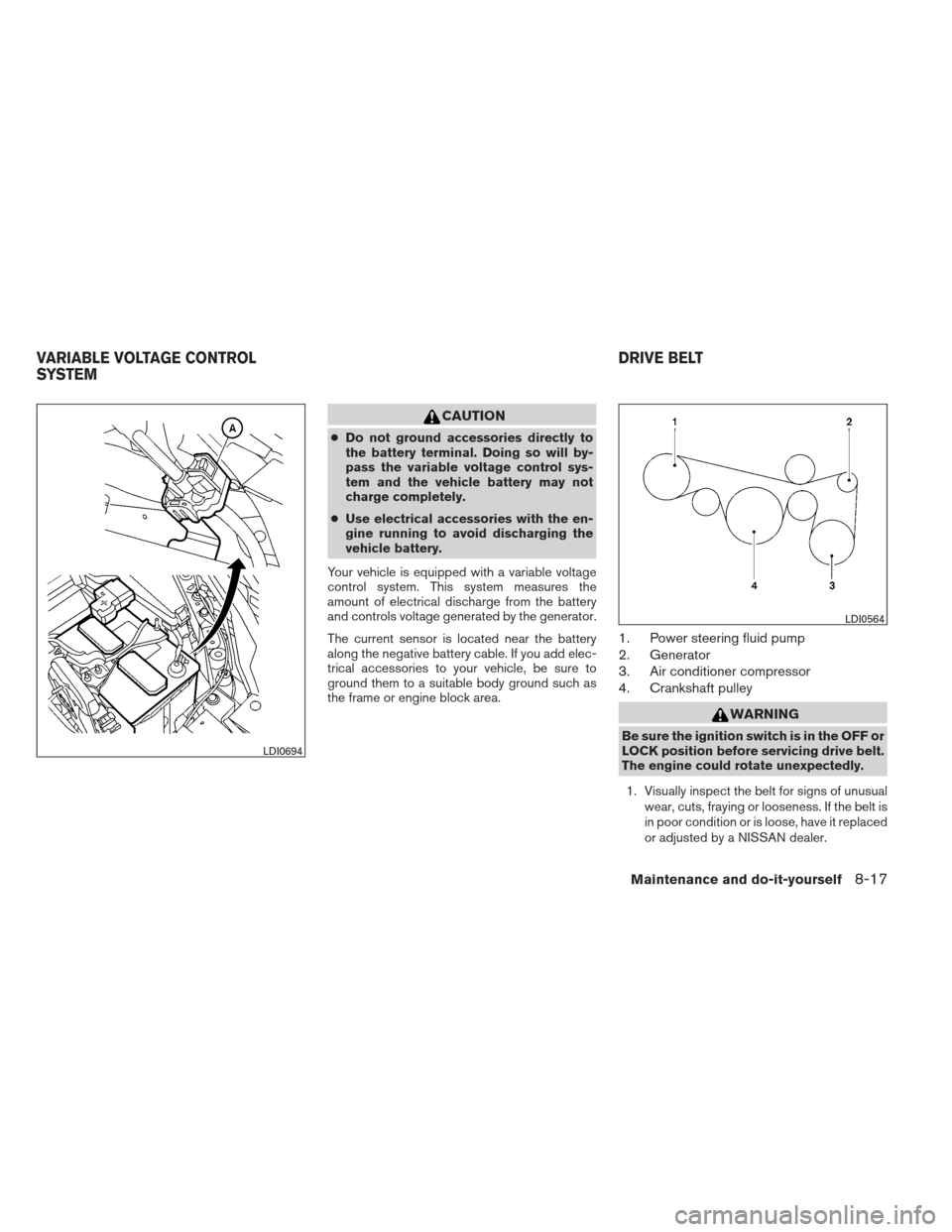

NISSAN MAXIMA 2013 A35 / 7.G Owners Manual CAUTION
●Do not ground accessories directly to
the battery terminal. Doing so will by-
pass the variable voltage control sys-
tem and the vehicle battery may not
charge completely.
● Use electrica
