Page 121 of 432

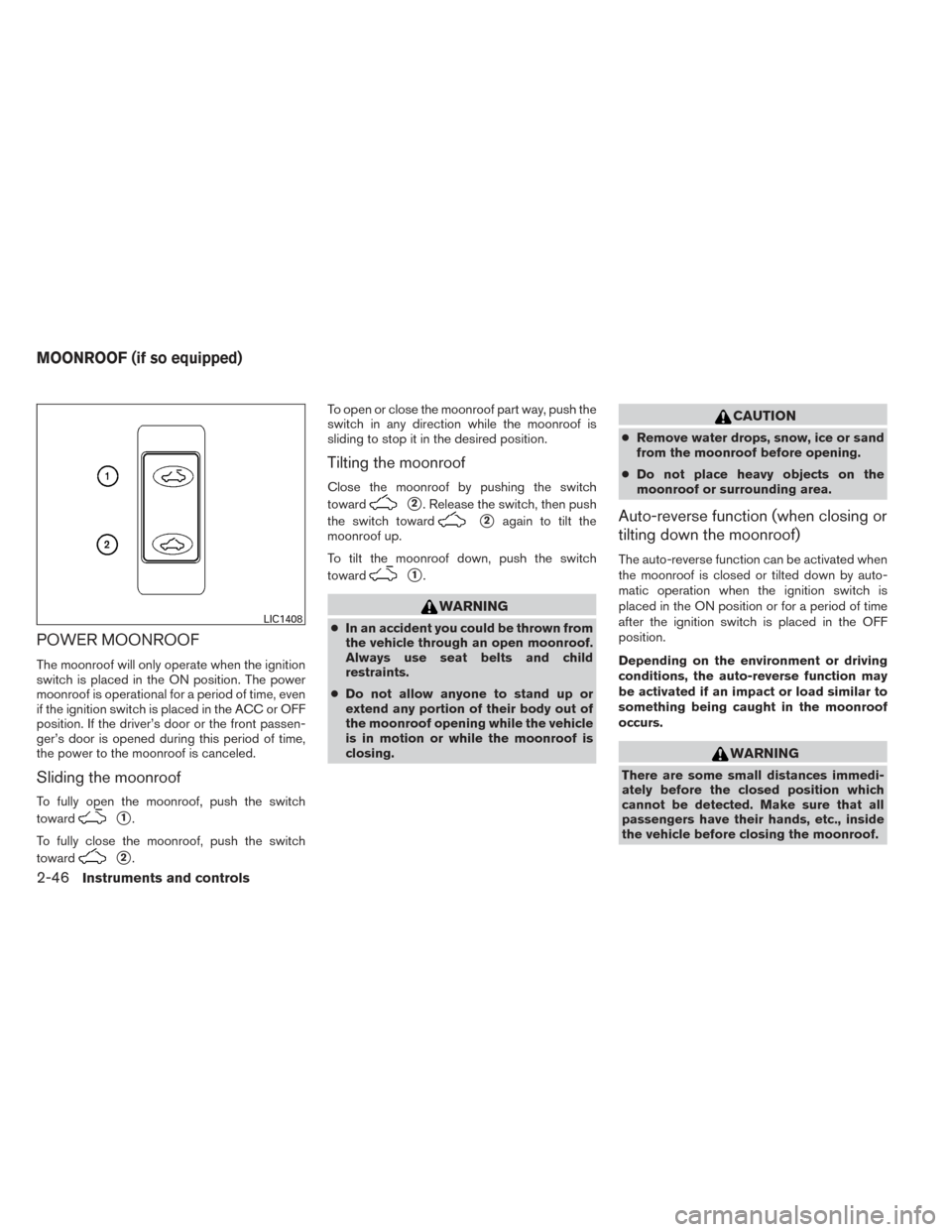

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual POWER MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The power
moonroof is operational for a period of time, even
if the ignition switch is placed in th

Page 122 of 432

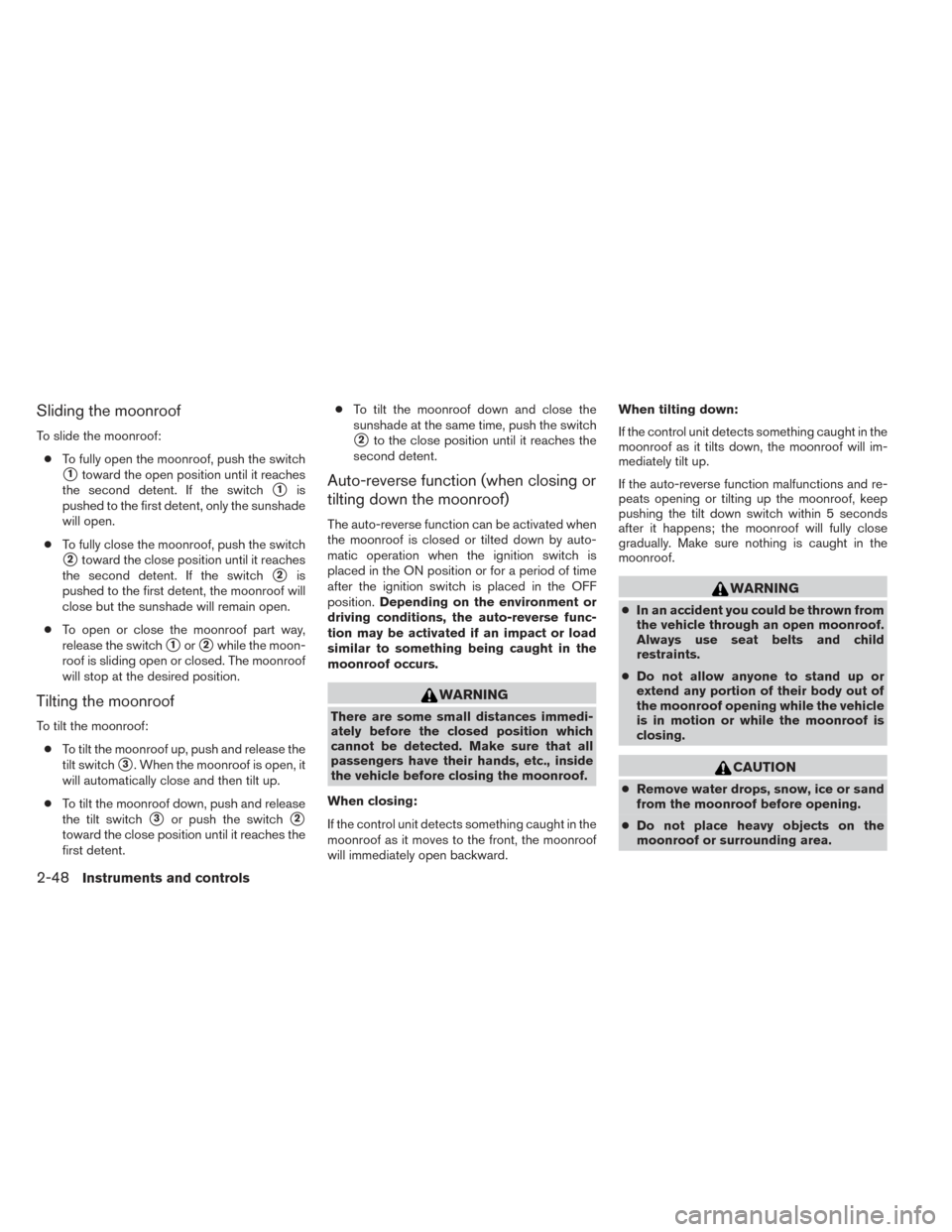

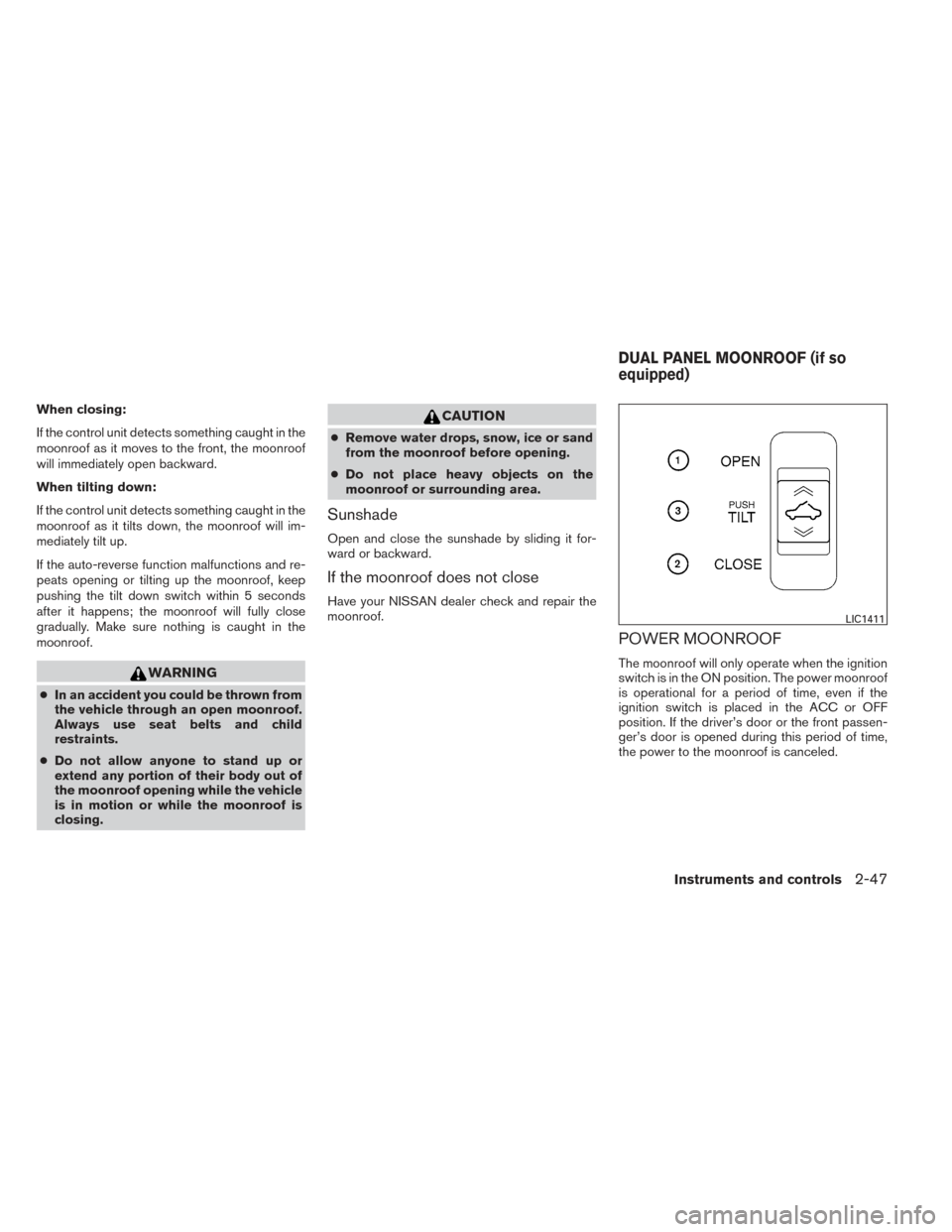

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual When closing:
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
When tilting down:
If the control unit detects somethi

Page 123 of 432

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual Sliding the moonroof
To slide the moonroof:● To fully open the moonroof, push the switch
1toward the open position until it reaches
the second detent. If the switch
1is
pushed to the first detent,

Page 124 of 432

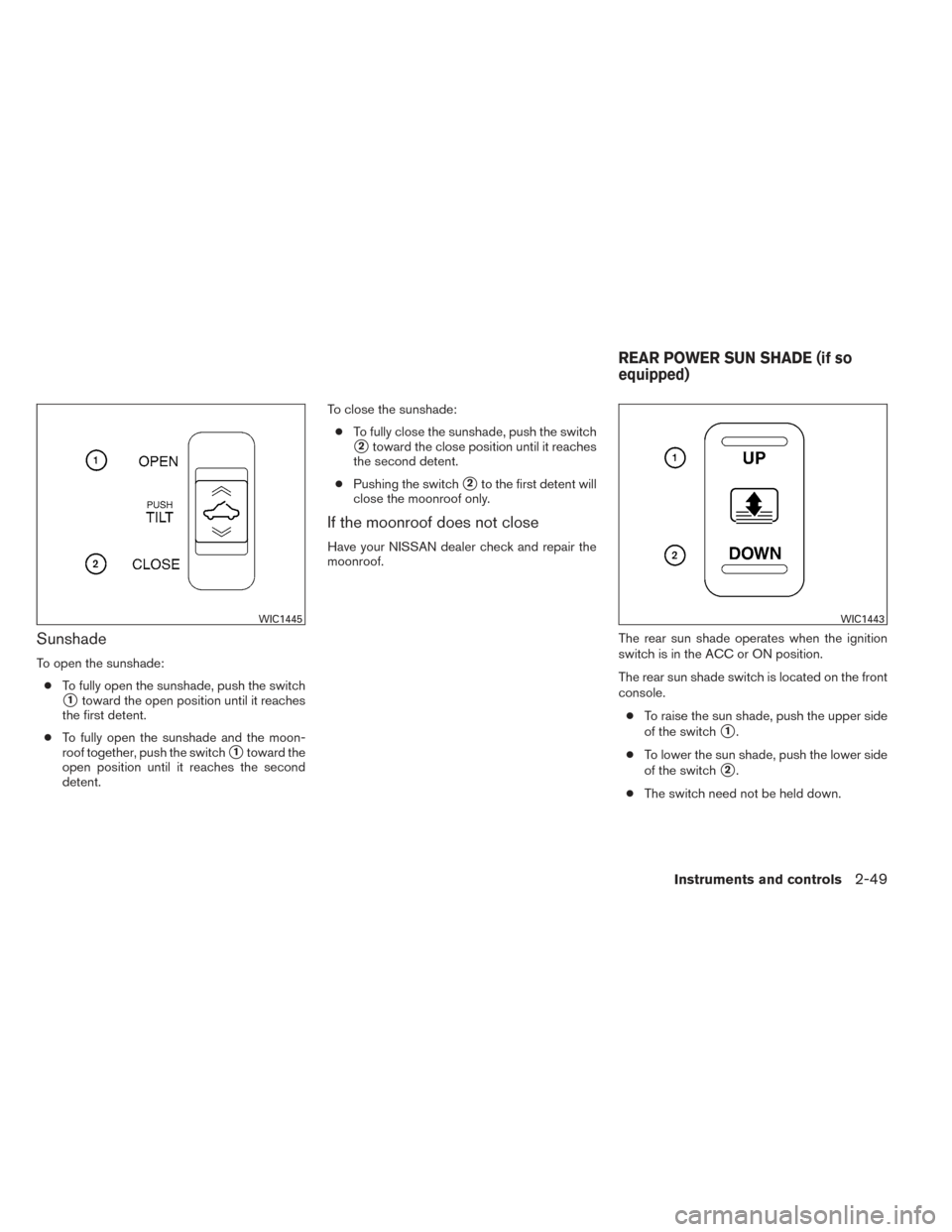

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual Sunshade
To open the sunshade:● To fully open the sunshade, push the switch
1toward the open position until it reaches
the first detent.
● To fully open the sunshade and the moon-
roof together,

Page 125 of 432

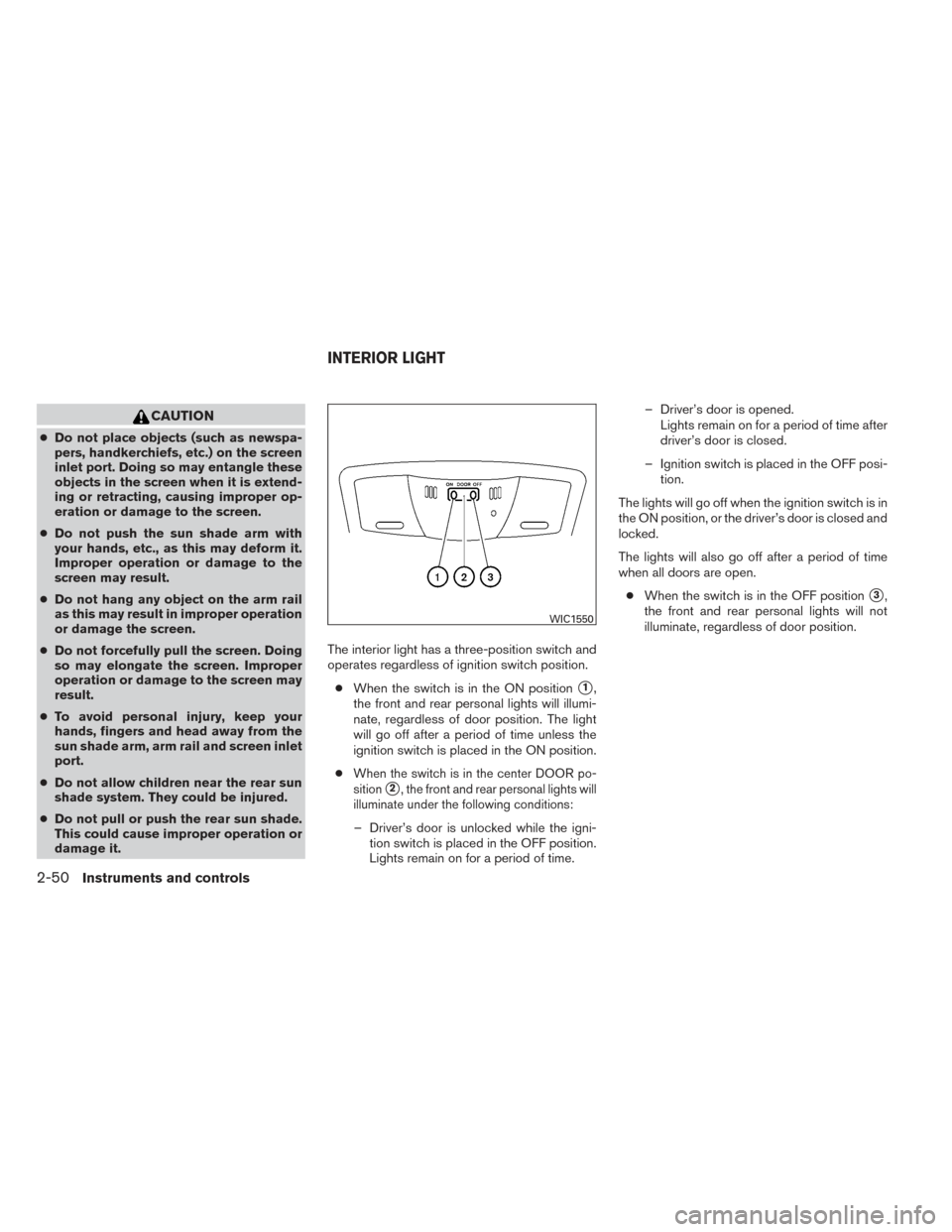

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the screen
inlet port. Doing so may entangle these
objects in the screen when it is extend-
ing or retracting, causing im

Page 126 of 432

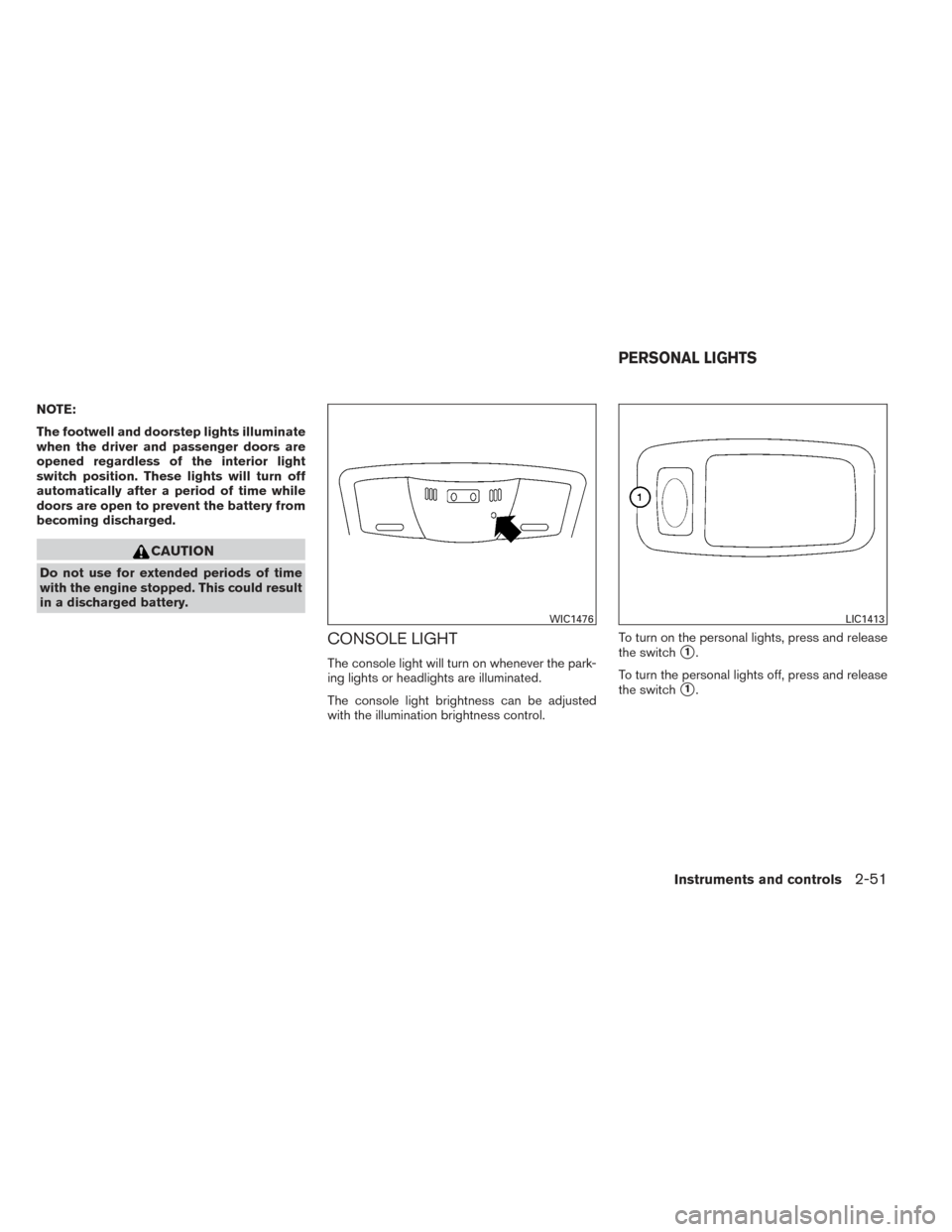

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual NOTE:
The footwell and doorstep lights illuminate
when the driver and passenger doors are
opened regardless of the interior light
switch position. These lights will turn off
automatically after a peri

Page 127 of 432

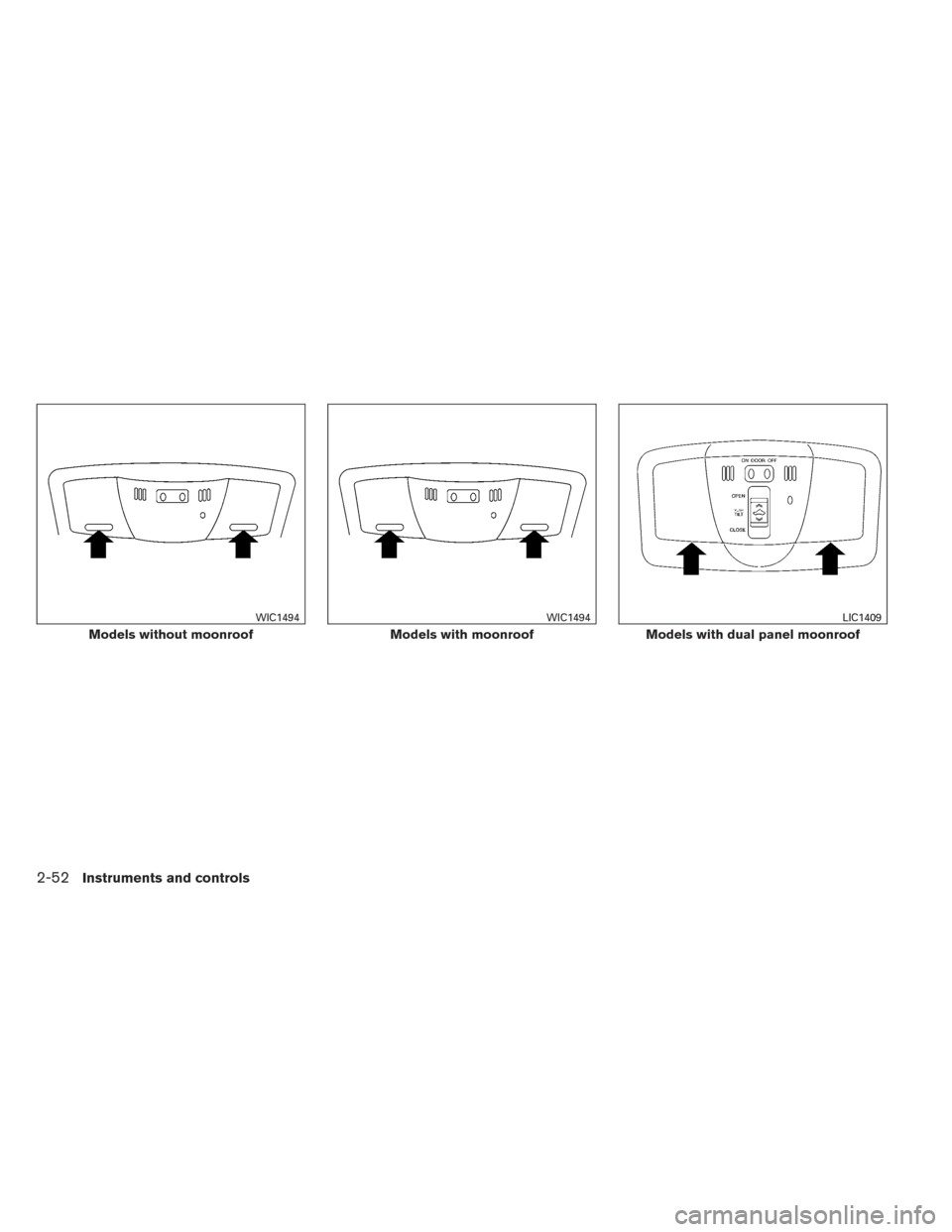

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual Models without moonroof
WIC1494
Models with moonroof
WIC1494
Models with dual panel moonroof
LIC1409
2-52Instruments and controls

Page 128 of 432

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual To turn the map lights on, press the switches. To
turn them off, press the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged ba

Page 129 of 432

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual WARNING
●Do not use the HomeLink® Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came

Page 130 of 432

NISSAN MAXIMA 2014 A35 / 7.G Owners Manual 3. Press and hold the programmedHomeLink® button and observe the indica-
tor light.
● If the indicator light
1is
solid/continuous, programming is
complete and your device should acti-
vate when th
