NISSAN MAXIMA 2016 A36 / 8.G Nissan Connect Navigation Manual


> (GLW    0RGHO 1&*1-1 @
.Song titles registered in ID3 tags cannot be pronounced for voice recognition operation.
Information Command (for U.S. and Canada)
1st Command 2nd Command Action
Information Where am I?
Displays information of the current position.
SXM Weather Map Displays the SiriusXM Weather map.
SXM Current Weather Displays the nearby weather (current weather).
SXM Weather Forecast Displays the weather forecast.
SXM Fuel Prices Displays fuel prices.
SXM Movie Listings Displays SiriusXM Movie Listings.
SXM Stocks Displays SiriusXM stock information.
SXM Sports Scores Displays sports scores.
SXM Traffic Turns the traffic information system on or off.
Favorite Feeds (if so equipped) Plays Favorite Feeds.
All Information Feeds (if so equipped) Plays Information Feeds.
Voice Menu (if so equipped) Connects NissanConnect
SMServices center.
Energy Flow (model with hybrid system) Displays Energy Flow.
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
ªSiriusXM Travel Link (for U.S. and Canada)º (page 5-19)
7. Voice recognition
&RQGLWLRQ
7-21


> (GLW    0RGHO 1&*1-1 @
7. Voice recognition
Information Command (for Mexico)
1st Command 2nd CommandAction
Information Where am I?
Displays information of the current position.
&RQGLWLRQ
7-22


> (GLW    0RGHO 1&*1-1 @

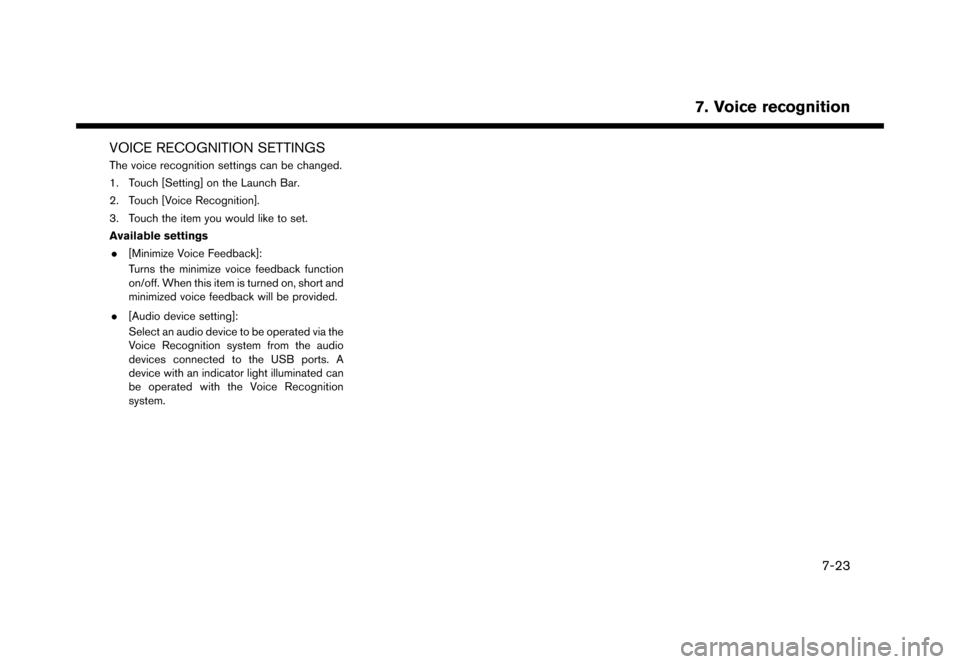

VOICE RECOGNITION SETTINGSNCGNJN1402-120906-67D614E7-55A6-4EA8-BDE1-5FF2EFEB3D40The voice recognition settings can be changed.
1. Touch [Setting] on the Launch Bar.
2. Touch [Voice Recognition].
3. Touch the item you would like to set.
Available settings. [Minimize Voice Feedback]:
Turns the minimize voice feedback function
on/off. When this item is turned on, short and
minimized voice feedback will be provided.
. [Audio device setting]:
Select an audio device to be operated via the
Voice Recognition system from the audio
devices connected to the USB ports. A
device with an indicator light illuminated can
be operated with the Voice Recognition
system.
7. Voice recognition
&RQGLWLRQ
7-23


> (GLW    0RGHO 1&*1-1 @
7. Voice recognition
MEMO
&RQGLWLRQ
7-24


> (GLW    0RGHO 1&*1-1 @
8 Troubleshooting guide
Customer assistance...
................................................................ 8-2
System unit ...
........................................................................\
......... 8-3
Liquid crystal display ...
.......................................................... 8-3
Audio system ...
........................................................................\
...... 8-5
HD Radio technology (for U.S.) ...
....................................... 8-5
Compact Disc (CD) player ...
............................................... 8-7
iPod


> (GLW    0RGHO 1&*1-1 @
8. Troubleshooting guide
CUSTOMER ASSISTANCENCGNJN1402-120906-EA84A59D-8111-427E-AF1B-134B59A3E4B8For U.S. and Canada
For assistance or to order updated map data,
contact the NISSAN NAVIGATION SYSTEM
HELPDESK. For other assistance or inquiries,
contact NISSAN Consumer Affairs Department
or NissanConnect
SMMobile Apps customer
service. See the contact information on the
inside front cover of this manual.
For Mexico
For assistance or inquiries about NissanCon-
nect
SMwith Navigation and Mobile Apps, or to
order updated map data for the navigation
system, contact a NISSAN dealer.
&RQGLWLRQ
8-2


> (GLW    0RGHO 1&*1-1 @
SYSTEM UNITNCGNJN1402-120906-31400E7C-F4D3-4689-A9F6-88A5A28E5475
LIQUID CRYSTAL DISPLAYNCGNJN1402-120906-EAA5698F-0334-4DAC-A1E3-D24F8C3455F2
SymptomPossible cause Possible solution
The screen is too dark. The cabin temperature is too low.Wait until the cabin temperature becomes moderate.
Screen brightness is set to the maximum darkness. Adjust the brightness setting of the screen.
ªDisplay settingsº (page 2-19)
The screen is too bright. Screen brightness is set to the maximum brightness. Adjust the brightness setting of the screen.
ªDisplay settingsº (page 2-19)
A small black spot or a small bright spot appears on
the screen. This is a typical phenomenon for liquid crystal
displays.This is not a malfunction.
A dot or stripe pattern appears on the screen. Electromagnetic waves that are generated from neon billboards, high voltage electric power cables, ham
radios or other radio devices equipped to other
vehicles may adversely affect the screen.This is not a malfunction.
Image lag appears on the screen. This is a typical phenomenon for liquid crystal
displays.This is not a malfunction.
Image motion displayed on the screen is slow. The cabin temperature is less than 508F (108C). Wait until the cabin temperature rises to within 508F (108C) and 1228F (508C).
When looking at the screen from an angle, the screen
lightens or darkens. This is a typical phenomenon for liquid crystal
displays.Adjust the brightness setting of the screen.
ªDisplay settingsº (page 2-19)
The screen turns blue or an error message is
displayed on the touch screen display. A system malfunction has occurred.
Contact a NISSAN dealer for an inspection.
The SD card is not inserted into the slot correctly. If the SD card containing map data is accidentally removed, after reinserting the SD card containing
map data into the slot, place the ignition switch in the
OFF position and then place back in the ON position
again.
8. Troubleshooting guide
&RQGLWLRQ
8-3


> (GLW    0RGHO 1&*1-1 @
8. Troubleshooting guide
SymptomPossible cause Possible solution
Navigation system related functions cannot be
operated. The SD card is not inserted into the slot.
Insert the appropriate SD card.
&RQGLWLRQ
8-4


> (GLW    0RGHO 1&*1-1 @
AUDIO SYSTEMNCGNJN1402-120906-A966E4C8-AA58-414B-9A6A-500CC260D786
HD RADIO TECHNOLOGY (for U.S.)NCGNJN1402-90CF80C5-A2F6-4DD9-AD49-0922798A4C14
SoundNCGNJN1402-D717575E-DAAA-47FF-98B5-B90F7B0F8694
SymptomPossible cause Possible solution
Delay in digital audio on HD Radio broadcasts. The radio acquires an analog station first and blends to an digital signal.This is not a malfunction.
Audio skips, stutters, or echoes. The radio station has not properly aligned the digital
and analog audio.Verify correct operation on another station. Report
any station with poor performance.
Volume changing up/down. The radio station has not properly aligned digital and
analog audio level.Verify correct operation on another station and check
www.hdradio.com for stations in the area. Report any
station with poor performance.
Sound fading in and out. The transition between analog and digital is taking
place (blending).Verify transition performance on several stations in
the area. Report any stations with poor alignment.
Excessive blending (Transition between analog and
digital). The receiver is located near the edge of the digital
coverage area.Refer to hdradio.com to verify radio stations in your
coverage area.
Digital audio not better than analog audio. Audio processing on the digital audio at a station can potentially decrease the digital audio sound quality.Verify correct operation on another station. Report
any station with poor performance.
8. Troubleshooting guide
&RQGLWLRQ
8-5


> (GLW    0RGHO 1&*1-1 @
8. Troubleshooting guide
FunctionalNCGNJN1402-F51DB67F-D5AE-4734-AA5F-5C93EFF31D36
SymptomPossible cause Possible solution
Keep losing my local stations. The digital coverage is slightly less than the analog
signal coverage.Verify correct operation on another station. This is
expected behavior.
Shadowing (urban/terrain) can cause reduced digital
coverage. Verify correct operation on another station.
Some data fields are blank. Text information is sent at the broadcaster's discre-
tion.Verify correct operation on another station. Report
station issues.
Text information is truncated / appears to be more
available. The display is limited to a fixed number of characters
and more data is being sent than can be shown.This is an intended behavior.
AM reception changes at night. AM stations are required by the government (FCC) to
lower their power at night.This is not a malfunction.
&RQGLWLRQ
8-6
