Page 70 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
3. Audio system
.A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB MEMORY DEVICENCGNJN1402-F355BB54-6B69-4B59-B94F-C82FA1BFE34F.Never touch the terminal portion of the USB
memory device.
. Do not place heavy objects on the USB
memory device.
. Do not store the USB memory device in
highly humid locations.
. Do not expose the USB memory device to
direct sunlight.
. Do not spill any liquids on the USB memory
device.
Refer to the USB memory device Owner's
Manual for the details.
& R Q G L W L R Q
3-36
Page 185 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
5GE0027X
3. Speak ªDial
5GE0028X
4. The phone number recognized by the systemis displayed on the screen. If the number is
correct, say ªDialº.
5. The system will make a phone call to the spoken phone number.
Example 2 Setting home as a destination:
1. Push <
>located on the steering wheel.
2. Wait for the indicator change to
. Speak
ªNavigationº.
5GE0029X
3. Speak ªGo Homeº. The navigation system will set home as a destination.
INFO:
. Location of home must be registered to the
Address Book prior to using this command.
. The step of speaking ªNavigationº can be
omitted.
Example 3 Displaying folders in the USB
device:
1. Push <
>located on the steering wheel.
2. Wait for the indicator change to
. Speak
ªAudioº.
3. Speak ªUSB Show Foldersº. The folders in the connected USB device will appear on
the touch screen display.
7. Voice recognition
& R Q G L W L R Q
7-5
Page 195 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
Audio Command (for U.S. and Canada)
1st Command 2nd Command 3rd Command Action
AudioPlay
AM Turns to the AM band, selecting the last played station.
FM Turns to the FM band, selecting the last played station.
SXM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
CD Turns on the CD, selecting the last played mode.
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod
Page 198 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
7. Voice recognition
Audio Command (for Mexico)
1st Command 2nd Command 3rd Command Action
AudioPlay
AM Turns to the AM band, selecting the last played station.
FM Turns to the FM band, selecting the last played station.
CD Turns on the CD, selecting the last played mode.
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod
Page 199 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
1st Command 2nd Command 3rd Command ActionBluetooth Audio Turns on the Bluetooth
Page 203 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
VOICE RECOGNITION SETTINGSNCGNJN1402-120906-67D614E7-55A6-4EA8-BDE1-5FF2EFEB3D40The voice recognition settings can be changed.
1. Touch [Setting] on the Launch Bar.
2. Touch [Voice Recognition].
3. Touch the item you would like to set.
Available settings. [Minimize Voice Feedback]:
Turns the minimize voice feedback function
on/off. When this item is turned on, short and
minimized voice feedback will be provided.
. [Audio device setting]:
Select an audio device to be operated via the
Voice Recognition system from the audio
devices connected to the USB ports. A
device with an indicator light illuminated can
be operated with the Voice Recognition
system.
7. Voice recognition
& R Q G L W L R Q
7-23
Page 205 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
8 Troubleshooting guide
Customer assistance...
................................................................ 8-2
System unit ...
........................................................................\
......... 8-3
Liquid crystal display ...
.......................................................... 8-3
Audio system ...
........................................................................\
...... 8-5
HD Radio technology (for U.S.) ...
....................................... 8-5
Compact Disc (CD) player ...
............................................... 8-7
iPod
Page 209 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
AUDIO SYSTEMNCGNJN1402-120906-A966E4C8-AA58-414B-9A6A-500CC260D786
HD RADIO TECHNOLOGY (for U.S.)NCGNJN1402-90CF80C5-A2F6-4DD9-AD49-0922798A4C14
SoundNCGNJN1402-D717575E-DAAA-47FF-98B5-B90F7B0F8694
SymptomPossible cause Possible solution
Delay in digital audio on HD Radio broadcasts. The radio acquires an analog station first and blends to an digital signal.This is not a malfunction.
Audio skips, stutters, or echoes. The radio station has not properly aligned the digital
and analog audio.Verify correct operation on another station. Report
any station with poor performance.
Volume changing up/down. The radio station has not properly aligned digital and
analog audio level.Verify correct operation on another station and check
www.hdradio.com for stations in the area. Report any
station with poor performance.
Sound fading in and out. The transition between analog and digital is taking
place (blending).Verify transition performance on several stations in
the area. Report any stations with poor alignment.
Excessive blending (Transition between analog and
digital). The receiver is located near the edge of the digital
coverage area.Refer to hdradio.com to verify radio stations in your
coverage area.
Digital audio not better than analog audio. Audio processing on the digital audio at a station can potentially decrease the digital audio sound quality.Verify correct operation on another station. Report
any station with poor performance.
8. Troubleshooting guide
& R Q G L W L R Q
8-5
Page 211 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @
COMPACT DISC (CD) PLAYERNCGNJN1402-120906-8097E05E-298F-400A-AE85-F2150D8AD7BC
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down.Insert a CD with the label side facing up.
Moisture condensation occurs inside the unit. Wait until the moisture evaporates (approximately 1 hour).
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. A disc is not always
playable if it is scratched. Wipe off any dirt from the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration
(for example, keeping the discs in the passenger
compartment, etc.) . Change the disc with a deterioration-free disc. Do
not use a deteriorated disc. The label surface of the
disc may crack or chip, and the layer of the label
surface may eventually peel off.
The compressed audio files cannot be played back. If both music CD files (CD-DA data) and com- pressed audio files (MP3 data, etc.) are mixed on one
disc, the audio compression files cannot be played
back.Prepare a disc that includes compressed audio files
only.
The files are not named using characters that are
compliant with the specifications. Use the character codes and the number of
characters that are compliant with the specifications
for folder names and file names. In addition, always
use ª.MP3º, ª.WMAº, ª.mp3º or ª.wmaº for file
extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded in a disc.
The sound quality is poor. The disc is dirty.Wipe off any dirt from the disc.
8. Troubleshooting guide
& R Q G L W L R Q
8-7
Page 217 of 235
> ( G L W 0 R G H O 1 & * 1 - 1 @

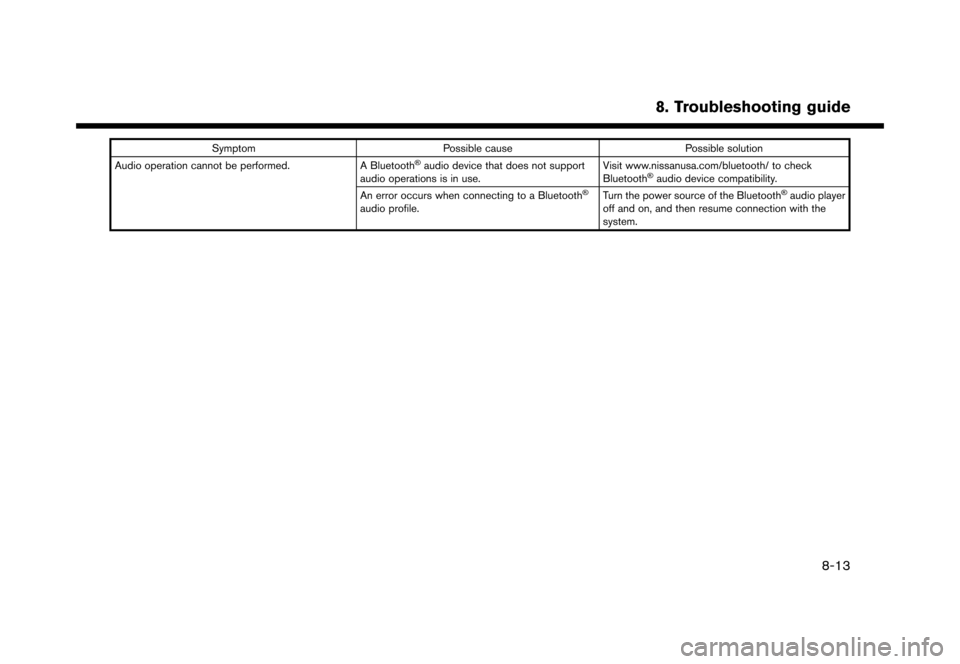

SymptomPossible cause Possible solution
Audio operation cannot be performed. A Bluetooth
