display NISSAN MAXIMA 2016 A36 / 8.G Nissan Connect Navigation Manual


> (GLW    0RGHO 1&*1-1 @
Table of Contents
1Introduction
How to use this manual...
.......... 1-2
Safety information ...
..................... 1-3
Trademarks ...
................................. 1-4
Regulatory information ...
............ 1-5
2Getting started
Control buttons and touch
screen display ...
........................... 2-2
Starting system ...
......................... 2-9
Basic operation ...
......................... 2-9
System settings ...
...................... 2-18
3Audio system
Audio
operation precautions ...
.............. 3-2
Names and functions of
audio control buttons ...
............ 3-10
Audio operations ...
.................... 3-12
Audio settings ...
......................... 3-34 CD/USB memory device care
and cleaning
...
............................ 3-35
4Hands-Free Phone
Bluetooth


> (GLW    0RGHO 1&*1-1 @

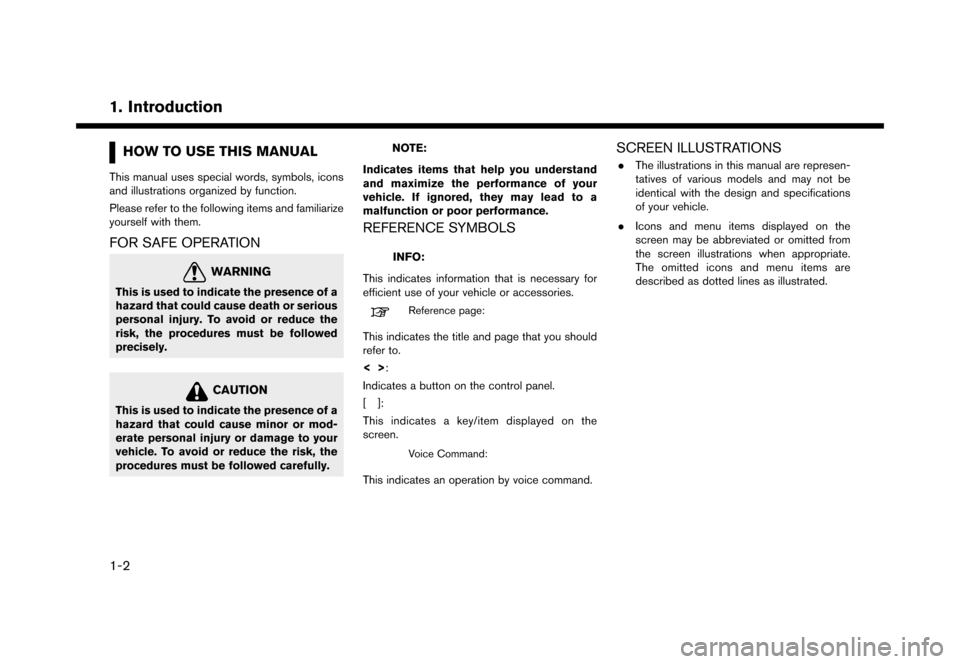

1. Introduction
HOW TO USE THIS MANUALNCGNJN1402-120906-D8FFB8FA-A072-42AA-8D6D-9FEA0AD9B6F9This manual uses special words, symbols, icons
and illustrations organized by function.
Please refer to the following items and familiarize
yourself with them.
FOR SAFE OPERATIONNCGNJN1402-120906-AF356C63-BA5E-4B54-878D-6D8BA7D7E683
WARNING1&*1-1))$$''&$This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.
CAUTION1&*1-1))$)&($$%')$%)This is used to indicate the presence of a
hazard that could cause minor or mod-
erate personal injury or damage to your
vehicle. To avoid or reduce the risk, the
procedures must be followed carefully.
NOTE:
Indicates items that help you understand
and maximize the performance of your
vehicle. If ignored, they may lead to a
malfunction or poor performance.
REFERENCE SYMBOLSNCGNJN1402-120906-A9CE57CF-4F6A-454A-9EF8-91C4E396725F
INFO:
This indicates information that is necessary for
efficient use of your vehicle or accessories.
Reference page:
This indicates the title and page that you should
refer to.
< >:
Indicates a button on the control panel.
[ ]:
This indicates a key/item displayed on the
screen.
Voice Command:
This indicates an operation by voice command.
SCREEN ILLUSTRATIONSNCGNJN1402-5F699818-FF71-447B-881E-832E1898366B. The illustrations in this manual are represen-
tatives of various models and may not be
identical with the design and specifications
of your vehicle.
. Icons and menu items displayed on the
screen may be abbreviated or omitted from
the screen illustrations when appropriate.
The omitted icons and menu items are
described as dotted lines as illustrated.
5GH0263X
5GH0264X
&RQGLWLRQ
1-2


> (GLW    0RGHO 1&*1-1 @
2 Getting started
Control buttons and touch screen display...
.......................... 2-2
Control panel (for U.S. and Canada) ...
............................. 2-2
Control panel (for Mexico) ...
................................................ 2-4
Liquid crystal display ...
.......................................................... 2-5
Steering wheel switches ...
................................................... 2-6
Display Commander (if so equipped) ...
............................ 2-7
USB (Universal Serial Bus) Connection Ports and
AUX (auxiliary) input jack ...
................................................... 2-7
Starting system ...
........................................................................\
.. 2-9
Start-up screen ...
.................................................................... 2-9
Basic operation ...
........................................................................\
.. 2-9
Selecting menu from Launch Bar ...
.................................... 2-9
Touch panel operation ...
..................................................... 2-11 Main screen operations
...
................................................ 2-12
Adjusting settings ...
.......................................................... 2-13
How to input letters and numbers ...
............................. 2-14
How to view and operate HOME MENU screen ...
..... 2-14
Functions disabled while driving ...
................................ 2-17
System settings ...
..................................................................... 2-18
Settings menu ...
................................................................. 2-18
Display settings ...
.............................................................. 2-19
Volume and Beeps settings ...
......................................... 2-19
Language and unit settings ...
......................................... 2-20
Clock settings ...
................................................................. 2-20
Connecting Bluetooth


> (GLW    0RGHO 1&*1-1 @
2. Getting started
CONTROL BUTTONS AND
TOUCH SCREEN DISPLAY
NCGNJN1402-1D7E0D66-C372-4533-A154-A968B3FBAE87
CONTROL PANEL (for U.S. and Canada)GUID-0F79FBFA-8617-4697-9F42-8714291E5E6B
5GH0308XType A (if so equipped)
5GH0307XType B (if so equipped)
*1


> (GLW    0RGHO 1&*1-1 @
*6Touch screen display:
Various information and operation menus
are displayed on the liquid crystal display.
Touch keys and icons on the screen for
operation.
ªTouch panel operationº (page 2-11)
*7Map data card slot:
The slot is for the map data SD card
provided with your vehicle. To eject the SD
card, open the lid and push the SD card in
and then release.
ªMap dataº (page 6-66)
*8<>/<>:
In audio operation, selecting and fast-
forwarding/rewinding tracks as well as radio
station/channel scanning can be performed.
ª3. Audio systemº
*9


> (GLW    0RGHO 1&*1-1 @
2. Getting started
CONTROL PANEL (for Mexico)GUID-5D6FB37D-E478-4A5D-B77B-9137B29A409A
5GH0309X*1


> (GLW    0RGHO 1&*1-1 @
*12:
Depending on the screen, pushing the
button will display the previous screen.
For character input operation, push or push
and hold to delete the characters entered.
Push and hold to quit the voice recognition
session.
ª7. Voice recognitionº
CAUTION*8,''%)''))$&'%).Never insert foreign objects such as
coins into the SD card slot. Doing so
may result in a malfunction of the
device.
. Do not apply too much pressure
when inserting the SD card into the
slot. Doing so may result in a mal-
function of the device.
. The SD card may be hot when it is
removed from the device. This does
not indicate a malfunction.
NOTE:
Do not remove the SD card containing map
data. If the SD card containing map data is
accidentally removed, reinsert the SD card
containing map data into the slot and place
the ignition switch in the OFF position.
LIQUID CRYSTAL DISPLAYNCGNJN1402-120906-372A4E1B-44A4-402D-B2E2-BBC1C2EE95EAThe display is a liquid crystal display and should
be handled with care.
WARNING1&*1-1%)$'))%)((($('Never disassemble the display. Some
parts utilize extremely high voltage.
Touching them may result in serious
personal injury.
Characteristics of liquid crystal displayGUID-606BA666-3A03-489B-86FB-CE0129A6D140. If the temperature inside the vehicle is
especially low, the display will stay relatively
dim or the movement of the images may be
slow. These conditions are normal. The
display will function normally when the
interior of the vehicle has warmed up.
. Some pixels in the display are darker or
brighter than others. This condition is an
inherent characteristic of liquid crystal dis-
plays, and it is not a malfunction. .
A remnant of the previous display image may
remain on the screen. This screen burn is
inherent in displays, and it is not a malfunc-
tion.
. The screen may become distorted by strong
magnetic fields.
Maintenance of displayGUID-A416EADC-8AF0-4234-BF0D-ADD3A5F4AF96
CAUTION*8,'%$$%&%)'&$.To clean the display screen, use a dry,
soft cloth. If additional cleaning is
necessary, use a small amount of
neutral detergent with a soft cloth.
. Clean the display with the ignition
switch in the OFF position. If the
display is cleaned while the ignition
switch is placed in the ON position,
unintentional operation may occur.
. To clean the display, never use a
rough cloth, alcohol, benzine, thinner
or any kind of solvent or paper towel
with a chemical cleaning agent. They
will scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the display.
Contact with liquid will cause the
2. Getting started
&RQGLWLRQ
2-5


> (GLW    0RGHO 1&*1-1 @
2. Getting started
system to malfunction.STEERING WHEEL SWITCHESNCGNJN1402-120906-1B7CD1C1-5D48-4964-8816-2649513B59D0
5GH0233X
Type A (if so equipped)
5GH0296X
Type B (if so equipped)
*1<>(TALK):
Push to use the voice recognition system.
Push and hold to end the voice recognition session.
ªGiving voice commandsº (page 7-2)
*2<>/<>,
:
During voice recognition operation, tilt up/
down to highlight different items, and push
to select the highlighted item.
Audio operations are also possible by tilting
the switch up and down.
ªSteering wheel mounted audio con-
trol buttonsº (page 3-11)
*3<>:
Push to display the hands-free phone
operation screen.
When you receive a phone call, push this
button to answer the call.
ª4. Hands-Free Phoneº
*4<>/<>:
The buttons are used mainly for the vehicle
information display operation. Refer to the
vehicle Owner's Manual for details.
During voice recognition operation, <
>
can be used to return to the previous
screen.
*5:
Push to change the audio source to the
available mode.
ªSelecting audio sourceº (page 3-12)
&RQGLWLRQ
2-6


> (GLW    0RGHO 1&*1-1 @
*6<>:
Push + or - to adjust the volume.
INFO:
Steering wheel switches are mainly for the
vehicle information display control and may not
be able to operate the touch screen display
depending on the conditions. Follow the pop-up
guide messages and labels shown on the vehicle
information display.
Some of the information displayed on the vehicle
information display are linked with the touch
screen display.
For other details of the vehicle information
display, refer to the vehicle Owner's Manual.
DISPLAY COMMANDER (if so
equipped)
GUID-EA578DD1-511A-4657-9194-0E1CAE4CD87FWith this system, the same operations as those
for the control panel are possible using the
Display Commander.
5GH0305X
*1


> (GLW    0RGHO 1&*1-1 @
2. Getting started
corresponding menu screens.
The following menus are available on the Launch
Bar.. [Audio]
. [Phone]
. [Info]
. [MENU]
. [Map]
. [Navi]
. [Settings] Launch Bar operation with Display Com-
mander (if so equipped):
5GH0345X
Sliding the slide switch backwards will enable
the center dial operation of the Launch Bar. Slide
the switch forward to return to operate Shortcuts
with the center dial.
AudioGUID-649C8501-BB6A-4900-9AEA-0E10ACEA7886Touching [Audio] on the Launch Bar will display
the audio screen. When [Audio] is touched while
the audio screen is displayed, the audio source
menu screen will be displayed.
ªSelecting audio sourceº (page 3-12)
INFO:
Pushing
