NISSAN MAXIMA 2019 Owner´s Manual

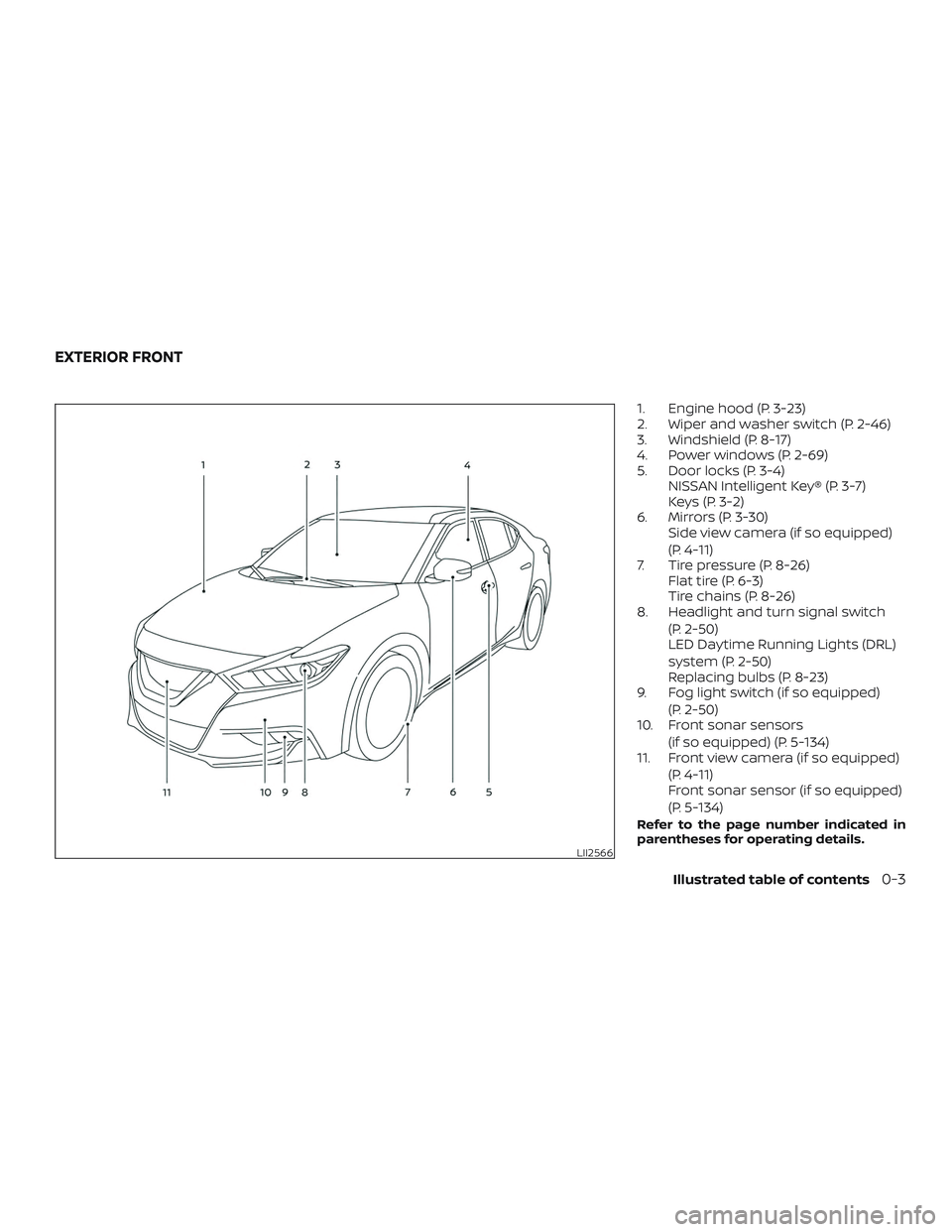

1. Engine hood (P. 3-23)
2. Wiper and washer switch (P. 2-46)
3. Windshield (P. 8-17)
4. Power windows (P. 2-69)
5. Door locks (P. 3-4)NISSAN Intelligent Key® (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-30) Side view camera (if so equipped)
(P. 4-11)
7. Tire pressure (P. 8-26) Flat tire (P. 6-3)
Tire chains (P. 8-26)
8. Headlight and turn signal switch
(P. 2-50)
LED Daytime Running Lights (DRL)
system (P. 2-50)
Replacing bulbs (P. 8-23)
9. Fog light switch (if so equipped)
(P. 2-50)
10. Front sonar sensors
(if so equipped) (P. 5-134)
11. Front view camera (if so equipped)
(P. 4-11)
Front sonar sensor (if so equipped)
(P. 5-134)
Refer to the page number indicated in
parentheses for operating details.
LII2566
EXTERIOR FRONT
Illustrated table of contents0-3

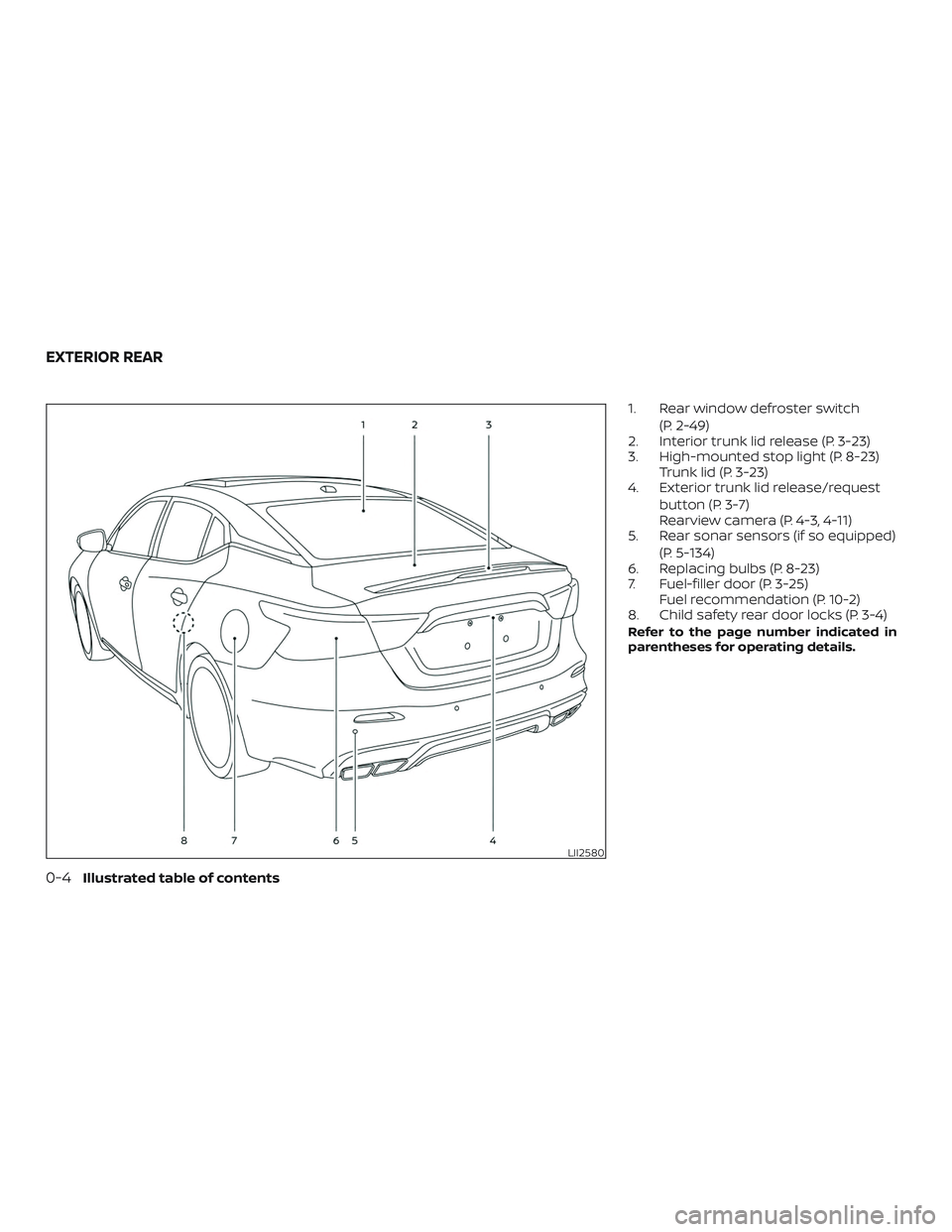

1. Rear window defroster switch(P. 2-49)
2. Interior trunk lid release (P. 3-23)
3. High-mounted stop light (P. 8-23) Trunk lid (P. 3-23)
4. Exterior trunk lid release/request
button (P. 3-7)
Rearview camera (P. 4-3, 4-11)
5. Rear sonar sensors (if so equipped)
(P. 5-134)
6. Replacing bulbs (P. 8-23)
7. Fuel-filler door (P. 3-25) Fuel recommendation (P. 10-2)
8. Child safety rear door locks (P. 3-4)
Refer to the page number indicated in
parentheses for operating details.
LII2580
EXTERIOR REAR
0-4Illustrated table of contents

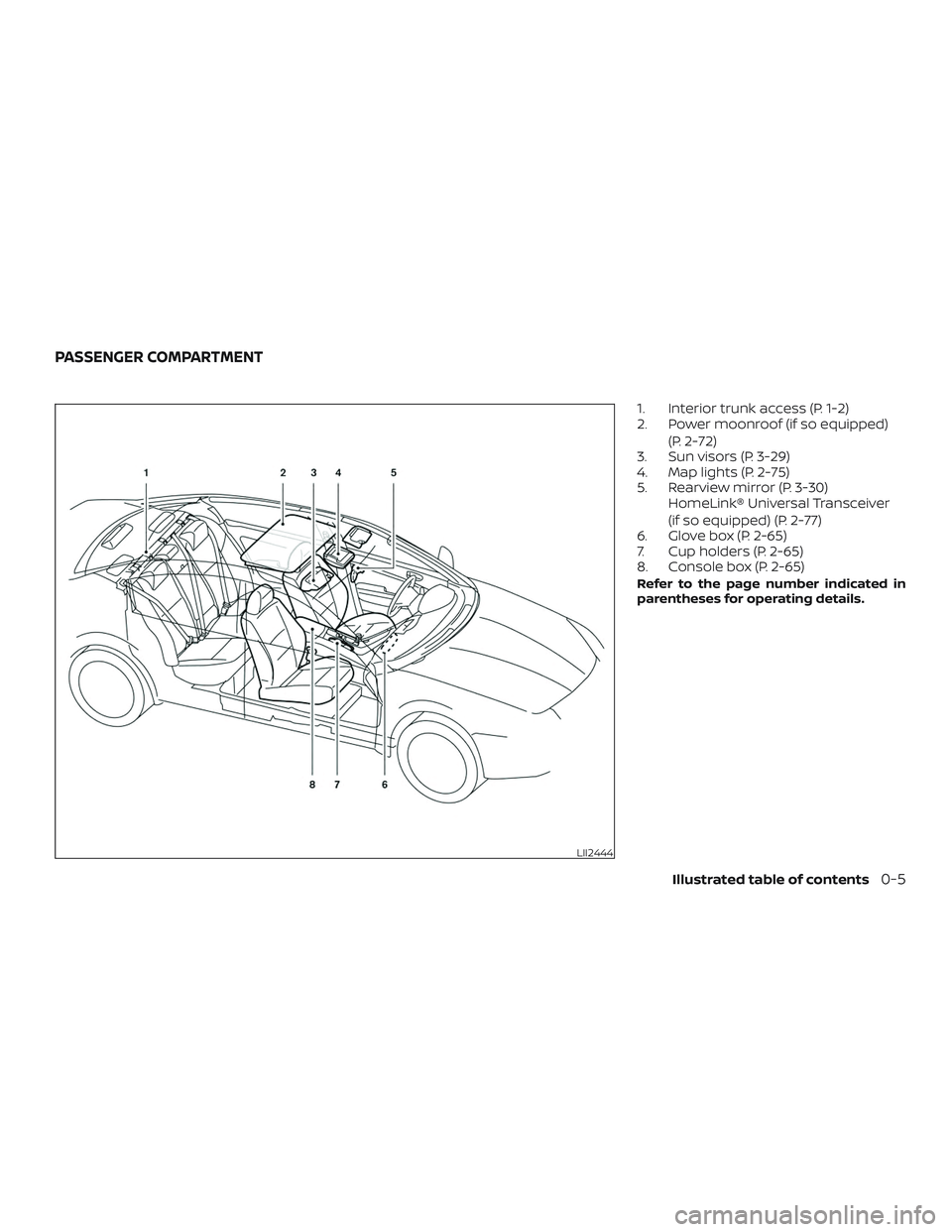

1. Interior trunk access (P. 1-2)
2. Power moonroof (if so equipped)(P. 2-72)
3. Sun visors (P. 3-29)
4. Map lights (P. 2-75)
5. Rearview mirror (P. 3-30) HomeLink® Universal Transceiver
(if so equipped) (P. 2-77)
6. Glove box (P. 2-65)
7. Cup holders (P. 2-65)
8. Console box (P. 2-65)
Refer to the page number indicated in
parentheses for operating details.
LII2444
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-27)
2. Headlight/fog light/turn signalswitch (P. 2-50)
3. Supplemental front-impact air bag
(P. 1-44)
Horn (P. 2-56)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-18)
5. Paddle shif ters (if so equipped)
(P. 5-16)
6. Wiper and washer switch (P. 2-46)
7. Audio controls* Navigation controls*
8. Hazard warning flasher switch
(P. 6-2)
9. Navigation display* Audio display*
10. Front passenger supplemental air
bag (P. 1-44)
11. Glove box (P. 2-65)
12. Passenger supplemental knee air
bag (P. 1-44)
13. Front passenger air bag status
light (P. 1-44)
14. AUX input/USB ports*
15. Heater and air conditioning
controls (P. 4-29)
16. Shif t lever (P. 5-16)
LII2577
INSTRUMENT PANEL
0-6Illustrated table of contents

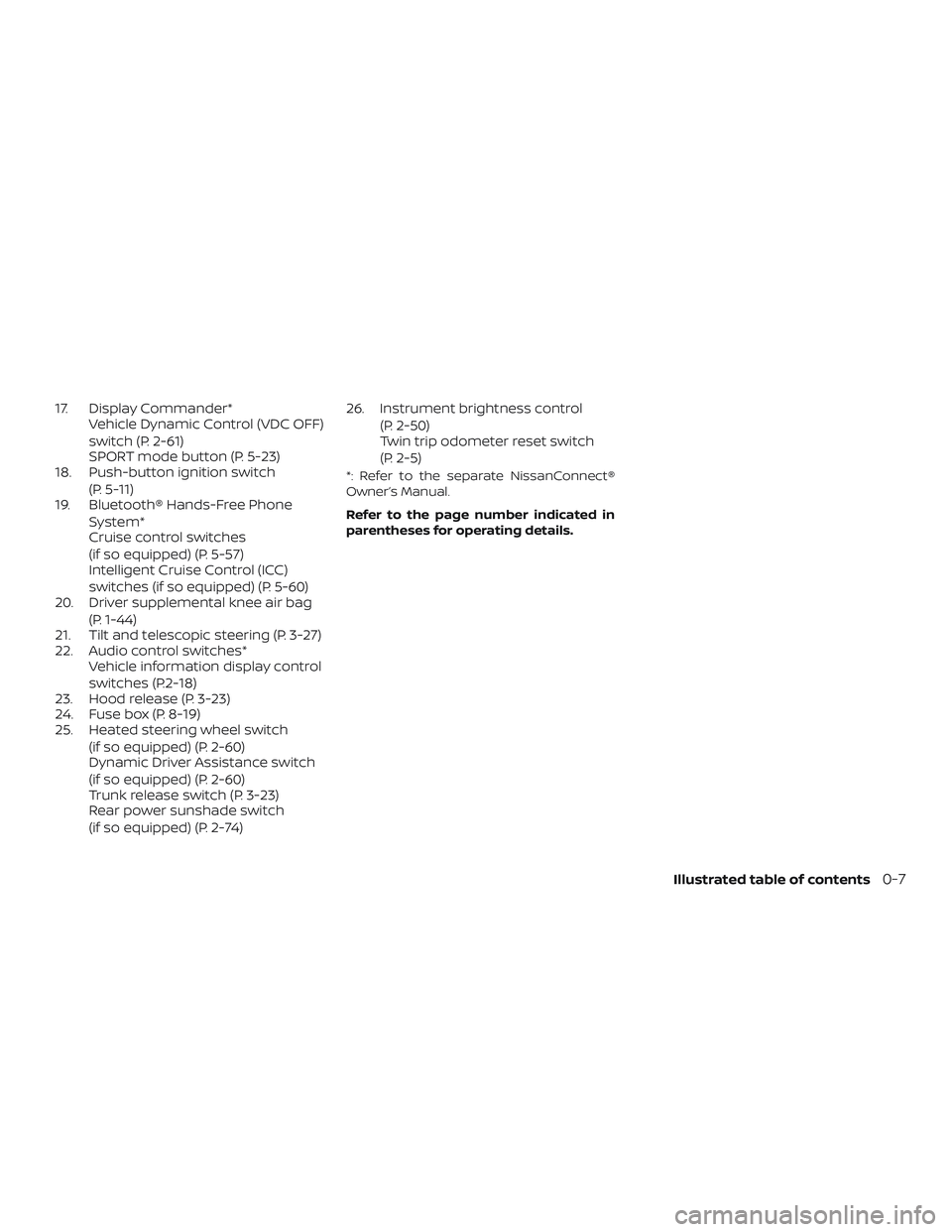

17. Display Commander*Vehicle Dynamic Control (VDC OFF)
switch (P. 2-61)
SPORT mode button (P. 5-23)
18. Push-button ignition switch
(P. 5-11)
19. Bluetooth® Hands-Free Phone
System*
Cruise control switches
(if so equipped) (P. 5-57)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-60)
20. Driver supplemental knee air bag
(P. 1-44)
21. Tilt and telescopic steering (P. 3-27)
22. Audio control switches* Vehicle information display control
switches (P.2-18)
23. Hood release (P. 3-23)
24. Fuse box (P. 8-19)
25. Heated steering wheel switch
(if so equipped) (P. 2-60)
Dynamic Driver Assistance switch
(if so equipped) (P. 2-60)
Trunk release switch (P. 3-23)
Rear power sunshade switch
(if so equipped) (P. 2-74) 26. Instrument brightness control
(P. 2-50)
Twin trip odometer reset switch
(P. 2-5)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

VQ35DE engine
1. Engine coolant reservoir (P. 8-4)
2. Drive belt location (P. 8-15)
3. Engine oil filler cap (P. 8-6)
4. Brake fluid reservoir (P. 8-11)
5. Air cleaner (P. 8-16)
6. Fuse box (P. 8-19)
7. Fuse box/Fusible links (P. 8-19)
8. Fusible links (P. 8-19)
9. Battery (P. 8-13)
10. Engine oil dipstick (P.8-6)
11. Radiator cap (P. 8-4)
12. Power steering fluid reservoir(P. 8-11)
13. Windshield-washer fluid reservoir
(P. 8-12)
Refer to the page number indicated in
parentheses for operating details.
LDI2749
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-9
Automatic Emer-
gency Braking
(AEB) system
warning light (if so
equipped)2-9
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-9
or
Brake warning
light
2-10
Warning
light Name Page
Charge warning
light 2-10
Engine oil pres-
sure warning light 2-11
Low tire pressure
warning light2-11
Master warning
light2-13
Power steering
warning light2-13
Rear Automatic
Braking (RAB)
warning light (if so
equipped)2-13
Seat belt warning
light and chime
2-14
Supplemental air
bag warning light2-14
Indicator
light Name Page
Front fog light in-
dicator light
(green) 2-14
Front passenger
air bag status
light 2-15
High Beam Assist
indicator light
(green) (if so
equipped)2-15
High beam indi-
cator light (blue)
2-15
Malfunction Indi-
cator Light (MIL)2-15
Security indicator
light2-16
Side light and
headlight indica-
tor light (green)2-16
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

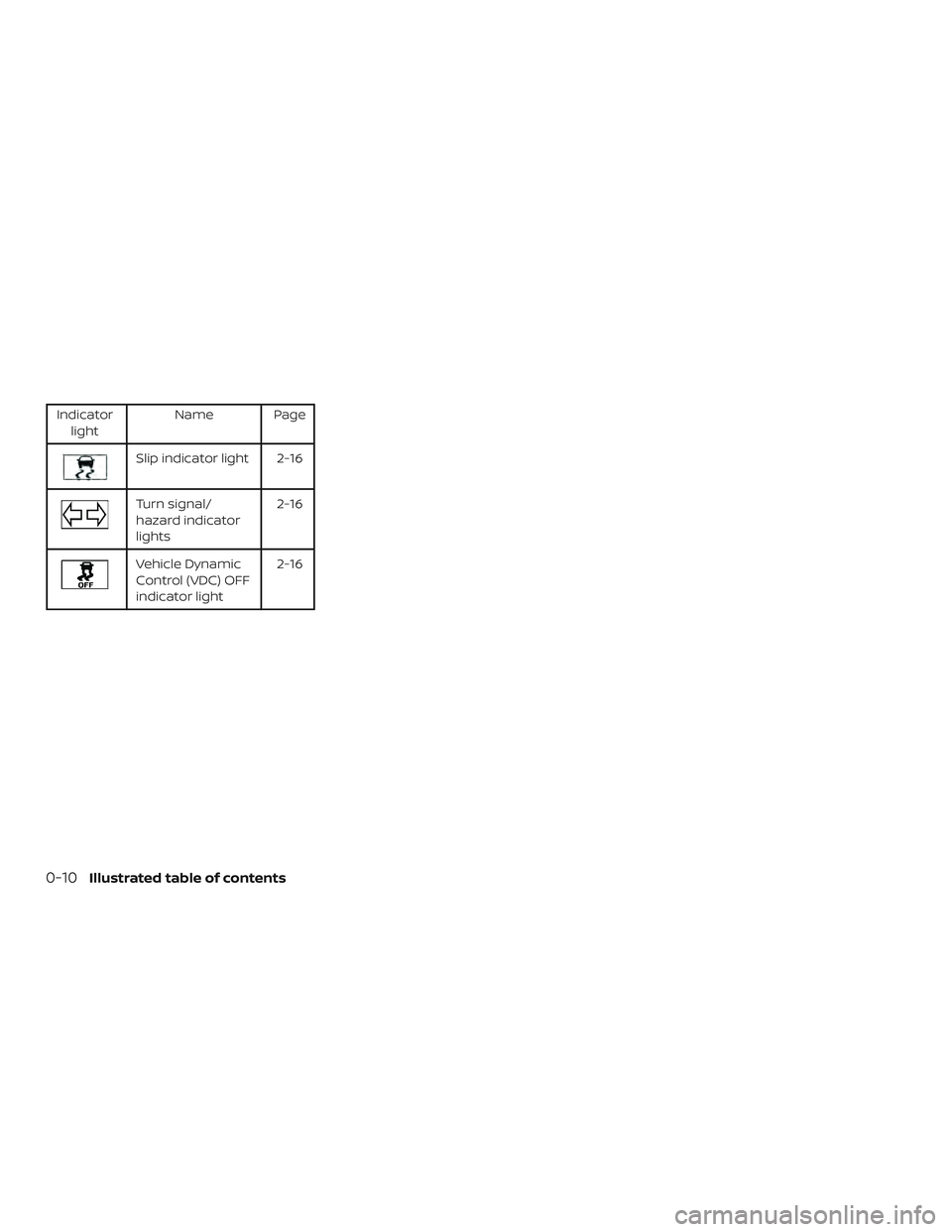

Indicatorlight Name Page
Slip indicator light 2-16
Turn signal/
hazard indicator
lights 2-16
Vehicle Dynamic
Control (VDC) OFF
indicator light2-16
0-10Illustrated table of contents

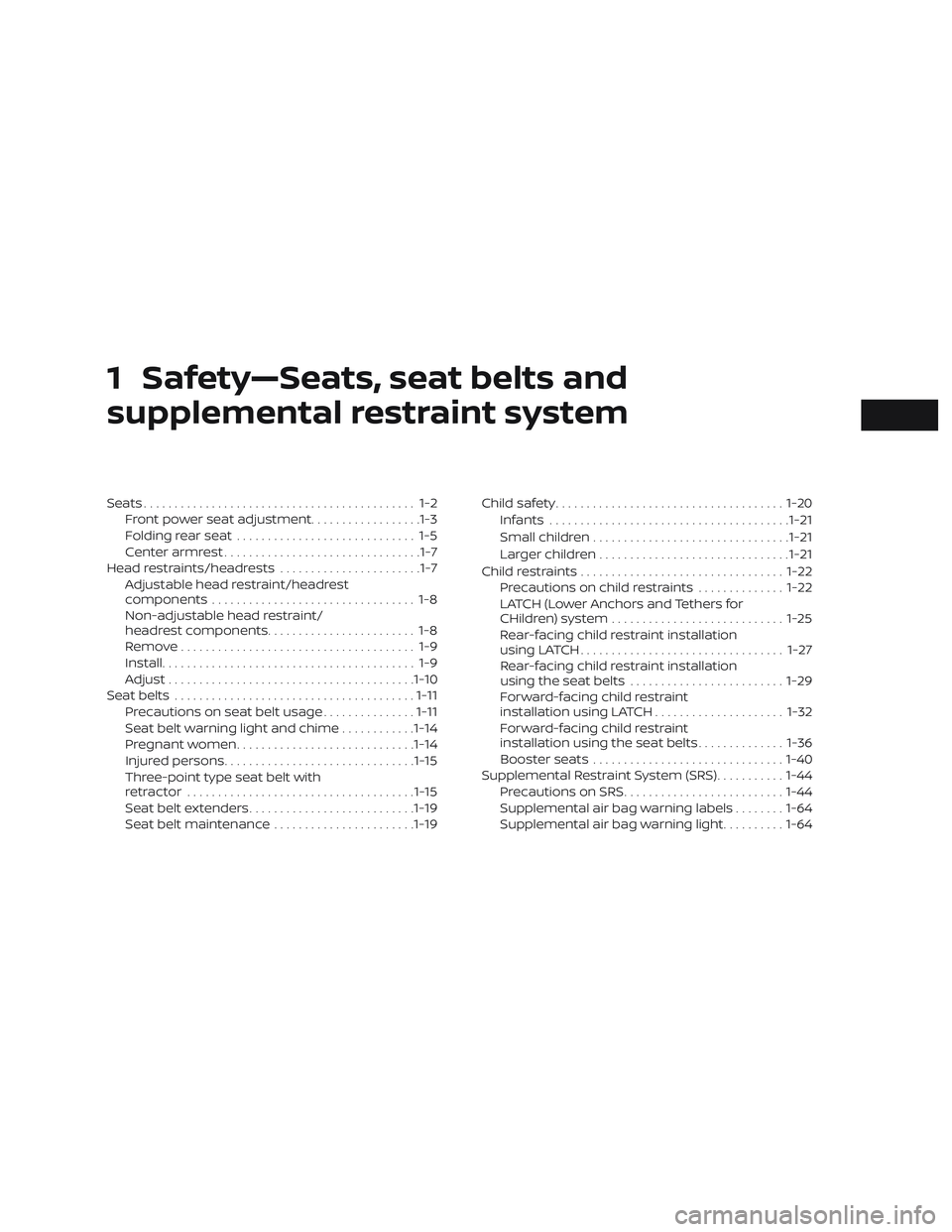

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front power seat adjustment ..................1-3
Folding rear seat ............................. 1-5
Center armrest ................................1-7
Head restraints/headrests .......................1-7
Adjustable head restraint/headrest
components ................................. 1-8
Non-adjustable head restraint/
headrest components ........................ 1-8
Remove...................................... 1-9
Install ......................................... 1-9
Adjust ........................................ 1-10
Seatbelts ....................................... 1-11
Precautions on seat belt usage ...............1-11
Seat belt warning light and chime ............1-14
Pregnant women ............................. 1-14
Injured persons ............................... 1-15
Three-point type seat belt with
retractor ..................................... 1-15
Seat belt extenders ........................... 1-19
Seat belt maintenance .......................1-19Child safety
..................................... 1-20
Infants ....................................... 1-21
Small children ................................ 1-21
Larger children ............................... 1-21
Child restraints ................................. 1-22
Precautions on child restraints ..............1-22
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-25
Rear-facing child restraint installation
using LATCH ................................. 1-27
Rear-facing child restraint installation
using the seat belts ......................... 1-29
Forward-facing child restraint
installation using LATCH .....................1-32
Forward-facing child restraint
installation using the seat belts ..............1-36
Booster seats ............................... 1-40
Supplemental Restraint System (SRS) ...........1-44
Precautions on SRS .......................... 1-44
Supplemental air bag warning labels ........1-64
Supplemental air bag warning light ..........1-64

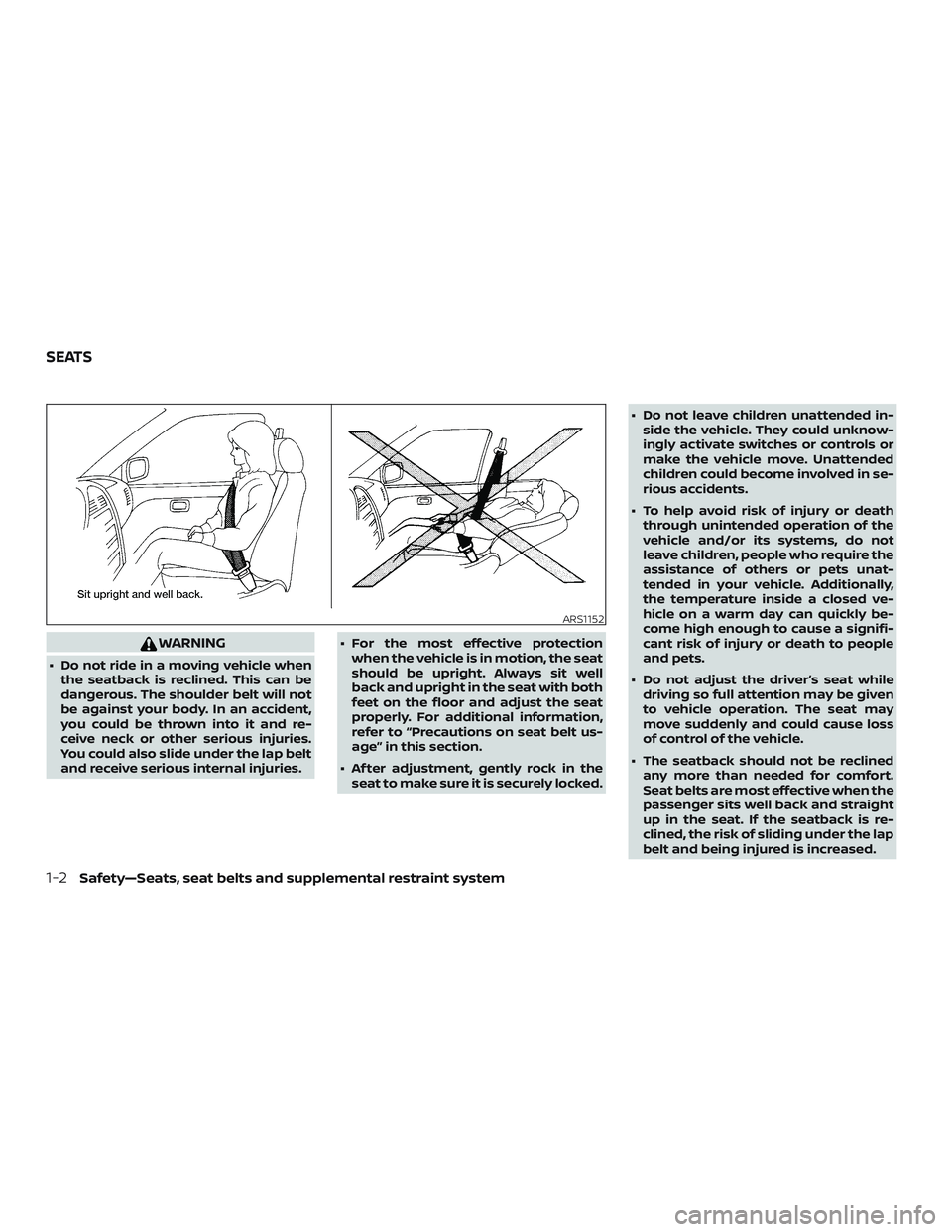

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
