NISSAN MAXIMA 2023 Owners Manual

Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when
towing a vehicle behind a recreational ve-
hicle, such as a motor home.
CAUTION
•
Failure to follow these guidelines can
result in severe transmission damage.
• Whenever flat towing your vehicle,
always tow forward, never backward.
•
Never tow your front wheel drive ve-
hicle with the front tires on the ground.
Doing so may cause serious and ex-
pensive damage to the powertrain.
• DO NOT tow any continuously vari-
able transmission vehicle with all
four wheels on the ground (flat tow-
ing). Doing so WILL DAMAGE internal
transmission parts due to lack of
transmission lubrication.
•
For emergency towing procedures see
“Towing recommended by NISSAN”
(P. 6-12).
Continuously Variable
Transmission
To tow a vehicle equipped with a continu-
ously variable transmission, an appropriate
vehicle dolly MUSTbe placed under the
towed vehicle's drive wheels. Alwaysfollow
the dolly manufacturer's recommenda-
tions when using their product. DOT (Department of Transportation) Qual-
ity Grades: All passenger car tires must
conform to federal safety requirements in
addition to these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rat-
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
TOWING A TRAILER
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-19

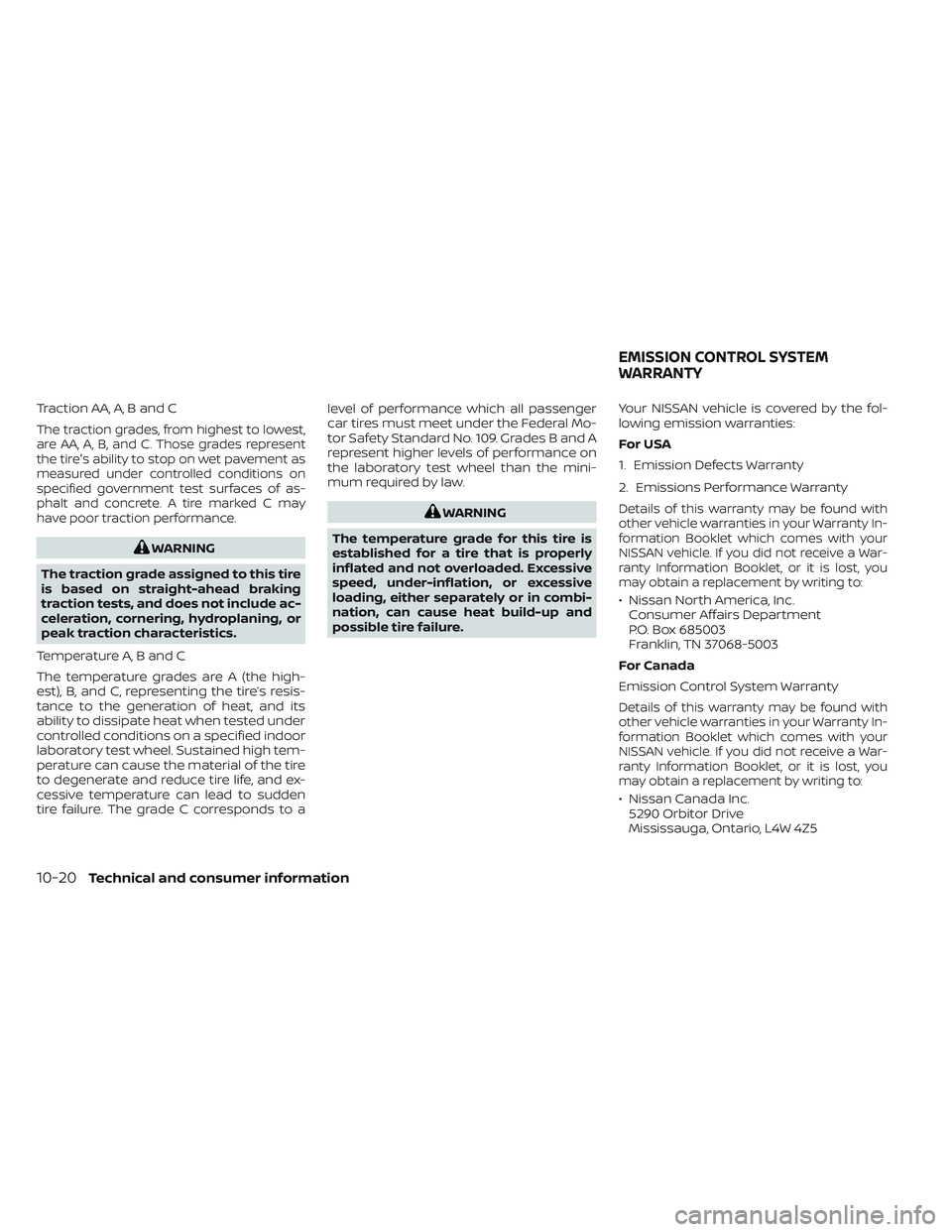

Traction AA, A, B and C
The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire's ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may
have poor traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include ac-
celeration, cornering, hydroplaning, or
peak traction characteristics.
Temperature A, B and C
The temperature grades are A (the high-
est), B, and C, representing the tire’s resis-
tance to the generation of heat, and its
ability to dissipate heat when tested under
controlled conditions on a specified indoor
laboratory test wheel. Sustained high tem-
perature can cause the material of the tire
to degenerate and reduce tire life, and ex-
cessive temperature can lead to sudden
tire failure. The grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Mo-
tor Safety Standard No. 109. Grades B and A
represent higher levels of performance on
the laboratory test wheel than the mini-
mum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure. Your NISSAN vehicle is covered by the fol-
lowing emission warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance WarrantyDetails of this warranty may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN vehicle. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
• Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN vehicle. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
• Nissan Canada Inc. 5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
10-20Technical and consumer information

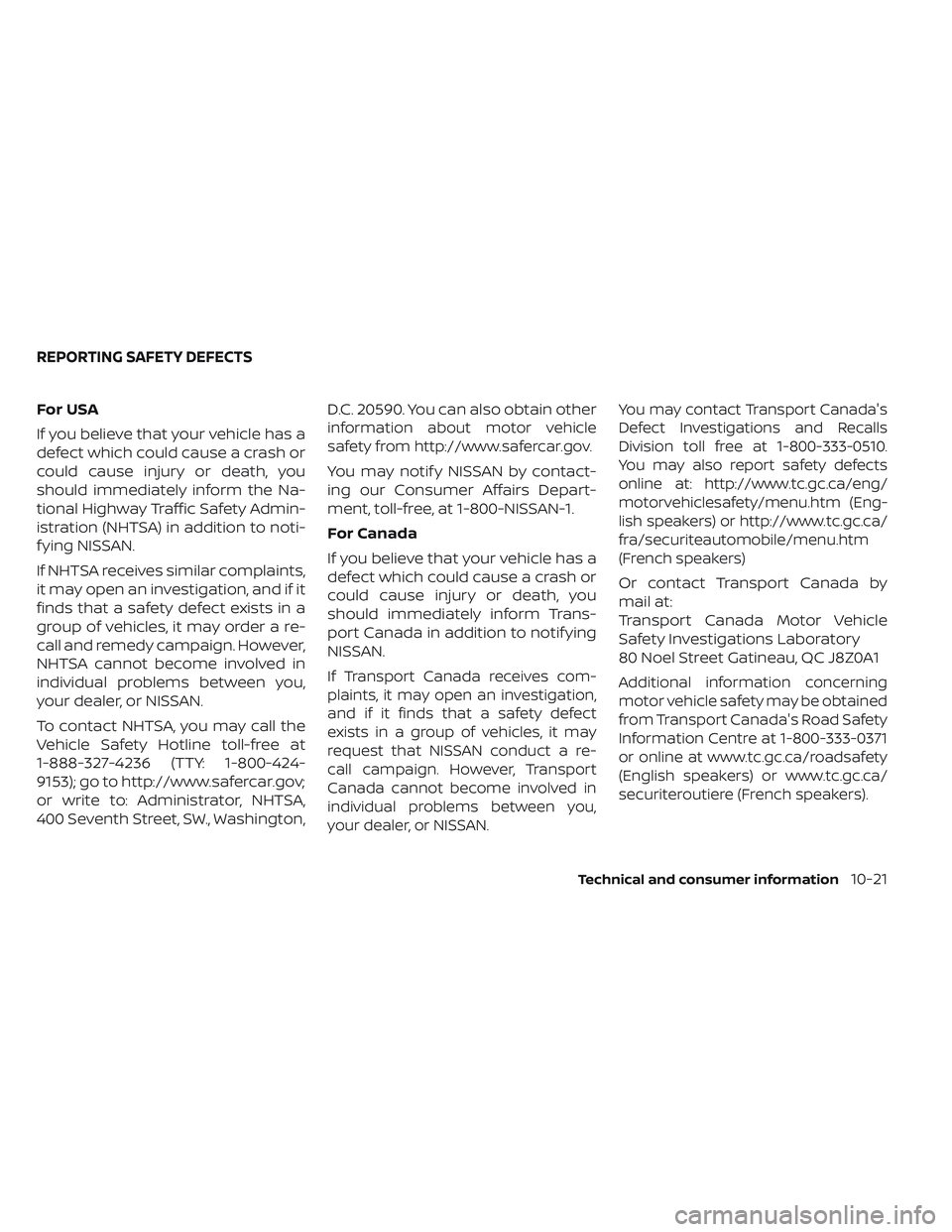

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Admin-
istration (NHTSA) in addition to noti-
f ying NISSAN.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a re-
call and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
400 Seventh Street, SW., Washington,D.C. 20590. You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov.
You may notif y NISSAN by contact-
ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-NISSAN-1.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform Trans-
port Canada in addition to notif ying
NISSAN.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
request that NISSAN conduct a re-
call campaign. However, Transport
Canada cannot become involved in
individual problems between you,
your dealer, or NISSAN.
You may contact Transport Canada's
Defect Investigations and Recalls
Division toll free at 1-800-333-0510.
You may also report safety defects
online at: http://www.tc.gc.ca/eng/
motorvehiclesafety/menu.htm (Eng-
lish speakers) or http://www.tc.gc.ca/
fra/securiteautomobile/menu.htm
(French speakers)
Or contact Transport Canada by
mail at:
Transport Canada Motor Vehicle
Safety Investigations Laboratory
80 Noel Street Gatineau, QC J8Z0A1
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada's Road Safety
Information Centre at 1-800-333-0371
or online at www.tc.gc.ca/roadsafety
(English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers).
REPORTING SAFETY DEFECTS
Technical and consumer information10-21

To notif y NISSAN of any safety con-
cerns please contact our Consumer
Information Centre toll free at
1-800-387-0122.Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the “ready
condition” for an Inspection/Maintenance
(I/M) test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the ready condition can be
obtained by ordinary usage of the vehicle.
If a powertrain system component is re-
paired or the battery is disconnected, the
vehicle may be reset to a “not ready” condi-
tion. Before taking the I/M test, check the
vehicle's inspection/maintenance test
readiness condition. Place the ignition
switch in the ON position without starting
the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds
and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not
blink af ter 20 seconds, the I/M test condi-
tion is “ready”. It is recommended that you
visit a NISSAN dealer to set the “ready con-
dition” or to prepare the vehicle for testing.This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a ve-
hicle's systems performed. The EDR is de-
signed to record data related to vehicle dy-
namics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to re-
cord such data as:
• How various systems in your vehicle were
operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depress- ing the accelerator and/or brake pedal;
and,
• How fast the vehicle was traveling.
• Sounds are not recorded.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
10-22Technical and consumer information

These data can help provide a better un-
derstanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data (e.g.,
name, gender, age, and crash location) are
recorded. However, other parties, such as
law enforcement, could combine the EDR
data with the type of personally identif ying
data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special
equipment is required, and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR.
EDR data will only be accessed with the
consent of the vehicle owner or lessee or
as otherwise required or permitted by law.Genuine NISSAN Service Manuals for this
model year and prior can be purchased.
A Genuine NISSAN Service Manual is the
best source of service and repair informa-
tion for your vehicle. This manual is the
same one used by the factory-trained
technicians working at NISSAN dealer-
ships. Genuine NISSAN Owner’s Manuals
can also be purchased.
For USA
For current pricing and availability of
Genuine
NISSAN Service Manuals, contact:
www.nissan-techinfo.com
For current pricing and availability of
GenuineNISSAN Owner's Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine NISSAN
Service Manual or Owner’s Manual, for this
model year and prior, please visit the near-
est NISSAN dealer. For the phone number
and location of a NISSAN dealer in your
area, call the NISSAN Information Center at
1-800-387-0122 and a bilingual NISSAN rep-
resentative will assist you.
OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information10-23

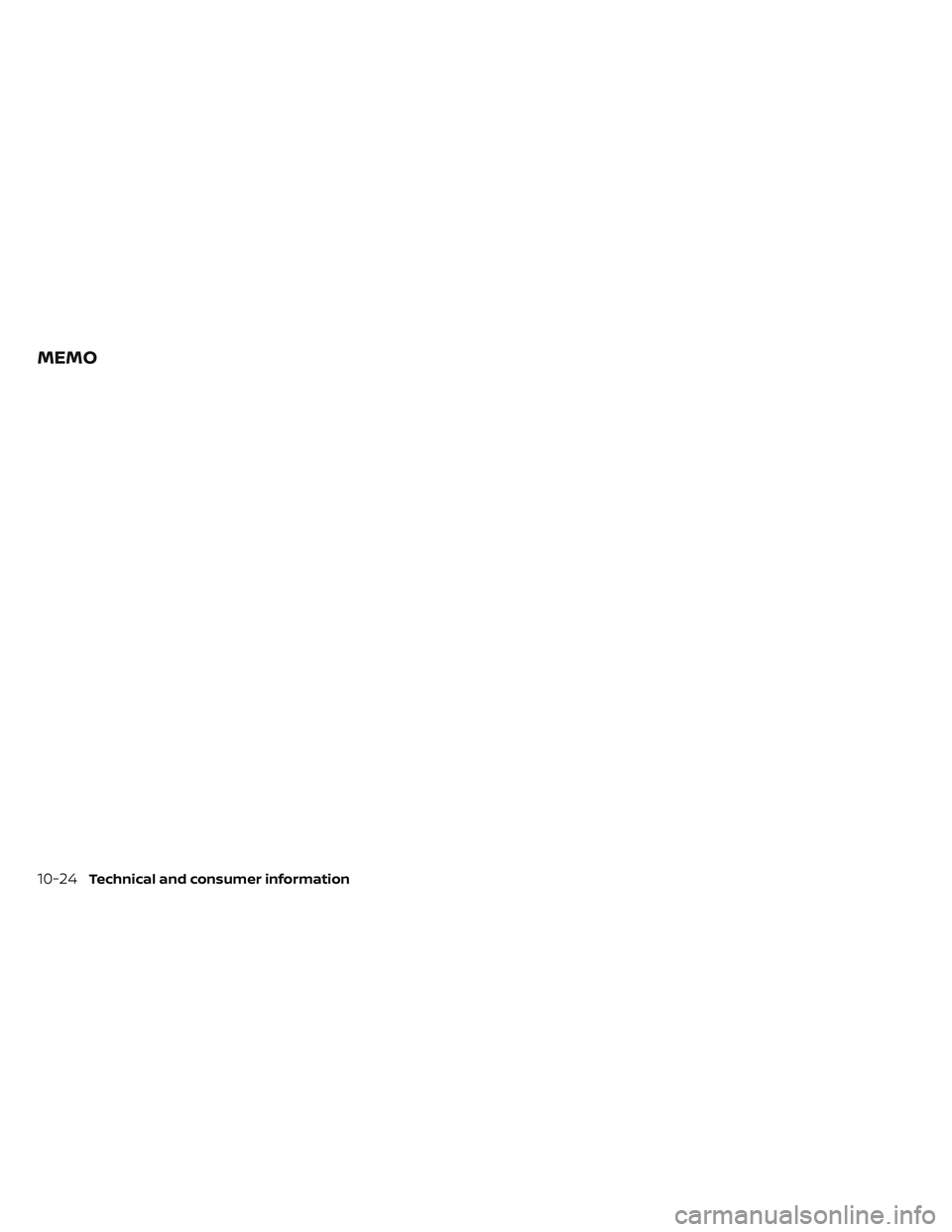

MEMO
10-24Technical and consumer information

11 Index
A
Activenoisecancellation...........5-125Active sound enhancement .......5-125
ActiveRideControl(ARC)............5 -119
Air bag (See supplemental restraint
system) ........................ .1-41
Air bag system ...................1-49
Front (See supplemental front impact
air bag system) .................1-49
Air bag warning light, supplemental . . . .1-62
Airbagwarninglight.............. .1-62
Air cleaner housing filter .............8-17
Air cleaner .......................8-17
Air conditioner ....................4-30
Air conditioner operation ..........4-30
Air conditioner specification label . . .10-13
Air conditioner system refrigerant and
oil recommendations .........10-2,10-8
Air conditioner system refrigerant
recommendations ...........10-2,10-8
Heater and air conditioner (automatic)
(if so equipped) .................4-29
Heater and air conditioner controls . .4-30
Servicing air conditioner ..........4-33
Alarm system (See vehicle security
system) .........................2-40
Anchor point locations ..............1-26
Antenna ........................4-33
Anti-lock Braking System (ABS) .......5-114
Antifreeze ......................5-124 Armrests........................
.1-6
Autolightswitch...................2-47
Automatic anti-glare inside mirror .....3-27
Automatic door locks ...............3-5
Automatic Emergency Braking (AEB)
with Pedestrian Detection ...........5-85
Automatic Emergency Braking (AEB) . . .2-12
Automatic.......................2-71 Automaticpowerwindowswitch....2-71
B
Battery replacement ...............8-22
Keyfob.......................8-22
NISSAN Intelligent Key® ...........8-22
Battery ........................5-124 Charge warning light .............2-10
Before starting the engine ...........5-14
Belt(Seedrivebelt) ................8-16
Blind Spot Warning (BSW) ............5-37
Booster seats ................... .1-38
Brake Assist .....................5 -115
Brakefluid.......................8-12
Brake system ....................5 -113
Brake..........................5 -114
Anti-lock Braking System (ABS) .....5-114
Brakefluid.....................8-12
Brakelight(Seestoplight).........8-25
Brake system ..................5 -113
Brakewarninglight...............2-9 Brakewearindicators ........2-16,8-19
Parking brake operation
..........5-22
Self-adjustingbrakes.............8-19
Brakes..........................8-19
Break-in schedule ................5-109
Brightness control .................2-52
Instrument panel ...............2-52
Bulb check/instrument panel .........2-9
Bulb replacement .................8-25
C
C.M.V.S.S. certification label ..........10-12
Capacities and recommended
fuel/lubricants....................10-2
Car phone or CB radio ..............4-34
Cargo (See vehicle loading
information).....................10-15
Check tire pressure ................2-30
Childrestraints................... .1-19
LATCH (Lower Anchors and Tethers
forCHildren)System .............1-23
Precautions on child
restraints..............1-28, 1-34, 1-38
Top tether strap anchor point
locations..................... .1-26
Child safety rear door lock ............3-6
Cleaningexteriorandinterior .........7-2
Climatecontrolseatswitch..........2-54
Cold weather driving ..............5-124

Console box......................2-66
Console light ......................2-76
Continuously Variable Transmission
(CVT) ............................5-16
Continuously Variable Transmission
(CVT) fluid ......................8-11
Driving with Continuously Variable
Transmission (CVT) ...............5-16
Transmission shif t selector lock
release........................5-20
Control panel and vehicle information
displayinteraction .................2-33
Controls.........................4-30 Heater and air conditioner controls. . .4-30
Coolant..........................10-2 Capacities and recommended
fuel/lubricants ..................10-2
Changing engine coolant ...........8-5
Checking engine coolant level .......8-5
Engine coolant temperature gauge . . .2-5
Corrosionprotection ................7-9
Cupholders......................2-67
D
Daytime Running Light System ........2-51
Defrosterswitch...................2-45 Rear window and outside mirror
defrosterswitch.................2-45
Dimensions and weights ............10-10
Dimmer switch for instrument panel . . .2-52
Display ..........................2-17 Informationdisplay...............2-17 Door locks
........................3-4
Drivebelt ........................8-16
Drive Mode Selector ................5-22
Drive Sport Mode Selector ...........5-22
Drivingthevehicle..................5-16
Driving .........................5-124 Cold weather driving .............5-124
Driving with Continuously Variable
Transmission (CVT) ...............5-16
Precautions when starting and
driving.........................5-4
Dynamic driver assistance switch ......2-58
E
Eco Drive Report....................2-7
Economy - fuel ....................5 -111
Emergency call (SOS) button ..........2-59
Emergency engine shutoff ...........5-13
Emission control information label .....10-12
Emission control system warranty . . . .10-20
Engine coolant temperature gauge .....2-5
Engine ..........................5-14
Before starting the engine ..........5-14
Capacities and recommended
fuel/lubricants ..................10-2
Changing engine coolant ...........8-5
Changing engine oil filter ...........8-7
Changing engine oil ...............8-7
Checking engine coolant level .......8-5
Checking engine oil level ...........8-6
Engine compartment check
locations .......................8-3 Engine coolant temperature gauge . . .2-5
Engine cooling system
.............8-4
Engine oil and oil filter
recommendation ............10-2,10-7
Engine oil pressure warning light .....2-10
Engine oil viscosity ...............10-7
Engine oil .......................8-6
Engine serial number .............10-12
Engine specifications .............10-9
Starting the engine ...............5-14
EventDatarecorders...............10-22
Exhaust gas (Carbon monoxide) ........5-4
Explanation of maintenance items ......9-2
Explanation of scheduled maintenance
items........................... .9-5
Extended storage switch ............2-63
Eyeglasscase.....................2-66
F
F.M.V.S.S. certification label ...........10-12
Flashers (See hazard warning flasher
switch)...........................6-2
Flattire...........................6-3
Floor mat positioning aid .............7-8
Fluid............................8-12 Brakefluid......................8-12
Capacities and recommended
fuel/lubricants ..................10-2
Continuously Variable Transmission
(CVT) fluid ......................8-11
Engine coolant ...................8-4
Engine oil .......................8-6
11-2

Powersteeringfluid...............8-11
Windshield-washer fluid...........8-12
Foglightswitch ...................2-53
Foldingrearseat................... .1-5
Front air bag system (See supplemental
restraint system) ...................1-49
Front and rear sonar system .........5-119
Front power seat adjustment ..........1-3
Frontseats....................... .1-2
Front-door pocket .................2-64
Fuelefficientdrivingtips.............5 -110
Fuel gauge ........................2-6
Fuel-filler door .....................3-22
Fuel.............................10-2 Capacities and recommended
fuel/lubricants ..................10-2
Fuel economy ...................5 -111
Fuel gauge ......................2-6
Fueloctanerating................10-6
Fuel recommendation .........10-2,10-4
Fuel-filler cap ...................3-22
Fuel-filler lid ....................3-22
Loose fuel cap warning ............2-27
Fuses ...........................8-20
Fusiblelinks ......................8-21
G
Garage door opener, HomeLink®
Universal Transceiver ...............2-77
Gascap.........................3-22 Gauge
...........................2-5
Engine coolant temperature gauge . . .2-5
Fuel gauge ......................2-6
Odometer ......................2-4
Speedometer ....................2-4
Tachometer .....................2-5
Trip odometer ...................2-4
General maintenance ................9-2
Gloveboxlock ....................2-66
Glovebox........................2-66
H
Hazard warning flasher switch .........6-2
Headrestraints.................... .1-7
Headlight and turn signal switch .......2-46
Headlightcontrolswitch.............2-46
Headlights.......................8-24
Heatedmirrors....................3-29
Heatedrearseats..................2-56
Heated seat switches ...............2-55
Heatedseats.....................2-54
Heated steering wheel ..............2-57
Heater and air conditioner (automatic) . .4-29
Heater..........................4-29 Heater and air conditioner (automatic)
(if so equipped) ..................4-29
Heater and air conditioner controls. . .4-30
Heater operation .................4-31
HomeLink® Universal Transceiver ......2-77
Hood ...........................3-20
Horn............................2-53
I
Ignition Switch ....................5-10
Push-button ignition switch ........5-10
Immobilizer system ................2-42
Important vehicle information label . . . .10-12
In-cabinmicrofilter.................8-17
Increasing fuel economy ............5-111
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................... .2-8
Indicator.........................5-13 NISSAN Intelligent Key® battery
discharge indicator ...............5-13
Inside automatic anti-glare mirror ......3-27
Instrument brightness control ........2-52
Instrument panel dimmer switch ......2-52
Instrument panel ...................0-6
Integrated Dynamics-control Module . . .5-118
Intelligent Around View® Monitor .......4-11
Intelligent Cruise Control ............5-56
Intelligent Drive Alertness (I-DA) .......5-107
Intelligent Engine Brake (I-EB) .........5-118
Intelligent Forward Collision Warning
(I-FCW)..........................5-96
Intelligent Key system ................3-7
Key operating range ...............3-7
Key operation ....................3-8
Mechanical key ...................3-3
Remote keyless entry operation .....3-12
Troubleshooting guide ............3-15
Warning signals ..................3-15
11-3

Intelligent Lane Intervention..........5-31
Intelligent Trace Control (I-TC) .........5-118
Interiorlight ......................2-75
Interiortrunklidrelease..............3-21
ISOFIX child restraints ...............1-23
J
Jumpstarting......................6-9
K
Key fob battery replacement .........8-22
Key..............................3-2
Keylessentry......................3-12 With Intelligent Key system
(See Intelligent Key system) .........3-12
Keys.............................3-2 NISSAN Intelligent Key® ..........3-2,3-6
NISSAN Vehicle Immobilizer System
keys...........................3-3
L
Labels ..........................10-13
Air conditioner specification label . . . .10-13
C.M.V.S.S. certification label .........10-12
Emission control information label . . .10-12
Engine serial number .............10-12
F.M.V.S.S. certification label .........10-12
Tire and Loading Information label . . .10-13 Vehicle identification number (VIN)
plate .........................10-11
Warning labels (for SRS)
............1-62
Lane Departure Warning (LDW) ........5-26
LATCH (Lower Anchors and Tethers for
CHildren)System.................. .1-23
License plate .....................10-14
Installing the license plate .........10-14
Light........................... .1-62
Airbagwarninglight ..........1-62, 2-11
Brakelight(Seestoplight)..........8-25
Bulb check/instrument panel ........2-9
Bulb replacement ................8-25
Charge warning light ..............2-10
Console light ....................2-76
ExteriorandInteriorlights..........8-25
Foglightswitch .................2-53
Foglights......................8-24
Headlight and turn signal switch .....2-46
Headlightcontrolswitch...........2-46
Headlights.....................8-24
Interiorlight ....................2-75
Lightbulbs.....................8-24
Low tire pressure warning light ......2-12
Low windshield-washer fluid warning
light..........................2-27
Personal lights ..................2-76
Security indicator light .............2-11
Spotlights(Seemaplight)..........2-76
Trunklight .....................2-76
Warning/indicator lights and audible
reminders ......................2-8
Lights...........................8-24 Maplights......................2-76 Lock............................
.3-6
Child safety rear door lock ..........3-6
Door locks ..................... .3-4
Gloveboxlock ..................2-66
Power door locks .................3-5
Trunk lid lock opener lever ..........3-21
Loose fuel cap warning ..............2-27
Lowfuelwarninglight...............2-10
Low tire pressure warning light ........2-12
Low windshield-washer fluid warning
light........................... .2-27
Luggage (See vehicle loading
information)......................10-15
M
Maintenance requirements ...........9-2
Maintenance schedules ..............9-7
Maintenance ......................9-2
General maintenance ..............9-2
Insidethevehicle.................9-3
Maintenance precautions ...........8-2
Outsidethevehicle................9-3
Seat belt maintenance ............1-18
Under the hood and vehicle .........9-4
Malfunctionindicatorlight........... .2-13
Maplights........................2-76
Memory seat .....................3-30
Meters and gauges ..................2-3
Instrument brightness control ......2-52
Mirrordefroster ...................2-45
11-4
