fuse box NISSAN MAXIMA 2023 Owners Manual

21. Tilt and telescopic steering (P. 3-24)
22. Audio control switches*Vehicle information display control
switches (P. 2-17)
23. Hood release (P. 3-20)
24. Fuse box (P. 8-20)
25. Heated steering wheel switch (if so
equipped) (P. 2-57)
Dynamic Driver Assistance switch (if so
equipped) (P. 2-58)
Trunk release switch (P. 3-20)
Rear power sunshade switch (if so
equipped) (P. 2-74)
26. Instrument brightness control (P. 2-46) Twin trip odometer reset switch (P. 2-4)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
Illustrated table of contents0-7

3.5L 6 cylinder (VQ35DE engine model)
1. Engine coolant reservoir (P. 8-4)
2. Drive belt location (P. 8-16)3. Engine oil filler cap (P. 8-6)
4. Brake fluid reservoir (P. 8-12)
5. Air cleaner (P. 8-17)6. Fuse box (P. 8-20)
7. Fuse box/Fusible links (P. 8-20)
8. Fusible links (P. 8-20)
9. Battery (P. 8-14)
10. Engine oil dipstick (P. 8-6)
11. Radiator cap (P. 8-4)
12. Power steering fluid reservoir (P. 8-11)
13. Windshield-washer fluid reservoir
(P. 8-12)
Refer to the page number indicated in
parentheses for operating details.
NOTE:
Your vehicle may not be equipped with
an engine cover.
LDI3419
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

21. Tilt and telescopic steering (P. 3-24)
22. Audio control switches*Vehicle information display control
switches (P. 2-17)
23. Hood release (P. 3-20)
24. Fuse box (P. 8-20)
25. Heated steering wheel switch (if so
equipped) (P. 2-57)
Dynamic Driver Assistance switch (if so
equipped) (P. 2-58)
Trunk release switch (P. 3-20)
Rear power sunshade switch (if so
equipped) (P. 2-74)
26. Instrument brightness control (P. 2-46) Twin trip odometer reset switch (P. 2-4)
*: Refer to the separate NissanConnect®
Owner’s Manual.
Refer to the page number indicated in
parentheses for operating details.
1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
LIC4625
METERS AND GAUGES
Instruments and controls2-3

You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and
could affect warranty coverage.If in doubt
about any servicing, it is recommended
that you have it done by a NISSAN dealer.

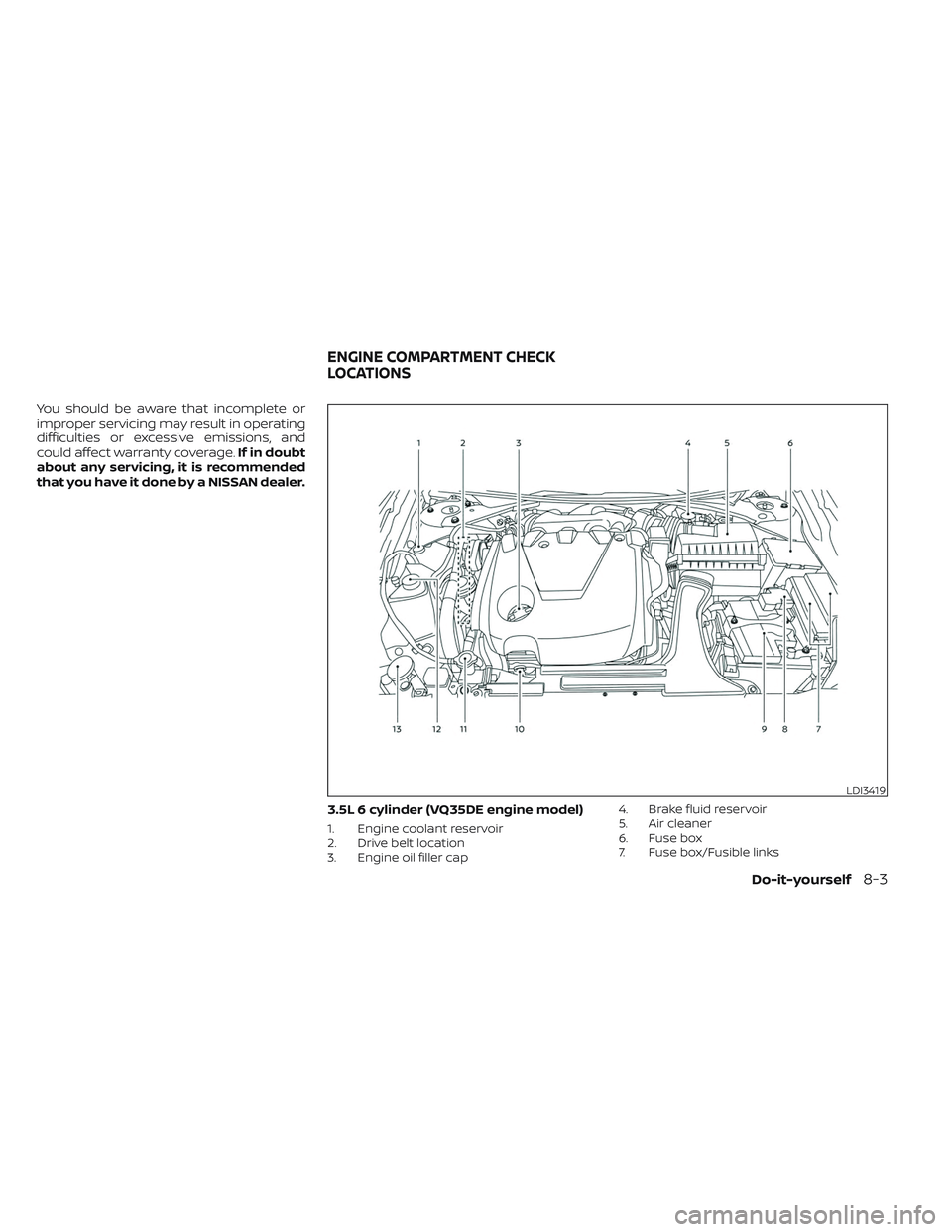

3.5L 6 cylinder (VQ35DE engine model)
1. Engine coolant reservoir
2. Drive belt location
3. Engine oil filler cap 4. Brake fluid reservoir
5. Air cleaner
6. Fuse box
7. Fuse box/Fusible links
LDI3419
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3

If any electrical equipment does not oper-
ate, check for an open fuse.
Fuses are used in the passenger and en-
gine compartment. Spare fuses are pro-
vided and can be found in the passenger
compartment fuse box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not come
on, check for an open fuse.
1. Be sure the ignition switch and the head- light switch are in the OFF position.
2. Open the engine hood. 3. Remove the fuse box cover by pushing
the tab and lif ting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the center
of the fuse block in the passenger
compartment.
LDI2385LDI2636
FUSES
8-20Do-it-yourself

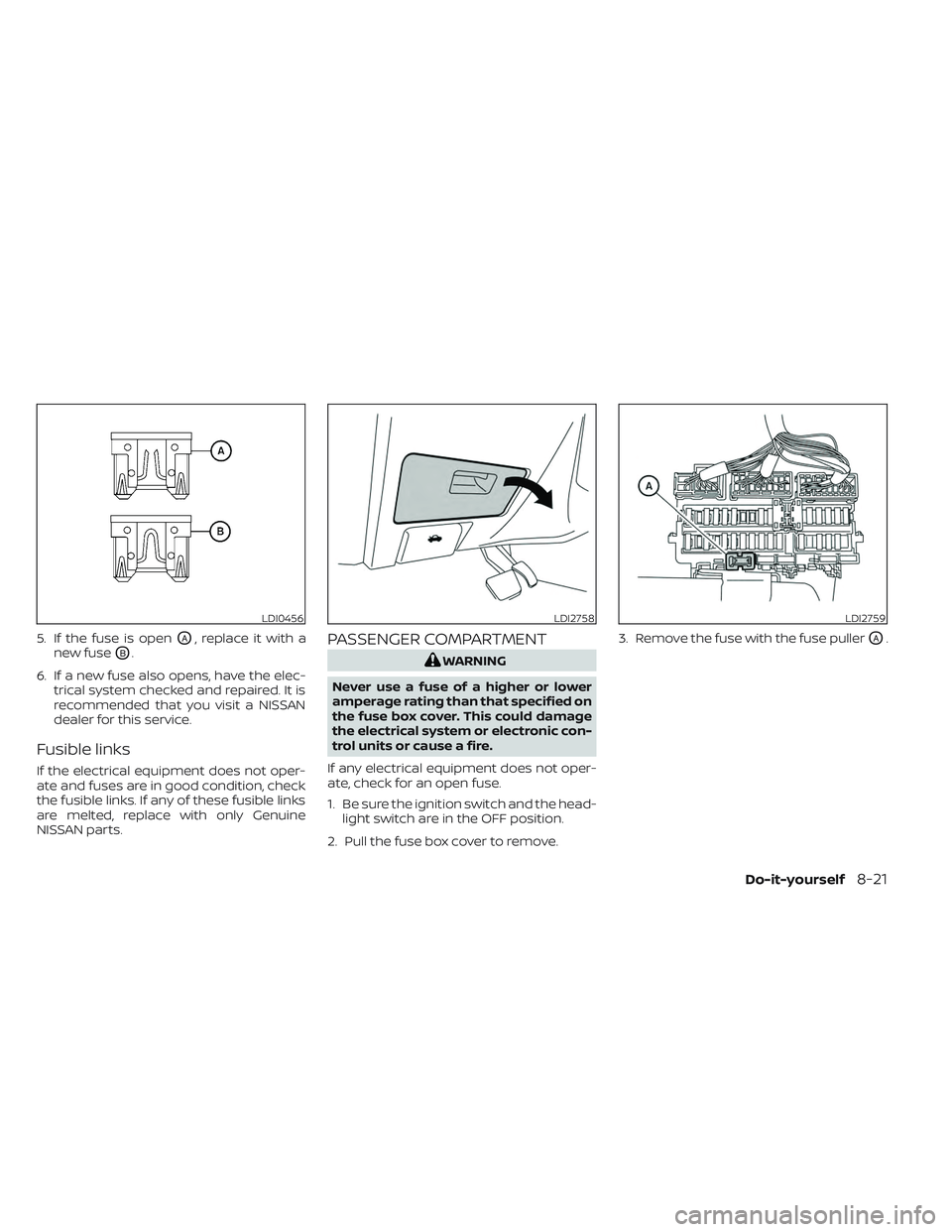

5. If the fuse is openOA, replace it with a
new fuse
OB.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.
Fusible links
If the electrical equipment does not oper-
ate and fuses are in good condition, check
the fusible links. If any of these fusible links
are melted, replace with only Genuine
NISSAN parts.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not oper-
ate, check for an open fuse.
1. Be sure the ignition switch and the head- light switch are in the OFF position.
2. Pull the fuse box cover to remove. 3. Remove the fuse with the fuse puller
OA.
LDI0456LDI2758LDI2759
Do-it-yourself8-21

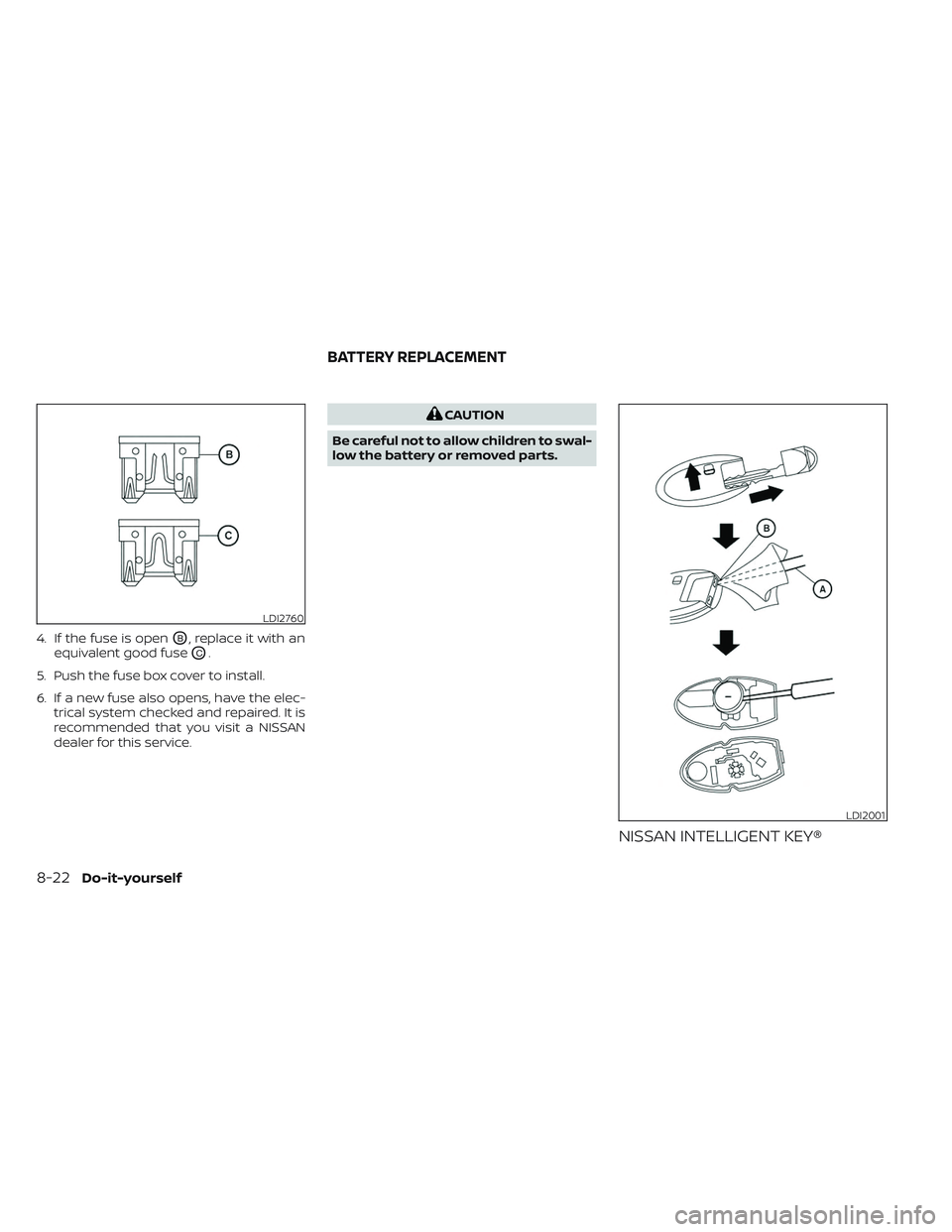

4. If the fuse is openOB, replace it with an
equivalent good fuse
OC.
5. Push the fuse box cover to install.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit a NISSAN
dealer for this service.
CAUTION
Be careful not to allow children to swal-
low the battery or removed parts.
NISSAN INTELLIGENT KEY®
LDI2760
LDI2001
BATTERY REPLACEMENT
8-22Do-it-yourself

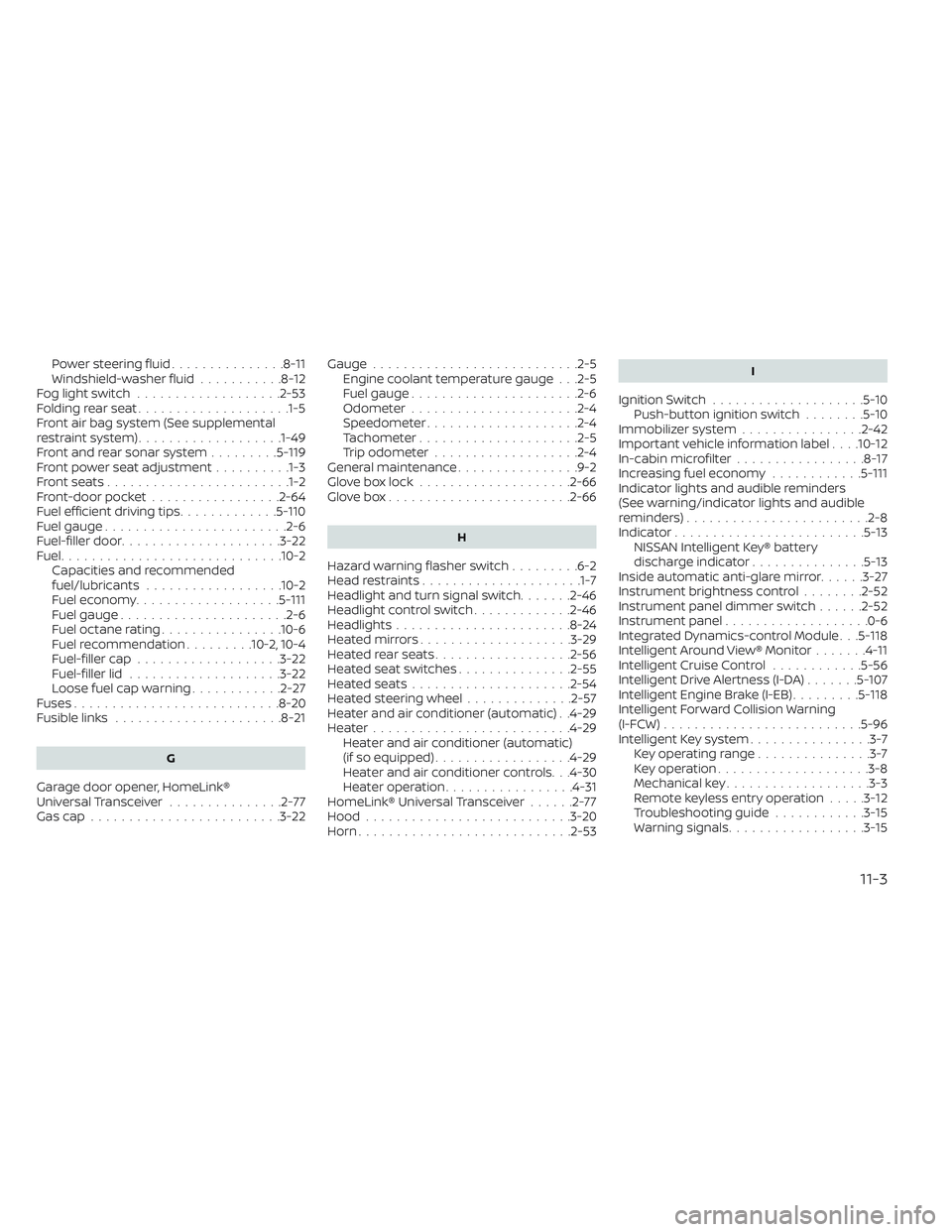

Powersteeringfluid...............8-11
Windshield-washer fluid...........8-12
Foglightswitch ...................2-53
Foldingrearseat................... .1-5
Front air bag system (See supplemental
restraint system) ...................1-49
Front and rear sonar system .........5-119
Front power seat adjustment ..........1-3
Frontseats....................... .1-2
Front-door pocket .................2-64
Fuelefficientdrivingtips.............5 -110
Fuel gauge ........................2-6
Fuel-filler door .....................3-22
Fuel.............................10-2 Capacities and recommended
fuel/lubricants ..................10-2
Fuel economy ...................5 -111
Fuel gauge ......................2-6
Fueloctanerating................10-6
Fuel recommendation .........10-2,10-4
Fuel-filler cap ...................3-22
Fuel-filler lid ....................3-22
Loose fuel cap warning ............2-27
Fuses ...........................8-20
Fusiblelinks ......................8-21
G
Garage door opener, HomeLink®
Universal Transceiver ...............2-77
Gascap.........................3-22 Gauge
...........................2-5
Engine coolant temperature gauge . . .2-5
Fuel gauge ......................2-6
Odometer ......................2-4
Speedometer ....................2-4
Tachometer .....................2-5
Trip odometer ...................2-4
General maintenance ................9-2
Gloveboxlock ....................2-66
Glovebox........................2-66
H
Hazard warning flasher switch .........6-2
Headrestraints.................... .1-7
Headlight and turn signal switch .......2-46
Headlightcontrolswitch.............2-46
Headlights.......................8-24
Heatedmirrors....................3-29
Heatedrearseats..................2-56
Heated seat switches ...............2-55
Heatedseats.....................2-54
Heated steering wheel ..............2-57
Heater and air conditioner (automatic) . .4-29
Heater..........................4-29 Heater and air conditioner (automatic)
(if so equipped) ..................4-29
Heater and air conditioner controls. . .4-30
Heater operation .................4-31
HomeLink® Universal Transceiver ......2-77
Hood ...........................3-20
Horn............................2-53
I
Ignition Switch ....................5-10
Push-button ignition switch ........5-10
Immobilizer system ................2-42
Important vehicle information label . . . .10-12
In-cabinmicrofilter.................8-17
Increasing fuel economy ............5-111
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................... .2-8
Indicator.........................5-13 NISSAN Intelligent Key® battery
discharge indicator ...............5-13
Inside automatic anti-glare mirror ......3-27
Instrument brightness control ........2-52
Instrument panel dimmer switch ......2-52
Instrument panel ...................0-6
Integrated Dynamics-control Module . . .5-118
Intelligent Around View® Monitor .......4-11
Intelligent Cruise Control ............5-56
Intelligent Drive Alertness (I-DA) .......5-107
Intelligent Engine Brake (I-EB) .........5-118
Intelligent Forward Collision Warning
(I-FCW)..........................5-96
Intelligent Key system ................3-7
Key operating range ...............3-7
Key operation ....................3-8
Mechanical key ...................3-3
Remote keyless entry operation .....3-12
Troubleshooting guide ............3-15
Warning signals ..................3-15
