CONSOLE BOX
To open the console box, press up on the
lever
1and raise the lid2.
To close, push the lid down until the lock
latches.
OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push and
release.
Only store one pair of sunglasses in the
holder.

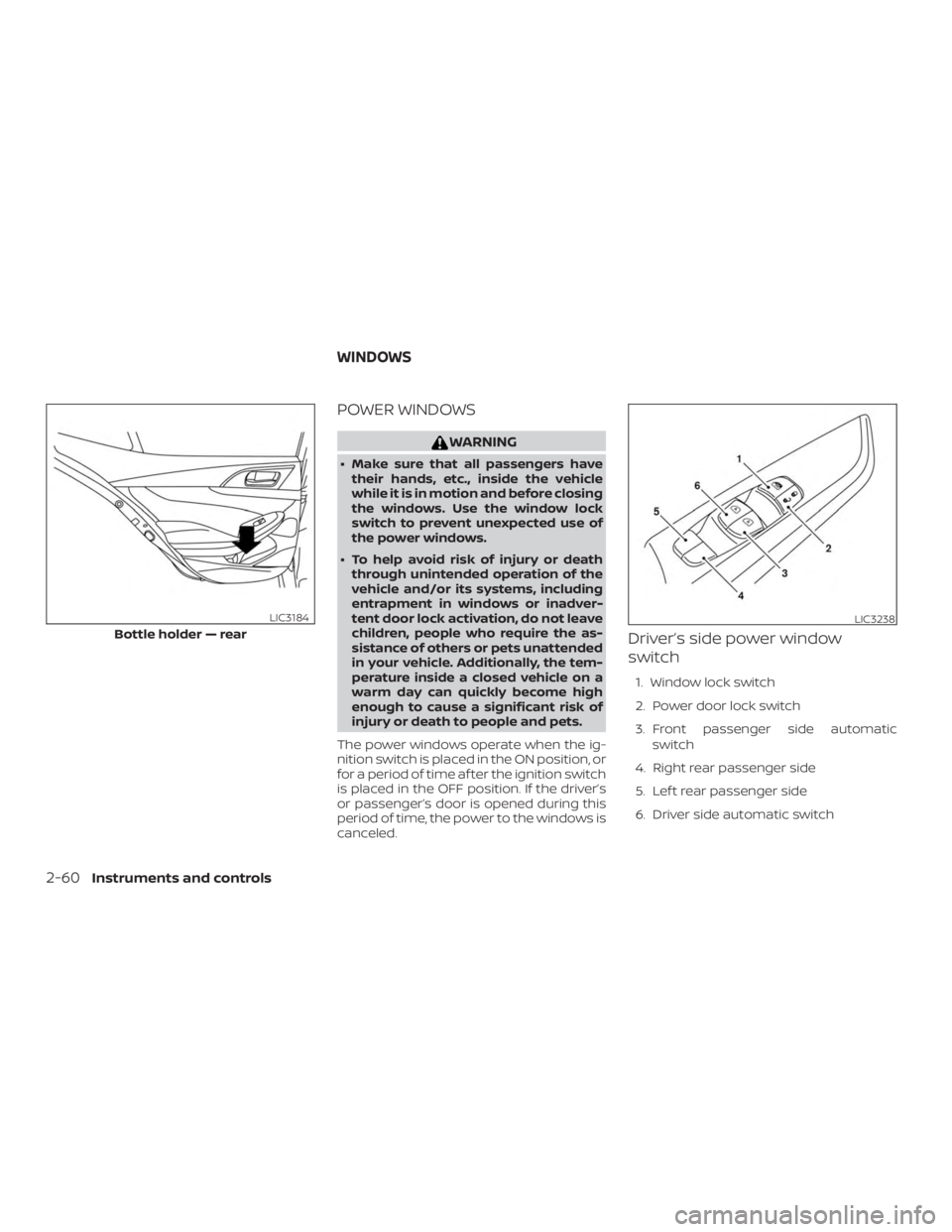

Locking passengers’ windows
When the window lock switch is depressed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
Automatic operation
To fully open a window equipped with au-
tomatic operation, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
Auto-reverse function
If the control unit detects something
caught in an automatic operation window
as it is closing, the window will be immedi-
ately lowered.
The auto-reverse function may be acti-
vated when the window is closed by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of
time af ter the ignition switch is placed in
the OFF position.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

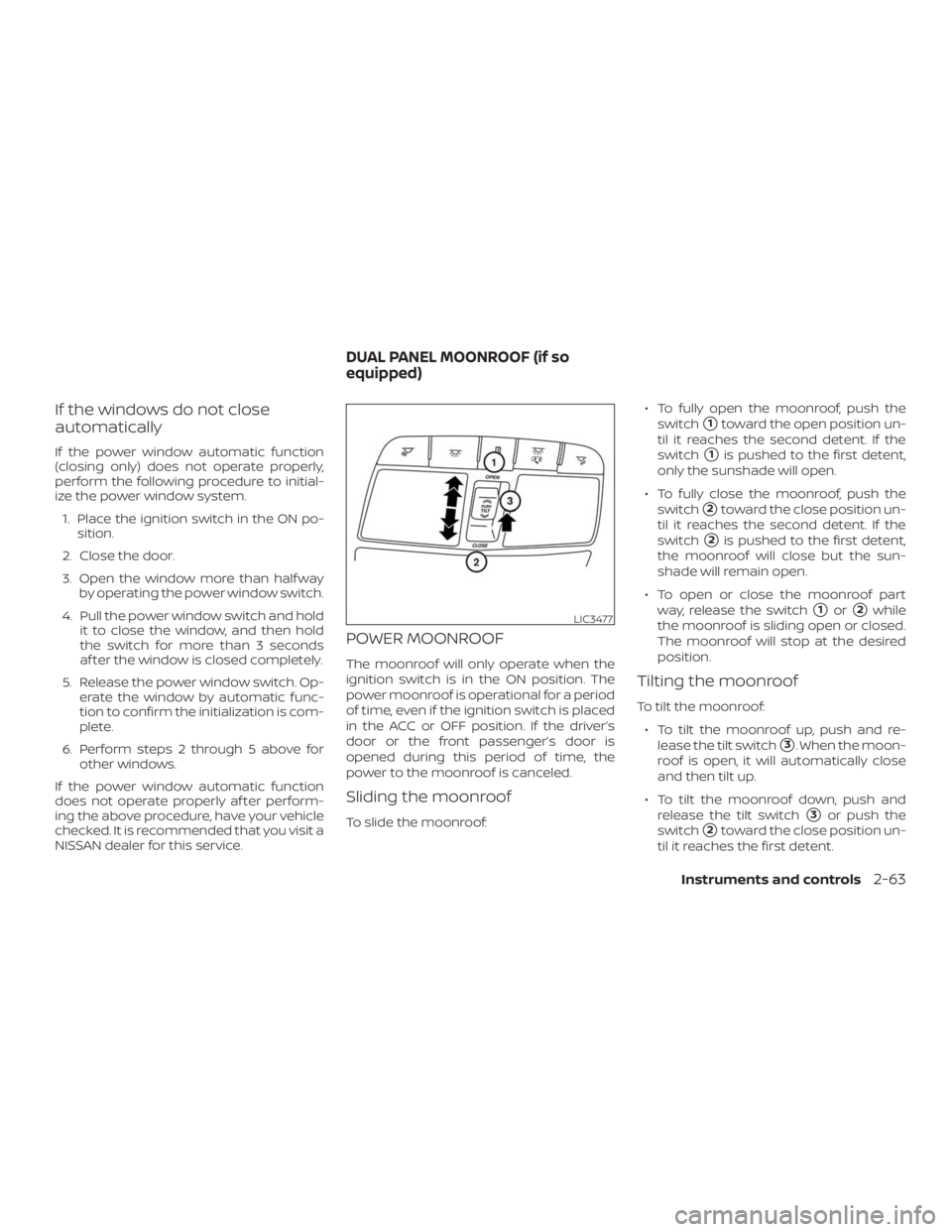

∙ To tilt the moonroof down and close thesunshade at the same time, push the
switch
2to the close position until it
reaches the second detent.
Auto-reverse function (when
closing or tilting down the
moonroof )
The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time af ter the igni-
tion switch is placed in the OFF position.
Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the
screen inlet port. Doing so may en-
tangle these objects in the screen
when it is extending or retracting,
causing improper operation or dam-
age to the screen.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it.
Improper operation or damage to the
screen may result. ∙ Do not hang any object on the arm rail
as this may result in improper opera-
tion or damage the screen.
∙ Do not forcefully pull the screen. Do- ing so may elongate the screen. Im-
proper operation or damage to the
screen may result.
∙ To avoid personal injury, keep your hands, fingers and head away from
the sunshade arm, arm rail and screen
inlet port.
∙ Do not allow children near the rear sunshade system. They could be
injured.
∙ Do not pull or push the rear sunshade. This could cause improper operation
or damage it.
1The interior lights can be turned on
regardless of door position. The lights
will go off af ter a period of time unless
the ignition switch is placed in the ON
position when any door is opened.
2The interior lights can be set to operate
when the doors are opened. To turn off
the interior lights when a is door open,
push the switch; the interior lights will not
illuminate, regardless of door position.
The lights will go off when the ignition
switch is placed in the ON position, or
the driver’s door is closed and locked.
The lights will also go off af ter a period
of time when the doors are open.
