NISSAN MICRA 2014 Manual PDF

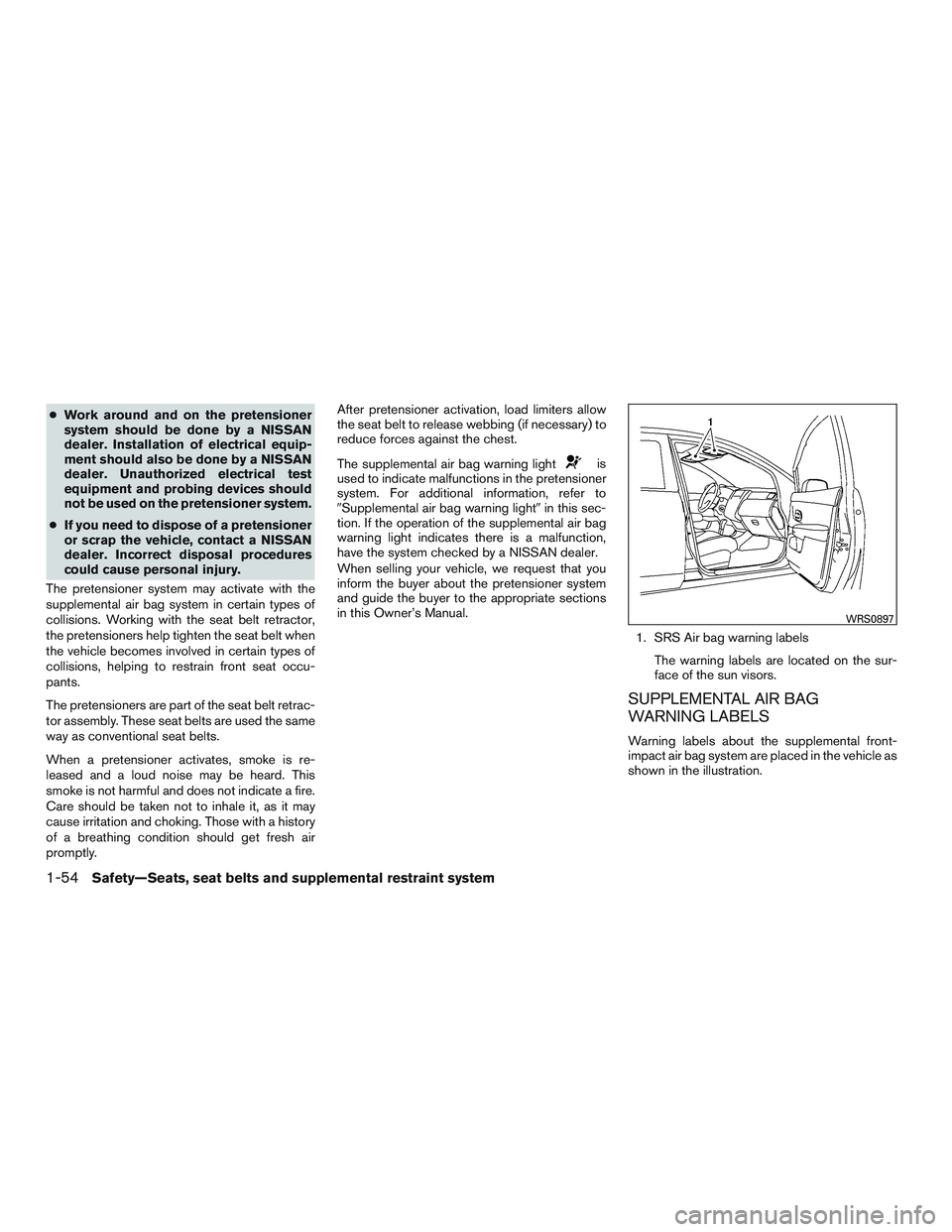

●Work around and on the pretensioner
system should be done by a NISSAN
dealer. Installation of electrical equip-
ment should also be done by a NISSAN
dealer. Unauthorized electrical test
equipment and probing devices should
not be used on the pretensioner system.
● If you need to dispose of a pretensioner
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioners help tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pretensioners are part of the seat belt retrac-
tor assembly. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly. After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

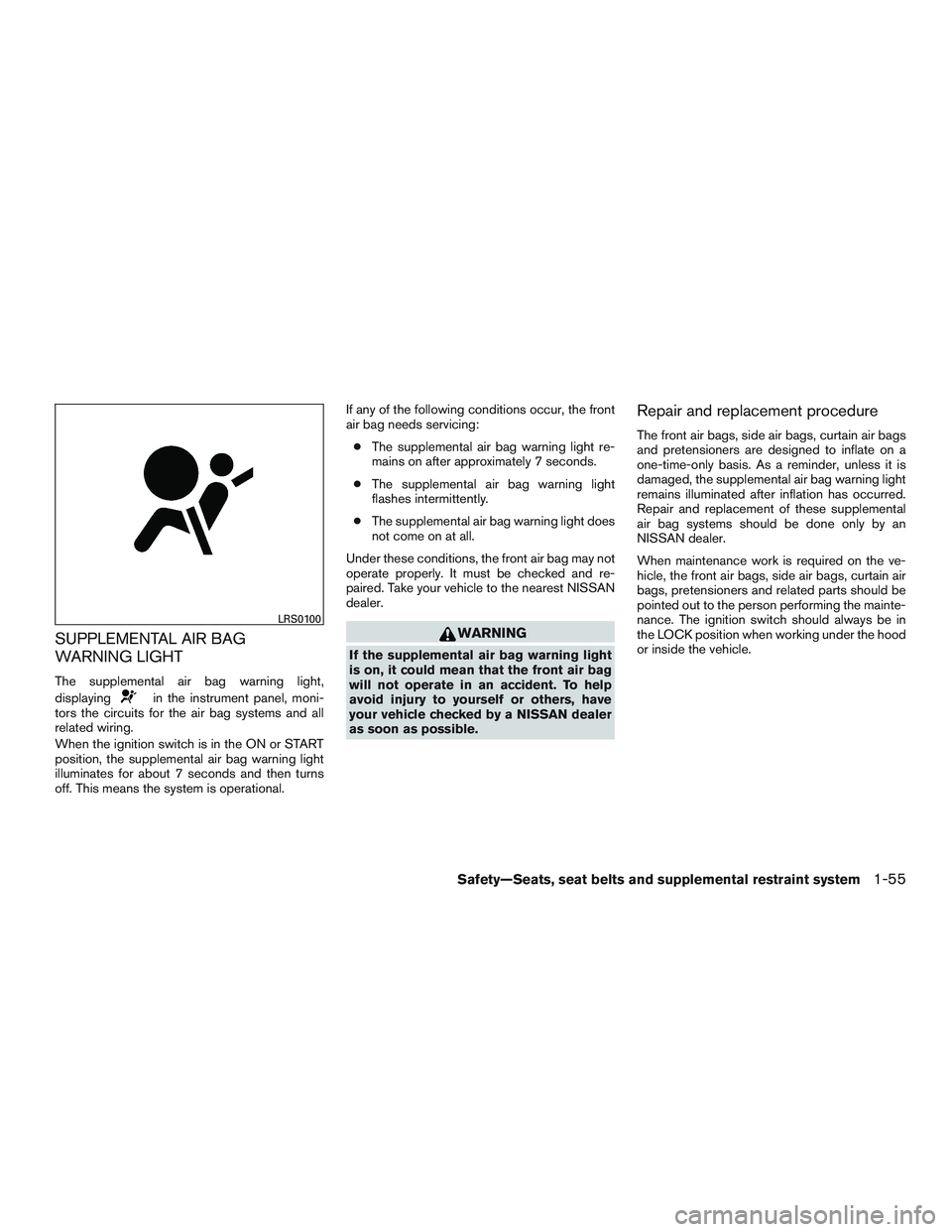

The supplemental air bag warning light

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying

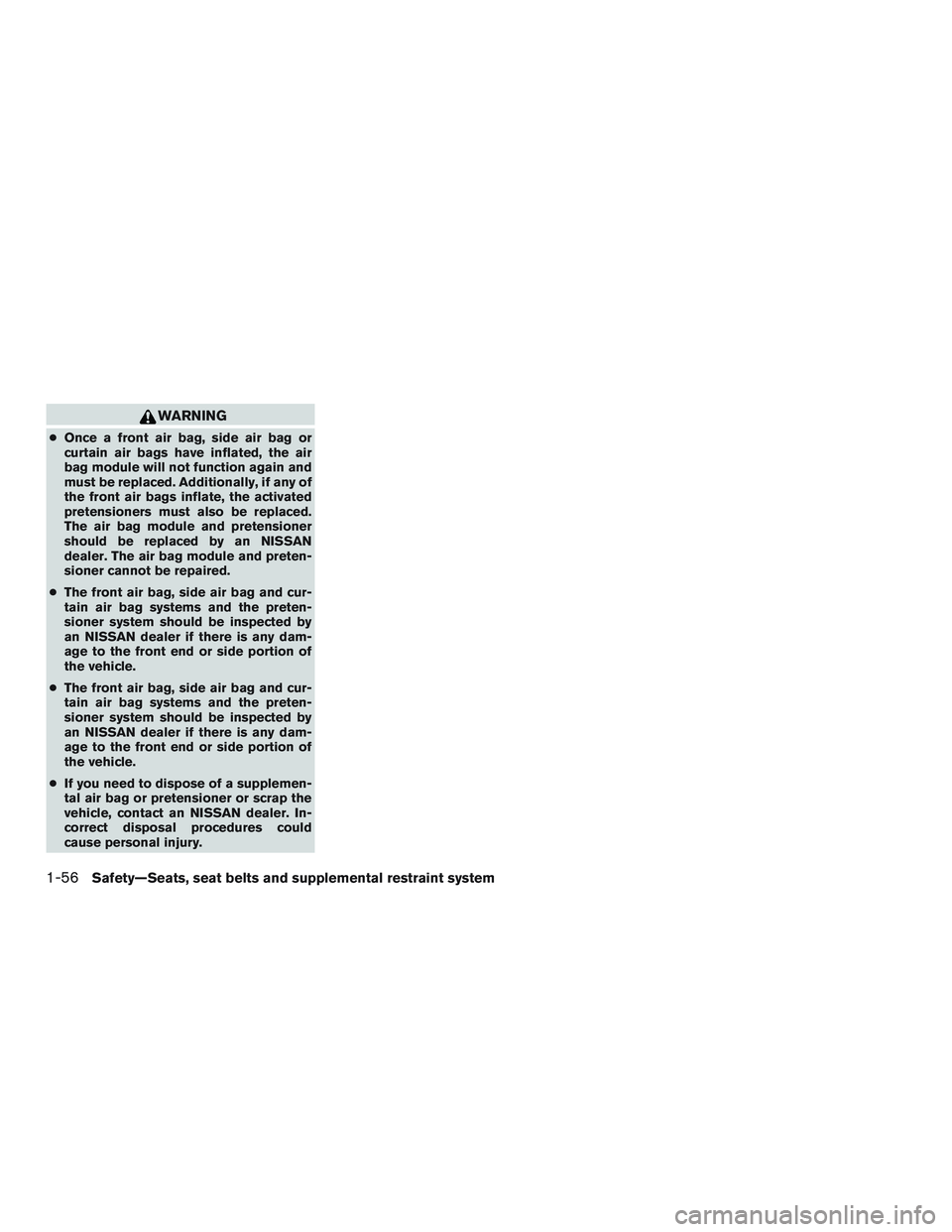

WARNING
●Once a front air bag, side air bag or
curtain air bags have inflated, the air
bag module will not function again and
must be replaced. Additionally, if any of
the front air bags inflate, the activated
pretensioners must also be replaced.
The air bag module and pretensioner
should be replaced by an NISSAN
dealer. The air bag module and preten-
sioner cannot be repaired.
● The front air bag, side air bag and cur-
tain air bag systems and the preten-
sioner system should be inspected by
an NISSAN dealer if there is any dam-
age to the front end or side portion of
the vehicle.
● The front air bag, side air bag and cur-
tain air bag systems and the preten-
sioner system should be inspected by
an NISSAN dealer if there is any dam-
age to the front end or side portion of
the vehicle.
● If you need to dispose of a supplemen-
tal air bag or pretensioner or scrap the
vehicle, contact an NISSAN dealer. In-
correct disposal procedures could
cause personal injury.
1-56Safety—Seats, seat belts and supplemental restraint system

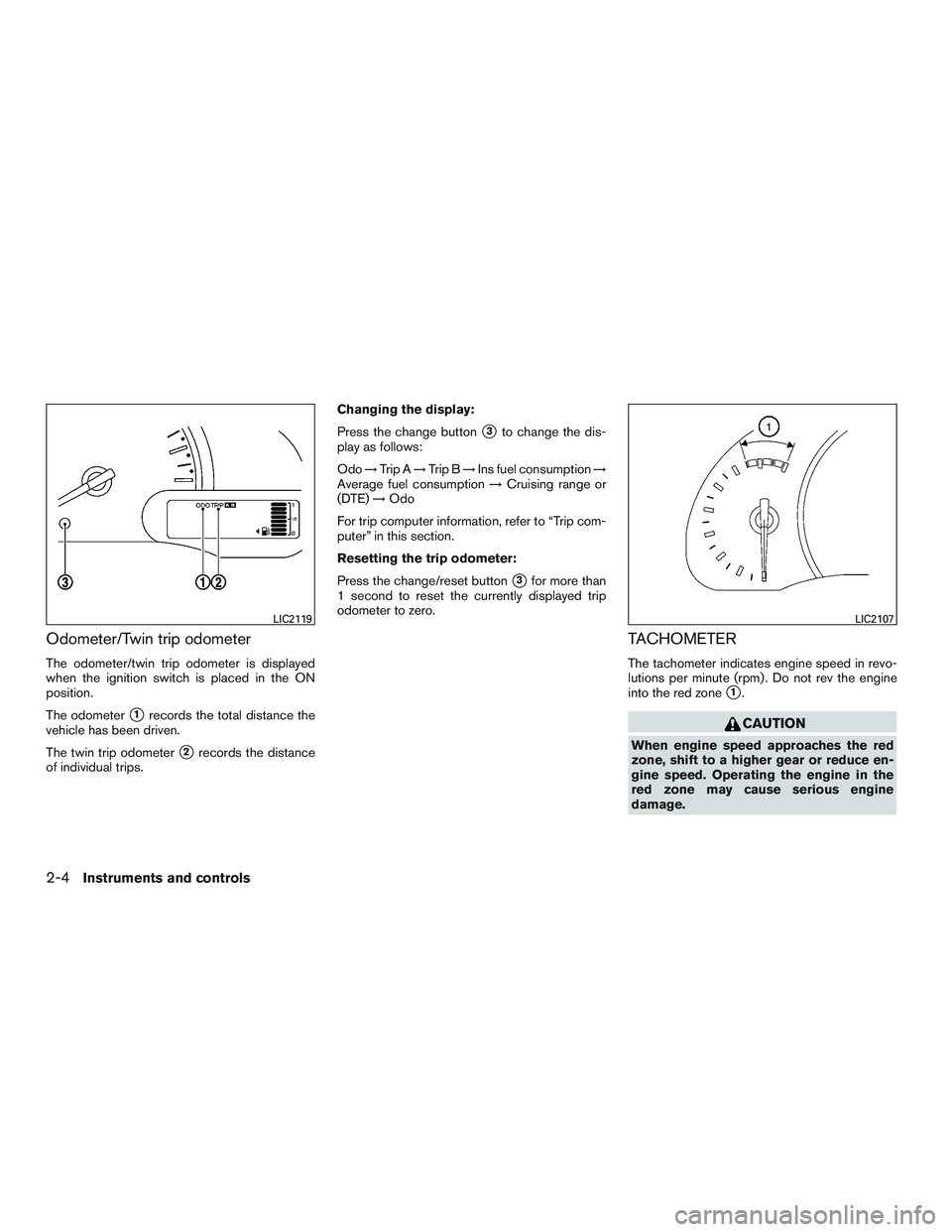

Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips. Changing the display:
Press the change button
3to change the dis-
play as follows:
Odo →Trip A →Trip B →Ins fuel consumption →
Average fuel consumption →Cruising range or
(DTE) →Odo
For trip computer information, refer to “Trip com-
puter” in this section.
Resetting the trip odometer:
Press the change/reset button
3for more than
1 second to reset the currently displayed trip
odometer to zero.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev the engine
into the red zone
1.

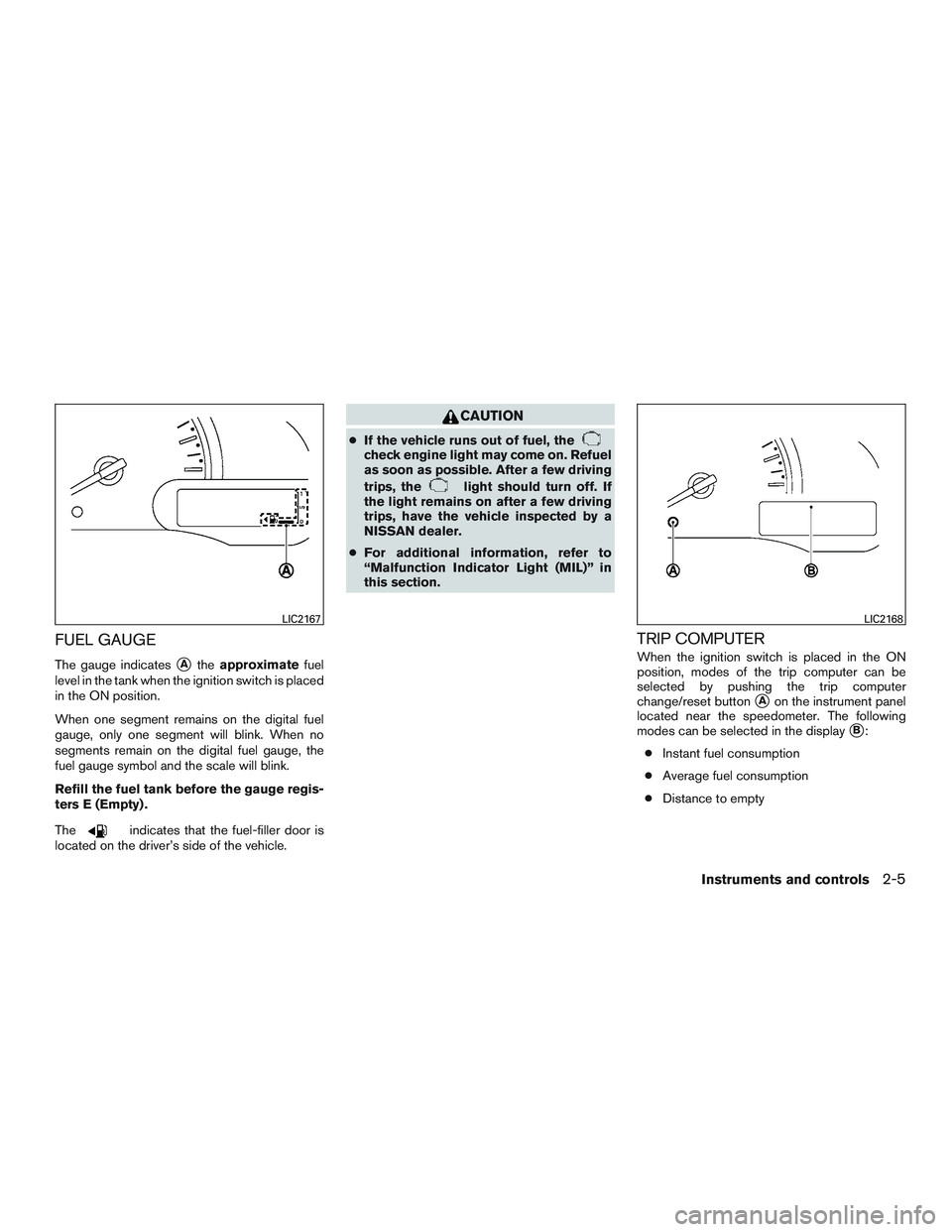

FUEL GAUGE
The gauge indicatesAtheapproximate fuel
level in the tank when the ignition switch is placed
in the ON position.
When one segment remains on the digital fuel
gauge, only one segment will blink. When no
segments remain on the digital fuel gauge, the
fuel gauge symbol and the scale will blink.
Refill the fuel tank before the gauge regis-
ters E (Empty) .
The
