The same type of fuse is used in both the engine
compartment and passenger compartment fuse
boxes.ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tabs
1,2and3and lifting the cover up
from the right side, then the left side.
4. Remove the fuse with the fuse puller. The fuse puller is located in the center of the fuse
block in the passenger compartment.
LDI2385LDI2042
FUSES
8-20Maintenance and do-it-yourself

5. If the fuse is openA, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN

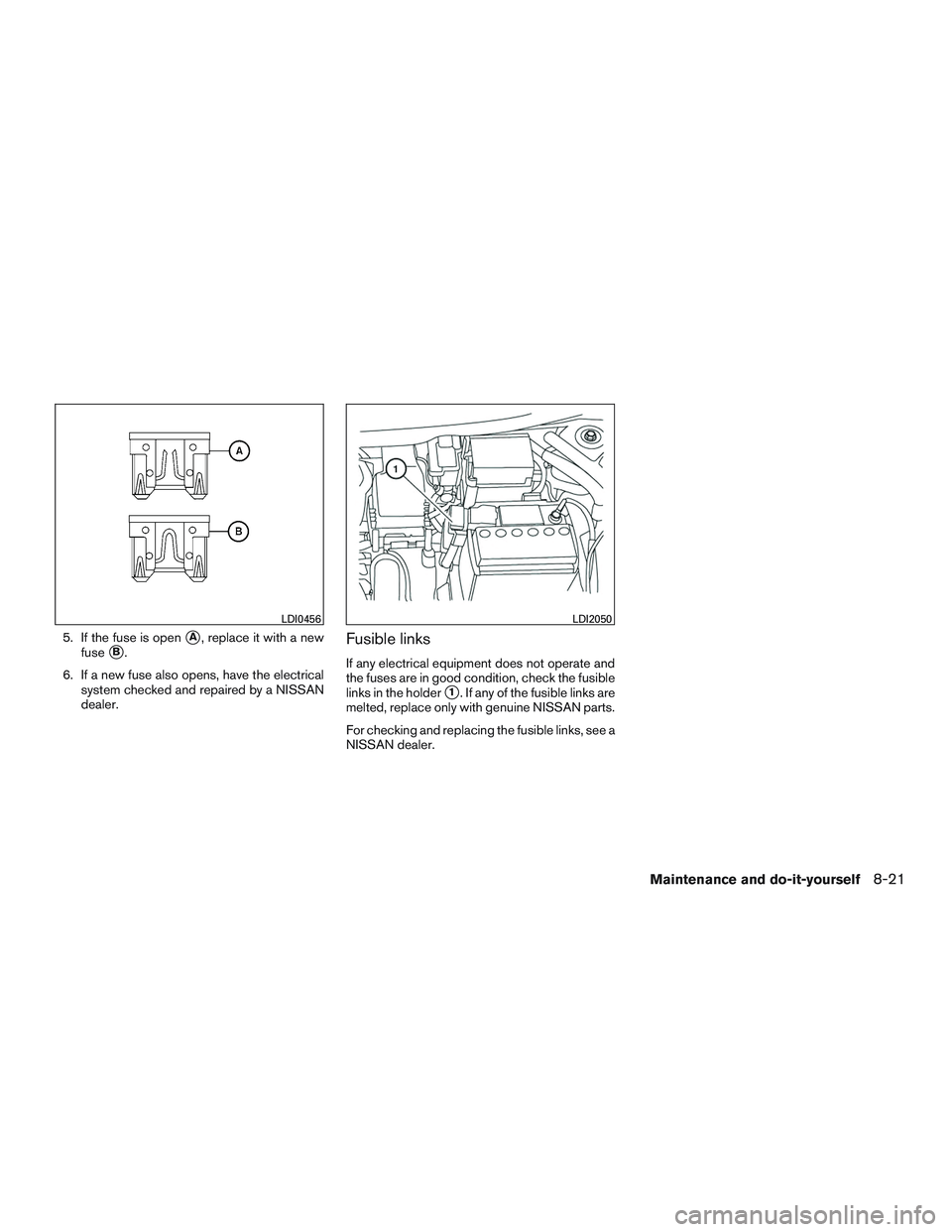

dealer.Fusible links
If any electrical equipment does not operate and
the fuses are in good condition, check the fusible
links in the holder
1. If any of the fusible links are
melted, replace only with genuine NISSAN parts.
For checking and replacing the fusible links, see a
NISSAN dealer.
LDI0456LDI2050
Maintenance and do-it-yourself8-21

PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse. NOTE:
The fuse box is located on the driver’s side
of the instrument panel.
1. Be sure the ignition switch and the headlight switch are OFF.
2. Remove the fuse box cover
1with a suit-
able tool. Use a cloth to avoid damaging the
trim.
3. Locate the fuse that needs to be replaced.
4. Remove the fuse with the fuse puller
2. 5. If the fuse is open
A, replace it with an
equivalent good fuse
B.
6. Push the fuse box cover to install.
If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
SDI2576LDI0456
8-22Maintenance and do-it-yourself

Extended storage switch
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.How to replace the extended storage switch:
1. To remove the extended storage switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1and2found on
each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
3.
CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
LDI2061
BATTERY REPLACEMENT
Maintenance and do-it-yourself8-23

KEY FOB (if so equipped)
Replace the battery in the key fob as follows:1. Remove the screw
A. 2. Insert a small screwdriver into the slit of the
corner
Band twist it to separate the upper
part from the lower part. Use a cloth to
protect the casing.
3. Replace the battery with a new one. ●Do not touch the internal circuit and elec-
tric terminals as doing so could cause a
malfunction.
● Make sure that the + side faces the bot-
tom of the case
C.
Recommended battery: CR1620 or equivalent. 4. Close the lid and install the screw securely.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need assistance for
replacement.
If the battery is removed for any reason
other than replacement, perform step 5. ● An improperly disposed battery can
hurt the environment. Always confirm
local regulations for battery disposal.
● The key fob is water-resistant; how-
ever, if it does get wet, immediately
wipe completely dry. ●
The operational range of the key fob
extends to approximately 10 m (33 ft)
from the vehicle. This range may vary
with conditions.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received, in-
cluding interference that may cause unde-
sired operation of the device.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Note:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
SDI2134A
8-24Maintenance and do-it-yourself

tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-

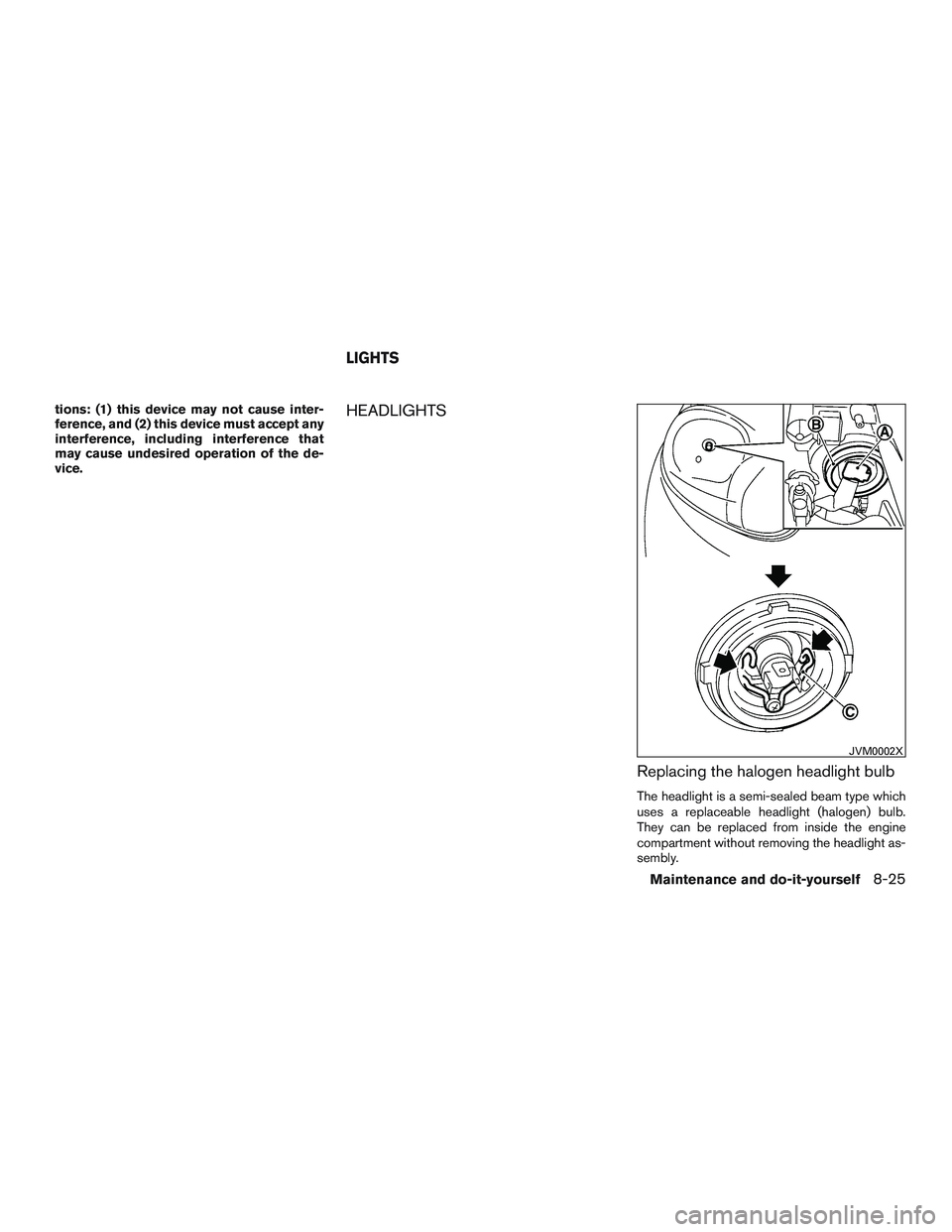

vice.HEADLIGHTSReplacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
They can be replaced from inside the engine
compartment without removing the headlight as-
sembly.
JVM0002X
LIGHTS
Maintenance and do-it-yourself8-25

CAUTION
●High-pressure halogen gas is sealed in-
side the bulb. The bulb may break if the
glass envelope is scratched or the bulb
is dropped.
● Aiming should not be necessary after
replacing the H4 bulb. When aiming ad-
justment is necessary, contact a
NISSAN dealer.
● Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.
● Use the same number and wattage as
shown in the chart.
1. Disconnect the battery negative cable.
2. Disconnect the electrical connector
Afrom
the rear end of the bulb. 3. Pull off the rubber cap
B.
4. Push and turn the retaining pin
Cto loosen
it.
5. Remove the headlight bulb. Do not shake or rotate the bulb when removing it.
6. Install the new bulb in the reverse order of removal.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
HEADLIGHT AIM
The aim of the headlights may require adjustment
when replacing the headlight assembly or when
the vehicle’s front body has been repaired. When
the adjustment is required, follow these proce-
dures, or have them adjusted by a NISSAN
dealer.
Before performing the headlights aim adjust-
ment:
● Check the pressure of all tires for the correct
inflation pressure.
● Check that the tools and spare tire are
stowed securely.
LDI2422
8-26Maintenance and do-it-yourself

●Check that the fuel and lubricants levels are
filled to correct capacities.
● Unload all luggage and other items, which
may influence the vehicle’s height level.
● Load a weight on the driver’s seat that is
equivalent to the weight of a driver.

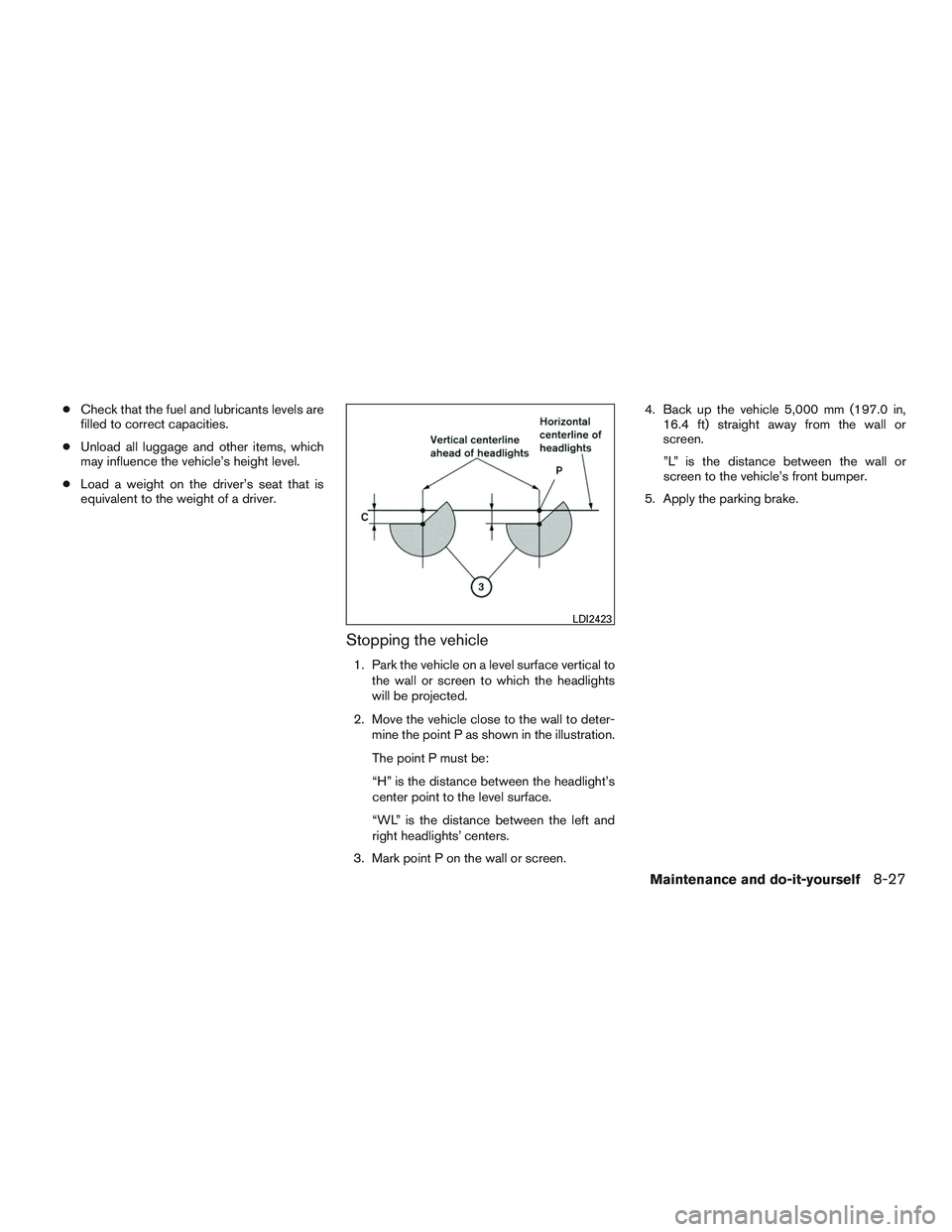

Stopping the vehicle
1. Park the vehicle on a level surface vertical to
the wall or screen to which the headlights
will be projected.
2. Move the vehicle close to the wall to deter- mine the point P as shown in the illustration.
The point P must be:
“H” is the distance between the headlight’s
center point to the level surface.
“WL” is the distance between the left and
right headlights’ centers.
3. Mark point P on the wall or screen. 4. Back up the vehicle 5,000 mm (197.0 in,
16.4 ft) straight away from the wall or
screen.
”L” is the distance between the wall or
screen to the vehicle’s front bumper.
5. Apply the parking brake.
LDI2423
Maintenance and do-it-yourself8-27

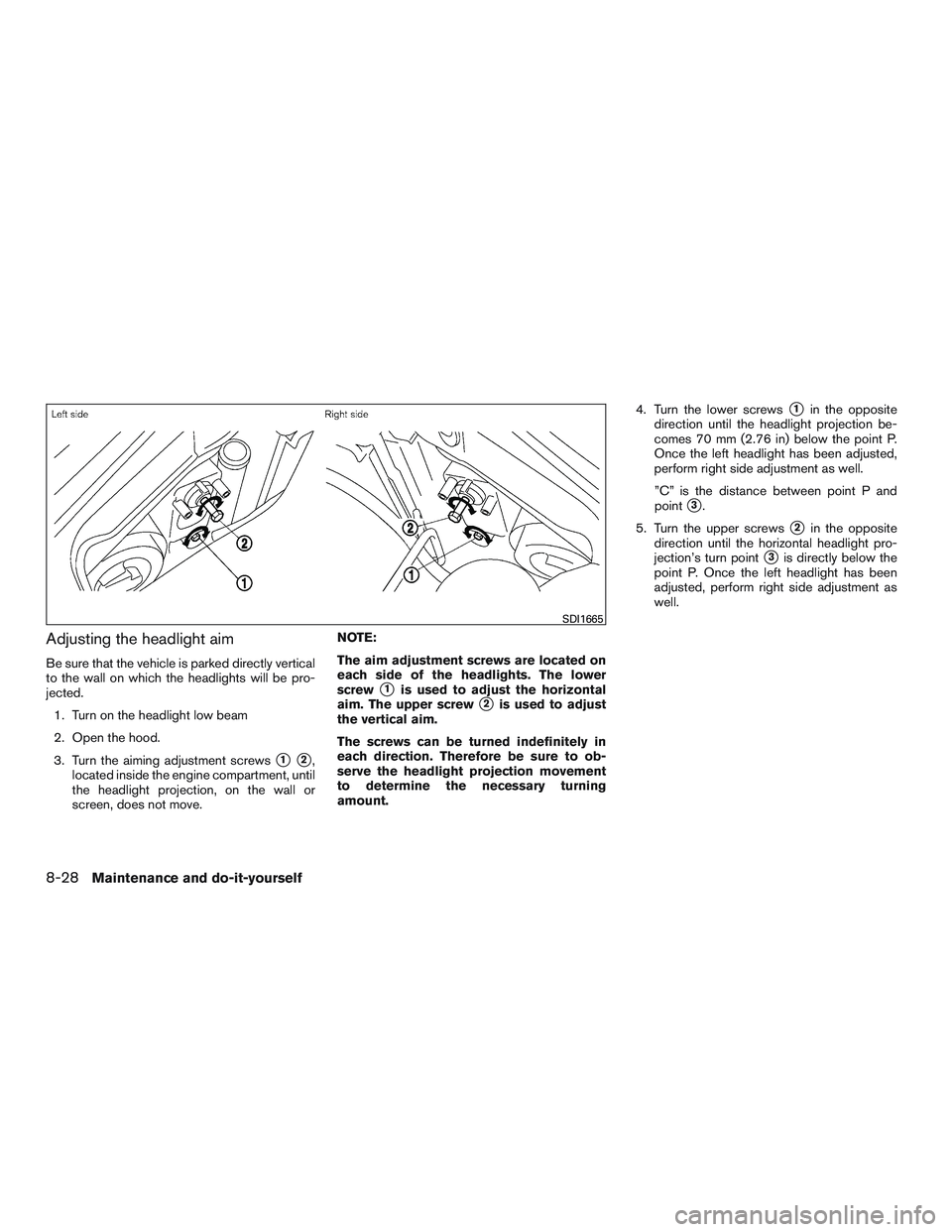

Adjusting the headlight aim
Be sure that the vehicle is parked directly vertical
to the wall on which the headlights will be pro-
jected.1. Turn on the headlight low beam
2. Open the hood.
3. Turn the aiming adjustment screws
12,
located inside the engine compartment, until
the headlight projection, on the wall or
screen, does not move. NOTE:
The aim adjustment screws are located on
each side of the headlights. The lower
screw
1is used to adjust the horizontal
aim. The upper screw
2is used to adjust
the vertical aim.
The screws can be turned indefinitely in
each direction. Therefore be sure to ob-
serve the headlight projection movement
to determine the necessary turning
amount. 4. Turn the lower screws
1in the opposite
direction until the headlight projection be-
comes 70 mm (2.76 in) below the point P.
Once the left headlight has been adjusted,
perform right side adjustment as well.
”C” is the distance between point P and
point
3.
5. Turn the upper screws
2in the opposite
direction until the horizontal headlight pro-
jection’s turn point
3is directly below the
point P. Once the left headlight has been
adjusted, perform right side adjustment as
well.
SDI1665
8-28Maintenance and do-it-yourself

FOG LIGHTS (if so equipped)
Replacing the fog light bulb
If replacement is required, see your NISSAN
dealer.
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.

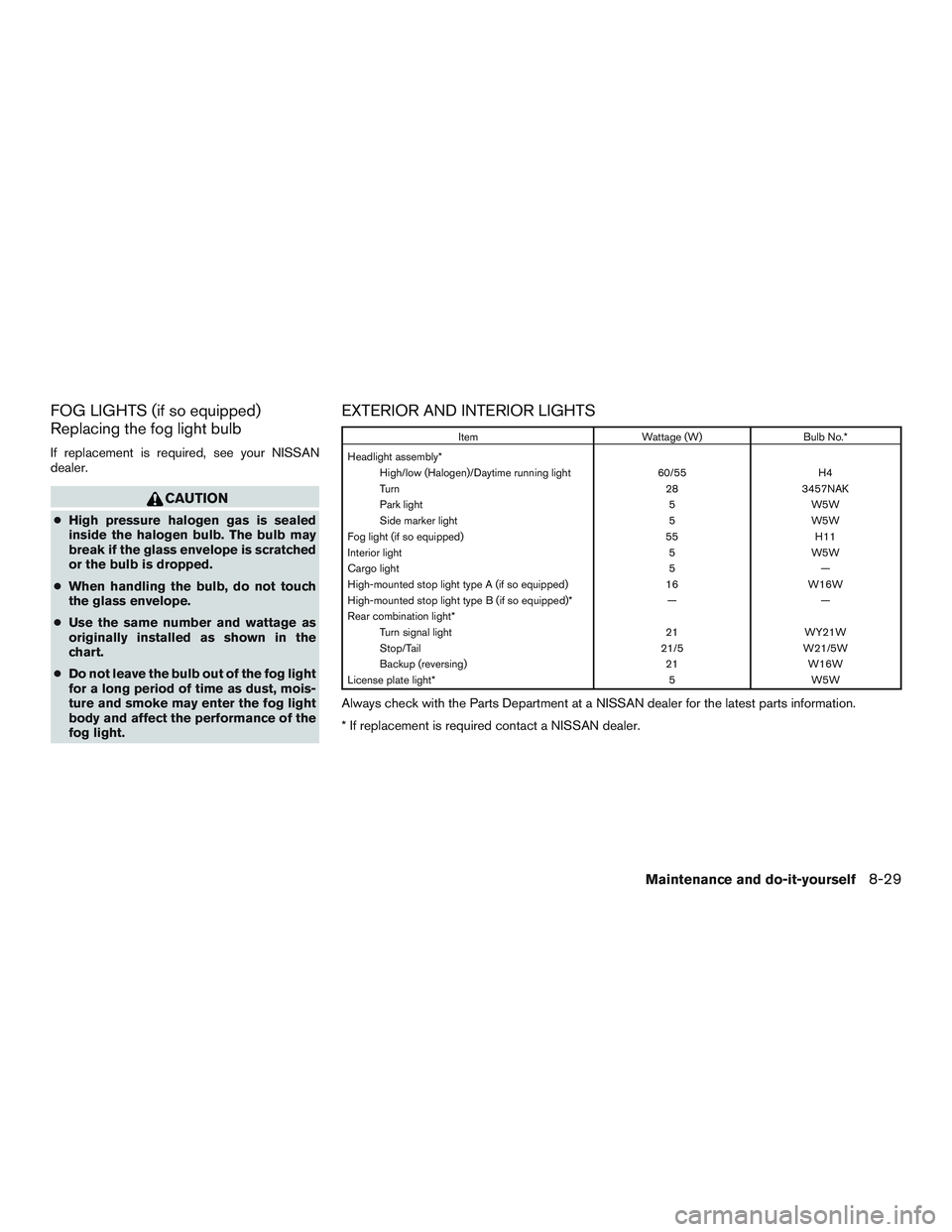

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.*
Headlight assembly* High/low (Halogen)/Daytime running light 60/55H4
Turn 283457NAK
Park light 5W5W
Side marker light 5W5W
Fog light (if so equipped) 55H11
Interior light 5W5W
Cargo light 5—
High-mounted stop light type A (if so equipped) 16W16W
High-mounted stop light type B (if so equipped)* ——
Rear combination light* Turn signal light 21WY21W
Stop/Tail 21/5W21/5W
Backup (reversing) 21W16W
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* If replacement is required contact a NISSAN dealer.
Maintenance and do-it-yourself8-29
