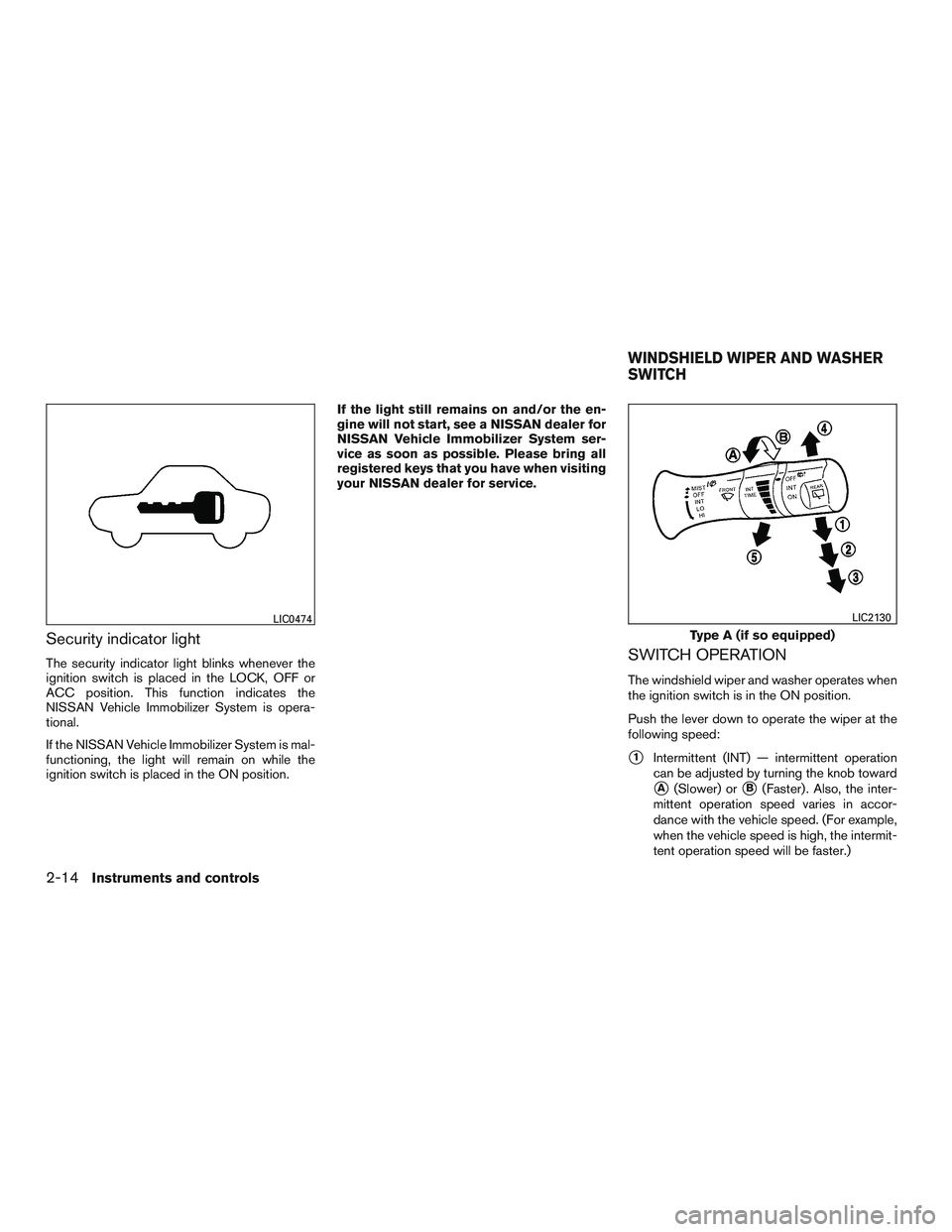

Security indicator light
The security indicator light blinks whenever the
ignition switch is placed in the LOCK, OFF or
ACC position. This function indicates the
NISSAN Vehicle Immobilizer System is opera-
tional.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.If the light still remains on and/or the en-
gine will not start, see a NISSAN dealer for
NISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
registered keys that you have when visiting
your NISSAN dealer for service.SWITCH OPERATION
The windshield wiper and washer operates when
the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:
1Intermittent (INT) — intermittent operation
can be adjusted by turning the knob toward
A(Slower) orB(Faster) . Also, the inter-
mittent operation speed varies in accor-
dance with the vehicle speed. (For example,
when the vehicle speed is high, the intermit-
tent operation speed will be faster.)
LIC0474
Type A (if so equipped)
LIC2130
WINDSHIELD WIPER AND WASHER
SWITCH
2-14Instruments and controls

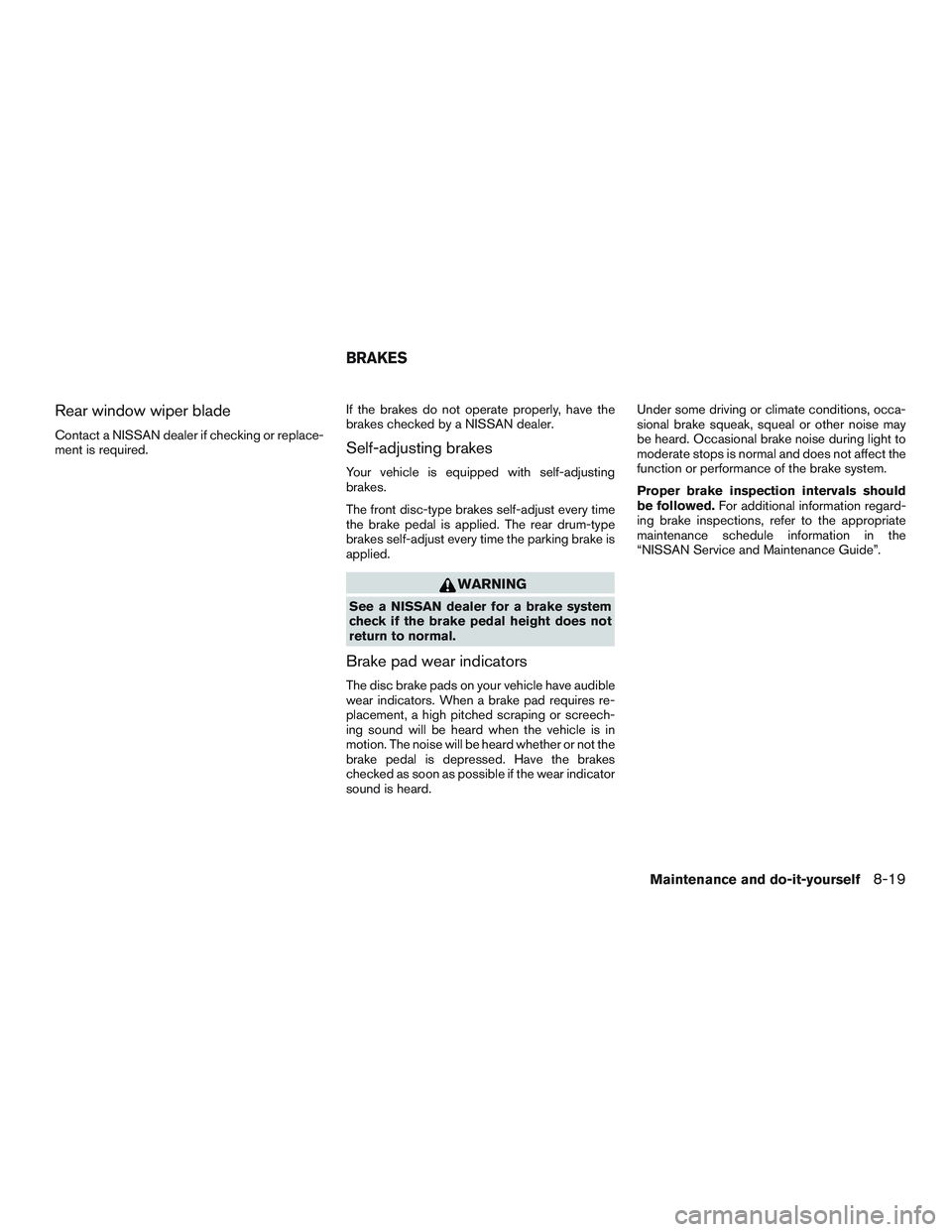

Rear window wiper blade
Contact a NISSAN dealer if checking or replace-
ment is required.If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front disc-type brakes self-adjust every time
the brake pedal is applied. The rear drum-type
brakes self-adjust every time the parking brake is
applied.
WARNING
See a NISSAN dealer for a brake system
check if the brake pedal height does not
return to normal.
Brake pad wear indicators
The disc brake pads on your vehicle have audible
wear indicators. When a brake pad requires re-
placement, a high pitched scraping or screech-
ing sound will be heard when the vehicle is in
motion. The noise will be heard whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear indicator
sound is heard.Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect the
function or performance of the brake system.
Proper brake inspection intervals should
be followed.
For additional information regard-
ing brake inspections, refer to the appropriate
maintenance schedule information in the
“NISSAN Service and Maintenance Guide”.
BRAKES
Maintenance and do-it-yourself8-19

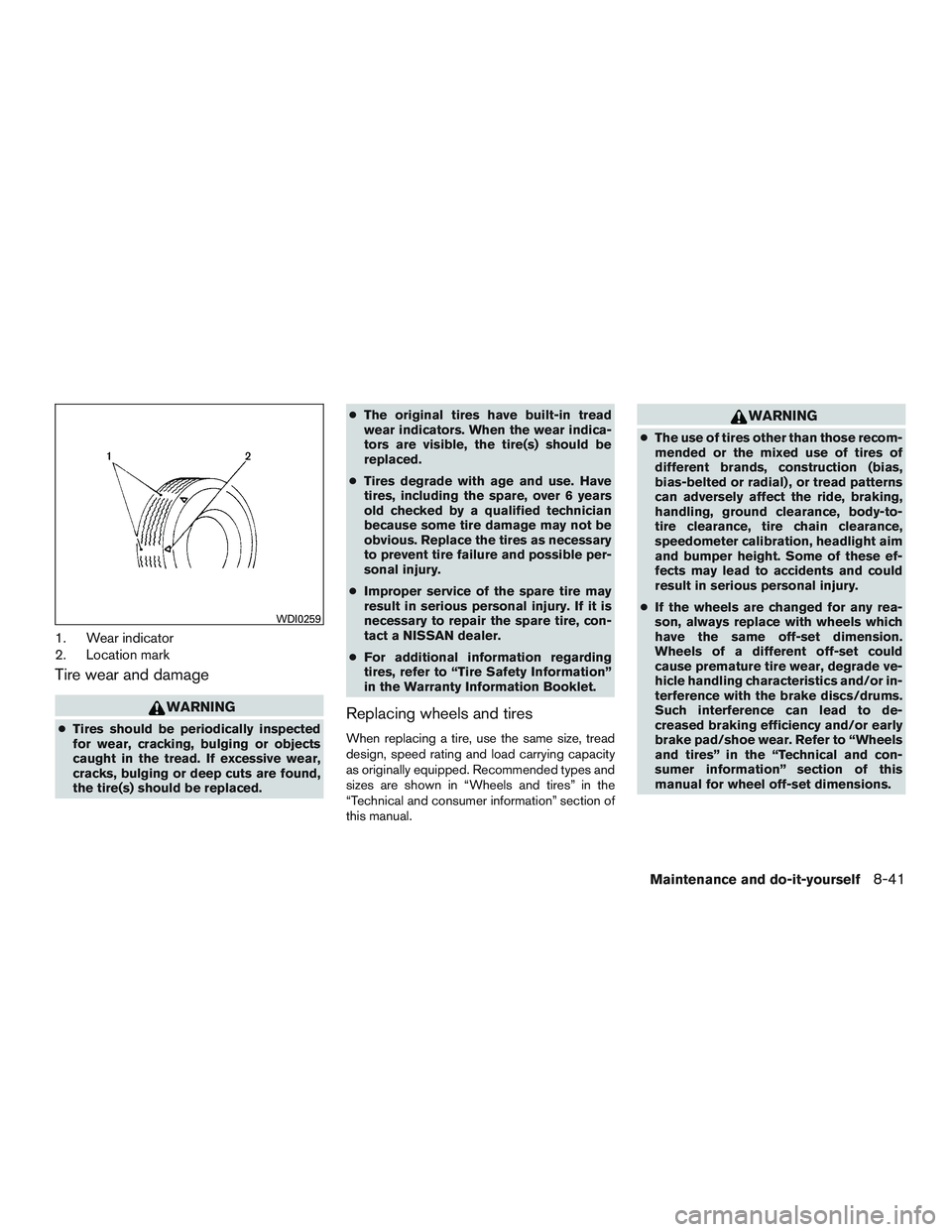

1. Wear indicator
2. Location mark
Tire wear and damage
WARNING
●Tires should be periodically inspected
for wear, cracking, bulging or objects
caught in the tread. If excessive wear,
cracks, bulging or deep cuts are found,
the tire(s) should be replaced. ●
The original tires have built-in tread
wear indicators. When the wear indica-
tors are visible, the tire(s) should be
replaced.
● Tires degrade with age and use. Have
tires, including the spare, over 6 years
old checked by a qualified technician
because some tire damage may not be
obvious. Replace the tires as necessary
to prevent tire failure and possible per-
sonal injury.
● Improper service of the spare tire may
result in serious personal injury. If it is
necessary to repair the spare tire, con-
tact a NISSAN dealer.
● For additional information regarding
tires, refer to “Tire Safety Information”
in the Warranty Information Booklet.Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. Recommended types and
sizes are shown in “Wheels and tires” in the
“Technical and consumer information” section of
this manual.
WARNING
● The use of tires other than those recom-
mended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial) , or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-
tire clearance, tire chain clearance,
speedometer calibration, headlight aim
and bumper height. Some of these ef-
fects may lead to accidents and could
result in serious personal injury.
● If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handling characteristics and/or in-
terference with the brake discs/drums.
Such interference can lead to de-
creased braking efficiency and/or early
brake pad/shoe wear. Refer to “Wheels
and tires” in the “Technical and con-
sumer information” section of this
manual for wheel off-set dimensions.
WDI0259
Maintenance and do-it-yourself8-41

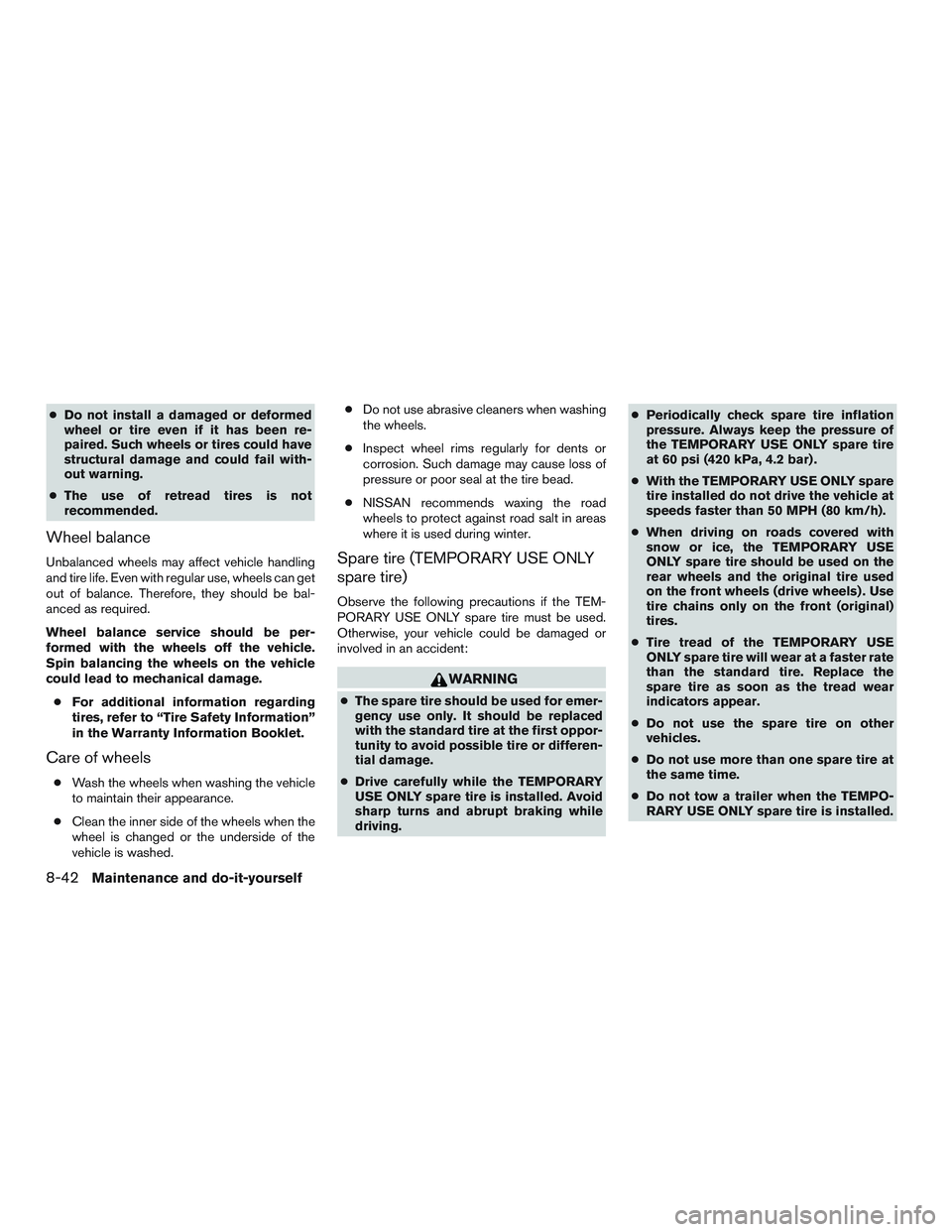

●Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
● The use of retread tires is not
recommended.
Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
● For additional information regarding
tires, refer to “Tire Safety Information”
in the Warranty Information Booklet.
Care of wheels
● Wash the wheels when washing the vehicle
to maintain their appearance.
● Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed. ●
Do not use abrasive cleaners when washing
the wheels.
● Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
● NISSAN recommends waxing the road
wheels to protect against road salt in areas
where it is used during winter.
Spare tire (TEMPORARY USE ONLY
spare tire)
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used.
Otherwise, your vehicle could be damaged or
involved in an accident:
WARNING
● The spare tire should be used for emer-
gency use only. It should be replaced
with the standard tire at the first oppor-
tunity to avoid possible tire or differen-
tial damage.
● Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving. ●
Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire
at 60 psi (420 kPa, 4.2 bar) .
● With the TEMPORARY USE ONLY spare
tire installed do not drive the vehicle at
speeds faster than 50 MPH (80 km/h).
● When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on the
rear wheels and the original tire used
on the front wheels (drive wheels) . Use
tire chains only on the front (original)
tires.
● Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster rate
than the standard tire. Replace the
spare tire as soon as the tread wear
indicators appear.
● Do not use the spare tire on other
vehicles.
● Do not use more than one spare tire at
the same time.
● Do not tow a trailer when the TEMPO-
RARY USE ONLY spare tire is installed.
8-42Maintenance and do-it-yourself

10 Index
A
ABS (Anti-lock Braking System) ........5-20
Air bag (See supplemental restraint
system) .....................1-40
Air bag system Front (See supplemental front impact
air bag system) ...............1-47
Side and curtain (See supplemental side air
bag and curtain side-impact air
bag system) .................1-52
Airbagwarninglabels.............1-54
Airbagwarninglight...........1-55,2-10
Air bag warning light, supplemental . .1-55, 2-10
Air cleaner housing filter ............8-16
Air conditioner Air conditioner operation ......4-10,4-18
Air conditioner service ...........4-23
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Filter .....................8-17
Heater and air conditioner controls. .4-7, 4-15
Servicing air conditioner ..........4-23
Airflowcharts..............4-11,4-19
Alarm system
(See vehicle security system) .........2-13
Anchor point locations .............1-22
Antenna .....................4-45
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) ........5-20
Audible reminders ...............2-12 Audio system
..................4-23
AMradioreception.............4-24
Compact disc (CD) player .....4-34,4-38
FM-AM radio with compact disc (CD)
player ....................4-31
FM/AM/SAT radio with compact disc (CD)
player ....................4-35
FMradioreception.............4-23
iPod® Player ................4-42
iPod® player operation ...........4-42
Radio ....................4-23
Steering wheel audio control switch . . .4-44
USB interface ................4-40
USB (Universal Serial Bus) Connection
Port .....................4-40
Automatic Automatic transmission fluid (ATF) ....8-11
Automatic transmission position indicator
light .....................2-10
Driving with automatic transmission .....5-8
Transmission shift selector lock release . .5-11
Automatic door locks ..............3-5
AUXjack.................4-35,4-39
B
Battery ..................5-24,8-13
Chargewarninglight.............2-8
Battery replacement Keyfob ...................8-24
Before starting the engine ............5-7
Belt (See drive belt) ..............8-15 Block heater
Engine ....................5-25
Bluetooth® hands-free phone system ....4-46
Boosterseats..................1-36
Brake Anti-lock Braking System (ABS) ......5-20
Brake fluid ..................8-12
Brakelight(Seestoplight).........8-29
Brake system ................5-19
Brakewarninglight..............2-8
Brakewearindicators........2-12,8-19
Parking brake operation ..........5-14
Self-adjusting brakes ............8-19
Brake fluid ....................8-12
Brakes ......................8-19
Brake system ..................5-19
Break-inschedule ...............5-16
Brightness control Instrument panel ..............2-18
Bulb check/instrument panel ..........2-7
Bulbreplacement................8-29
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-45
CDcareandcleaning .............4-43
CD player (See audio system) .....4-34,4-38

Fuel-filler door lock opener lever......3-11
Power door locks ...............3-4
Lowfuelwarninglight...............2-9
Low windshield-washer fluid warning light . . .2-9
Luggage (See vehicle loading information) . .9-13
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenanceprecautions...........8-5
Outsidethevehicle..............8-2
Seat belt maintenance ............1-16
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunctionindicatorlight............2-11
Manual front seat adjustment ...........1-2
Manual windows .................2-26
Map pocket ....................2-21
Meters and gauges ................2-3
Instrument brightness control ........2-18
Mirror Inside mirror .................3-14
Outside mirror control ............3-15
Outside mirrors ...............3-15
Vanity mirror .................3-14
Mirrors ......................3-14
Multi-remote control system
(See remote keyless entry system) ........3-6 N
NISSAN vehicle immobilizer
system .................2-13,3-2,5-7
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Oneshotcall...................4-49
Outside mirror control ..............3-15
Outside mirrors .................3-15
Overdrive switch .................5-12
Overheat If your vehicle overheats ...........6-12
Owner’s manual order form ...........9-20
Owner’s manual/service manual order
information ....................9-20
P
Parking Parking brake operation ...........5-14
Parking/parking on hills ...........5-18
Phone, Bluetooth® hands-free system .....4-46Power
Power door locks ...............3-4
Poweroutlet.................2-21
Power rear windows .............2-26
Power steering system ...........5-19
Power windows ...............2-24
Rear power windows ............2-26
Poweroutlet...................2-21
Power steering ..................5-19
Precautions Maintenance precautions ...........8-5
Precautions on booster
seats...........1-18,1-25,1-31,1-36
Precautions on child
restraints .........1-18,1-25,1-31,1-36
Precautionsonseatbeltusage.......1-10
Precautions on supplemental restraint
system ....................1-40
Precautions when starting and driving ....5-2
Push starting ...................6-12
R
Radio CarphoneorCBradio ...........4-45
FM-AM
radio with compact disc (CD)
player.....................4-31
FM/AM/SAT radio with compact disc (CD)
player.....................4-35
Steering wheel audio control switch ....4-44
Readiness for inspection maintenance (I/M)
test........................9-19
Rear power windows ..............2-26
Rearseat......................1-4
RearView Monitor ..............4-2,4-3
10-4

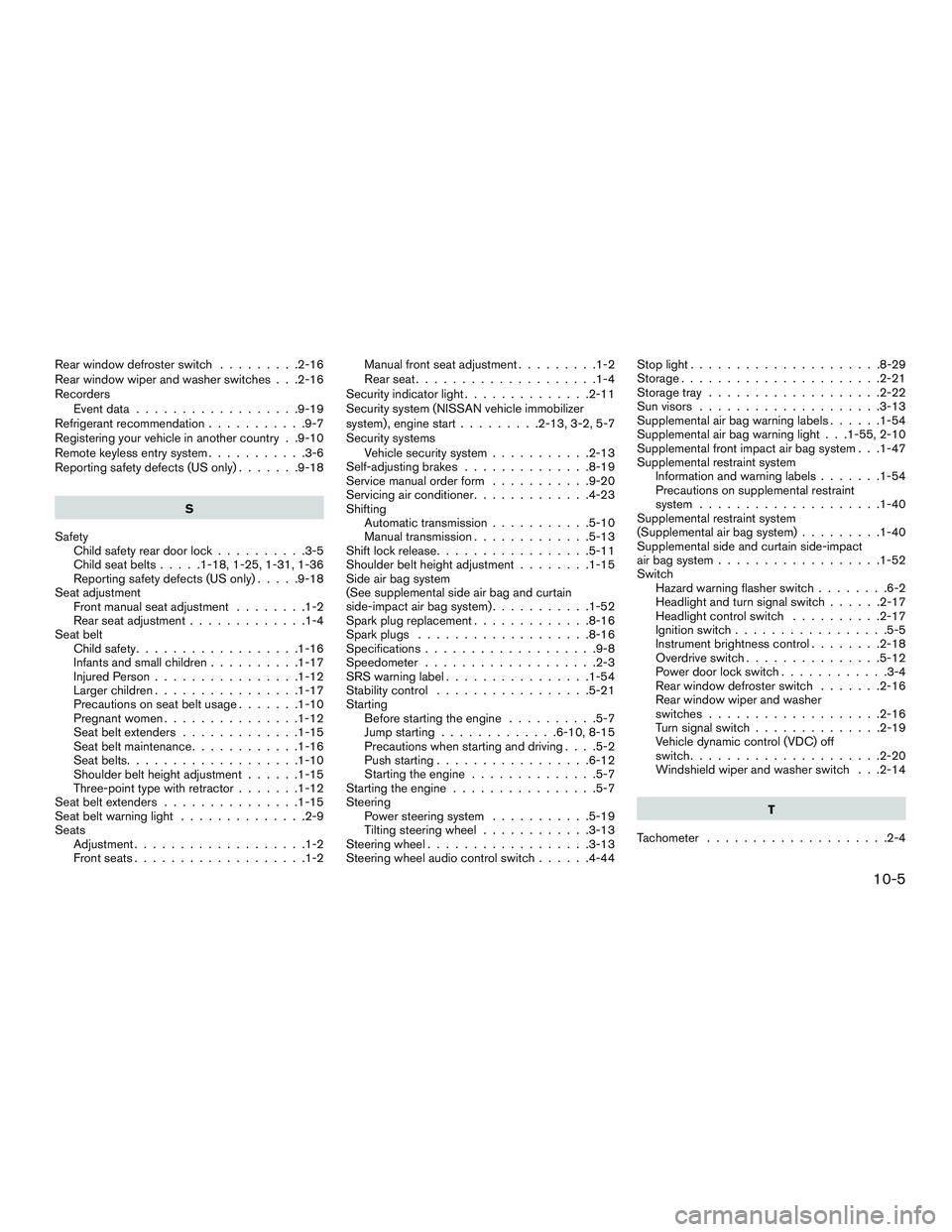

Rear window defroster switch.........2-16
Rear window wiper and washer switches . . .2-16
Recorders Eventdata..................9-19
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-6
Reporting safety defects (US only) .......9-18
S
Safety Child safety rear door lock ..........3-5
Childseatbelts.....1-18,1-25,1-31,1-36
Reporting safety defects (US only) .....9-18
Seat adjustment Front manual seat adjustment ........1-2
Rear seat adjustment .............1-4
Seat belt Child safety ..................1-16
Infantsandsmallchildren..........1-17
InjuredPerson................1-12
Largerchildren................1-17
Precautionsonseatbeltusage.......1-10
Pregnant women ...............1-12
Seat belt extenders .............1-15
Seat belt maintenance ............1-16
Seat belts ...................1-10
Shoulder belt height adjustment ......1-15
Three-point type with retractor .......1-12
Seat belt extenders ...............1-15
Seatbeltwarninglight ..............2-9
Seats Adjustment ...................1-2
Frontseats...................1-2 Manual front seat adjustment
.........1-2
Rear seat ....................1-4
Security indicator light ..............2-11
Security system (NISSAN vehicle immobilizer
system) , engine start .........2-13,3-2,5-7
Security systems Vehicle security system ...........2-13
Self-adjusting brakes ..............8-19
Service manual order form ...........9-20
Servicing air conditioner .............4-23
Shifting Automatic transmission ...........5-10
Manual transmission .............5-13
Shift lock release .................5-11
Shoulder belt height adjustment ........1-15
Side air bag system
(See supplemental side air bag and curtain
side-impact air bag system) ...........1-52
Spark plug replacement .............8-16
Sparkplugs ...................8-16
Specifications ...................9-8
Speedometer ...................2-3
SRS warning label ................1-54
Stability control .................5-21
Starting Before starting the engine ..........5-7
Jump starting .............6-10,8-15
Precautions when starting and driving ....5-2
Push starting .................6-12
Starting the engine ..............5-7
Starting the engine ................5-7
Steering Power steering system ...........5-19
Tilting steering wheel ............3-13
Steering wheel ..................3-13
Steering wheel audio control switch ......4-44S
toplight.....................8-29
Storage......................2-21
Storage tray ...................2-22
Sun visors ....................3-13
Supplemental air bag warning labels ......1-54
Supplemental air bag warning light . . .1-55, 2-10
Supplemental front impact air bag system . . .1-47
Supplemental restraint system Information and warning labels .......1-54
Precautions on supplemental restraint
system ....................1-40
Supplemental restraint system
(Supplemental air bag system) .........1-40
Supplemental side and curtain side-impact
air bag system ..................1-52
Switch Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-17
Headlight control switch ..........2-17
Ignition switch .................5-5
Instrument brightness control ........2-18
Overdrive switch ...............5-12
Powerdoorlockswitch............3-4
Rear window defroster switch .......2-16
Rear window wiper and washer
switches...................2-16
Turnsignalswitch..............2-19
Vehicle dynamic control (VDC) off
switch.....................2-20
Windshield wiper and washer switch . . .2-14
T
Tachometer ....................2-4
10-5
