NISSAN MICRA 2017 Owner´s Manual

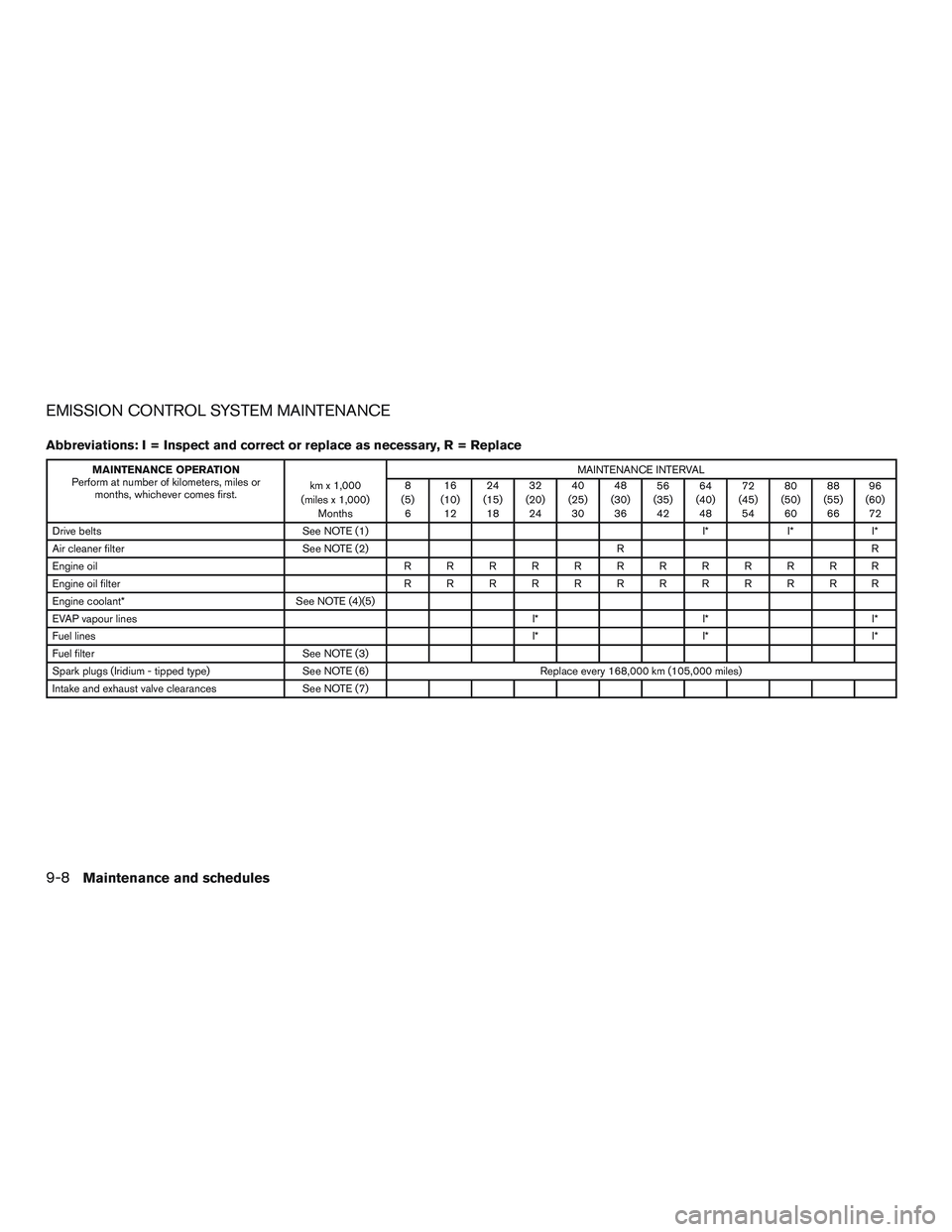

EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
8
(5) 6 16
(10) 12 24
(15) 18 32
(20) 24 40
(25) 30 48
(30) 36 56
(35) 42 64
(40) 48 72
(45) 54 80
(50) 60 88
(55) 66 96
(60) 72
Drive belts See NOTE (1) I*I*I*
Air cleaner filter See NOTE (2) RR
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Engine coolant* See NOTE (4)(5)
EVAP vapour lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Spark plugs (Iridium - tipped type) See NOTE (6)Replace every 168,000 km (105,000 miles)
Intake and exhaust valve clearances See NOTE (7)
9-8Maintenance and schedules

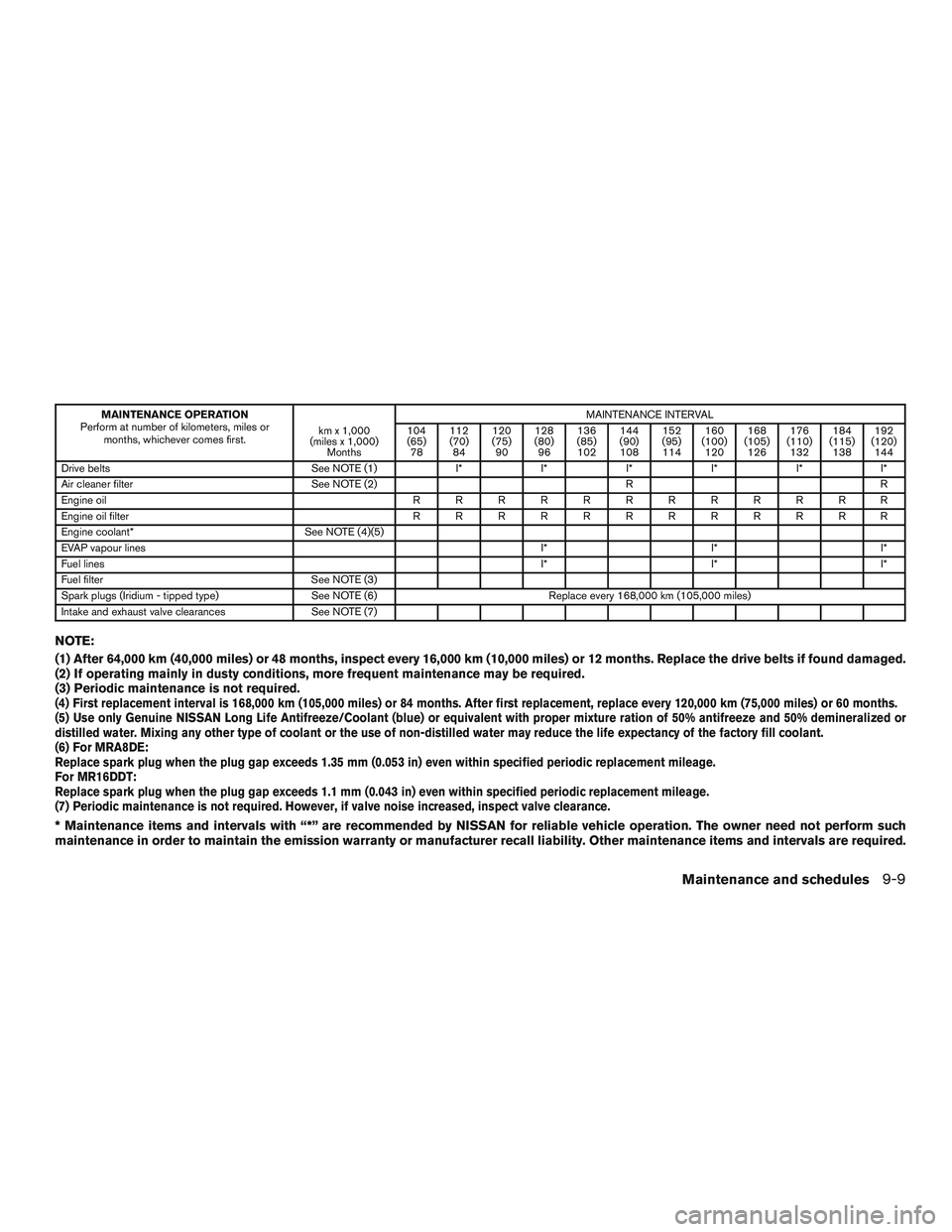

MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
104
(65) 78 112
(70) 84 120
(75) 90 128
(80) 96 136
(85) 102 144
(90) 108 152
(95) 114 160
(100) 120 168
(105) 126 176
(110) 132 184
(115) 138 192
(120) 144
Drive belts See NOTE (1)I*I*I*I*I*I*
Air cleaner filter See NOTE (2) RR
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Engine coolant* See NOTE (4)(5)
EVAP vapour lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Spark plugs (Iridium - tipped type) See NOTE (6)Replace every 168,000 km (105,000 miles)
Intake and exhaust valve clearances See NOTE (7)
NOTE:
(1) After 64,000 km (40,000 miles) or 48 months, inspect every 16,000 km (10,000 miles) or 12 months. Replace the drive belts if found damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Periodic maintenance is not required.
(4) First replacement interval is 168,000 km (105,000 miles) or 84 months. After first replacement, replace every 120,000 km (75,000 miles) or 60 months.
(5) Use only Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent with proper mixture ration of 50% antifreeze and 50% demineralized or
distilled water. Mixing any other type of coolant or the use of non-distilled water may reduce the life expectancy of the factory fill coolant.
(6) For MRA8DE:
Replace spark plug when the plug gap exceeds 1.35 mm (0.053 in) even within specified periodic replacement mileage.
For MR16DDT:
Replace spark plug when the plug gap exceeds 1.1 mm (0.043 in) even within specified periodic replacement mileage.
(7) Periodic maintenance is not required. However, if valve noise increased, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform such
maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are required.
Maintenance and schedules9-9

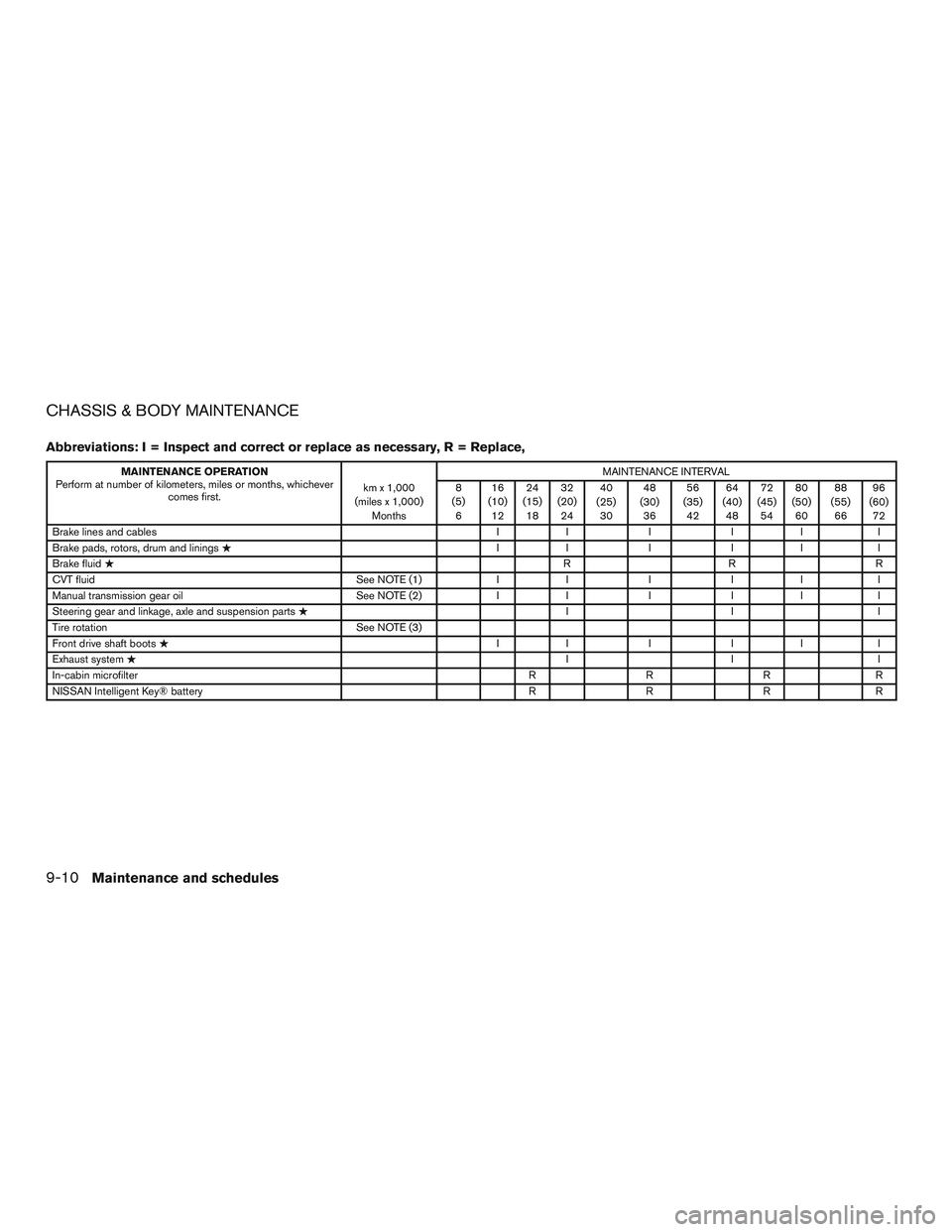

CHASSIS & BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,
MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
8
(5) 6 16
(10) 12 24
(15) 18 32
(20) 24 40
(25) 30 48
(30) 36 56
(35) 42 64
(40) 48 72
(45) 54 80
(50) 60 88
(55) 66 96
(60) 72
Brake lines and cables II III I
Brake pads, rotors, drum and linings  II I II I
Brake fluid  RRR
CVT fluid See NOTE (1)II III I
Manual transmission gear oil See NOTE (2)II III I
Steering gear and linkage, axle and suspension parts  III
Tire rotation See NOTE (3)
Front drive shaft boots  II I II I
Exhaust system  III
In-cabin microfilter RRRR
NISSAN Intelligent Key® battery RRRR
9-10Maintenance and schedules

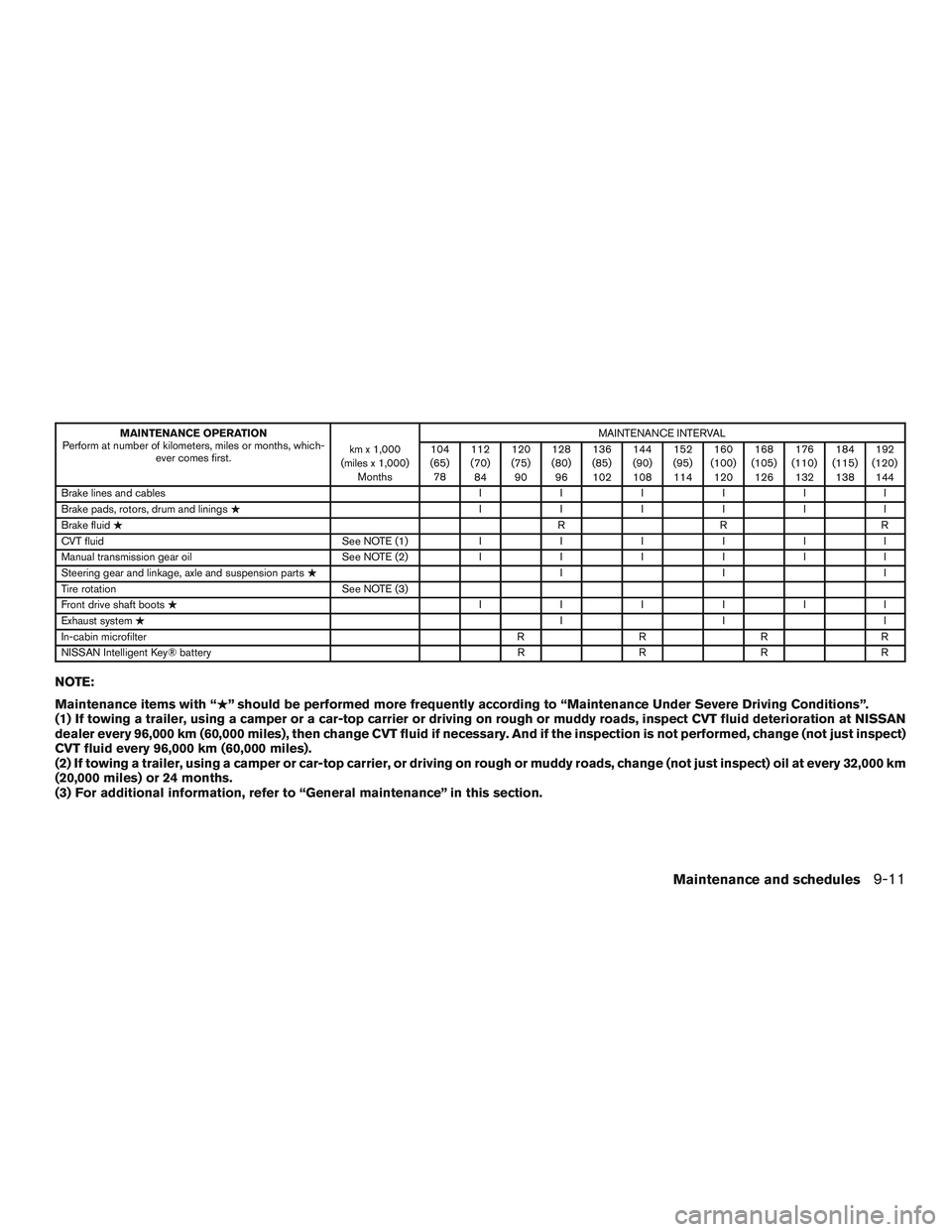

MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, which- ever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
104
(65) 78 112
(70) 84 120
(75) 90 128
(80) 96 136
(85) 102 144
(90) 108 152
(95) 114 160
(100) 120 168
(105) 126 176
(110) 132 184
(115) 138 192
(120) 144
Brake lines and cables IIIIII
Brake pads, rotors, drum and linings  IIIIII
Brake fluid  RRR
C VT flu id See NO TE (1 )IIIIII
Manual transmission gear oil See NOTE (2)IIIIII
Steering gear and linkage, axle and suspension parts  III
Tire rotation See NOTE (3)
Front drive shaft boots  IIIIII
Exhaust system  III
In-cabin microfilter RRRR
NISSAN Intelligent Key® battery RRRR
NOTE:
Maintenance items with “” should be performed more frequently according to “Maintenance Under Severe Driving Conditions”.
(1) If towing a trailer, using a camper or a car-top carrier or driving on rough or muddy roads, inspect CVT fluid deterioration at NISSAN
dealer every 96,000 km (60,000 miles), then change CVT fluid if necessary. And if the inspection is not performed, change (not just inspect)
CVT fluid every 96,000 km (60,000 miles).
(2) If towing a trailer, using a camper or car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every 32,000 km
(20,000 miles) or 24 months.
(3) For additional information, refer to “General maintenance” in this section.
Maintenance and schedules9-11

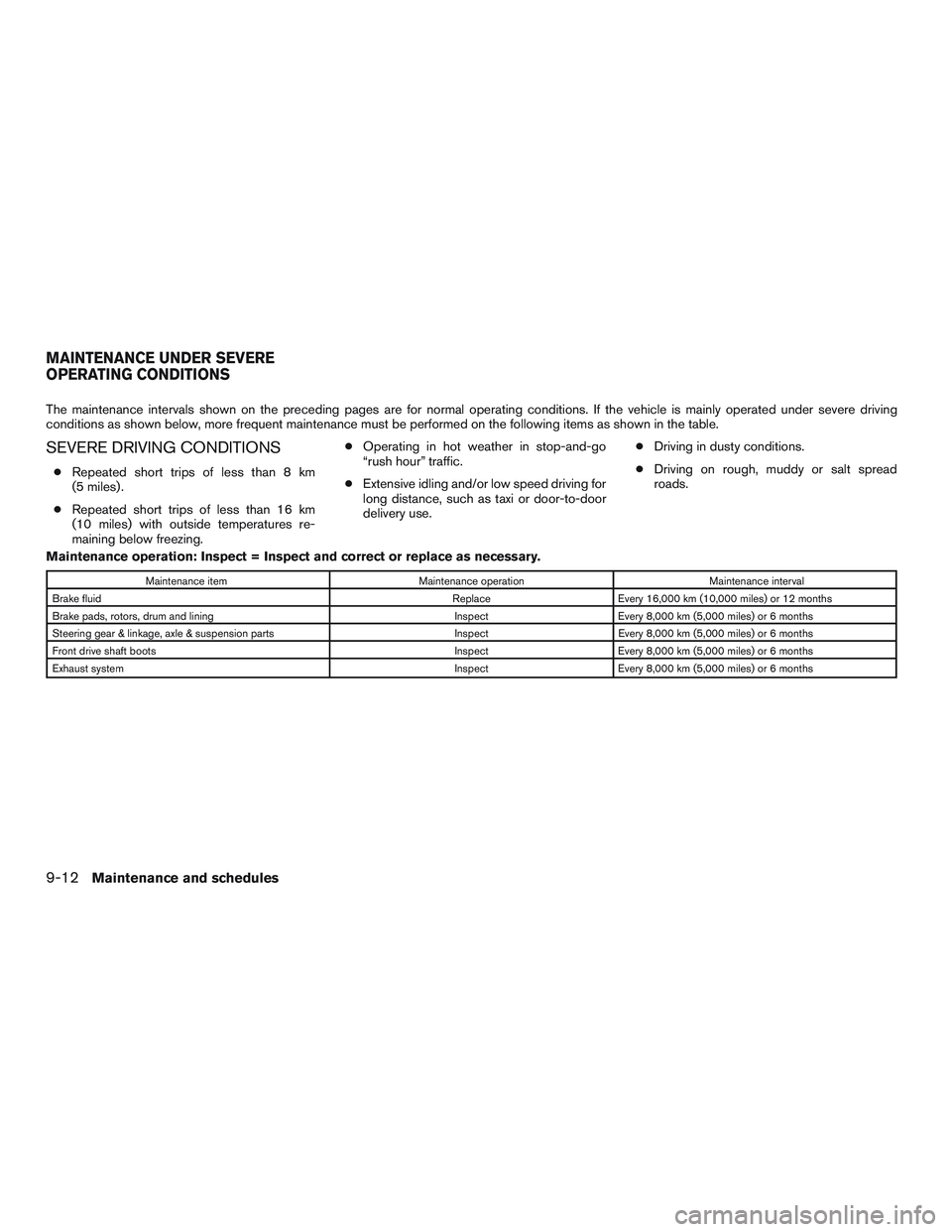

The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is mainly operated under severe driving
conditions as shown below, more frequent maintenance must be performed on the following items as shown in the table.
SEVERE DRIVING CONDITIONS
●Repeated short trips of less than 8 km
(5 miles) .
● Repeated short trips of less than 16 km
(10 miles) with outside temperatures re-
maining below freezing. ●
Operating in hot weather in stop-and-go
“rush hour” traffic.
● Extensive idling and/or low speed driving for
long distance, such as taxi or door-to-door
delivery use. ●
Driving in dusty conditions.
● Driving on rough, muddy or salt spread
roads.
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Maintenance item Maintenance operation Maintenance interval
Brake fluid ReplaceEvery 16,000 km (10,000 miles) or 12 months
Brake pads, rotors, drum and lining InspectEvery 8,000 km (5,000 miles) or 6 months
Steering gear & linkage, axle & suspension parts InspectEvery 8,000 km (5,000 miles) or 6 months
Front drive shaft boots InspectEvery 8,000 km (5,000 miles) or 6 months
Exhaust system InspectEvery 8,000 km (5,000 miles) or 6 months
MAINTENANCE UNDER SEVERE
OPERATING CONDITIONS
9-12Maintenance and schedules

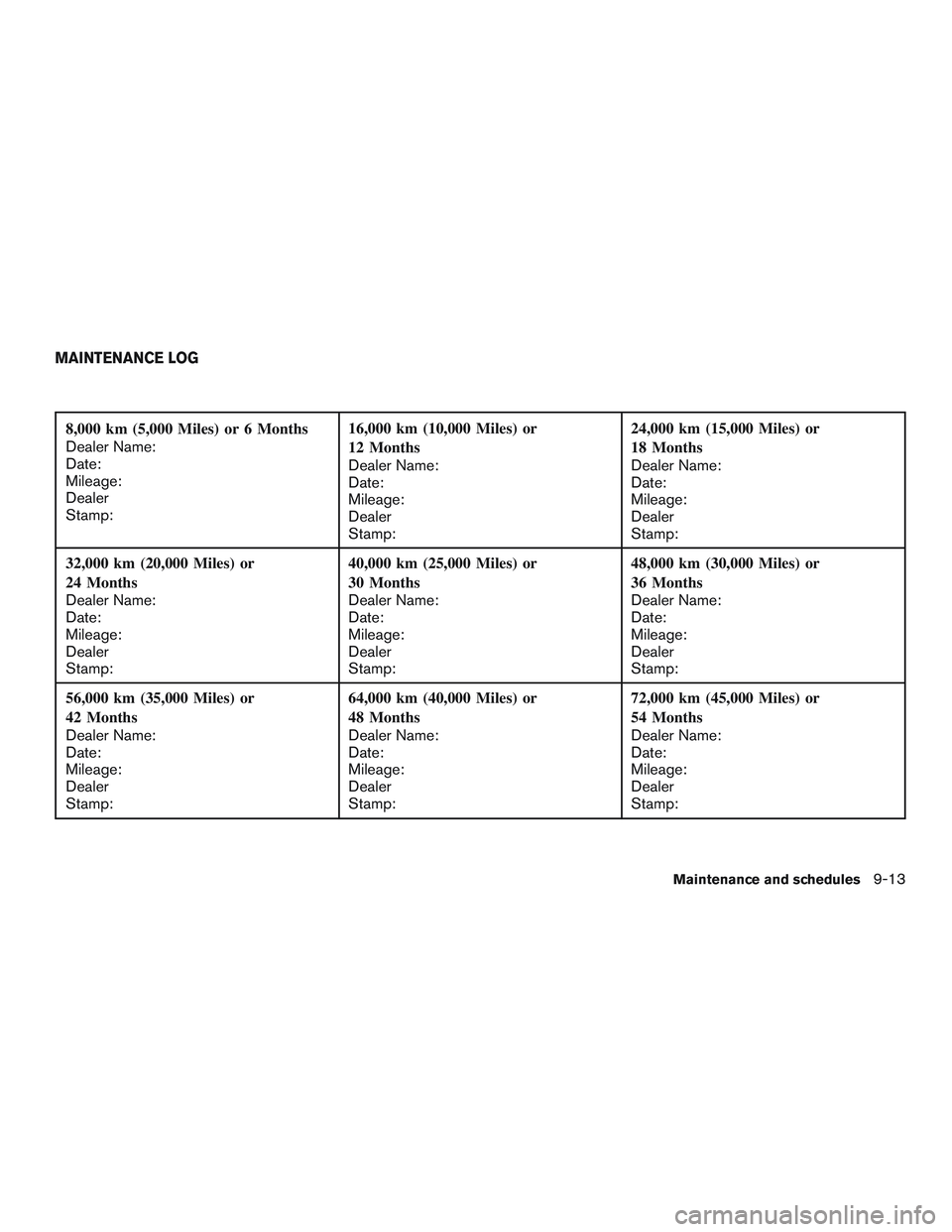

8,000 km (5,000 Miles) or 6 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:16,000 km (10,000 Miles) or
12 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:24,000 km (15,000 Miles) or
18 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
32,000 km (20,000 Miles) or
24 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 40,000 km (25,000 Miles) or
30 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:48,000 km (30,000 Miles) or
36 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
56,000 km (35,000 Miles) or
42 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 64,000 km (40,000 Miles) or
48 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:72,000 km (45,000 Miles) or
54 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
MAINTENANCE LOG
Maintenance and schedules9-13

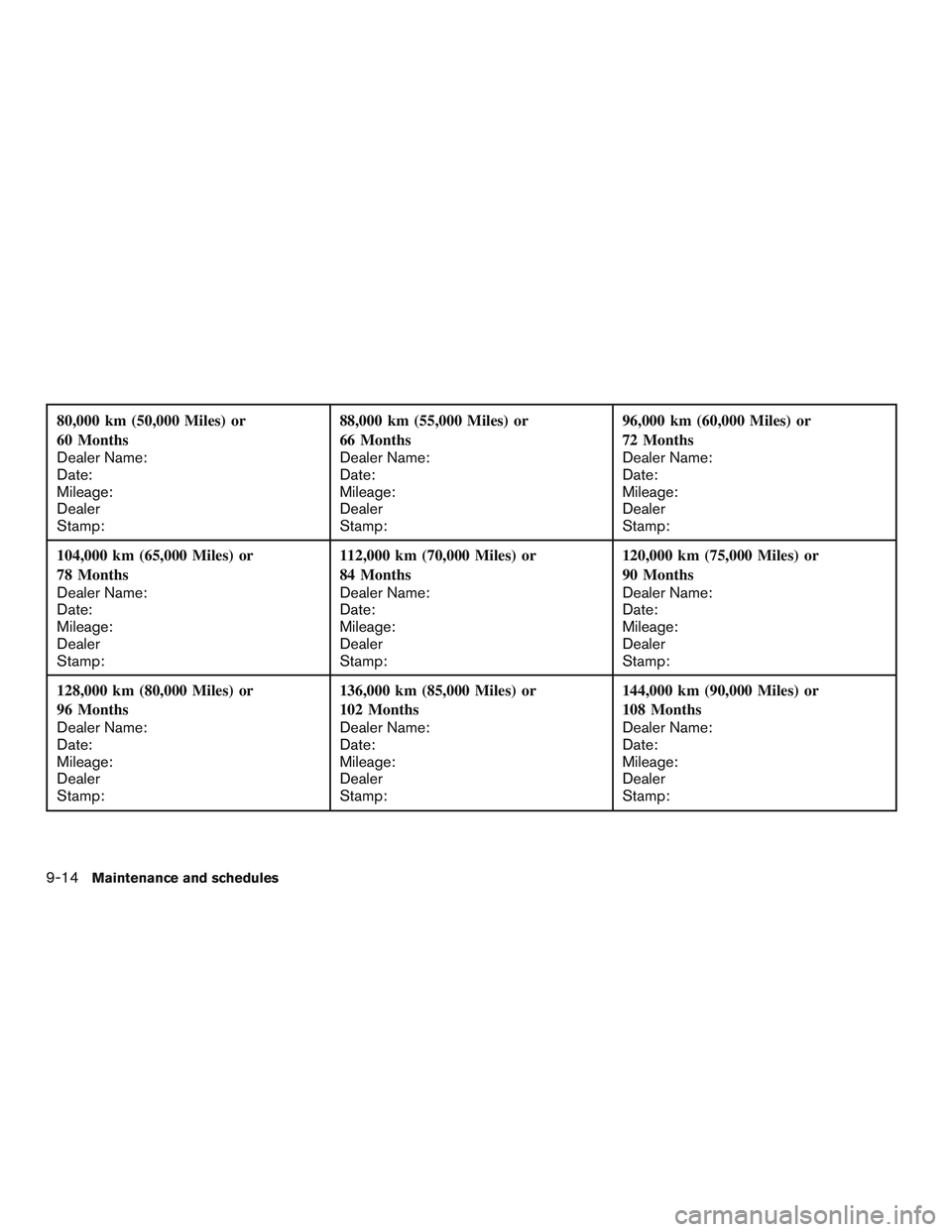

80,000 km (50,000 Miles) or
60 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:88,000 km (55,000 Miles) or
66 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:96,000 km (60,000 Miles) or
72 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
104,000 km (65,000 Miles) or
78 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 112,000 km (70,000 Miles) or
84 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:120,000 km (75,000 Miles) or
90 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
128,000 km (80,000 Miles) or
96 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 136,000 km (85,000 Miles) or
102 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:144,000 km (90,000 Miles) or
108 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
9-14
Maintenance and schedules

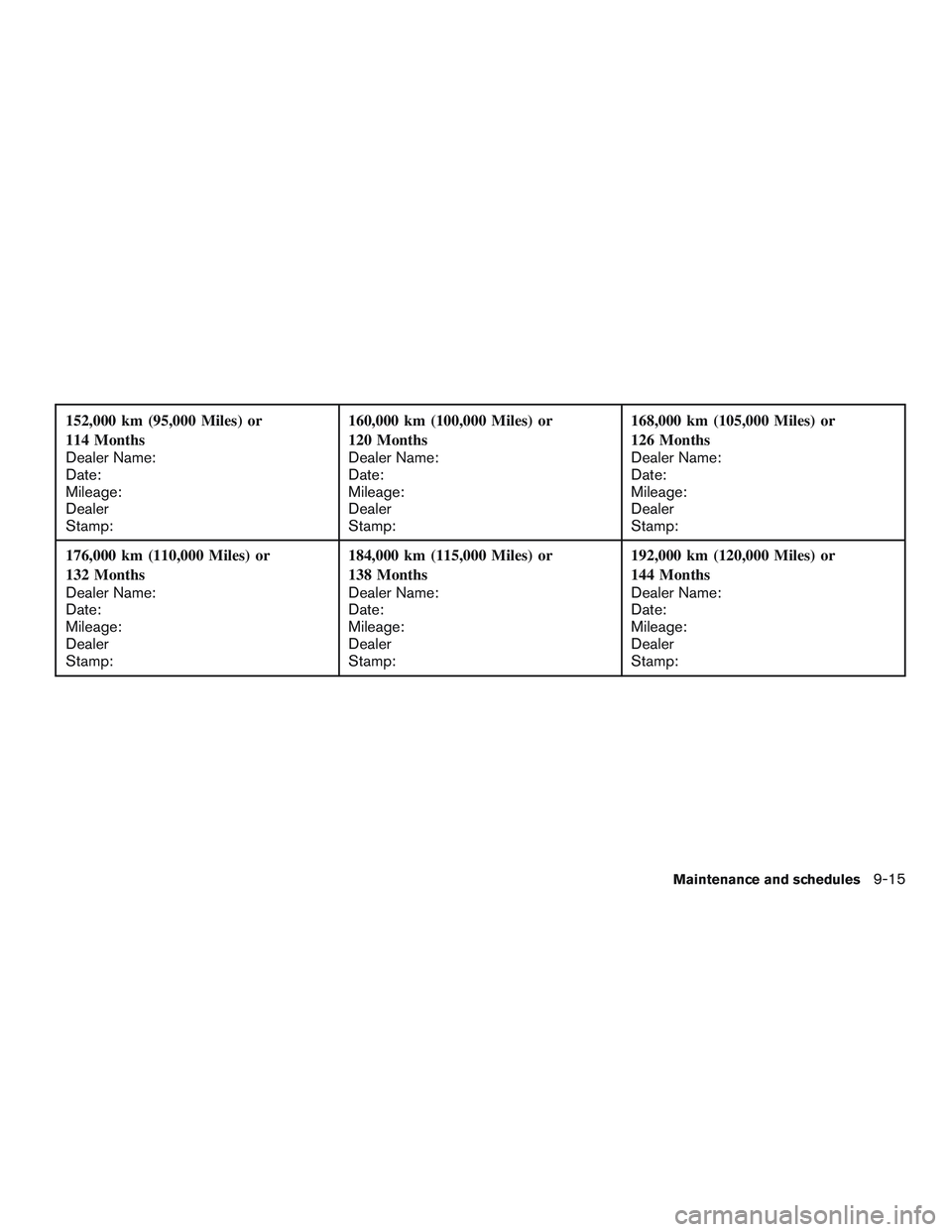

152,000 km (95,000 Miles) or
114 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:160,000 km (100,000 Miles) or
120 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:168,000 km (105,000 Miles) or
126 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
176,000 km (110,000 Miles) or
132 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 184,000 km (115,000 Miles) or
138 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:192,000 km (120,000 Miles) or
144 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
Maintenance and schedules9-15

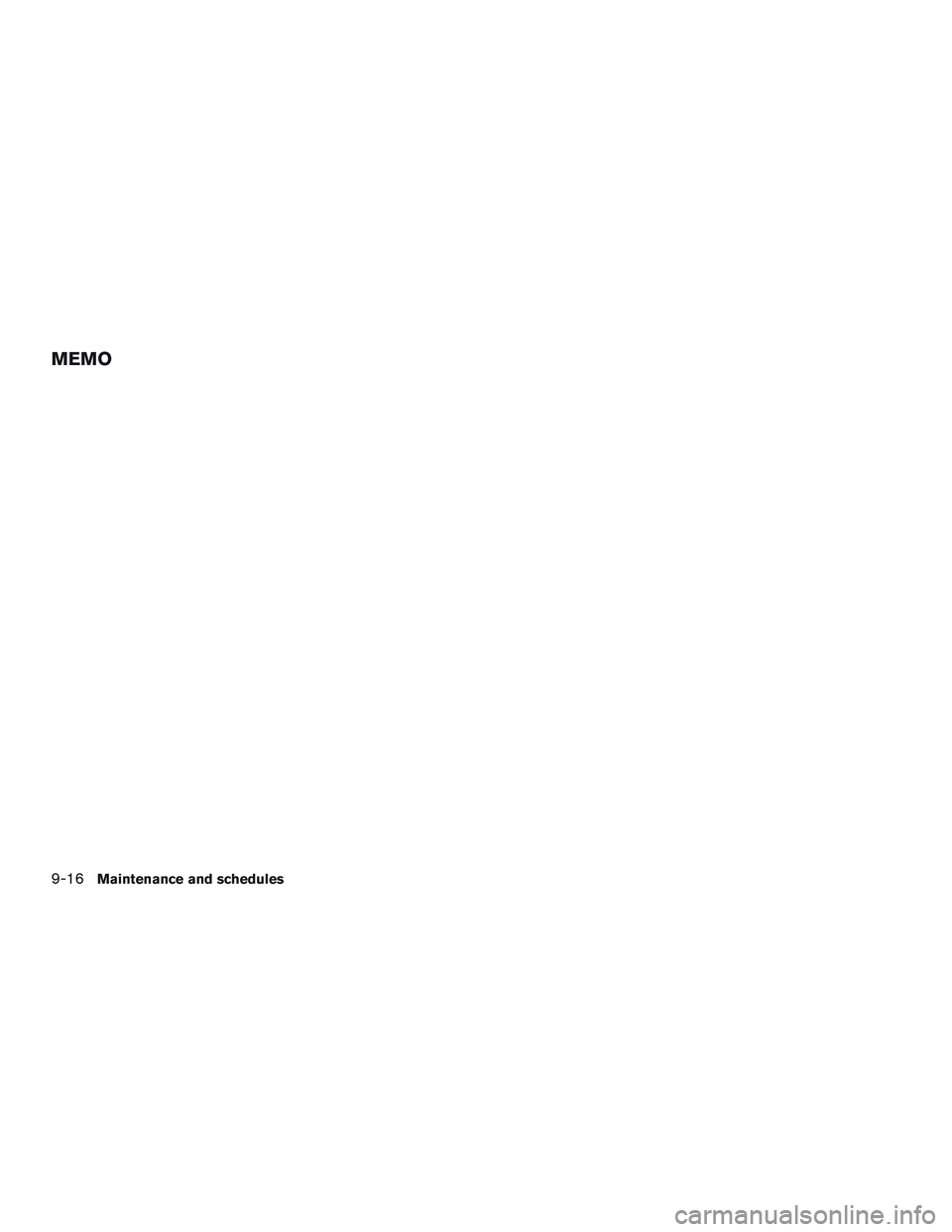

MEMO
9-16Maintenance and schedules

10 Technical and consumer information
Recommended fluids/lubricants and capacities......10-2
Fuel recommendation .......................... 10-4
Engine oil and oil filter recommendations .........10-6
Air conditioner system (if so equipped)
refrigerant and oil recommendations .............10-7
Specifications .................................... 10-8
Engine ....................................... 10-8
Wheels and tires .............................. 10-9
Dimensions and weights .......................10-9
When traveling or registering in another country .....10-10
Vehicle identification ............................. 10-10
Vehicle identification number (VIN) plate ........10-10
Vehicle identification number
(chassis number) ............................. 10-10
Engine serial number .......................... 10-11
C.M.V.S.S. certification label ...................10-11
Emission control information label ..............10-11 Tire and loading information label
...............10-12
Air conditioner specification label
(if so equipped) .............................. 10-12
Installing front license plate (if so equipped) ........10-12
Vehicle loading information .......................10-13
Terms ....................................... 10-13
Determining vehicle load capacity . . ............10-14
Loading tips ................................. 10-16
Measurement of weights ......................10-16
Towing a trailer .................................. 10-17
Flat towing ................................... 10-17
Uniform tire quality grading .......................10-17
Emission control system warranty .................10-18
Reporting safety defects ......................... 10-19
Readiness for inspection/maintenance (I/M) test ....10-19
Event Data Recorders (EDR) ......................10-20
Owner’s Manual/Service Manual order information . .10-20
