isofix NISSAN MICRA 2017 Owner´s Manual

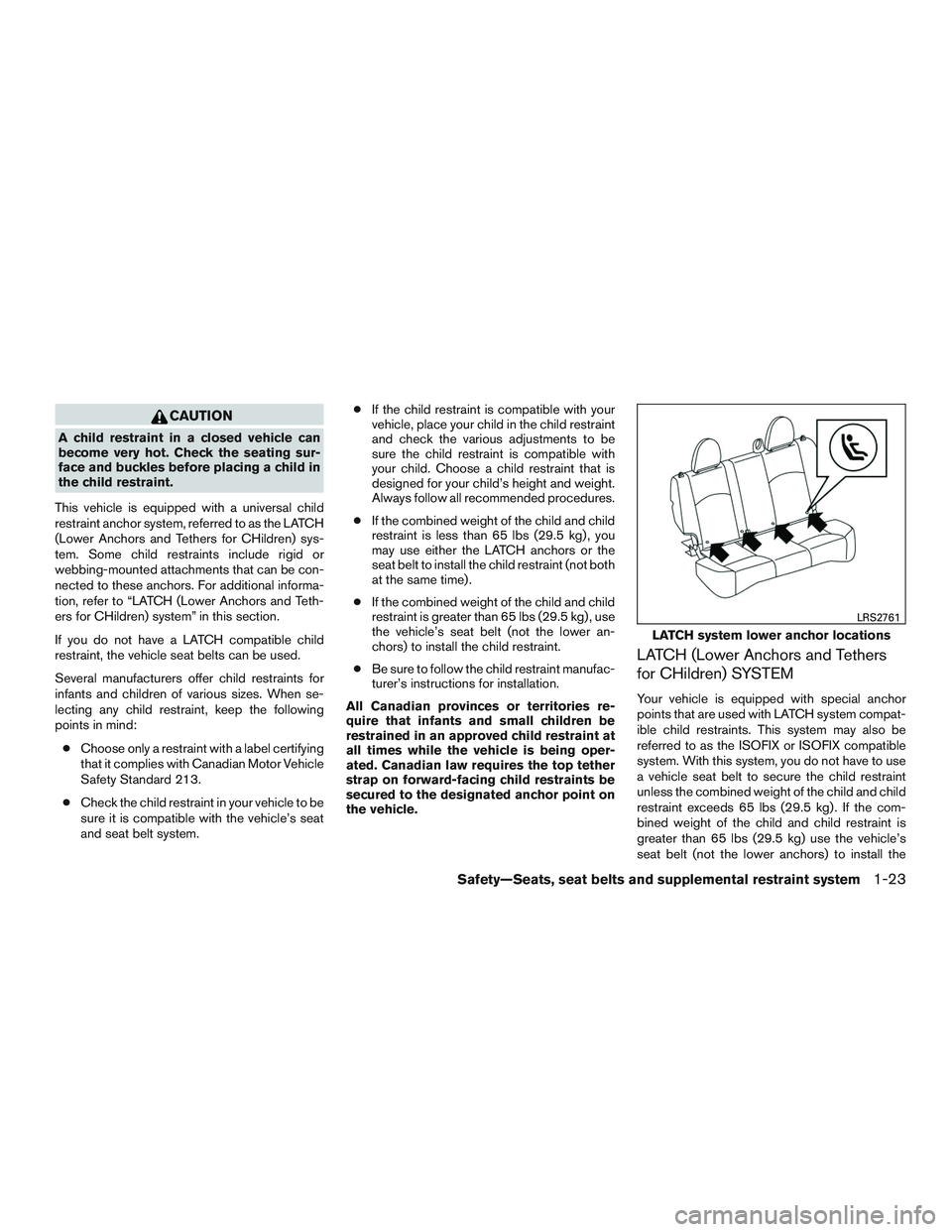

CAUTION
A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For additional informa-
tion, refer to “LATCH (Lower Anchors and Teth-
ers for CHildren) system” in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind: ● Choose only a restraint with a label certifying
that it complies with Canadian Motor Vehicle
Safety Standard 213.
● Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system. ●
If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
● If the combined weight of the child and child
restraint is less than 65 lbs (29.5 kg) , you
may use either the LATCH anchors or the
seat belt to install the child restraint (not both
at the same time) .
● If the combined weight of the child and child
restraint is greater than 65 lbs (29.5 kg) , use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint.
● Be sure to follow the child restraint manufac-
turer’s instructions for installation.
All Canadian provinces or territories re-
quire that infants and small children be
restrained in an approved child restraint at
all times while the vehicle is being oper-
ated. Canadian law requires the top tether
strap on forward-facing child restraints be
secured to the designated anchor point on
the vehicle.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH system compat-
ible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint
unless the combined weight of the child and child
restraint exceeds 65 lbs (29.5 kg) . If the com-
bined weight of the child and child restraint is
greater than 65 lbs (29.5 kg) use the vehicle’s
seat belt (not the lower anchors) to install the
LATCH system lower anchor locations
LRS2761
Safety—Seats, seat belts and supplemental restraint system1-23

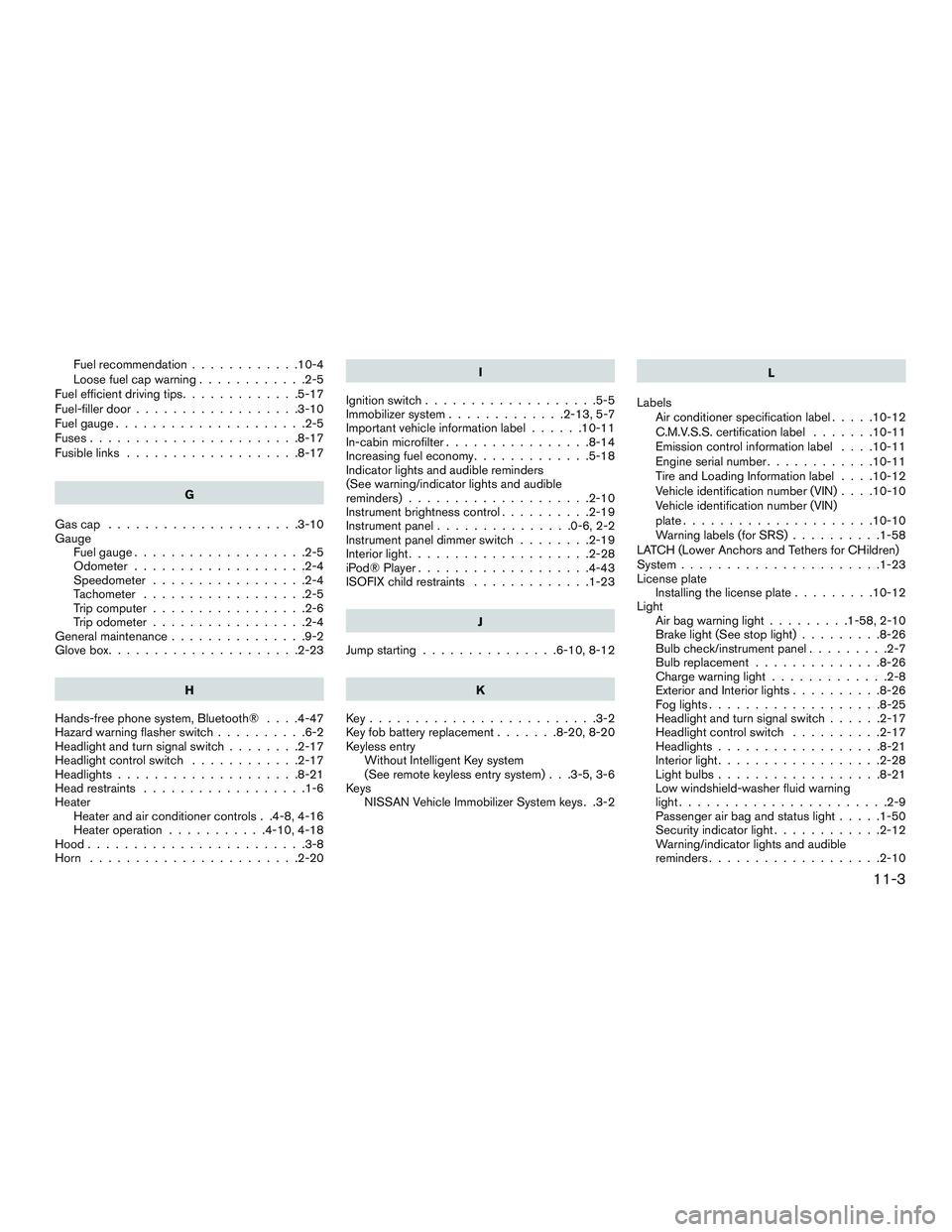

Fuel recommendation............10-4
Loose fuel cap warning ............2-5
Fuel efficient driving tips .............5-17
Fuel-filler door ..................3-10
Fuel gauge .....................2-5
Fuses.......................8-17
Fusible links ...................8-17
G
Gascap .....................3-10
Gauge Fuel gauge ...................2-5
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip computer .................2-6
Trip odometer .................2-4
General maintenance ...............9-2
Glovebox.....................2-23
H
Hands-free phone system, Bluetooth® ....4-47
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-17
Headlightcontrolswitch ............2-17
Headlights....................8-21
Head restraints ..................1-6
Heater Heater and air conditioner controls . .4-8, 4-16
Heater operation ...........4-10,4-18
Hood ........................3-8
Horn .......................2-20 I
Ignition switch ...................5-5
Immobilizer system .............2-13,5-7
Important vehicle information label ......10-11
In-cabin microfilter ................8-14
Increasing fuel economy .............5-18
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-10
Instrument brightness control ..........2-19
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-19
Interiorlight....................2-28
iPod® Player ...................4-43
ISOFIX child restraints .............1-23
J
Jump starting ...............6-10,8-12
K
Key.........................3-2
Key fob battery replacement .......8-20,8-20
Keyless entry Without Intelligent Key system
(See remote keyless entry system) . . .3-5, 3-6
Keys NISSAN Vehicle Immobilizer System keys . .3-2 L
Labels Air conditioner specification label .....10-12
C.M.V.S.S. certification label .......10-11
Emission control information label ....10-11
Engine serial number ............10-11
Tire and Loading Information label ....10-12
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
plate .....................10-10
Warning labels (for SRS) ..........1-58
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-23
License plate Installing the license plate .........10-12
Light A

irbagwarninglight.........1-58,2-10
Brake light (See stop light) .........8-26
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-26
Charge warning light .............2-8
Exterior and Interior lights ..........8-26
Foglights...................8-25
Headlightandturnsignalswitch......2-17
Headlight control switch ..........2-17
Headlights..................8-21
Interior light ..................2-28
Lightbulbs..................8-21
Low windshield-washer fluid warning
light.......................2-9
Passenger air bag and status light .....1-50
Security indicator light ............2-12
Warning/indicator lights and audible
reminders ...................2-10
11-3
