phone NISSAN MICRA 2017 Owner´s Manual

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
1-800-387-0122The Consumer Affairs Department will ask for the
following information:
– Your name, address and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissan.ca
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM

Table of Contents
Illustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
11

21. Audio control switches (if so equipped)(P.4-45)
Bluetooth® hands-free phone system
controls (if so equipped) (P. 4-47)
22. Fuel-filler door release lever (P. 3-10) Hood release lever (P. 3-8)
23. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-21)
24. Electronic outside rearview mirror con-
trol switch (if so equipped) (P. 3-15)
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

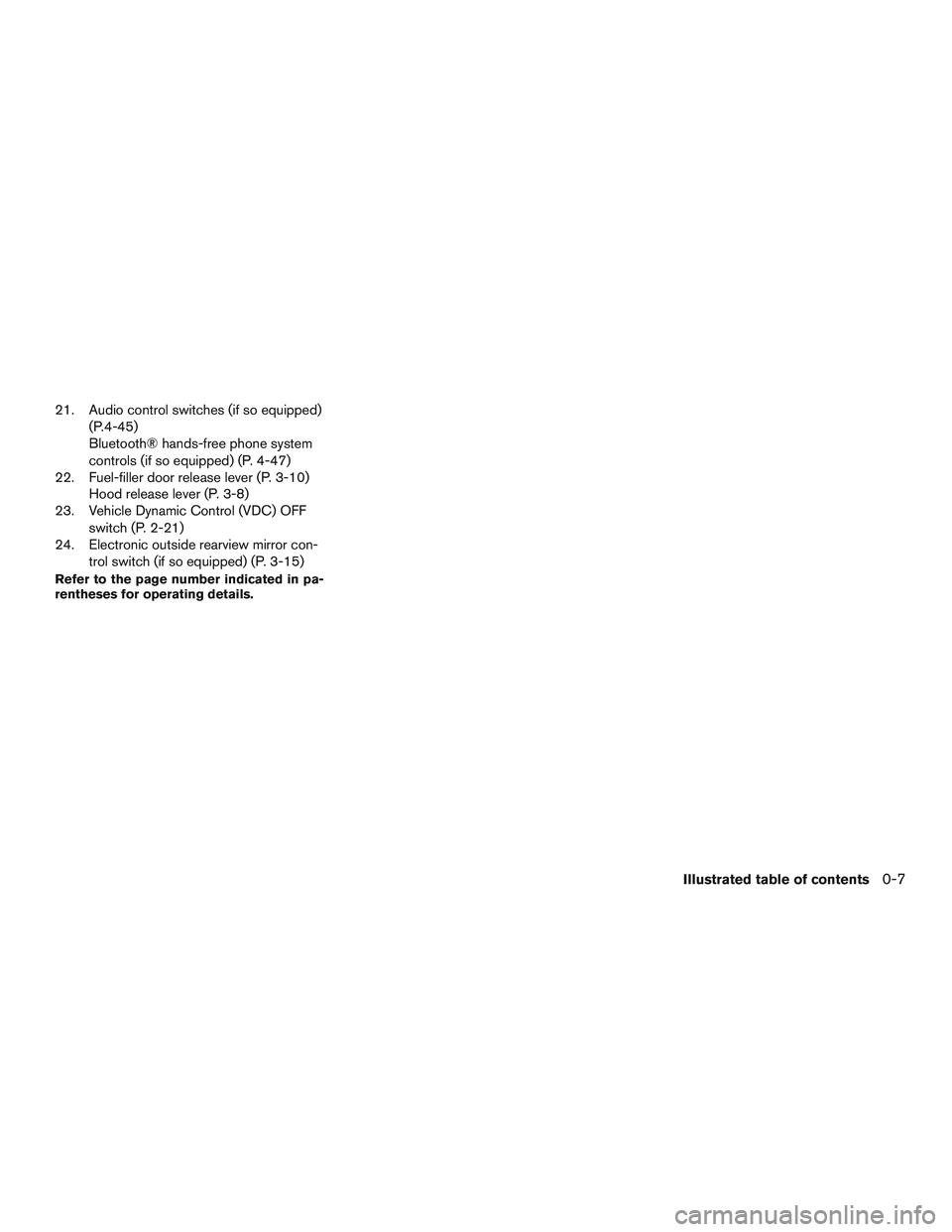

21. Audio control switches (if so equipped)(P.4-45)
Bluetooth® hands-free phone system
controls (if so equipped) (P. 4-47)
22. Fuel-filler door release lever (P. 3-10) Hood release lever (P. 3-8)
23. Vehicle Dynamic Control (VDC) OFF
switch (P. 2-21)
24. Electronic outside rearview mirror con-
trol switch (if so equipped) (P. 3-15)
Refer to the page number indicated in pa-
rentheses for operating details.

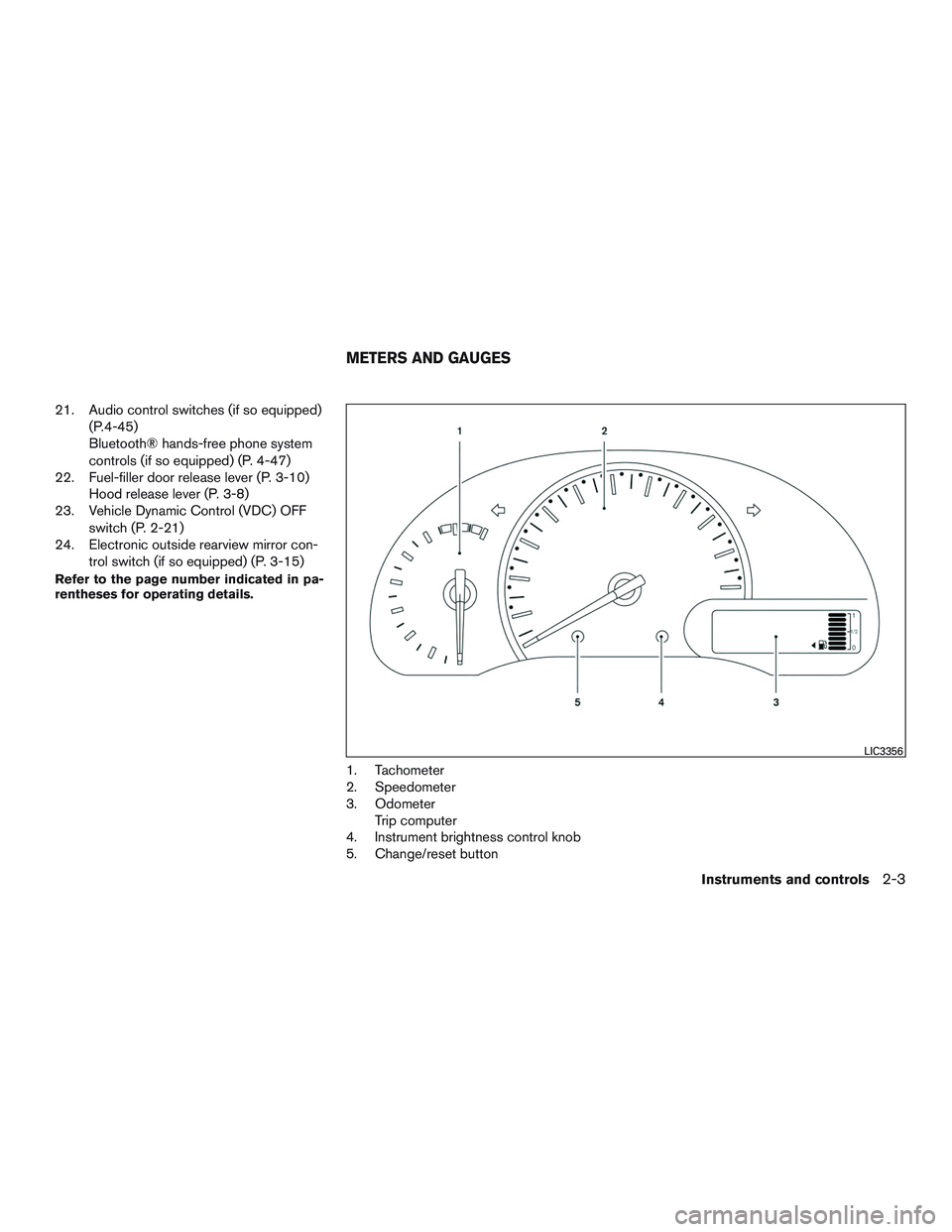

1. Tachometer
2. Speedometer
3. OdometerTrip computer
4. Instrument brightness control knob
5. Change/reset button
LIC3356
METERS AND GAUGES
Instruments and controls2-3

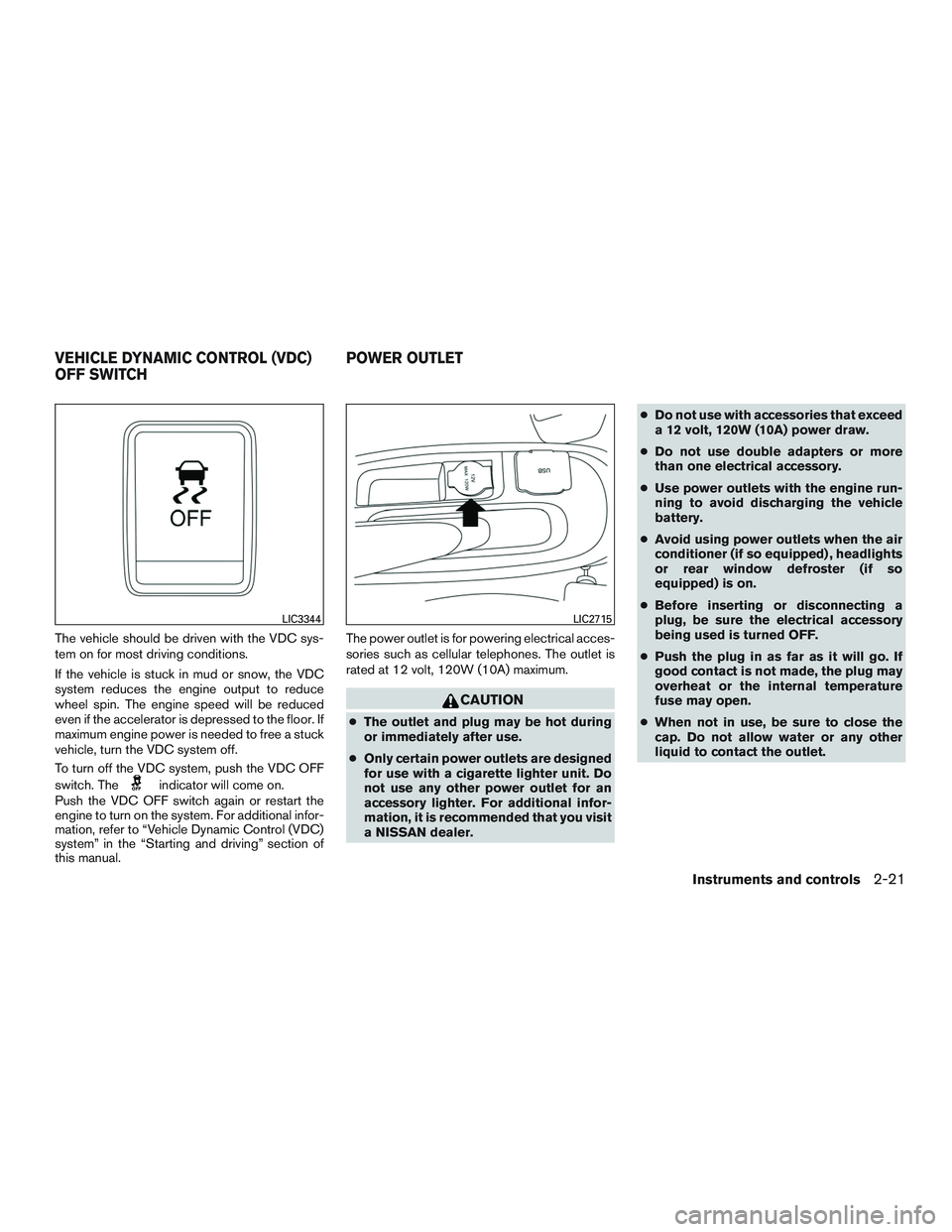

The vehicle should be driven with the VDC sys-
tem on for most driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will come on.
Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual. The power outlet is for powering electrical acces-
sories such as cellular telephones. The outlet is
rated at 12 volt, 120W (10A) maximum.
CAUTION
●
The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. For additional infor-
mation, it is recommended that you visit
a NISSAN dealer. ●
Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.
● Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner (if so equipped) , headlights
or rear window defroster (if so
equipped) is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
LIC3344LIC2715
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH POWER OUTLET
Instruments and controls2-21

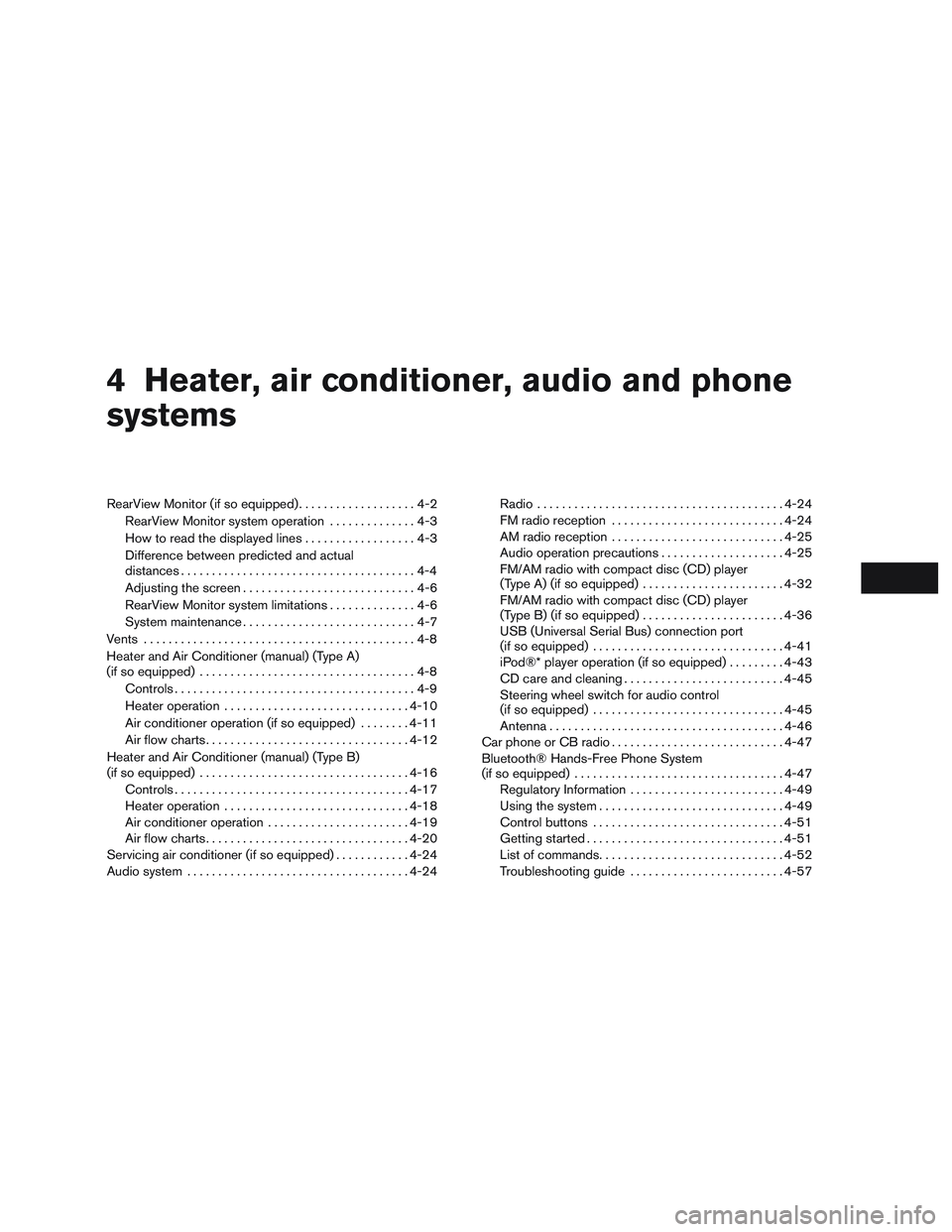

4 Heater, air conditioner, audio and phone
systems
RearView Monitor (if so equipped)...................4-2
RearView Monitor system operation ..............4-3
How to read the displayed lines ..................4-3
Difference between predicted and actual
distances ......................................4-4
Adjusting the screen ............................4-6
RearView Monitor system limitations ..............4-6
System maintenance ............................4-7
Vents ............................................4-8
Heater and Air Conditioner (manual) (Type A)
(if so equipped) ...................................4-8
Controls .......................................4-9
Heater operation .............................. 4-10
Air conditioner operation (if so equipped) ........4-11
Air flow charts ................................. 4-12
Heater and Air Conditioner (manual) (Type B)
(if so equipped) .................................. 4-16
Controls ...................................... 4-17
Heater operation .............................. 4-18
Air conditioner operation .......................4-19
Air flow charts ................................. 4-20
Servicing air conditioner (if so equipped) ............4-24
Audio system .................................... 4-24Radio
........................................ 4-24
FM radio reception ............................ 4-24
AM radio reception ............................ 4-25
Audio operation precautions ....................4-25
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-32
FM/AM radio with compact disc (CD) player
(Type B) (if so equipped) .......................4-36
USB (Universal Serial Bus) connection port
(if so equipped) ............................... 4-41
iPod®* player operation (if so equipped) .........4-43
CD care and cleaning .......................... 4-45
Steering wheel switch for audio control
(if so equipped) ............................... 4-45
Antenna ...................................... 4-46
Car phone or CB radio ............................ 4-47
Bluetooth® Hands-Free Phone System
(if so equipped) .................................. 4-47
Regulatory Information ......................... 4-49
Using the system .............................. 4-49
Control

buttons ............................... 4-51
Getting started ................................ 4-51
List of commands .............................. 4-52
Troubleshooting guide ......................... 4-57

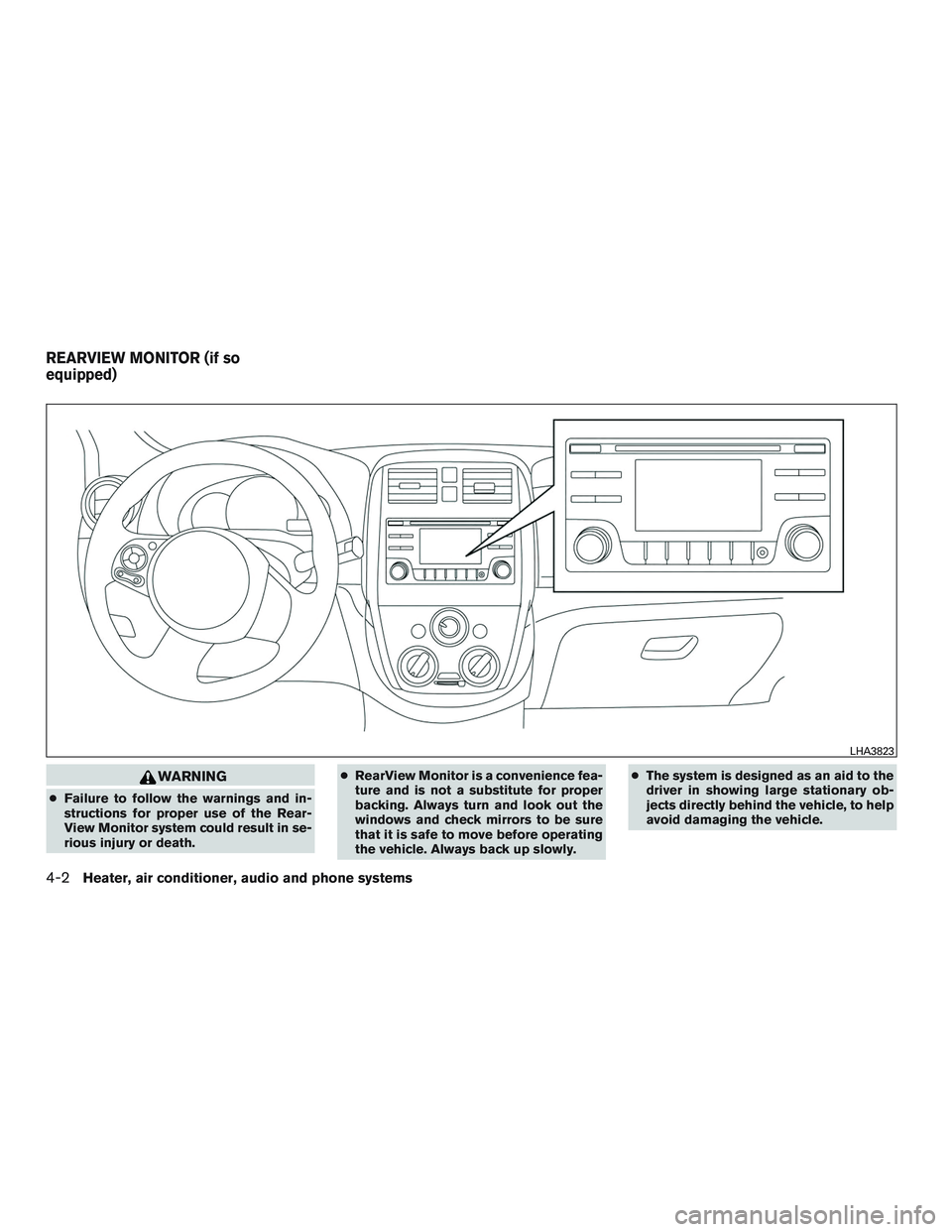

WARNING
●Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death. ●
RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly. ●
The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
LHA3823
REARVIEW MONITOR (if so
equipped)
4-2Heater, air conditioner, audio and phone systems

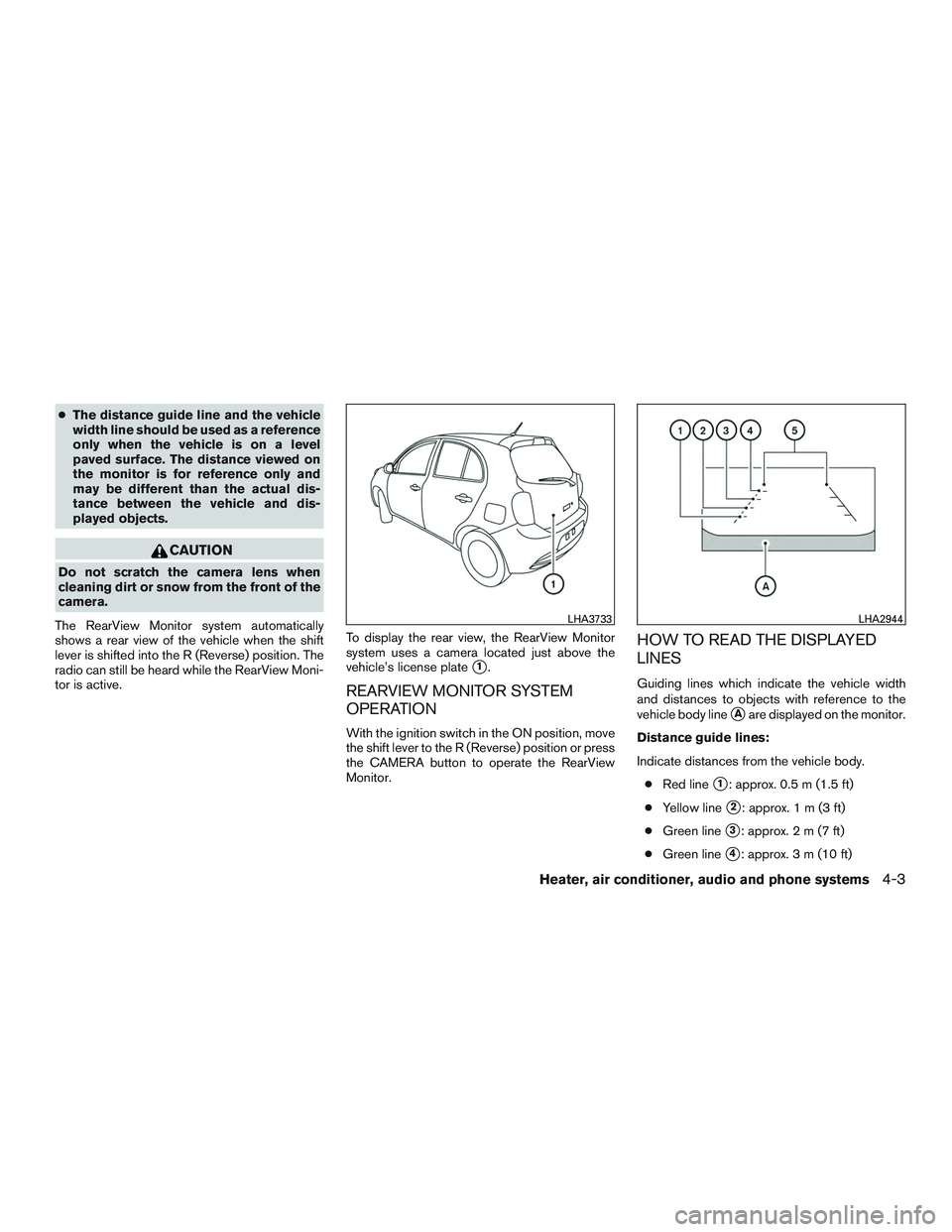

●The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level
paved surface. The distance viewed on
the monitor is for reference only and
may be different than the actual dis-
tance between the vehicle and dis-
played objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.
The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is shifted into the R (Reverse) position. The
radio can still be heard while the RearView Moni-
tor is active. To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position, move
the shift lever to the R (Reverse) position or press
the CAMERA button to operate the RearView
Monitor.
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body. ● Red line
1: approx. 0.5 m (1.5 ft)
● Yellow line
2: approx.1m(3ft)
● Green line
3: approx.2m(7ft)
● Green line
4: approx. 3 m (10 ft)
LHA3733LHA2944
Heater, air conditioner, audio and phone systems4-3

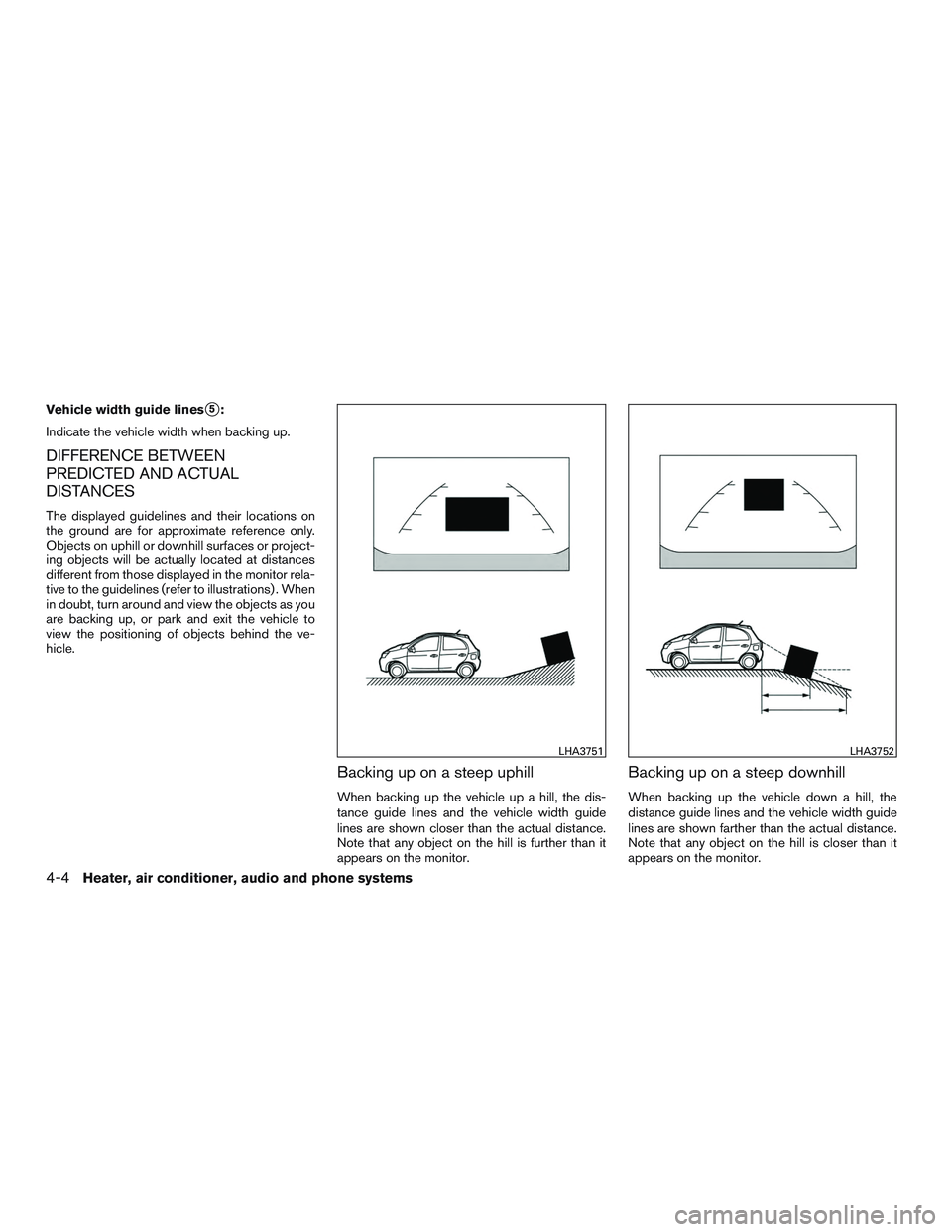

Vehicle width guide lines5:
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or project-
ing objects will be actually located at distances
different from those displayed in the monitor rela-
tive to the guidelines (refer to illustrations) . When
in doubt, turn around and view the objects as you
are backing up, or park and exit the vehicle to
view the positioning of objects behind the ve-
hicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
LHA3751LHA3752
4-4Heater, air conditioner, audio and phone systems

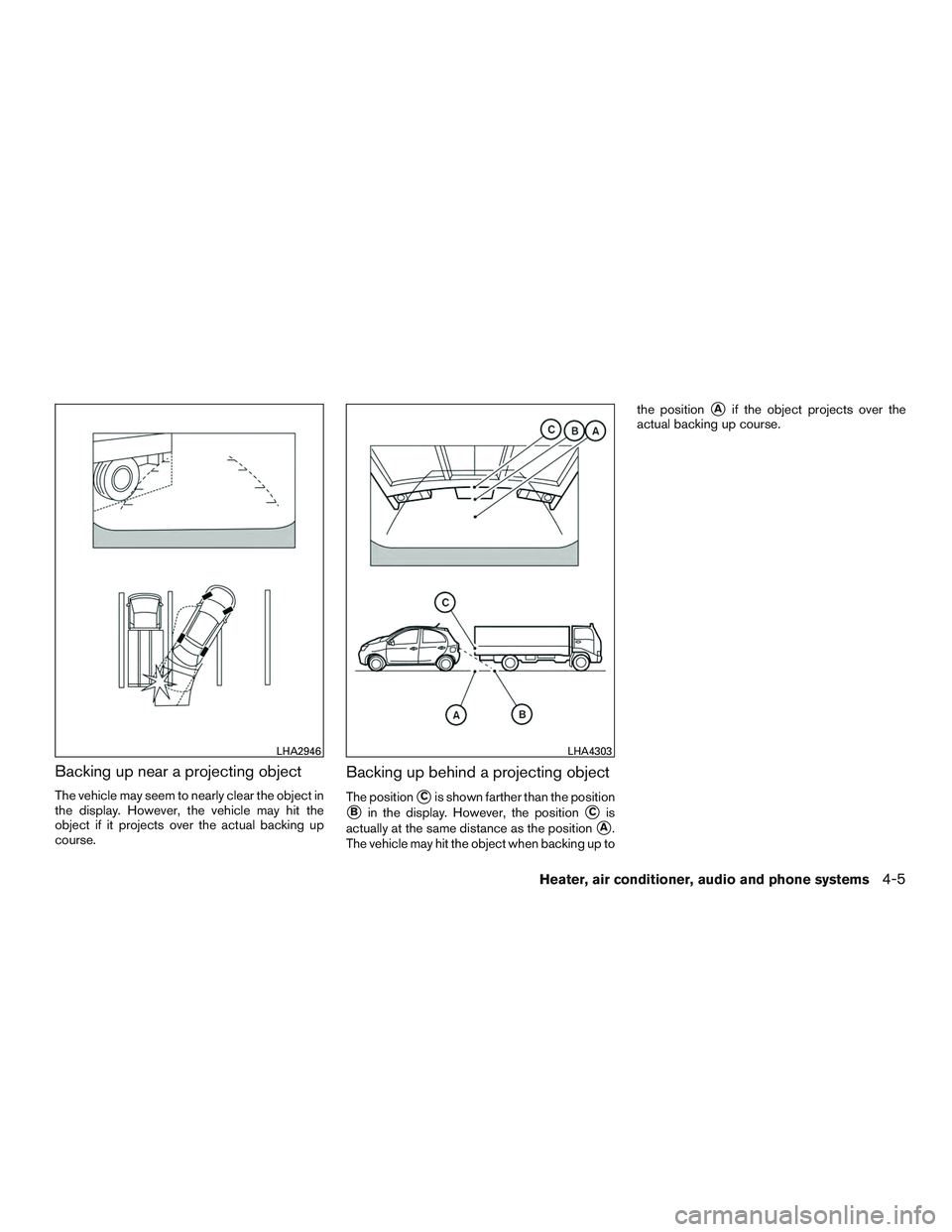

Backing up near a projecting object
The vehicle may seem to nearly clear the object in
the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to the position
Aif the object projects over the
actual backing up course.
LHA2946LHA4303
Heater, air conditioner, audio and phone systems4-5
