NISSAN MICRA 2019 Owner´s Manual

CAUTION
Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the
light will turn off.
The light also illuminates with other interior
lights when the interior light switch is in the
DOOR position. For additional information,
refer to “Interior light” in this section.
LUGGAGE COMPARTMENT LIGHT
2-30Instruments and controls

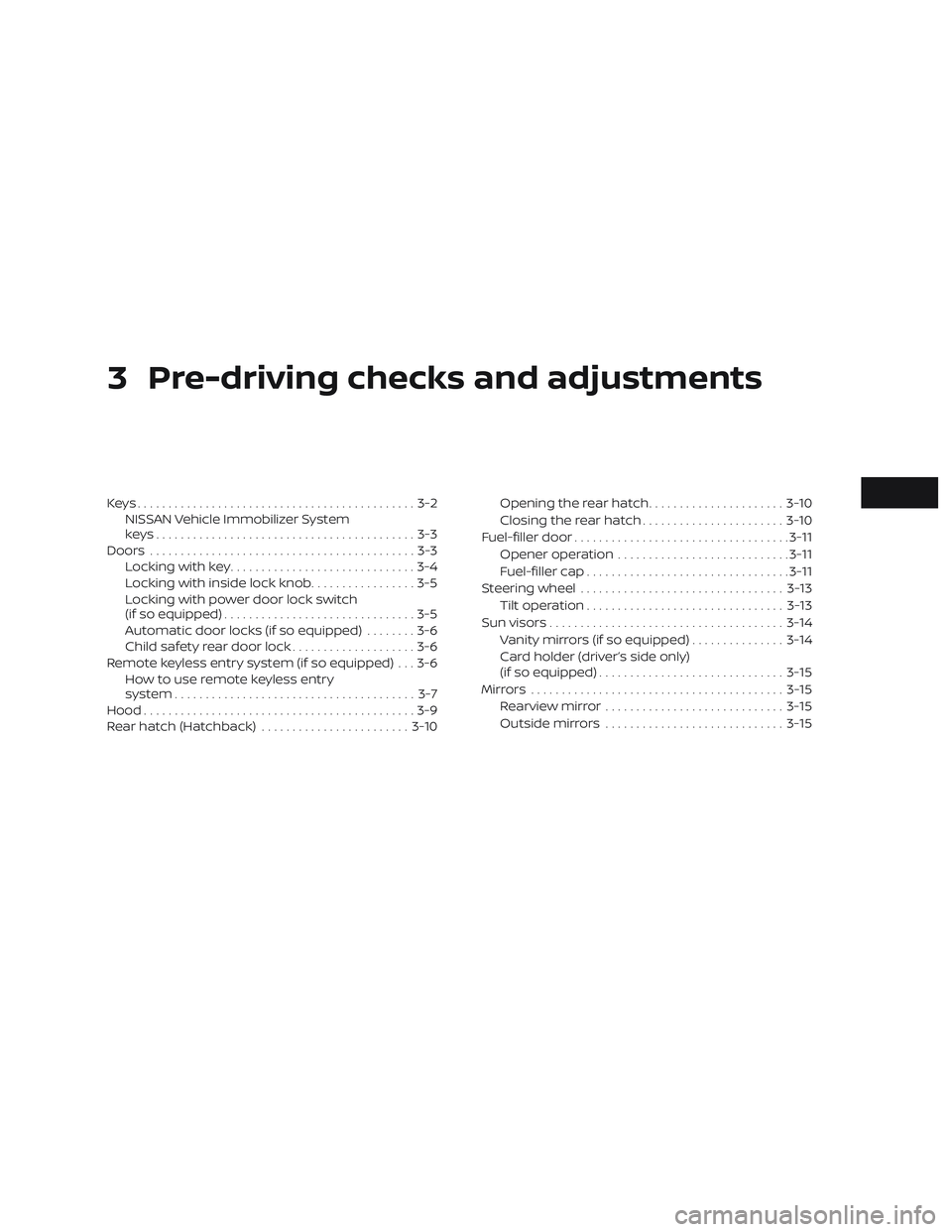

3 Pre-driving checks and adjustments
Keys.............................................3-2NISSAN Vehicle Immobilizer System
keys..........................................3-3
Doors ...........................................3-3
Locking with key ..............................3-4
Locking with inside lock knob .................3-5
Locking with power door lock switch
(if so equipped) ...............................3-5
Automatic door locks (if so equipped) ........3-6
Child safety rear door lock ....................3-6
Remote keyless entry system (if so equipped) . . . 3-6 How to use remote keyless entry
system ....................................... 3-7
Hood ............................................3-9
Rear hatch (Hatchback) ........................3-10Opening the rear hatch
......................3-10
Closing the rear hatch ....................... 3-10
Fuel-filler door ................................... 3-11
Opener operation ............................ 3-11
Fuel-filler cap ................................. 3-11
Steering wheel ................................. 3-13
Tilt operation ................................ 3-13
Sun visors ...................................... 3-14
Vanity mirrors (if so equipped) ...............3-14
Card holder (driver’s side only)
(if so equipped) .............................. 3-15
Mirrors ......................................... 3-15
Rearview mirror ............................. 3-15
Outside mirrors ............................. 3-15

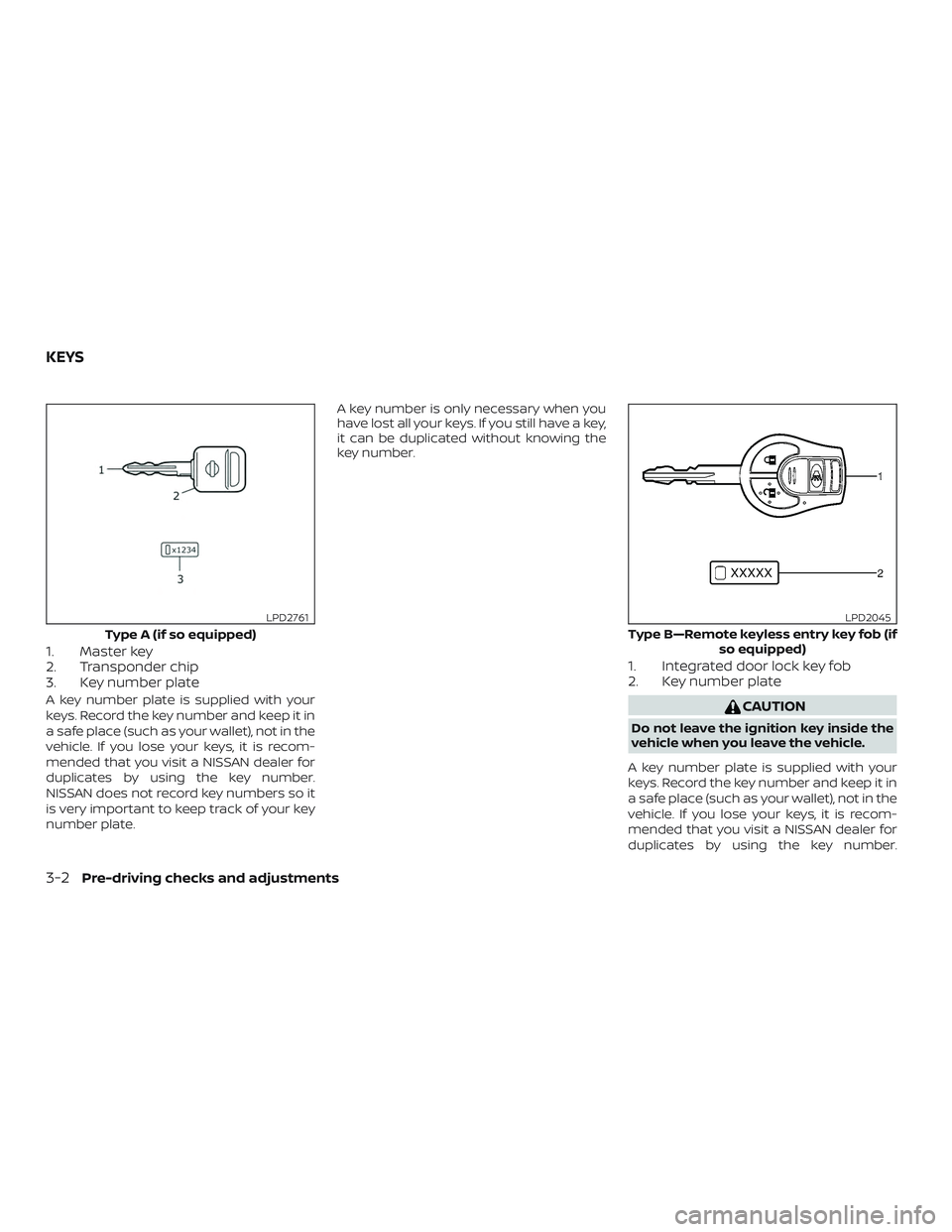

1. Master key
2. Transponder chip
3. Key number plate
A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.A key number is only necessary when you
have lost all your keys. If you still have a key,
it can be duplicated without knowing the
key number.
1. Integrated door lock key fob
2. Key number plate
CAUTION
Do not leave the ignition key inside the
vehicle when you leave the vehicle.
A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
Type A (if so equipped)
LPD2761
Type B—Remote keyless entry key fob (if so equipped)
LPD2045
KEYS
3-2Pre-driving checks and adjustments

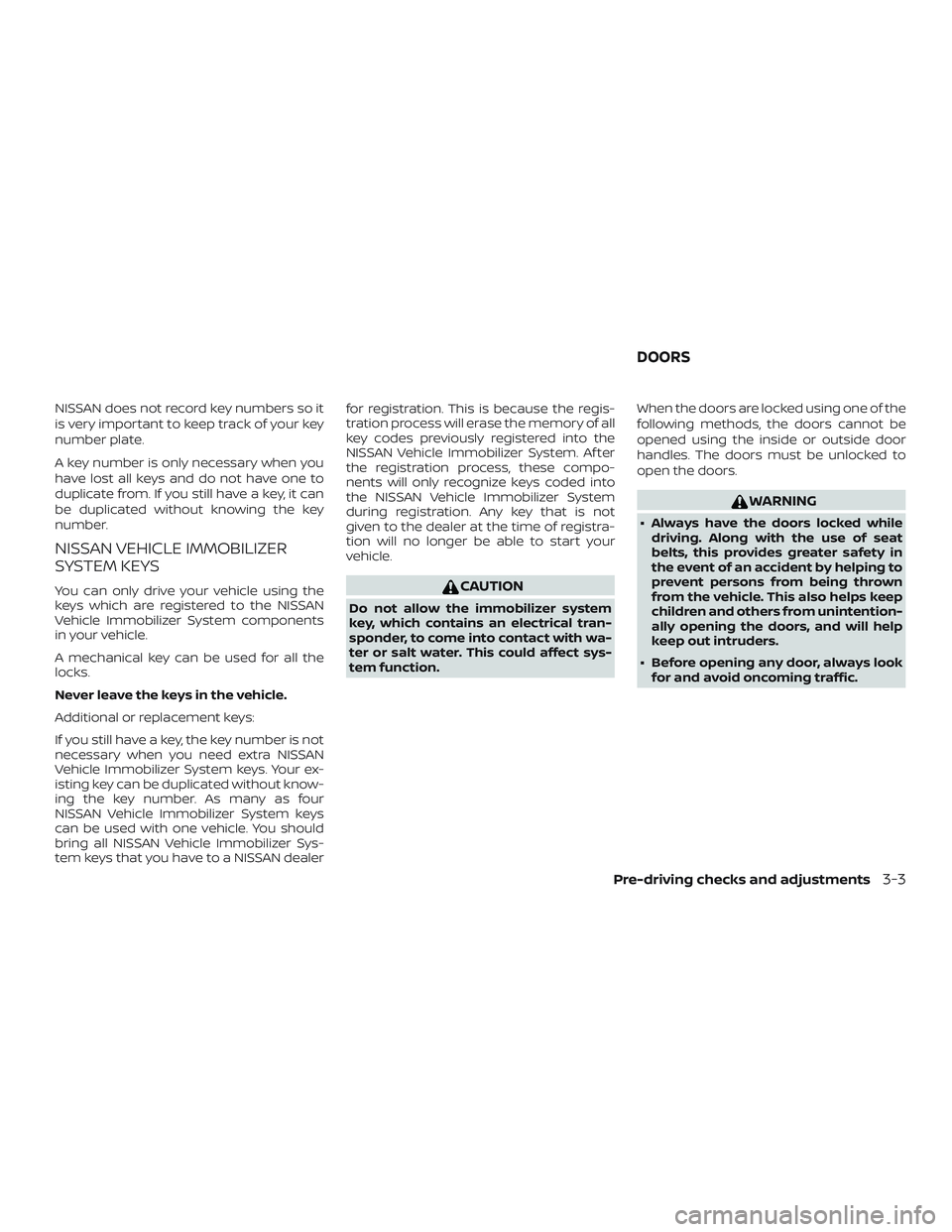

NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
keys which are registered to the NISSAN
Vehicle Immobilizer System components
in your vehicle.
A mechanical key can be used for all the
locks.
Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. Your ex-
isting key can be duplicated without know-
ing the key number. As many as four
NISSAN Vehicle Immobilizer System keys
can be used with one vehicle. You should
bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to a NISSAN dealerfor registration. This is because the regis-
tration process will erase the memory of all
key codes previously registered into the
NISSAN Vehicle Immobilizer System. Af ter
the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any key that is not
given to the dealer at the time of registra-
tion will no longer be able to start your
vehicle.CAUTION
Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.
When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to
open the doors.
WARNING
∙ Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic.
DOORS
Pre-driving checks and adjustments3-3

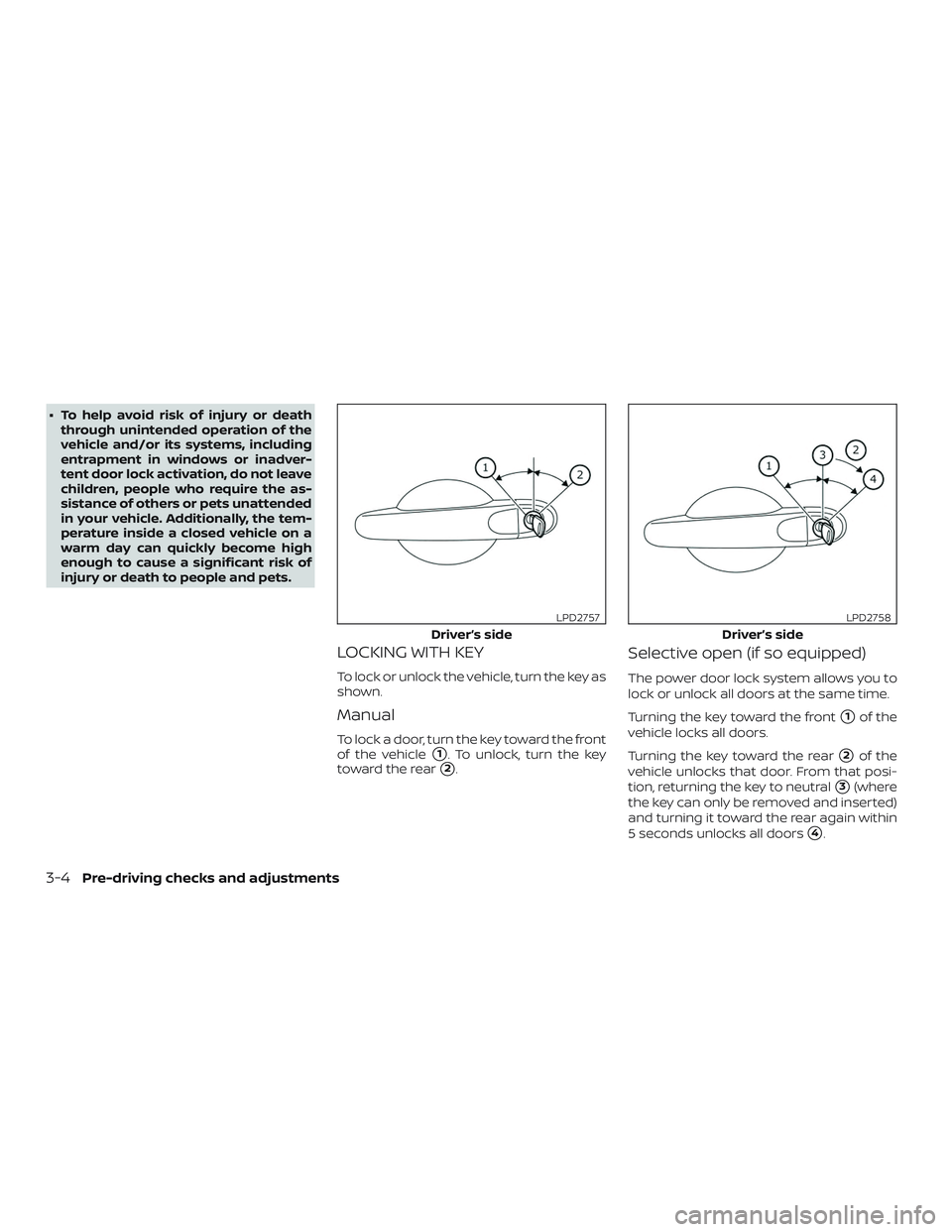

∙ To help avoid risk of injury or deaththrough unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front
of the vehicle
1. To unlock, turn the key
toward the rear
2.
Selective open (if so equipped)
The power door lock system allows you to
lock or unlock all doors at the same time.
Turning the key toward the front
1of the
vehicle locks all doors.
Turning the key toward the rear
2of the
vehicle unlocks that door. From that posi-
tion, returning the key to neutral
3(where
the key can only be removed and inserted)
and turning it toward the rear again within
5 seconds unlocks all doors
4.
Driver’s side
LPD2757
Driver’s side
LPD2758
3-4Pre-driving checks and adjustments

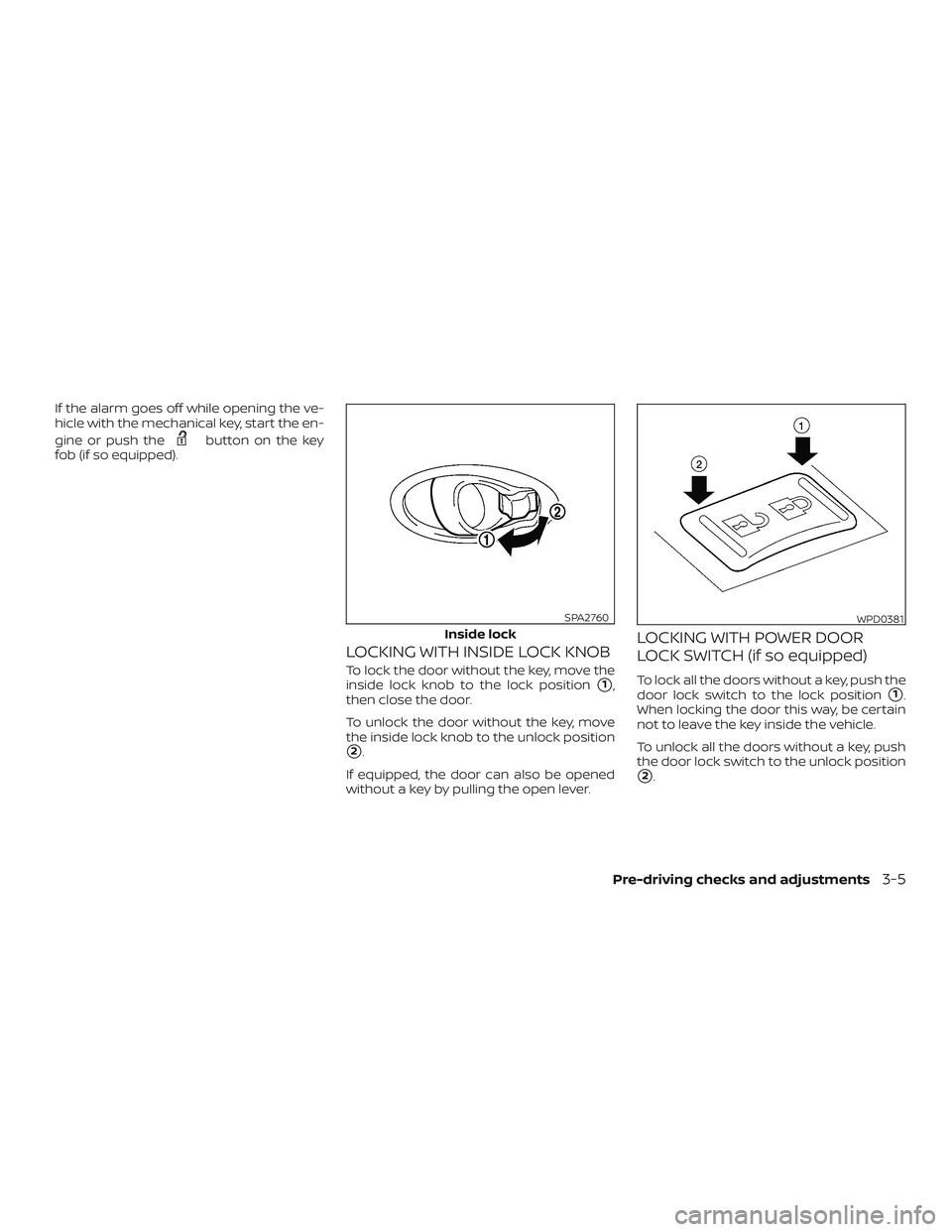

If the alarm goes off while opening the ve-
hicle with the mechanical key, start the en-
gine or push the
button on the key
fob (if so equipped).
LOCKING WITH INSIDE LOCK KNOB
To lock the door without the key, move the
inside lock knob to the lock position
1,
then close the door.
To unlock the door without the key, move
the inside lock knob to the unlock position
2.
If equipped, the door can also be opened
without a key by pulling the open lever.
LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)
To lock all the doors without a key, push the
door lock switch to the lock position
1.
When locking the door this way, be certain
not to leave the key inside the vehicle.
To unlock all the doors without a key, push
the door lock switch to the unlock position
2.
Inside lock
SPA2760WPD0381
Pre-driving checks and adjustments3-5

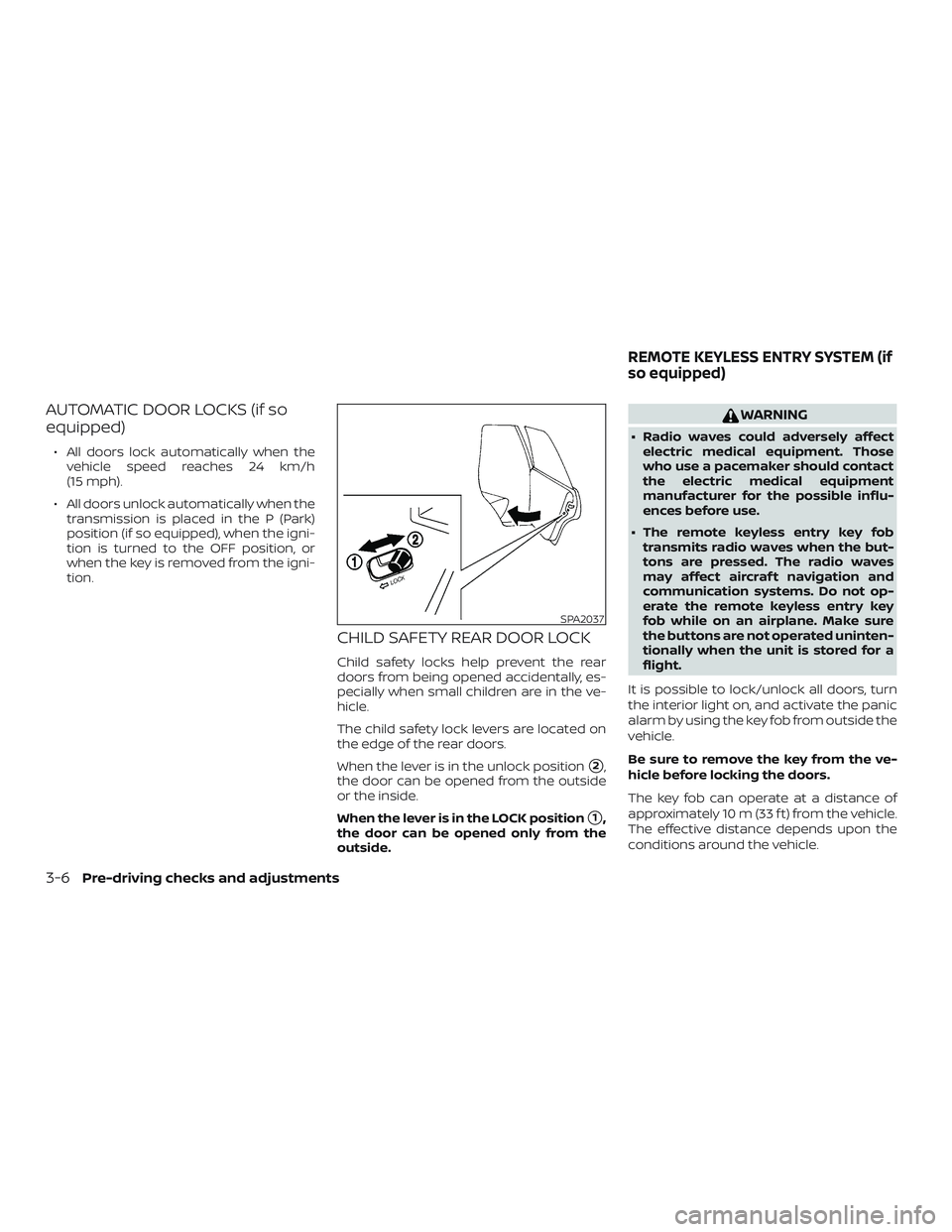

AUTOMATIC DOOR LOCKS (if so
equipped)
∙ All doors lock automatically when thevehicle speed reaches 24 km/h
(15 mph).
∙ All doors unlock automatically when the transmission is placed in the P (Park)
position (if so equipped), when the igni-
tion is turned to the OFF position, or
when the key is removed from the igni-
tion.
CHILD SAFETY REAR DOOR LOCK
Child safety locks help prevent the rear
doors from being opened accidentally, es-
pecially when small children are in the ve-
hicle.
The child safety lock levers are located on
the edge of the rear doors.
When the lever is in the unlock position
2,
the door can be opened from the outside
or the inside.
When the lever is in the LOCK position
1,
the door can be opened only from the
outside.
WARNING
∙ Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
∙ The remote keyless entry key fob transmits radio waves when the but-
tons are pressed. The radio waves
may affect aircraf t navigation and
communication systems. Do not op-
erate the remote keyless entry key
fob while on an airplane. Make sure
the buttons are not operated uninten-
tionally when the unit is stored for a
flight.
It is possible to lock/unlock all doors, turn
the interior light on, and activate the panic
alarm by using the key fob from outside the
vehicle.
Be sure to remove the key from the ve-
hicle before locking the doors.
The key fob can operate at a distance of
approximately 10 m (33 f t) from the vehicle.
The effective distance depends upon the
conditions around the vehicle.
SPA2037
REMOTE KEYLESS ENTRY SYSTEM (if
so equipped)
3-6Pre-driving checks and adjustments

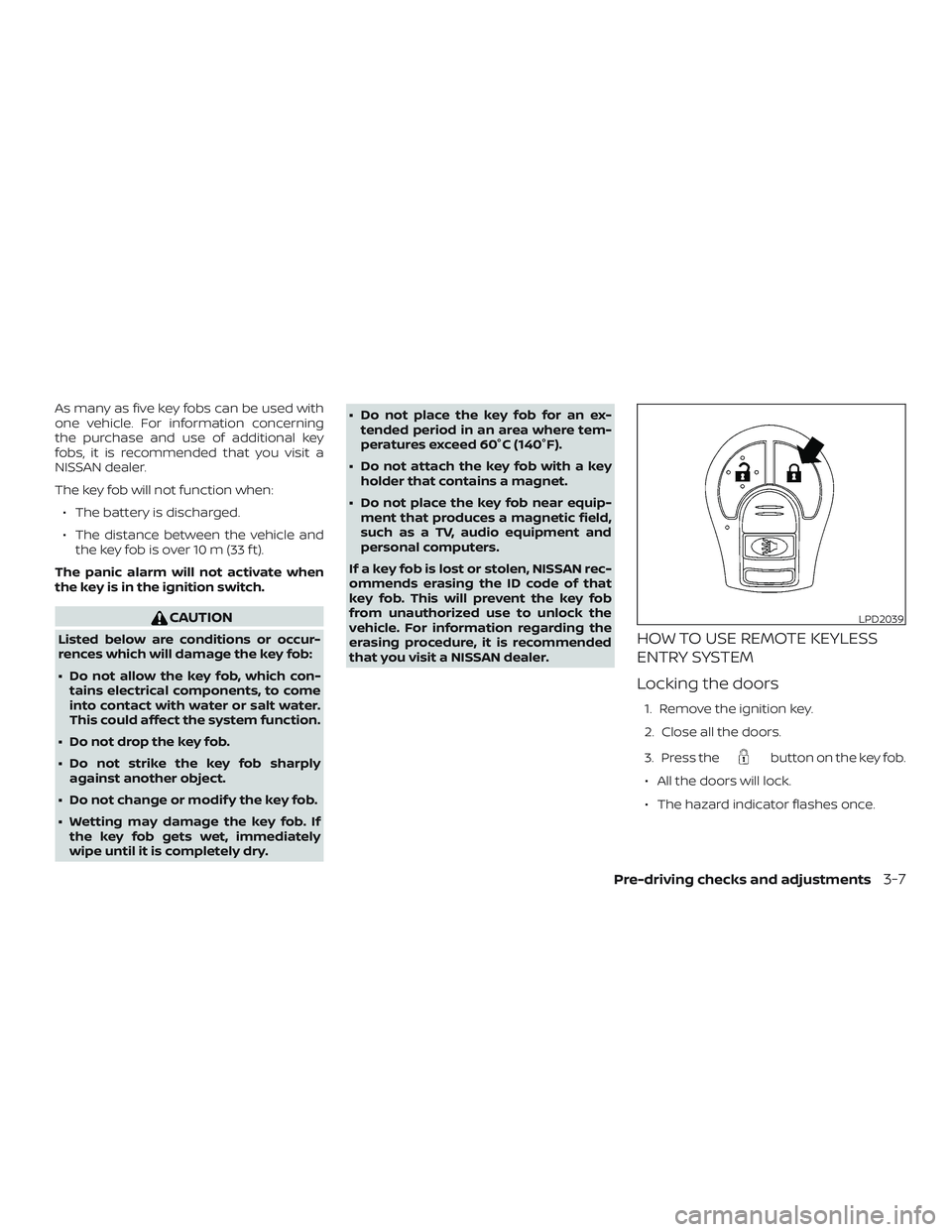

As many as five key fobs can be used with
one vehicle. For information concerning
the purchase and use of additional key
fobs, it is recommended that you visit a
NISSAN dealer.
The key fob will not function when:∙ The battery is discharged.
∙ The distance between the vehicle and the key fob is over 10 m (33 f t).
The panic alarm will not activate when
the key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the key fob:
∙ Do not allow the key fob, which con- tains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the key fob.
∙ Do not strike the key fob sharply against another object.
∙ Do not change or modif y the key fob.
∙ Wetting may damage the key fob. If the key fob gets wet, immediately
wipe until it is completely dry. ∙ Do not place the key fob for an ex-
tended period in an area where tem-
peratures exceed 60°C (140°F).
∙ Do not attach the key fob with a key holder that contains a magnet.
∙ Do not place the key fob near equip- ment that produces a magnetic field,
such as a TV, audio equipment and
personal computers.
If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that
key fob. This will prevent the key fob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, it is recommended
that you visit a NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking the doors
1. Remove the ignition key.
2. Close all the doors.
3. Press the
button on the key fob.
∙ All the doors will lock.
∙ The hazard indicator flashes once.
LPD2039
Pre-driving checks and adjustments3-7

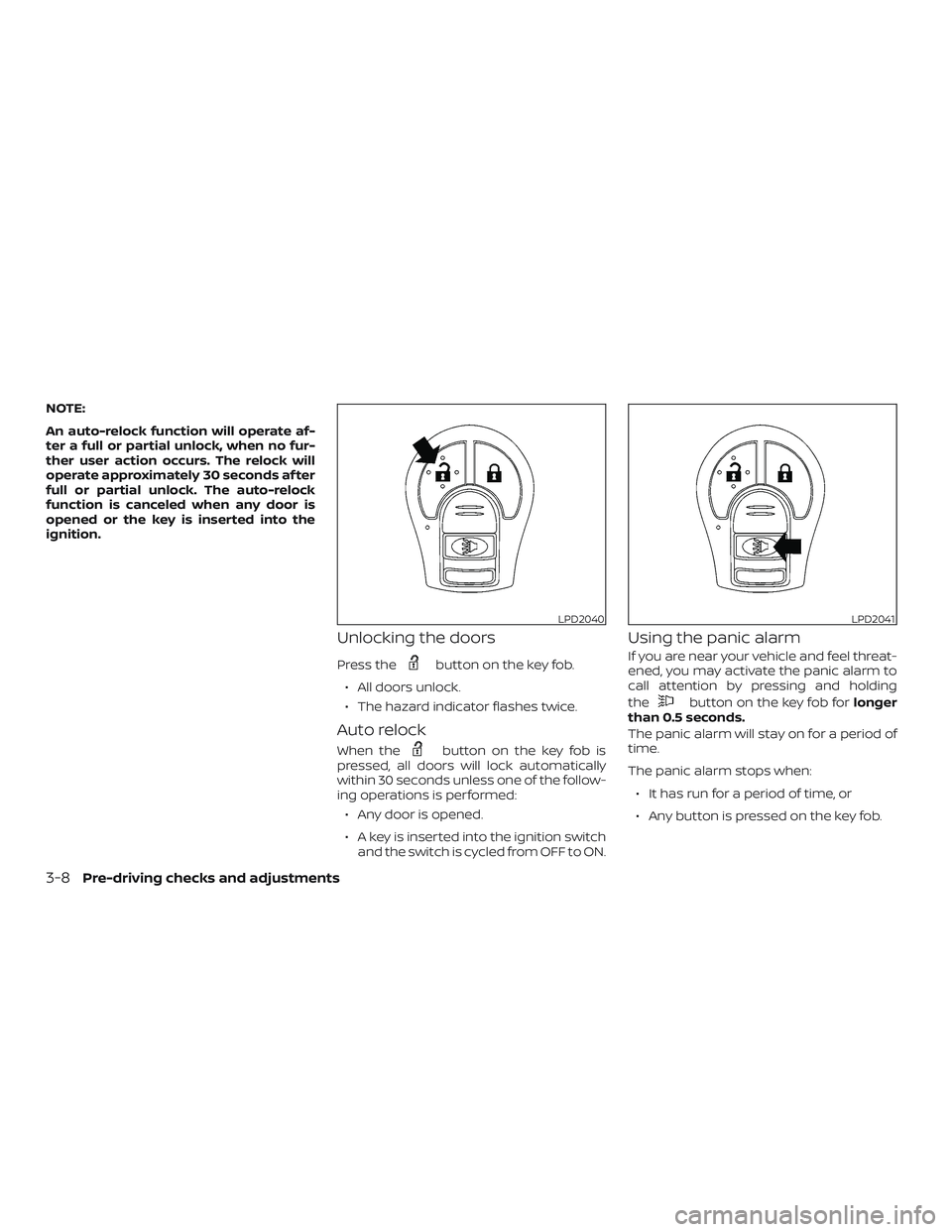

NOTE:
An auto-relock function will operate af-
ter a full or partial unlock, when no fur-
ther user action occurs. The relock will
operate approximately 30 seconds af ter
full or partial unlock. The auto-relock
function is canceled when any door is
opened or the key is inserted into the
ignition.
Unlocking the doors
Press thebutton on the key fob.
∙ All doors unlock.
∙ The hazard indicator flashes twice.
Auto relock
When thebutton on the key fob is
pressed, all doors will lock automatically
within 30 seconds unless one of the follow-
ing operations is performed:
∙ Any door is opened.
∙ A key is inserted into the ignition switch and the switch is cycled from OFF to ON.
Using the panic alarm
If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to
call attention by pressing and holding
the
button on the key fob for longer
than 0.5 seconds.
The panic alarm will stay on for a period of
time.
The panic alarm stops when:
∙ It has run for a period of time, or
∙ Any button is pressed on the key fob.
LPD2040LPD2041
3-8Pre-driving checks and adjustments

Using the interior light
Press thebutton on the key fob once
to turn on the interior lights.
For additional information, refer to “Interior
light” in the “Instruments and controls” sec-
tion of this manual.
1. Pull the hood lock release handle
1
located below the instrument panel
until the hood springs up slightly.
2. Locate the lever
2in between the
hood and grille and push the lever side-
ways with your fingertips.
3. Raise the hood
3.
4. Remove the support rod
4and insert
it into the slot
5.
Hold the coated parts
Awhen removing
or resetting the support rod. Avoid direct
contact with the metal parts, as they
may be hot immediately af ter the engine
has been stopped. When closing the hood, return the support
rod to its original position, lower the hood
to approximately 30 cm (12 in) above the
latch and release it. This allows proper en-
gagement of the hood latch.
WARNING
∙ Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to
avoid injury do not open the hood.
LPD2795
HOOD
Pre-driving checks and adjustments3-9
