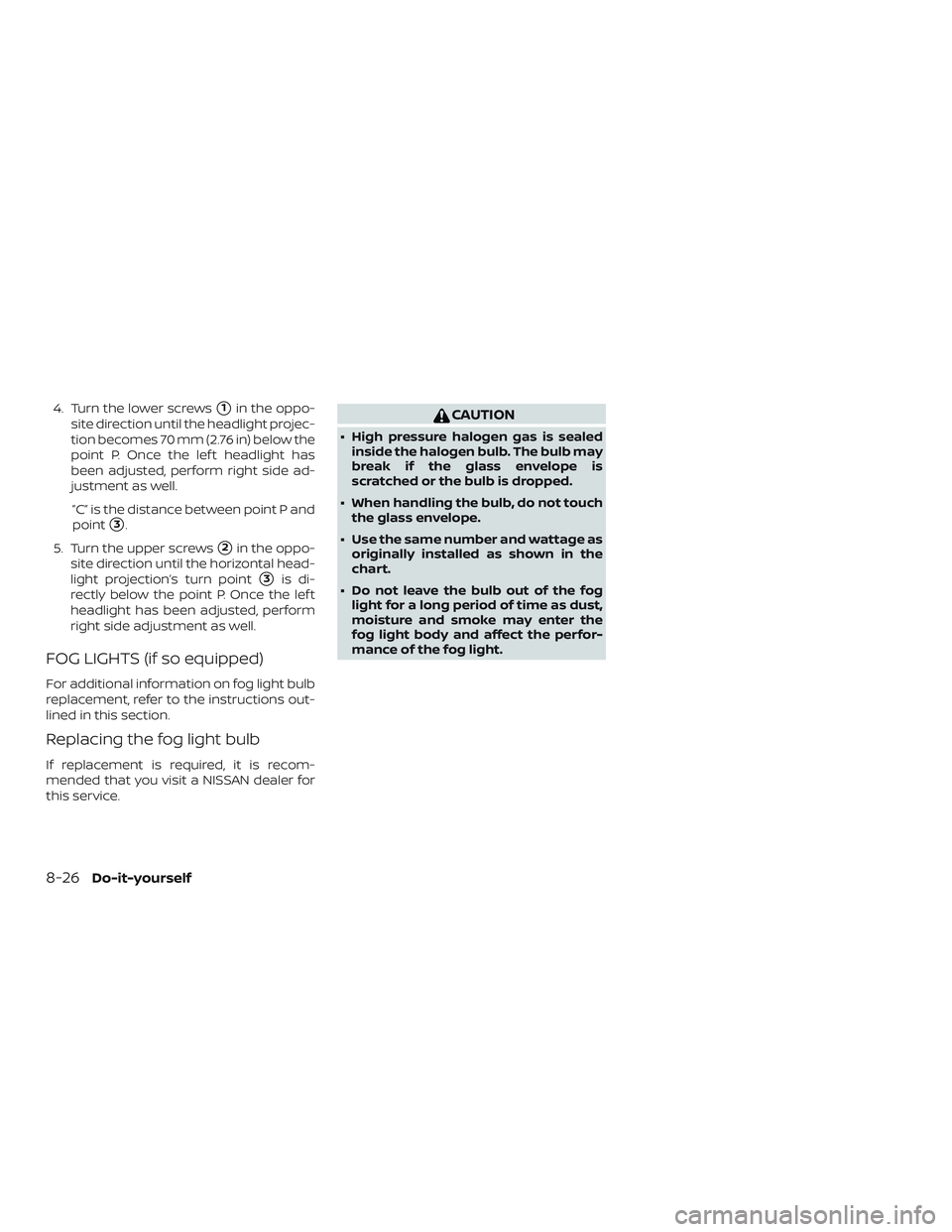

4. Turn the lower screws1in the oppo-
site direction until the headlight projec-
tion becomes 70 mm (2.76 in) below the
point P. Once the lef t headlight has
been adjusted, perform right side ad-
justment as well.
”C” is the distance between point P and
point
3.
5. Turn the upper screws
2in the oppo-
site direction until the horizontal head-
light projection’s turn point
3is di-
rectly below the point P. Once the lef t
headlight has been adjusted, perform
right side adjustment as well.
FOG LIGHTS (if so equipped)
For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.
Replacing the fog light bulb
If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.
CAUTION
∙ High pressure halogen gas is sealed inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ When handling the bulb, do not touch the glass envelope.
∙ Use the same number and wattage as originally installed as shown in the
chart.
∙ Do not leave the bulb out of the fog light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.
8-26Do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

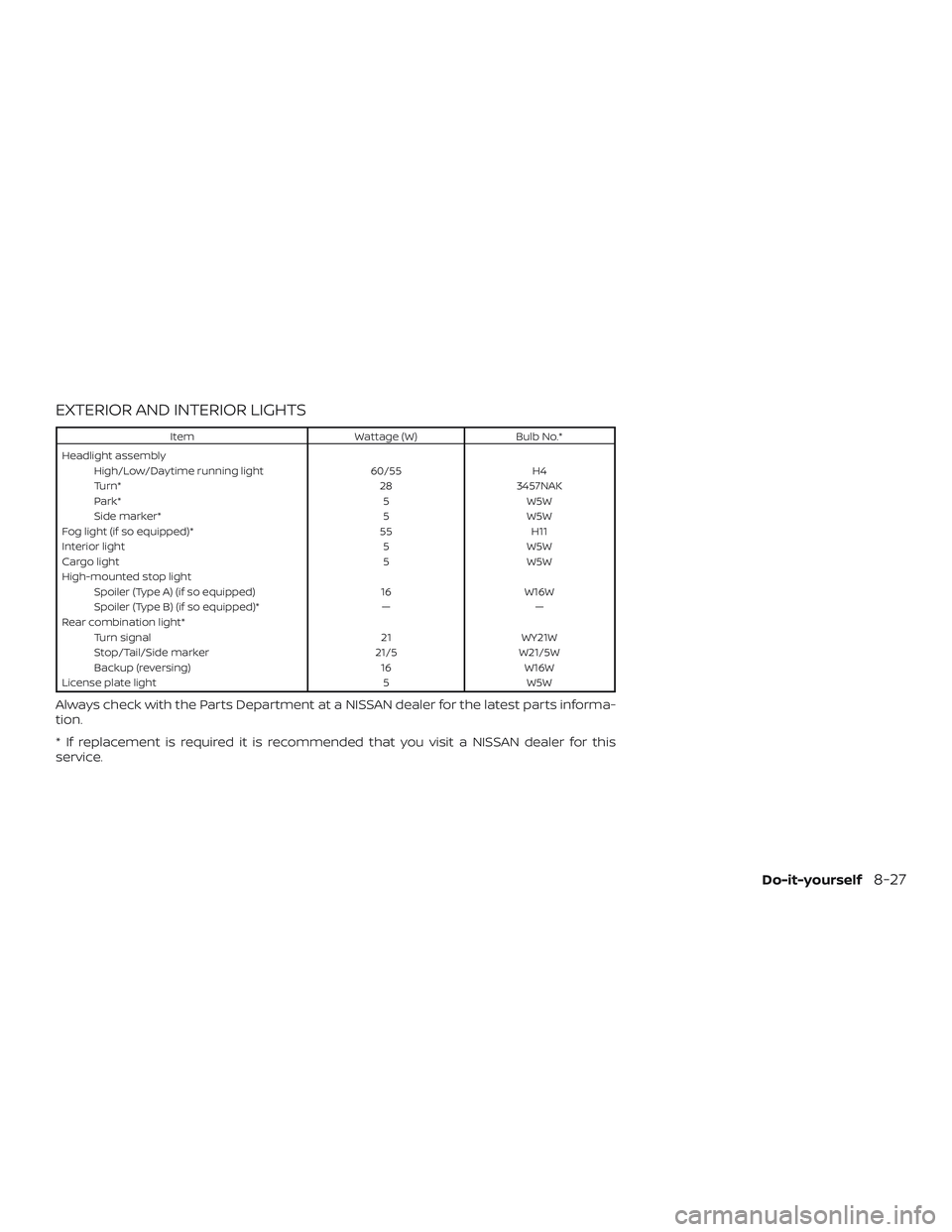

ItemWattage (W)Bulb No.*
Headlight assembly High/Low/Daytime running light 60/55H4
Turn* 283457NAK
Park* 5W5W
Side marker* 5W5W
Fog light (if so equipped)* 55H11
Interior light 5W5W
Cargo light 5W5W
High-mounted stop light Spoiler (Type A) (if so equipped) 16W16W
Spoiler (Type B) (if so equipped)* ——
Rear combination light* Turn signal 21WY21W
Stop/Tail/Side marker 21/5W21/5W
Backup (reversing) 16W16W
License plate light 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.
* If replacement is required it is recommended that you visit a NISSAN dealer for this
service.
Do-it-yourself8-27

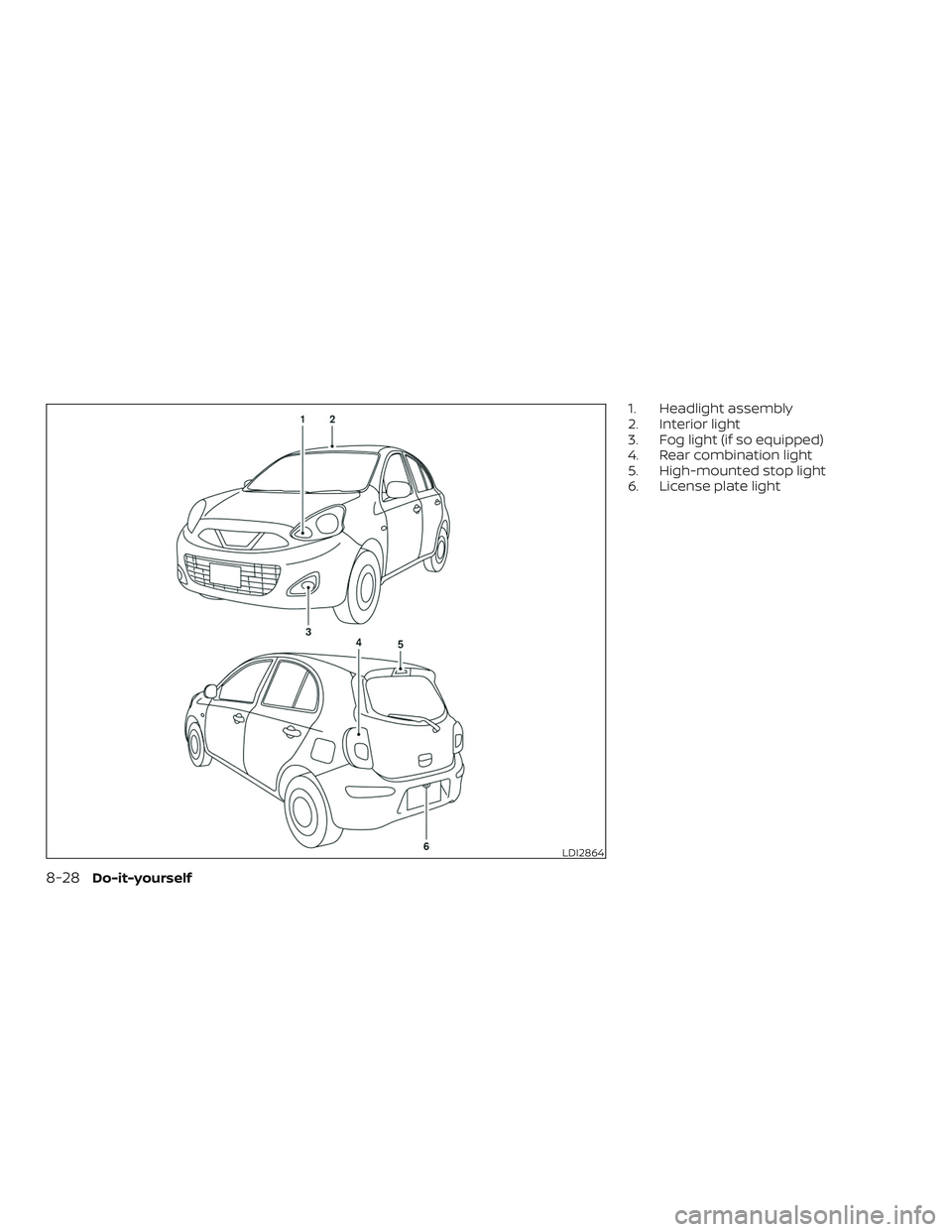

1. Headlight assembly
2. Interior light
3. Fog light (if so equipped)
4. Rear combination light
5. High-mounted stop light
6. License plate light
LDI2864
8-28Do-it-yourself

Replacement procedures

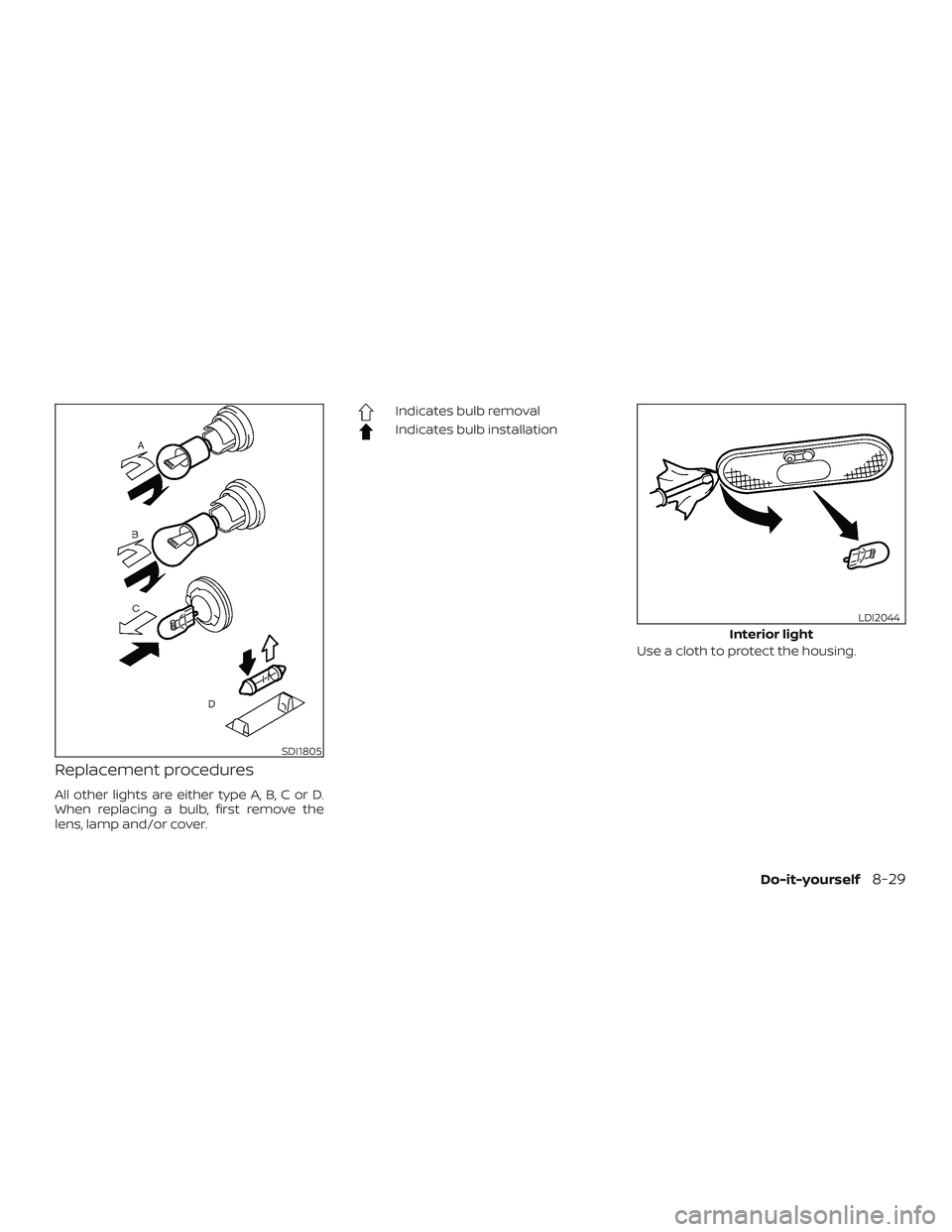

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
SDI1805
Interior light
LDI2044
Do-it-yourself8-29

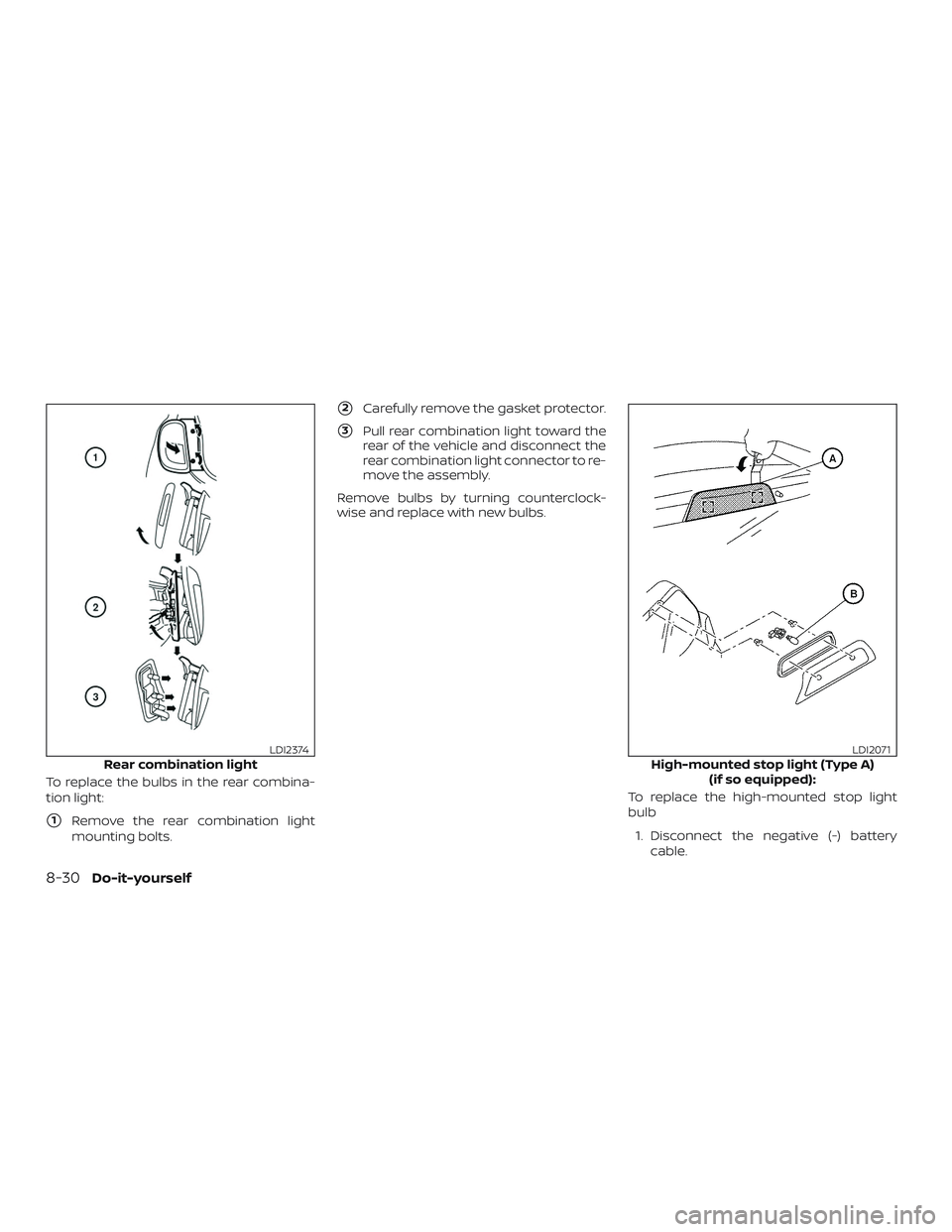

To replace the bulbs in the rear combina-
tion light:
1Remove the rear combination light
mounting bolts.
2Carefully remove the gasket protector.
3Pull rear combination light toward the
rear of the vehicle and disconnect the
rear combination light connector to re-
move the assembly.
Remove bulbs by turning counterclock-
wise and replace with new bulbs.
To replace the high-mounted stop light
bulb1. Disconnect the negative (-) battery cable.
Rear combination lightLDI2374High-mounted stop light (Type A) (if so equipped):LDI2071
8-30Do-it-yourself

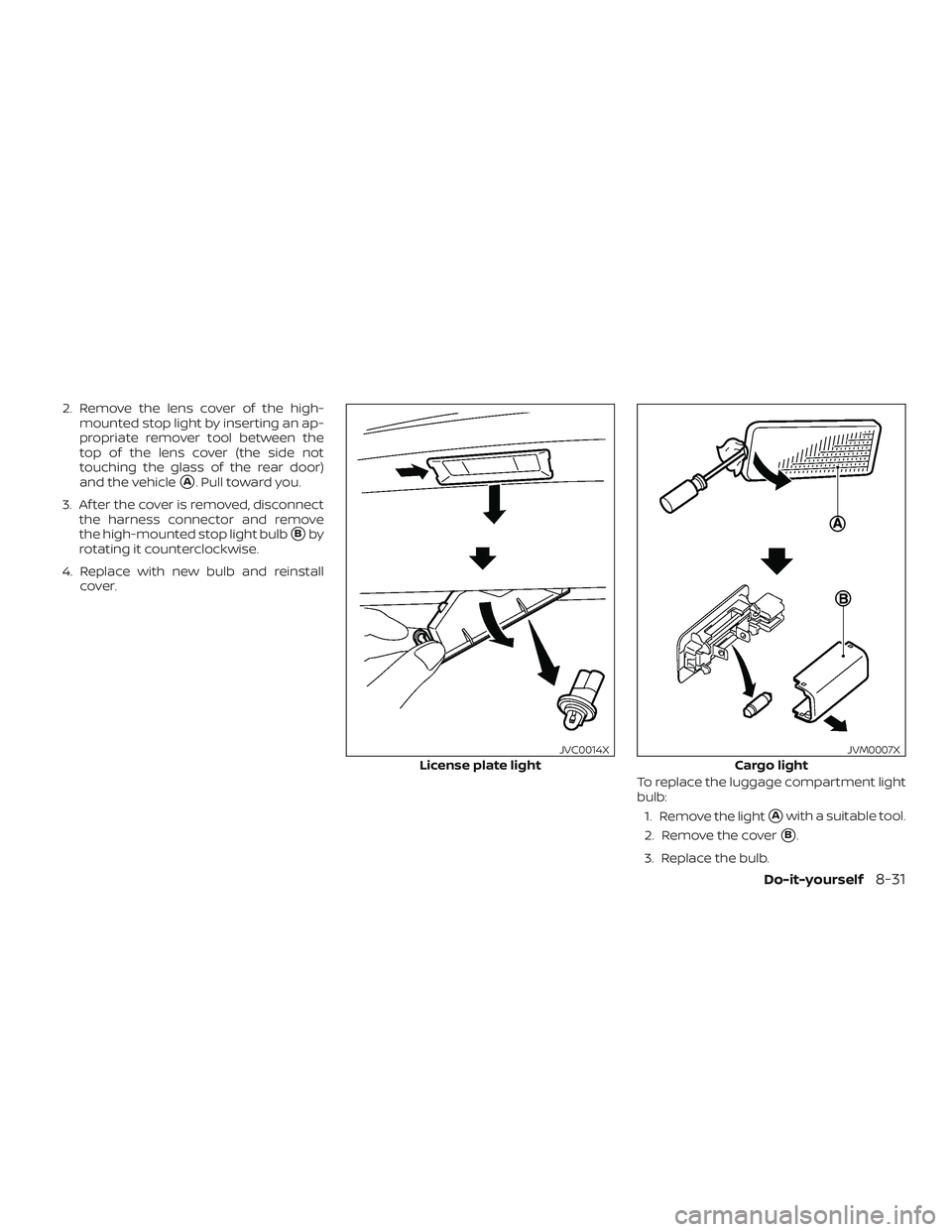

2. Remove the lens cover of the high-mounted stop light by inserting an ap-
propriate remover tool between the
top of the lens cover (the side not
touching the glass of the rear door)
and the vehicle
A. Pull toward you.
3. Af ter the cover is removed, disconnect the harness connector and remove
the high-mounted stop light bulb
Bby
rotating it counterclockwise.
4. Replace with new bulb and reinstall cover.
To replace the luggage compartment light
bulb:1. Remove the light
Awith a suitable tool.
2. Remove the cover
B.
3. Replace the bulb.
License plate light
JVC0014X
Cargo light
JVM0007X
Do-it-yourself8-31

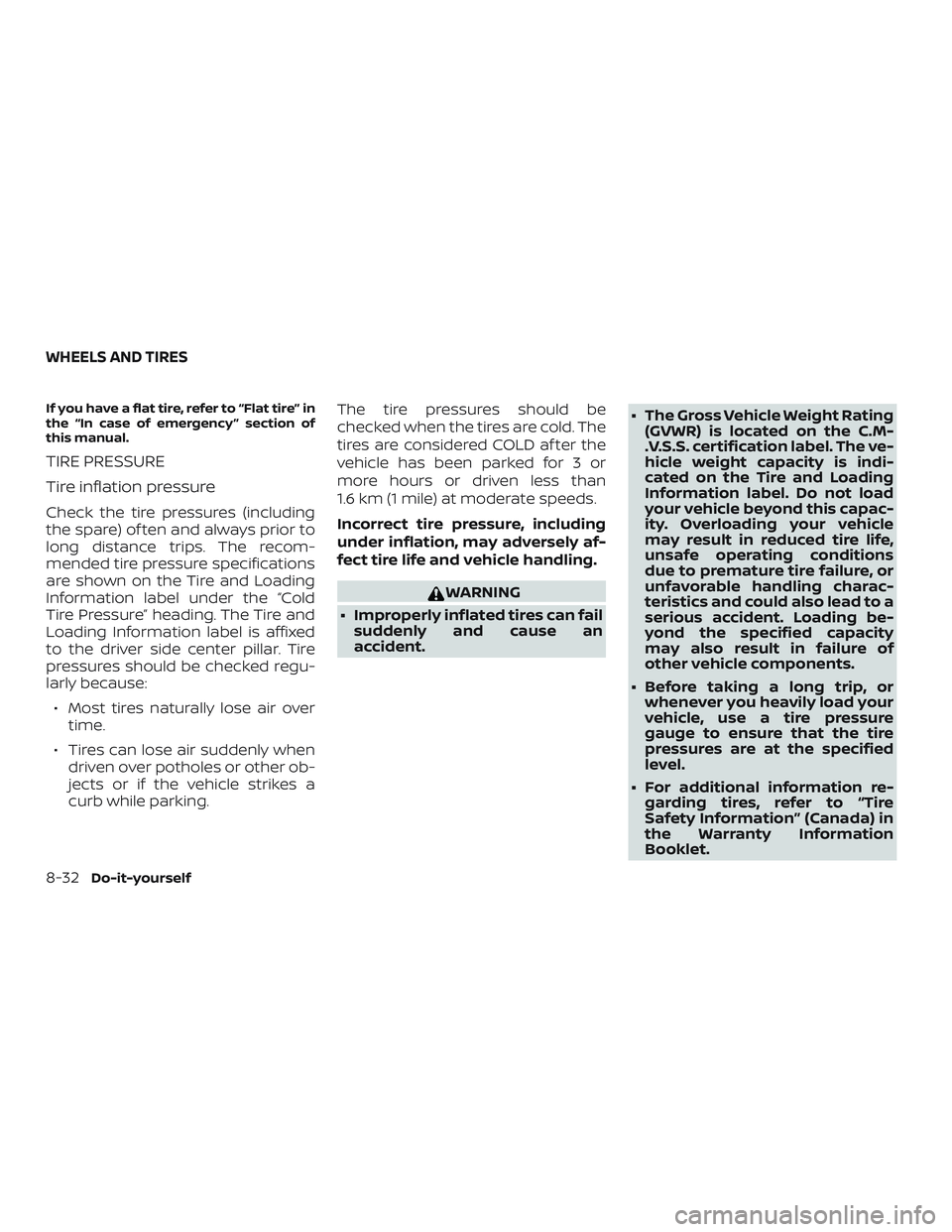

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency ” section of
this manual.
TIRE PRESSURE
Tire inflation pressure
Check the tire pressures (including
the spare) of ten and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the Tire and Loading
Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed
to the driver side center pillar. Tire
pressures should be checked regu-
larly because:∙ Most tires naturally lose air over time.
∙ Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking. The tire pressures should be
checked when the tires are cold. The
tires are considered COLD af ter the
vehicle has been parked for 3 or
more hours or driven less than
1.6 km (1 mile) at moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.
WARNING
∙ Improperly inflated tires can fail suddenly and cause an
accident. ∙ The Gross Vehicle Weight Rating
(GVWR) is located on the C.M-
.V.S.S. certification label. The ve-
hicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capac-
ity. Overloading your vehicle
may result in reduced tire life,
unsafe operating conditions
due to premature tire failure, or
unfavorable handling charac-
teristics and could also lead to a
serious accident. Loading be-
yond the specified capacity
may also result in failure of
other vehicle components.
∙ Before taking a long trip, or whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
∙ For additional information re- garding tires, refer to “Tire
Safety Information” (Canada) in
the Warranty Information
Booklet.
WHEELS AND TIRES
8-32Do-it-yourself

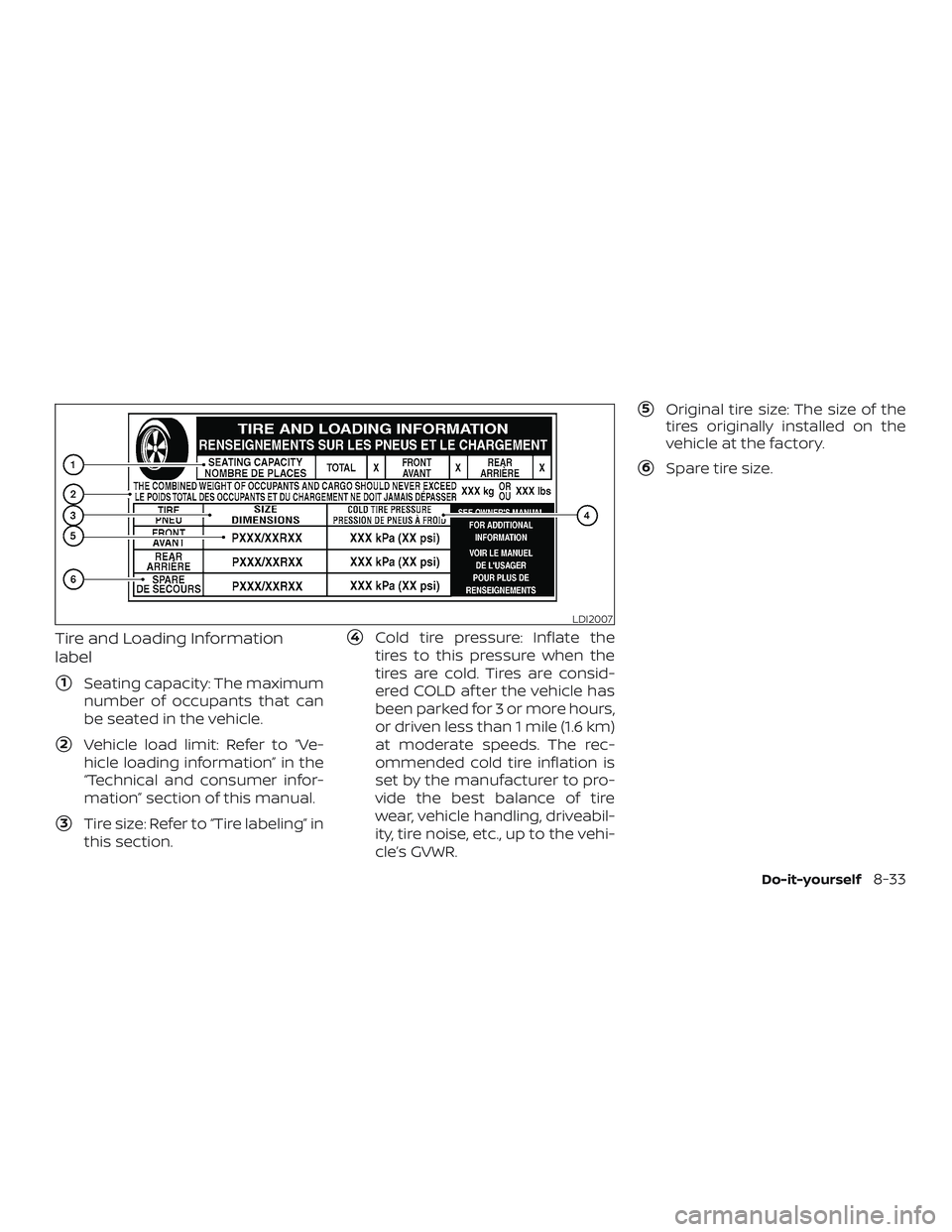

Tire and Loading Information
label
1Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.
2Vehicle load limit: Refer to “Ve-
hicle loading information” in the
“Technical and consumer infor-
mation” section of this manual.
3Tire size: Refer to “Tire labeling” in
this section.
4Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD af ter the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.
5Original tire size: The size of the
tires originally installed on the
vehicle at the factory.
6Spare tire size.
LDI2007
Do-it-yourself8-33

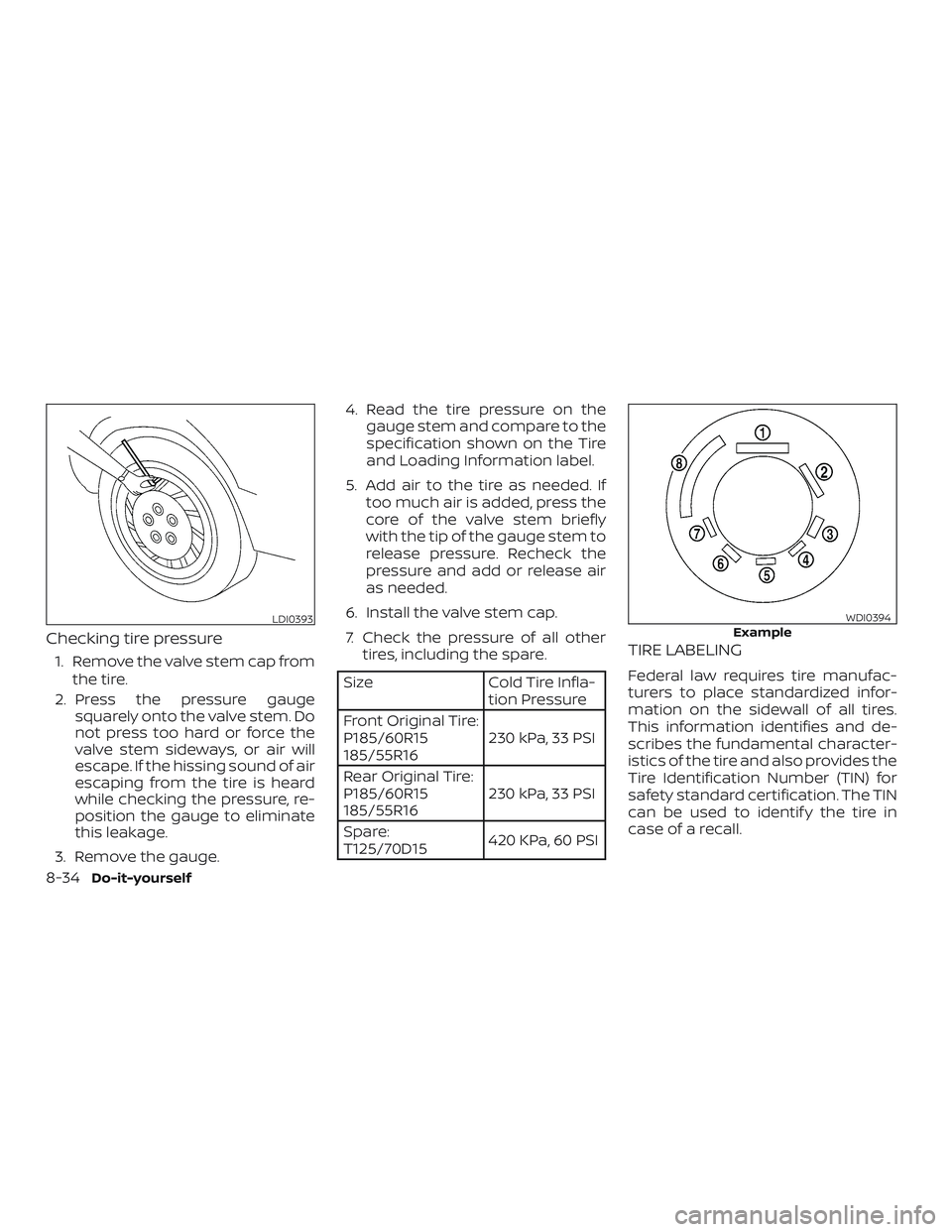

Checking tire pressure
1. Remove the valve stem cap fromthe tire.
2. Press the pressure gauge squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.
3. Remove the gauge. 4. Read the tire pressure on the
gauge stem and compare to the
specification shown on the Tire
and Loading Information label.
5. Add air to the tire as needed. If too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.
6. Install the valve stem cap.
7. Check the pressure of all other tires, including the spare.
Size Cold Tire Infla-
tion Pressure
Front Original Tire:
P185/60R15
185/55R16 230 kPa, 33 PSI
Rear Original Tire:
P185/60R15
185/55R16 230 kPa, 33 PSI
Spare:
T125/70D15 420 KPa, 60 PSI
TIRE LABELING
Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identif y the tire in
case of a recall.
LDI0393ExampleWDI0394
8-34Do-it-yourself

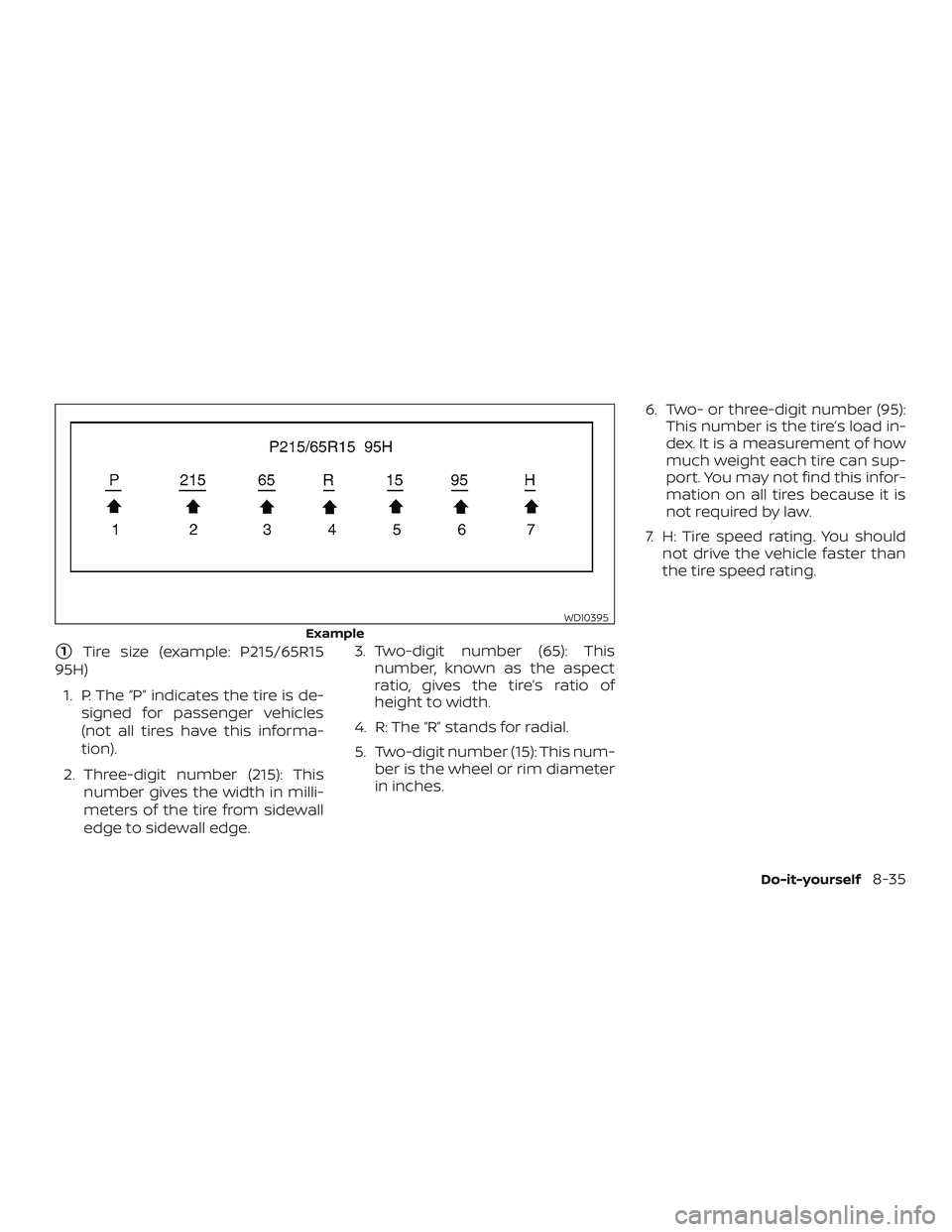

1Tire size (example: P215/65R15
95H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles
(not all tires have this informa-
tion).
2. Three-digit number (215): This number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge. 3. Two-digit number (65): This
number, known as the aspect
ratio, gives the tire’s ratio of
height to width.
4. R: The “R” stands for radial.
5. Two-digit number (15): This num- ber is the wheel or rim diameter
in inches. 6. Two- or three-digit number (95):
This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.
7. H: Tire speed rating. You should not drive the vehicle faster than
the tire speed rating.
Example
WDI0395
