lock NISSAN MURANO 2003 1.G Owner's Manual

Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
key to OFF and check the fuel filler cap. If the
fuel filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security systems equipped on the
vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition key to ON. The light will turn off
after about 2 seconds if the system is opera-
tional. If the light does not come on or go off,
have the traction control system checked by your
NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
After turning the ignition key to the ON position,
the light will illuminate. The light will turn off in
about 2 seconds if the vehicle dynamic control
(VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
2-14
Instruments and controls


03.1.28/Z50-D/V5.0


How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors and hood.
Lock all doors by pressing the LOCK button
on the keyfobor using the key. When using
the keyfob, the hazard indicators flash twice
to indicate all doors are locked.
4. Confirm that the SECURITY indicator light inthe meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key or the keyfob, or the
ignition key is turned to ACC or ON, the
system will not activate.

Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate with all doors and hood locked and
ignition key off. Turn the ignition key to
ACC to turn the system off.
Vehicle security system operationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:

Opening the door without using the key or
keyfob.

Opening the back door without using the
keyfob.
Opening the hood.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key, it may be
due to interference caused by another Nissan
Vehicle Immobilizer System key, an automated
toll road device or automated payment device on
the key ring. Restart the engine using the follow-
ing procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
SIC2045
2-16
Instruments and controls


03.1.28/Z50-D/V5.0


3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
Nissan Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered Nissan
Vehicle Immobilizer System key is removed or
turned to OFF, ACC or LOCK position. This
function indicates the security systems
equipped on the vehicle are operational.
If Nissan Vehicle Immobilizer System is malfunc-
tioning, this light will remain on while the regis-
tered Nissan Vehicle Immobilizer System Key is
in the ON position.
If the light still remains on and/or the
engine will not start, see your NISSAN
dealer for Nissan Vehicle Immobilizer Sys-tem service as soon as possible. Please
bring all Nissan Vehicle Immobilizer Sys-
tem keys that you have when visiting your
NISSAN dealer for service.
SIC2045
Instruments and controls
2-17


03.1.28/Z50-D/V5.0


The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B(Faster). Also, the intermittent
operation speed varies in accordance with
the vehicle speed. (For example, when the
vehicle speed is high, the intermittent opera-
tion speed will be faster.)
2Low — continuous low speed operation
3High — continuous high speed operationPush the lever up
4
to have one sweep
operation of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.

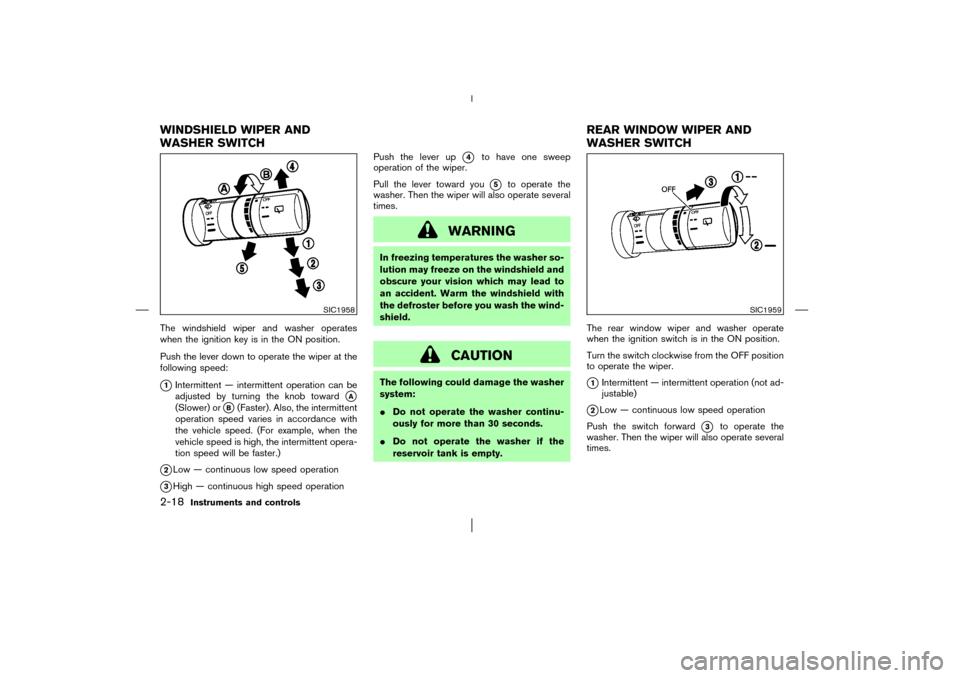

WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION
The following could damage the washer
system:

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
SIC1958
SIC1959
WINDSHIELD WIPER AND
WASHER SWITCHREAR WINDOW WIPER AND
WASHER SWITCH2-18
Instruments and controls


03.1.28/Z50-D/V5.0


Rear:
Push
1
the cup holder to open.
GLOVE BOXWhen locking or unlocking the glove box, use
the master key.
The glove box may be opened by pulling the
handle.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
SIC2067
SIC2059
2-30
Instruments and controls


03.1.28/Z50-D/V5.0


CONSOLE BOX
WARNING
The center console box should not beused while driving so full attention may
be given to vehicle operation.
Push the button
A
to open the console box lid.The inside of the console box lid is designed to
be used as a holder
B
such as pen, etc. There
is a power outlet
C
inside the console box.
Remove the inside tray
D
to store a large
object.
To lock the console box, turn the key to the
1
position. To unlock the console box, turn the key
to the
2
position.
Push the button
3
and adjust the armrest
4
to the desired position.
SIC2060
Instruments and controls
2-31


03.1.28/Z50-D/V5.0


WARNING

Never put anything on the tonneau
cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.

Close the tonneau and sub covers
when folding the rear seat.

Do not leave the tonneau cover in the
vehicle with it disengaged from the
holder.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

The top tether strap may be damaged
by contact with the tonneau cover or
items in the cargo area. Remove the
tonneau cover from the vehicle or
secure it and any cargo. Your child
could be seriously injured or killed in
a collision if the top tether strap isdamaged.
POWER WINDOWS
WARNING

Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

Do not leave children unattended in-
side the vehicle. They could unknow-
SIC1891
WINDOWS
Instruments and controls
2-33


03.1.28/Z50-D/V5.0


ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
The power windows operate when the ignition
key is in the ON position and for about 45
seconds, after the ignition key is turned to the
ACC or OFF position. If the driver’s door or the
front passenger’s door is opened during this
period of about 45 seconds, power to the
windows is canceled.
To open or close the window, push down or pull
up the switch and hold it. The main switch (driver
side switches) will open or close all the win-
dows.The passenger side switch will open or close
only the corresponding window. To open or
close the window, hold the switch down or up.
Locking passenger’s windowsWhen the lock button is pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Automatic operationTo fully open or close the driver’s or front
passenger’s side window, completely push
down or pull up the switch and release it; it need
not be held. The window will automatically open
or close all the way. To stop the window, just
press or lift the switch on the opposite side.Auto reverse function (For front
window)If the control unit detects something caught in a
front window as it moves up, the window will be
immediately lowered.
SIC1892
SIC1893
2-34
Instruments and controls


03.1.28/Z50-D/V5.0


CEILINGThe ceiling light has a three-position switch.
When the switch is in the ON position
1, the
light will illuminate.
When the switch is in the OFF position
2, the
light will turn off.
When the switch is in the DOOR position3,
the light will illuminate when a door is opened.
The light will stay on for about 30 seconds when:

The doors are unlocked by the keyfob, a key
or the lock-unlock switch while all doors areclosed and the ignition switch is in the OFF or
ACC position.

The driver’s door is opened and then closed
while the key is removed from the ignition
switch.

The key is removed from the ignition switch
while all doors are closed.
The ceiling light will turn off while the 30 second
timer is activated, when:

The driver’s door is locked by the keyfob, a
key, or the lock-unlock switch.

The ignition switch is turned ON.
When the ceiling light switch or map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the ACC or OFF position. To turn
on the light again, insert the key into the
ignition switch and move it to the ON
position.
After the above procedure, the ceiling, map, rear
and vanity mirror lights will automatically turn off
30 minutes after the latest operation of the
following with the ignition switch in the ACC or
OFF position:

Opening or closing any door
Locking or unlocking with the keyfob, a key or
the lock-unlock switch.

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the ceiling, map, rear and
vanity mirror lights when you leave
the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2063
INTERIOR LIGHTS
Instruments and controls
2-37


03.1.28/Z50-D/V5.0


MAPTo turn on the light, push the plastic surface
A
of the light. Push it again to turn off the light.
REARThe rear personal light has a three-position
switch. (
A: DOOR,
B: OFF,
C: ON)
When the switch is in the DOOR position
A,
the light will illuminate when a door is opened.
When the ceiling light or the map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, insert the key into the ignition
switch and move it to the ONposition.After the above procedure, the ceiling, map, rear
or vanity mirror lights will automatically turn off
30 minutes after the latest operation of the
following with the ignition switch in the ACC or
OFF position:

Opening or closing any door

Locking or unlocking with the keyfob, a key or
the lock-unlock switch.

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the ceiling, map, rear and
vanity mirror lights when you leave
the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2068
Front
SIC2069
Rear
2-38
Instruments and controls


03.1.28/Z50-D/V5.0
