1. Hood (Page 3-9)
2. Windshield wiper and washer switch
(P.2-20)/Wiper replacement (P.8-19)
3. Headlight and turn signal switch (P.2-20)/
Bulbreplacement (P.8-26)
4. Interior light (P.2-37)
5. Sunroof (if so equipped)
6. Power windows (P.2-33)
7. Towing hook (P.6-14)
8. Fog light switch (if so equipped) (P.2-24)/
Daytime running light (for Canada) (P.2-33)
9. Tires
— Wheel and tires (P.8-27, P.9-9)
— Flat tire (P.6-2)
10. Mirrors (P.3-14)
11. Doors
— Keys (P.3-2)
— Door locks (P.3-3)
— Keyfob(P.3-5)
SSI0008
EXTERIOR FRONT0-2
Illustrated table of contents


04.4.5/Z50-D/V5.0

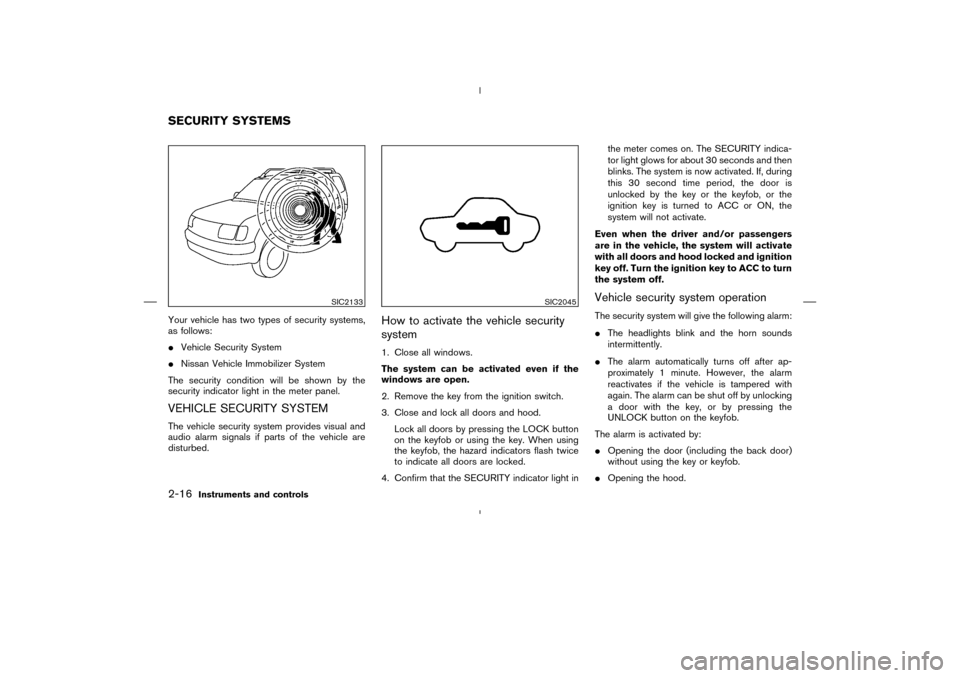

Your vehicle has two types of security systems,
as follows:

Vehicle Security System

Nissan Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors and hood.
Lock all doors by pressing the LOCK button
on the keyfobor using the key. When using
the keyfob, the hazard indicators flash twice
to indicate all doors are locked.
4. Confirm that the SECURITY indicator light inthe meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key or the keyfob, or the
ignition key is turned to ACC or ON, the
system will not activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and hood locked and ignition
key off. Turn the ignition key to ACC to turn
the system off.
Vehicle security system operationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.

The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:

Opening the door (including the back door)
without using the key or keyfob.

Opening the hood.
SIC2133
SIC2045
SECURITY SYSTEMS2-16
Instruments and controls


04.4.5/Z50-D/V5.0

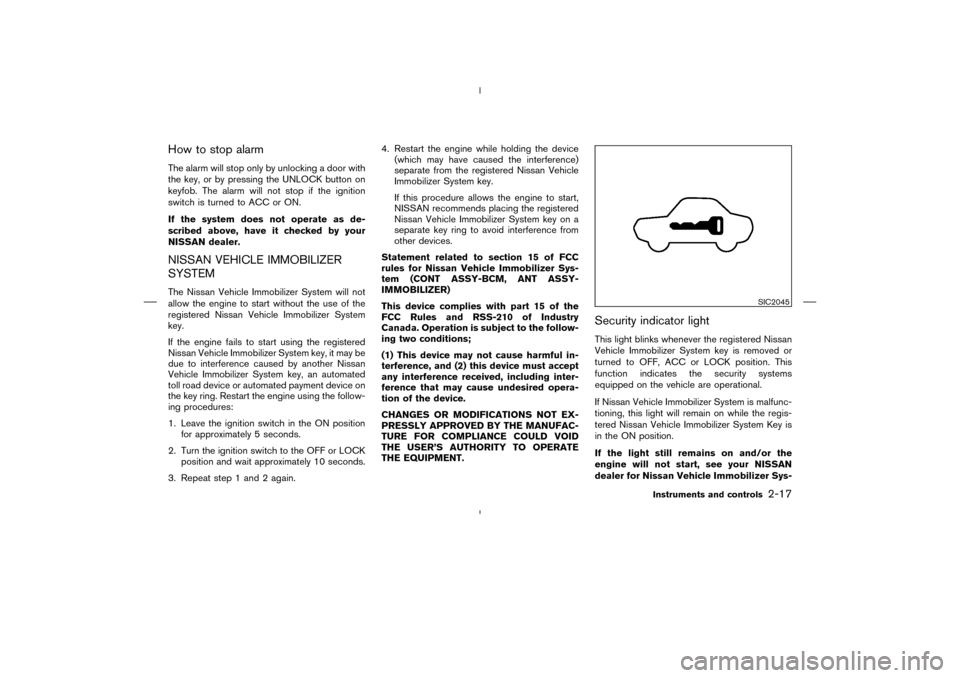

How to stop alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key, it may be
due to interference caused by another Nissan
Vehicle Immobilizer System key, an automated
toll road device or automated payment device on
the key ring. Restart the engine using the follow-
ing procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
Nissan Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered Nissan
Vehicle Immobilizer System key is removed or
turned to OFF, ACC or LOCK position. This
function indicates the security systems
equipped on the vehicle are operational.
If Nissan Vehicle Immobilizer System is malfunc-
tioning, this light will remain on while the regis-
tered Nissan Vehicle Immobilizer System Key is
in the ON position.
If the light still remains on and/or the
engine will not start, see your NISSAN
dealer for Nissan Vehicle Immobilizer Sys-
SIC2045
Instruments and controls
2-17


04.4.5/Z50-D/V5.0

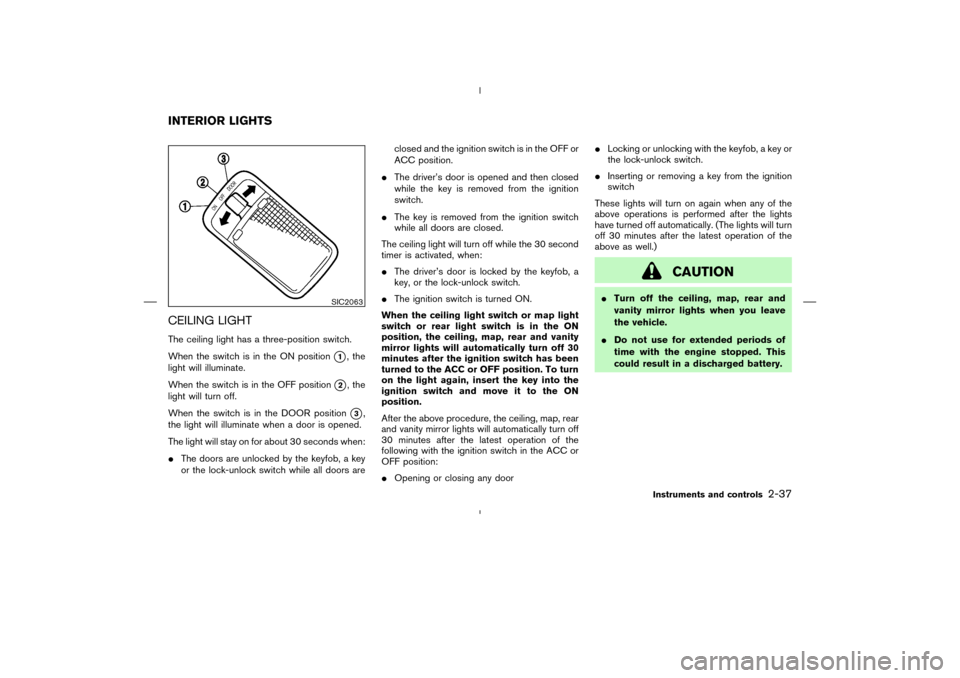

CEILING LIGHTThe ceiling light has a three-position switch.
When the switch is in the ON position
1, the
light will illuminate.
When the switch is in the OFF position
2, the
light will turn off.
When the switch is in the DOOR position3,
the light will illuminate when a door is opened.
The light will stay on for about 30 seconds when:

The doors are unlocked by the keyfob, a key
or the lock-unlock switch while all doors areclosed and the ignition switch is in the OFF or
ACC position.

The driver’s door is opened and then closed
while the key is removed from the ignition
switch.

The key is removed from the ignition switch
while all doors are closed.
The ceiling light will turn off while the 30 second
timer is activated, when:

The driver’s door is locked by the keyfob, a
key, or the lock-unlock switch.

The ignition switch is turned ON.
When the ceiling light switch or map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the ACC or OFF position. To turn
on the light again, insert the key into the
ignition switch and move it to the ON
position.
After the above procedure, the ceiling, map, rear
and vanity mirror lights will automatically turn off
30 minutes after the latest operation of the
following with the ignition switch in the ACC or
OFF position:

Opening or closing any door
Locking or unlocking with the keyfob, a key or
the lock-unlock switch.

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the ceiling, map, rear and
vanity mirror lights when you leave
the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2063
INTERIOR LIGHTS
Instruments and controls
2-37


04.4.5/Z50-D/V5.0

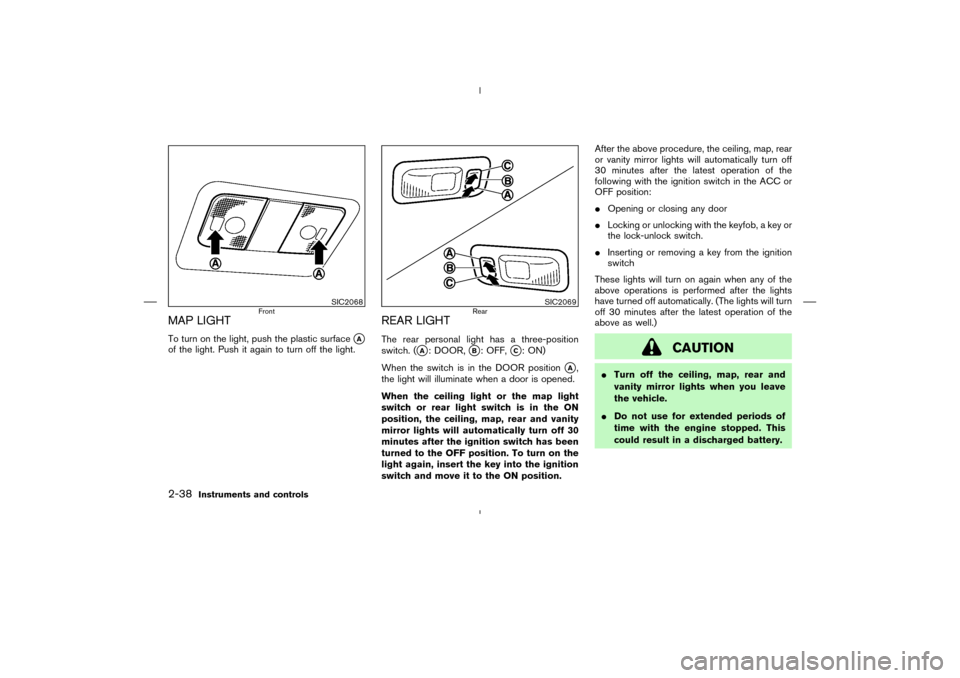

MAP LIGHTTo turn on the light, push the plastic surface
A
of the light. Push it again to turn off the light.
REAR LIGHTThe rear personal light has a three-position
switch. (
A: DOOR,
B: OFF,
C: ON)
When the switch is in the DOOR position
A,
the light will illuminate when a door is opened.
When the ceiling light or the map light
switch or rear light switch is in the ON
position, the ceiling, map, rear and vanity
mirror lights will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, insert the key into the ignition
switch and move it to the ONposition.After the above procedure, the ceiling, map, rear
or vanity mirror lights will automatically turn off
30 minutes after the latest operation of the
following with the ignition switch in the ACC or
OFF position:

Opening or closing any door

Locking or unlocking with the keyfob, a key or
the lock-unlock switch.

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the ceiling, map, rear and
vanity mirror lights when you leave
the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2068
Front
SIC2069
Rear
2-38
Instruments and controls


04.4.5/Z50-D/V5.0

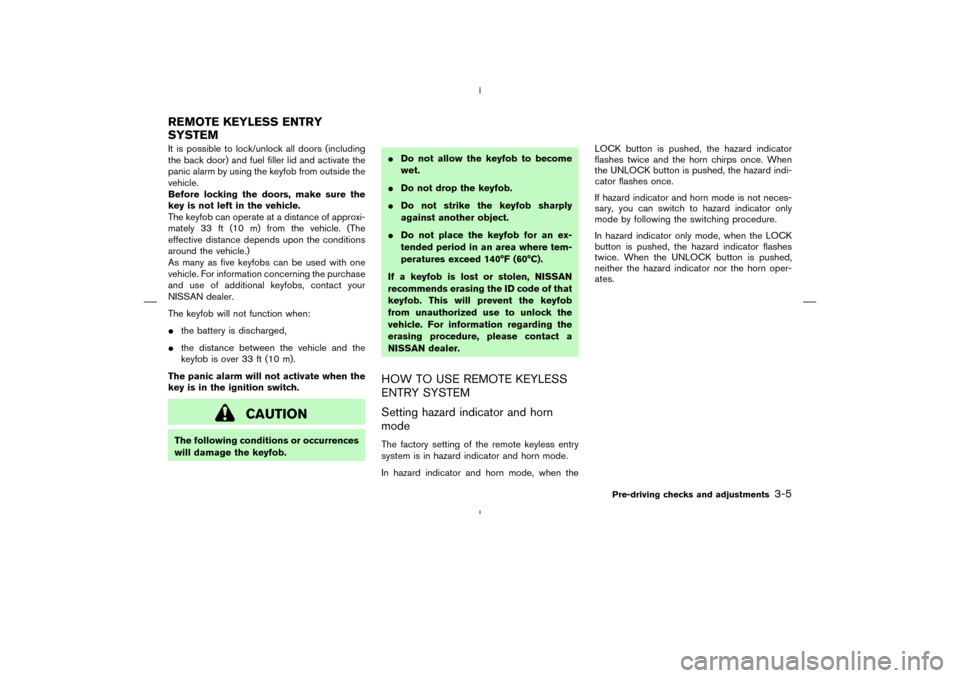

It is possible to lock/unlock all doors (including
the back door) and fuel filler lid and activate the
panic alarm by using the keyfob from outside the
vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as five keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact your
NISSAN dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.
Do not allow the keyfob to become
wet.

Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThe factory setting of the remote keyless entry
system is in hazard indicator and horn mode.
In hazard indicator and horn mode, when theLOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


04.4.5/Z50-D/V5.0

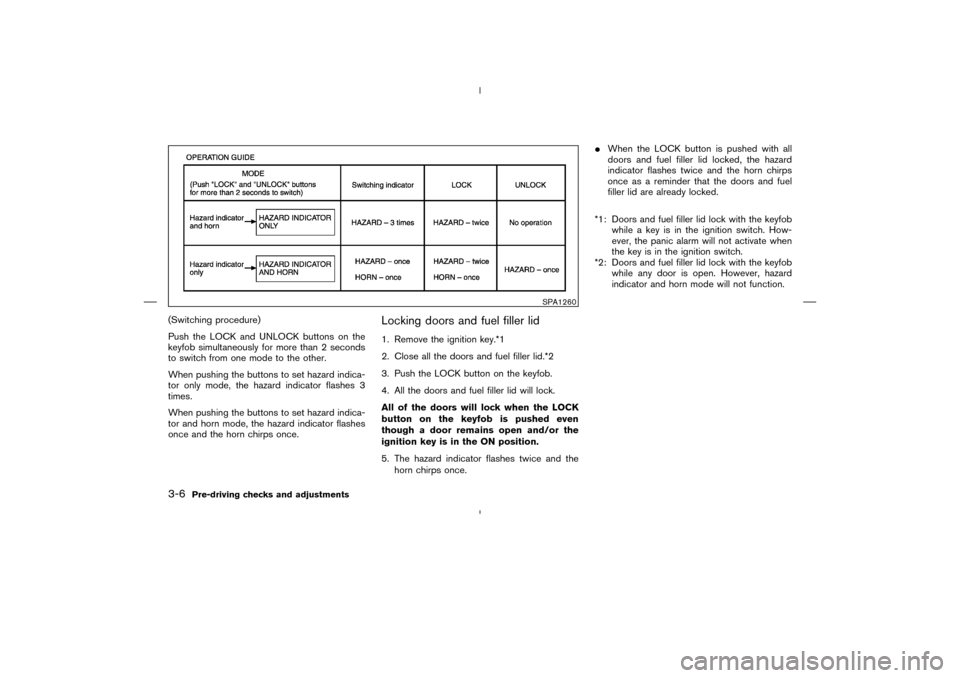

(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
Locking doors and fuel filler lid1. Remove the ignition key.*1
2. Close all the doors and fuel filler lid.*2
3. Push the LOCK button on the keyfob.
4. All the doors and fuel filler lid will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition key is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
When the LOCK button is pushed with all
doors and fuel filler lid locked, the hazard
indicator flashes twice and the horn chirps
once as a reminder that the doors and fuel
filler lid are already locked.
*1: Doors and fuel filler lid lock with the keyfob
while a key is in the ignition switch. How-
ever, the panic alarm will not activate when
the key is in the ignition switch.
*2: Doors and fuel filler lid lock with the keyfob
while any door is open. However, hazard
indicator and horn mode will not function.
SPA1260
3-6
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

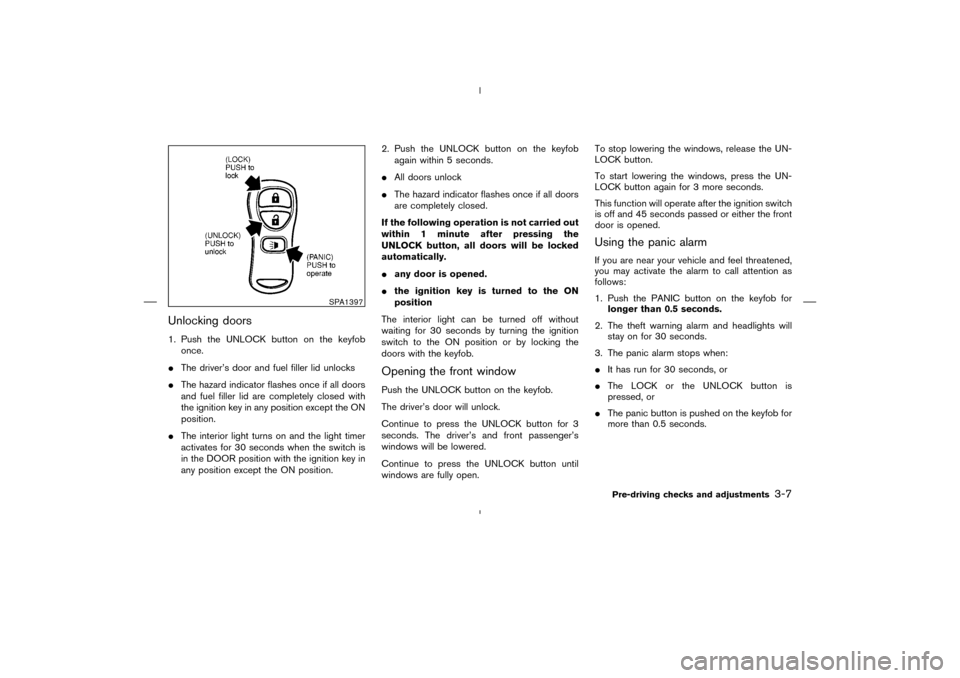

Unlocking doors1. Push the UNLOCK button on the keyfob
once.

The driver’s door and fuel filler lid unlocks

The hazard indicator flashes once if all doors
and fuel filler lid are completely closed with
the ignition key in any position except the ON
position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition key in
any position except the ON position.2. Push the UNLOCK button on the keyfob
again within 5 seconds.

All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 1 minute after pressing the
UNLOCK button, all doors will be locked
automatically.

any door is opened.

the ignition key is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button on the keyfob.
The driver’s door will unlock.
Continue to press the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to press the UNLOCK button until
windows are fully open.To stop lowering the windows, release the UN-
LOCK button.
To start lowering the windows, press the UN-
LOCK button again for 3 more seconds.
This function will operate after the ignition switch
is off and 45 seconds passed or either the front
door is opened.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button on the keyfob for
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or

The LOCK or the UNLOCK button is
pressed, or

The panic button is pushed on the keyfob for
more than 0.5 seconds.
SPA1397
Pre-driving checks and adjustments
3-7


04.4.5/Z50-D/V5.0

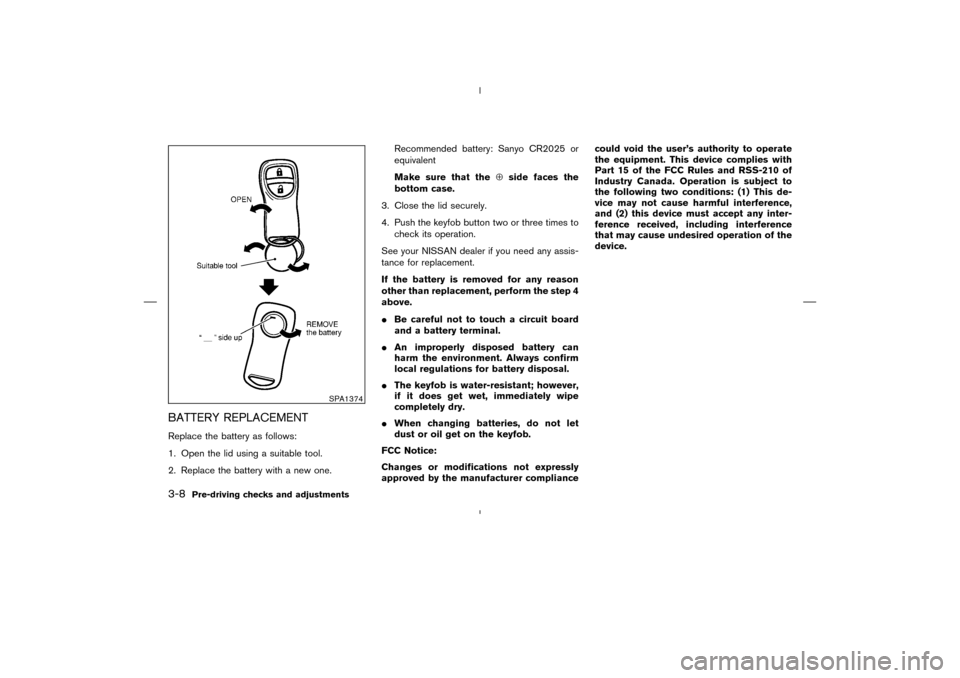

BATTERY REPLACEMENTReplace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.Recommended battery: Sanyo CR2025 or
equivalent
Make sure that the⊕side faces the
bottom case.
3. Close the lid securely.
4. Push the keyfobbutton two or three times to
check its operation.
See your NISSAN dealer if you need any assis-
tance for replacement.
If the battery is removed for any reason
other than replacement, perform the step 4
above.

Be careful not to touch a circuit board
and a battery terminal.

An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.

The keyfob is water-resistant; however,
if it does get wet, immediately wipe
completely dry.

When changing batteries, do not let
dust or oil get on the keyfob.
FCC Notice:
Changes or modifications not expressly
approved by the manufacturer compliancecould void the user’s authority to operate
the equipment. This device complies with
Part 15 of the FCC Rules and RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) This de-
vice may not cause harmful interference,
and (2) this device must accept any inter-
ference received, including interference
that may cause undesired operation of the
device.
SPA1374
3-8
Pre-driving checks and adjustments


04.4.5/Z50-D/V5.0

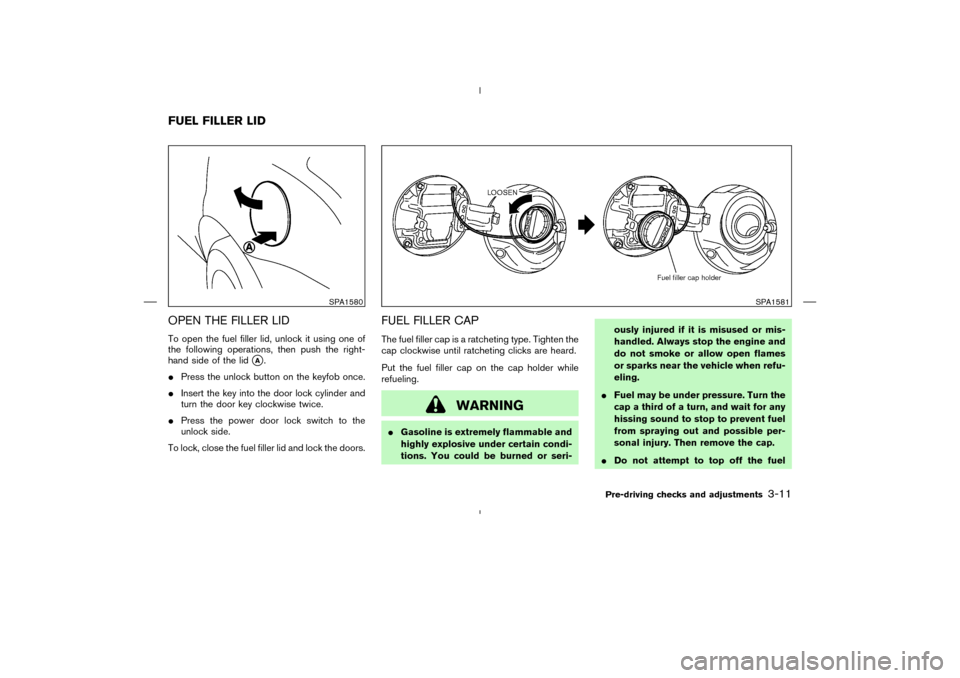

OPEN THE FILLER LIDTo open the fuel filler lid, unlock it using one of
the following operations, then push the right-
hand side of the lid
A.

Press the unlock button on the keyfob once.

Insert the key into the door lock cylinder and
turn the door key clockwise twice.

Press the power door lock switch to the
unlock side.
To lock, close the fuel filler lid and lock the doors.
FUEL FILLER CAPThe fuel filler cap is a ratcheting type. Tighten the
cap clockwise until ratcheting clicks are heard.
Put the fuel filler cap on the cap holder while
refueling.
WARNING

Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seri-ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap a third of a turn, and wait for any
hissing sound to stop to prevent fuel
from spraying out and possible per-
sonal injury. Then remove the cap.

Do not attempt to top off the fuel
SPA1580
SPA1581
FUEL FILLER LID
Pre-driving checks and adjustments
3-11


04.4.5/Z50-D/V5.0
