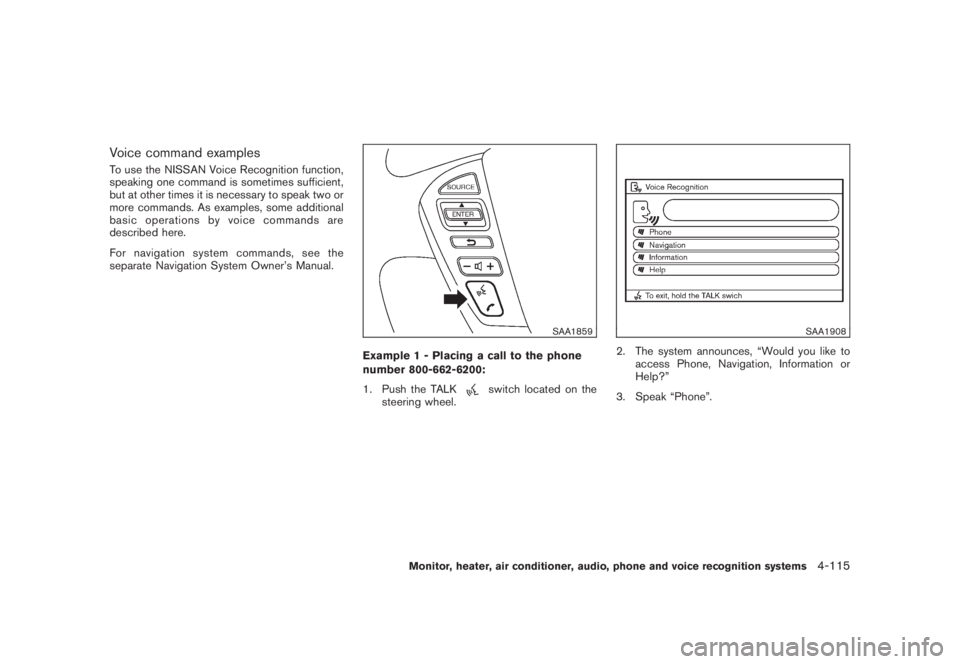

Voice command examplesTo use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Manual.
SAA1859
Example 1 - Placing a call to the phone
number 800-662-6200:
1. Push the TALK
switch located on the
steering wheel.
SAA1908
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems
4-115

Black plate (278,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

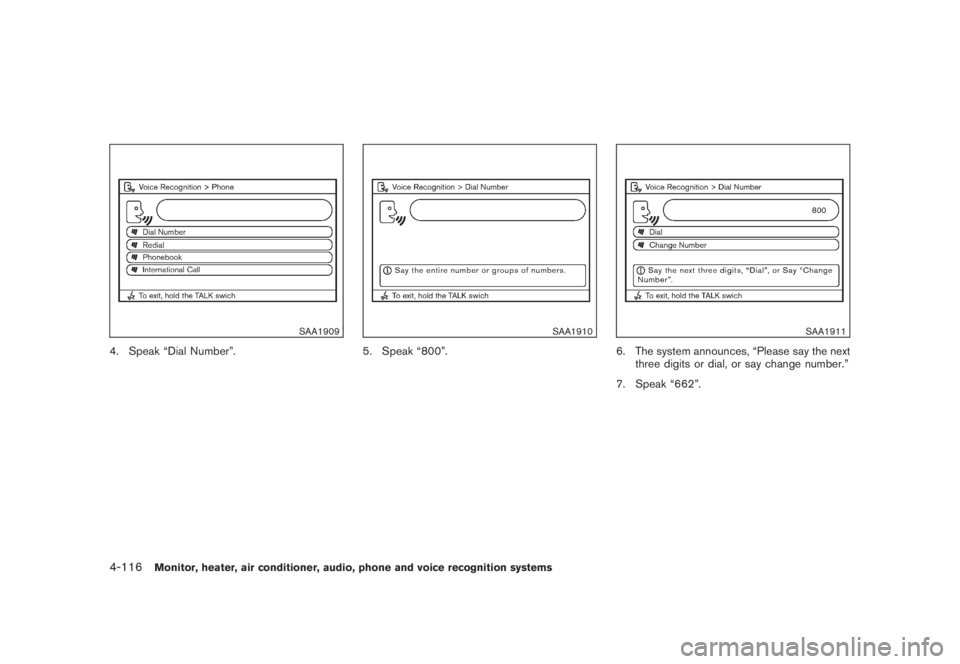

SAA1909
4. Speak “Dial Number”.
SAA1910
5. Speak “800”.
SAA1911
6. The system announces, “Please say the next
three digits or dial, or say change number.”
7. Speak “662”.
4-116
Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (279,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SAA1912

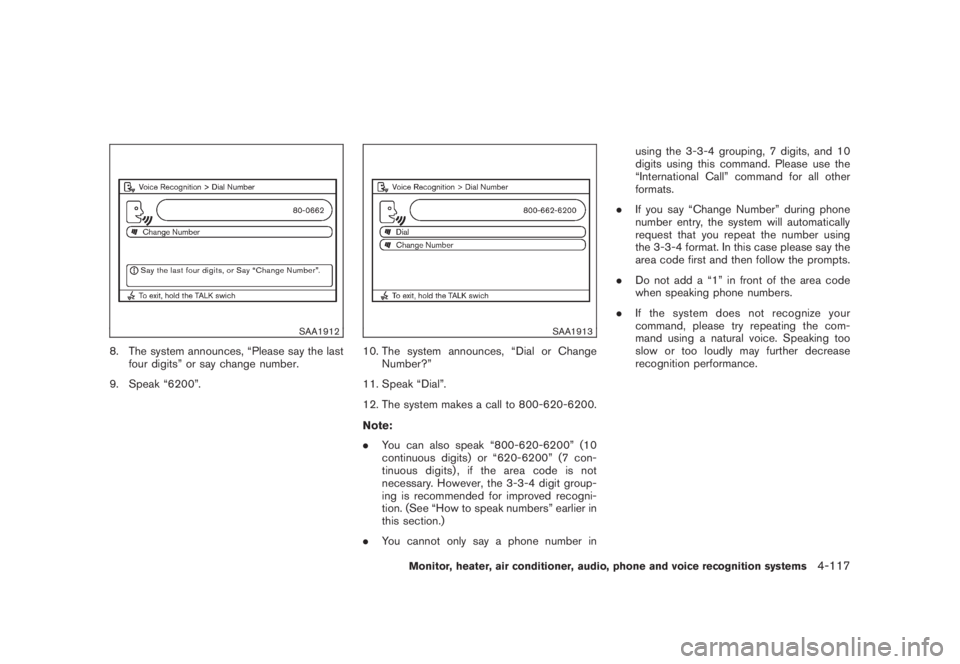

8. The system announces, “Please say the last
four digits” or say change number.
9. Speak “6200”.
SAA1913
10. The system announces, “Dial or Change
Number?”
11. Speak “Dial”.
12. The system makes a call to 800-620-6200.
Note:
.You can also speak “800-620-6200” (10
continuous digits) or “620-6200” (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See “How to speak numbers” earlier in
this section.)
.You cannot only say a phone number inusing the 3-3-4 grouping, 7 digits, and 10
digits using this command. Please use the
“International Call” command for all other
formats.
.If you say “Change Number” during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
.Do not add a “1” in front of the area code
when speaking phone numbers.
.If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems
4-117

Black plate (280,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SAA1859

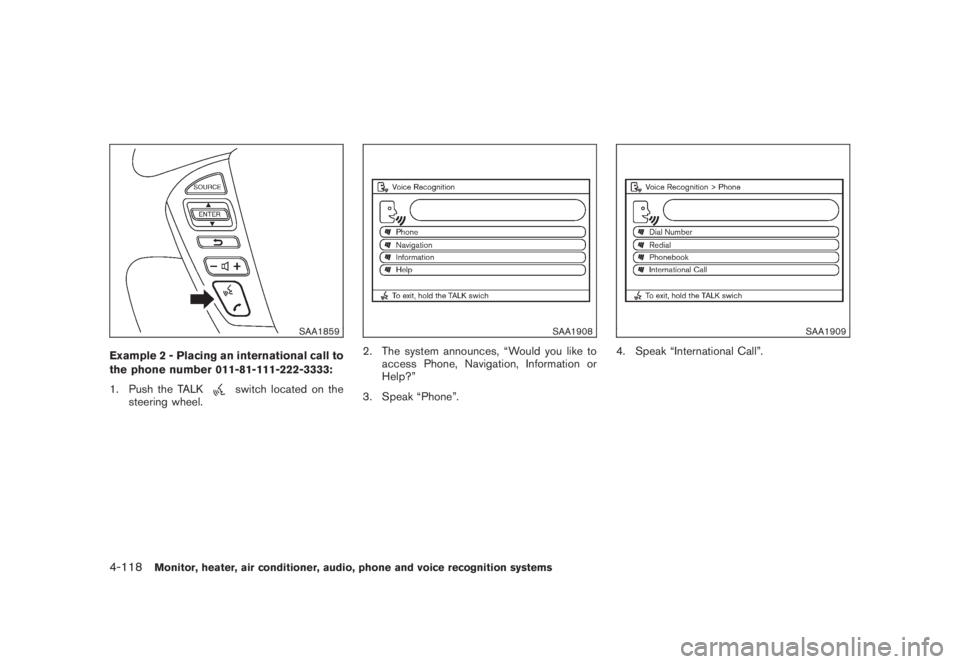

Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
1. Push the TALK
switch located on the
steering wheel.
SAA1908
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
SAA1909
4. Speak “International Call”.
4-118
Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (281,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SAA1914

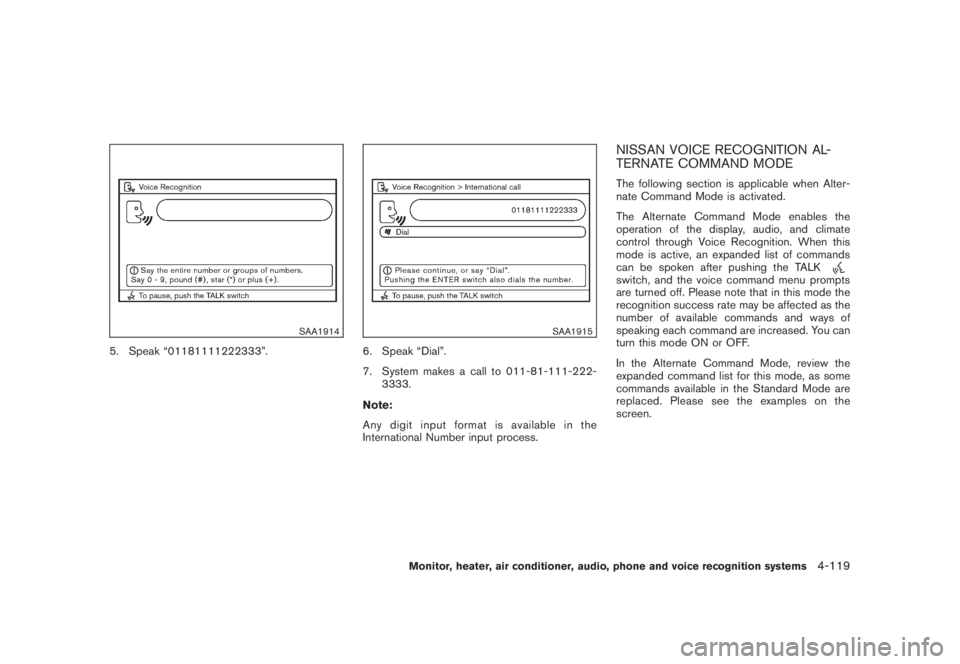

5. Speak “01181111222333”.
SAA1915
6. Speak “Dial”.
7. System makes a call to 011-81-111-222-
3333.
Note:
Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODEThe following section is applicable when Alter-
nate Command Mode is activated.
The Alternate Command Mode enables the
operation of the display, audio, and climate
control through Voice Recognition. When this
mode is active, an expanded list of commands
can be spoken after pushing the TALKswitch, and the voice command menu prompts
are turned off. Please note that in this mode the
recognition success rate may be affected as the
number of available commands and ways of
speaking each command are increased. You can
turn this mode ON or OFF.
In the Alternate Command Mode, review the
expanded command list for this mode, as some
commands available in the Standard Mode are
replaced. Please see the examples on the
screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems
4-119

Black plate (282,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SAA1916

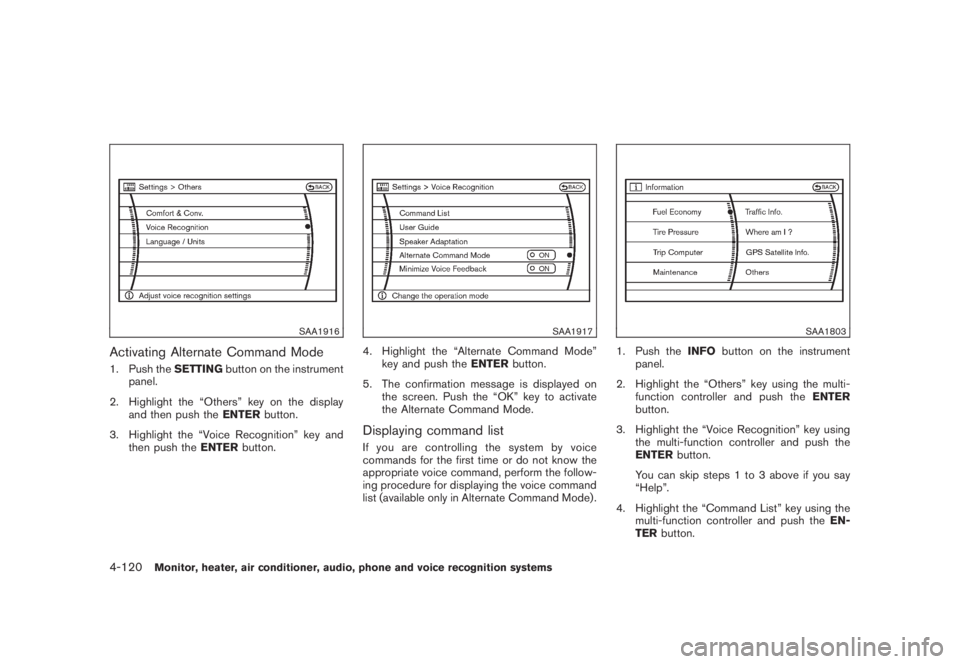

Activating Alternate Command Mode1. Push theSETTINGbutton on the instrument
panel.
2. Highlight the “Others” key on the display
and then push theENTERbutton.
3. Highlight the “Voice Recognition” key and
then push theENTERbutton.
SAA1917
4. Highlight the “Alternate Command Mode”
key and push theENTERbutton.
5. The confirmation message is displayed on
the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command listIf you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
SAA1803
1. Push theINFObutton on the instrument
panel.
2. Highlight the “Others” key using the multi-
function controller and push theENTER
button.
3. Highlight the “Voice Recognition” key using
the multi-function controller and push the
ENTERbutton.
You can skip steps 1 to 3 above if you say
“Help”.
4. Highlight the “Command List” key using the
multi-function controller and push theEN-
TERbutton.
4-120
Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (283,1)
Model "Z51-D" EDITED: 2008/ 6/ 26
SAA1901

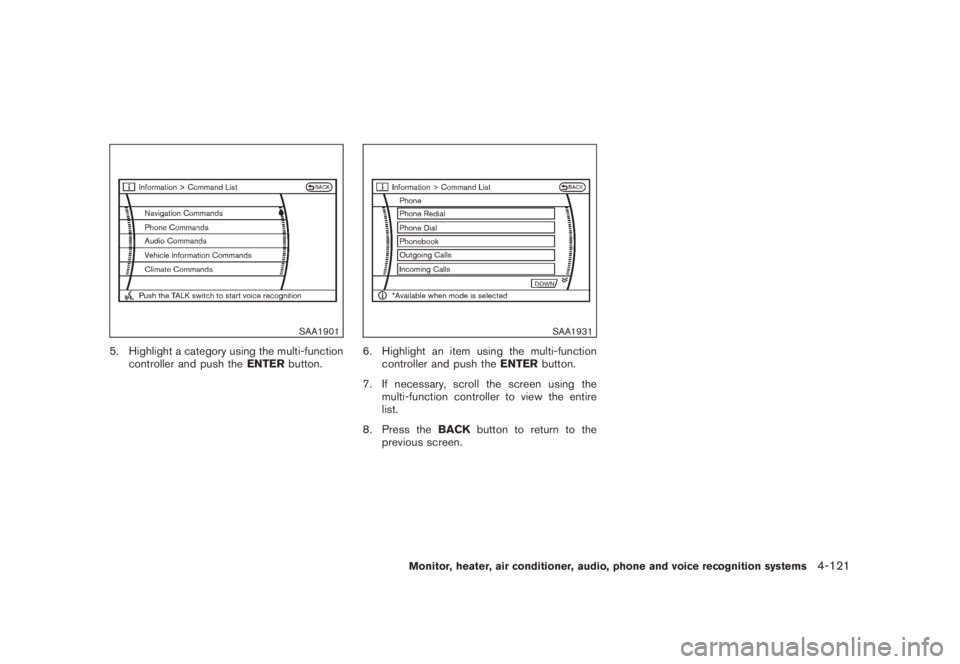

5. Highlight a category using the multi-function
controller and push theENTERbutton.
SAA1931
6. Highlight an item using the multi-function
controller and push theENTERbutton.
7. If necessary, scroll the screen using the
multi-function controller to view the entire
list.
8. Press theBACKbutton to return to the
previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems
4-121

Black plate (284,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

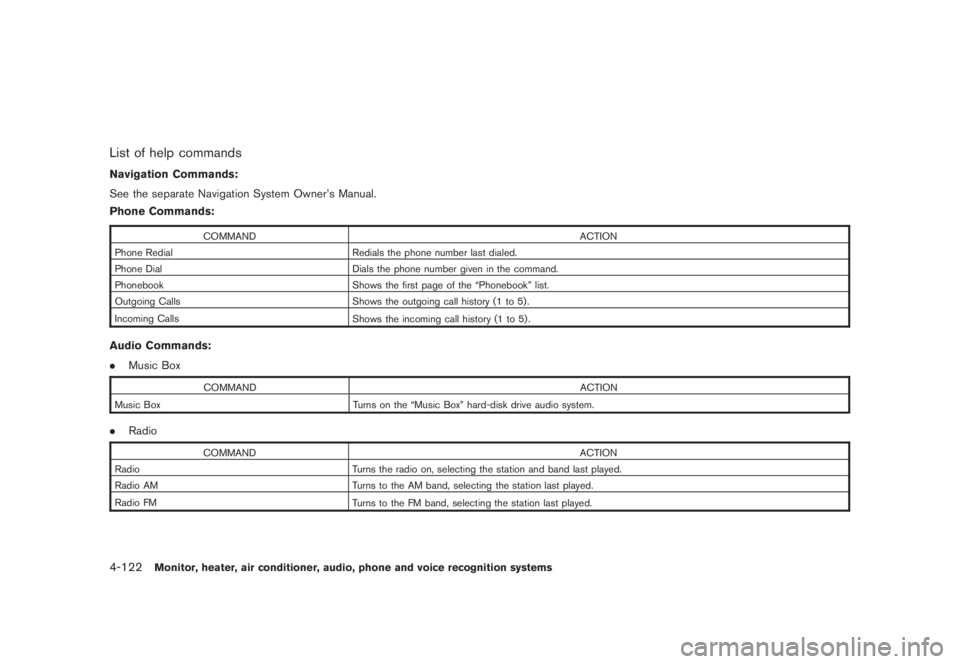

List of help commandsNavigation Commands:
See the separate Navigation System Owner’s Manual.
Phone Commands:
COMMAND ACTION
Phone Redial Redials the phone number last dialed.
Phone Dial Dials the phone number given in the command.
Phonebook Shows the first page of the “Phonebook” list.
Outgoing Calls Shows the outgoing call history (1 to 5) .
Incoming Calls
Shows the incoming call history (1 to 5) .
Audio Commands:
.Music Box
COMMAND ACTION
Music Box
Turns on the “Music Box” hard-disk drive audio system.
.Radio
COMMAND ACTION
Radio Turns the radio on, selecting the station and band last played.
Radio AM Turns to the AM band, selecting the station last played.
Radio FM
Turns to the FM band, selecting the station last played.
4-122
Monitor, heater, air conditioner, audio, phone and voice recognition systems

Black plate (285,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

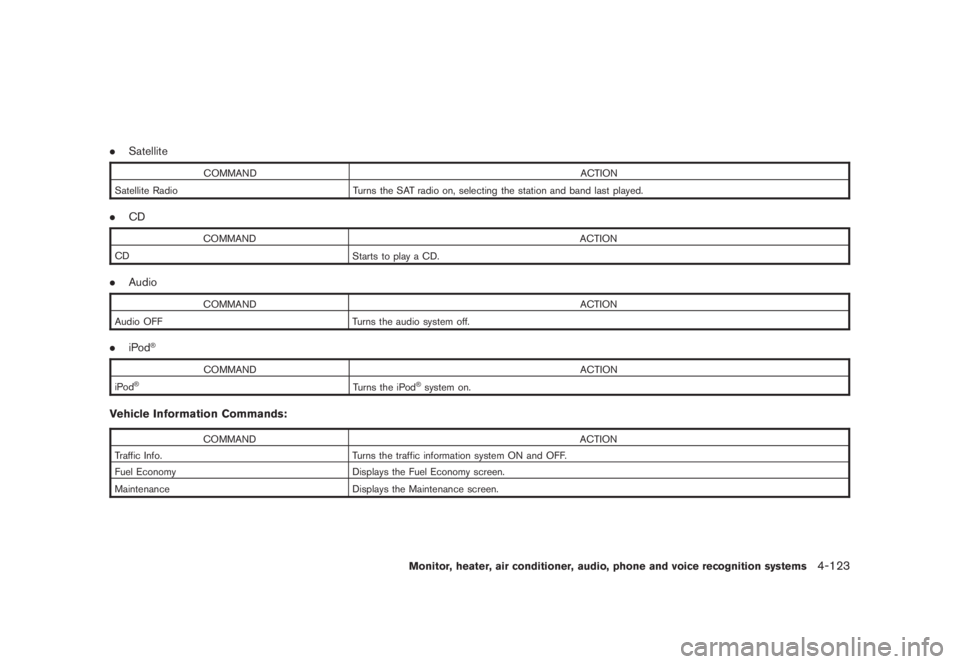

.Satellite
COMMAND ACTION
Satellite Radio
Turns the SAT radio on, selecting the station and band last played.
.CD
COMMAND ACTION
CD
Starts to play a CD.
.Audio
COMMAND ACTION
Audio OFF
Turns the audio system off.
.iPod
®
COMMAND ACTION
iPod
®
Turns the iPod
®system on.
Vehicle Information Commands:
COMMAND ACTION
Traffic Info. Turns the traffic information system ON and OFF.
Fuel Economy Displays the Fuel Economy screen.
Maintenance
Displays the Maintenance screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems
4-123

Black plate (286,1)
Model "Z51-D" EDITED: 2008/ 6/ 26

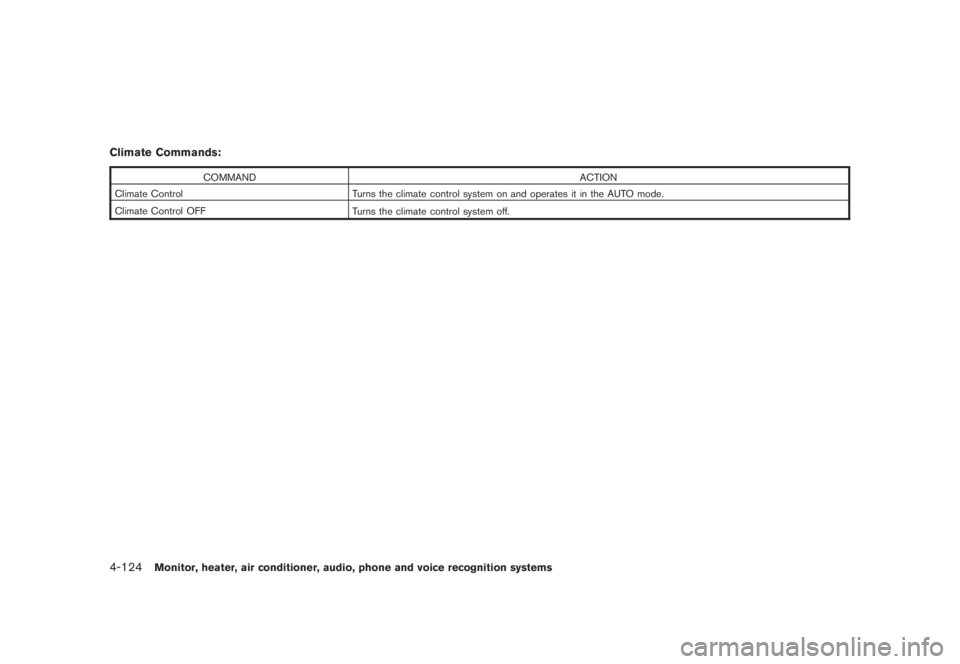

Climate Commands:
COMMAND ACTION
Climate Control Turns the climate control system on and operates it in the AUTO mode.
Climate Control OFF
Turns the climate control system off.
