Black plate (7,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SSI0374
1. Lift gate (P.3-19)— Remote keyless entry system (P.3-15)
— Intelligent Key system (P.3-7)
2. Rear window wiper and washer — Switch operation (P.2-30)
— Window washer fluid (P.8-12)
3. Rear window defroster (P.2-31)
4. High-mounted stop light — Bulb replacement (P.8-27)
5. Antenna (P.4-62) — Satellite radio antenna* (P.4-32)
6. Back-up light — Bulb replacement (P.8-27)
7. Rear combination light — Bulb replacement (P.8-27)
*: if so equipped

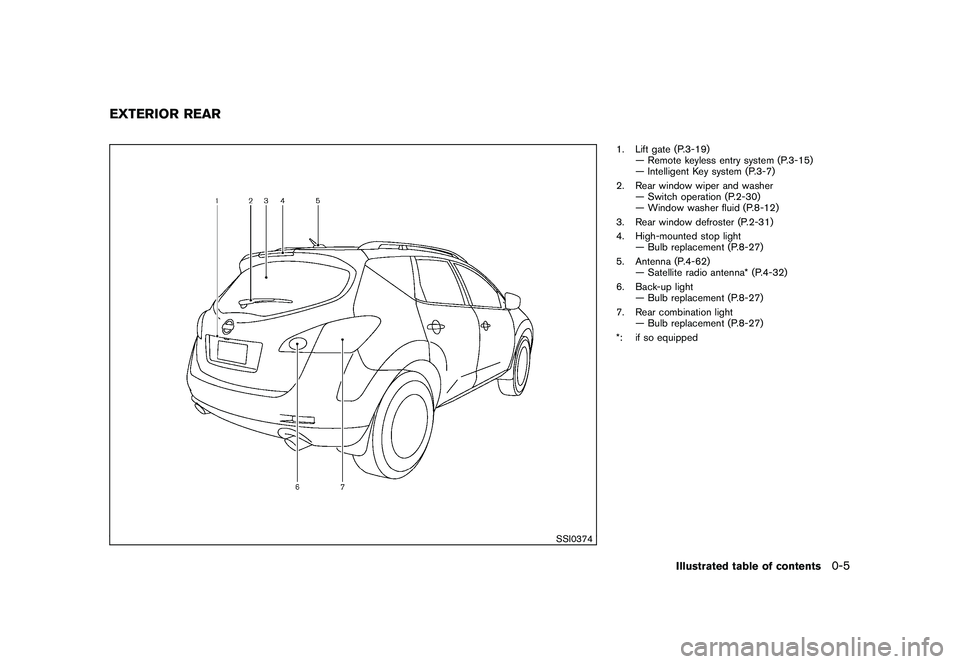

EXTERIOR REAR
Illustrated table of contents
0-5
Page 12 of 425
Black plate (8,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SSI0636
1. Cargo cover* (P.2-45)
2. Rear personal light (P.2-53)
3. Coat hooks (P.2-48)
4. Mobile Entertainment System (MES)*— Flip-down screen (P.4-64)
— Digital Versatile Disc (DVD) player (P.4-63)
— DVD remote controller (P.4-67) — Headphones (P.4-66)
5. Door armrest — Power window switch (P.2-48)
— Power door lock switch (P.3-6)
— Outside mirror remote control switch (P.3-29)
6. Sun visors (P.3-26)
7. Moonroof* (P.2-51) 8. Front map lights (P.2-53)
9. Mood light (P.2-54)
10. Sunglasses holder (P.2-42)
11. Inside rearview mirror (P.3-27)
— Anti-glare adjustment* (P.3-28)
— HomeLink
®universal transceiver* (P.2-55)
— Compass* (P.2-7)
12. Cargo area — Storages (P.2-45)
— Luggage hooks (P.2-46)
— Cargo light (P.2-55)
— Spare tire (P.6-3)
13. Rear cup holders (P.2-41)
14. Heated seat switch (rear)* (P.2-37)
15. Console box - rear (P.2-43)
16. Auxiliary input jack* (P.4-48)
17. Console box (P.2-43) — Power outlet* (P.2-39)
18. Front cup holders (P.2-41)
19. Storage box (P.2-44) or Cigarette lighter/Ashtray (P.2-40)
*: if so equipped

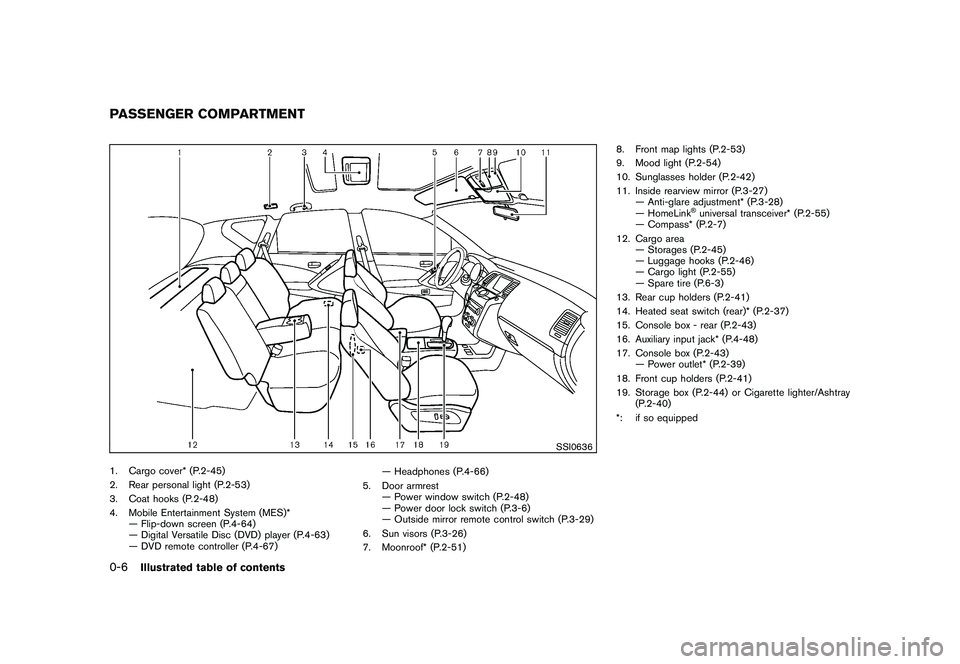

PASSENGER COMPARTMENT0-6
Illustrated table of contents
Page 13 of 425
Black plate (9,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SSI0627
1. Side ventilator (P.4-25)
2. Power lift gate switch* (P.3-19)
3. Headlight, fog light* and turn signal switch(P.2-32)
4. Fuel-filler door opener switch (P.3-23) 5. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-61)
— Bluetooth
®Hands-Free Phone System control*
(P.4-75)
6. Meters and gauges (P.2-4) 7. Steering wheel
— Horn (P.2-36)
— Driver supplemental air bag (P.1-45)
— Power steering system (P.5-25)
8. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-18)
9. Wiper and washer switch (P.2-28)
10. Push-button ignition switch (P.5-9)
11. Center ventilator (P.4-25)
12. Center display (P.4-2)/Center color display* (P.4-2)/Navigation system**
13. Heater/air conditioner or Center multi-function control panel*
— Navigation system**
— Vehicle information and setting buttons (P.4-8)
— Bluetooth
®Hands-Free Phone System (P.4-75)
— Audio system (P.4-31)
14. Hazard warning flasher switch (P.2-36)
15. Front passenger supplemental air bag (P.1-45)
16. Vehicle Dynamic Control (VDC) OFF switch (P.2-39, 5-27)
17. Hood release handle (P.3-18)
18. Power lift gate main switch (P.3-19)
19. Power seatback switch* (P.1-6)
20. Fuse box cover (P.8-21)
21. Parking brake (P.5-17)
22. Tilting telescopic steering wheel lever or switch (P.3-25)
23. Intelligent Key port (P.5-11)

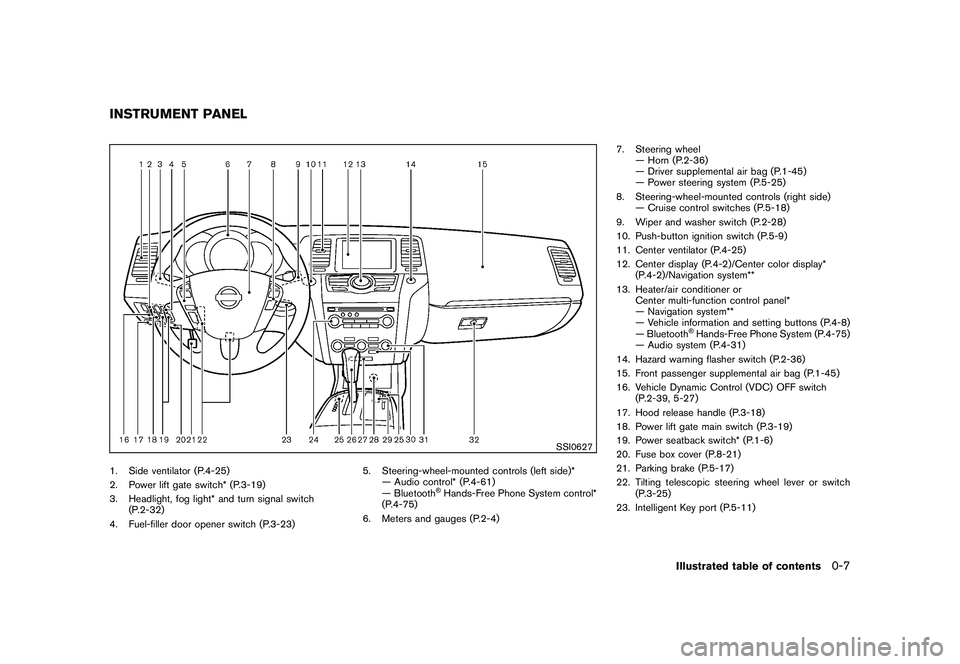

INSTRUMENT PANEL
Illustrated table of contents
0-7
Page 14 of 425
Black plate (10,1)
Model "Z51-D" EDITED: 2009/ 8/ 3

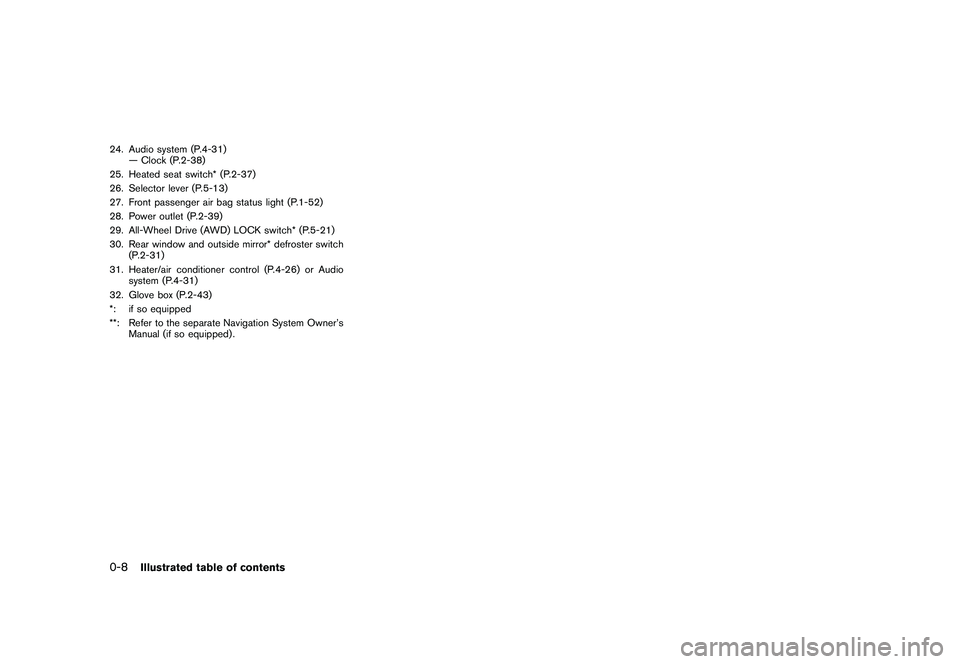

24. Audio system (P.4-31)— Clock (P.2-38)
25. Heated seat switch* (P.2-37)
26. Selector lever (P.5-13)
27. Front passenger air bag status light (P.1-52)
28. Power outlet (P.2-39)
29. All-Wheel Drive (AWD) LOCK switch* (P.5-21)
30. Rear window and outside mirror* defroster switch (P.2-31)
31. Heater/air conditioner control (P.4-26) or Audio system (P.4-31)
32. Glove box (P.2-43)
*: if so equipped
**: Refer to the separate Navigation System Owner’s Manual (if so equipped) .0-8
Illustrated table of contents
Page 15 of 425
Black plate (11,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SSI0377
1. Instrument brightness control switch (P.2-35)
2. Tachometer (P.2-6)
3. Speedometer (P.2-5)
4. Fuel gauge (P.2-7)
5. Warning/indicator lights (P.2-10)
6. Trip computer switch (P.2-21)
7. Dot matrix liquid crystal display (P.2-17)
8. Engine coolant temperature gauge (P.2-6)
9. Vehicle information display— Odometer/twin trip odometer (P.2-5)
— Continuously Variable Transmission (CVT)
position indicator (P.2-15)
10. RESET switch for trip odometer (P.2-5)

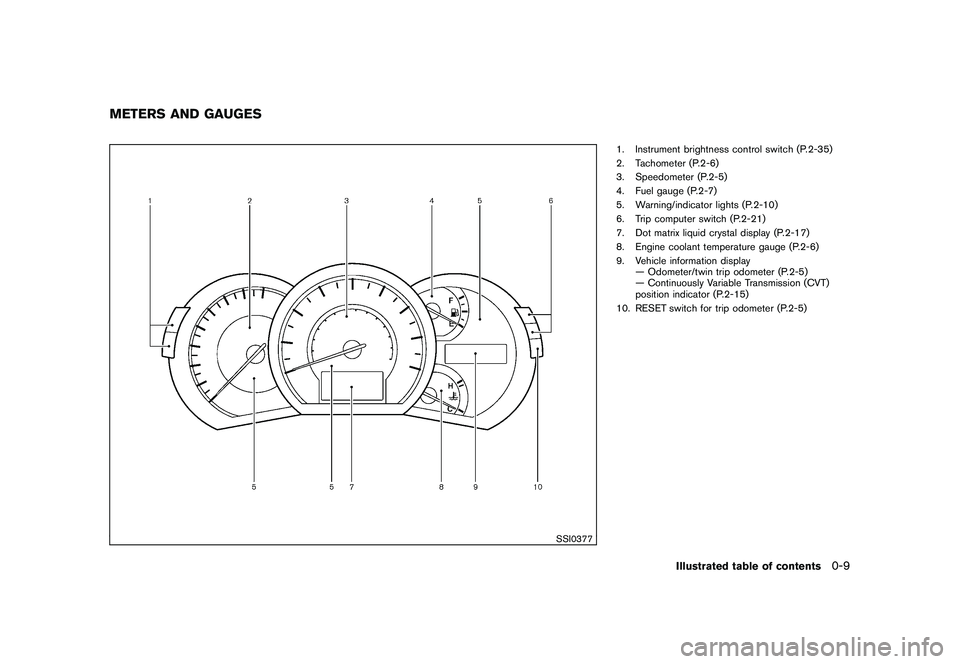

METERS AND GAUGES
Illustrated table of contents
0-9
Page 16 of 425
Black plate (12,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SDI2172

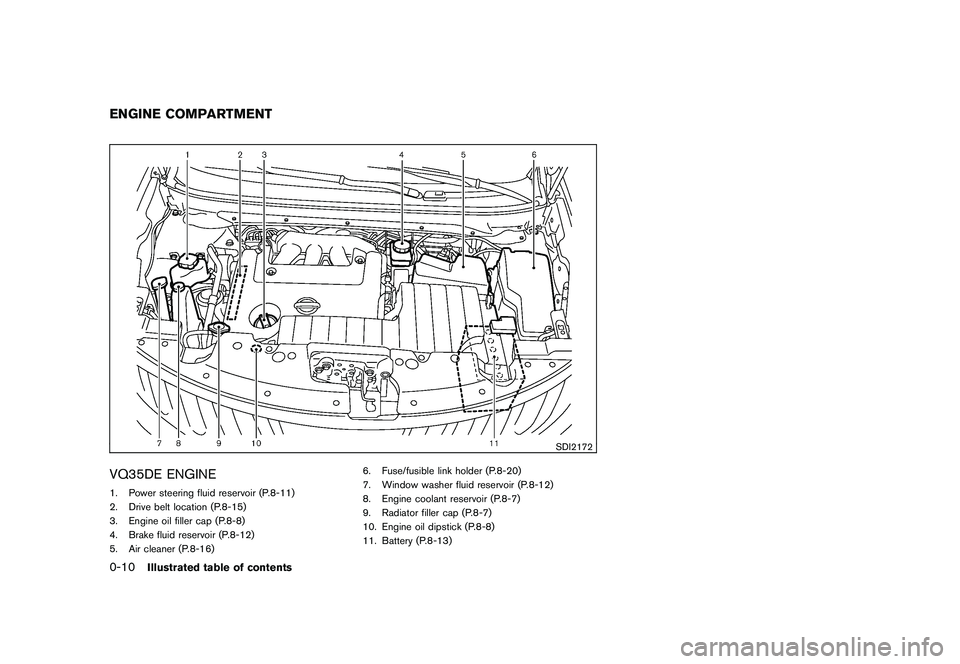

VQ35DE ENGINE1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-16)6. Fuse/fusible link holder (P.8-20)
7. Window washer fluid reservoir (P.8-12)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)ENGINE COMPARTMENT0-10
Illustrated table of contents
Page 17 of 425
Black plate (13,1)
Model "Z51-D" EDITED: 2009/ 8/ 3

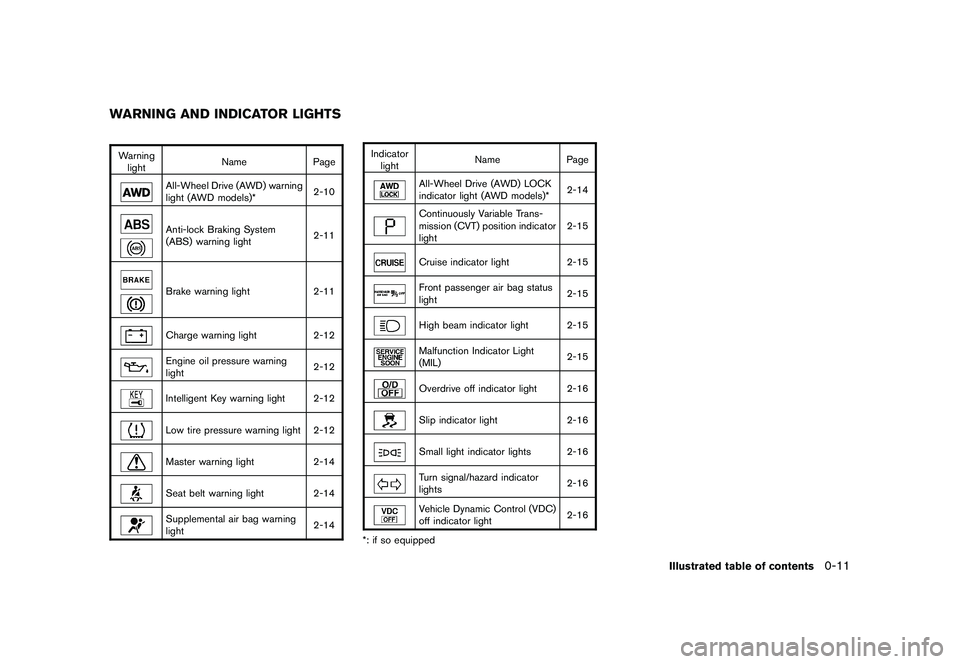

Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-10Anti-lock Braking System
(ABS) warning light2-11Brake warning light
2-11Charge warning light2-12Engine oil pressure warning
light 2-12Intelligent Key warning light 2-12Low tire pressure warning light 2-12Master warning light
2-14Seat belt warning light 2-14Supplemental air bag warning
light 2-14Indicator
light Name
Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-14Continuously Variable Trans-
mission (CVT) position indicator
light2-15Cruise indicator light
2-15Front passenger air bag status
light 2-15High beam indicator light 2-15Malfunction Indicator Light
(MIL)2-15Overdrive off indicator light 2-16Slip indicator light
2-16Small light indicator lights 2-16Turn signal/hazard indicator
lights 2-16Vehicle Dynamic Control (VDC)
off indicator light
2-16
*: if so equipped
WARNING AND INDICATOR LIGHTS
Illustrated table of contents
0-11
Page 18 of 425
Black plate (14,1)
Model "Z51-D" EDITED: 2009/ 8/ 3

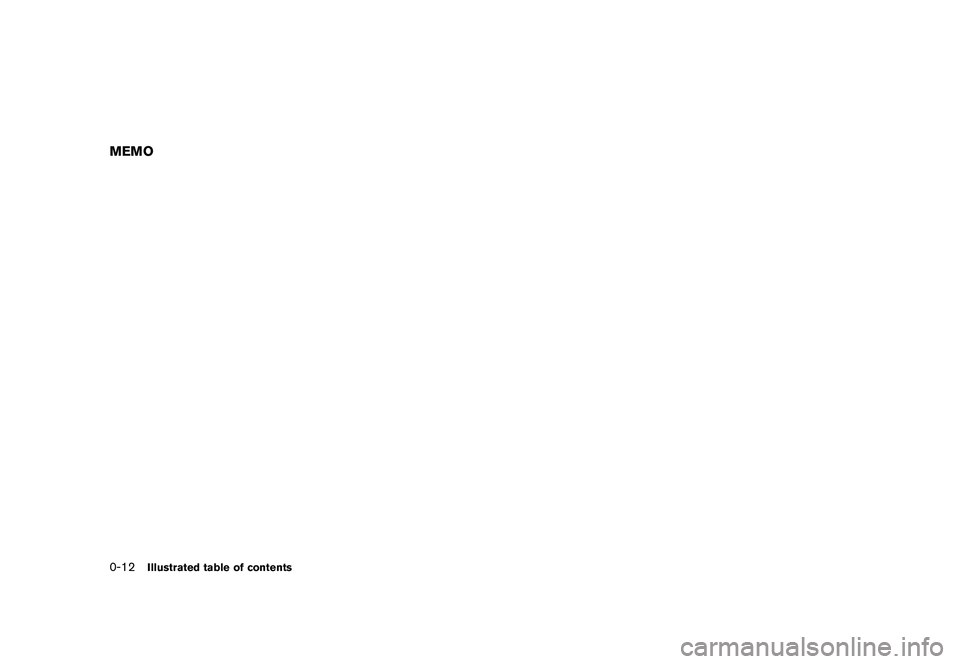

MEMO0-12
Illustrated table of contents
Page 19 of 425
Black plate (4,1)

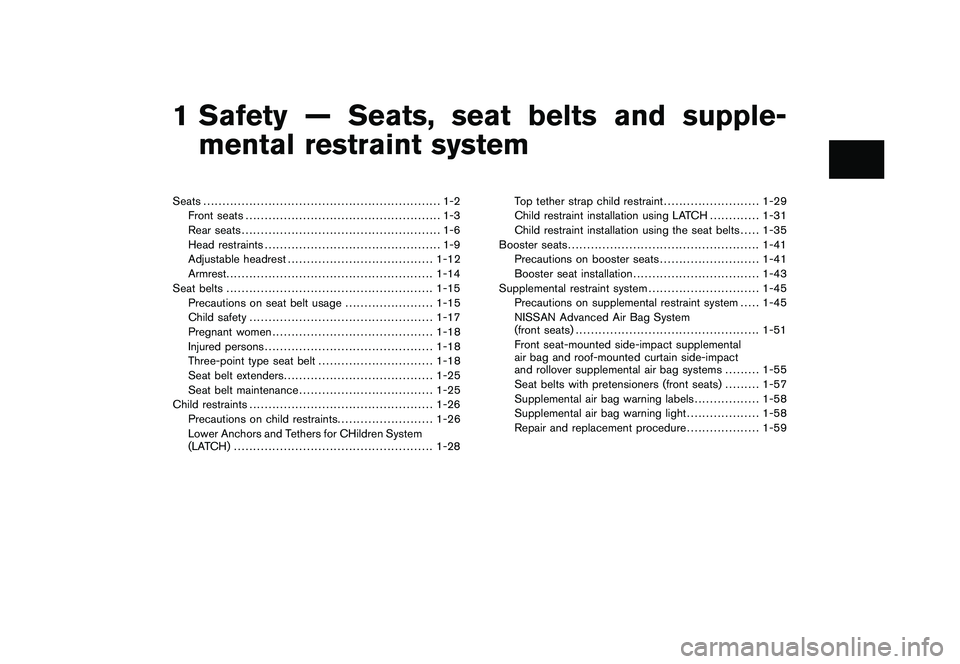

1 Safety — Seats, seat belts and supple-mental restraint system
Model "Z51-D" EDITED: 2009/ 8/ 3
Seats .............................................................. 1-2
Front seats ................................................... 1-3
Rear seats .................................................... 1-6
Head restraints .............................................. 1-9
Adjustable headrest ...................................... 1-12
Armrest ...................................................... 1-14
Seat belts ...................................................... 1-15
Precautions on seat belt usage ....................... 1-15
Child safety ................................................ 1-17
Pregnant women .......................................... 1-18
Injured persons ............................................ 1-18
Three-point type seat belt .............................. 1-18
Seat belt extenders ....................................... 1-25
Seat belt maintenance ................................... 1-25
Child restraints ................................................ 1-26
Precautions on child restraints ......................... 1-26
Lower Anchors and Tethers for CHildren System
(LATCH) .................................................... 1-28 Top tether strap child restraint
......................... 1-29
Child restraint installation using LATCH ............. 1-31
Child restraint installation using the seat belts . .... 1-35
Booster seats .................................................. 1-41
Precautions on booster seats .......................... 1-41
Booster seat installation ................................. 1-43
Supplemental restraint system ............................. 1-45
Precautions on supplemental restraint system . .... 1-45
NISSAN Advanced Air Bag System
(front seats) ................................................ 1-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ......... 1-55
Seat belts with pretensioners (front seats) ......... 1-57
Supplemental air bag warning labels ................. 1-58
Supplemental air bag warning light ................... 1-58
Repair and replacement procedure ................... 1-59
Page 20 of 425
Black plate (16,1)
Model "Z51-D" EDITED: 2009/ 8/ 3
SSS0133

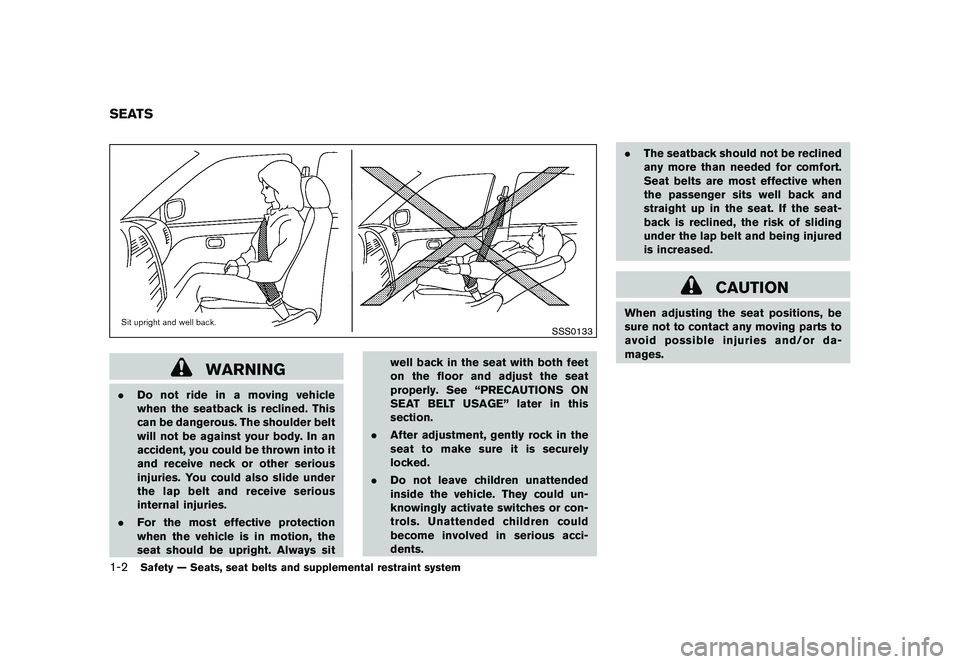

WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system
