0-4Illustrated table of contents
GUID-ACAC74ED-4CE9-4346-84EA-C135DDC40621
JVO0040X
HARDTOP MODELSGUID-45F5CB05-5240-4214-B1AF-9A6EAB41FB531. Hood (P.3-20)
2. Headlight and turn signal lights— Switch operation (P.2-37)
— Bulb replacement (P.8-27)
3. Windshield wiper and washer
— Switch operation (P.2-32) — Rain-sensing auto wiper system* (P.2-34)
— Blade replacement (P.8-18)
— Window washer fluid (P.8-13)
4. Roof rack (rail)* (P.2-54)
5. Moonroof* (P.2-58)
6. Power windows (P.2-55)
7. Recovery hook (P.6-22) 8. License plate installation (P.9-12)
9. Fog lights*
— Switch operation (P.2-41)
— Bulb replacement (P.8-29)
10. Tires — Wheel and tires (P.8-32, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
11. Outside mirrors (P.3-50)
12. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-8)
— Security system (P.2-29)
13. Child safety rear door lock (P.3-8)
14. Fuel-filler door — Operation (P.3-44)
— Fuel recommendation (P.9-3)
*: if so equipped
EXTERIOR FRONT
Condition:
Page 13 of 507
Black plate (11,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SSI0835

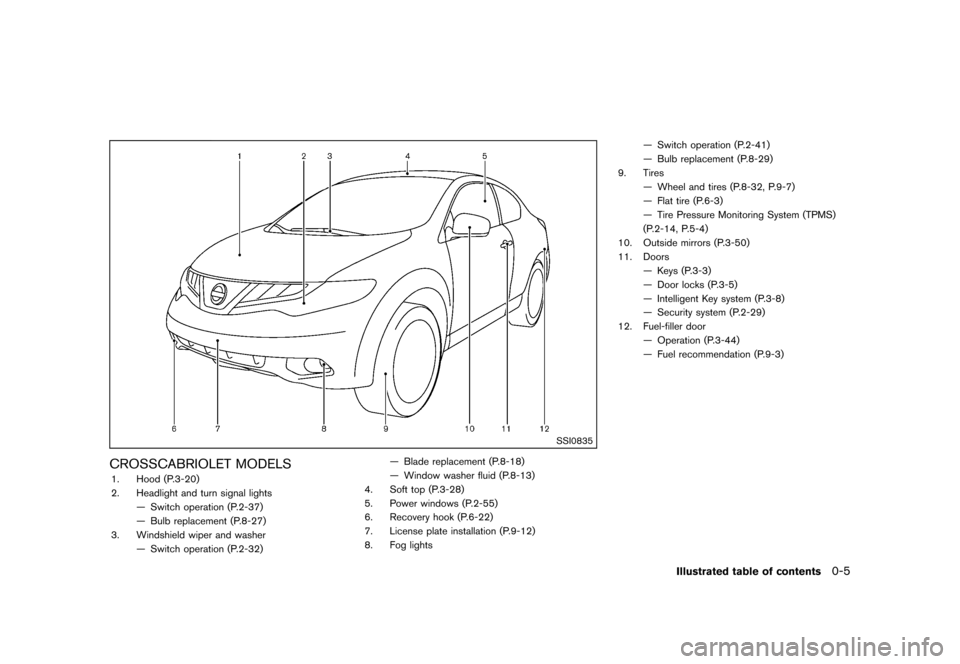

CROSSCABRIOLET MODELSGUID-DF0D496F-8646-47E0-B4BF-8034FB00EB801. Hood (P.3-20)
2. Headlight and turn signal lights— Switch operation (P.2-37)
— Bulb replacement (P.8-27)
3. Windshield wiper and washer — Switch operation (P.2-32) — Blade replacement (P.8-18)
— Window washer fluid (P.8-13)
4. Soft top (P.3-28)
5. Power windows (P.2-55)
6. Recovery hook (P.6-22)
7. License plate installation (P.9-12)
8. Fog lights — Switch operation (P.2-41)
— Bulb replacement (P.8-29)
9. Tires
— Wheel and tires (P.8-32, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-4)
10. Outside mirrors (P.3-50)
11. Doors
— Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-8)
— Security system (P.2-29)
12. Fuel-filler door — Operation (P.3-44)
— Fuel recommendation (P.9-3)
Illustrated table of contents0-5
Condition:
Page 100 of 507
Black plate (98,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-14Instruments and controls
Engine oil pressure warning lightGUID-0AE5784C-961F-4FC8-BFAF-77A224D6D347This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” in the “8. Maintenance and do-it-
yourself” section.)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-0700CAF3-DF55-4F0A-A342-324495D014C0After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, contact a NISSAN dealer for repair
as soon as possible.
Lane Departure Warning (LDW)
light (orange; if so equipped)
GUID-81D318A7-8F3C-436E-BEFA-B4243024E948When the ignition switch is placed in the ON
position, the light will come on in orange and
turn green. This indicates that the Lane Depar-
ture Warning (LDW) system is operational.
While the LDW system is on, the light will blink
in orange and a warning chime will sound if the
vehicle is traveling close to either the left or the
right of a traveling lane with detectable lane
markers.
If the light comes on in orange and remains on, it
may indicate that the LDW system is not
functioning properly. Have the systems checked
by a NISSAN dealer.
See “Blind Spot Warning (BSW)/Lane Depar-
ture Warning (LDW) systems” in the “5. Starting
and driving” section.
Low tire pressure warning lightGUID-2FD87A32-C17B-42A1-B740-5A7539F98F4BYour vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also appears
on the dot matrix liquid crystal display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
Condition:
Page 101 of 507
Black plate (99,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
position as long as the low tire pressure warning
light remains illuminated.
For additional information, see “Dot matrix liquid
crystal display” later in this section, “Tire
Pressure Monitoring System (TPMS)” in the “5.
Starting and driving” section and “Tire Pressure
Monitoring System (TPMS)” in the “6. In case of
emergency” section.
TPMS malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer. The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.
For additional information, see “Tire Pressure
Monitoring System (TPMS)” in the “5. Starting
and driving” section. For the CHECK TIRE
PRESSURE warning, see “Dot matrix liquid
crystal display” later in this section.
WARNING
.If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked by a NISSAN dealer as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat. If you have a flat
tire, replace it with a spare tire as
soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly.
. Be sure to correctly install the
specified size of tires to the four
wheels.
Instruments and controls2-15
Condition:
Page 109 of 507
Black plate (107,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
the empty (E) position.
11. Low washer fluid warningGUID-75BFB25F-0C2B-423E-890D-9368CFA667DDThis warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “Window washer fluid” in the “8. Main-
tenance and do-it-yourself” section.)
12. Door/lift gate open warning (ignition
switch is in the ON position) (Hardtop
models)
GUID-E8BF5142-318A-41D5-8AB1-86843D59BCCFThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
13. Door/trunk open warning (ignition
switch is in the ON position) (Cross-
Cabriolet models)
GUID-CE5E7381-F4E7-4E9D-8BC1-5FDCD9D031B0This warning appears if any of the doors and/or
the trunk are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
14. Loose fuel cap warningGUID-BF7DA770-AB4E-4465-8317-1B41831C3607This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “Fuel-filler cap” in the “3.
Pre-driving checks and adjustments” section.)
15. Check tire pressure warningGUID-0DD3569E-5223-4496-8B17-789648E1715DThis warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
“Low tire pressure warning light” earlier in this
section and “Tire Pressure Monitoring System
(TPMS)” in the “5. Starting and driving” section.)
16. “TIMER” indicatorGUID-FF6A1FD2-B5C4-4083-B2CA-3E728C17C633This indicator appears when the set “TIMER”
indicator activates. You can set the time for up to
6 hours. (See “Trip computer” later in this
section.)
17. Low outside temperature warningGUID-84D86BBA-1B59-4DDE-9353-177DB0D95B81This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See “Trip computer” later in
this section.)
18. Extended storage fuse warningGUID-2A83B50D-AAD9-4A8C-8305-E655D5991D17This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see “Extended
storage fuse switch” in the “8. Maintenance and
do-it-yourself” section.
Instruments and controls2-23
Condition:
Page 349 of 507
Black plate (347,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5 Starting and driving
Precautions when starting and driving...
................................ 5-3
Exhaust gas (carbon monoxide) ...
...................................... 5-3
Three-way catalyst ...
.............................................................. 5-4
Tire Pressure Monitoring System (TPMS) ...
.................... 5-4
Avoiding collision and rollover ...
......................................... 5-7
On-pavement and off-road driving precautions ...
.......... 5-7
Off-road recovery ...
................................................................ 5-7
Rapid air pressure loss ...
...................................................... 5-8
Drinking alcohol/drugs and driving ...
................................. 5-8
Driving safety precautions ...
................................................. 5-9
Push-button ignition switch ...
................................................. 5-11
Intelligent key system ...
...................................................... 5-11
Push-button ignition switch operation ...
........................ 5-12
Push-button ignition switch positions ...
......................... 5-13
Emergency engine shut off ...
............................................ 5-13
Intelligent key battery discharge ...
................................... 5-14
Before starting the engine ...
................................................... 5-14
Starting the engine ...
................................................................ 5-15
Driving the vehicle ...
................................................................. 5-16
Continuously Variable Transmission (CVT) ...
................ 5-16
Parking brake ...
........................................................................\
.. 5-19 Blind Spot Warning (BSW)/Lane Departure Warning
(LDW) systems (if so equipped)
...
....................................... 5-20
BSW system operation ...
................................................ 5-22
BSW driving situations ...
................................................. 5-25
LDW system operation ...
................................................. 5-26
BSW/LDW temporary disabled status ...
.................... 5-29
BSW/LDW automatic deactivation ...
........................... 5-29
BSW/LDW malfunction ...
............................................... 5-29
Camera unit maintenance ...
............................................ 5-29
Cruise control ...
........................................................................\
. 5-30
Precautions on cruise control ...
..................................... 5-30
Cruise control operations ...
............................................ 5-30
Break-in schedule ...
................................................................. 5-31
Fuel efficient driving tips ...
..................................................... 5-32
Increasing fuel economy ...
...................................................... 5-33
All-Wheel Drive (AWD) (if so equipped) ...
........................ 5-33
All-Wheel Drive (AWD) lock switch operations ...
..... 5-33
AWD warning light ...
........................................................ 5-35
Parking/parking on hills ...
........................................................ 5-36
Power steering ...
....................................................................... 5-37
Condition:
Page 352 of 507
Black plate (350,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

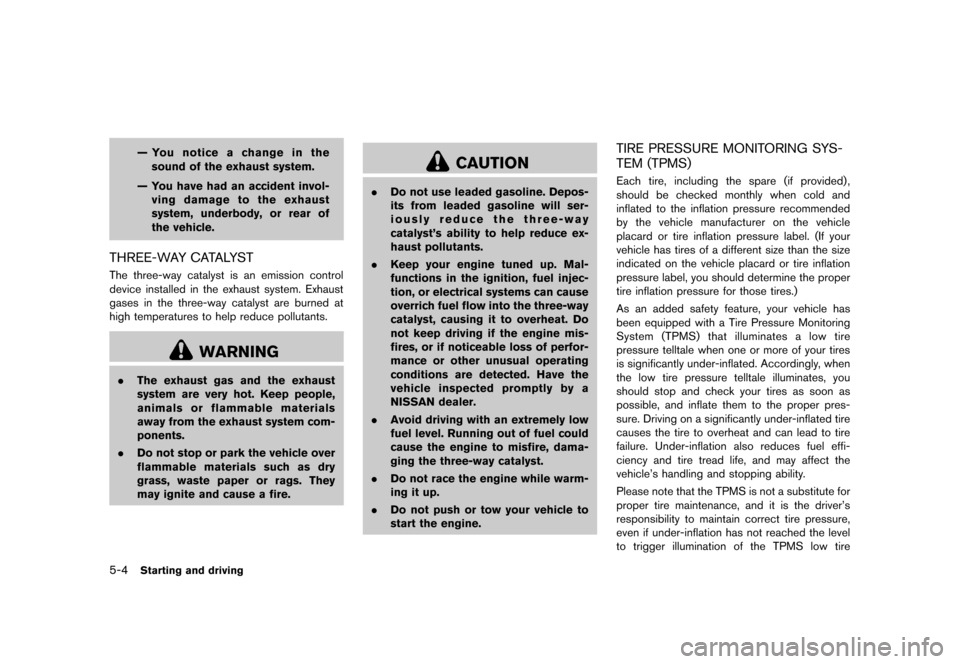

5-4Starting and driving
— You notice a change in thesound of the exhaust system.
— You have had an accident invol- ving damage to the exhaust
system, underbody, or rear of
the vehicle.
THREE-WAY CATALYSTGUID-25B6DA98-F9DE-4D4E-BDE7-81C60C45F38CThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
WARNING
. The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.
. Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.
CAUTION
.Do not use leaded gasoline. Depos-
its from leaded gasoline will ser-
iously reduce the three-way
catalyst’s ability to help reduce ex-
haust pollutants.
. Keep your engine tuned up. Mal-
functions in the ignition, fuel injec-
tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating
conditions are detected. Have the
vehicle inspected promptly by a
NISSAN dealer.
. Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.
. Do not race the engine while warm-
ing it up.
. Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-F7BA83CF-7575-4726-9031-194EDDC1CE8CEach tire, including the spare (if provided) ,
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires
is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
Condition:
Page 353 of 507
Black plate (351,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

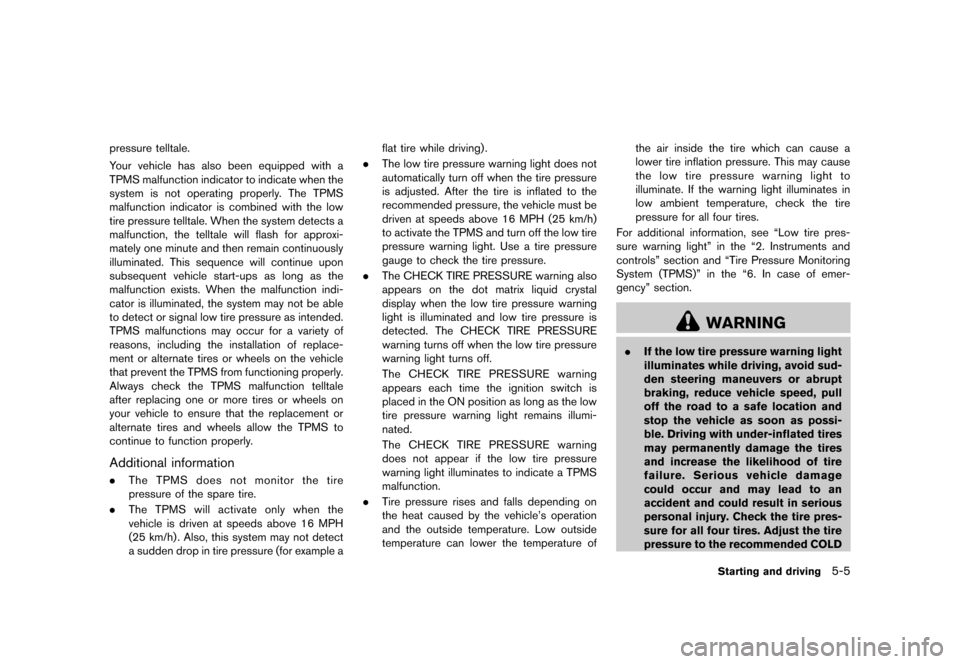

pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.
Additional informationGUID-07B738A4-1137-4087-8AEB-CE89E2044A1C.The TPMS does not monitor the tire
pressure of the spare tire.
. The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . Also, this system may not detect
a sudden drop in tire pressure (for example a flat tire while driving) .
. The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
. The CHECK TIRE PRESSURE warning also
appears on the dot matrix liquid crystal
display when the low tire pressure warning
light is illuminated and low tire pressure is
detected. The CHECK TIRE PRESSURE
warning turns off when the low tire pressure
warning light turns off.
The CHECK TIRE PRESSURE warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a TPMS
malfunction.
. Tire pressure rises and falls depending on
the heat caused by the vehicle’s operation
and the outside temperature. Low outside
temperature can lower the temperature of the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “Tire Pressure Monitoring
System (TPMS)” in the “6. In case of emer-
gency” section.
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
Starting and driving5-5
Condition:
Page 354 of 507
Black plate (352,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

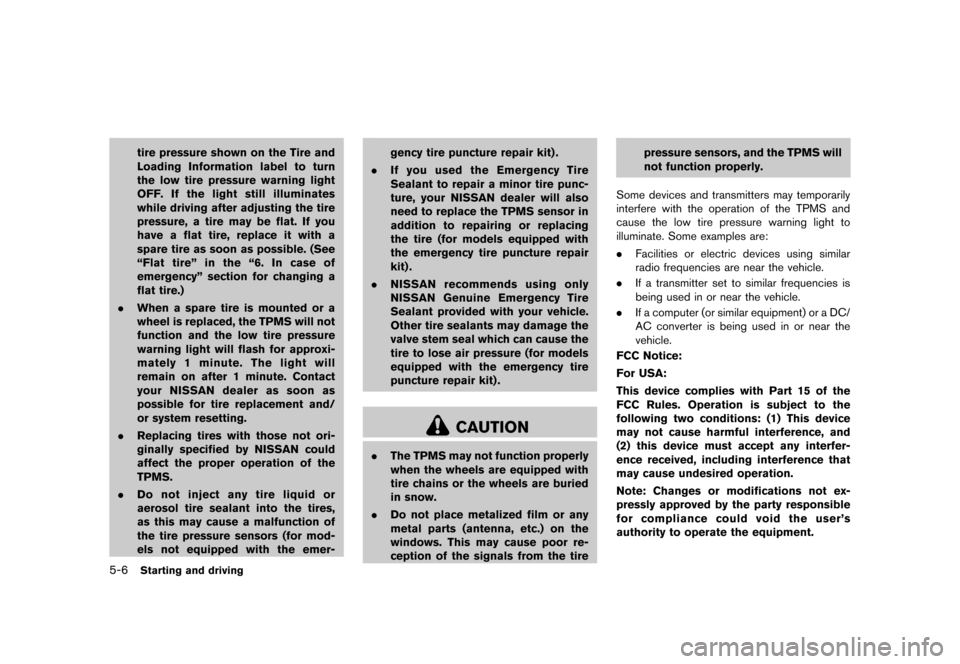

5-6Starting and driving
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you
have a flat tire, replace it with a
spare tire as soon as possible. (See
“Flat tire” in the “6. In case of
emergency” section for changing a
flat tire.)
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors (for mod-
els not equipped with the emer- gency tire puncture repair kit) .
. If you used the Emergency Tire
Sealant to repair a minor tire punc-
ture, your NISSAN dealer will also
need to replace the TPMS sensor in
addition to repairing or replacing
the tire (for models equipped with
the emergency tire puncture repair
kit) .
. NISSAN recommends using only
NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure (for models
equipped with the emergency tire
puncture repair kit) .
CAUTION
.The TPMS may not function properly
when the wheels are equipped with
tire chains or the wheels are buried
in snow.
. Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
. Facilities or electric devices using similar
radio frequencies are near the vehicle.
. If a transmitter set to similar frequencies is
being used in or near the vehicle.
. If a computer (or similar equipment) or a DC/
AC converter is being used in or near the
vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
Condition:
Page 393 of 507
Black plate (391,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off ...
..................................................... 6-2
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire (Hardtop models) ...
.......................... 6-4
Repairing flat tire (CrossCabriolet models) ...
............... 6-10 Jump starting
...
........................................................................\
.. 6-15
Push starting ...
........................................................................\
... 6-17
If your vehicle overheats ...
...................................................... 6-17
Towing your vehicle ...
.............................................................. 6-19
Towing recommended by NISSAN ...
........................... 6-20
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-22
Condition:
