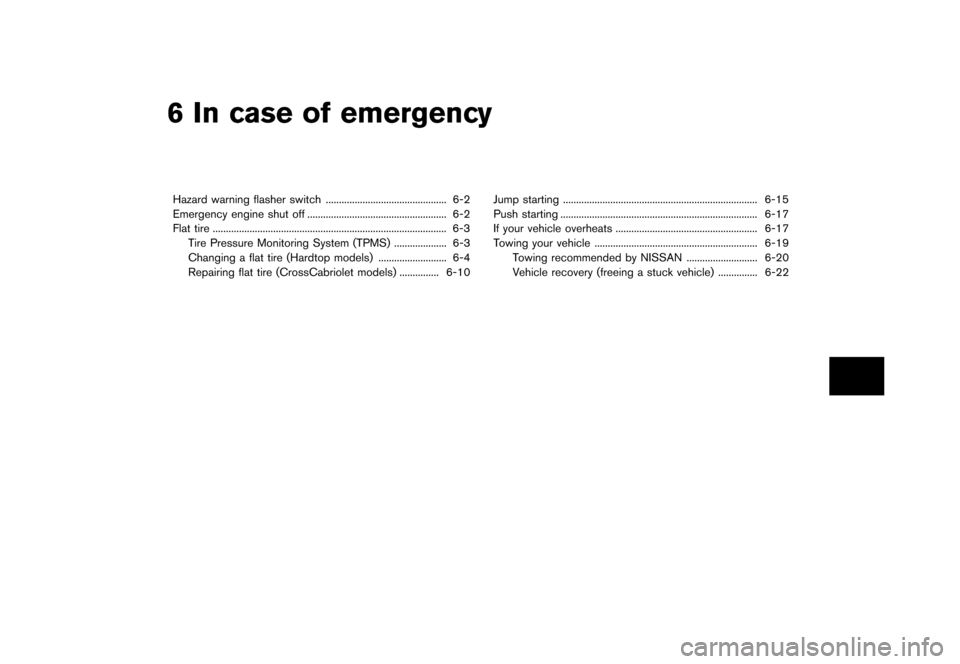

Page 393 of 507
Black plate (391,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off ...
..................................................... 6-2
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire (Hardtop models) ...
.......................... 6-4
Repairing flat tire (CrossCabriolet models) ...
............... 6-10 Jump starting
...
........................................................................\
.. 6-15
Push starting ...
........................................................................\
... 6-17
If your vehicle overheats ...
...................................................... 6-17
Towing your vehicle ...
.............................................................. 6-19
Towing recommended by NISSAN ...
........................... 6-20
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-22
Condition:

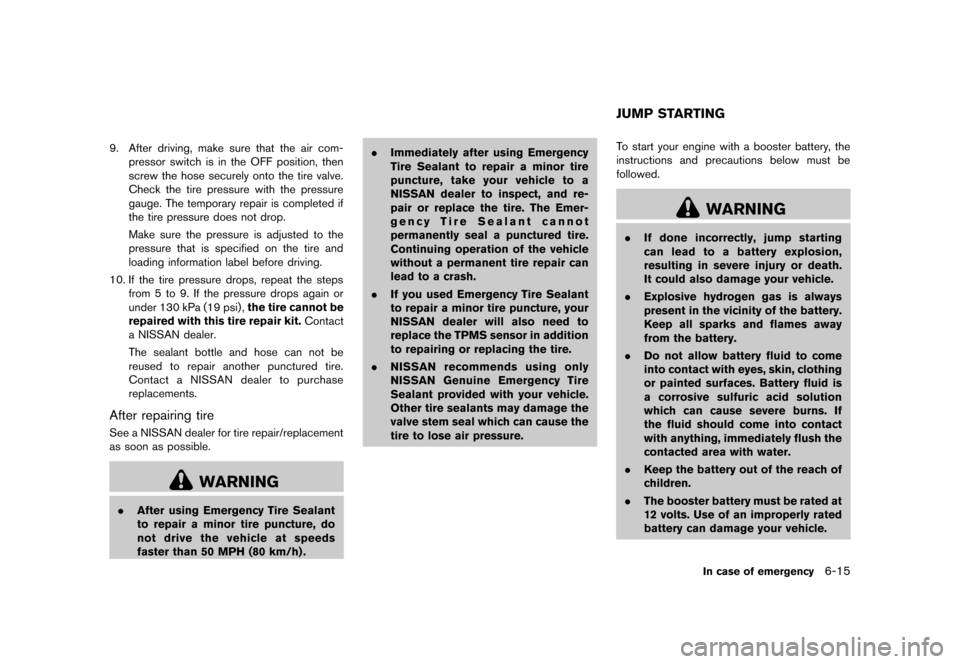

Page 407 of 507
Black plate (405,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
9. After driving, make sure that the air com-pressor switch is in the OFF position, then
screw the hose securely onto the tire valve.
Check the tire pressure with the pressure
gauge. The temporary repair is completed if
the tire pressure does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops again or
under 130 kPa (19 psi), the tire cannot be
repaired with this tire repair kit. Contact
a NISSAN dealer.
The sealant bottle and hose can not be
reused to repair another punctured tire.
Contact a NISSAN dealer to purchase
replacements.
After repairing tireGUID-469AF29F-F6EE-40DB-B0B7-529D9E5B786ESee a NISSAN dealer for tire repair/replacement
as soon as possible.
WARNING
. After using Emergency Tire Sealant
to repair a minor tire puncture, do
not drive the vehicle at speeds
faster than 50 MPH (80 km/h) . .
Immediately after using Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to a
NISSAN dealer to inspect, and re-
pair or replace the tire. The Emer-
gency Tire Sealant cannot
permanently seal a punctured tire.
Continuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
. If you used Emergency Tire Sealant
to repair a minor tire puncture, your
NISSAN dealer will also need to
replace the TPMS sensor in addition
to repairing or replacing the tire.
. NISSAN recommends using only
NISSAN Genuine Emergency Tire
Sealant provided with your vehicle.
Other tire sealants may damage the
valve stem seal which can cause the
tire to lose air pressure.
GUID-87EAE9E4-D939-422C-B364-EFAF4EB4B3F2To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
.If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulfuric acid solution
which can cause severe burns. If
the fluid should come into contact
with anything, immediately flush the
contacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
In case of emergency6-15
JUMP STARTING
Condition:

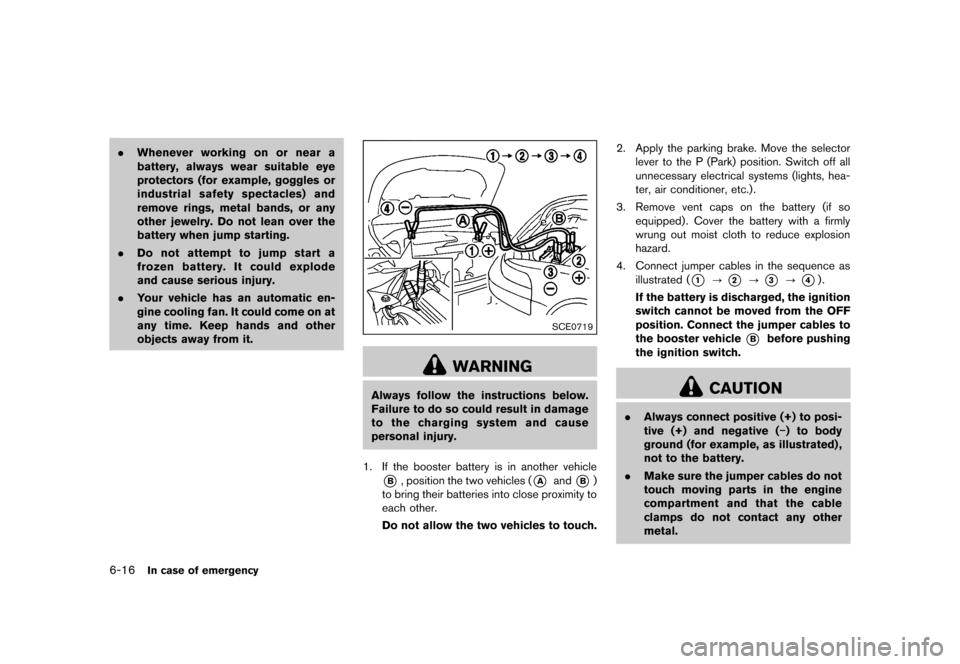

Page 408 of 507
Black plate (406,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
6-16In case of emergency
.Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.
SCE0719
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.
1. If the booster battery is in another vehicle
*B, position the two vehicles (*Aand*B)
to bring their batteries into close proximity to
each other.
Do not allow the two vehicles to touch. 2. Apply the parking brake. Move the selector
lever to the P (Park) position. Switch off all
unnecessary electrical systems (lights, hea-
ter, air conditioner, etc.).
3. Remove vent caps on the battery (if so equipped) . Cover the battery with a firmly
wrung out moist cloth to reduce explosion
hazard.
4. Connect jumper cables in the sequence as illustrated (
*1?*2?*3?*4) .
If the battery is discharged, the ignition
switch cannot be moved from the OFF
position. Connect the jumper cables to
the booster vehicle
*Bbefore pushing
the ignition switch.
CAUTION
. Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, as illustrated) ,
not to the battery.
. Make sure the jumper cables do not
touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.
Condition:

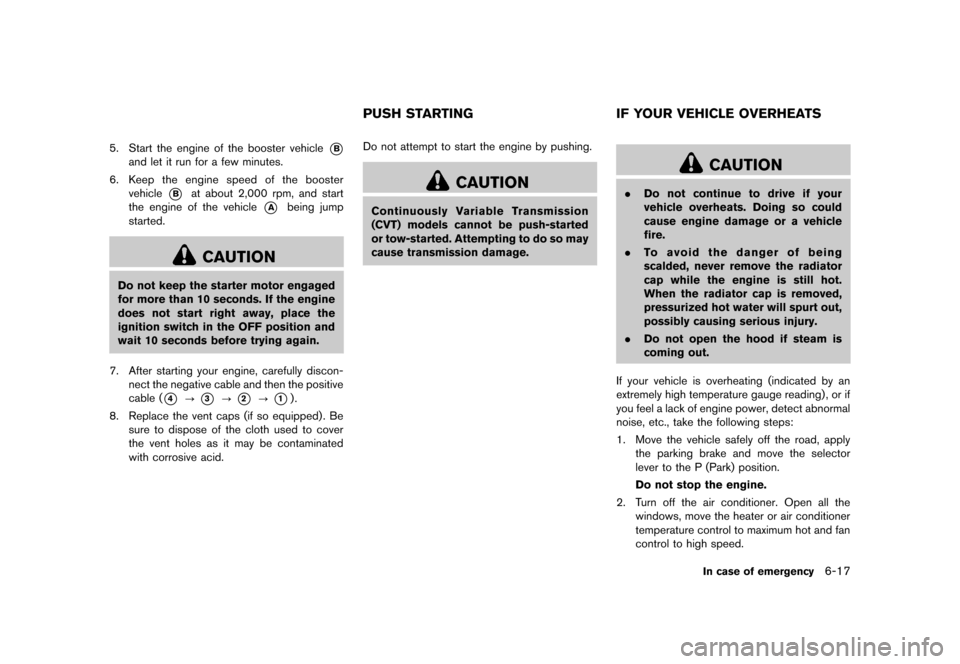

Page 409 of 507
Black plate (407,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
5. Start the engine of the booster vehicle*B
and let it run for a few minutes.
6. Keep the engine speed of the booster
vehicle
*Bat about 2,000 rpm, and start
the engine of the vehicle
*Abeing jump
started.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the
ignition switch in the OFF position and
wait 10 seconds before trying again.
7. After starting your engine, carefully discon- nect the negative cable and then the positive
cable (
*4?*3?*2?*1) .
8. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
GUID-C5D48490-7786-4F89-AA89-502A3A18D71FDo not attempt to start the engine by pushing.
CAUTION
Continuously Variable Transmission
(CVT) models cannot be push-started
or tow-started. Attempting to do so may
cause transmission damage.
GUID-F7BD7B71-591F-48BF-AF5A-8E7582E463D3
CAUTION
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.
. To avoid the danger of being
scalded, never remove the radiator
cap while the engine is still hot.
When the radiator cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.
. Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect abnormal
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position.
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed.
In case of emergency6-17
PUSH STARTING IF YOUR VEHICLE OVERHEATS
Condition:

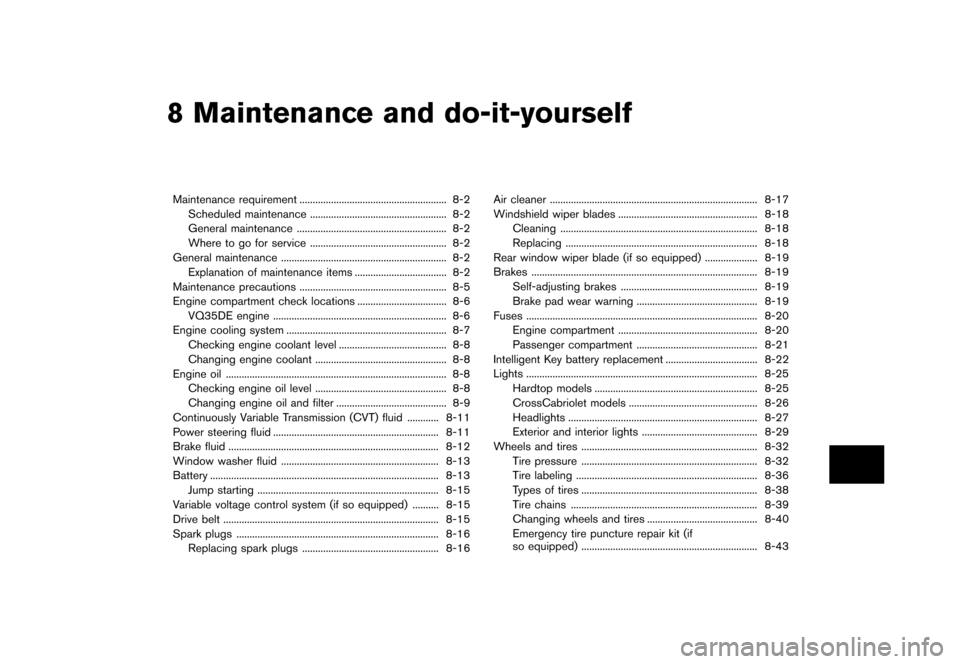

Page 425 of 507
Black plate (423,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
VQ35DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-8
Checking engine oil level ...
.................................................. 8-8
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Power steering fluid ...
............................................................... 8-11
Brake fluid ...
........................................................................\
........ 8-12
Window washer fluid ...
............................................................ 8-13
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-15
Variable voltage control system (if so equipped) ...
.......... 8-15
Drive belt ...
........................................................................\
.......... 8-15
Spark plugs ...
........................................................................\
..... 8-16
Replacing spark plugs ...
.................................................... 8-16 Air cleaner
...
........................................................................\
....... 8-17
Windshield wiper blades ...
..................................................... 8-18
Cleaning ...
........................................................................\
... 8-18
Replacing ...
........................................................................\
. 8-18
Rear window wiper blade (if so equipped) ...
.................... 8-19
Brakes ...
........................................................................\
.............. 8-19
Self-adjusting brakes ...
.................................................... 8-19
Brake pad wear warning ...
.............................................. 8-19
Fuses ...
........................................................................\
................ 8-20
Engine compartment ...
..................................................... 8-20
Passenger compartment ...
.............................................. 8-21
Intelligent Key battery replacement ...
................................... 8-22
Lights ...
........................................................................\
................ 8-25
Hardtop models ...
.............................................................. 8-25
CrossCabriolet models ...
................................................. 8-26
Headlights ...
........................................................................\
8-27
Exterior and interior lights ...
............................................ 8-29
Wheels and tires ...
................................................................... 8-32
Tire pressure ...
................................................................... 8-32
Tire labeling ...
..................................................................... 8-36
Types of tires ...
................................................................... 8-38
Tire chains ...
....................................................................... 8-39
Changing wheels and tires ...
.......................................... 8-40
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-43
Condition:

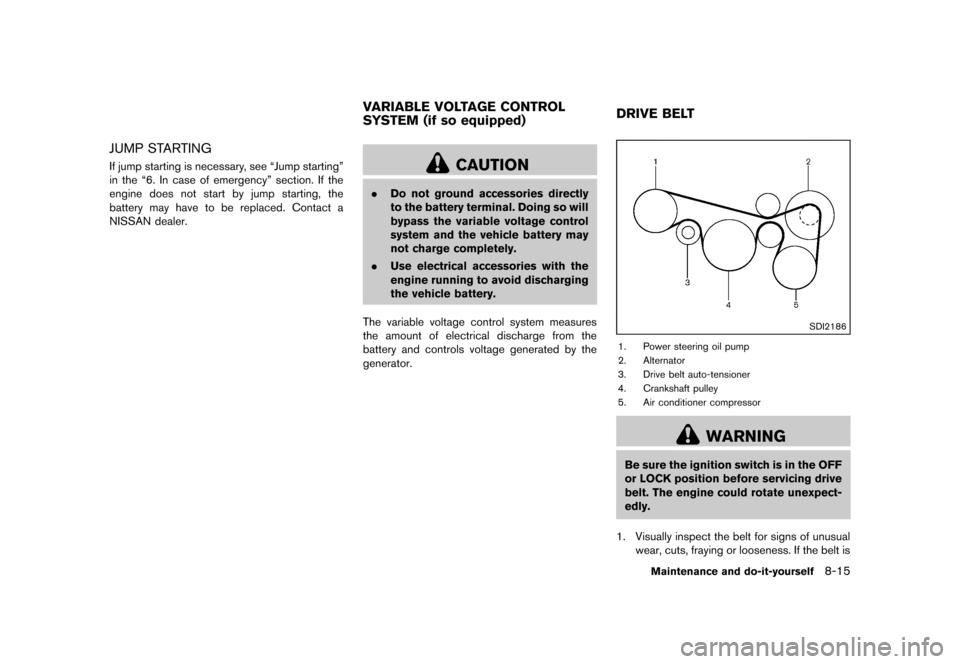

Page 439 of 507
Black plate (437,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
JUMP STARTINGGUID-8388D2A5-1AA4-4543-8945-3818D12359C5If jump starting is necessary, see “Jump starting”
in the “6. In case of emergency” section. If the
engine does not start by jump starting, the
battery may have to be replaced. Contact a
NISSAN dealer.
GUID-A57D0C74-2880-49D1-B6F8-A870230F48C1
CAUTION
.Do not ground accessories directly
to the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.
. Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
GUID-C7A9F001-0CB6-4300-AC6F-E7BA2ACAD7EA
SDI2186
1. Power steering oil pump
2. Alternator
3. Drive belt auto-tensioner
4. Crankshaft pulley
5. Air conditioner compressor
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belt. The engine could rotate unexpect-
edly.
1. Visually inspect the belt for signs of unusual wear, cuts, fraying or looseness. If the belt is
Maintenance and do-it-yourself8-15
VARIABLE VOLTAGE CONTROL
SYSTEM (if so equipped) DRIVE BELT
Condition:
Page 501 of 507
Black plate (499,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
FuelCapacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-33
Fuel economy information (display) ...
................. 4-11
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-44
Fuel-filler door ...
....................................................... 3-44
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-46
Fuel efficient driving tips ...
........................................... 5-32
Fuses ...
.............................................................................. 8-20
Fusible links ...
.................................................................. 8-21
G
Garage door opener, HomeLink®
Universal Transceiver ...
.................................................. 2-63
Gas cap ...
......................................................................... 3-44
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................ 2-25
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-49
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
............................. 4-89
Hands-free phone system, Bluetooth®
(models without navigation system) ...
.................... 4-100
Hazard warning flasher switch ...
................................... 6-2 Head restraints
...
............................................................ 1-11
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch ...
................................................... 2-37
Xenon headlights ...
.................................................. 2-37
Heated seats ...
................................................................ 2-42
Heated steering wheel ...
............................................... 2-41
Heater Engine block heater ...
............................................. 5-42
Heater and air conditioner operation ...
.............. 4-41
HomeLink
®Universal Transceiver ...
........................... 2-63
Hood release ...
................................................................ 3-20
Hook Coat hooks ...
............................................................ 2-55
Luggage hook ...
....................................................... 2-53
Horn ...
................................................................................ 2-41
I
Ignition switch (Push-button) ...
................................... 5-11
Immobilizer system ...
...................................................... 2-31
In-cabin microfilter ...
...................................................... 4-45
Indicator Dot matrix display ...
................................................. 2-20
Lights ...
....................................................................... 2-17
INFO button ...
.................................................................... 4-9
Inside mirror ...
.................................................................. 3-48
Inspection/maintenance (I/M) test ...
.......................... 9-28
Instrument brightness control ...
.................................. 2-40
Instrument panel ...
............................................................ 2-4
Intelligent Key system ...
......................................... 3-3, 3-8
Battery replacement ...
............................................ 8-22
Key operating range ...
............................................ 3-10
Key operation ...
........................................................ 3-11
Warning light ...
......................................................... 2-14
Warning signals ...
.................................................... 3-14
Intelligent Key warning light ...
...................................... 2-14 Interior light control switch
...
....................................... 2-61
Interior light replacement ...
........................................... 8-29
Interior lights ...
................................................................. 2-60
iPod
®player operation ...
............................................... 4-82
ISOFIX child restraint ...
................................................. 1-30
J
Jump starting ...
................................................................ 6-15
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-16
Keys ...
.................................................................................. 3-3
For Intelligent Key system ...
............................ 3-3, 3-8
L
Labels
Air bag warning labels ...
........................................ 1-60
Air conditioner specification label ...
.................... 9-11
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-10
Tire and Loading information label ...
....... 8-34, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
Lane Departure Warning (LDW) light (green) ...
.... 2-18
Lane Departure Warning (LDW) light (orange) ...
.... 2-14
Lane Departure Warning (LDW) system ...
.............. 5-20
LATCH system ...
............................................................. 1-30
License plate, Installing front license plate ...
.......... 9-12
Lift gate ...
.......................................................................... 3-20
Light Air bag warning light ...
........................................... 1-60
Bulb replacement ...
................................................. 8-25
Cargo lights ...
........................................................... 2-63
10-3
Condition:
Page 503 of 507
Black plate (501,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
PowerFront seat adjustment ...
............................................ 1-4
Power door lock ...
...................................................... 3-5
Power outlet ...
.......................................................... 2-45
Power steering fluid ...
............................................. 8-11
Power steering system ...
....................................... 5-37
Power windows ...
.................................................... 2-55
Precautions Audio operation ...
.................................................... 4-46
Braking precautions ...
............................................. 5-37
Child restraints ...
...................................................... 1-28
Cruise control ...
........................................................ 5-30
Driving safety ...
............................................................ 5-9
Maintenance ...
............................................................. 8-5
On-pavement and off-road driving ...
..................... 5-7
Seat belt usage ...
.................................................... 1-15
Supplemental restraint system ...
.......................... 1-45
When starting and driving ...
.................................... 5-3
Push starting ...
................................................................ 6-17
“PUSH” warning ...
.......................................................... 2-22
Push-button ignition switch ...
.......................... 5-11, 5-12
R
Radio ...
.............................................................................. 4-46
Car phone or CB radio ...
...................................... 4-89
FM-AM radio with Compact Disc
(CD) changer ...
........................................................ 4-61
FM-AM-SAT radio with Compact Disc
(CD) player ...
............................................................ 4-66
Rain-sensing auto wiper system ...
............................. 2-34
Rapid air pressure loss ...
................................................ 5-8
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-28
Rear and rear-wide view monitor with Moving
Object Detection (MOD) ...
.......................................... 4-30
Rear center seat belt ...
................................................. 1-22 Rear door lock, Child safety rear door lock
...
........... 3-8
Rear seats ...
....................................................................... 1-9
Rear window and outside mirror
defroster switch ...
........................................................... 2-36
Rear window wiper and washer switch ...
................ 2-35
Rearview monitor ...
......................................................... 4-23
Recorders, Event data ...
............................................... 9-29
Registering your vehicle in another country ...
........... 9-8
Remote keyless entry system ...
................................... 3-16
Repairing flat tire (CrossCabriolet models) ...
......... 6-10
Reporting safety defects (US only) ...
........................ 9-27
Rollover ...
............................................................................ 5-7
Roof, Roof rack ...
............................................................ 2-54
Roof, Soft top ...
.............................................................. 3-28
S
Safety
Child seat belts ...
.................................................... 1-26
Reporting safety defects (US only) ...
................. 9-27
Towing safety ...
......................................................... 9-21
Satellite radio operation ...
............................................ 4-67
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-4
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-26
Infants ...
...................................................................... 1-27
Injured persons ...
..................................................... 1-18
Larger children ...
...................................................... 1-27
Precautions on seat belt usage ...
........................ 1-15
Pregnant women ...
.................................................. 1-18
Rear center seat belt ...
.......................................... 1-22
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-25
Seat belt hooks ...
.................................................... 1-22 Seat belt maintenance
...
........................................ 1-26
Seat belt warning light ...
........................................ 2-16
Seat belts ...
............................................................... 1-15
Seat belts with pretensioners ...
........................... 1-58
Shoulder belt height adjustment ...
...................... 1-21
Small children ...
........................................................ 1-27
Three-point type ...
................................................... 1-18
Seat(s) Driver-side memory ...
.............................................. 3-51
Heated seats ...
......................................................... 2-42
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-31
Security system, Vehicle security system ...
............. 2-30
Selector lever Shift lock release ...
.................................................. 5-19
Servicing air conditioner ...
............................................ 4-45
SETTING button ...
.......................................................... 4-13
Shift lock release, Transmission ...
.............................. 5-19
SHIFT “P” warning ...
...................................................... 2-22
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-16
Shoulder belt height adjustment ...
............................. 1-21
Soft top Care and cleaning (CrossCabriolet models) ...
.... 7-3
If the top does not open or close ...
.................... 3-38
Soft top indicator light ...
............................. 2-19, 3-33
Soft top operation ...
................................................ 3-28
SOURCE select switch ...
............................................. 4-87
Spare tire ...
.............................................................. 8-42, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-14
Jump starting ...
......................................................... 6-15
Precautions when starting and driving ...
.............. 5-3
Push starting ...
......................................................... 6-17
10-5
Condition:
