NISSAN MURANO 2018 Owner´s Manual

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ............................... 1-4
Rear bench seat adjustment ................. 1-6
Armrests ..................................... 1-6
Flexible seating ................................1-7
Head restraints/headrests ...................... 1-9
Adjustable head restraint/headrest
components ................................. 1-10
Non-adjustable head restraint/
headrest components ........................ 1-11
Remove...................................... 1-11
Install ......................................... 1-12
Adjust ........................................ 1-12
Seatbelts ....................................... 1-13
Precautions on seat belt usage ...............1-13
Seat belt warning light ........................ 1-16
Pregnant women ............................. 1-16
Injured persons ............................... 1-16
Three-point type seat belt with
retractor ..................................... 1-16Seat belt extenders
.......................... 1-24
Seat belt maintenance ......................1-24
Child safety ..................................... 1-25
Infants ...................................... 1-26
Small children ............................... 1-26
Larger children .............................. 1-26
Child restraints ................................. 1-27
Precautions on child restraints ..............1-27
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-30
Rear-facing child restraint installation
using LATCH ................................. 1-33
Rear-facing child restraint installation
using the seat belts ......................... 1-34
Forward-facing child restraint
installation using LATCH .....................1-37
Forward-facing child restraint
installation using the seat belts ...............1-41
Booster seats ............................... 1-45
Supplemental Restraint System (SRS) ...........1-49
Precautions on SRS .......................... 1-49
Supplemental air bag warning labels ........1-68
Supplemental
air bag warning light ..........1-69

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

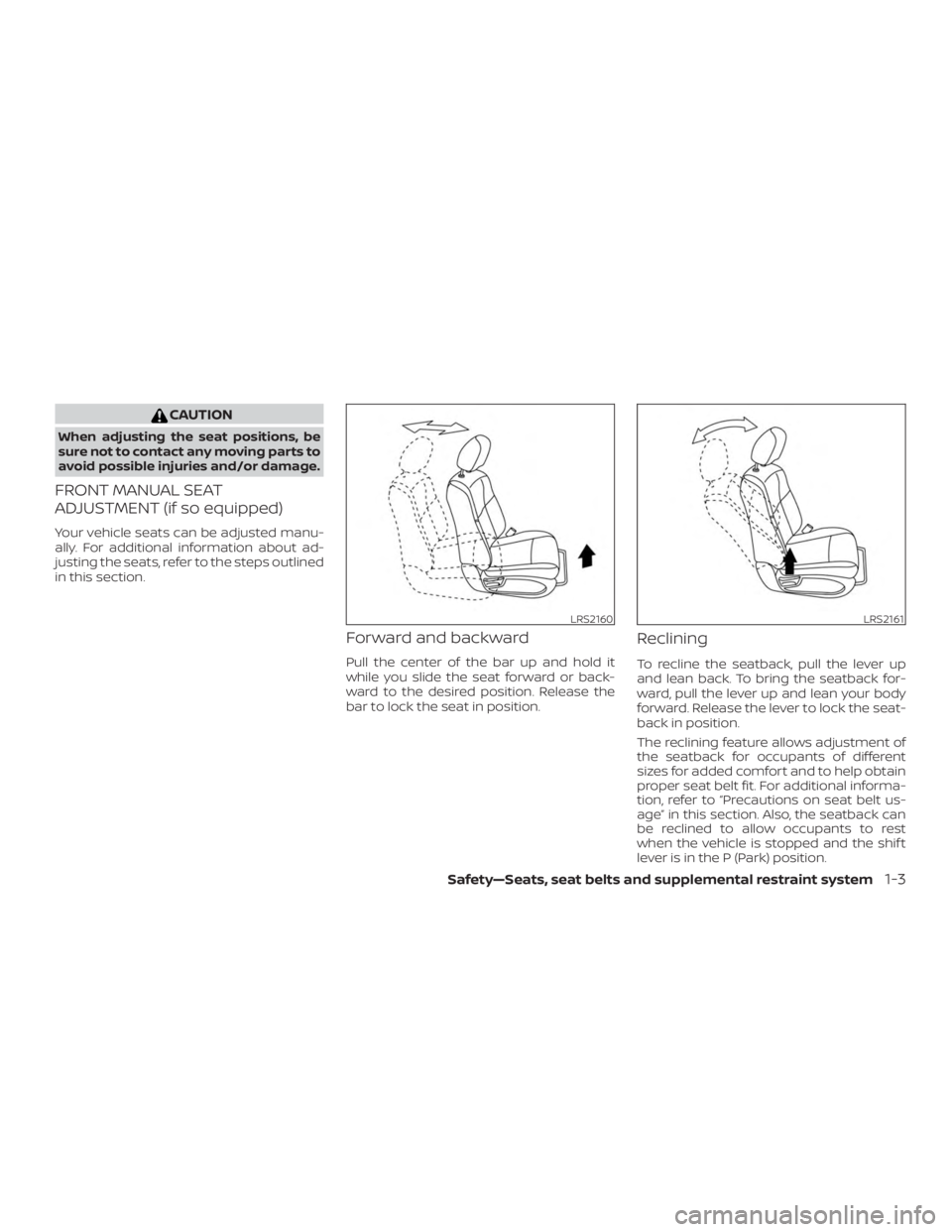

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2160LRS2161
Safety—Seats, seat belts and supplemental restraint system1-3

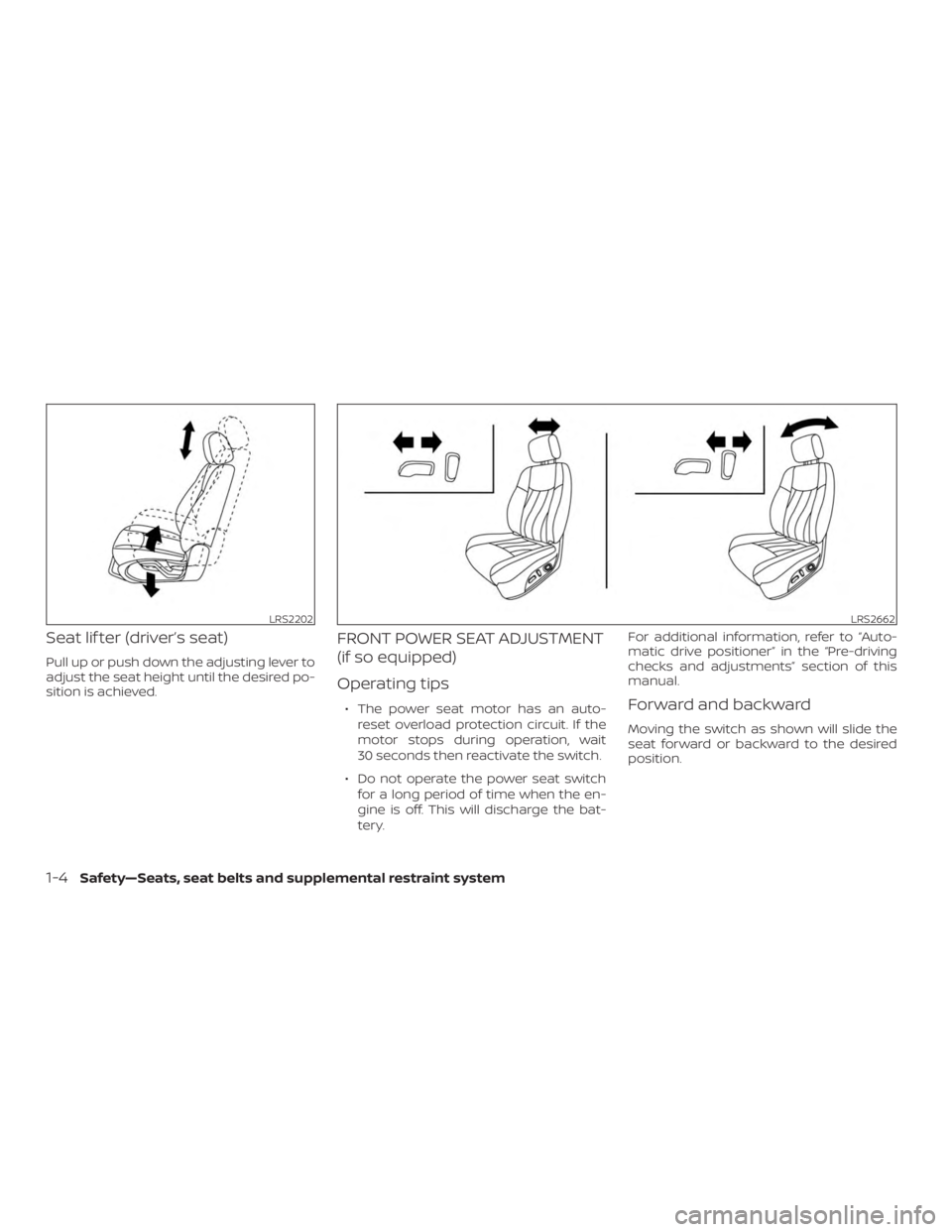

Seat lif ter (driver’s seat)
Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.
FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the en-
gine is off. This will discharge the bat-
tery. For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
LRS2202LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system

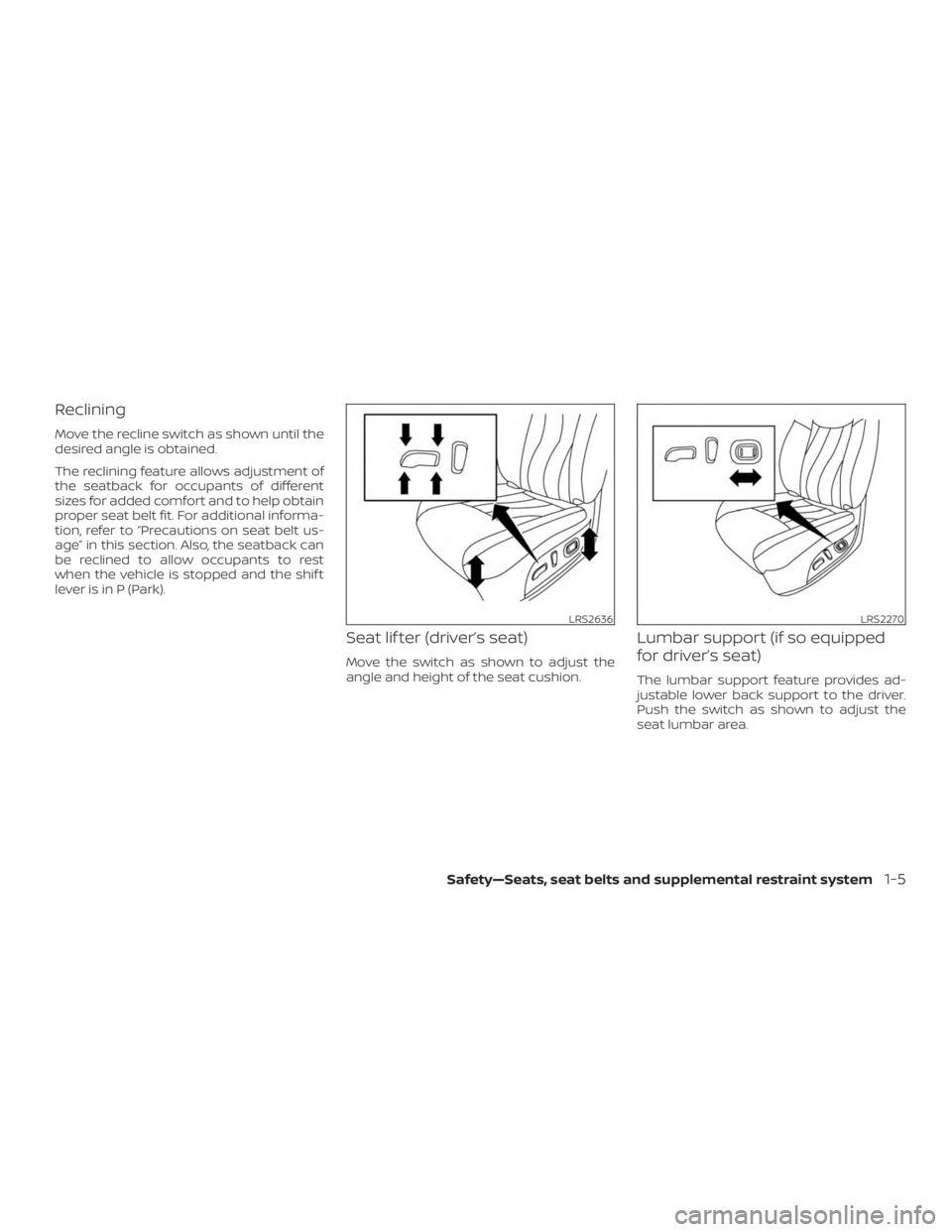

Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
Seat lif ter (driver’s seat)
Move the switch as shown to adjust the
angle and height of the seat cushion.
Lumbar support (if so equipped
for driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seat lumbar area.
LRS2636LRS2270
Safety—Seats, seat belts and supplemental restraint system1-5

REAR BENCH SEAT ADJUSTMENT
Reclining
Pull the reclining strapAand position the
seatback at the desired angle. Release the
reclining strap af ter positioning the seat at
the desired angle.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes to help obtain proper seat belt fit. For
additional information, refer to “Precau-
tions on seat belt usage” in this section. The
seatback may also be reclined to allow oc-
cupants to rest when the vehicle is parked.
WARNING
∙ Af ter adjustment, check to be sure the seat is securely locked.
∙ Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.
∙ For the most effective protection when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
belt properly. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section.
ARMRESTS
The rear bench center armrest is locked in
the up position. To lower the armrest, pull
the armrest down as shown.
To return the armrest to the up position,
push up on the armrest until it is in the full
up position.
LRS2635LRS2588
1-6Safety—Seats, seat belts and supplemental restraint system

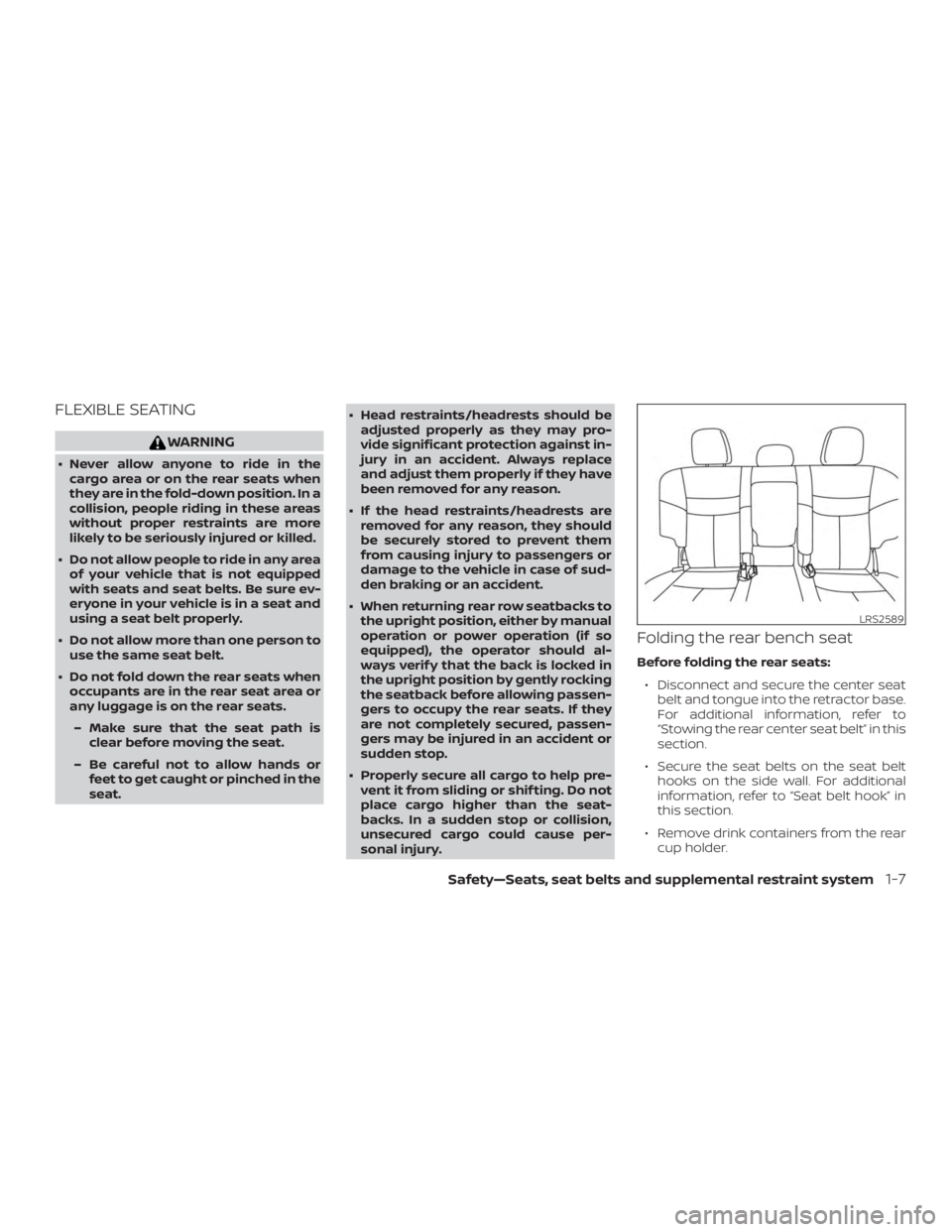

FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seats when
they are in the fold-down position. In a
collision, people riding in these areas
without proper restraints are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the
seat. ∙ Head restraints/headrests should be
adjusted properly as they may pro-
vide significant protection against in-
jury in an accident. Always replace
and adjust them properly if they have
been removed for any reason.
∙ If the head restraints/headrests are removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers or
damage to the vehicle in case of sud-
den braking or an accident.
∙ When returning rear row seatbacks to the upright position, either by manual
operation or power operation (if so
equipped), the operator should al-
ways verif y that the back is locked in
the upright position by gently rocking
the seatback before allowing passen-
gers to occupy the rear seats. If they
are not completely secured, passen-
gers may be injured in an accident or
sudden stop.
∙ Properly secure all cargo to help pre- vent it from sliding or shif ting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
Folding the rear bench seat
Before folding the rear seats:
∙ Disconnect and secure the center seat belt and tongue into the retractor base.
For additional information, refer to
“Stowing the rear center seat belt” in this
section.
∙ Secure the seat belts on the seat belt hooks on the side wall. For additional
information, refer to “Seat belt hook” in
this section.
∙ Remove drink containers from the rear cup holder.
LRS2589
Safety—Seats, seat belts and supplemental restraint system1-7

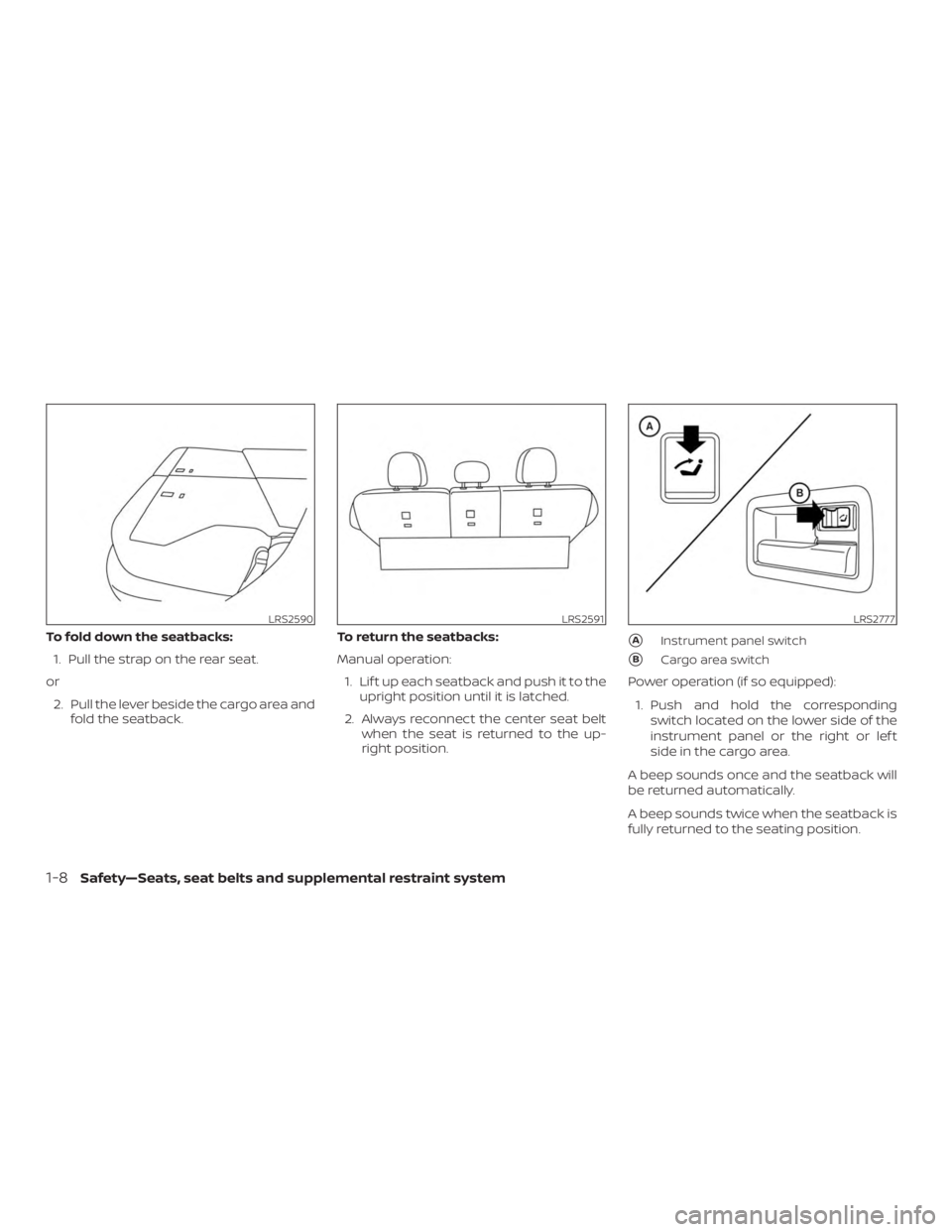

To fold down the seatbacks:1. Pull the strap on the rear seat.
or 2. Pull the lever beside the cargo area and fold the seatback. To return the seatbacks:
Manual operation:
1. Lif t up each seatback and push it to the upright position until it is latched.
2. Always reconnect the center seat belt when the seat is returned to the up-
right position.AInstrument panel switch
BCargo area switch
Power operation (if so equipped):
1. Push and hold the corresponding switch located on the lower side of the
instrument panel or the right or lef t
side in the cargo area.
A beep sounds once and the seatback will
be returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position.
LRS2590LRS2591LRS2777
1-8Safety—Seats, seat belts and supplemental restraint system

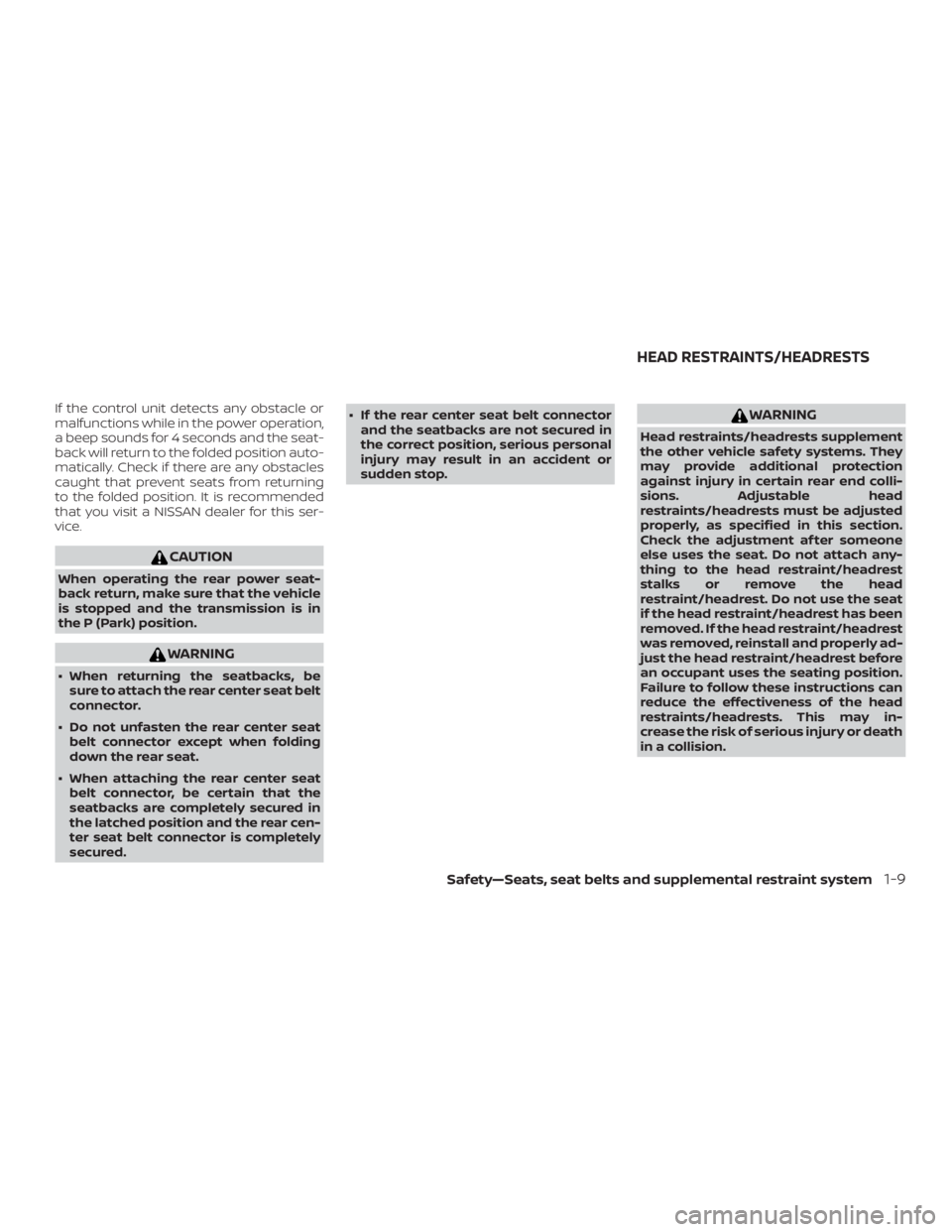

If the control unit detects any obstacle or
malfunctions while in the power operation,
a beep sounds for 4 seconds and the seat-
back will return to the folded position auto-
matically. Check if there are any obstacles
caught that prevent seats from returning
to the folded position. It is recommended
that you visit a NISSAN dealer for this ser-
vice.
CAUTION
When operating the rear power seat-
back return, make sure that the vehicle
is stopped and the transmission is in
the P (Park) position.
WARNING
∙ When returning the seatbacks, besure to attach the rear center seat belt
connector.
∙ Do not unfasten the rear center seat belt connector except when folding
down the rear seat.
∙ When attaching the rear center seat belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured. ∙ If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head
restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment af ter someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests. This may in-
crease the risk of serious injury or death
in a collision.
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-9

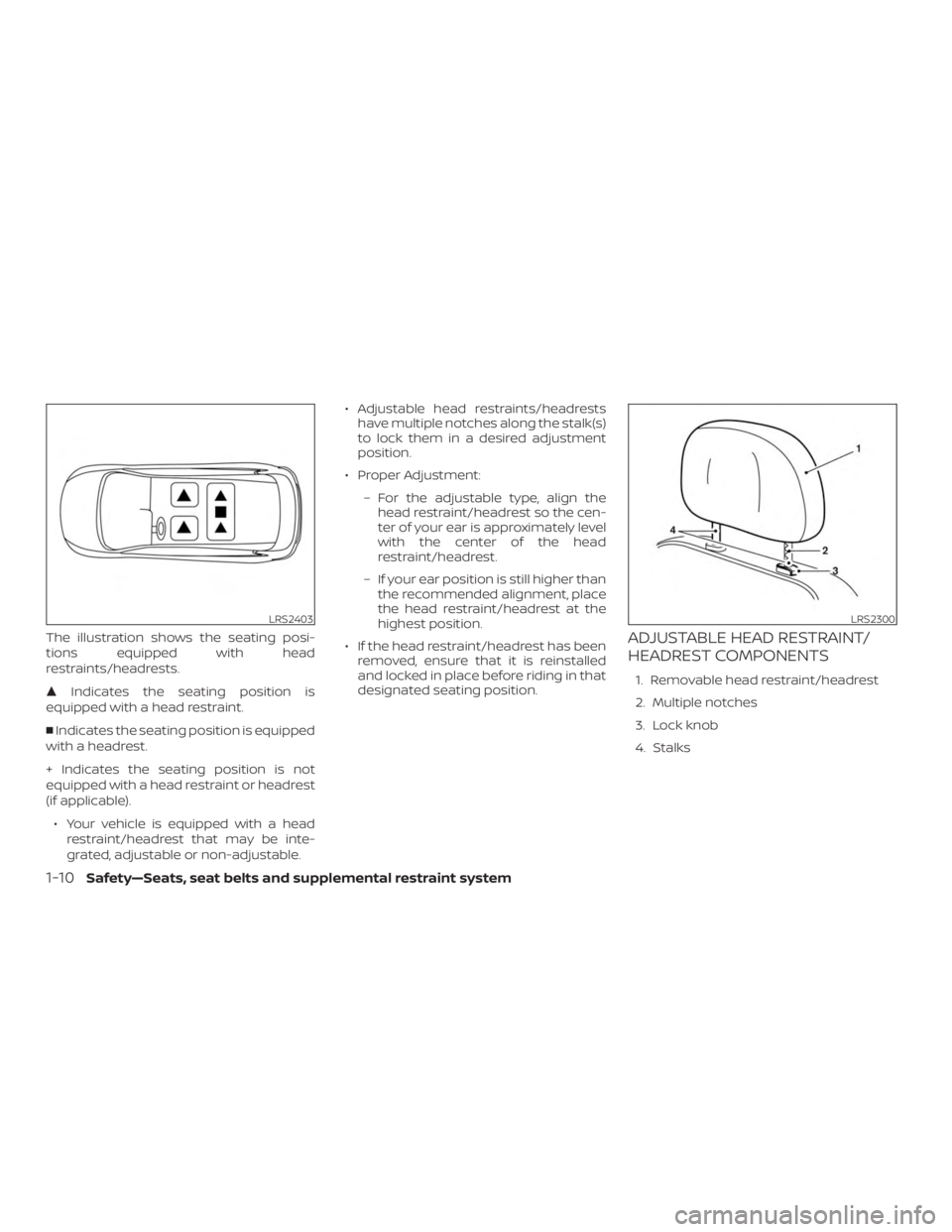

The illustration shows the seating posi-
tions equipped with head
restraints/headrests.
Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable. ∙ Adjustable head restraints/headrests
have multiple notches along the stalk(s)
to lock them in a desired adjustment
position.
∙ Proper Adjustment: – For the adjustable type, align thehead restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
LRS2403LRS2300
1-10Safety—Seats, seat belts and supplemental restraint system
