NISSAN NV PASSENGER VAN 2016 Owners Manual

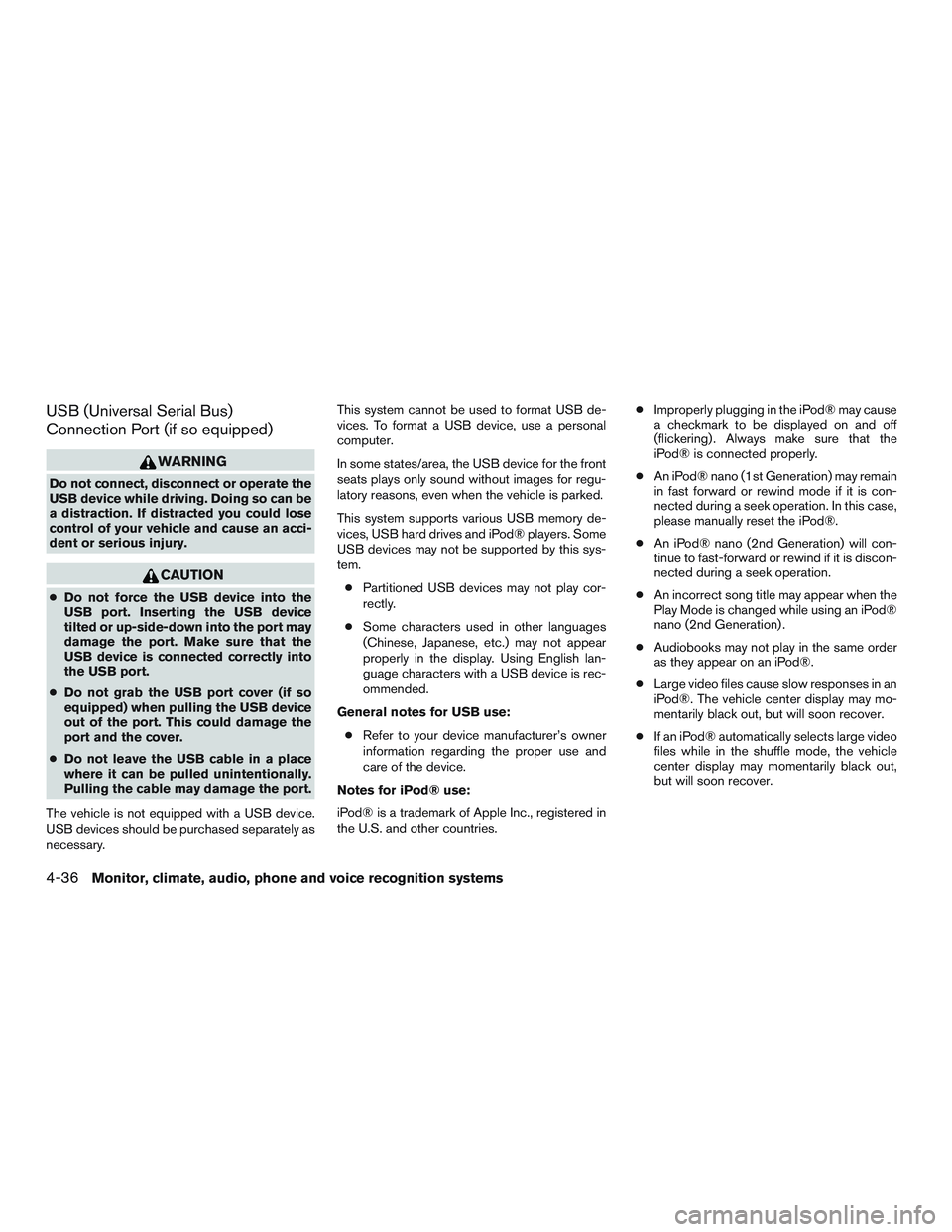

USB (Universal Serial Bus)
Connection Port (if so equipped)
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
The vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary. This system cannot be used to format USB de-
vices. To format a USB device, use a personal
computer.
In some states/area, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.
This system supports various USB memory de-
vices, USB hard drives and iPod® players. Some
USB devices may not be supported by this sys-
tem.
● Partitioned USB devices may not play cor-
rectly.
● Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use: ● Refer to your device manufacturer’s owner
information regarding the proper use and
care of the device.
Notes for iPod® use:
iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries. ●
Improperly plugging in the iPod® may cause
a checkmark to be displayed on and off
(flickering) . Always make sure that the
iPod® is connected properly.
● An iPod® nano (1st Generation) may remain
in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®.
● An iPod® nano (2nd Generation) will con-
tinue to fast-forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using an iPod®
nano (2nd Generation) .
● Audiobooks may not play in the same order
as they appear on an iPod®.
● Large video files cause slow responses in an
iPod®. The vehicle center display may mo-
mentarily black out, but will soon recover.
● If an iPod® automatically selects large video
files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.
4-36Monitor, climate, audio, phone and voice recognition systems

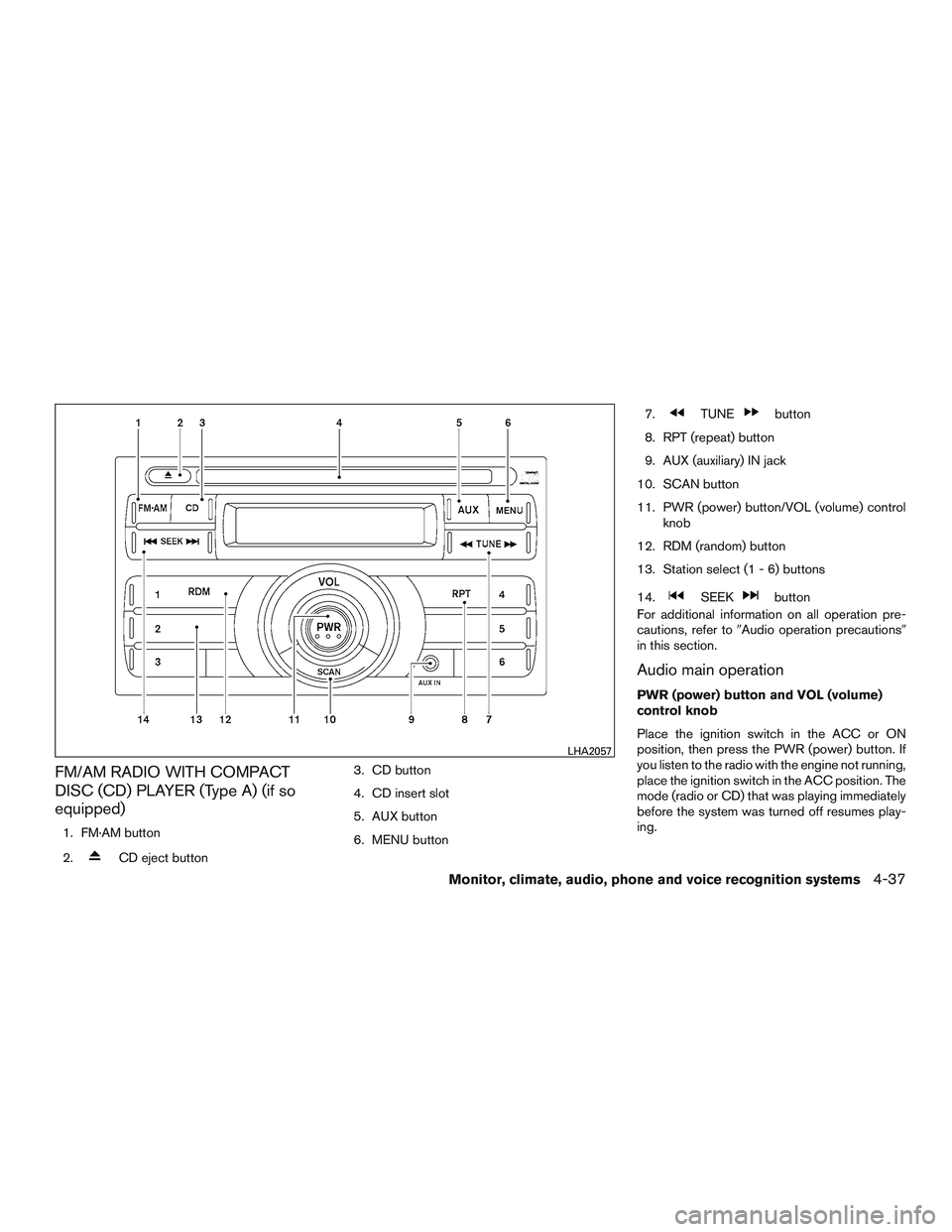

FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (Type A) (if so
equipped)
1. FM·AM button
2.
CD eject button3. CD button
4. CD insert slot
5. AUX button
6. MENU button 7.
TUNEbutton
8. RPT (repeat) button
9. AUX (auxiliary) IN jack
10. SCAN button
11. PWR (power) button/VOL (volume) control knob
12. RDM (random) button
13. Station select (1 - 6) buttons
14.
SEEKbutton
For additional information on all operation pre-
cautions, refer to Audio operation precautions
in this section.
Audio main operation
PWR (power) button and VOL (volume)
control knob
Place the ignition switch in the ACC or ON
position, then press the PWR (power) button. If
you listen to the radio with the engine not running,
place the ignition switch in the ACC position. The
mode (radio or CD) that was playing immediately
before the system was turned off resumes play-
ing.
LHA2057
Monitor, climate, audio, phone and voice recognition systems4-37

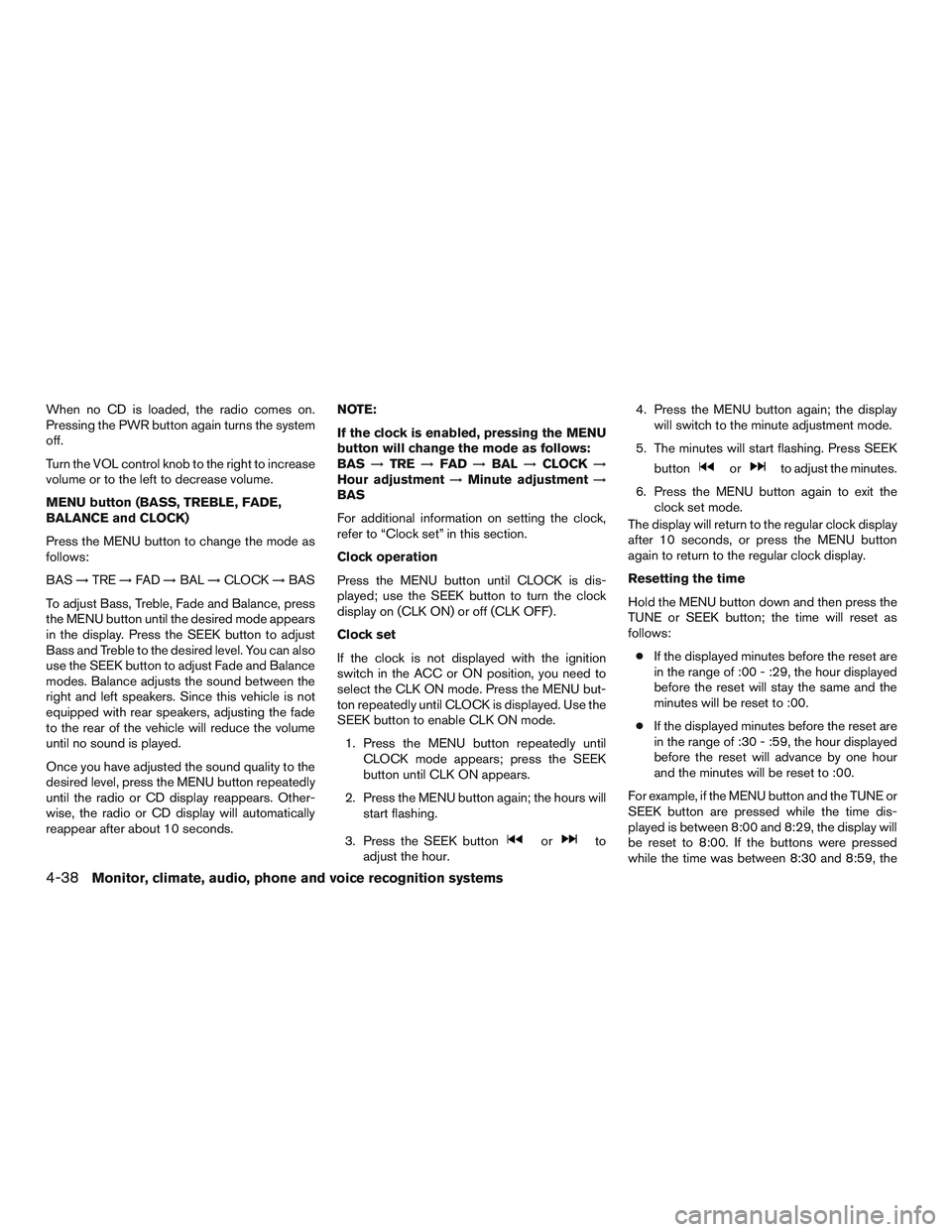

When no CD is loaded, the radio comes on.
Pressing the PWR button again turns the system
off.
Turn the VOL control knob to the right to increase
volume or to the left to decrease volume.
MENU button (BASS, TREBLE, FADE,
BALANCE and CLOCK)
Press the MENU button to change the mode as
follows:
BAS→TRE →FAD →BAL →CLOCK →BAS
To adjust Bass, Treble, Fade and Balance, press
the MENU button until the desired mode appears
in the display. Press the SEEK button to adjust
Bass and Treble to the desired level. You can also
use the SEEK button to adjust Fade and Balance
modes. Balance adjusts the sound between the
right and left speakers. Since this vehicle is not
equipped with rear speakers, adjusting the fade
to the rear of the vehicle will reduce the volume
until no sound is played.
Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds. NOTE:
If the clock is enabled, pressing the MENU
button will change the mode as follows:
BAS
→TRE →FAD →BAL →CLOCK →
Hour adjustment →Minute adjustment →
BAS
For additional information on setting the clock,
refer to “Clock set” in this section.
Clock operation
Press the MENU button until CLOCK is dis-
played; use the SEEK button to turn the clock
display on (CLK ON) or off (CLK OFF) .
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK ON mode. Press the MENU but-
ton repeatedly until CLOCK is displayed. Use the
SEEK button to enable CLK ON mode.
1. Press the MENU button repeatedly until CLOCK mode appears; press the SEEK
button until CLK ON appears.
2. Press the MENU button again; the hours will start flashing.
3. Press the SEEK button
orto
adjust the hour. 4. Press the MENU button again; the display
will switch to the minute adjustment mode.
5. The minutes will start flashing. Press SEEK button
orto adjust the minutes.
6. Press the MENU button again to exit the clock set mode.
The display will return to the regular clock display
after 10 seconds, or press the MENU button
again to return to the regular clock display.
Resetting the time
Hold the MENU button down and then press the
TUNE or SEEK button; the time will reset as
follows:
● If the displayed minutes before the reset are
in the range of :00 - :29, the hour displayed
before the reset will stay the same and the
minutes will be reset to :00.
● If the displayed minutes before the reset are
in the range of :30 - :59, the hour displayed
before the reset will advance by one hour
and the minutes will be reset to :00.
For example, if the MENU button and the TUNE or
SEEK button are pressed while the time dis-
played is between 8:00 and 8:29, the display will
be reset to 8:00. If the buttons were pressed
while the time was between 8:30 and 8:59, the
4-38Monitor, climate, audio, phone and voice recognition systems

display will be reset to 9:00. At the same time the
display will return to the audio.

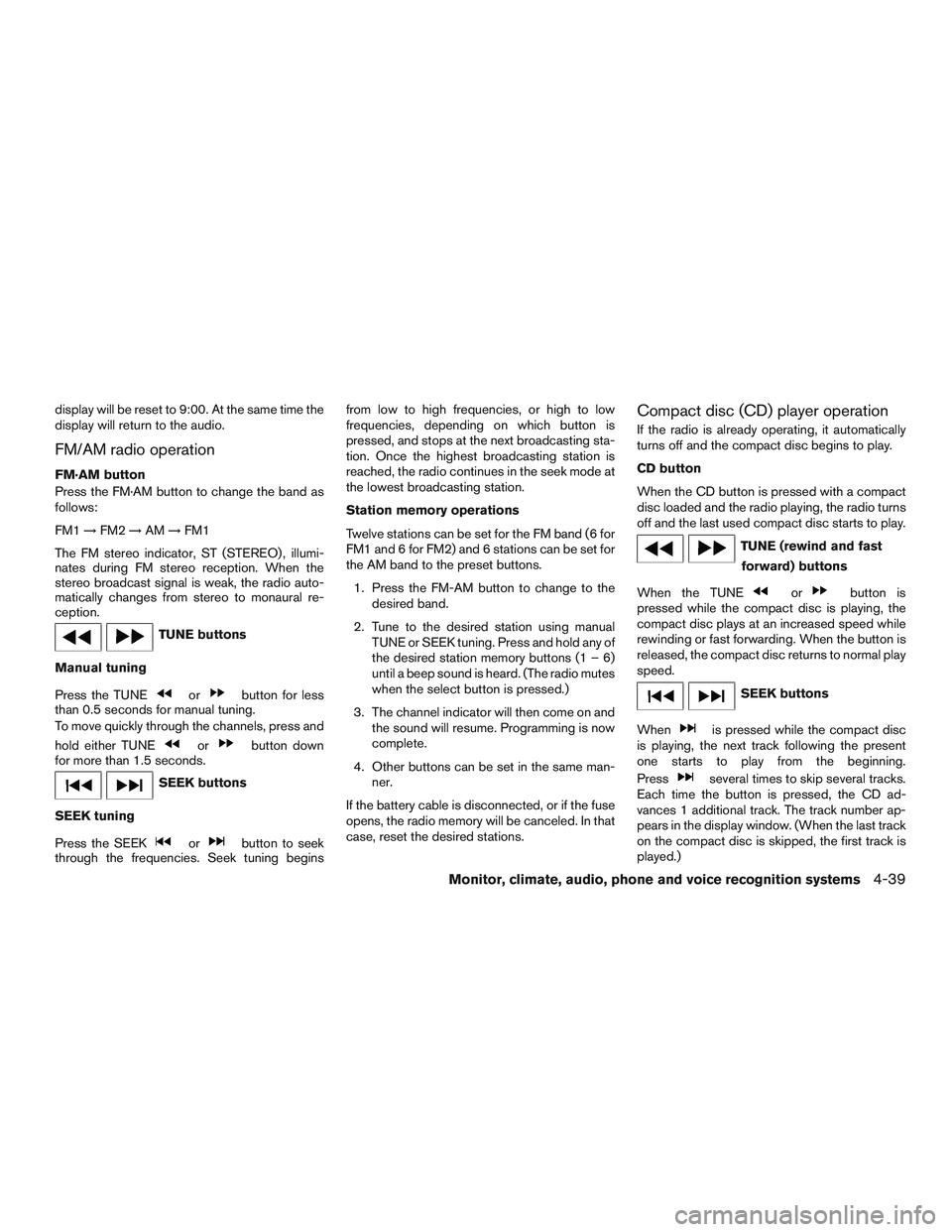

FM/AM radio operation
FM·AM button
Press the FM·AM button to change the band as
follows:
FM1→FM2 →AM →FM1
The FM stereo indicator, ST (STEREO) , illumi-
nates during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.
TUNE buttons
Manual tuning
Press the TUNE
orbutton for less
than 0.5 seconds for manual tuning.
To move quickly through the channels, press and
hold either TUNE
orbutton down
for more than 1.5 seconds.
SEEK buttons
SEEK tuning
Press the SEEK
orbutton to seek
through the frequencies. Seek tuning begins from low to high frequencies, or high to low
frequencies, depending on which button is
pressed, and stops at the next broadcasting sta-
tion. Once the highest broadcasting station is
reached, the radio continues in the seek mode at
the lowest broadcasting station.
Station memory operations
Twelve stations can be set for the FM band (6 for
FM1 and 6 for FM2) and 6 stations can be set for
the AM band to the preset buttons.
1. Press the FM-AM button to change to the desired band.
2. Tune to the desired station using manual TUNE or SEEK tuning. Press and hold any of
the desired station memory buttons (1 – 6)
until a beep sound is heard. (The radio mutes
when the select button is pressed.)
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.
Compact disc (CD) player operation
If the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button
When the CD button is pressed with a compact
disc loaded and the radio playing, the radio turns
off and the last used compact disc starts to play.
TUNE (rewind and fast forward) buttons
When the TUNE
orbutton is
pressed while the compact disc is playing, the
compact disc plays at an increased speed while
rewinding or fast forwarding. When the button is
released, the compact disc returns to normal play
speed.
SEEK buttons
When
is pressed while the compact disc
is playing, the next track following the present
one starts to play from the beginning.
Press
several times to skip several tracks.
Each time the button is pressed, the CD ad-
vances 1 additional track. The track number ap-
pears in the display window. (When the last track
on the compact disc is skipped, the first track is
played.)
Monitor, climate, audio, phone and voice recognition systems4-39

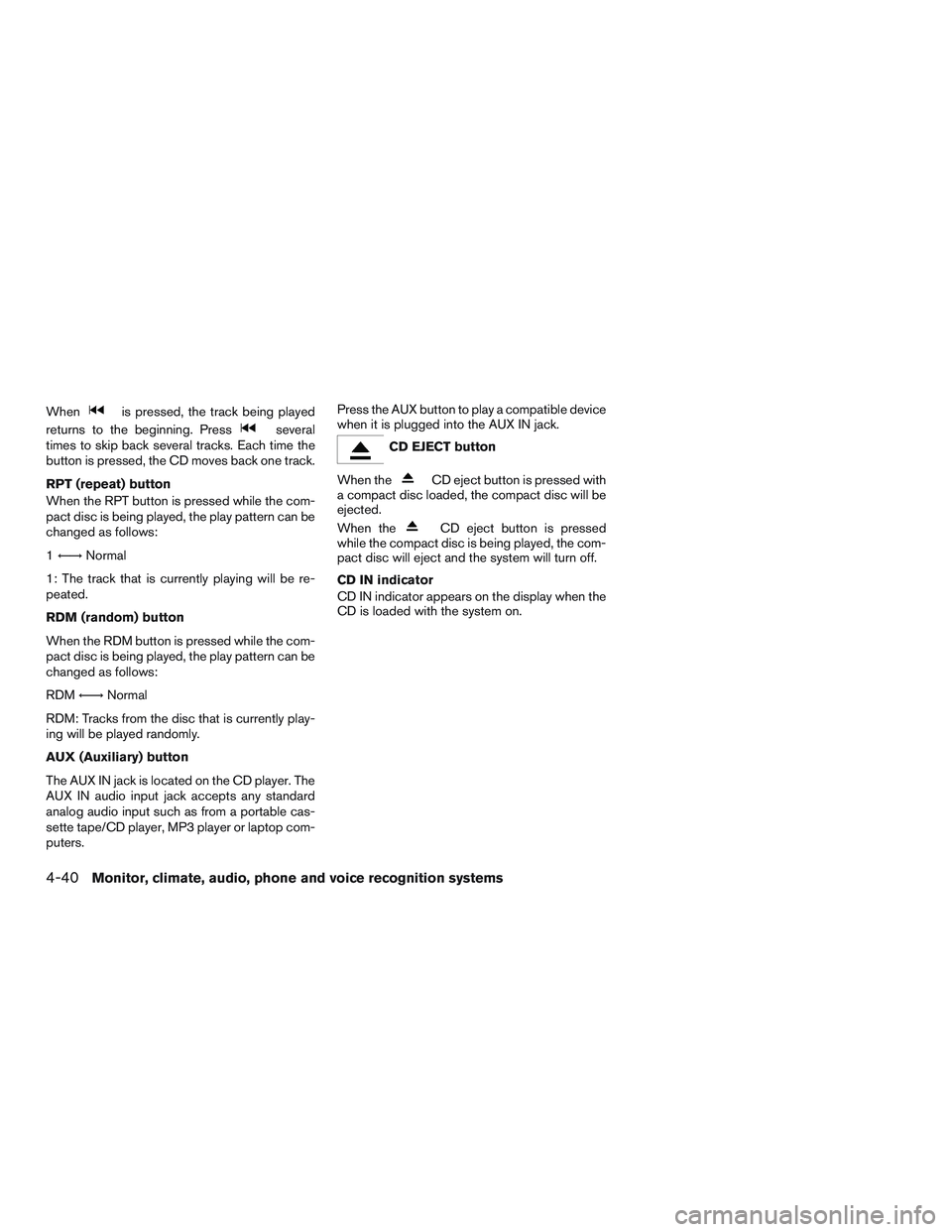

Whenis pressed, the track being played
returns to the beginning. Press
several
times to skip back several tracks. Each time the
button is pressed, the CD moves back one track.
RPT (repeat) button
When the RPT button is pressed while the com-
pact disc is being played, the play pattern can be
changed as follows:
1 ←→ Normal
1: The track that is currently playing will be re-
peated.
RDM (random) button
When the RDM button is pressed while the com-
pact disc is being played, the play pattern can be
changed as follows:
RDM ←→Normal
RDM: Tracks from the disc that is currently play-
ing will be played randomly.
AUX (Auxiliary) button
The AUX IN jack is located on the CD player. The
AUX IN audio input jack accepts any standard
analog audio input such as from a portable cas-
sette tape/CD player, MP3 player or laptop com-
puters. Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.
CD EJECT button
When the
CD eject button is pressed with
a compact disc loaded, the compact disc will be
ejected.
When the
CD eject button is pressed
while the compact disc is being played, the com-
pact disc will eject and the system will turn off.
CD IN indicator
CD IN indicator appears on the display when the
CD is loaded with the system on.
4-40Monitor, climate, audio, phone and voice recognition systems

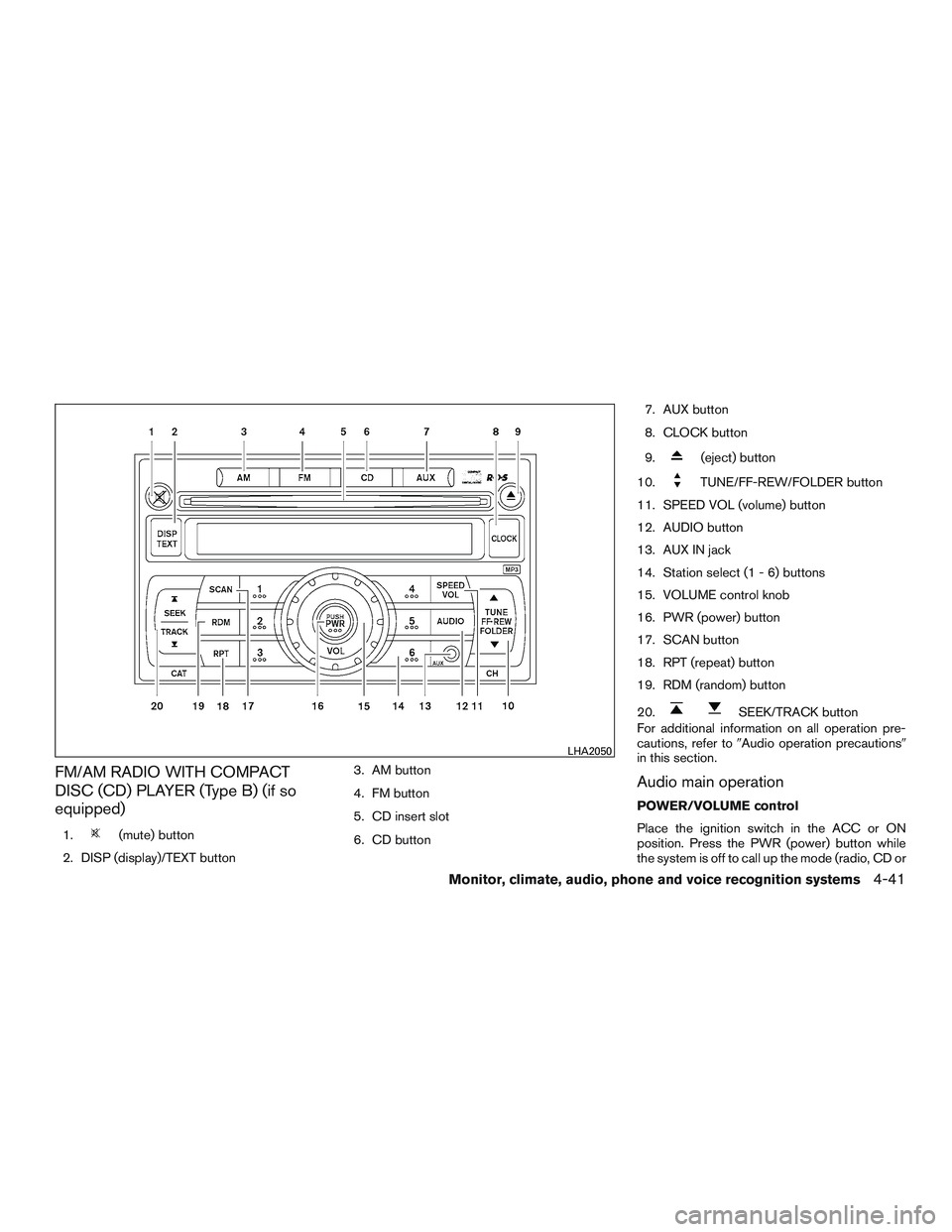

FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (Type B) (if so
equipped)
1.(mute) button
2. DISP (display)/TEXT button 3. AM button
4. FM button
5. CD insert slot
6. CD button7. AUX button
8. CLOCK button
9.
(eject) button
10.
TUNE/FF-REW/FOLDER button
11. SPEED VOL (volume) button
12. AUDIO button
13. AUX IN jack
14. Station select (1 - 6) buttons
15. VOLUME control knob
16. PWR (power) button
17. SCAN button
18. RPT (repeat) button
19. RDM (random) button
20.
SEEK/TRACK button
For additional information on all operation pre-
cautions, refer to Audio operation precautions
in this section.
Audio main operation
POWER/VOLUME control
Place the ignition switch in the ACC or ON
position. Press the PWR (power) button while
the system is off to call up the mode (radio, CD or
LHA2050
Monitor, climate, audio, phone and voice recognition systems4-41

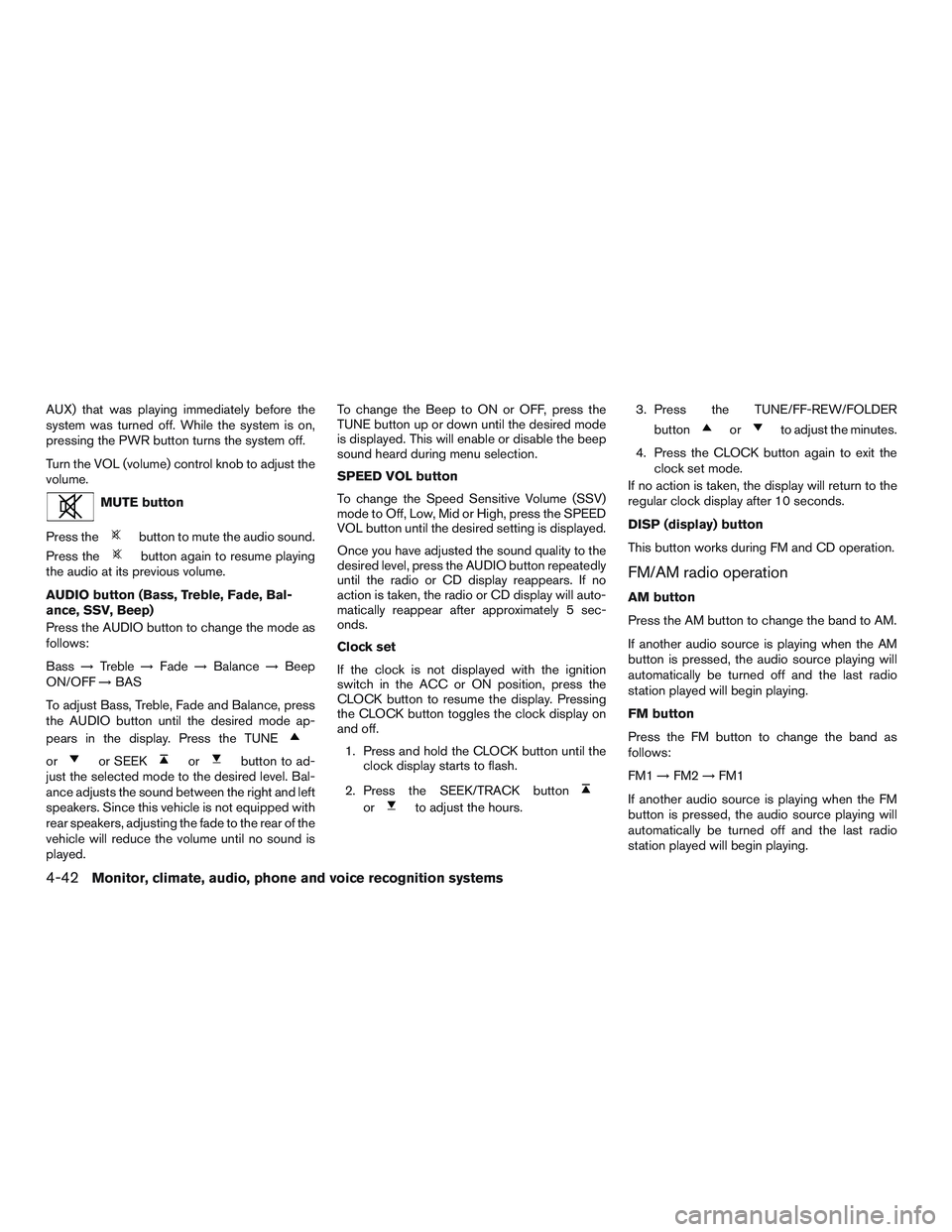

AUX) that was playing immediately before the
system was turned off. While the system is on,
pressing the PWR button turns the system off.
Turn the VOL (volume) control knob to adjust the
volume.
MUTE button
Press the
button to mute the audio sound.
Press the
button again to resume playing
the audio at its previous volume.
AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep)
Press the AUDIO button to change the mode as
follows:
Bass →Treble →Fade →Balance →Beep
ON/OFF →BAS
To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE
oror SEEKorbutton to ad-
just the selected mode to the desired level. Bal-
ance adjusts the sound between the right and left
speakers. Since this vehicle is not equipped with
rear speakers, adjusting the fade to the rear of the
vehicle will reduce the volume until no sound is
played. To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode
is displayed. This will enable or disable the beep
sound heard during menu selection.
SPEED VOL button
To change the Speed Sensitive Volume (SSV)
mode to Off, Low, Mid or High, press the SPEED
VOL button until the desired setting is displayed.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, press the
CLOCK button to resume the display. Pressing
the CLOCK button toggles the clock display on
and off.
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button
orto adjust the hours. 3. Press the TUNE/FF-REW/FOLDER
button
orto adjust the minutes.
4. Press the CLOCK button again to exit the clock set mode.
If no action is taken, the display will return to the
regular clock display after 10 seconds.
DISP (display) button
This button works during FM and CD operation.
FM/AM radio operation
AM button
Press the AM button to change the band to AM.
If another audio source is playing when the AM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.
FM button
Press the FM button to change the band as
follows:
FM1 →FM2 →FM1
If another audio source is playing when the FM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.
4-42Monitor, climate, audio, phone and voice recognition systems

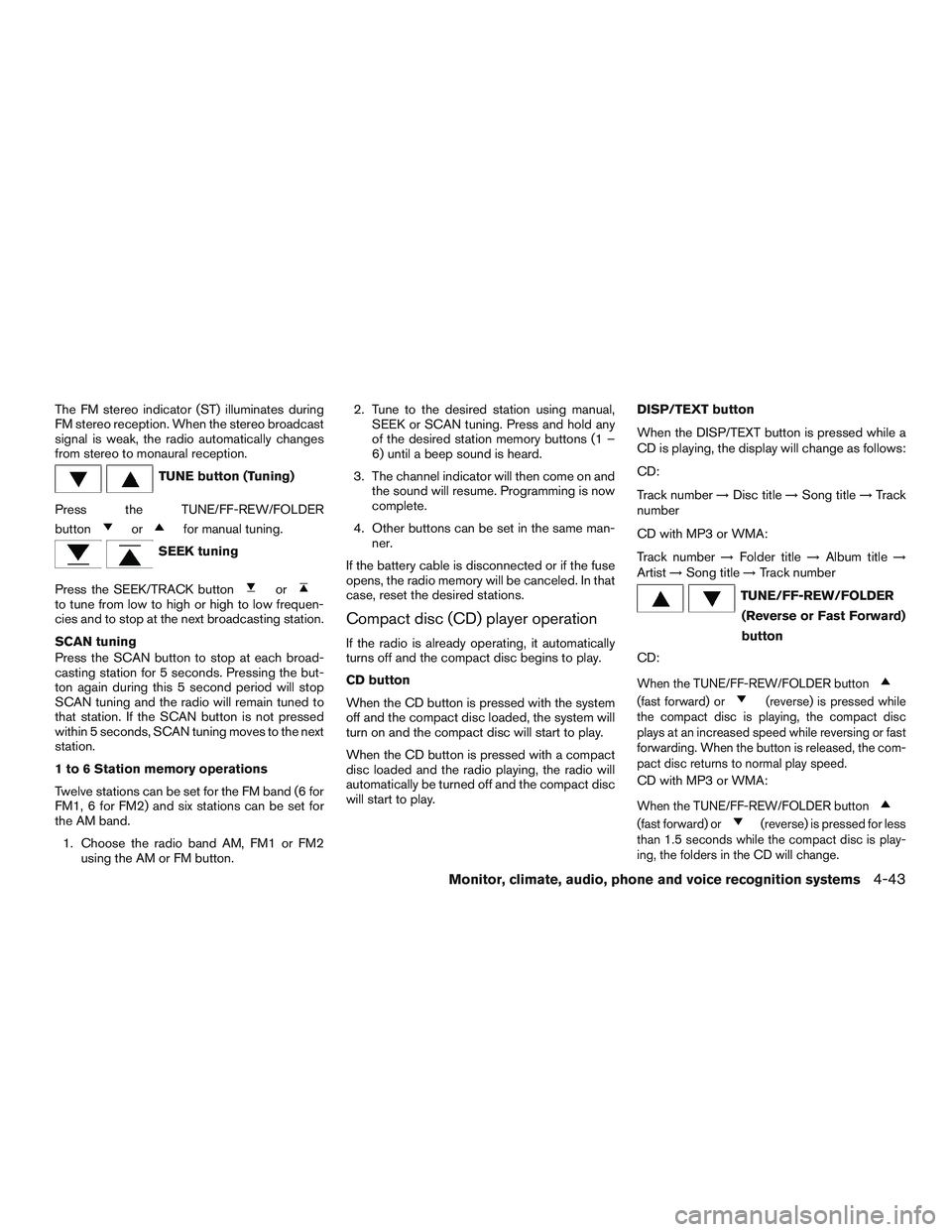

The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.
TUNE button (Tuning)
Press the TUNE/FF-REW/FOLDER
button
orfor manual tuning.
SEEK tuning
Press the SEEK/TRACK button
orto tune from low to high or high to low frequen-
cies and to stop at the next broadcasting station.
SCAN tuning
Press the SCAN button to stop at each broad-
casting station for 5 seconds. Pressing the but-
ton again during this 5 second period will stop
SCAN tuning and the radio will remain tuned to
that station. If the SCAN button is not pressed
within 5 seconds, SCAN tuning moves to the next
station.
1 to 6 Station memory operations
Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band. 1. Choose the radio band AM, FM1 or FM2 using the AM or FM button. 2. Tune to the desired station using manual,
SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.
3. The channel indicator will then come on and the sound will resume. Programming is now
complete.
4. Other buttons can be set in the same man- ner.
If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.Compact disc (CD) player operation
If the radio is already operating, it automatically
turns off and the compact disc begins to play.
CD button
When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play. DISP/TEXT button
When the DISP/TEXT button is pressed while a
CD is playing, the display will change as follows:
CD:
Track number
→Disc title →Song title →Track
number
CD with MP3 or WMA:
Track number →Folder title →Album title →
Artist →Song title →Track number
TUNE/FF-REW/FOLDER
(Reverse or Fast Forward)
button
CD:
When the TUNE/FF-REW/FOLDER button
(fast forward) or(reverse) is pressed while
the compact disc is playing, the compact disc
plays at an increased speed while reversing or fast
forwarding. When the button is released, the com-
pact disc returns to normal play speed.
CD with MP3 or WMA:
When the TUNE/FF-REW/FOLDER button
(fast forward) or(reverse) is pressed for less
than 1.5 seconds while the compact disc is play-
ing, the folders in the CD will change.
Monitor, climate, audio, phone and voice recognition systems4-43

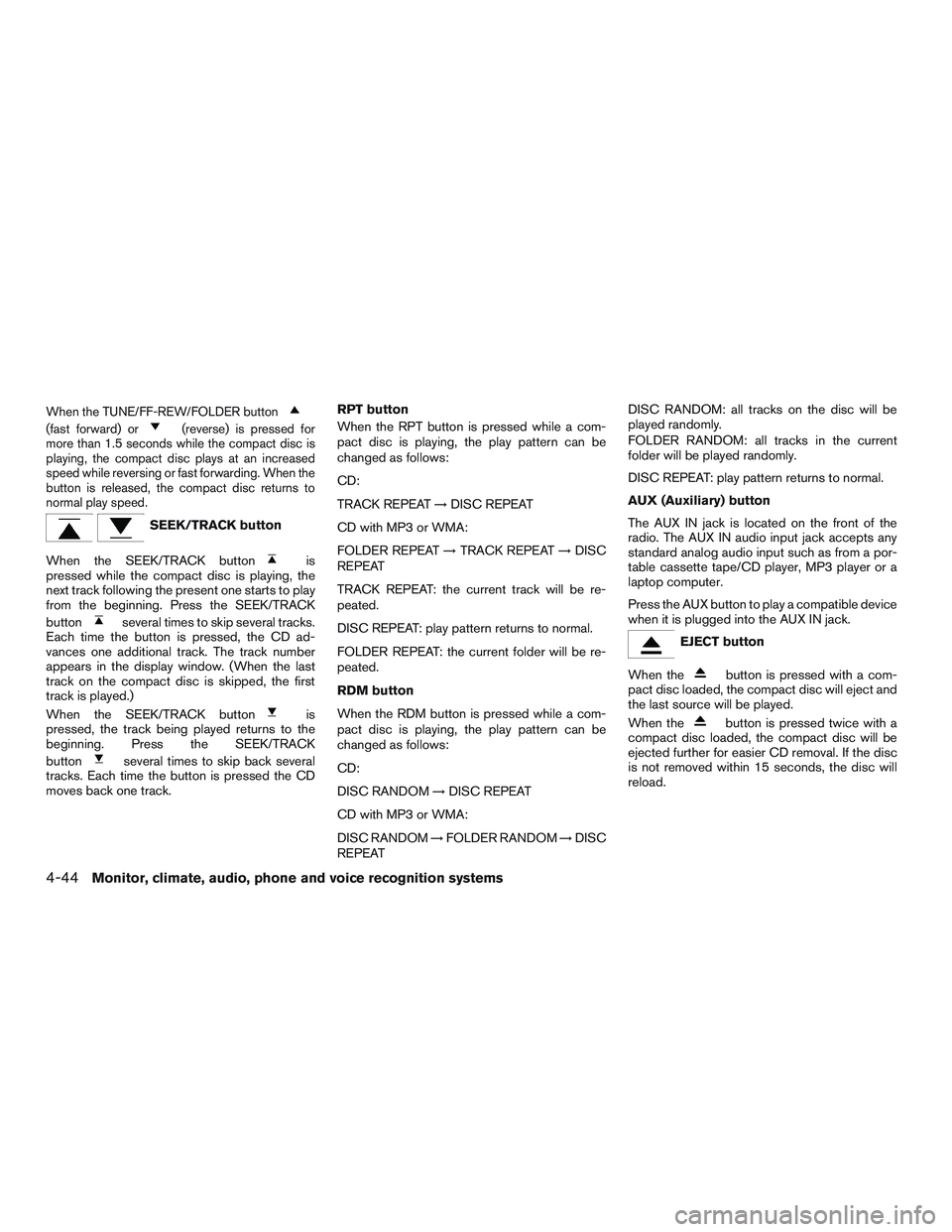

When the TUNE/FF-REW/FOLDER button
(fast forward) or(reverse) is pressed for
more than 1.5 seconds while the compact disc is
playing, the compact disc plays at an increased
speed while reversing or fast forwarding. When the
button is released, the compact disc returns to
normal play speed.
SEEK/TRACK button
When the SEEK/TRACK button
is
pressed while the compact disc is playing, the
next track following the present one starts to play
from the beginning. Press the SEEK/TRACK
button
several times to skip several tracks.
Each time the button is pressed, the CD ad-
vances one additional track. The track number
appears in the display window. (When the last
track on the compact disc is skipped, the first
track is played.)
When the SEEK/TRACK button
is
pressed, the track being played returns to the
beginning. Press the SEEK/TRACK
button
several times to skip back several
tracks. Each time the button is pressed the CD
moves back one track. RPT button
When the RPT button is pressed while a com-
pact disc is playing, the play pattern can be
changed as follows:
CD:
TRACK REPEAT
→DISC REPEAT
CD with MP3 or WMA:
FOLDER REPEAT →TRACK REPEAT →DISC
REPEAT
TRACK REPEAT: the current track will be re-
peated.
DISC REPEAT: play pattern returns to normal.
FOLDER REPEAT: the current folder will be re-
peated.
RDM button
When the RDM button is pressed while a com-
pact disc is playing, the play pattern can be
changed as follows:
CD:
DISC RANDOM →DISC REPEAT
CD with MP3 or WMA:
DISC RANDOM →FOLDER RANDOM →DISC
REPEAT DISC RANDOM: all tracks on the disc will be
played randomly.
FOLDER RANDOM: all tracks in the current
folder will be played randomly.
DISC REPEAT: play pattern returns to normal.
AUX (Auxiliary) button
The AUX IN jack is located on the front of the
radio. The AUX IN audio input jack accepts any
standard analog audio input such as from a por-
table cassette tape/CD player, MP3 player or a
laptop computer.
Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.
EJECT button
When the
button is pressed with a com-
pact disc loaded, the compact disc will eject and
the last source will be played.
When the
button is pressed twice with a
compact disc loaded, the compact disc will be
ejected further for easier CD removal. If the disc
is not removed within 15 seconds, the disc will
reload.
4-44Monitor, climate, audio, phone and voice recognition systems

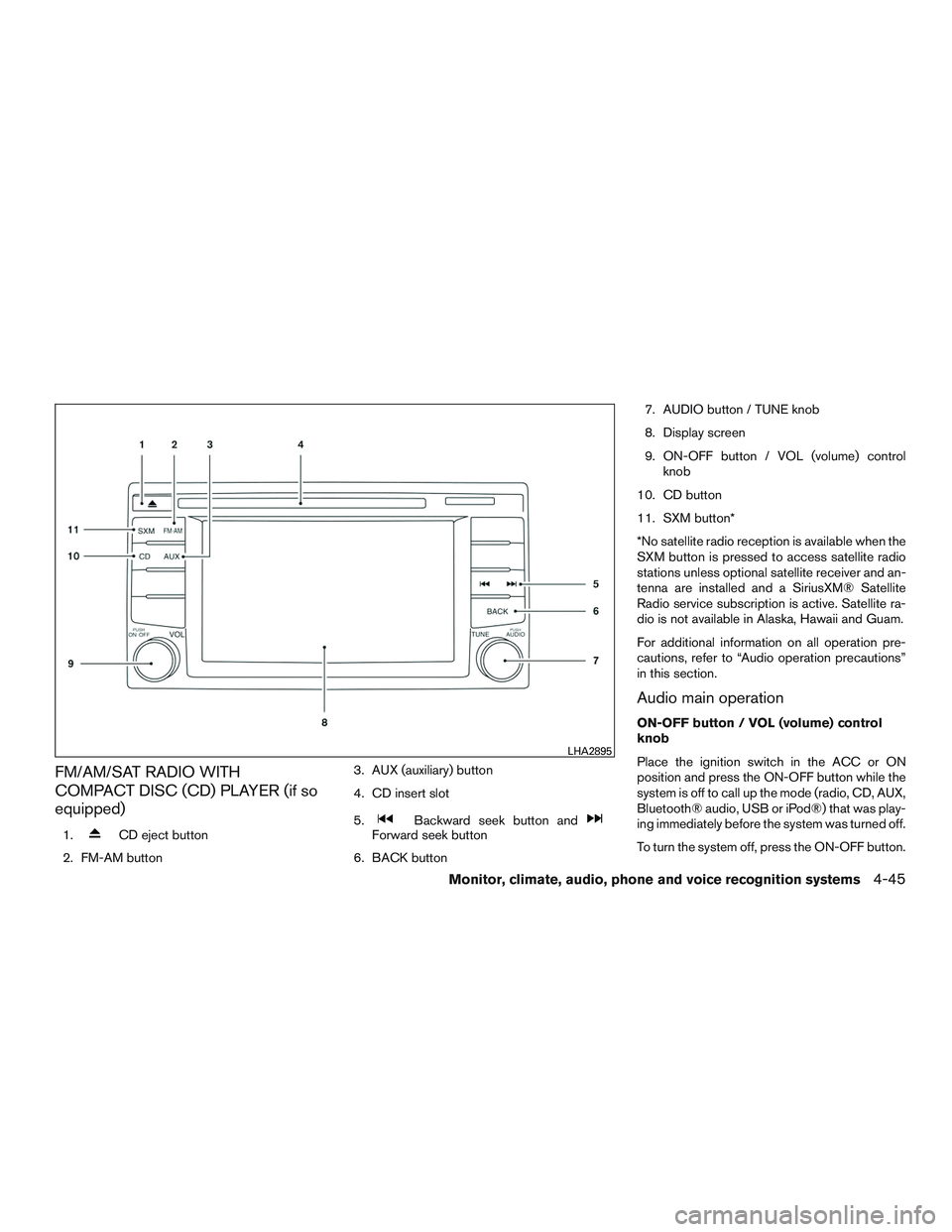

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (if so
equipped)
1.CD eject button
2. FM-AM button 3. AUX (auxiliary) button
4. CD insert slot
5.Backward seek button andForward seek button
6. BACK button 7. AUDIO button / TUNE knob
8. Display screen
9. ON-OFF button / VOL (volume) control
knob
10. CD button
11. SXM button*
*No satellite radio reception is available when the
SXM button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and a SiriusXM® Satellite
Radio service subscription is active. Satellite ra-
dio is not available in Alaska, Hawaii and Guam.
For additional information on all operation pre-
cautions, refer to “Audio operation precautions”
in this section.
Audio main operation
ON-OFF button / VOL (volume) control
knob
Place the ignition switch in the ACC or ON
position and press the ON-OFF button while the
system is off to call up the mode (radio, CD, AUX,
Bluetooth® audio, USB or iPod®) that was play-
ing immediately before the system was turned off.
To turn the system off, press the ON-OFF button.
LHA2895
Monitor, climate, audio, phone and voice recognition systems4-45
