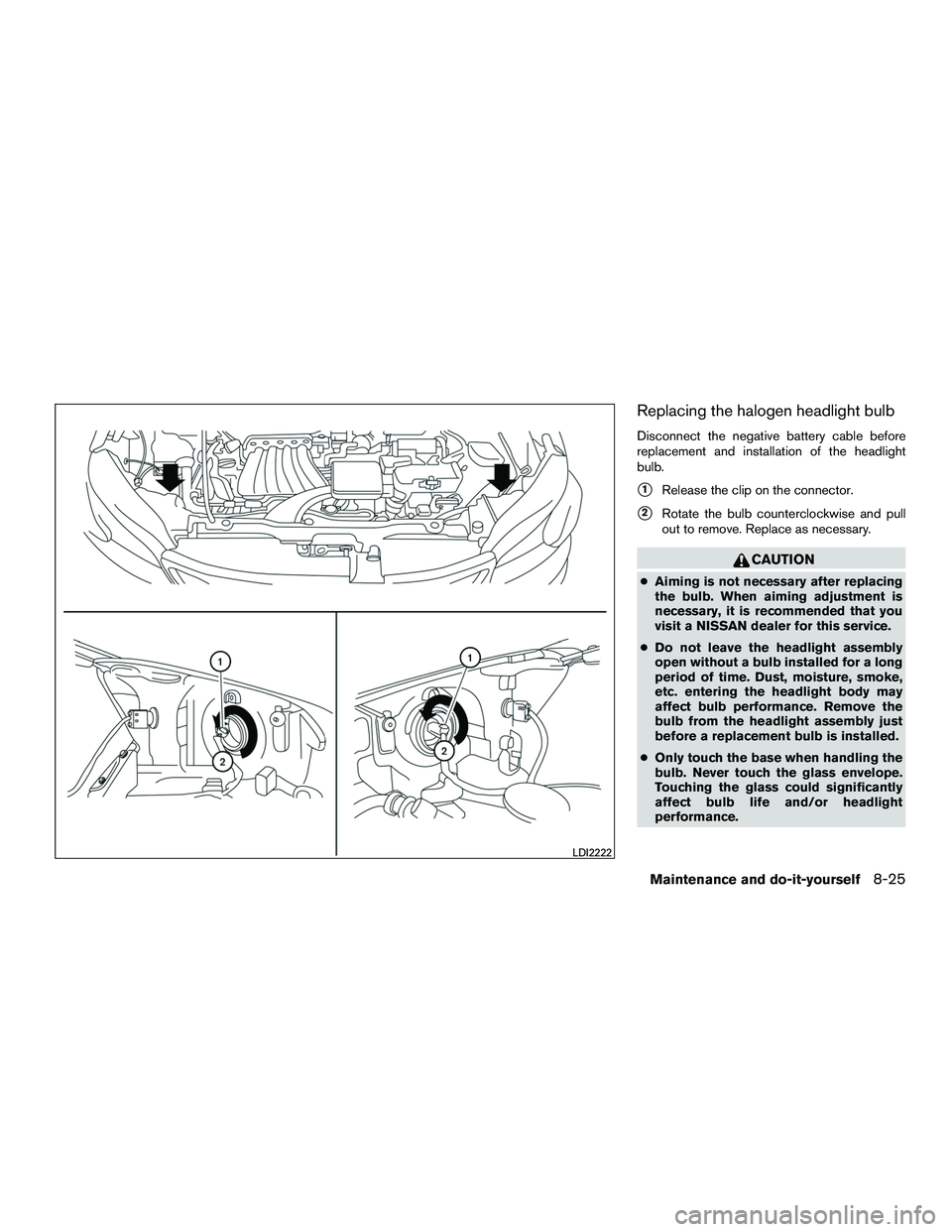

Replacing the halogen headlight bulb
Disconnect the negative battery cable before
replacement and installation of the headlight
bulb.
1Release the clip on the connector.
2Rotate the bulb counterclockwise and pull
out to remove. Replace as necessary.
CAUTION
● Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, it is recommended that you
visit a NISSAN dealer for this service.
● Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.
LDI2222
Maintenance and do-it-yourself8-25

●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, it is recommended that you visit a
NISSAN dealer for this service.
Aiming the headlights
The headlights on your vehicle are properly aimed
at the assembly plant. If your vehicle has been in
a collision, the alignment of your headlights
should be checked by a NISSAN dealer. Vertical aim adjustment
NOTE:
Due to a maximum load condition of the
vehicle, headlight aiming adjustment may
be necessary. Please perform the following
procedure:

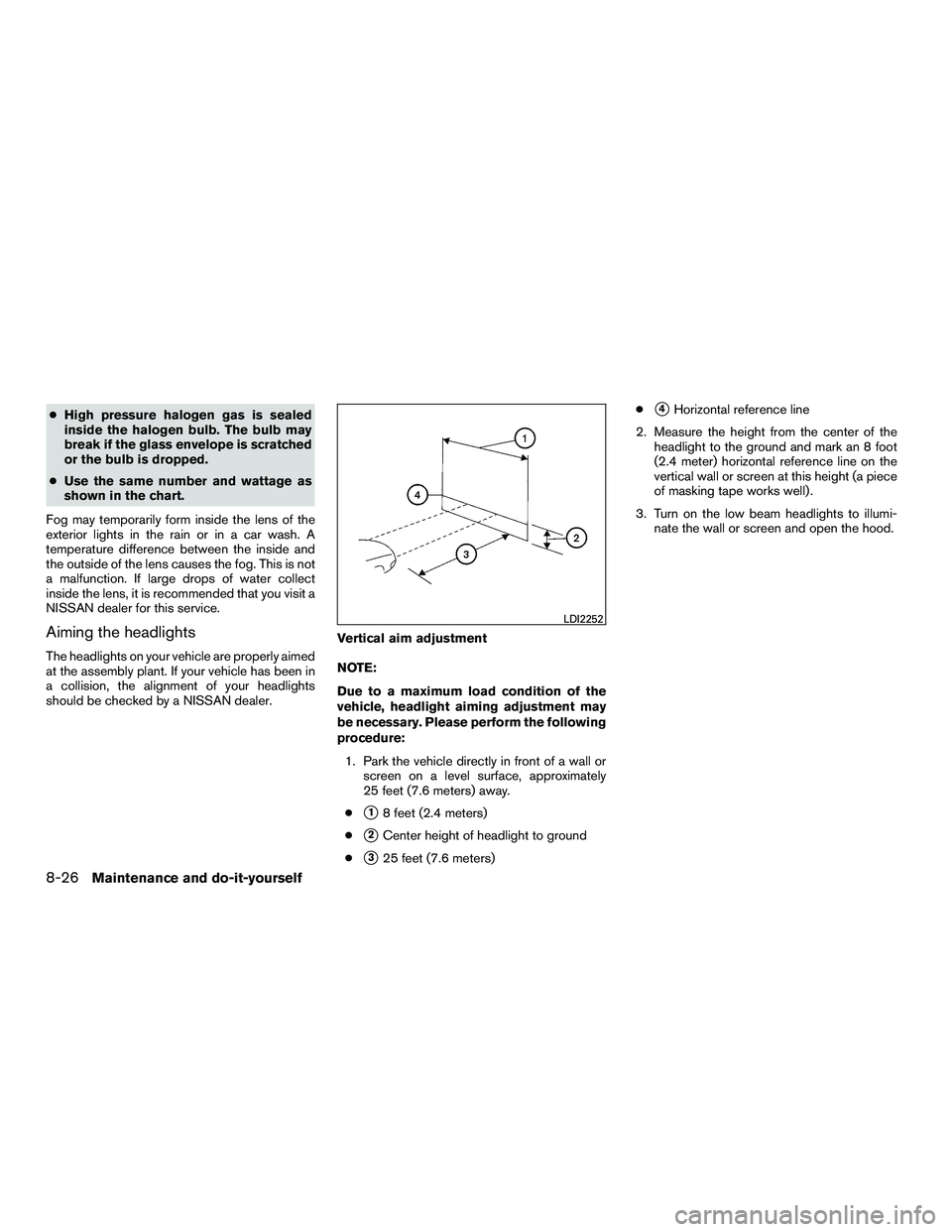

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately
25 feet (7.6 meters) away.
●
18 feet (2.4 meters)
●
2Center height of headlight to ground
●
325 feet (7.6 meters) ●
4Horizontal reference line
2. Measure the height from the center of the headlight to the ground and mark an 8 foot
(2.4 meter) horizontal reference line on the
vertical wall or screen at this height (a piece
of masking tape works well) .
3. Turn on the low beam headlights to illumi- nate the wall or screen and open the hood.
LDI2252
8-26Maintenance and do-it-yourself

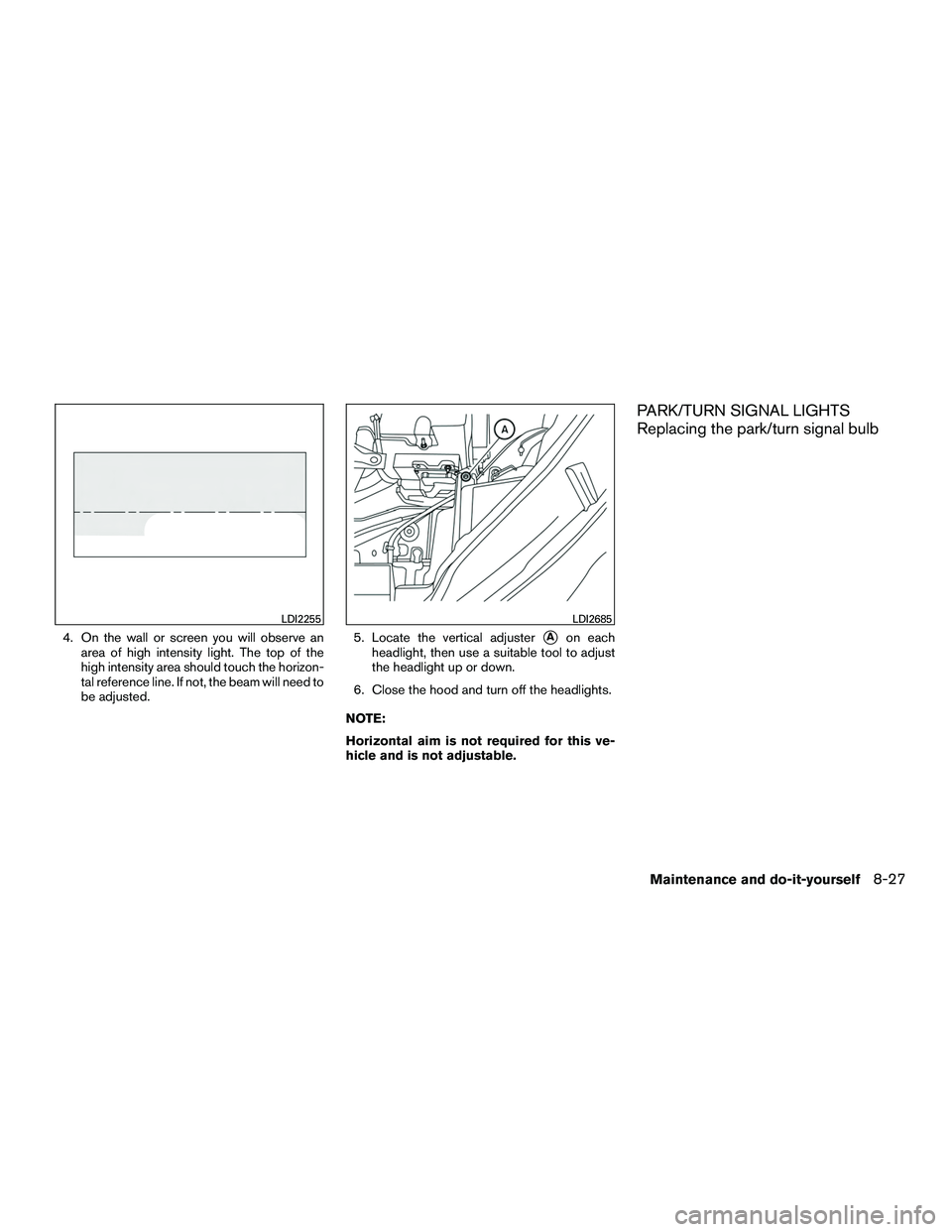

4. On the wall or screen you will observe anarea of high intensity light. The top of the
high intensity area should touch the horizon-
tal reference line. If not, the beam will need to
be adjusted. 5. Locate the vertical adjusterAon each
headlight, then use a suitable tool to adjust
the headlight up or down.
6. Close the hood and turn off the headlights.
NOTE:
Horizontal aim is not required for this ve-
hicle and is not adjustable.
PARK/TURN SIGNAL LIGHTS
Replacing the park/turn signal bulb
LDI2255LDI2685
Maintenance and do-it-yourself8-27

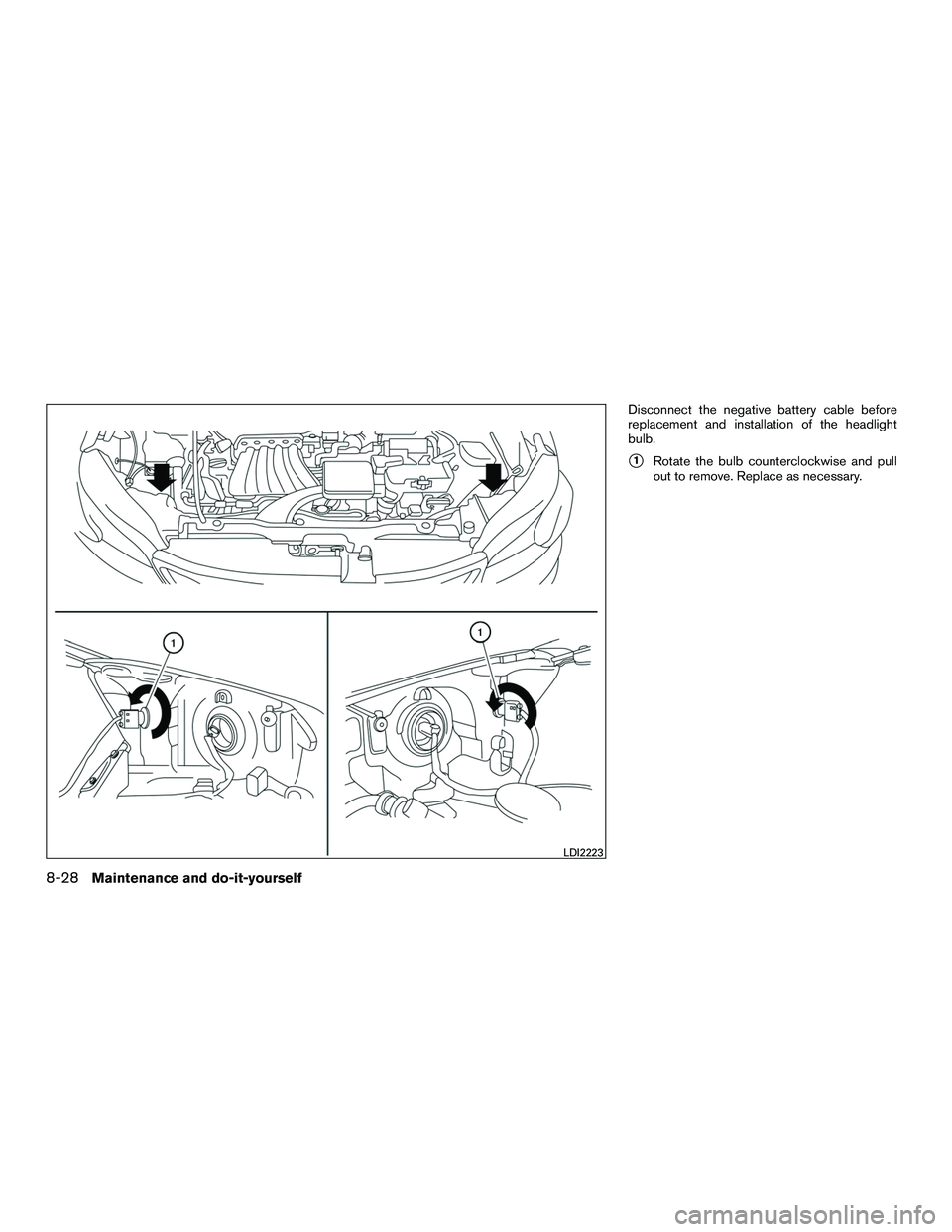

Disconnect the negative battery cable before
replacement and installation of the headlight
bulb.
1Rotate the bulb counterclockwise and pull
out to remove. Replace as necessary.
LDI2223
8-28Maintenance and do-it-yourself

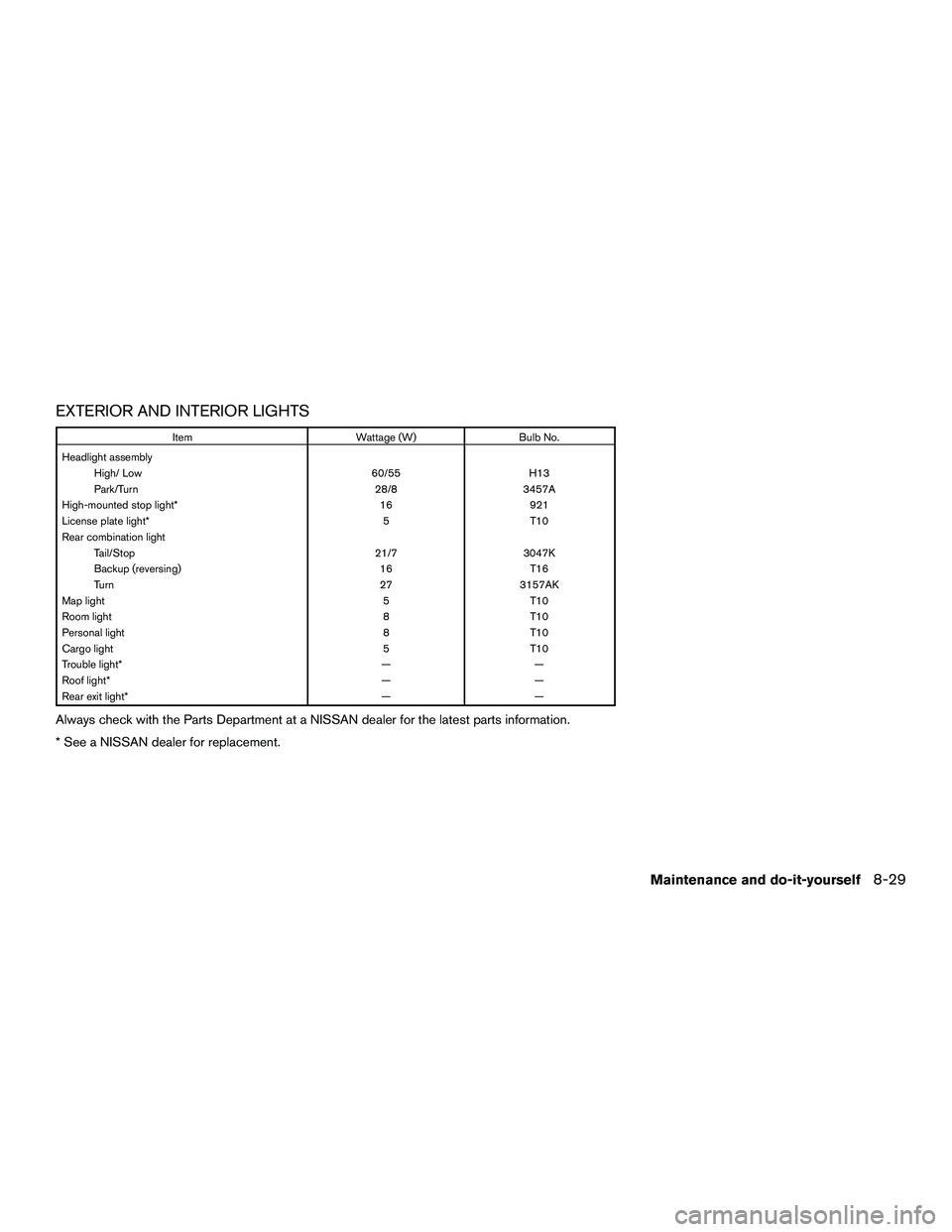

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High/ Low 60/55H13
Park/Turn 28/83457A
High-mounted stop light* 16921
License plate light* 5T10
Rear combination light Tail/Stop 21/73047K
Backup (reversing) 16T16
Turn 273157AK
Map light 5T10
Room light 8T10
Personal light 8T10
Cargo light 5T10
Trouble light* ——
Roof light* ——
Rear exit light* ——
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* See a NISSAN dealer for replacement.
Maintenance and do-it-yourself8-29

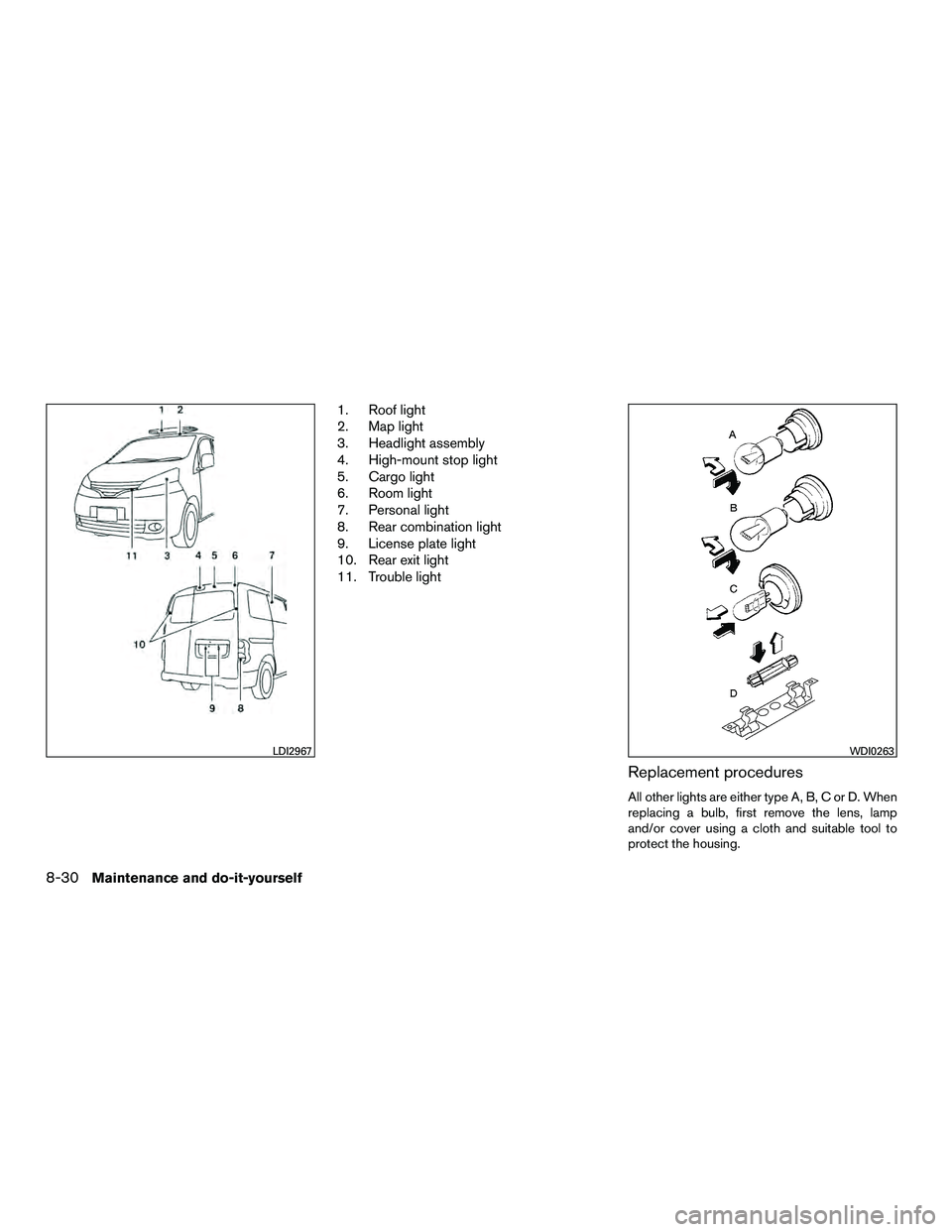

1. Roof light
2. Map light
3. Headlight assembly
4. High-mount stop light
5. Cargo light
6. Room light
7. Personal light
8. Rear combination light
9. License plate light
10. Rear exit light
11. Trouble light
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover using a cloth and suitable tool to
protect the housing.
LDI2967WDI0263
8-30Maintenance and do-it-yourself
