service indicator NISSAN NV200 2018 Owners Manual

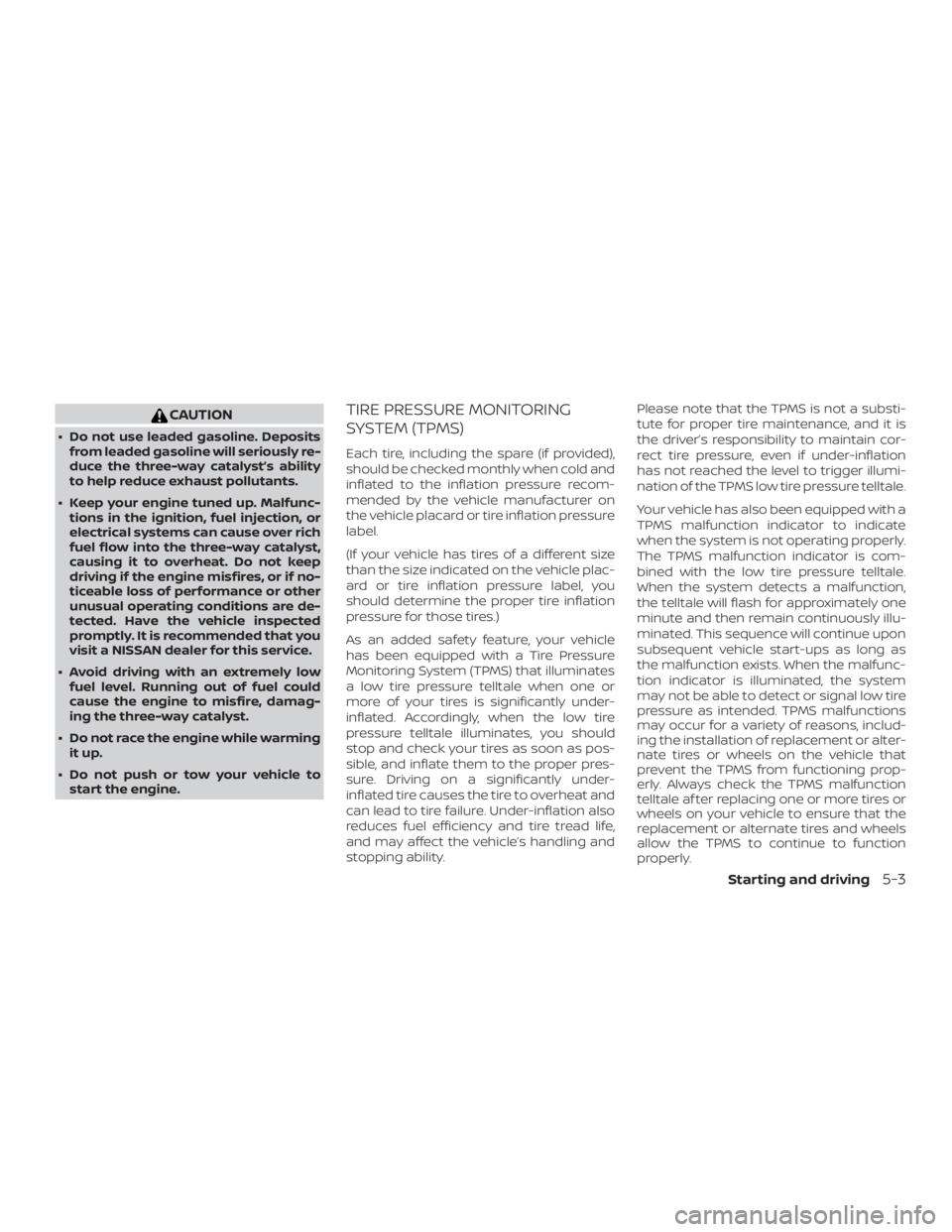

CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously re-
duce the three-way catalyst’s ability
to help reduce exhaust pollutants.
∙ Keep your engine tuned up. Malfunc- tions in the ignition, fuel injection, or
electrical systems can cause over rich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if no-
ticeable loss of performance or other
unusual operating conditions are de-
tected. Have the vehicle inspected
promptly. It is recommended that you
visit a NISSAN dealer for this service.
∙ Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.
∙ Do not race the engine while warming it up.
∙ Do not push or tow your vehicle to start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure
label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle plac-
ard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as pos-
sible, and inflate them to the proper pres-
sure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Please note that the TPMS is not a substi-
tute for proper tire maintenance, and it is
the driver’s responsibility to maintain cor-
rect tire pressure, even if under-inflation
has not reached the level to trigger illumi-
nation of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously illu-
minated. This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists. When the malfunc-
tion indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions
may occur for a variety of reasons, includ-
ing the installation of replacement or alter-
nate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale af ter replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
Starting and driving5-3

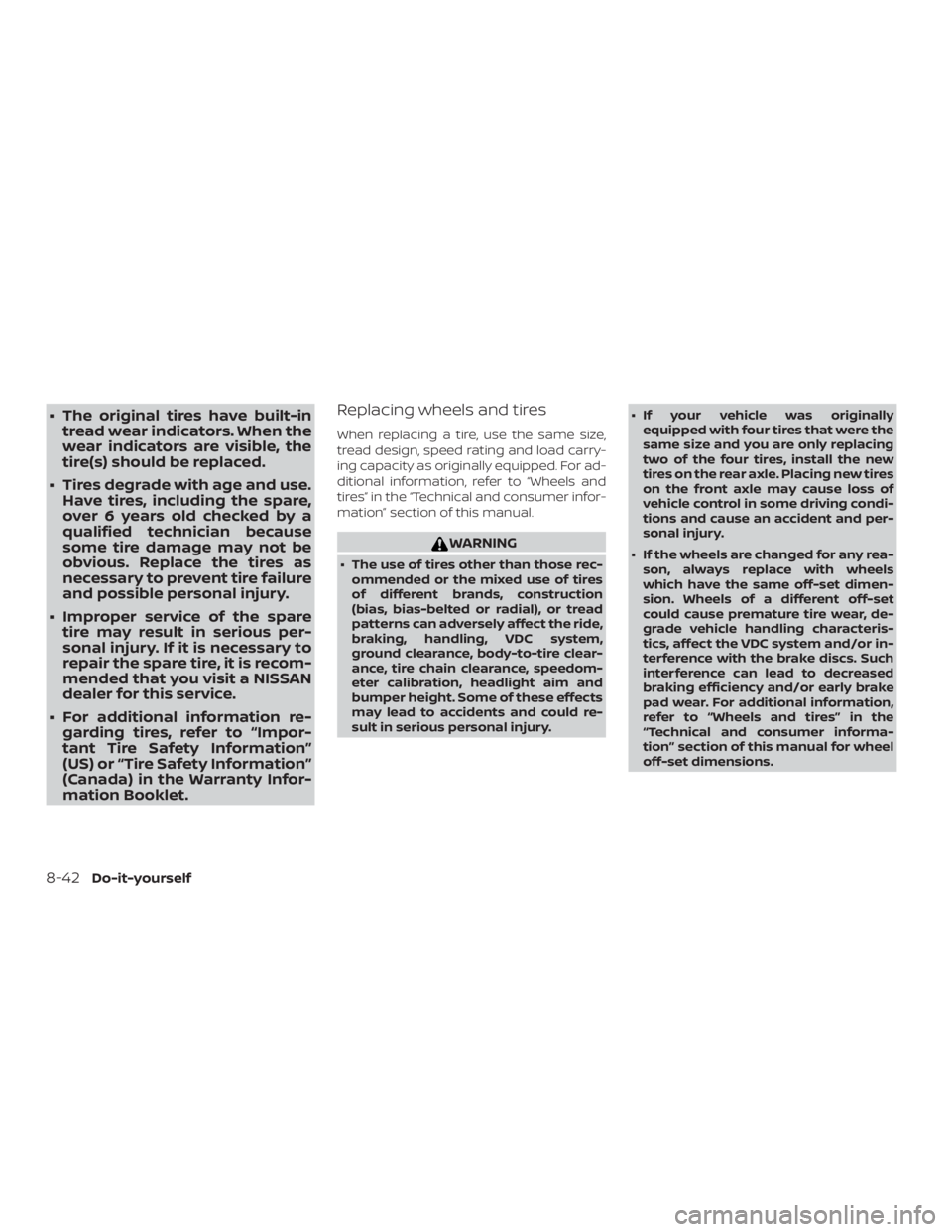

∙ The original tires have built-intread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
∙ Tires degrade with age and use. Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
∙ Improper service of the spare tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, it is recom-
mended that you visit a NISSAN
dealer for this service.
∙ For additional information re- garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. For ad-
ditional information, refer to “Wheels and
tires” in the “Technical and consumer infor-
mation” section of this manual.

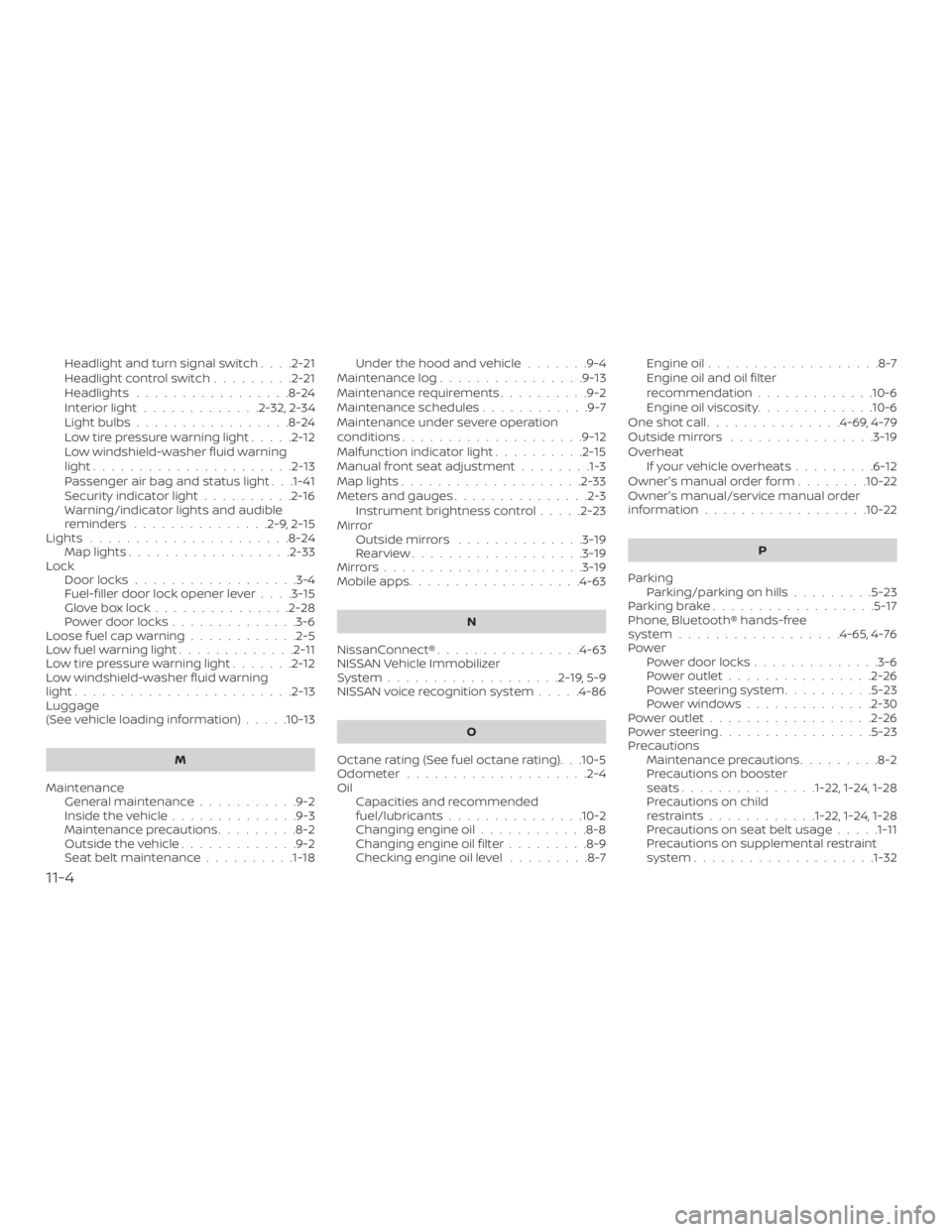

Headlight and turn signal switch....2-21
Headlightcontrolswitch.........2-21
Headlights .................8-24
Interiorlight.............2-32,2-34
Lightbulbs.................8-24
Low tire pressure warning light .....2-12
Low windshield-washer fluid warning
light......................2-13
Passenger air bag and status light . . .1-41
Security indicator light ..........2-16
Warning/indicator lights and audible
reminders ...............2-9,2-15
Lights......................8-24 Maplights..................2-33
Lock Door locks ..................3-4
Fuel-filler door lock opener lever ....3-15
Gloveboxlock...............2-28
Power door locks ..............3-6
Loose fuel cap warning ............2-5
Lowfuelwarninglight.............2-11
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light........................2-13
Luggage
(See vehicle loading information) .....10-13
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-18 Under the hood and vehicle
.......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-15
Manual front seat adjustment ........1-3
Maplights....................2-33
Meters and gauges ...............2-3
Instrument brightness control .....2-23
Mirror Outsidemirrors ..............3-19
Rearview...................3-19
Mirrors......................3-19
Mobile apps ...................4-63
N
NissanConnect® ................4-63
NISSAN Vehicle Immobilizer
System...................2-19,5-9
NISSAN voice recognition system .....4-86
O
Octane rating (See fuel octane rating). . .10-5
Odometer ....................2-4
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-8
Changing engine oil filter .........8-9
Checking engine oil level .........8-7Engine oil
...................8-7
Engine oil and oil filter
recommendation .............10-6
Engine oil viscosity .............10-6
One shot call ...............4-69,4-79
Outsidemirrors ................3-19
Overheat Ifyourvehicleoverheats.........6-12
Owner's manual order form ........10-22
Owner's manual/service manual order
information..................10-22
P
Parking Parking/parkingonhills.........5-23
Parkingbrake..................5-17
Phone, Bluetooth® hands-free
system..................4-65,4-76
Power Power door locks ..............3-6
Poweroutlet................2-26
Power steering system ..........5-23
Powerwindows..............2-30
Poweroutlet..................2-26
Powersteering.................5-23
Precautions Maintenance precautions .........8-2
Precautions on booster
seats...............1-22, 1-24, 1-28
Precautions on child
restraints............1-22, 1-24, 1-28
Precautionsonseatbeltusage.....1-11
Precautions on supplemental restraint
system ....................1-32
11-4

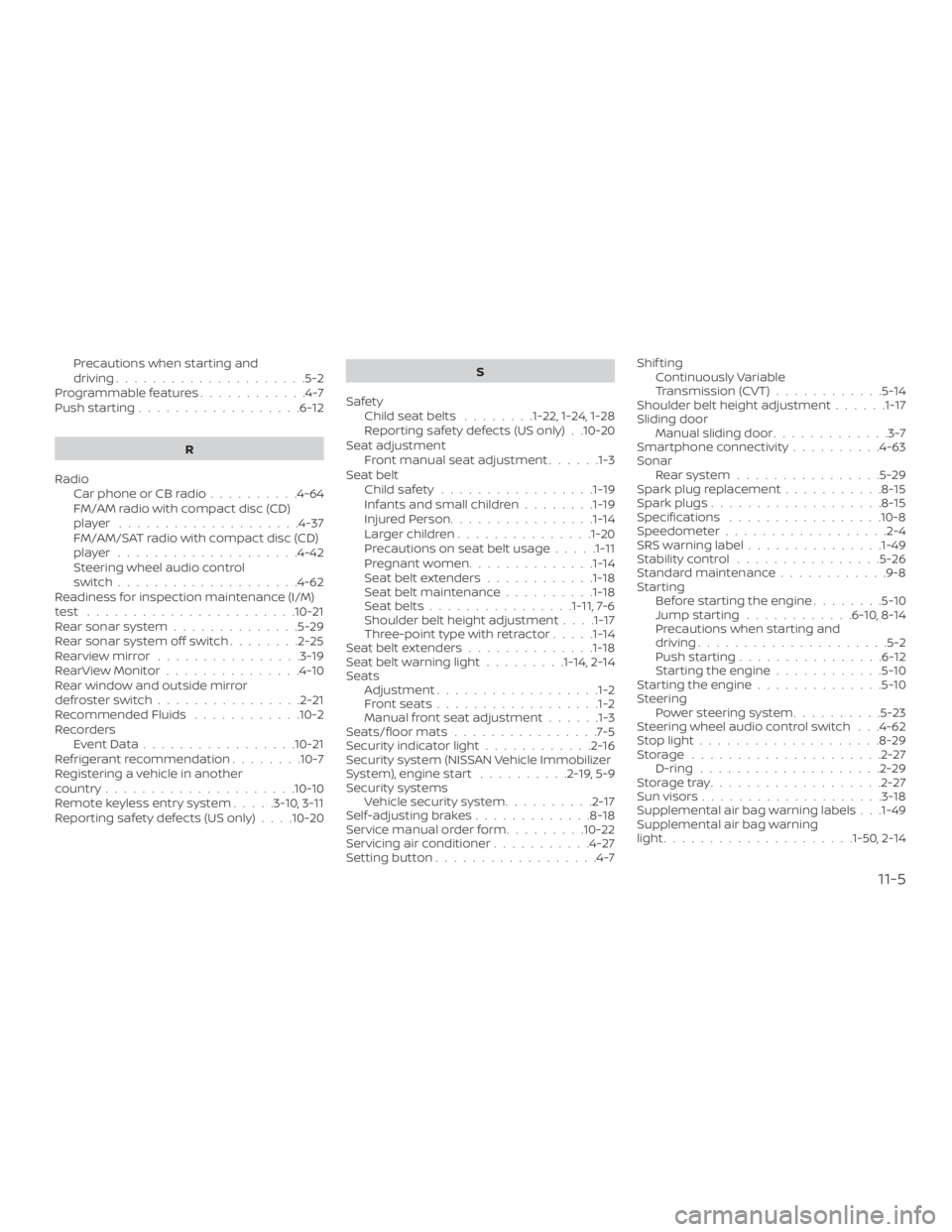

Precautions when starting and
driving.....................5-2
Programmable features ............4-7
Push starting ..................6-12
R
Radio Car phone or CB radio ..........4-64
FM/AM radio with compact disc (CD)
player ....................4-37
FM/AM/SAT radio with compact disc (CD)
player ....................4-42
Steering wheel audio control
switch....................4-62
Readiness for inspection maintenance (I/M)
test .......................10-21
Rear sonar system ..............5-29
Rear sonar system off switch ........2-25
Rearviewmirror ................3-19
RearViewMonitor...............4-10
Rear window and outside mirror
defrosterswitch................2-21
Recommended Fluids ............10-2
Recorders EventData.................10-21
Refrigerant recommendation ........10-7
Registering a vehicle in another
country .....................10-10
Remote keyless entry system .....3-10,3-11
Reporting safety defects (US only) . . . .10-20 S
Safety Childseatbelts ........1-22, 1-24, 1-28
Reporting safety defects (US only) . .10-20
Seat adjustment Front manual seat adjustment ......1-3
Seat belt Childsafety................ .1-19
Infants and small children ........1-19
InjuredPerson................1-14
Largerchildren.............. .1-20
Precautions on seat belt usage .....1-11
Pregnant women ..............1-14
Seat belt extenders ............1-18
Seat belt maintenance ..........1-18
Seatbelts................1-11, 7-6
Shoulder belt height adjustment . . . .1-17
Three-pointtypewithretractor.....1-14
Seat belt extenders ..............1-18
Seatbeltwarninglight.........1-14, 2-14
Seats Adjustment ..................1-2
Frontseats................. .1-2
Manual front seat adjustment ......1-3
Seats/floormats................7-5
Security indicator light ............2-16
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-19,5-9
Security systems Vehicle security system ..........2-17
Self-adjustingbrakes.............8-18
Service manual order form .........10-22
Servicing air conditioner ...........4-27
Settingbutton..................4-7 Shif ting
Continuously Variable
Transmission (CVT) ............5-14
Shoulder belt height adjustment ......1-17
Sliding door Manual sliding door .............3-7
Smartphone connectivity ..........4-63
Sonar R

earsystem................5-29
Spark plug replacement ...........8-15
Spark plugs ...................8-15
Specifications .................10-8
Speedometer ..................2-4
SRS warning label ...............1-49
Stability control ................5-26
Standard maintenance ............9-8
Starting Before starting the engine ........5-10
Jumpstarting............6-10,8-14
Precautions when starting and
driving .....................5-2
Push starting ................6-12
Starting the engine ............5-10
Starting the engine ..............5-10
Steering Power steering system ..........5-23
Steering wheel audio control switch . . .4-62
Stoplight....................8-29
Storage .....................2-27 D-ring ....................2-29
Storagetray...................2-27
Sunvisors....................3-18
Supplemental air bag warning labels . . .1-49
Supplemental air bag warning
light.................... .1-50, 2-14
11-5
