NISSAN NV200 2020 Owners Manual

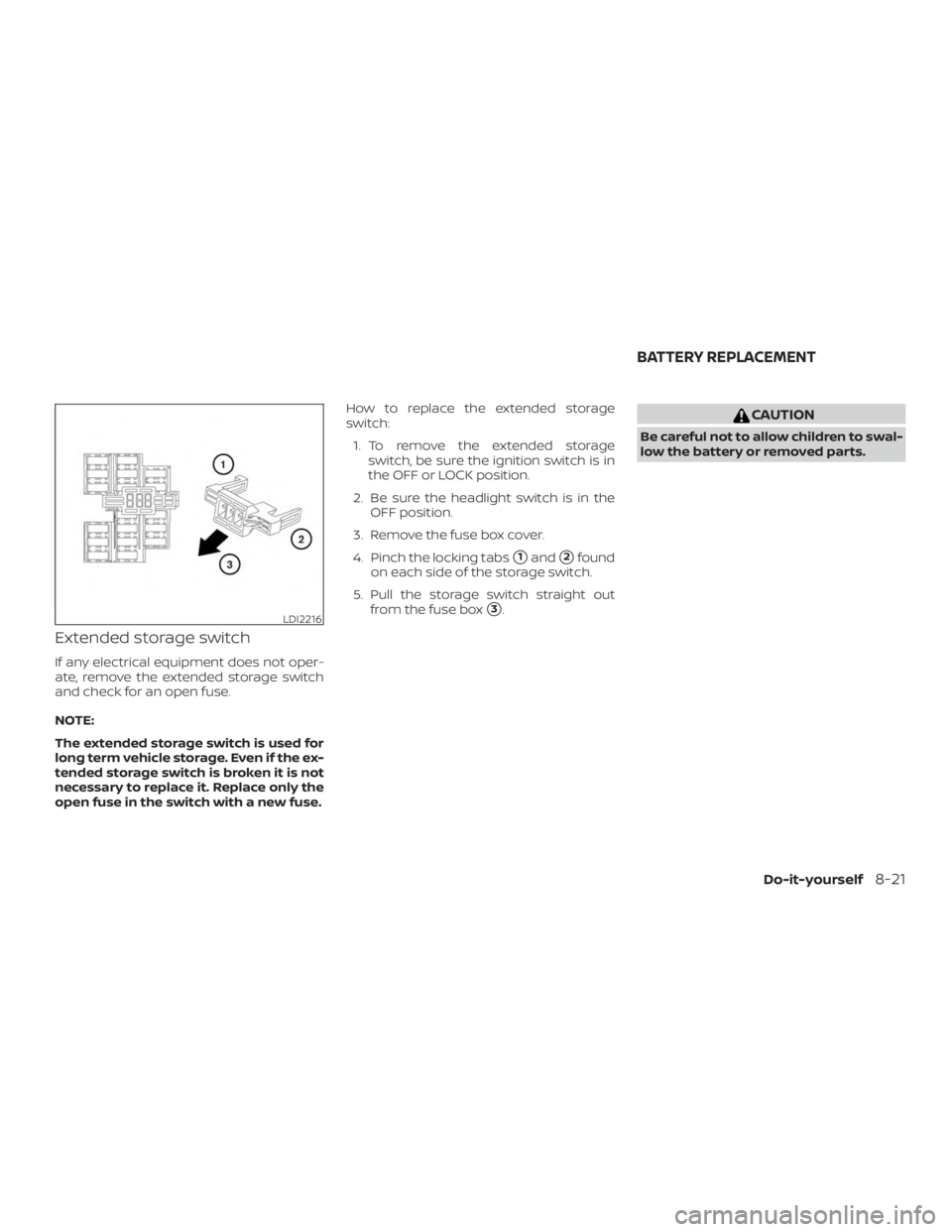

Extended storage switch
If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.How to replace the extended storage
switch:
1. To remove the extended storage switch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
1and2found
on each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
3.

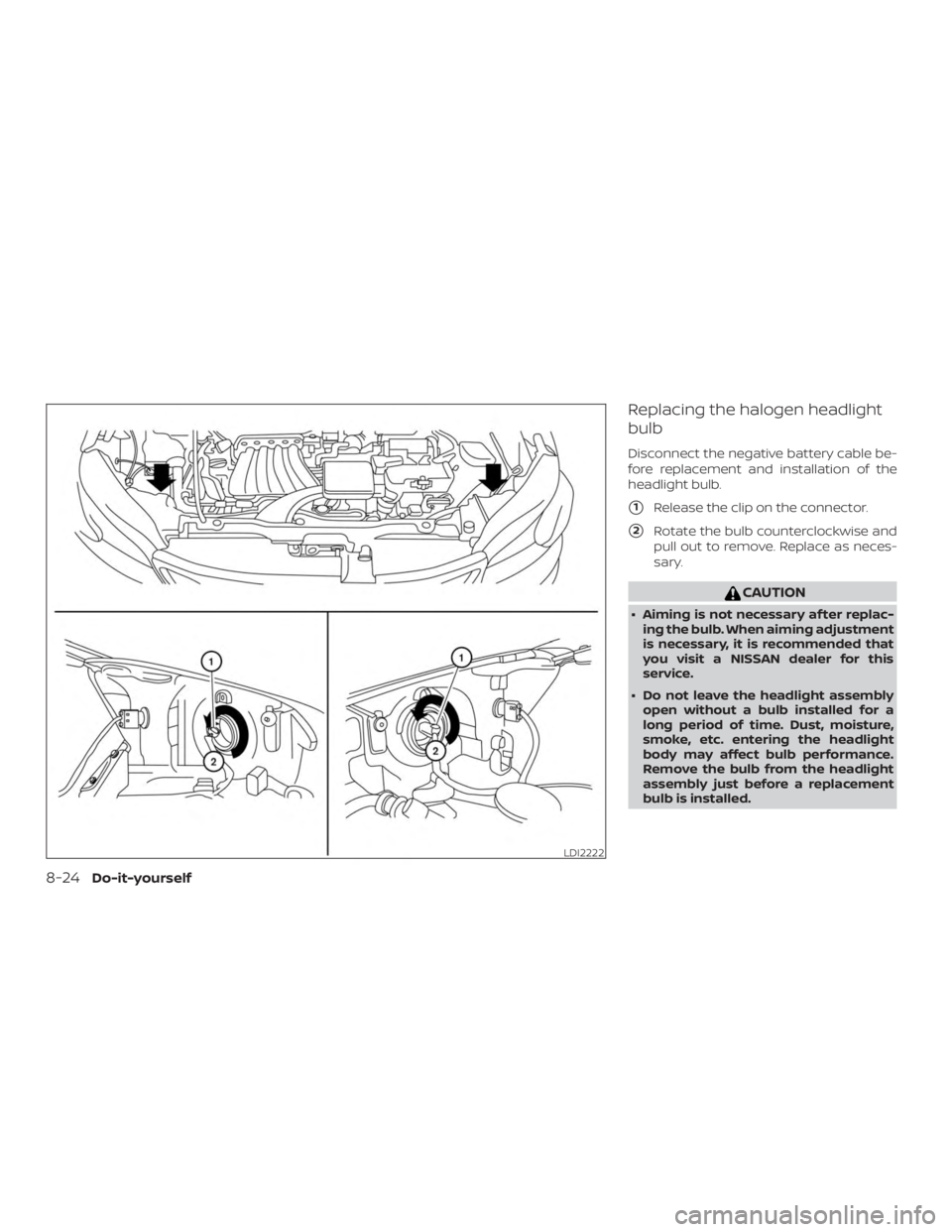

Replacing the halogen headlight
bulb
Disconnect the negative battery cable be-
fore replacement and installation of the
headlight bulb.
1Release the clip on the connector.
2Rotate the bulb counterclockwise and
pull out to remove. Replace as neces-
sary.

∙ Only touch the base when handlingthe bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.
∙ High pressure halogen gas is sealed inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ Use the same number and wattage as shown in the chart.
Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for this service.
Aiming the headlights
The headlights on your vehicle are properly
aimed at the assembly plant. If your vehicle
has been in a collision, the alignment of
your headlights should be checked. It is
recommended that you visit a NISSAN
dealer for this service. Vertical aim adjustment
NOTE:
Due to a maximum load condition of the
vehicle, headlight aiming adjustment
may be necessary. Please perform the
following procedure:
1. Park the vehicle directly in front of a wallor screen on a level surface, approxi-
mately 25 feet (7.6 meters) away.
∙
18 feet (2.4 meters)
∙
2Center height of headlight to ground
∙
325 feet (7.6 meters)
∙
4Horizontal reference line
2. Measure the height from the center of the headlight to the ground and mark
an 8 foot (2.4 meter) horizontal refer-
ence line on the vertical wall or screen
at this height (a piece of masking tape
works well).
