High beam indicator light
(blue)
This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.
The high beam indicator light also comes
on when the passing signal is activated.
Turn signal/hazard
indicator lights (green)
The appropriate light flashes when the turn
signal switch is activated.
NOTE:
In case of turn signal light bulb malfunc-
tion, the turn signal will flash at a higher
frequency when the turn signal switch is
activated.Both lights flash when the hazard switch is
turned on.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.
Key reminder chime
A chime sounds if the driver's door is
opened while the key is lef t in the ignition
switch. Remove the key and take it with you
when leaving the vehicle.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver's
door is opened if the headlights or parking
lights are on.
Turn the headlight control switch off before
leaving the vehicle.
Parking brake reminder chime
A chime sounds if the parking brake is set
and the vehicle is driven. The chime will
stop if the parking brake is released or the
vehicle speed returns to zero.
2-16Instruments and controls

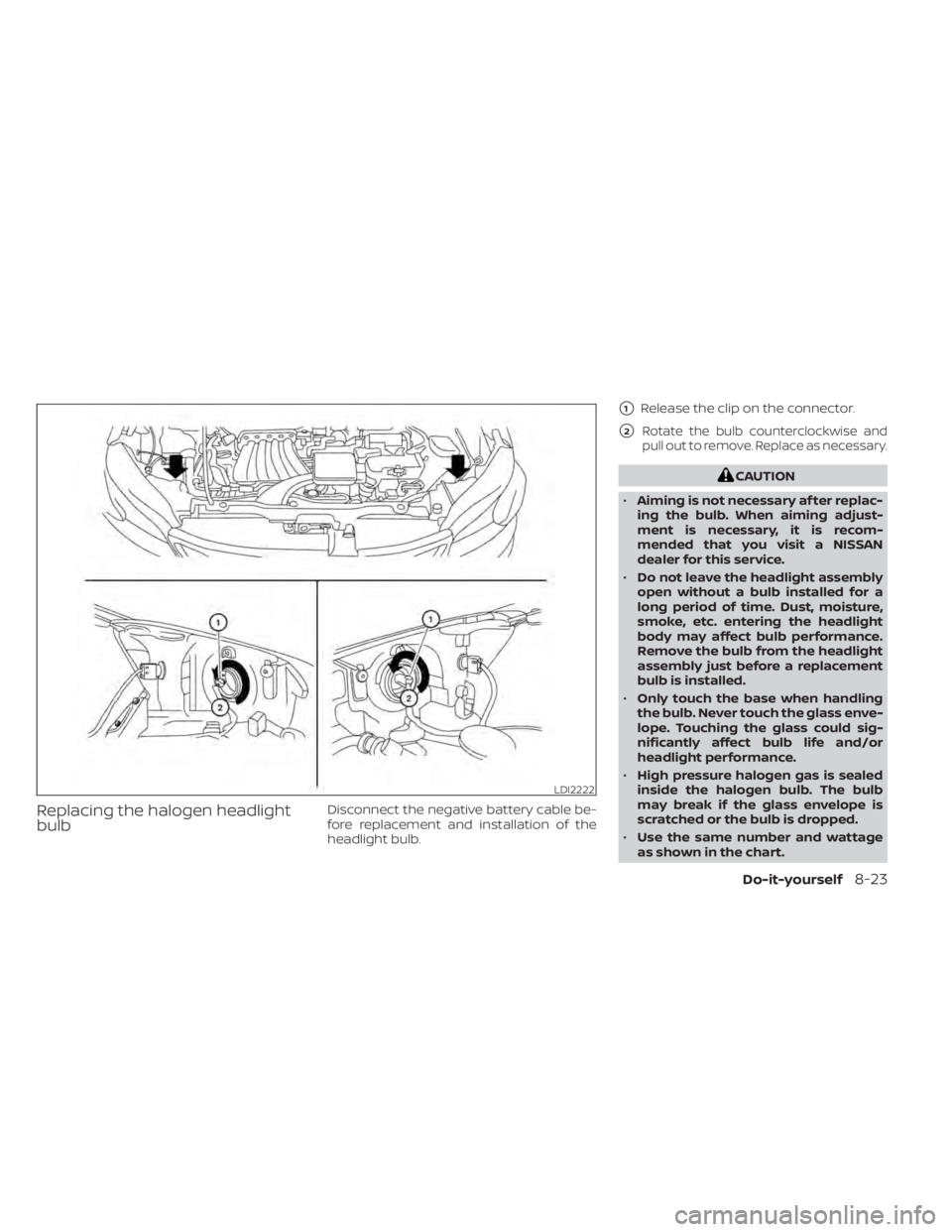

Replacing the halogen headlight
bulbDisconnect the negative battery cable be-
fore replacement and installation of the
headlight bulb.
1Release the clip on the connector.
2Rotate the bulb counterclockwise and
pull out to remove. Replace as necessary.

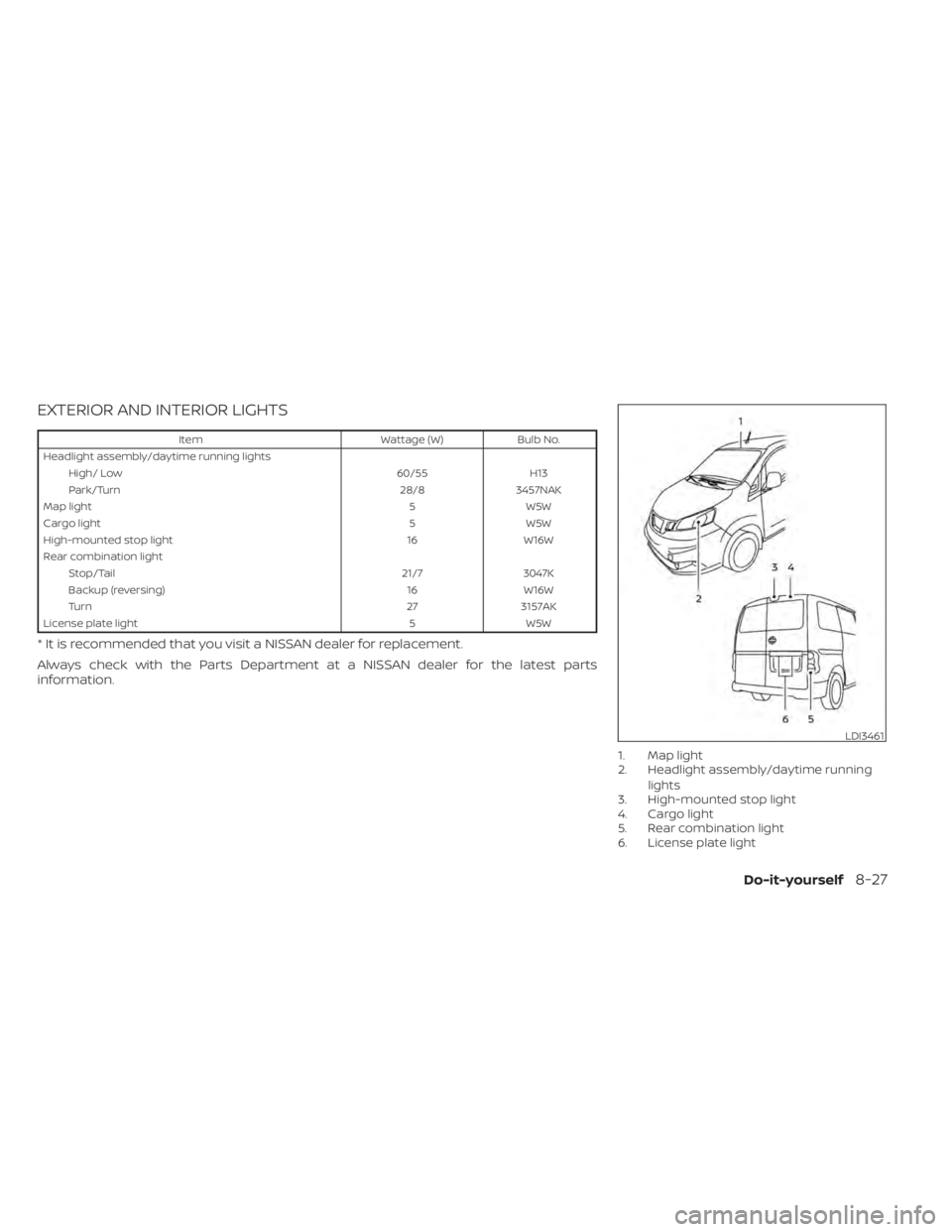

ItemWattage (W)Bulb No.
Headlight assembly/daytime running lights High/ Low 60/55H13
Park/Turn 28/83457NAK
Map light 5W5W
Cargo light 5W5W
High-mounted stop light 16W16W
Rear combination light Stop/Tail 21/73047K
Backup (reversing) 16W16W
Turn 273157AK
License plate light 5W5W
* It is recommended that you visit a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts
information.
1. Map light
2. Headlight assembly/daytime running
lights
3. High-mounted stop light
4. Cargo light
5. Rear combination light
6. License plate light
LDI3461
