Page 91 of 506

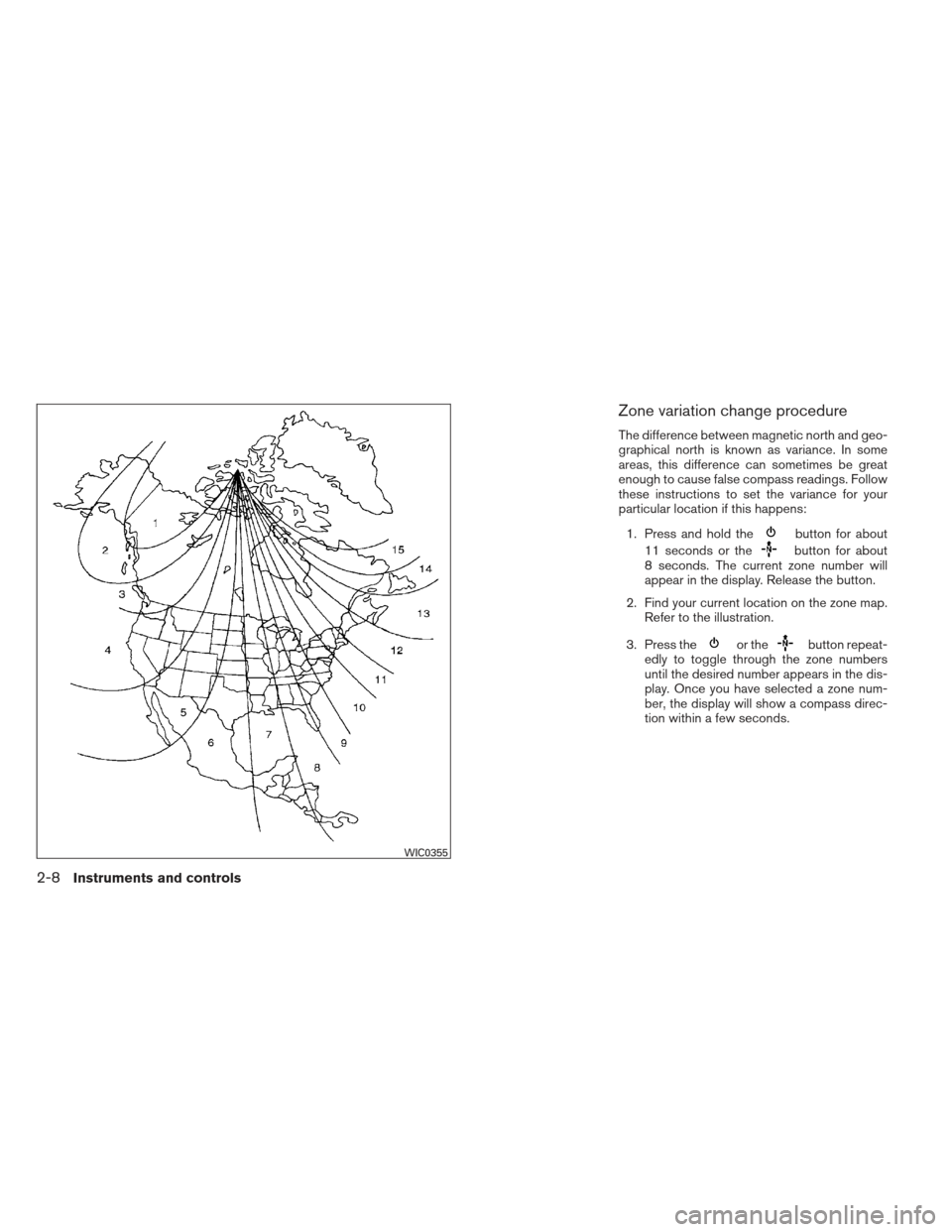

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Zone variation change procedure
The difference between magnetic north and geo-
graphical north is known as variance. In some
areas, this difference can sometimes be great
enough to cause false compass

Page 92 of 506

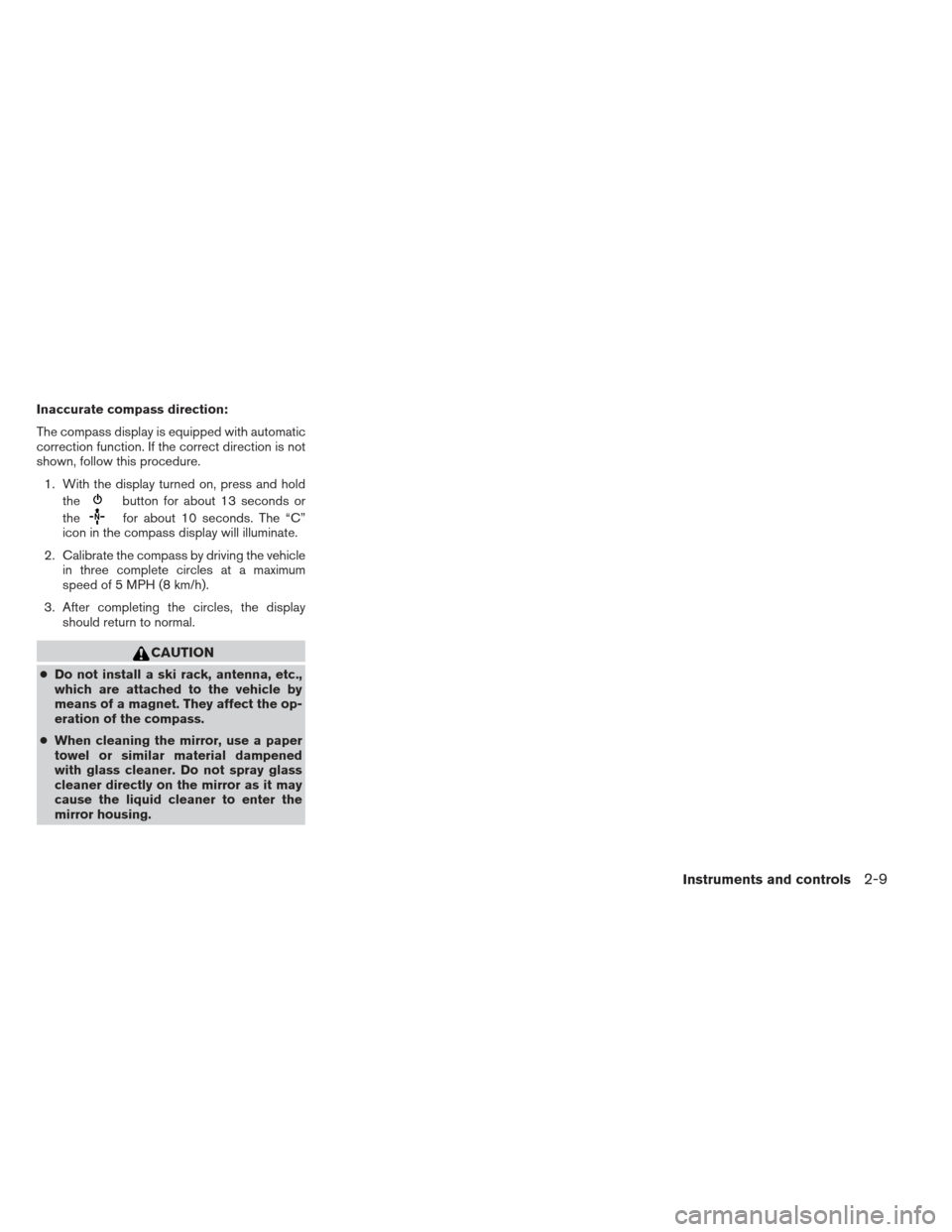

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Inaccurate compass direction:
The compass display is equipped with automatic
correction function. If the correct direction is not
shown, follow this procedure.1. With the display turned on, press and

Page 93 of 506

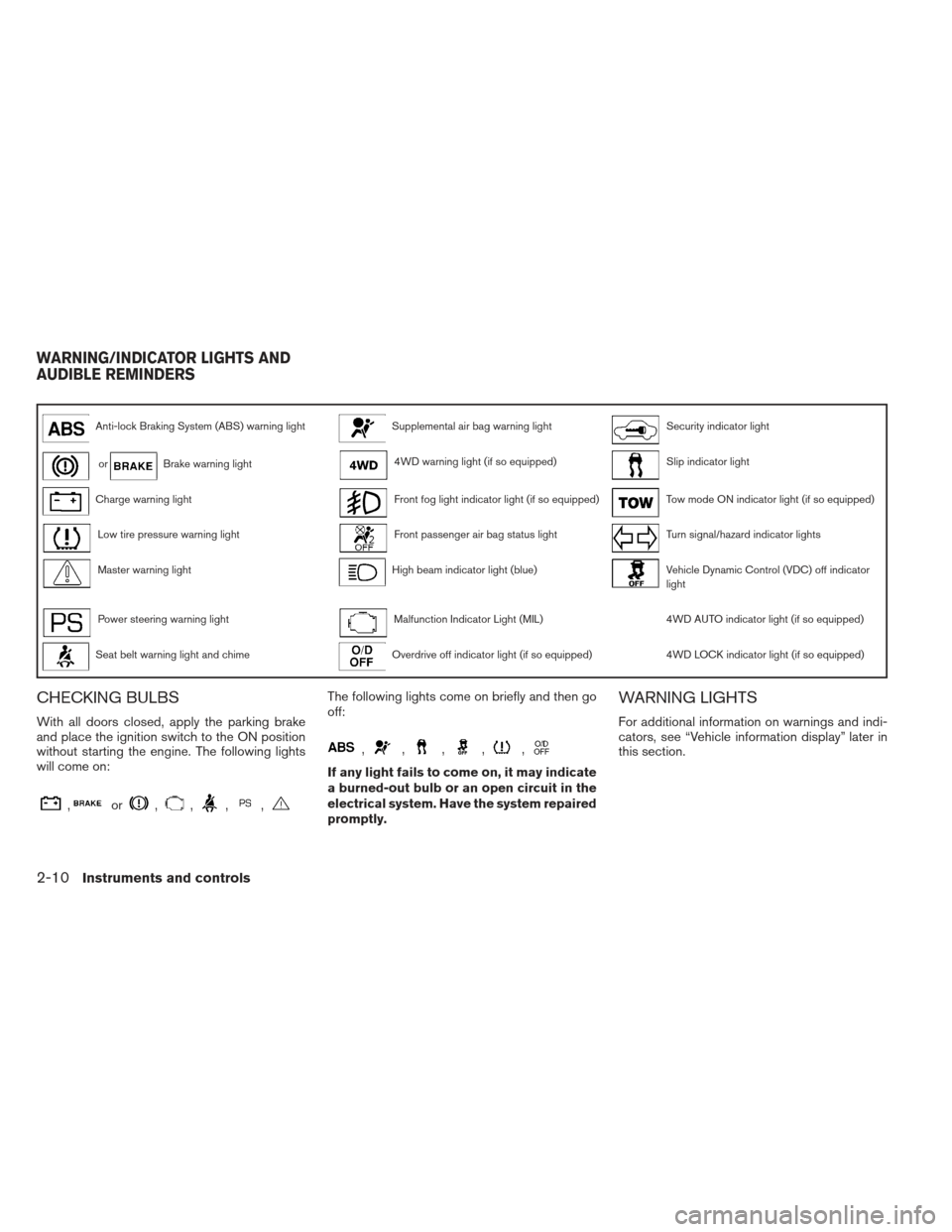

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Anti-lock Braking System (ABS) warning lightSupplemental air bag warning lightSecurity indicator light
orBrake warning light4WD warning light (if so equipped)Slip indicator light
Charge warning lightF

Page 94 of 506

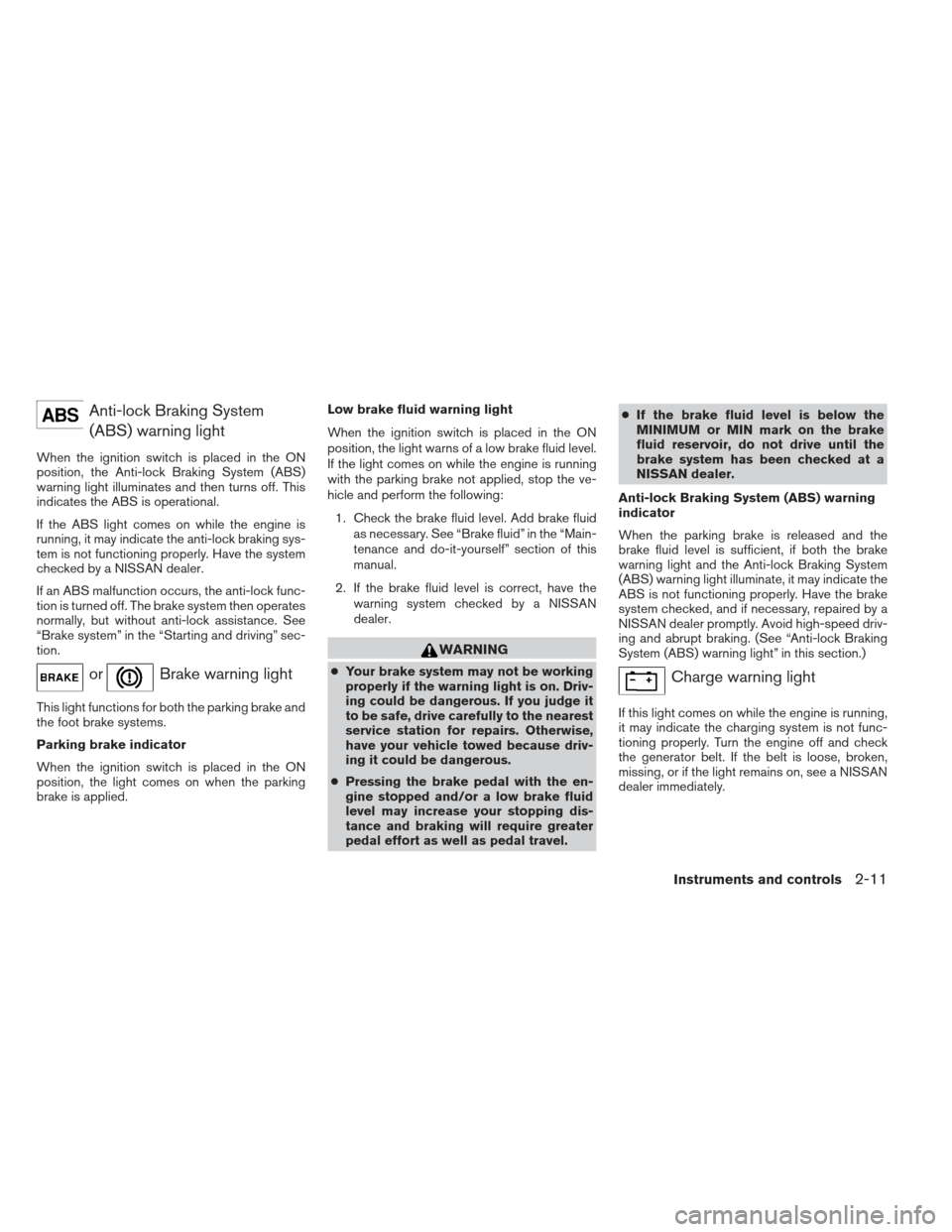

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Anti-lock Braking System(ABS) warning light
When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the A

Page 95 of 506

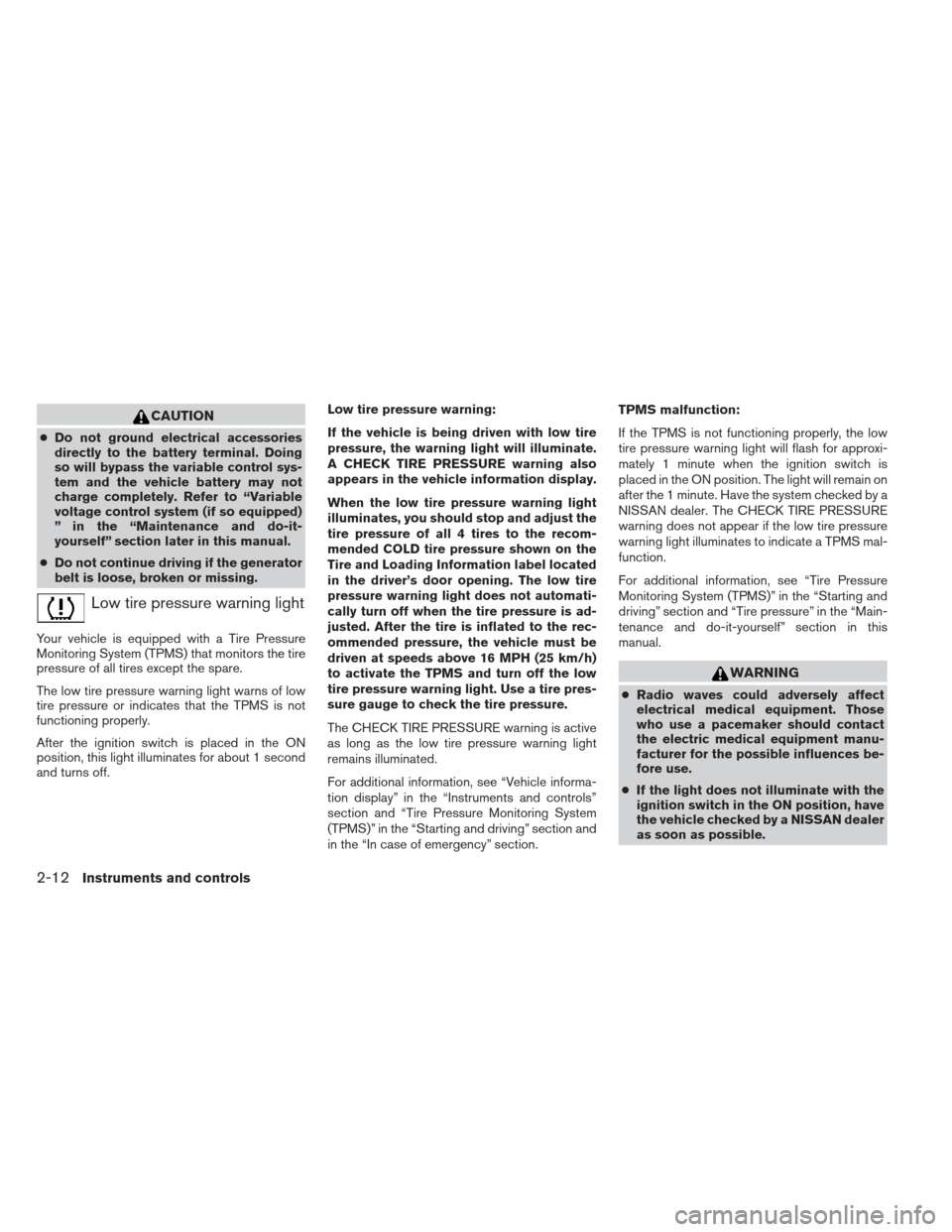

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual CAUTION
●Do not ground electrical accessories
directly to the battery terminal. Doing
so will bypass the variable control sys-
tem and the vehicle battery may not
charge completely. Refer to “Vari

Page 96 of 506

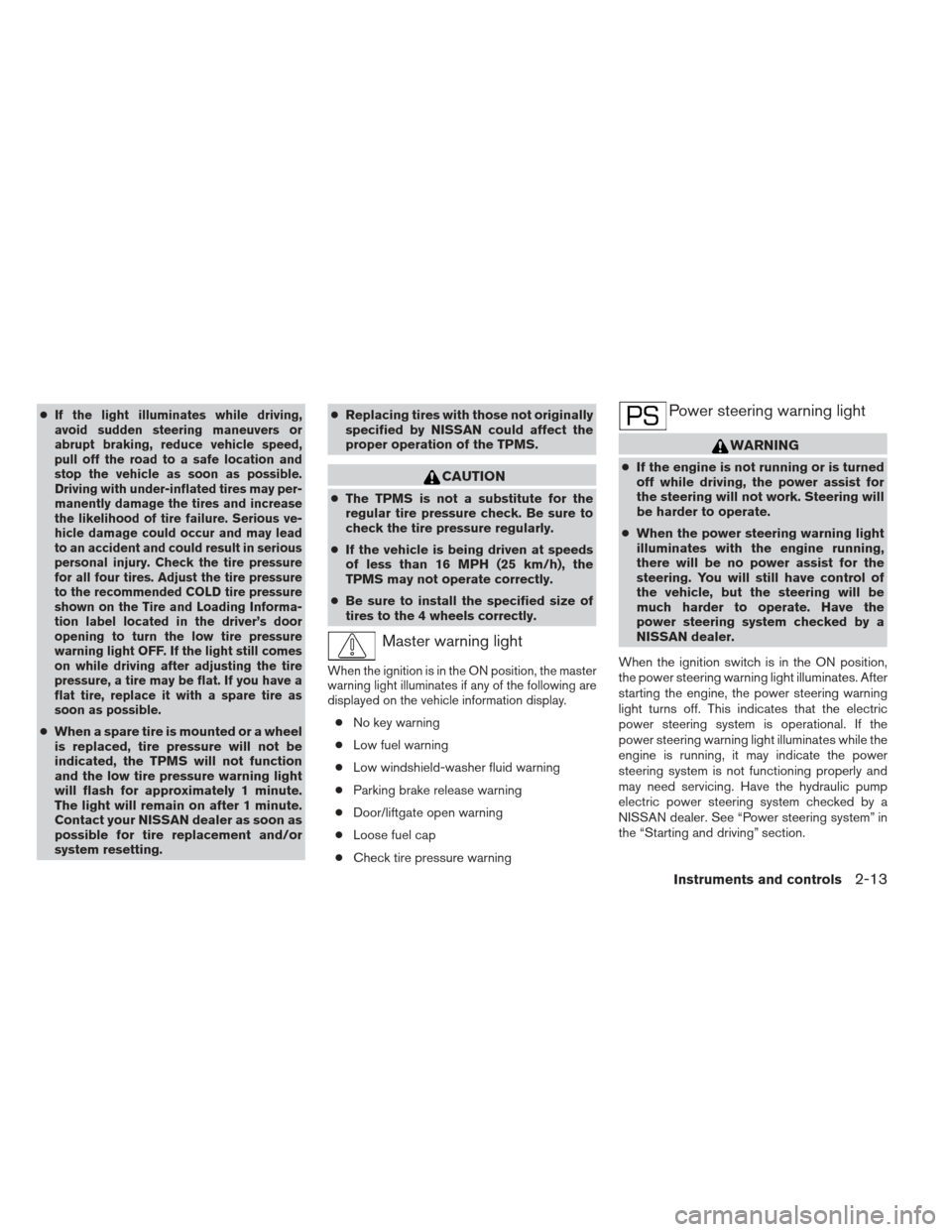

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual ●If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Drivi

Page 97 of 506

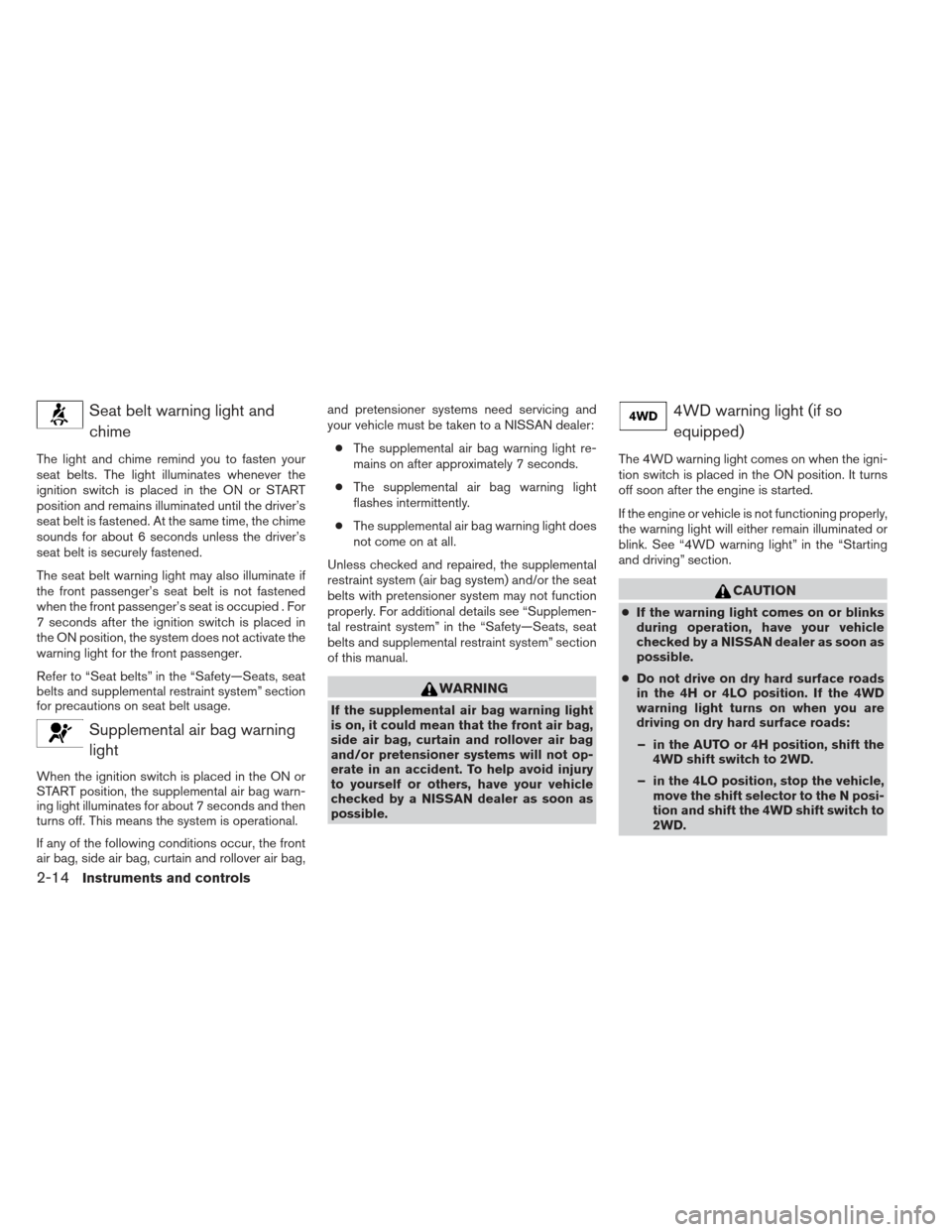

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Seat belt warning light andchime
The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illumina

Page 98 of 506

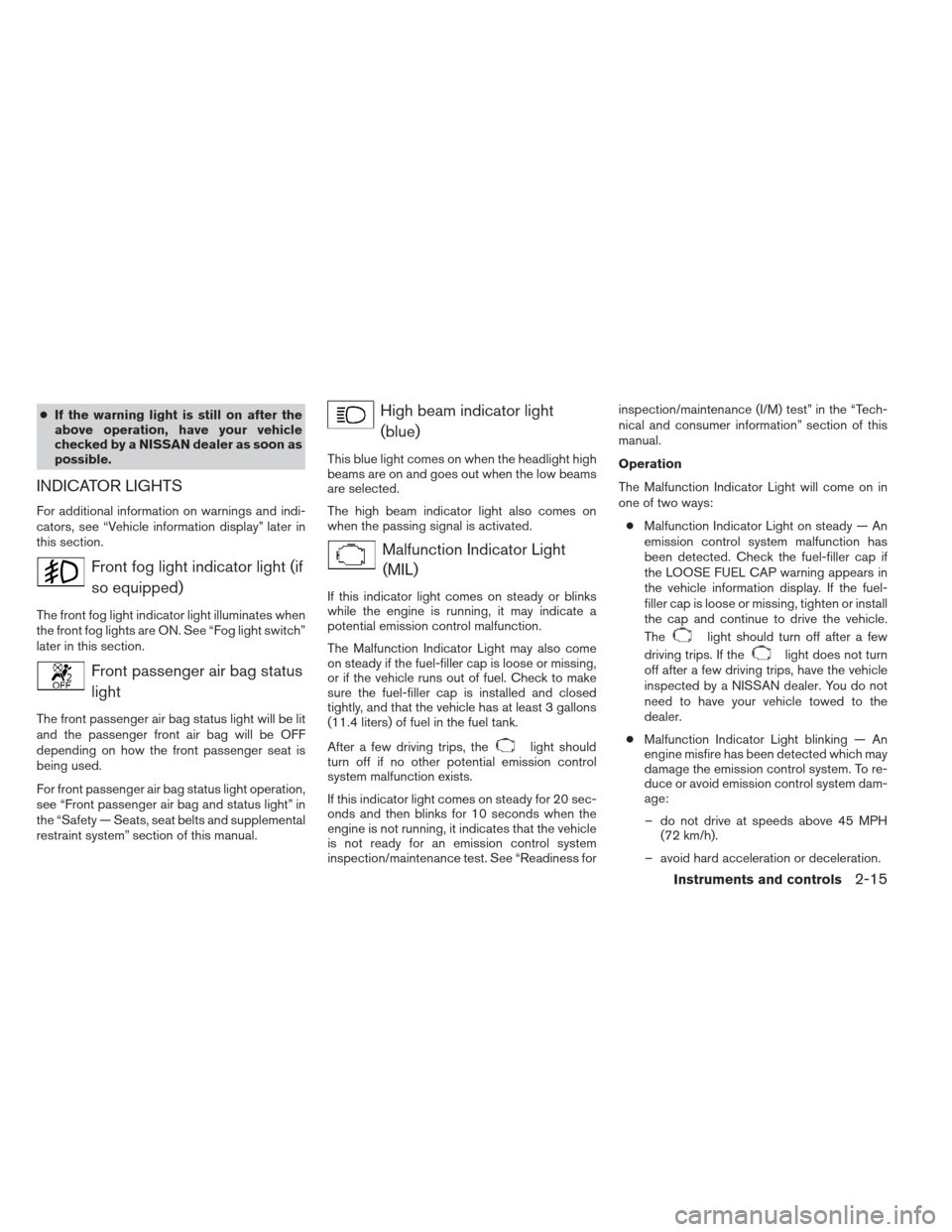

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual ●If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
INDICATOR LIGHTS
For additional information on warnings and indi-
cator

Page 99 of 506

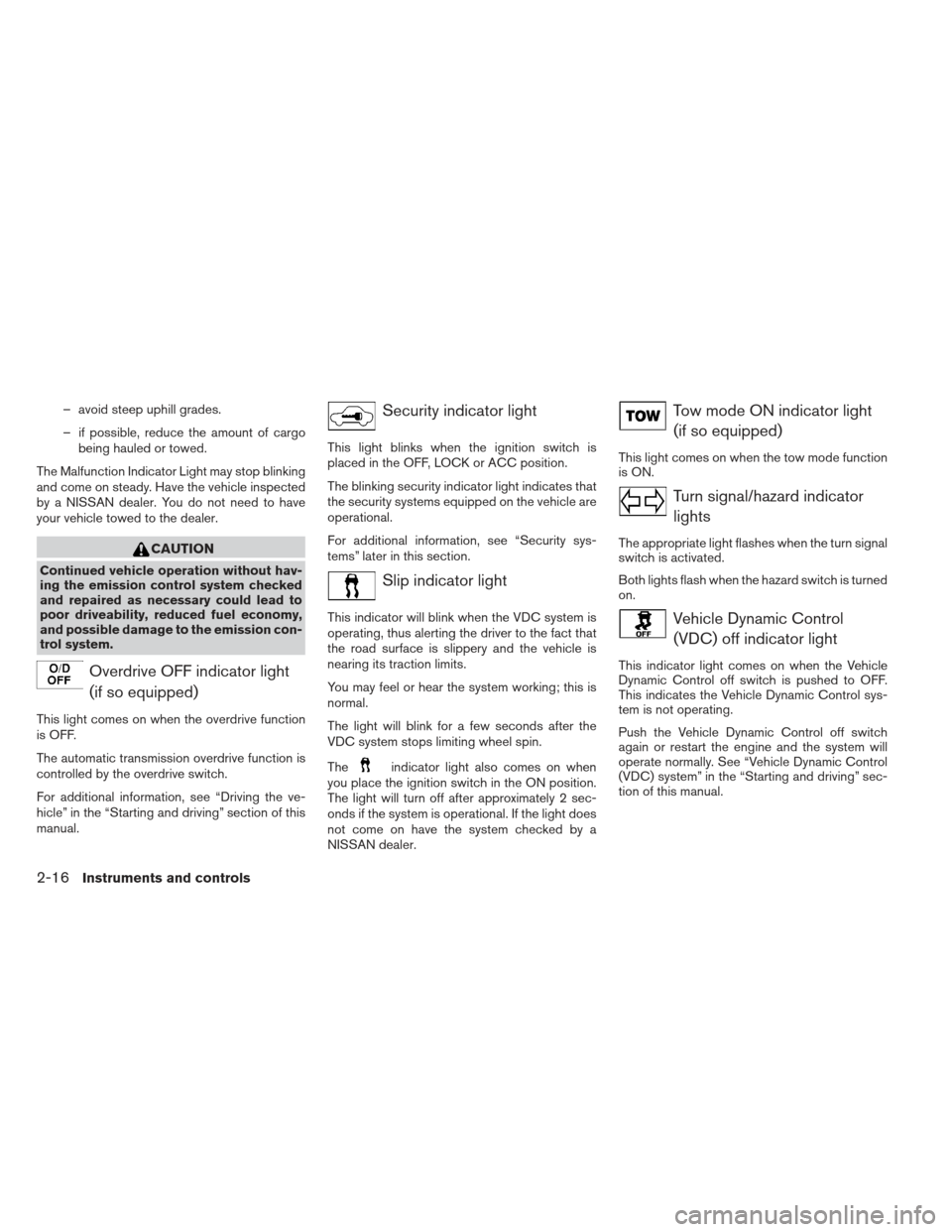

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual – avoid steep uphill grades.
– if possible, reduce the amount of cargobeing hauled or towed.
The Malfunction Indicator Light may stop blinking
and come on steady. Have the vehicle inspected
by a N

Page 100 of 506

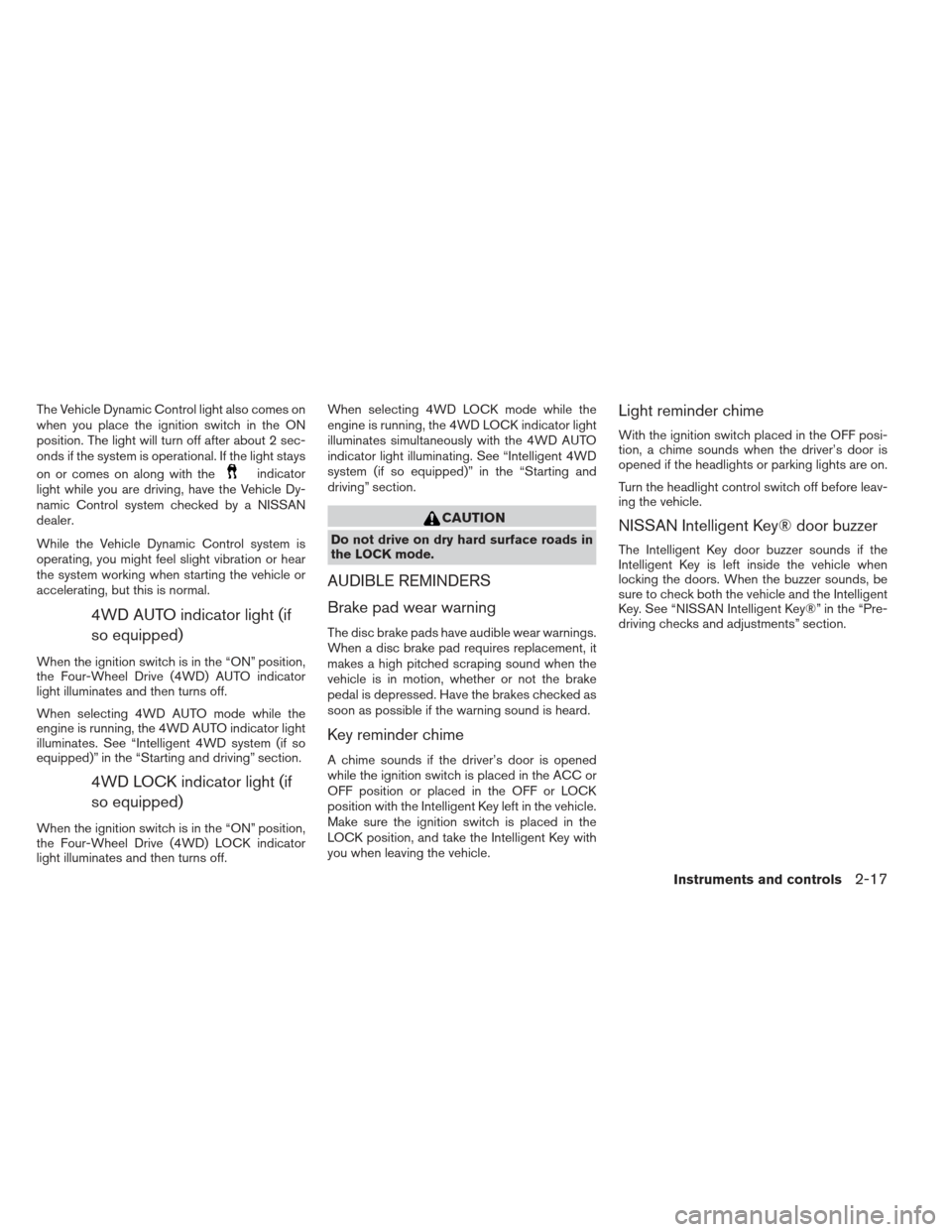

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual The Vehicle Dynamic Control light also comes on
when you place the ignition switch in the ON
position. The light will turn off after about 2 sec-
onds if the system is operational. If the light stays
