Page 431 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual VQ35DE engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap6. Brake fluid reservoir
7. Air cleaner
8. Fuse box
9. Fuse box/F

Page 432 of 506

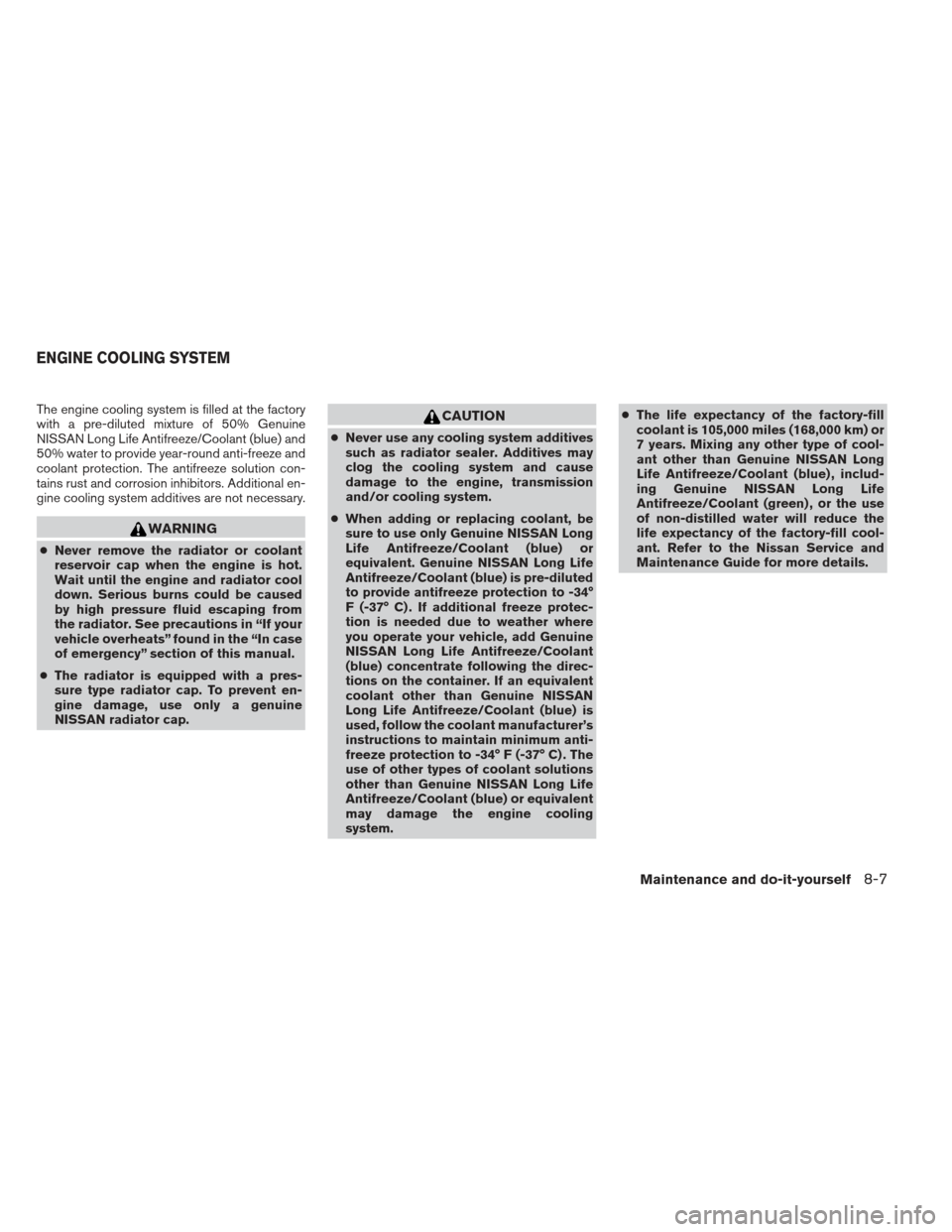

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze and
coolant prot

Page 433 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level, add coolant to the MAX level. If the
reservoir is empty, che

Page 434 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait mo

Page 435 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual CHANGING ENGINE OIL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature, then turn it off.
3. Remove the oil f

Page 436 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
A.
4. Loosen the oil filter
Awit

Page 437 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Check the fluid level in the reservoir.
The fluid level should be checked when the fluid
is cold at fluid temperatures of 32 to 86ºF (0 to
30ºC) . The fluid level can be checked with the
level gauge

Page 438 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Check the fluid level in the reservoir. If the brake
fluid is below the MIN line
B, the brake warning
light will illuminate. Add brake fluid up to the MAX
line
A. (See “RECOMMENDED
FUEL/LUBRICANTS

Page 439 of 506

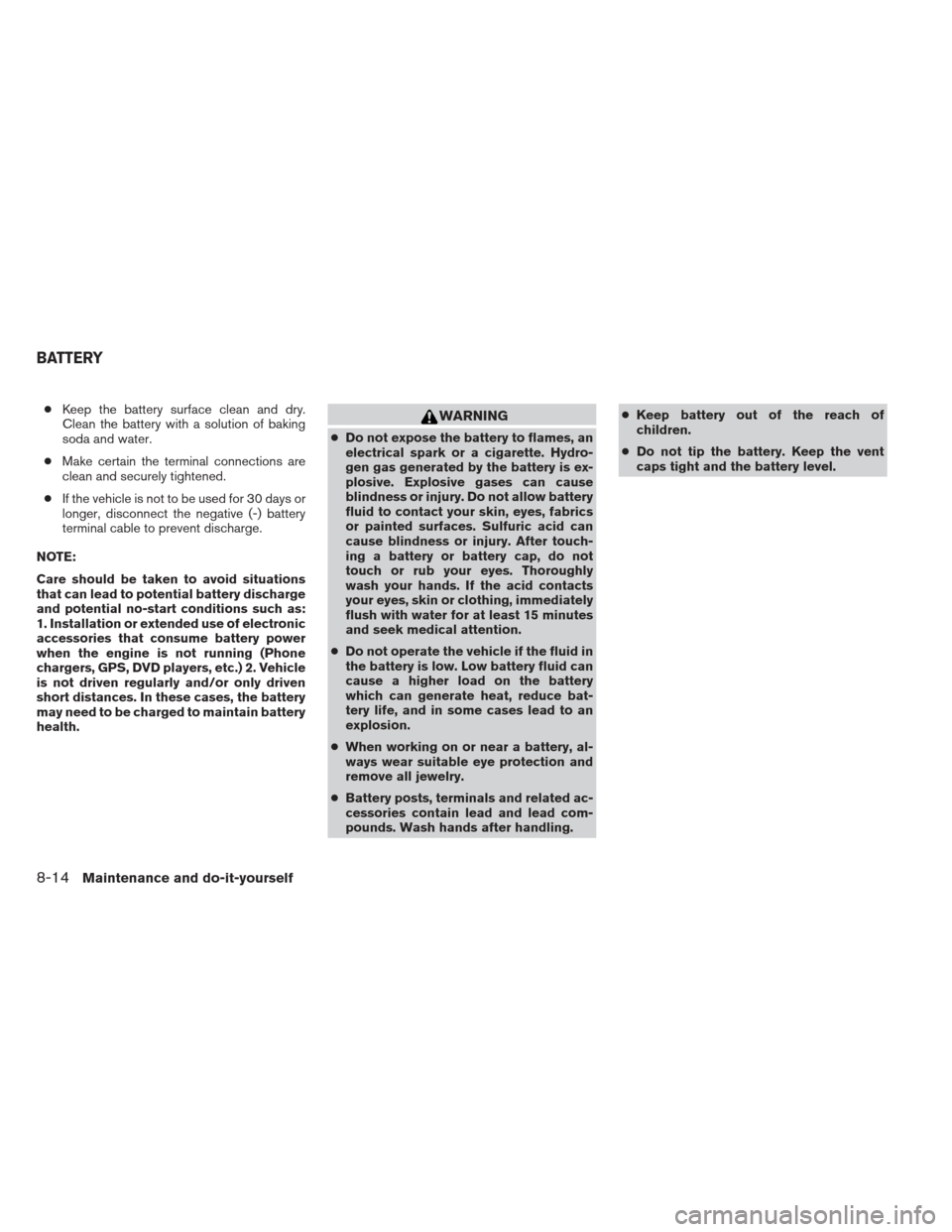

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual ●Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is

Page 440 of 506

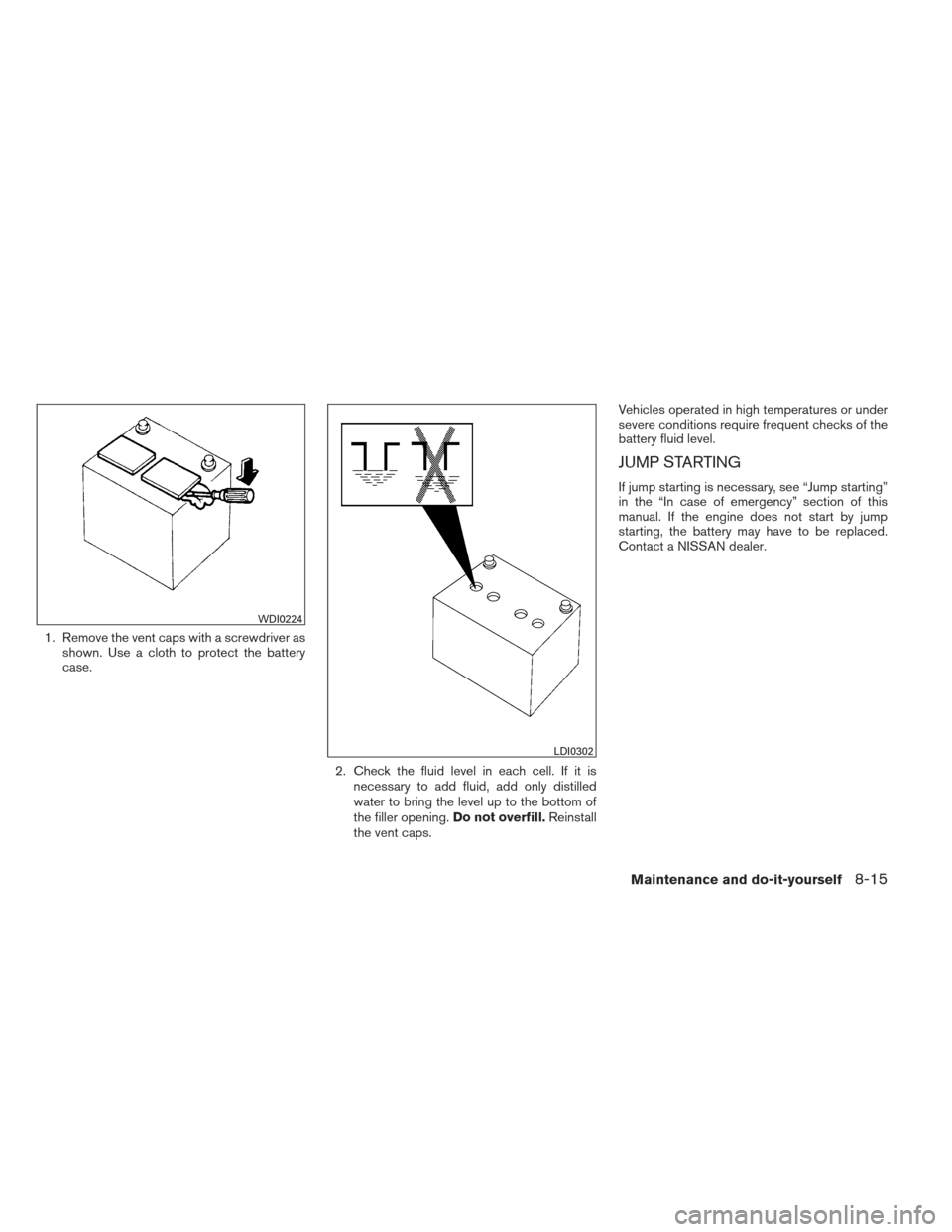

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual 1. Remove the vent caps with a screwdriver asshown. Use a cloth to protect the battery
case.
2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring th
