The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and ex-
tends approximately 10 ft (3.0 m) behind the rear
bumper, and approximately 10 ft (3.0 m) side-
ways.
The BSW system operates above approximately
20 MPH (32 km/h). If the radar sensors detect
vehicles in the detection zone, the Blind Spot
Warning indicator light illuminates. If the driver
then activates the turn signal, a chime will sound
twice and the Blind Spot Warning indicator light
will flash.BSW SYSTEM OPERATION
If the radar sensors detect a vehicle in the detec-
tion zone, the Blind Spot Warning (BSW) indica-
tor light located by the outside mirrors illumi-
nates. If the turn signal is then activated, the
system chimes (twice) and the BSW indicator
light flashes. The BSW indicator light continues
to flash until the detected vehicles leave the
detection zone.
The BSW indicator light illuminates for a few
seconds when the ignition switch is placed in the
ON position.The brightness of the BSW indicator light is
adjusted automatically depending on the bright-
ness of the ambient light.
A chime sounds if the radar sensors have already
detected vehicles when the driver activates the
turn signal. If a vehicle comes into the detection
zone after the driver activates the turn signal, then
only the BSW indicator light flashes and no
chime sounds. For additional information, refer to
“BSW driving situations” in this section.
The BSW system automatically turns on every
time the engine is started, as long as it is acti-
vated using the settings menu on the vehicle
information display.
Detection zone
SSD1030
BSW indicator light
LSD2053
5-20Starting and driving
Page 372 of 506
When the BSW and Rear Cross Traffic Alert
(RCTA) system switch is turned off, the indicator
1on the switch is off. The indicator will also be
off if the BSW/RCTA is deactivated.
How to enable/disable the BSW
system
Perform the following steps to enable or disable
the BSW system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button. 2. Select “Driver Aids”, and press the ENTER
button.
3. To set the BSW/RCTA system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “BSW/RCTA sys-
tem”
Temporarily not available
When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the Blind spot indicator (in the meter display) will
blink
Ain the vehicle information display. The
Blind Spot Warning and Rear Cross Traffic Alert
switch indicator will also blink.
The systems are not available until the conditions
no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog. The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the radar sensors.
LSD2208LSD2247
Starting and driving5-21
Page 373 of 506
Action to take:
When the above conditions no longer exist, the
system will resume automatically.
Malfunction
When the system malfunctions, it will turn off
automatically. The system malfunction warning
message with the blind spot indicator (orange)
will appear in the vehicle information display. If
the BSW system fails, the RCTA system will also
fail.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine off
and restart the engine. If the message continues
to appear, have the system checked by a
NISSAN dealer.
BSW SYSTEM PRECAUTIONS
WARNING
●The radar sensors may not be able to
detect and activate BSW when certain
objects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles. – Oncoming vehicles.
– Vehicles remaining in the detection
zone when you accelerate from a
stop. For additional information, re-
fer to “BSW driving situations” in this
section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSW driving
situations” in this section.
– A vehicle approaching rapidly from behind. For additional information,
refer to “BSW driving situations” in
this section.
– A vehicle which your vehicle over- takes rapidly. For additional informa-
tion, refer to “BSW driving situa-
tions” in this section.
– A vehicle that passes through the de- tection zone quickly. ●
The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
● The radar sensors are designed to ig-
nore most stationary objects, however
objects such as guardrails, walls, foli-
age and parked vehicles may occasion-
ally be detected. The system malfunc-
tion warning message with the blind
spot indicator (orange) will appear in
the vehicle information display. This is a
normal driving condition.
● Severe weather or road spray condi-
tions may reduce the ability of the radar
to detect other vehicles.
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
5-22Starting and driving
Page 374 of 506

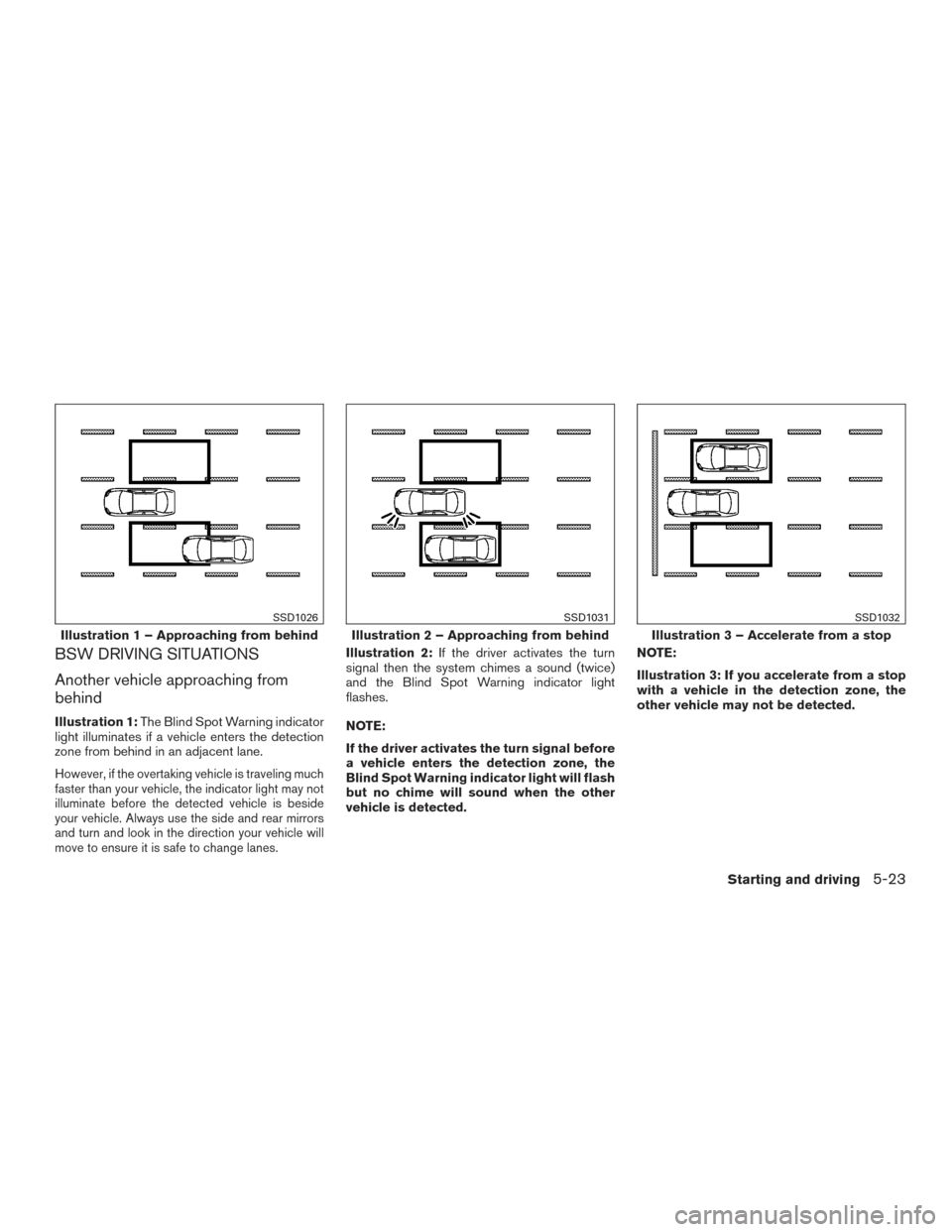

BSW DRIVING SITUATIONS
Another vehicle approaching from
behind
Illustration 1:The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from behind in an adjacent lane.
However, if the overtaking vehicle is traveling much
faster than your vehicle, the indicator light may not
illuminate before the detected vehicle is beside
your vehicle. Always use the side and rear mirrors
and turn and look in the direction your vehicle will
move to ensure it is safe to change lanes.
Illustration 2: If the driver activates the turn
signal then the system chimes a sound (twice)
and the Blind Spot Warning indicator light
flashes.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when the other
vehicle is detected. NOTE:
Illustration 3: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.
Illustration 1 – Approaching from behind
SSD1026
Illustration 2 – Approaching from behind
SSD1031
Illustration 3 – Accelerate from a stop
SSD1032
Starting and driving5-23
Page 375 of 506
Overtaking another vehicle
Illustration 4:The Blind Spot Warning indicator
light illuminates if you overtake a vehicle and that
vehicle stays in the detection zone for approxi-
mately 2 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly. Illustration 5:
If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes a sound (twice)
and the Blind Spot Warning indicator light
flashes.
Illustration 4 – Overtaking another vehicle
SSD1033
Illustration 5 – Overtaking another vehicle
SSD1034
5-24Starting and driving
Page 376 of 506
NOTE:
Illustration 6: When overtaking several ve-
hicles in a row, the vehicles after the first
vehicle may not be detected if they are
traveling close together.Entering from the side
Illustration 7:The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.
Illustration 6 – Overtaking several vehicles
SSD1036
Illustration 7– Entering from the side
LSD2050
Starting and driving5-25
Page 377 of 506
Illustration 8:Illustration 8: If the driver acti-
vates the turn signal while another vehicle is in the
detection zone the Blind Spot Warning indicator
light flashes and a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when another ve-
hicle is detected.RADAR MAINTENANCE
The two radar sensors1for the BSW system
are located near the rear bumper. Always keep
the area near the radar sensors clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors. Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. See a NISSAN dealer if the area
around the radar sensors is damaged due to a
collision.
Radio frequency statement
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful in-
terference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
Illustration 8– Entering from the side
SSD1038LSD2221
5-26Starting and driving
Page 378 of 506
Applicable law: Canada 310
This device complies with Industry Canada
license-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency of operation: 24.05GHz —
24.25GHz
Output power: less than 20 milliwatts
WARNING
●The RCTA system is not a replacement
for proper driving procedure and is not
designed to prevent contact with ve-
hicles or objects. When backing out of
parking space, always use the side and
rear mirrors and turn and look in the
direction you will move. Never rely
solely on the RCTA system.
RCTA SYSTEM OPERATION
The RCTA systems can help alert the driver of an
approaching vehicle when the driver is backing
out of a parking space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 MPH
(8 km/h), the RCTA system operates.
The RCTA system uses radar sensors
1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
1detect an approaching
vehicle from up to approximately 66 ft. (20 m)
away.
LSD2217LSD2216
THE REAR CROSS TRAFFIC ALERT
(RCTA) SYSTEM (if so equipped)
Starting and driving5-27
Page 379 of 506
If the radar detects a vehicle approaching from
the side, the system gives visual and audible
warnings
RCTA SYSTEM PRECAUTIONS
LSD2173
5-28Starting and driving
Page 380 of 506
WARNING
●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles, animals or child operated toy
vehicles
– A vehicle that is passing at speeds greater than approximately 19 MPH
(30 km/h)
– A vehicle that is passing at speeds lower than approximately 5 MPH
(8 km/h)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is parked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground. – Illustration d: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Build up on the vehicle
– Dirt build up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles
● Do not use the RCTA systems when
towing a trailer. ●
Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side of the approaching vehicle flashes.
Starting and driving5-29
