Page 121 of 540

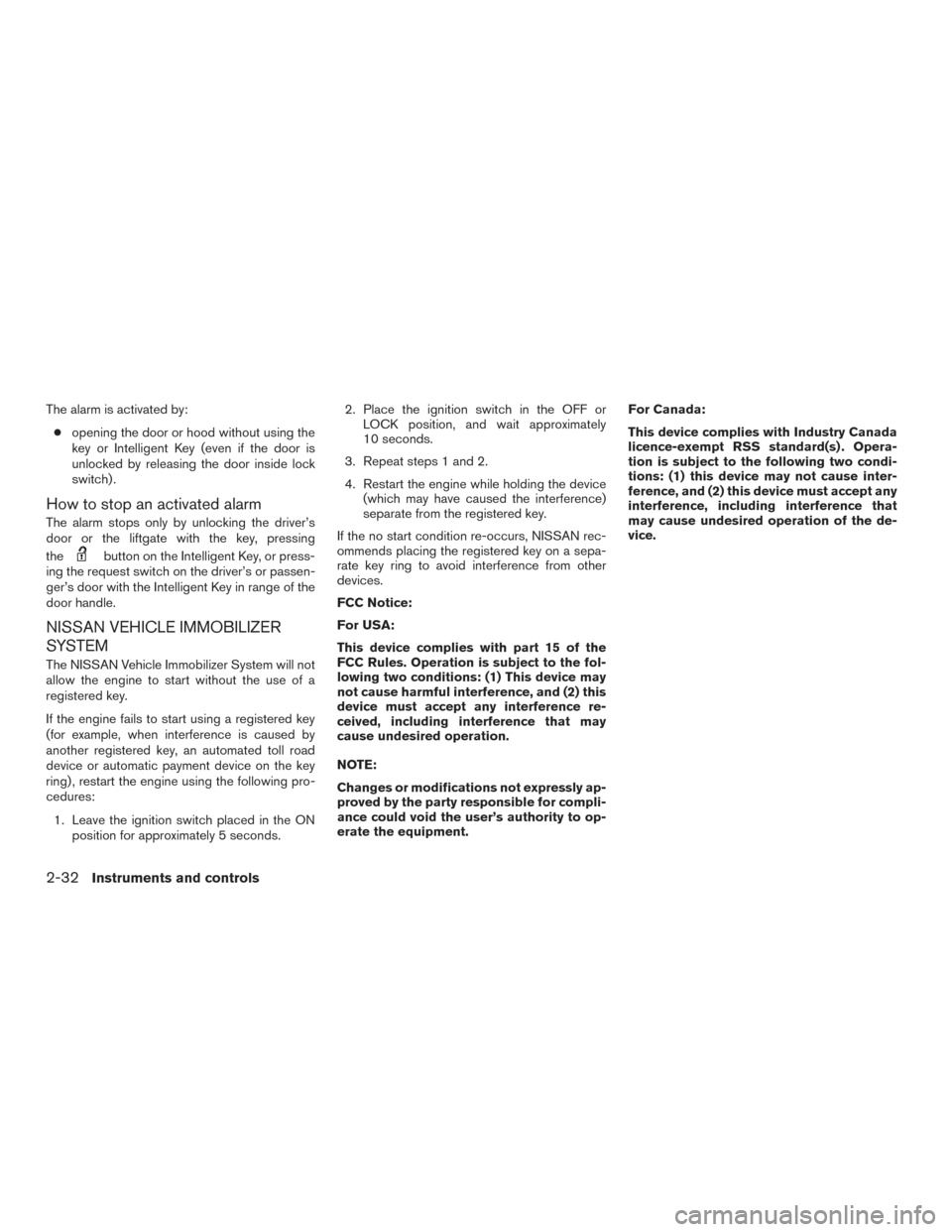

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual The alarm is activated by:● opening the door or hood without using the
key or Intelligent Key (even if the door is
unlocked by releasing the door inside lock
switch) .
How to stop an activated alarm

Page 122 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual Security indicator light
This light blinks whenever the ignition switch is
placed in the LOCK, OFF or ACC position.
This function indicates the NISSAN Vehicle Im-
mobilizer System is operational.
If t

Page 123 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual 2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed opera-
tion
Push the lever up
4to have one sweep opera-
tion (MIST) of the wiper.
Pull the lever toward you
5to op

Page 124 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual 2Low (ON) — continuous low speed opera-
tion
Push the switch forward
3to operate the
washer. The wiper will also operate several times.
WARNING
In freezing temperatures the washer solu-
tion may f

Page 125 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual NOTE:
The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio system.
HEADLIGHT CONTROL SWITCH
Lighting

Page 126 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual Autolight system (if so equipped)
The autolight system allows the headlights to turn
on and off automatically. The autolight system
can:● Turn on the headlights, front parking, tail,
license plate a

Page 127 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual Headlight beam select
1To select the high beam function, push the
lever forward while the low beams are on.
The high beam lights come on and the
indicator light illuminates.
2Pull the lever back to

Page 128 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual INSTRUMENT BRIGHTNESS
CONTROL
Press the “+” buttonAto increase the bright-
ness of instrument panel lights.
Press the “-” button
Bto decrease the bright-
ness of instrument panel lights.
TUR

Page 129 of 540

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, rotate the headlight
switch to the
position, then rotate the fog
light switch to the
position.
To turn the fog lights on with the headlight

Page 130 of 540

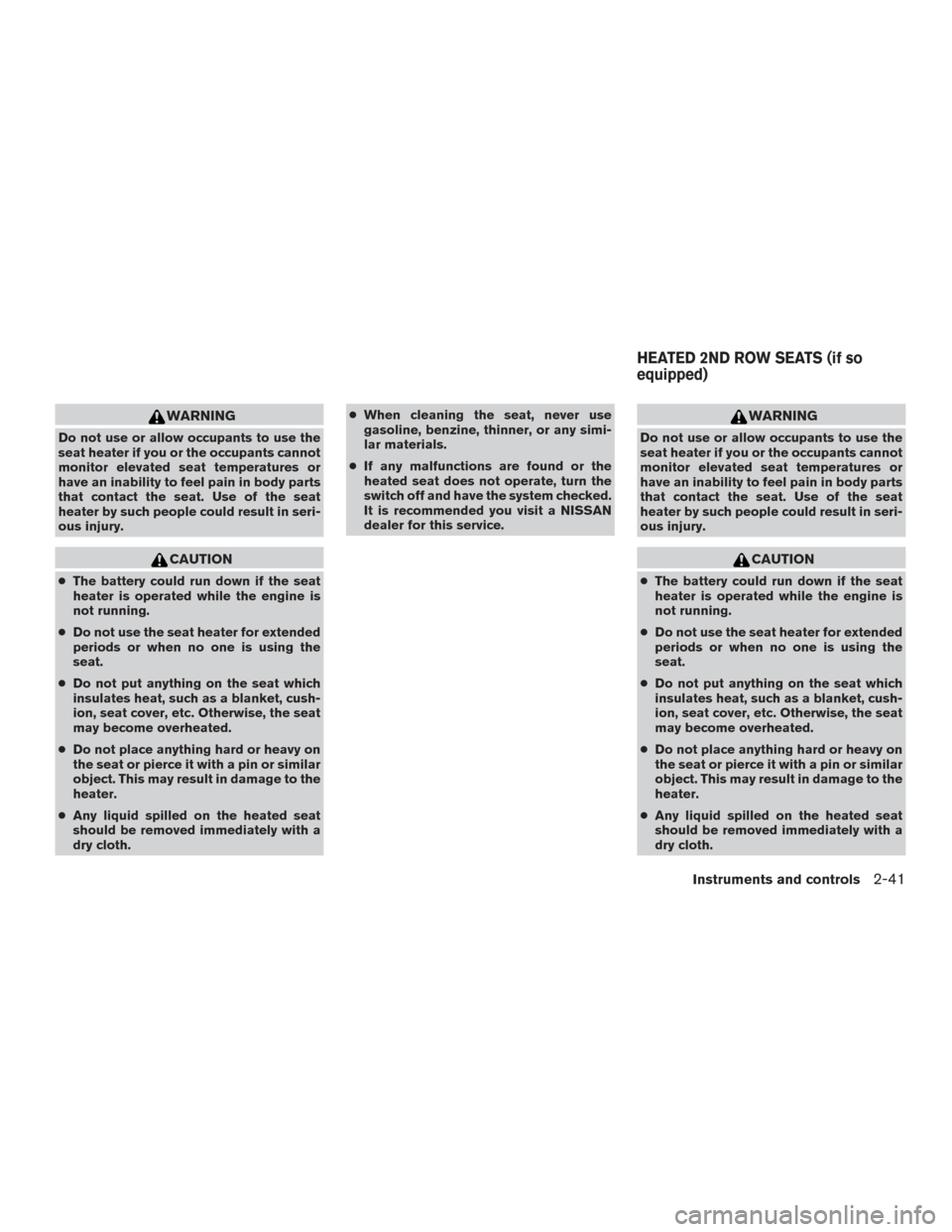

NISSAN PATHFINDER 2016 R52 / 4.G Owners Manual WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Us
