Page 371 of 474

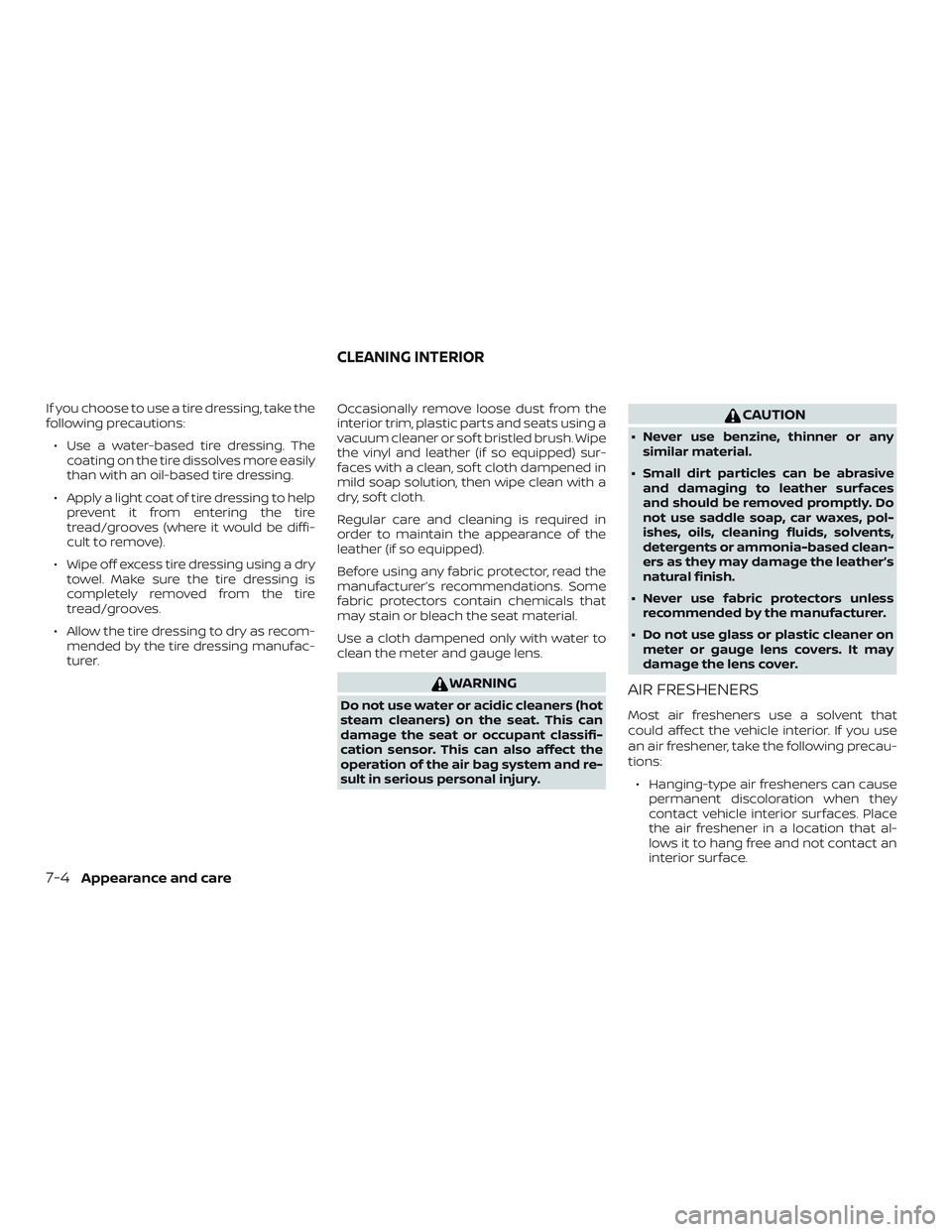

NISSAN PATHFINDER 2018  Owner´s Manual If you choose to use a tire dressing, take the
following precautions:∙ Use a water-based tire dressing. The coating on the tire dissolves more easily
than with an oil-based tire dressing.
∙ Apply

Page 372 of 474

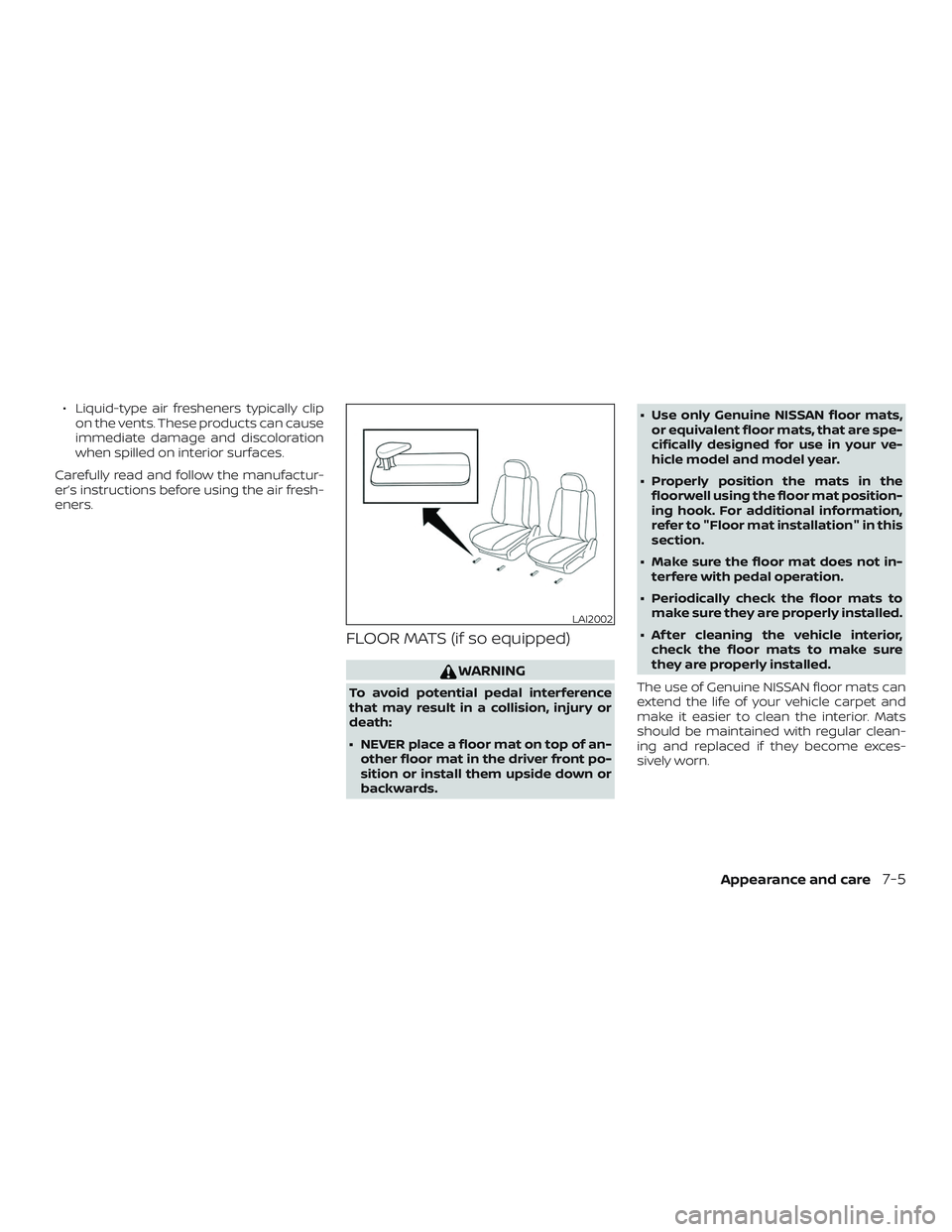

NISSAN PATHFINDER 2018  Owner´s Manual ∙ Liquid-type air fresheners typically clipon the vents. These products can cause
immediate damage and discoloration
when spilled on interior surfaces.
Carefully read and follow the manufactur-
er

Page 373 of 474

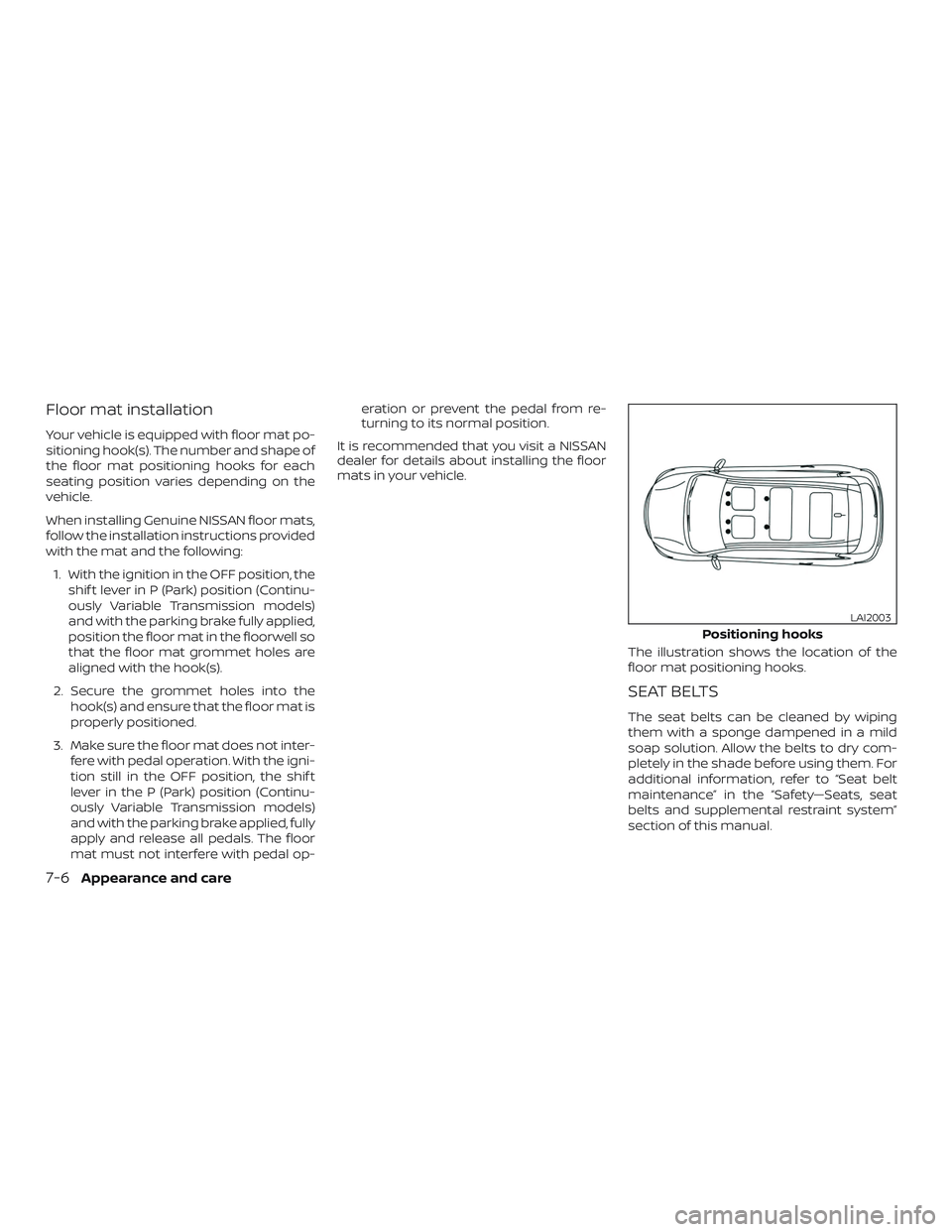

NISSAN PATHFINDER 2018  Owner´s Manual Floor mat installation
Your vehicle is equipped with floor mat po-
sitioning hook(s). The number and shape of
the floor mat positioning hooks for each
seating position varies depending on the
vehicle.

Page 374 of 474

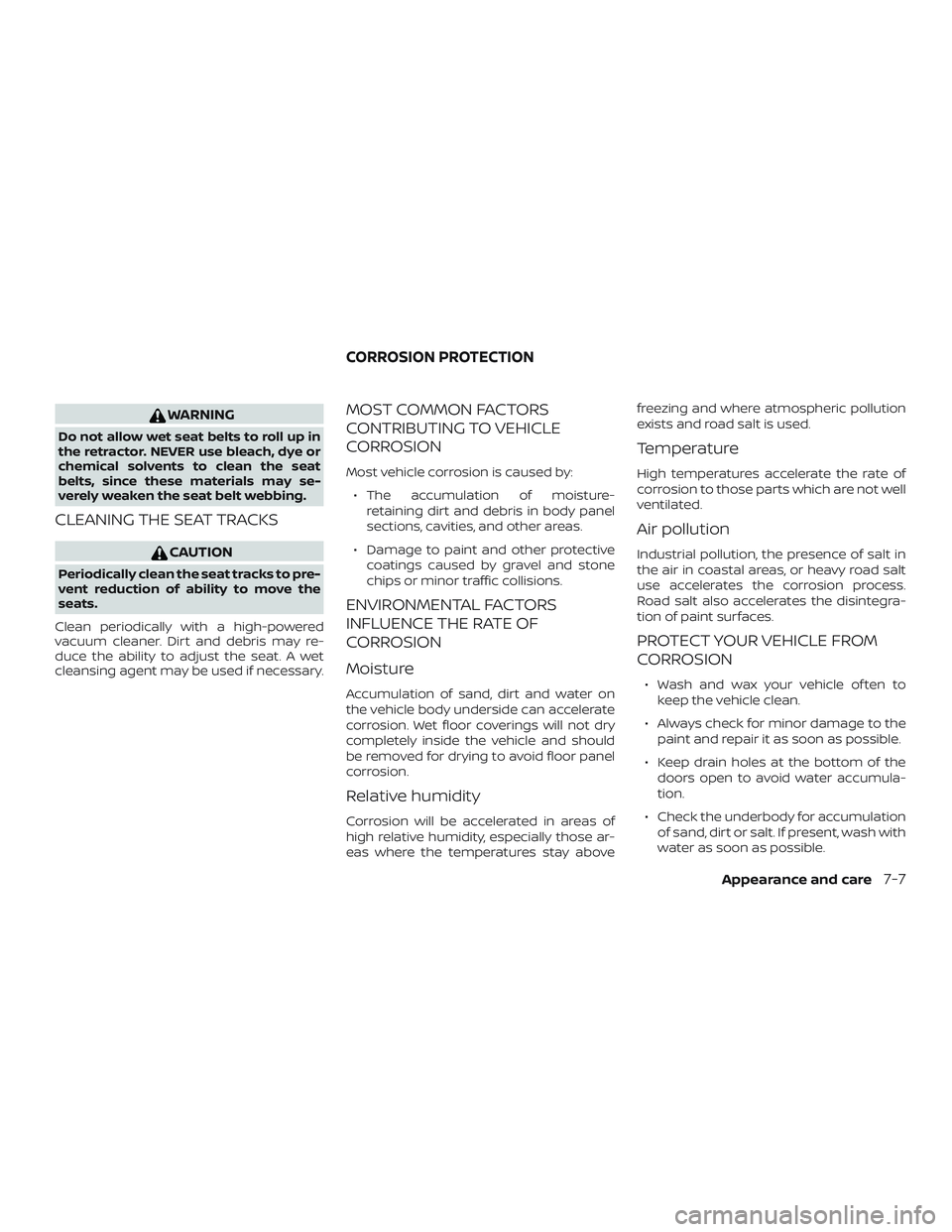

NISSAN PATHFINDER 2018  Owner´s Manual WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.

Page 375 of 474

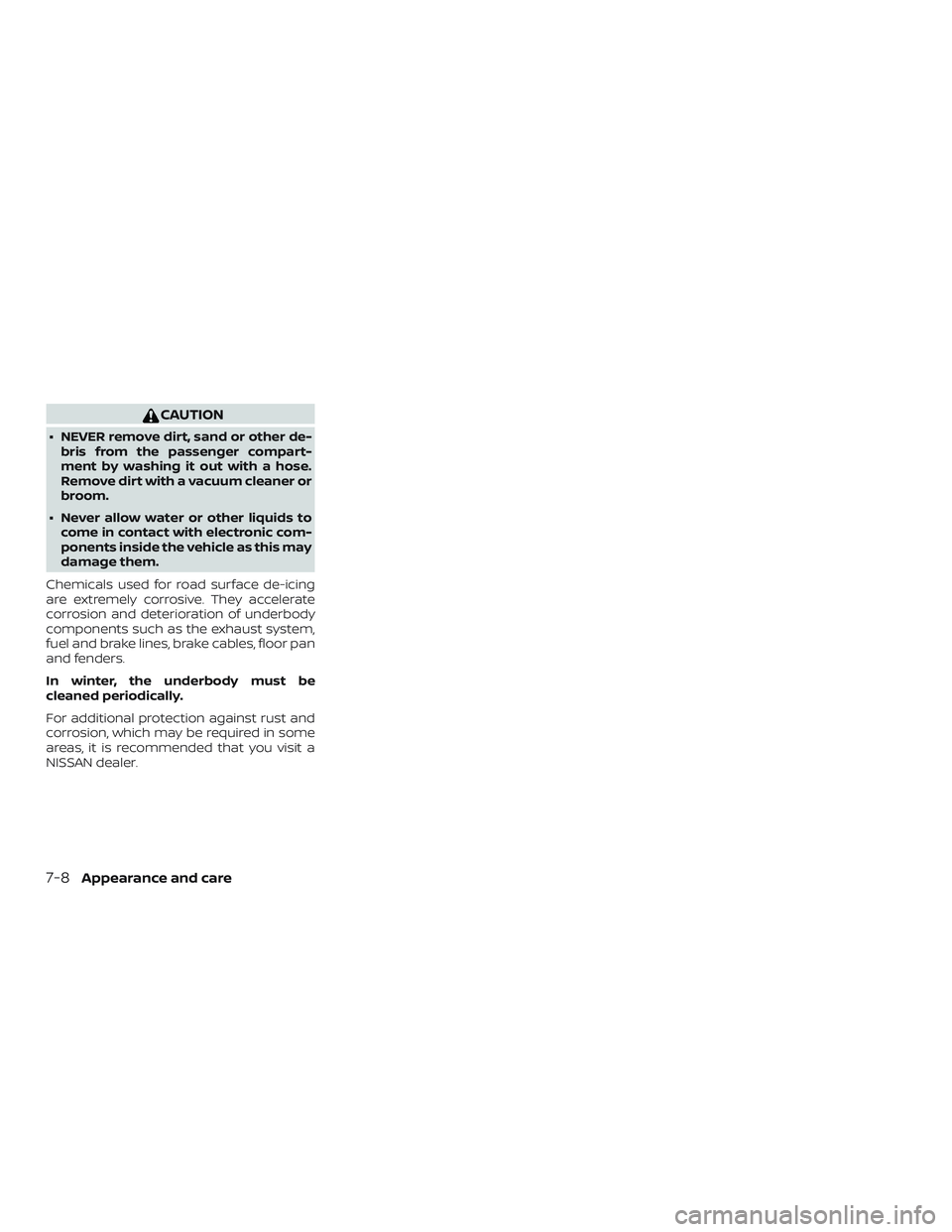

NISSAN PATHFINDER 2018  Owner´s Manual CAUTION
∙ NEVER remove dirt, sand or other de-bris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner or
broom.
∙ Never allow water or other liquids

Page 376 of 474

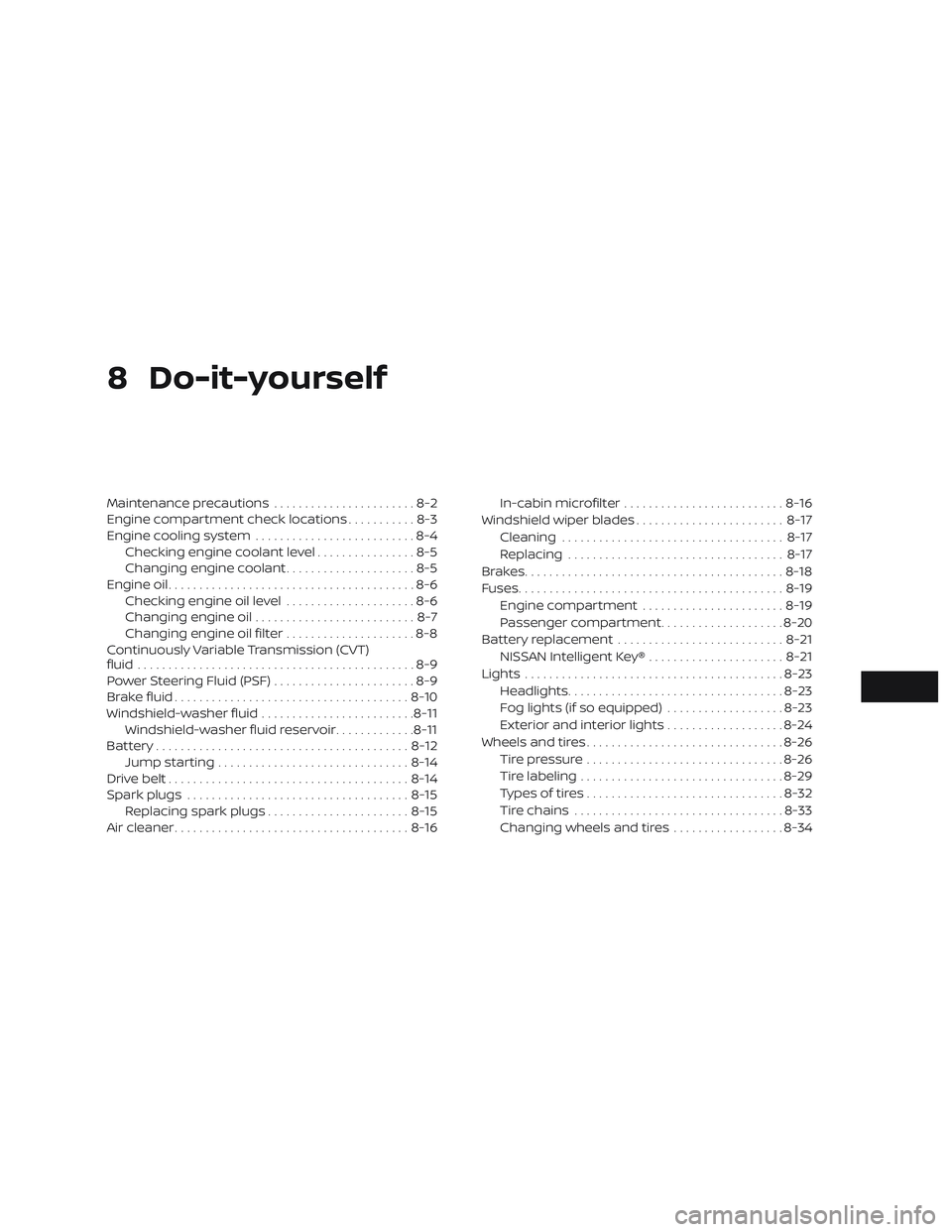

NISSAN PATHFINDER 2018  Owner´s Manual 8 Do-it-yourself
Maintenance precautions.......................8-2
Engine compartment check locations ...........8-3
Engine cooling system ..........................8-4
Checking engine coolant level .

Page 377 of 474

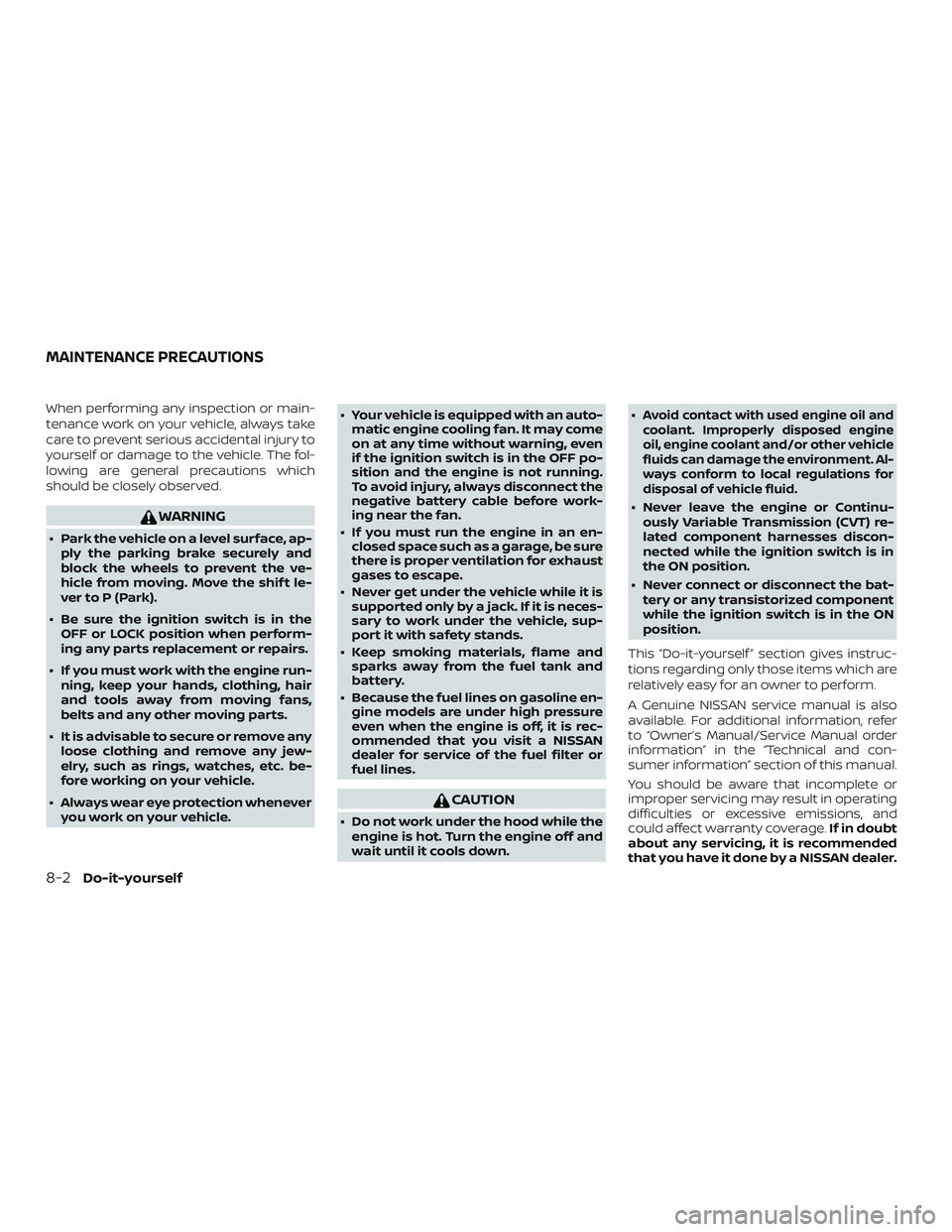

NISSAN PATHFINDER 2018  Owner´s Manual When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The fol-
lowing are general precaution

Page 378 of 474

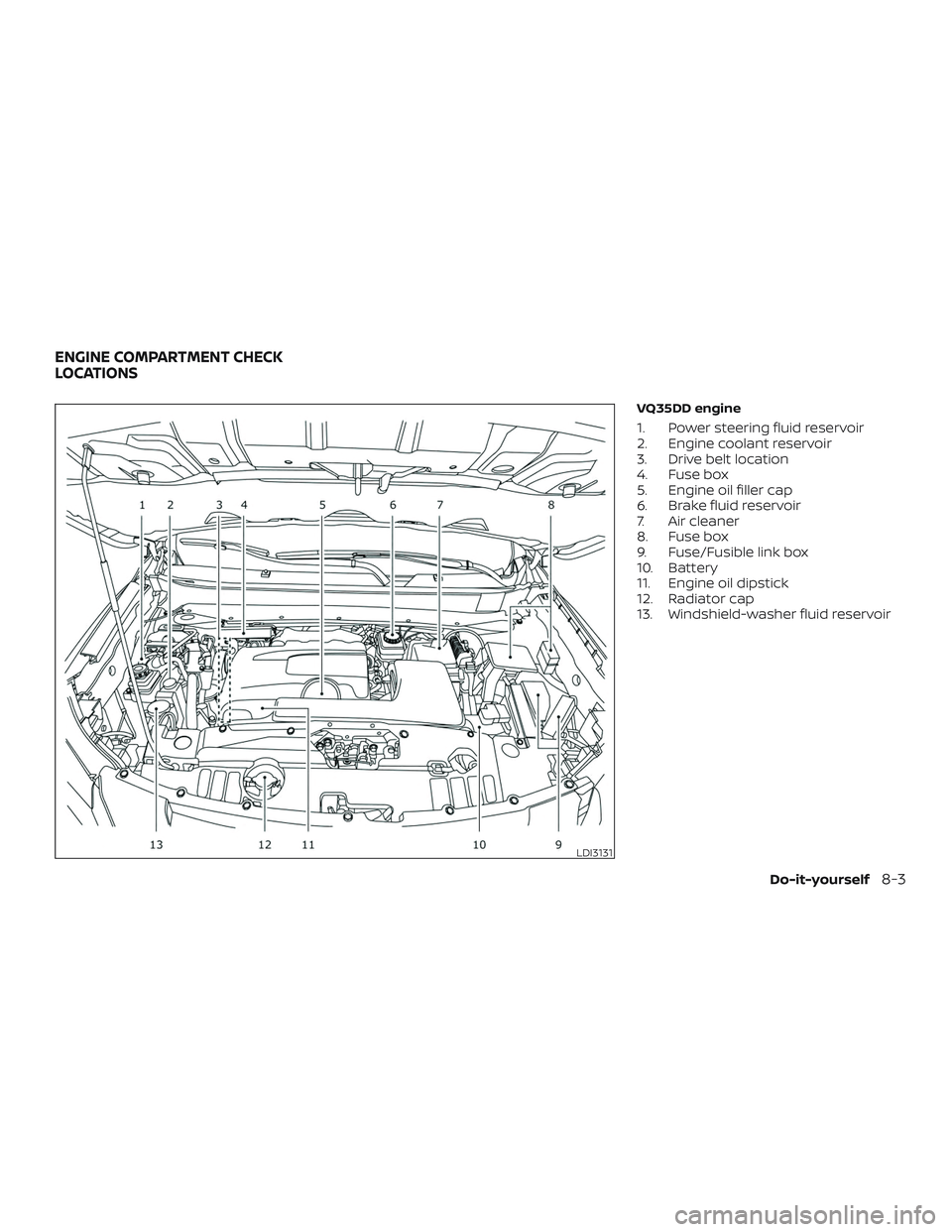

NISSAN PATHFINDER 2018  Owner´s Manual VQ35DD engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap
6. Brake fluid reservoir
7. Air cleaner
8. Fuse box
9. Fuse/Fusi

Page 379 of 474

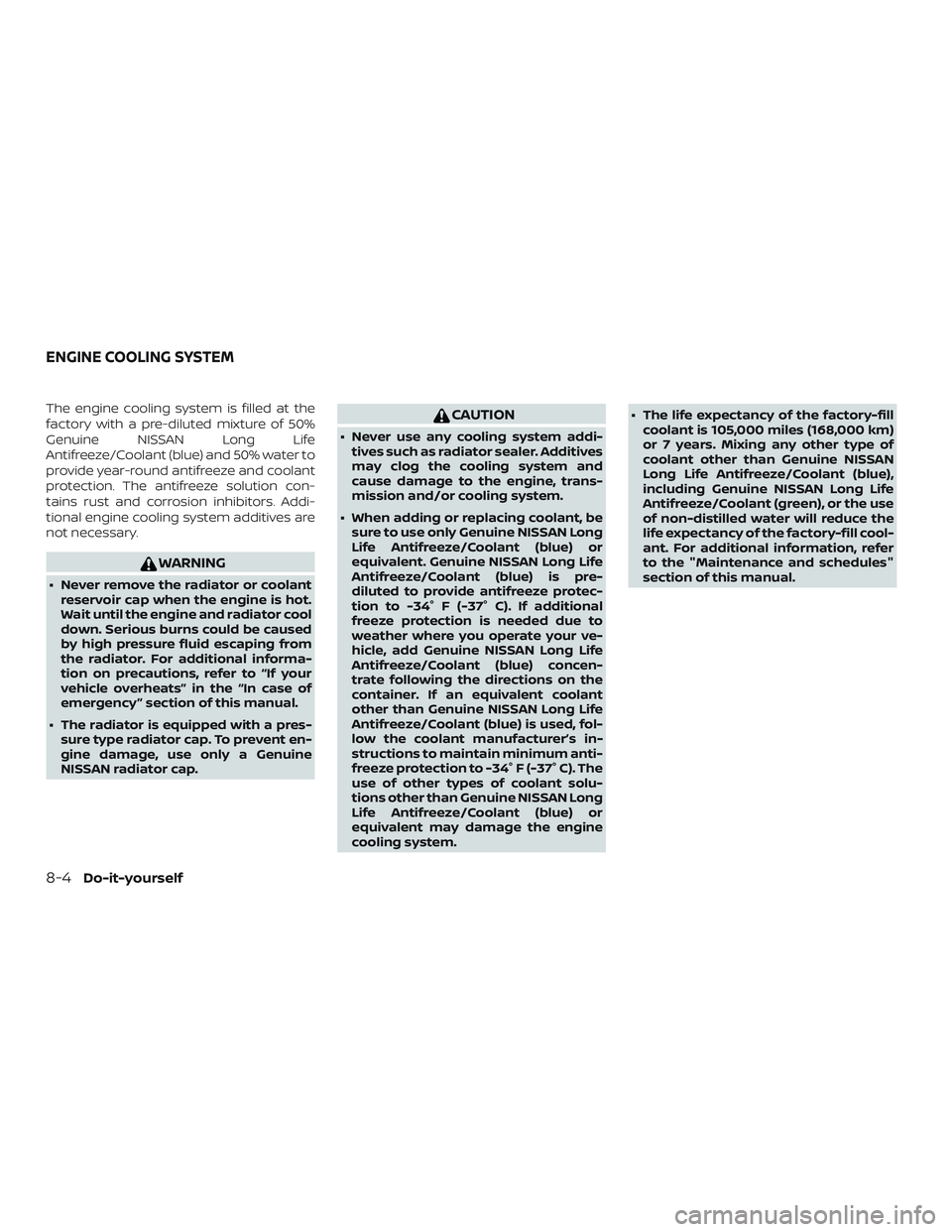

NISSAN PATHFINDER 2018  Owner´s Manual The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) and 50% water to
provide year-round antifreeze and coolant
prote

Page 380 of 474

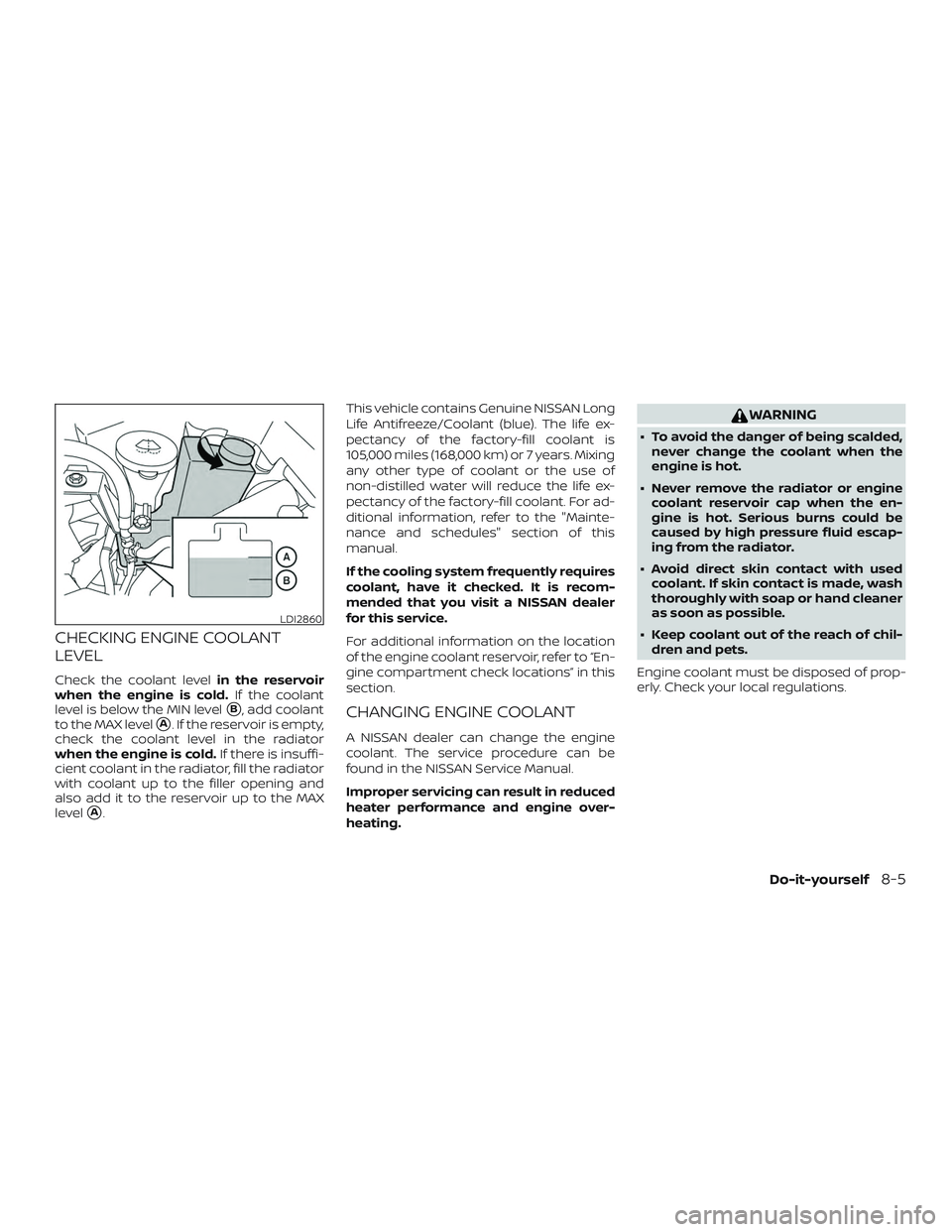

NISSAN PATHFINDER 2018  Owner´s Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir
when the engine is cold. If the coolant
level is below the MIN level
B, add coolant
to the MAX level
A. If the reservoir is empt
