Page 451 of 474

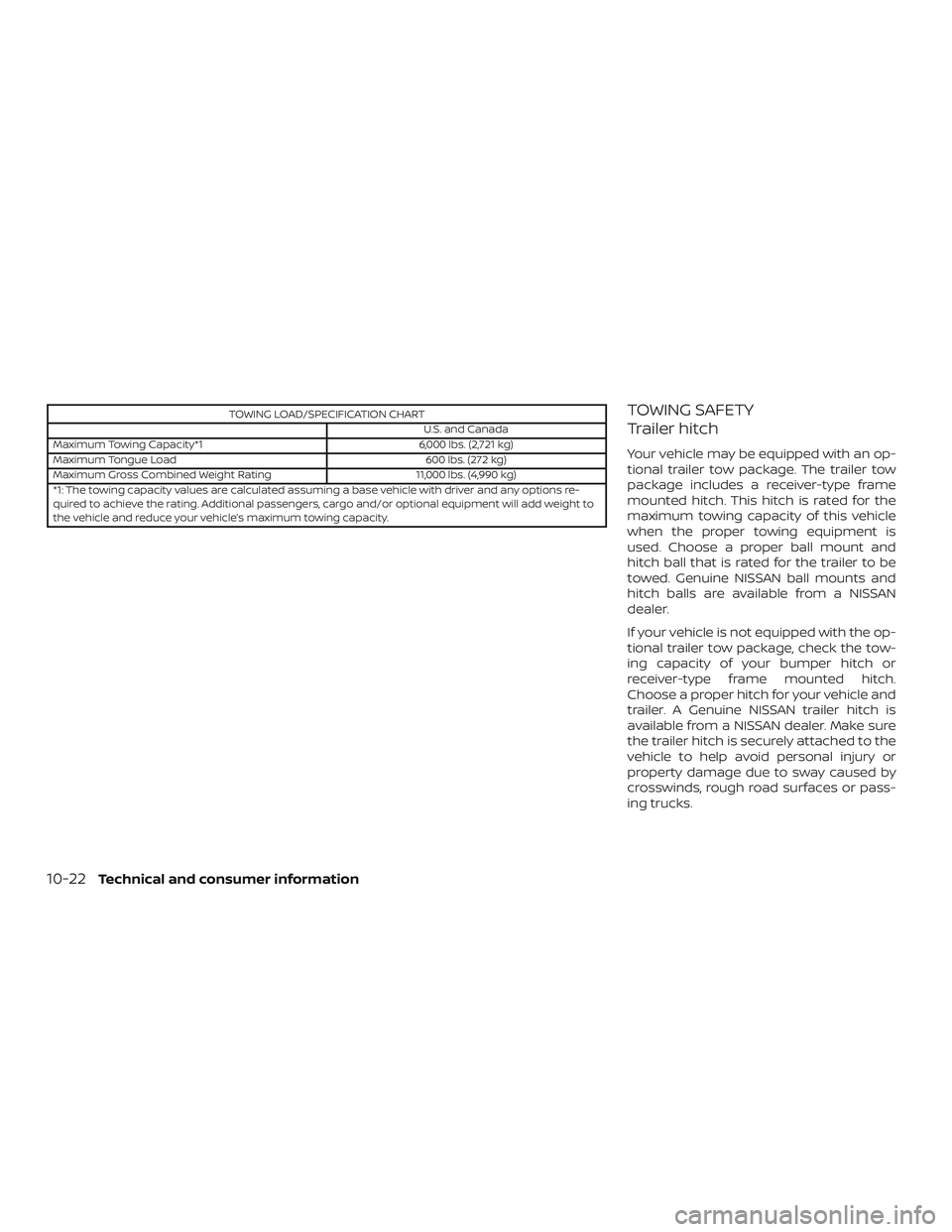

NISSAN PATHFINDER 2018  Owner´s Manual TOWING LOAD/SPECIFICATION CHARTU.S. and Canada
Maximum Towing Capacity*1 6,000 lbs. (2,721 kg)
Maximum Tongue Load 600 lbs. (272 kg)
Maximum Gross Combined Weight Rating 11,000 lbs. (4,990 kg)
*1: The

Page 452 of 474

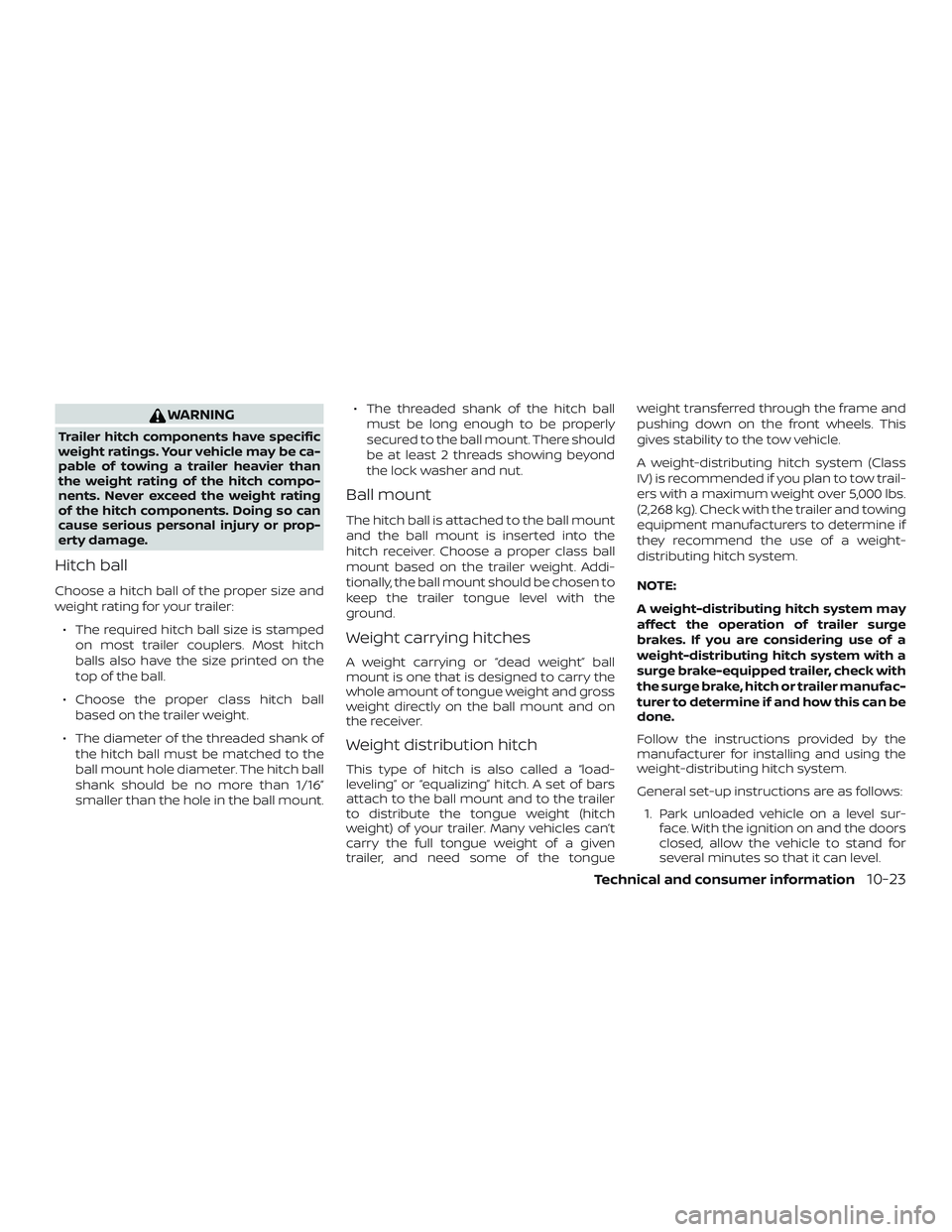

NISSAN PATHFINDER 2018  Owner´s Manual WARNING
Trailer hitch components have specific
weight ratings. Your vehicle may be ca-
pable of towing a trailer heavier than
the weight rating of the hitch compo-
nents. Never exceed the weight ratin

Page 453 of 474

NISSAN PATHFINDER 2018  Owner´s Manual 2. Measure the height of a reference pointon the front and rear bumpers at the
center of the vehicle.
3. Attach the trailer to the vehicle and ad- just the hitch equalizers so that the
front bumper he

Page 454 of 474

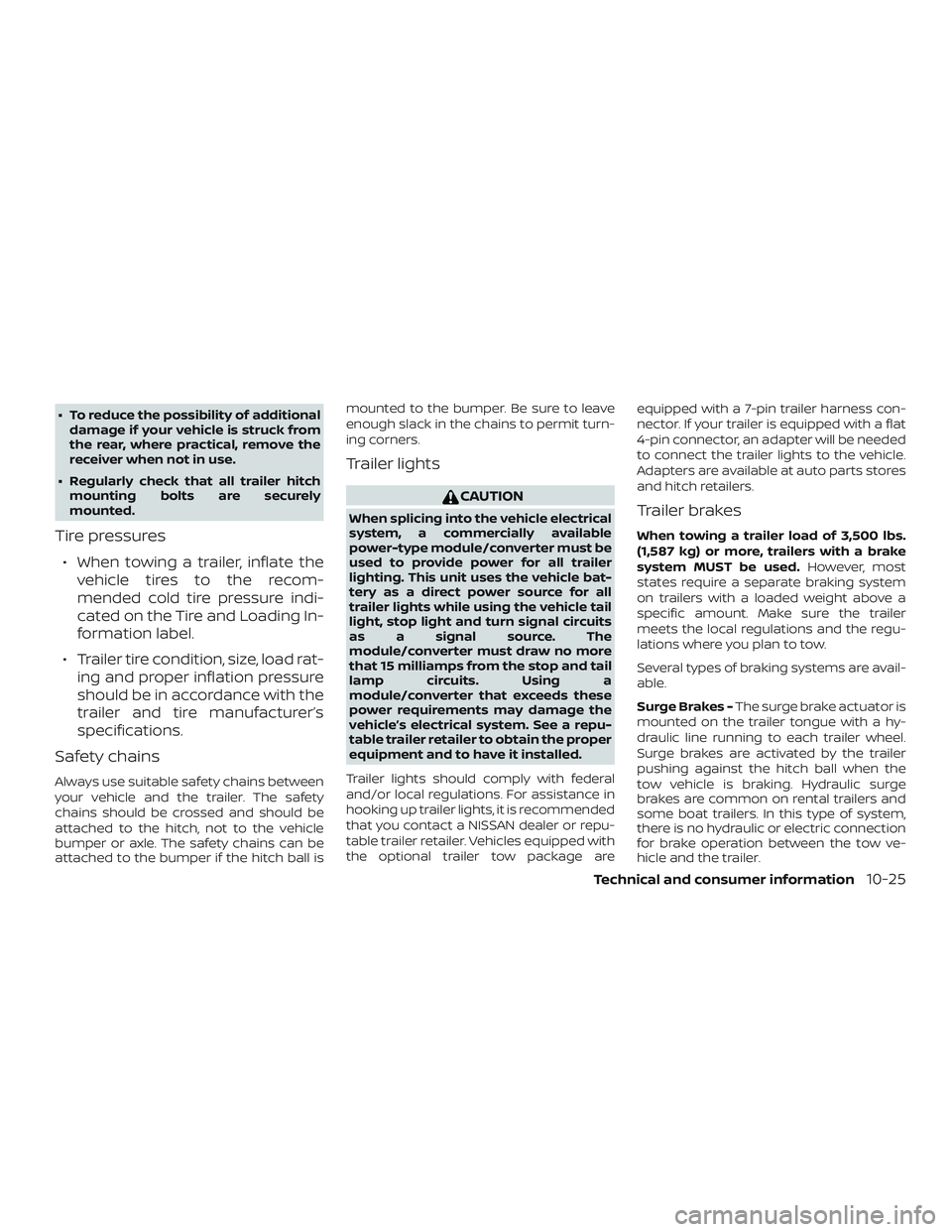

NISSAN PATHFINDER 2018  Owner´s Manual ∙ To reduce the possibility of additionaldamage if your vehicle is struck from
the rear, where practical, remove the
receiver when not in use.
∙ Regularly check that all trailer hitch mounting bol

Page 455 of 474

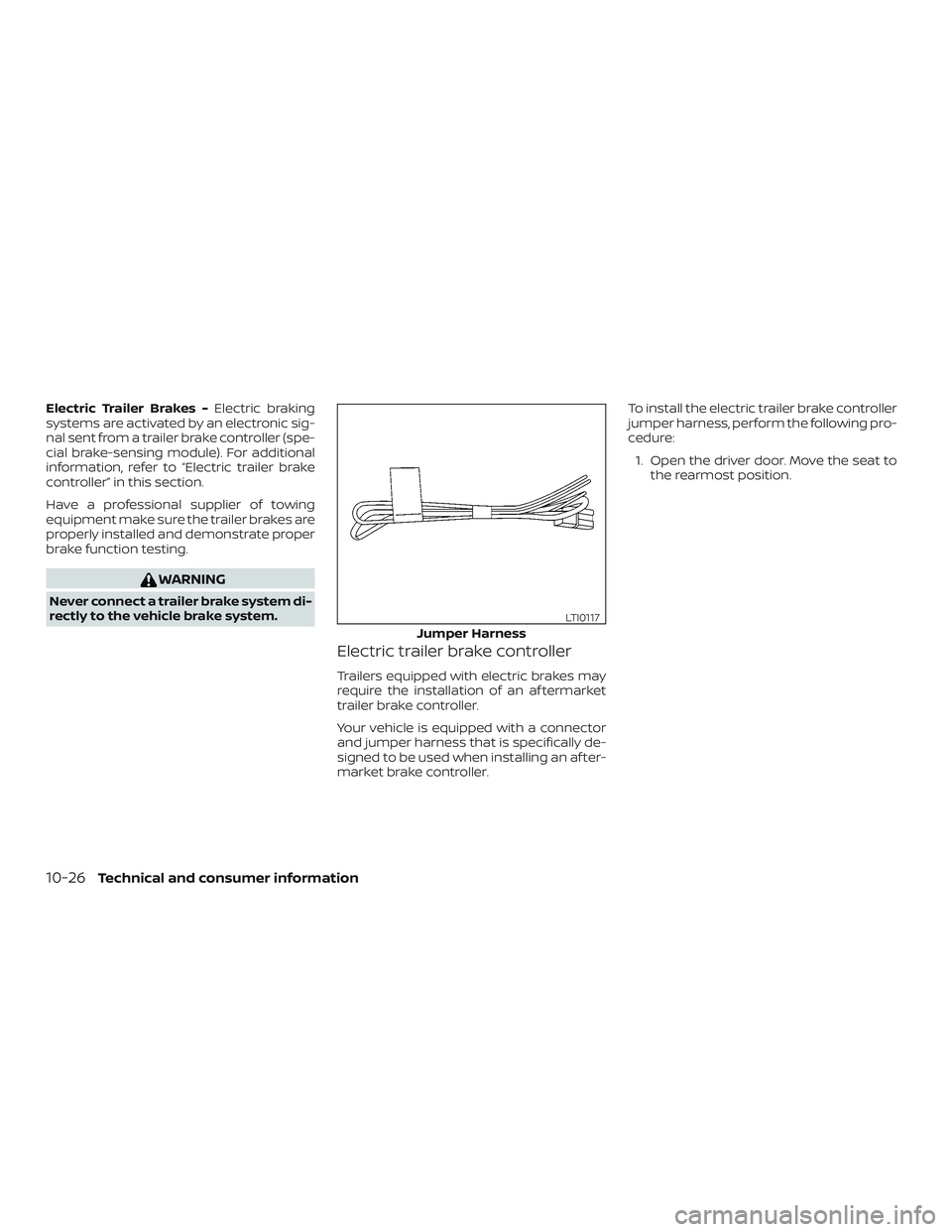

NISSAN PATHFINDER 2018  Owner´s Manual Electric Trailer Brakes -Electric braking
systems are activated by an electronic sig-
nal sent from a trailer brake controller (spe-
cial brake-sensing module). For additional
information, refer to

Page 456 of 474

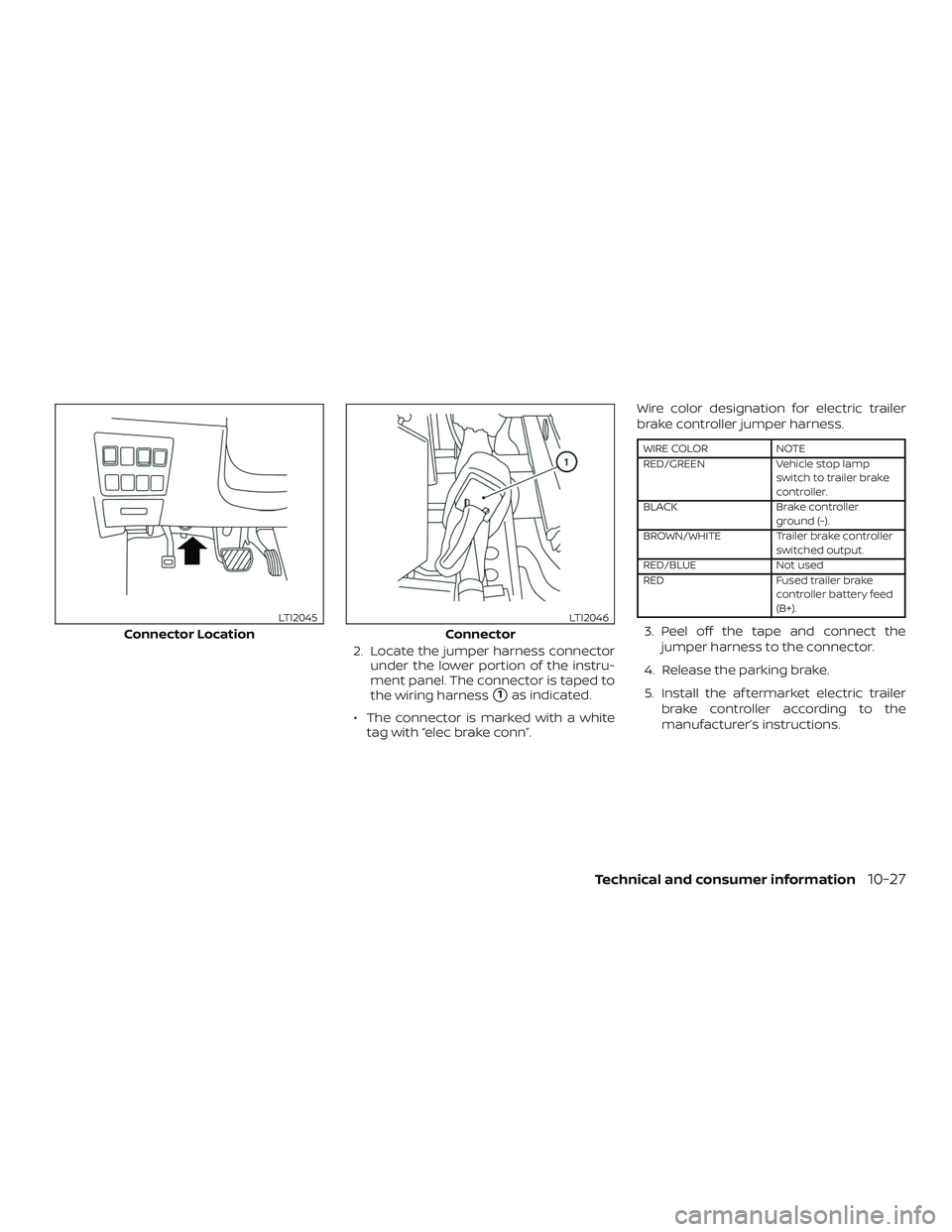

NISSAN PATHFINDER 2018  Owner´s Manual 2. Locate the jumper harness connectorunder the lower portion of the instru-
ment panel. The connector is taped to
the wiring harness
1as indicated.
∙ The connector is marked with a white tag with

Page 457 of 474

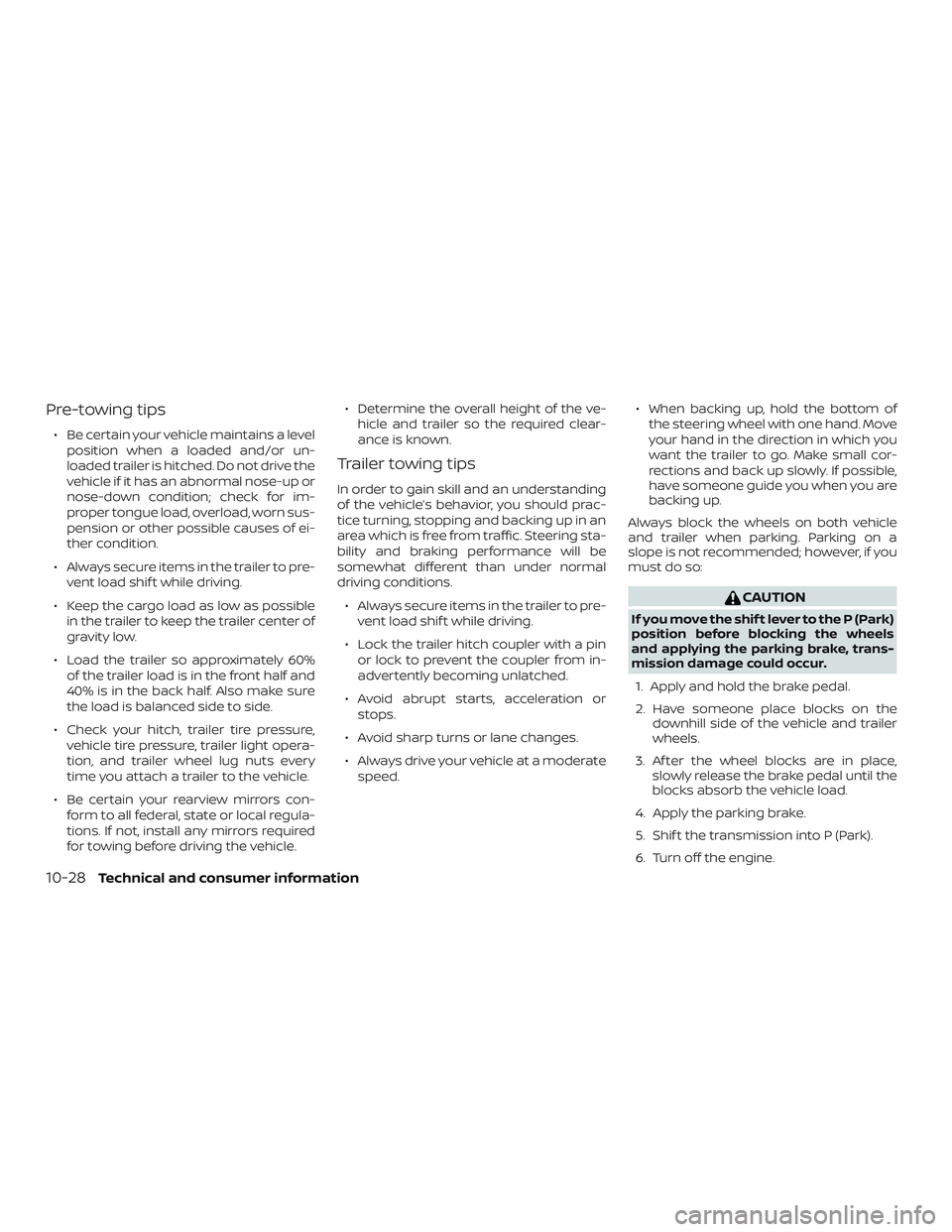

NISSAN PATHFINDER 2018  Owner´s Manual Pre-towing tips
∙ Be certain your vehicle maintains a levelposition when a loaded and/or un-
loaded trailer is hitched. Do not drive the
vehicle if it has an abnormal nose-up or
nose-down condition;

Page 458 of 474

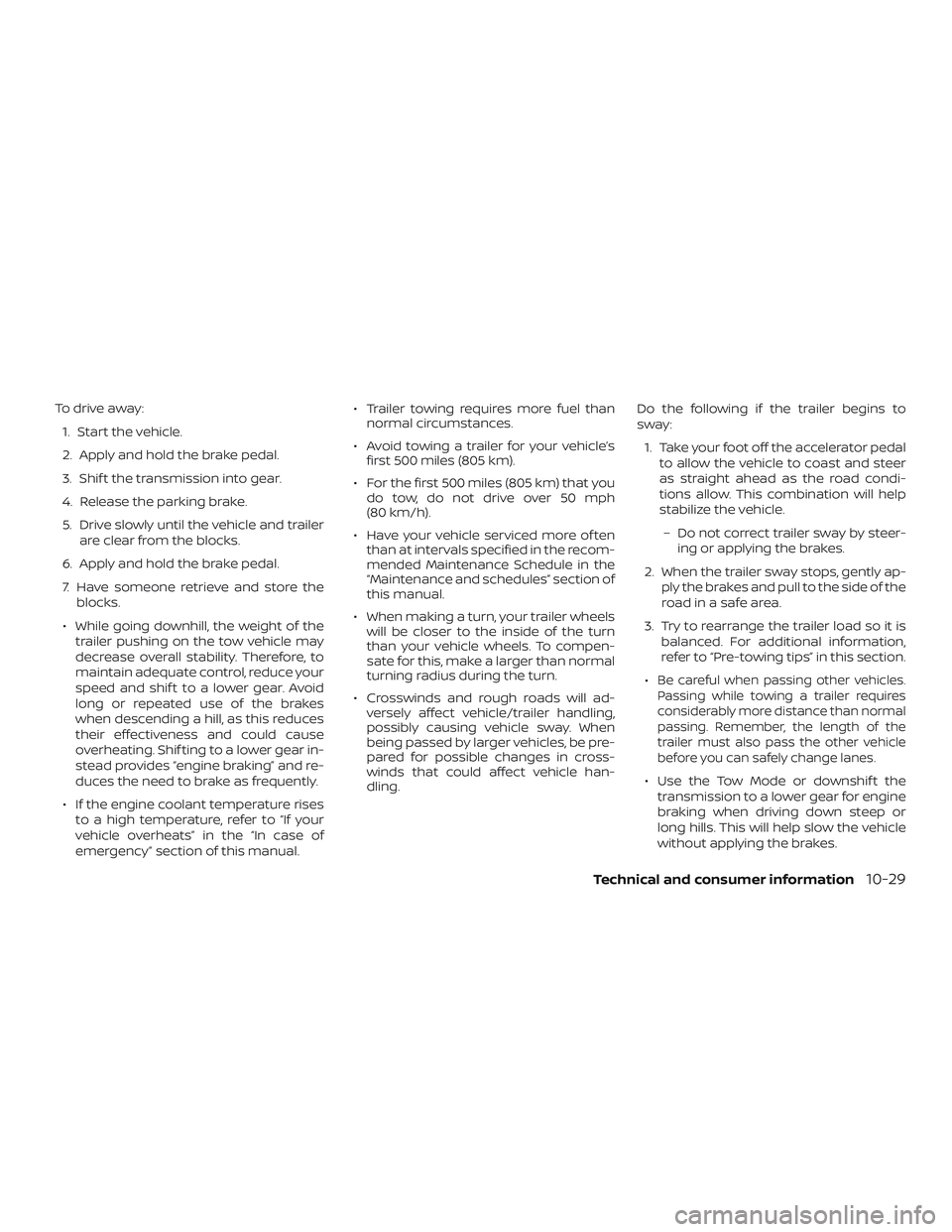

NISSAN PATHFINDER 2018  Owner´s Manual To drive away:1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shif t the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from

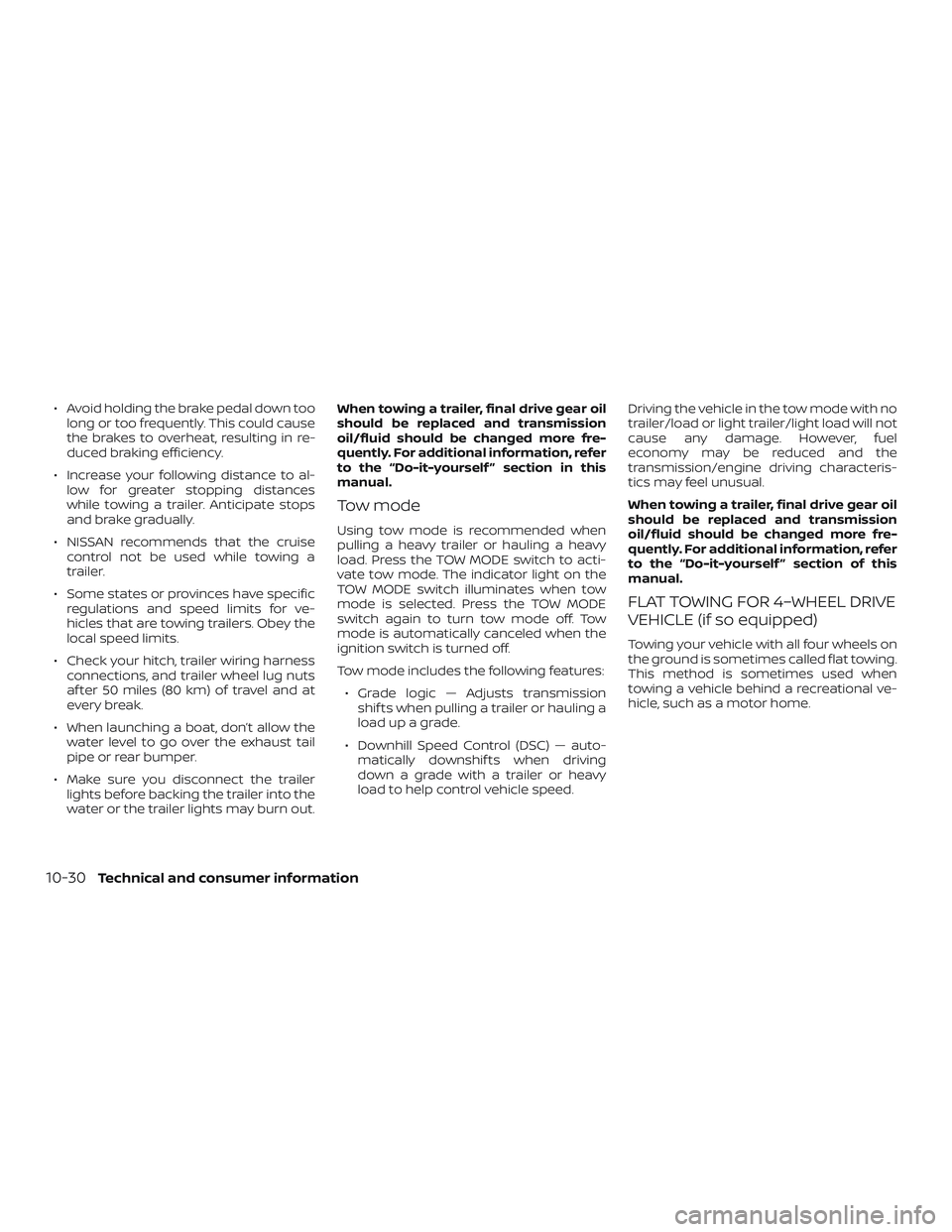

Page 459 of 474

NISSAN PATHFINDER 2018  Owner´s Manual ∙ Avoid holding the brake pedal down toolong or too frequently. This could cause
the brakes to overheat, resulting in re-
duced braking efficiency.
∙ Increase your following distance to al- low fo

Page 460 of 474

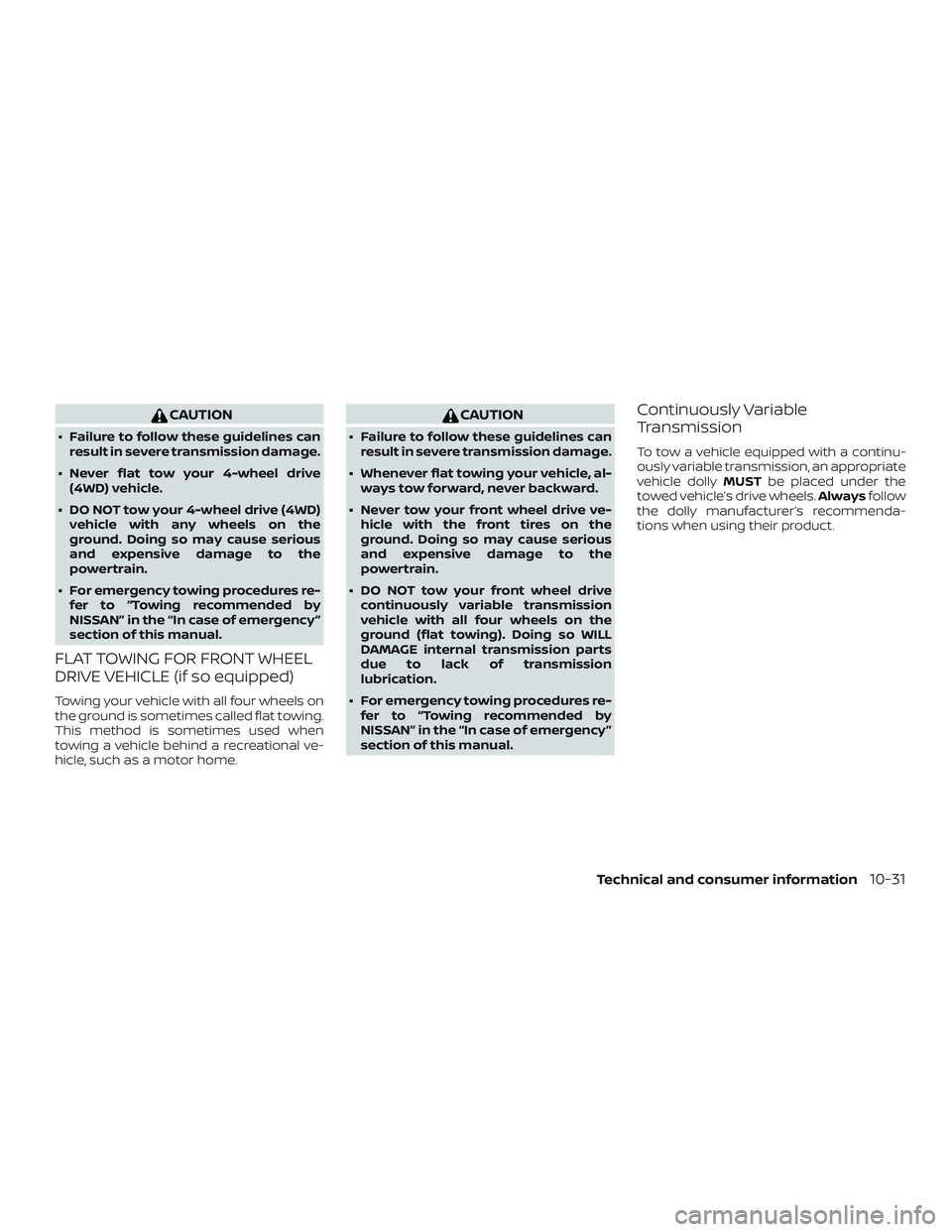

NISSAN PATHFINDER 2018  Owner´s Manual CAUTION
∙ Failure to follow these guidelines canresult in severe transmission damage.
∙ Never flat tow your 4-wheel drive (4WD) vehicle.
∙ DO NOT tow your 4-wheel drive (4WD) vehicle with any wh
