NISSAN PATHFINDER 2019 Owner´s Manual

∙ Push the plug in as far as it will go. Ifgood contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.

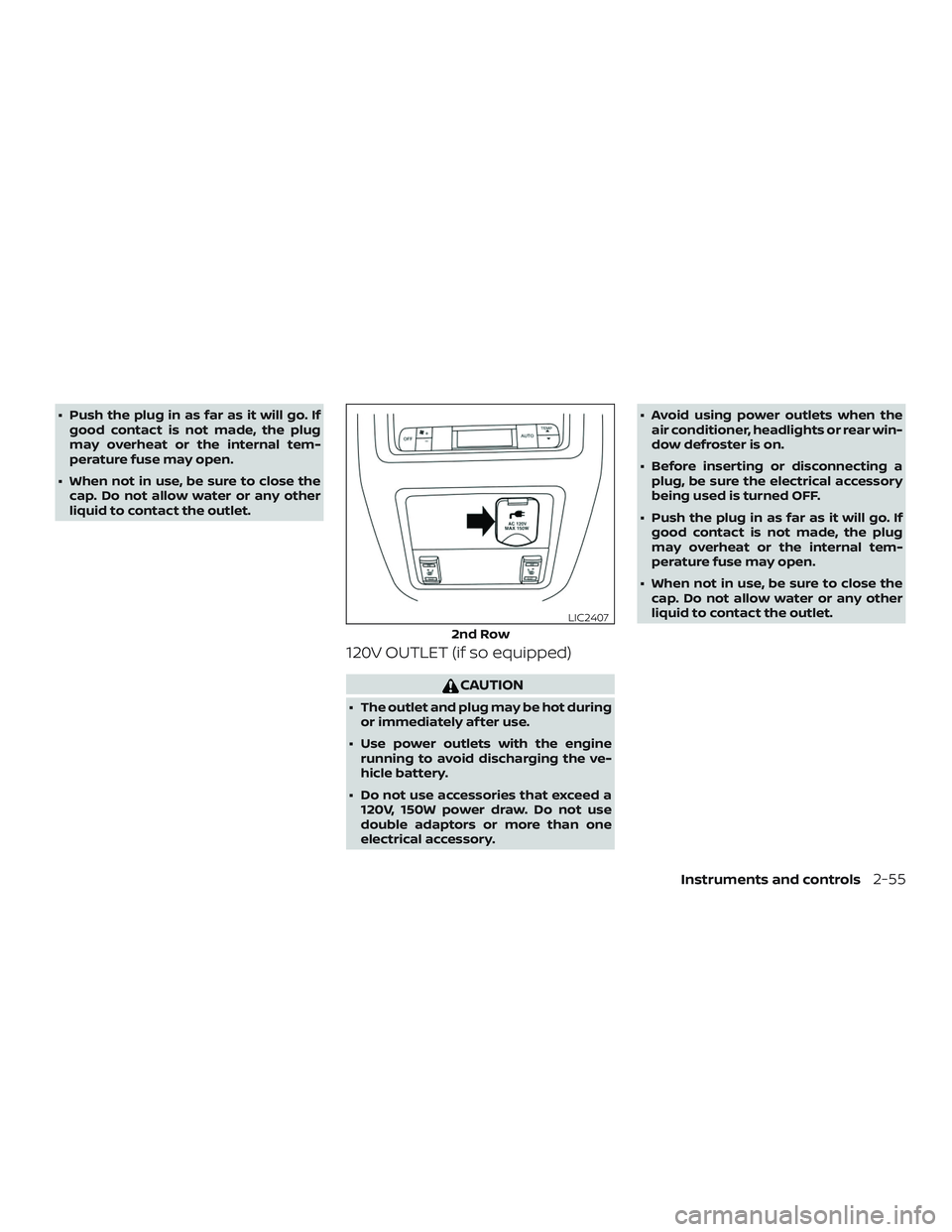

120V OUTLET (if so equipped)
CAUTION
∙ The outlet and plug may be hot duringor immediately af ter use.
∙ Use power outlets with the engine running to avoid discharging the ve-
hicle battery.
∙ Do not use accessories that exceed a 120V, 150W power draw. Do not use
double adaptors or more than one
electrical accessory. ∙ Avoid using power outlets when the
air conditioner, headlights or rear win-
dow defroster is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory
being used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other
liquid to contact the outlet.
2nd Row
LIC2407
Instruments and controls2-55

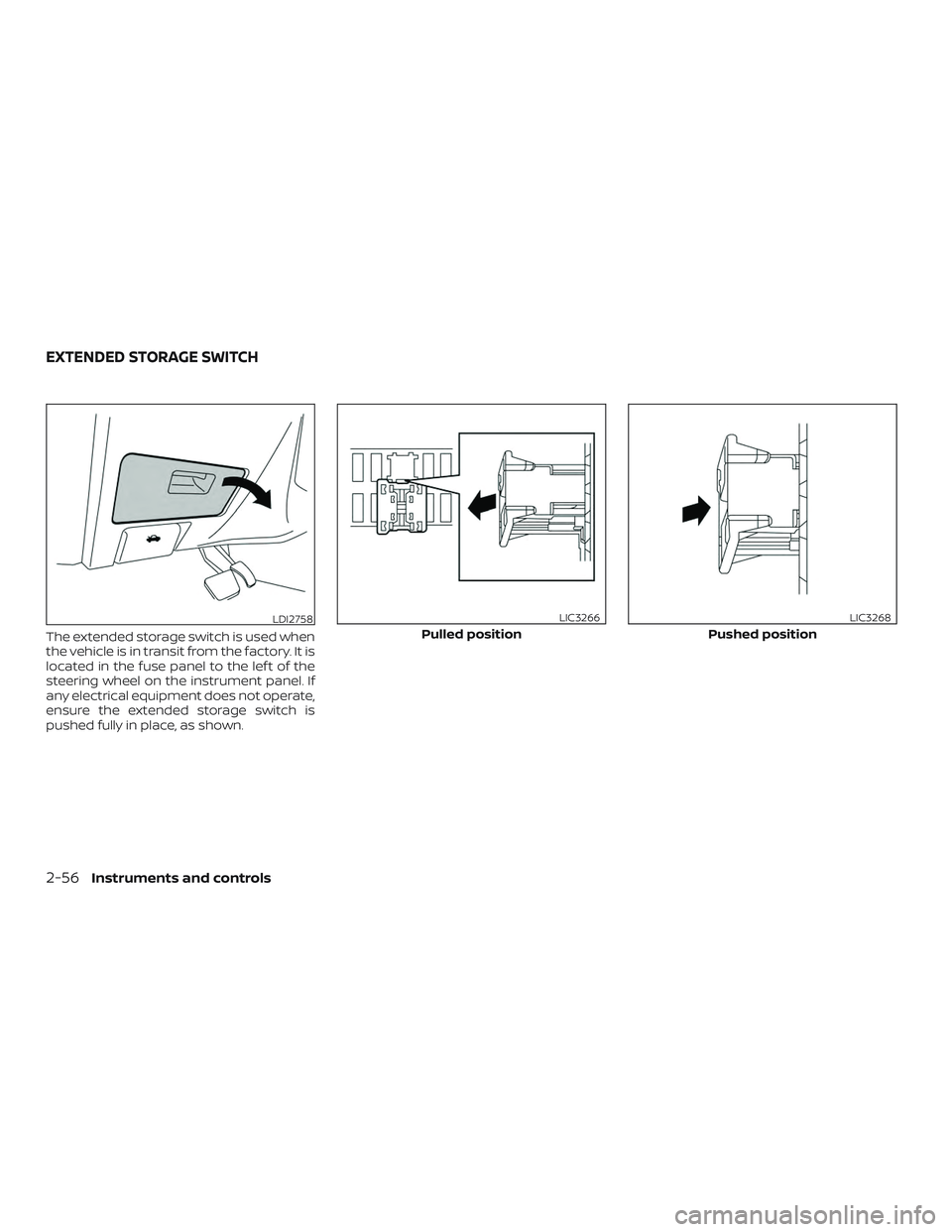

The extended storage switch is used when
the vehicle is in transit from the factory. It is
located in the fuse panel to the lef t of the
steering wheel on the instrument panel. If
any electrical equipment does not operate,
ensure the extended storage switch is
pushed fully in place, as shown.
LDI2758
Pulled position
LIC3266
Pushed position
LIC3268
EXTENDED STORAGE SWITCH
2-56Instruments and controls

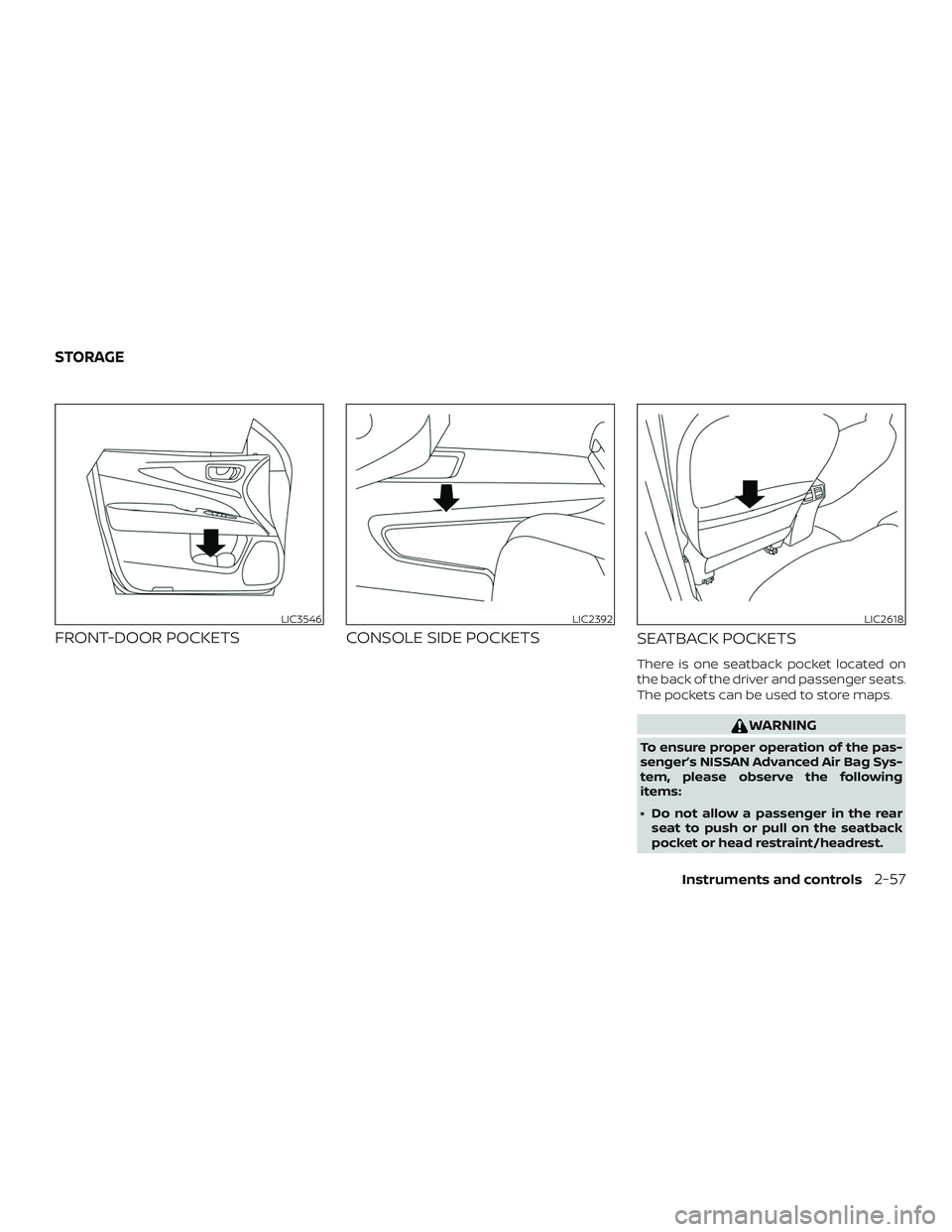

FRONT-DOOR POCKETSCONSOLE SIDE POCKETS
SEATBACK POCKETS
There is one seatback pocket located on
the back of the driver and passenger seats.
The pockets can be used to store maps.
WARNING
To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem, please observe the following
items:
∙ Do not allow a passenger in the rear
seat to push or pull on the seatback
pocket or head restraint/headrest.
LIC3546LIC2392LIC2618
STORAGE
Instruments and controls2-57

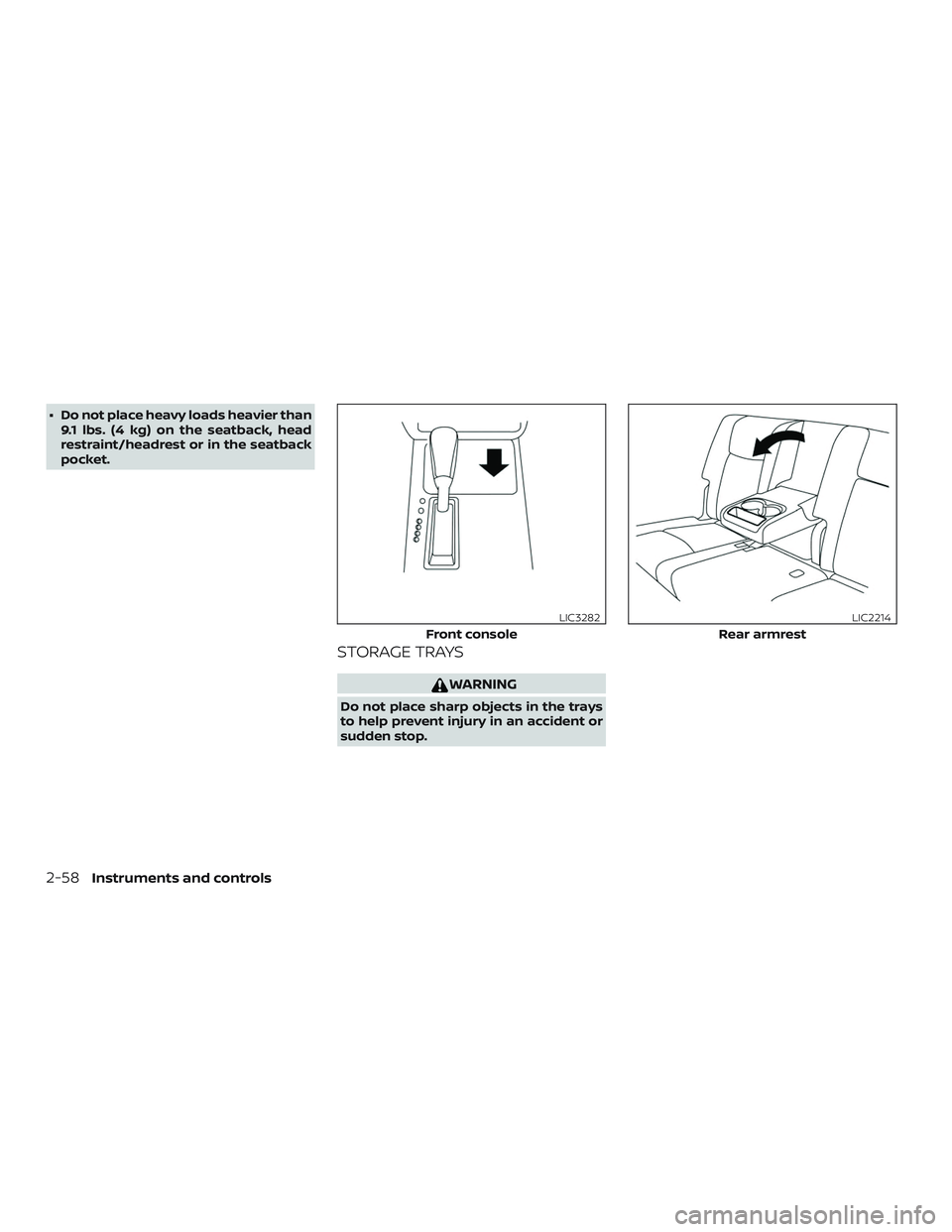

∙ Do not place heavy loads heavier than9.1 lbs. (4 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
STORAGE TRAYS
WARNING
Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.
Front console
LIC3282
Rear armrest
LIC2214
2-58Instruments and controls

GLOVE BOX
Open the glove box by pulling the handle.
Use the master key when locking or un-
locking the glove box.
WARNING
Keep the glove box lid closed while driv-
ing to help prevent injury in an accident
or a sudden stop.
CONSOLE BOX
To open the console box, press in on the
lever
1and raise the lid2.
To close, push the lid down until the lock
latches.
Upper half
Pull up on the driver’s side latch to open the
upper half of the console box.
The upper half of the console box may be
used for storage of cellular phones. An ac-
cess hole is provided at the front of the
upper half of the console box for a phone or
iPod® cord routing to the power outlet.
Lower half
Pull up on the passenger’s side latch to
open the lower half of the console box. A
power outlet is located inside the console
box and there is storage for compact discs.
LIC3003LIC1026LIC0702
Instruments and controls2-59

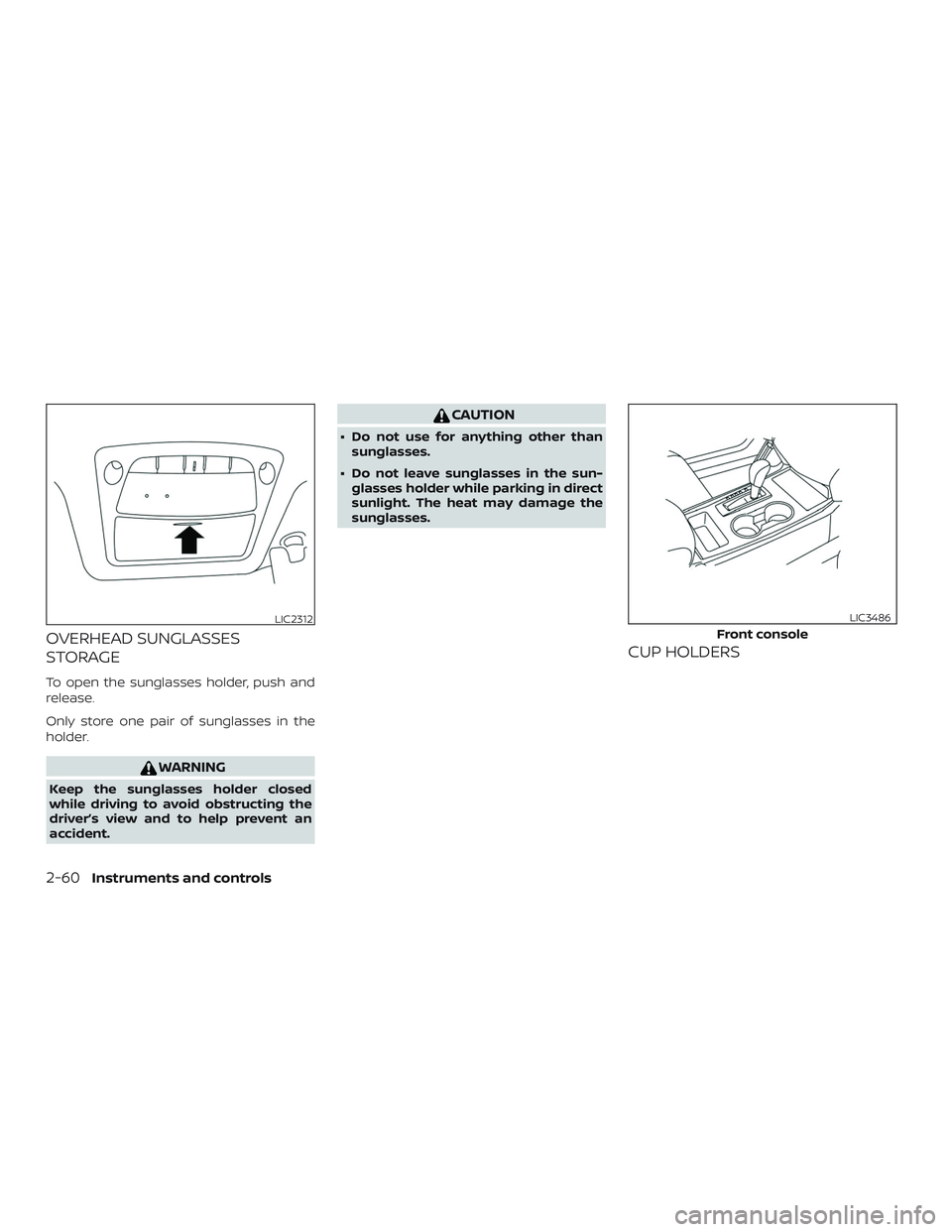

OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.
CAUTION
∙ Do not use for anything other thansunglasses.
∙ Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
CUP HOLDERS
LIC2312
Front console
LIC3486
2-60Instruments and controls

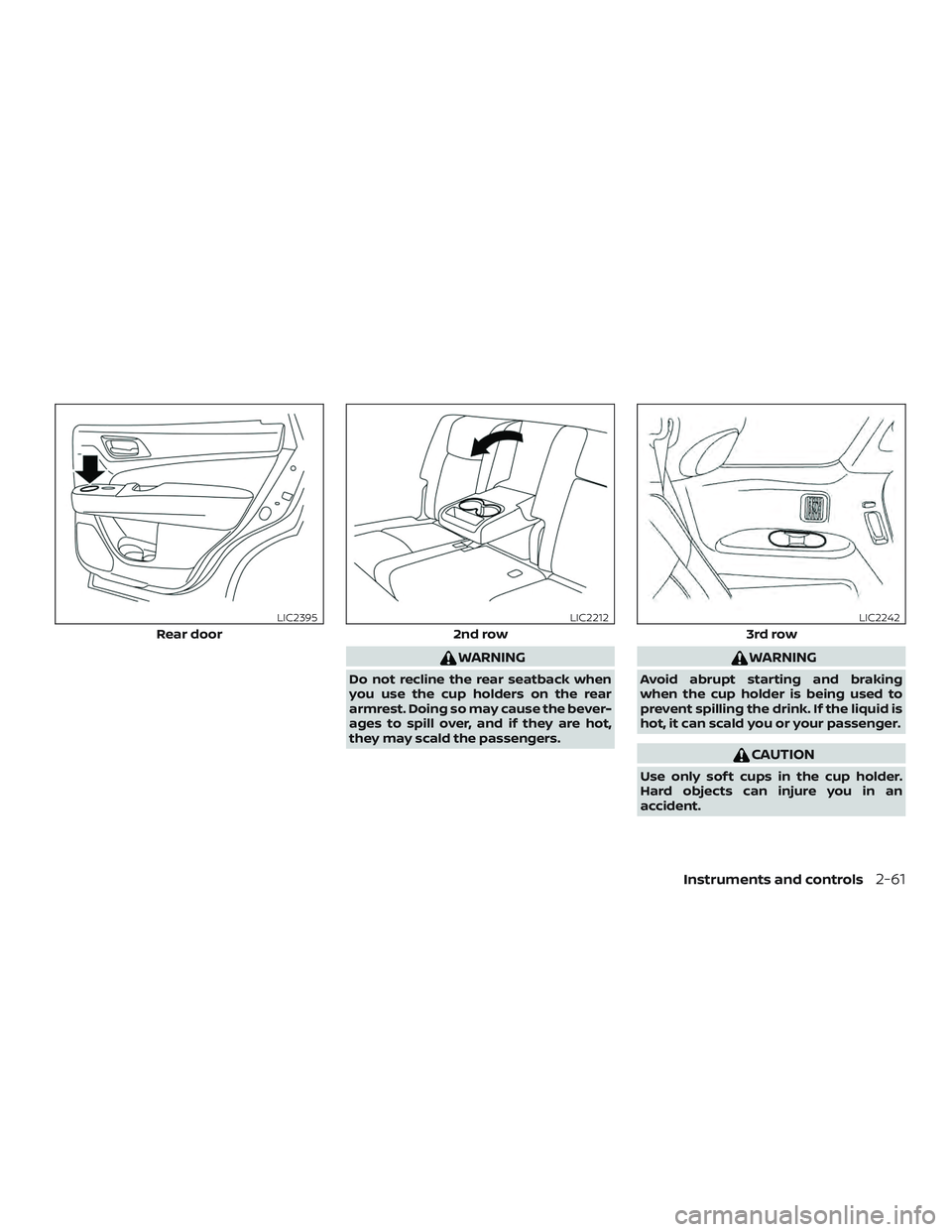

WARNING
Do not recline the rear seatback when
you use the cup holders on the rear
armrest. Doing so may cause the bever-
ages to spill over, and if they are hot,
they may scald the passengers.
WARNING
Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.
CAUTION
Use only sof t cups in the cup holder.
Hard objects can injure you in an
accident.
Rear door
LIC2395
2nd row
LIC2212
3rd row
LIC2242
Instruments and controls2-61

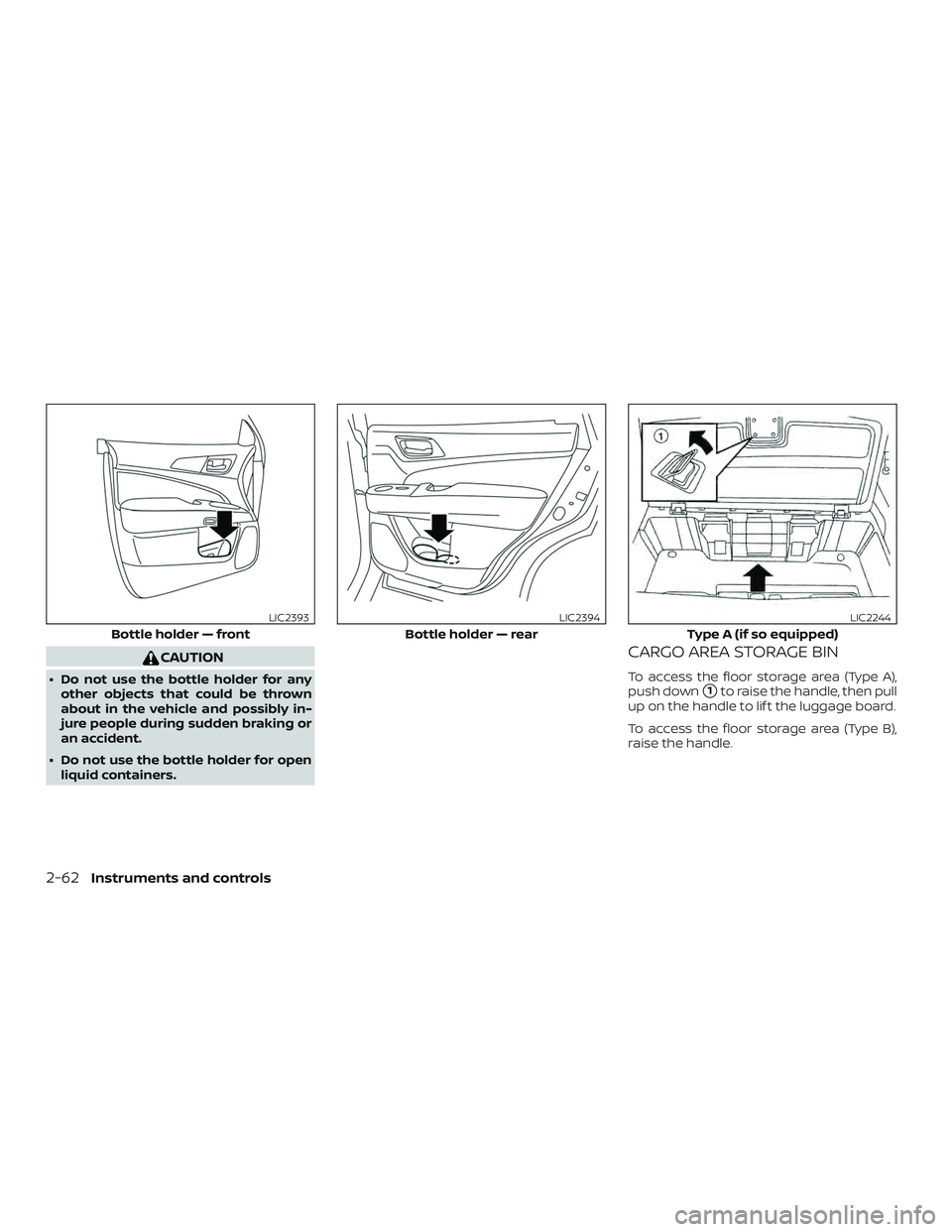

CAUTION
∙ Do not use the bottle holder for anyother objects that could be thrown
about in the vehicle and possibly in-
jure people during sudden braking or
an accident.
∙ Do not use the bottle holder for open liquid containers.
CARGO AREA STORAGE BIN
To access the floor storage area (Type A),
push down
1to raise the handle, then pull
up on the handle to lif t the luggage board.
To access the floor storage area (Type B),
raise the handle.
Bottle holder — front
LIC2393
Bottle holder — rear
LIC2394
Type A (if so equipped)
LIC2244
2-62Instruments and controls

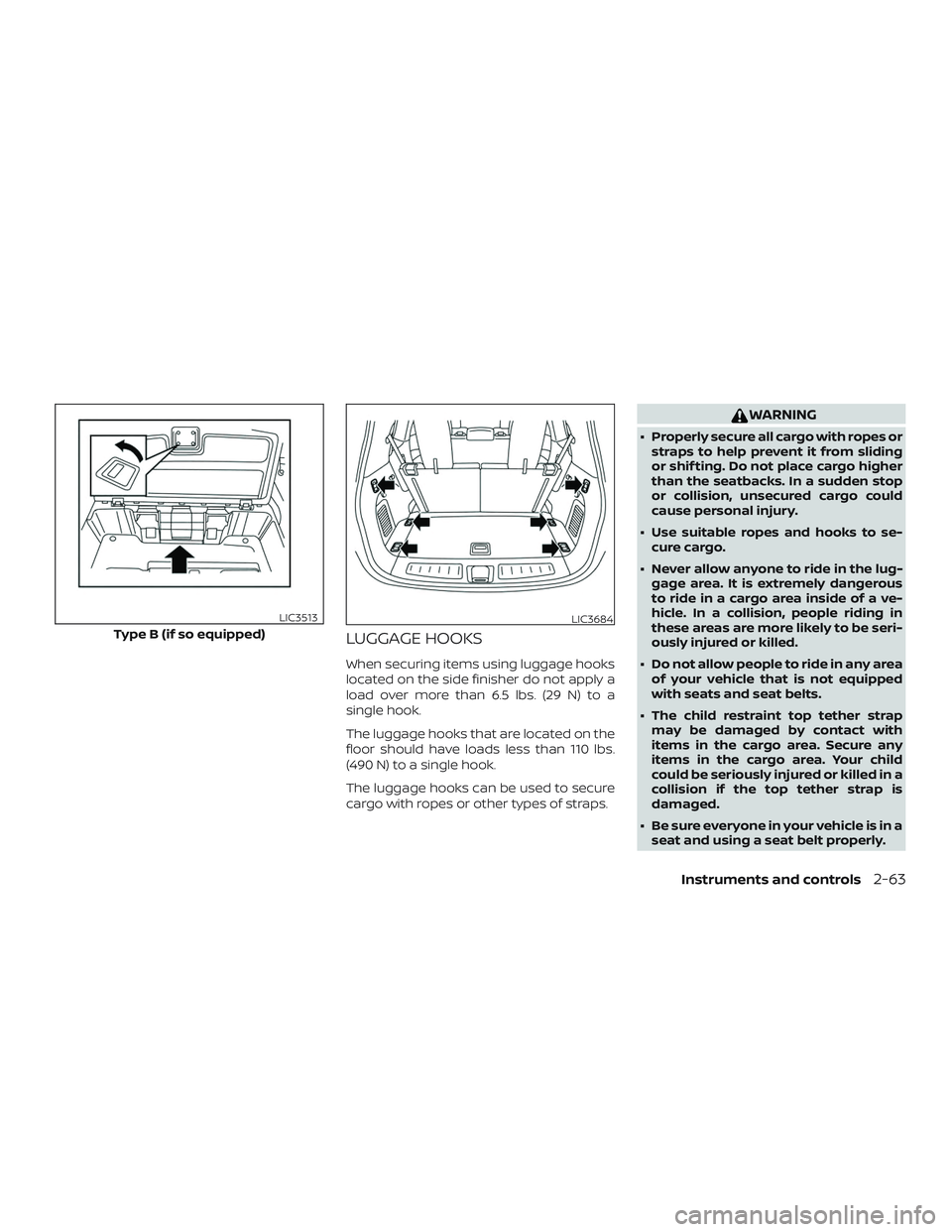

LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a
single hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ Use suitable ropes and hooks to se- cure cargo.
∙ Never allow anyone to ride in the lug- gage area. It is extremely dangerous
to ride in a cargo area inside of a ve-
hicle. In a collision, people riding in
these areas are more likely to be seri-
ously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with
items in the cargo area. Secure any
items in the cargo area. Your child
could be seriously injured or killed in a
collision if the top tether strap is
damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
Type B (if so equipped)
LIC3513LIC3684
Instruments and controls2-63

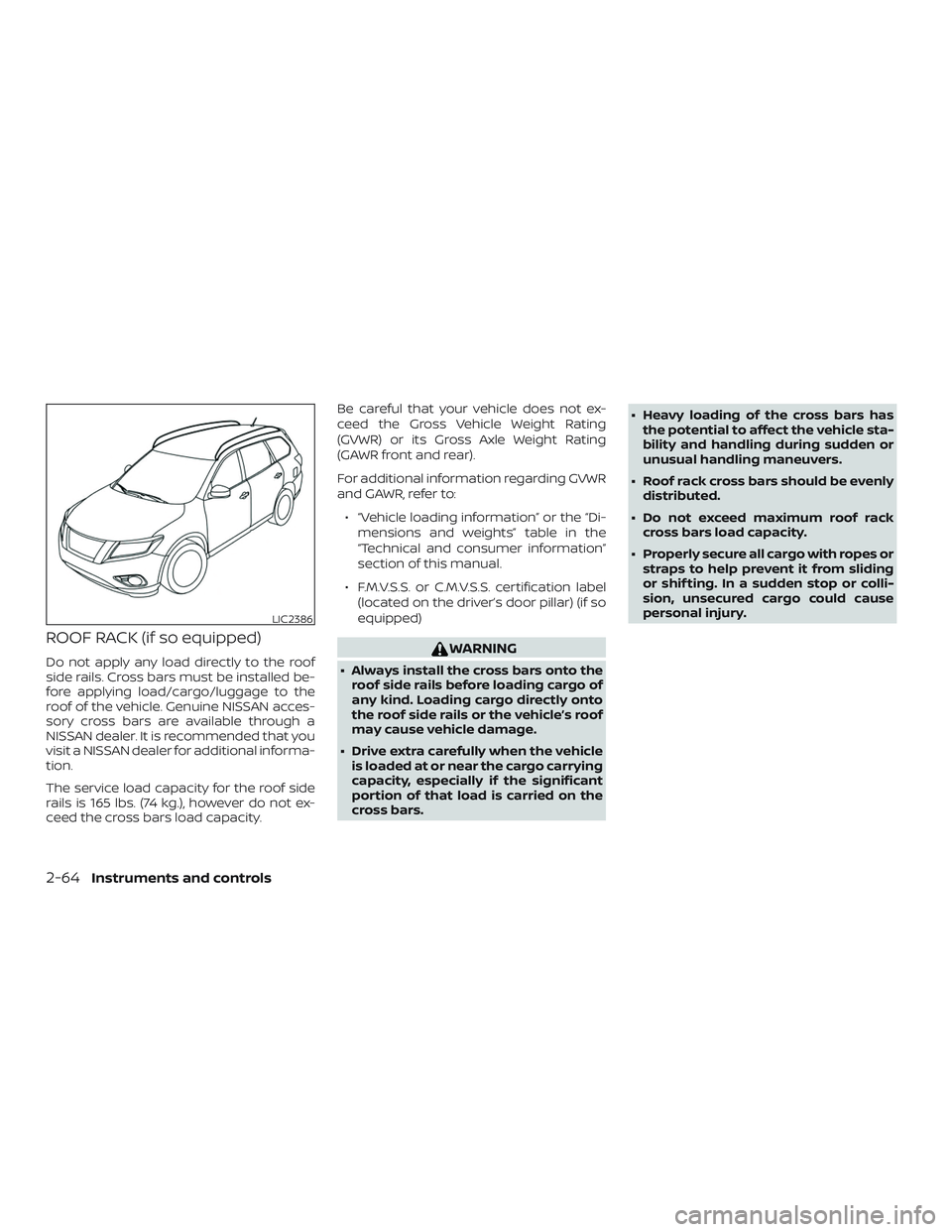

ROOF RACK (if so equipped)
Do not apply any load directly to the roof
side rails. Cross bars must be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle. Genuine NISSAN acces-
sory cross bars are available through a
NISSAN dealer. It is recommended that you
visit a NISSAN dealer for additional informa-
tion.
The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the cross bars load capacity.Be careful that your vehicle does not ex-
ceed the Gross Vehicle Weight Rating
(GVWR) or its Gross Axle Weight Rating
(GAWR front and rear).
For additional information regarding GVWR
and GAWR, refer to:
∙ “Vehicle loading information” or the “Di- mensions and weights” table in the
“Technical and consumer information”
section of this manual.
∙ F.M.V.S.S. or C.M.V.S.S. certification label (located on the driver’s door pillar) (if so
equipped)WARNING
∙ Always install the cross bars onto theroof side rails before loading cargo of
any kind. Loading cargo directly onto
the roof side rails or the vehicle’s roof
may cause vehicle damage.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars. ∙ Heavy loading of the cross bars has
the potential to affect the vehicle sta-
bility and handling during sudden or
unusual handling maneuvers.
∙ Roof rack cross bars should be evenly distributed.
∙ Do not exceed maximum roof rack cross bars load capacity.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding
or shif ting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.
LIC2386
2-64Instruments and controls
