spare tire NISSAN PATHFINDER HYBRID 2014 R52 / 4.G Dismantling Guide

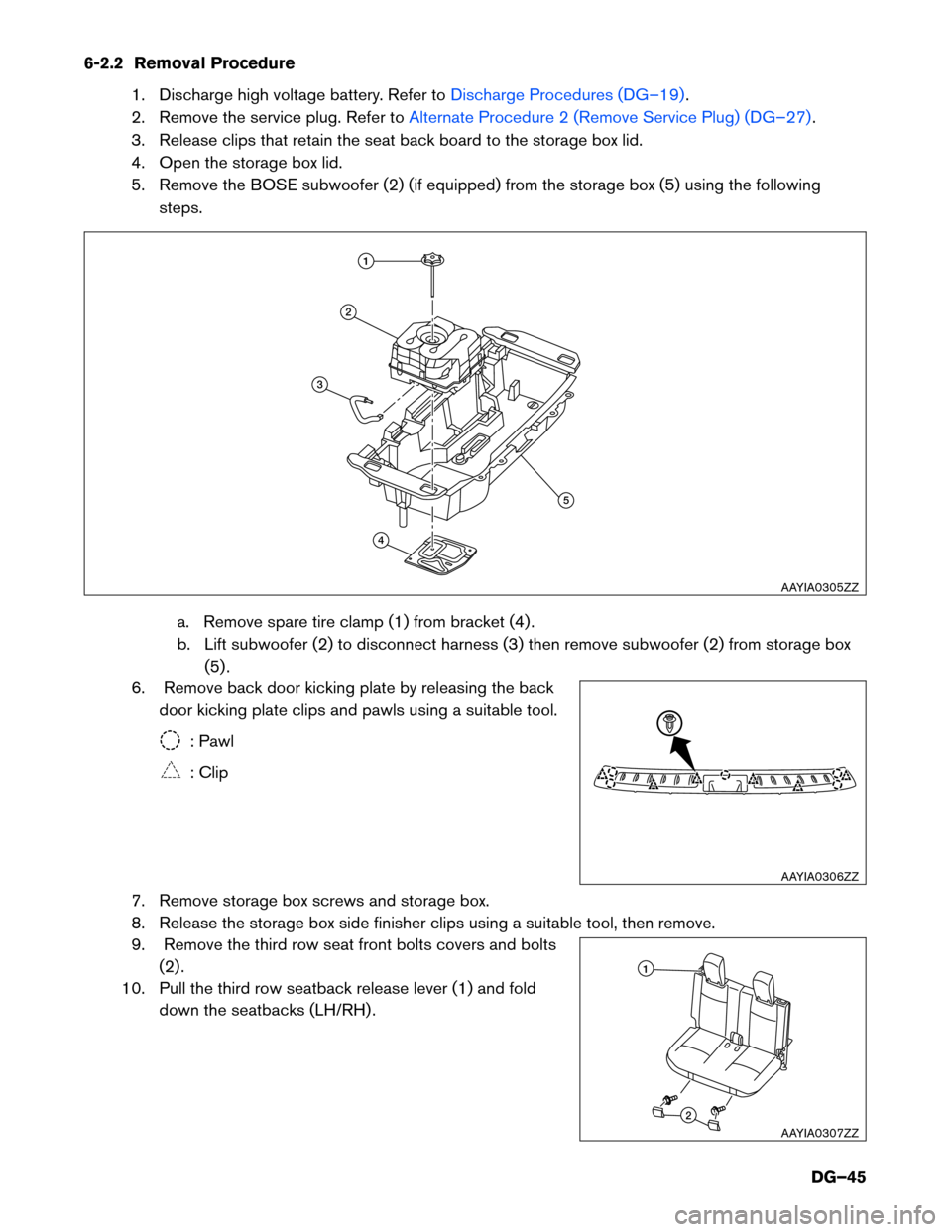

6-2.2 Removal Procedure1. Discharge high voltage battery. Refer to
Discharge Procedures (DG–19).
2. Remove the service plug. Refer to
Alternate Procedure 2 (Remove Service Plug) (DG–27).
3. Release clips that retain the seat back board to the storage box lid.
4. Open the storage box lid.
5. Remove the BOSE subwoofer (2) (if equipped) from the storage box (5) using the following steps.
a. Remove spare tire clamp (1) from bracket (4) .
b. Lift subwoofer (2) to disconnect harness (3) then remove subwoofer (2) from storage box (5) .
6. Remove back door kicking plate by releasing the back door kicking plate clips and pawls using a suitable tool.
: Pawl
: Clip
7. Remove storage box screws and storage box.
8. Release the storage box side finisher clips using a suitable tool, then remove.
9. Remove the third row seat front bolts covers and bolts (2) .
10. Pull the third row seatback release lever (1) and fold down the seatbacks (LH/RH) .
1
2
3
4
5
AAYIA0305ZZ
AAYIA0306ZZ
1
2
AAYIA0307ZZ
DG–45
