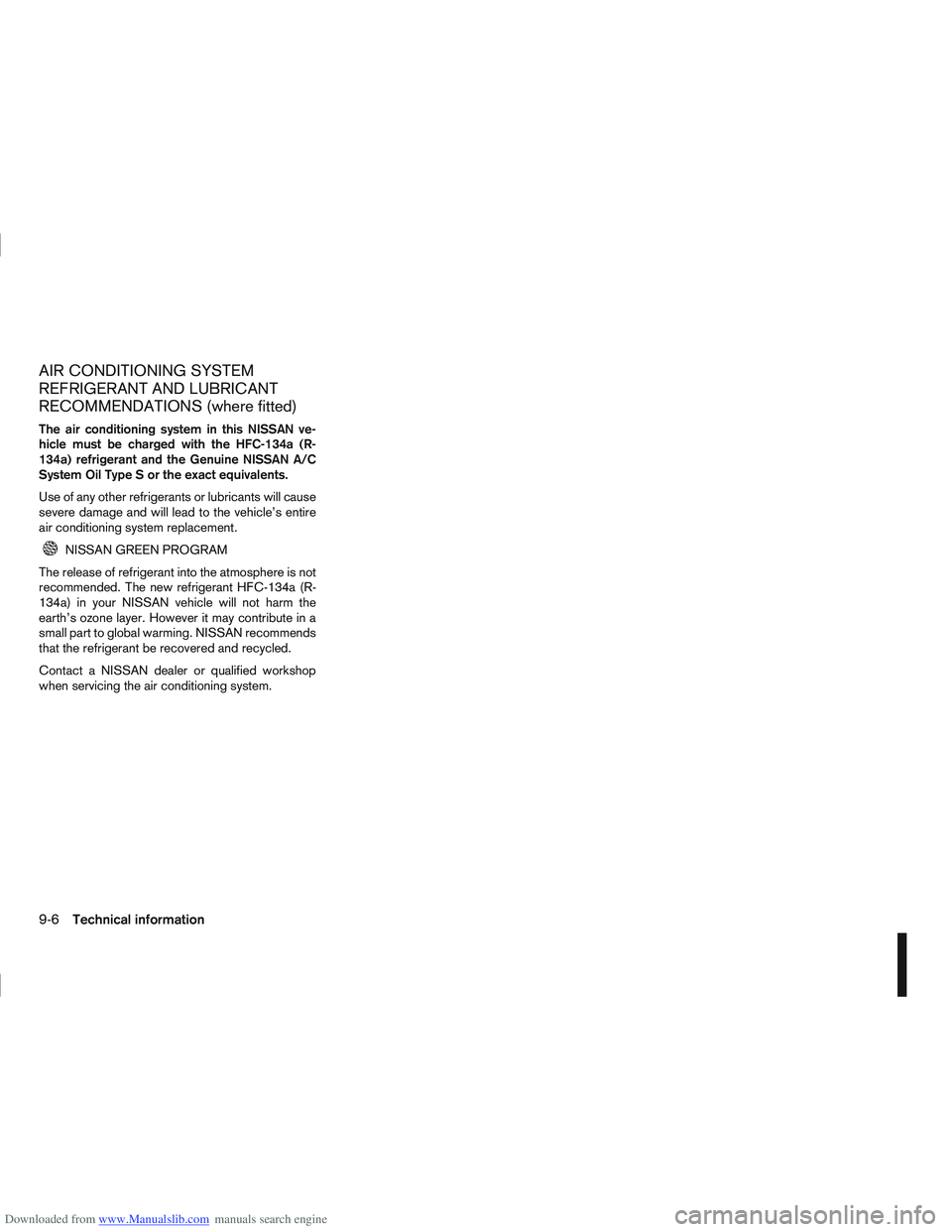

REFRIGERANT AND LUBRICANT
RECOMMENDATIONS (where fitted)
The air conditioning system in this NISSAN ve-
hicle must be charged with the HFC-134a (R-
134a) refrigerant and the Genuine NISSAN A/C
System Oil Type S or the exact equivalents.
Use of any other refrigerants or lubricants will cause
severe damage and will lead to the vehicle’s entire
air conditioning system replacement.
NISSAN GREEN PROGRAM
The release of refrigerant into the atmosphere is not
recommended. The new refrigerant HFC-134a (R-
134a) in your NISSAN vehicle will not harm the
earth’s ozone layer. However it may contribute in a
small part to global warming. NISSAN recommends
that the refrigerant be recovered and recycled.
Contact a NISSAN dealer or qualified workshop
when servicing the air conditioning system.
9-6Technical information

Downloaded from www.Manualslib.com manuals search engine Unit: mm (in)
ItemSize Offset
Road
wheel Steel
16x6.5J
40
(1.57)
16x4T*1
17x4T*1
Aluminium* 16x6.5J
17x6.5J
18x6.5J
Tyre size Conventional
215/65R16
215/60R17*
215/55R18*
Spare 5–seater
Conventional *
T145/90R16 *1
7–seater T155/70R17 *1
* : where fitted

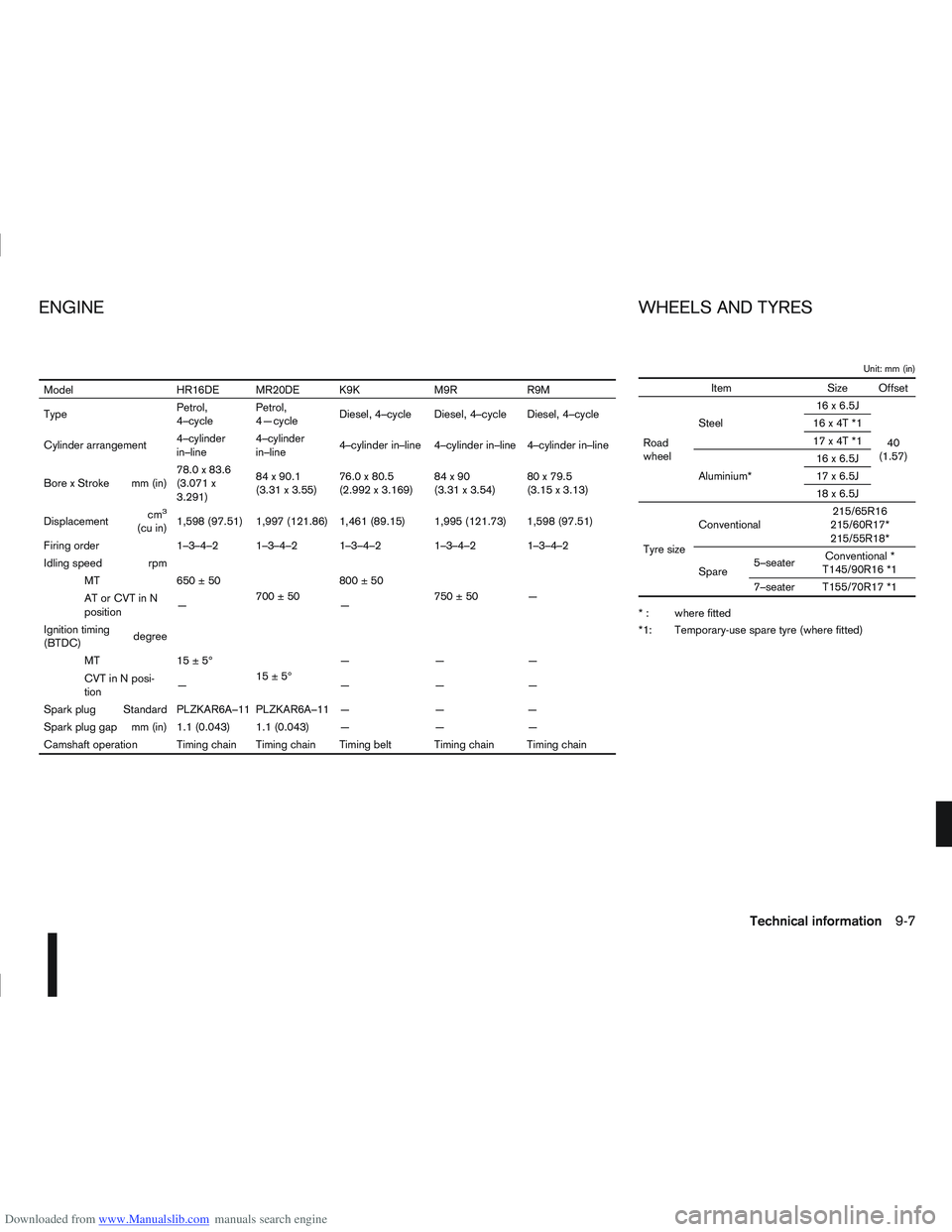

*1: Temporary-use spare tyre (where fitted)Model HR16DE MR20DE K9K M9RR9M
Type Petrol,
4–cyclePetrol,
4—cycle
Diesel, 4–cycle Diesel, 4–cycle Diesel, 4–cycle
Cylinder arrangement 4–cylinder
in–line4–cylinder
in–line
4–cylinder in–line 4–cylinder in–line 4–cylinder in–line
Bore x Stroke mm (in) 78.0 x 83.6
(3.071 x
3.291)84 x 90.1
(3.31 x 3.55)
76.0 x 80.5
(2.992 x 3.169) 84x90
(3.31 x 3.54)80 x 79.5
(3.15 x 3.13)
Displacement cm
3
(cu in)1,598 (97.51) 1,997 (121.86) 1,461 (89.15) 1,995 (121.73) 1,598 (97.51)
Firing order 1–3–4–2 1–3–4–2 1–3–4–2 1–3–4–2 1–3–4–2
Idling speed rpm MT 650 ± 50 700±50800±50
750±50 —
AT or CVT in N
position ——
Ignition timing
(BTDC) degree
MT 15 ± 5° 15±5°———
CVT in N posi-
tion ————
Spark plug Standard PLZKAR6A–11 PLZKAR6A–11 — — —
Spark plug gap mm (in) 1.1 (0.043) 1.1 (0.043) — — —
Camshaft operation Timing chain Timing chain Timing belt Timing chain Timing chain
ENGINE WHEELS AND TYRES
Technical information9-7

Downloaded from www.Manualslib.com manuals search engine Unit: mm (in)
5–seater 7–seater
Overall length 4,332 (170.6) 4,542 (178.8)
Overall width 1,780 (70.1) 1,780 (70.1)
Overall height 1,605 (63.2) 1,645 (64.8) 1,622 (63.9)*
Front tread 1,540 (60.6) 1,540 (60.6)
Rear tread 1,545 (60.8) 1,550 (61)
Wheelbase 2,630 (103.5) 2,765 (108.9)
* : with roof rail When planning to travel in another country,
you
should first find out if the fuel available is suitable for
your vehicle’s engine.
Using fuel with too low octane/cetane rating may
cause engine damage. Therefore, avoid taking your
vehicle to areas where appropriate fuel is not avail-
able.
When transferring your vehicle registration to an-
other country, check with the appropriate authori-
ties that the vehicle complies with the requirements
as it may not be possible to adapt it. In some cases,
a vehicle cannot meet the legal requirements and in
other cases, it may be necessary to modify the ve-
hicle to meet specific laws and regulations.
The laws and regulations for motor vehicle emission
control and safety standards vary according to the
country; therefore, vehicle specifications may differ.
NISSAN is not responsible for any inconvenience
when the vehicle is taken and registered into an-
other country. The necessary modifications,
transportation and registration are the owner’s
responsibility.

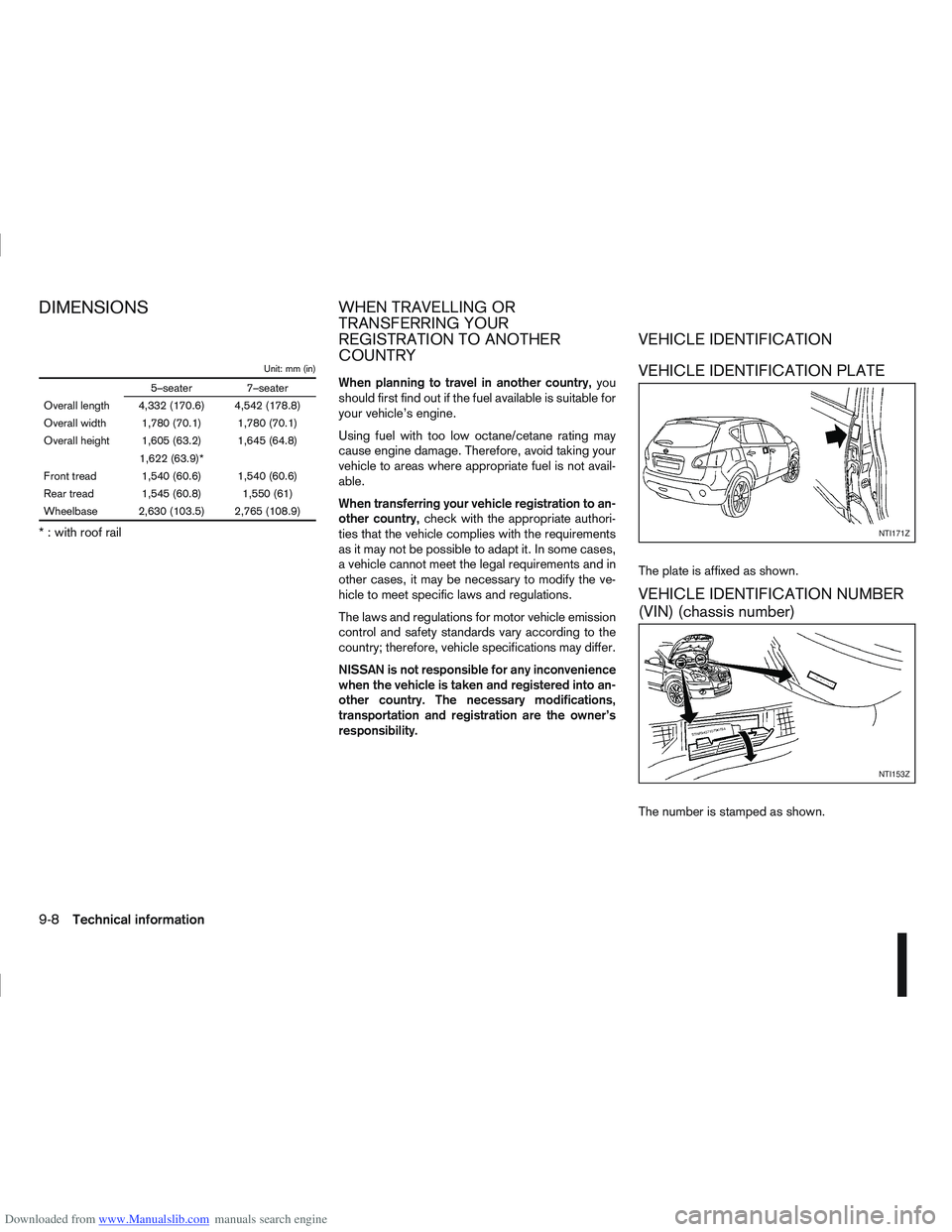

VEHICLE IDENTIFICATION PLATE
The plate is affixed as shown.
VEHICLE IDENTIFICATION NUMBER
(VIN) (chassis number)
The number is stamped as shown.
NTI171Z
NTI153Z
DIMENSIONSWHEN TRAVELLING OR
TRANSFERRING YOUR
REGISTRATION TO ANOTHER
COUNTRY VEHICLE IDENTIFICATION
9-8Technical information

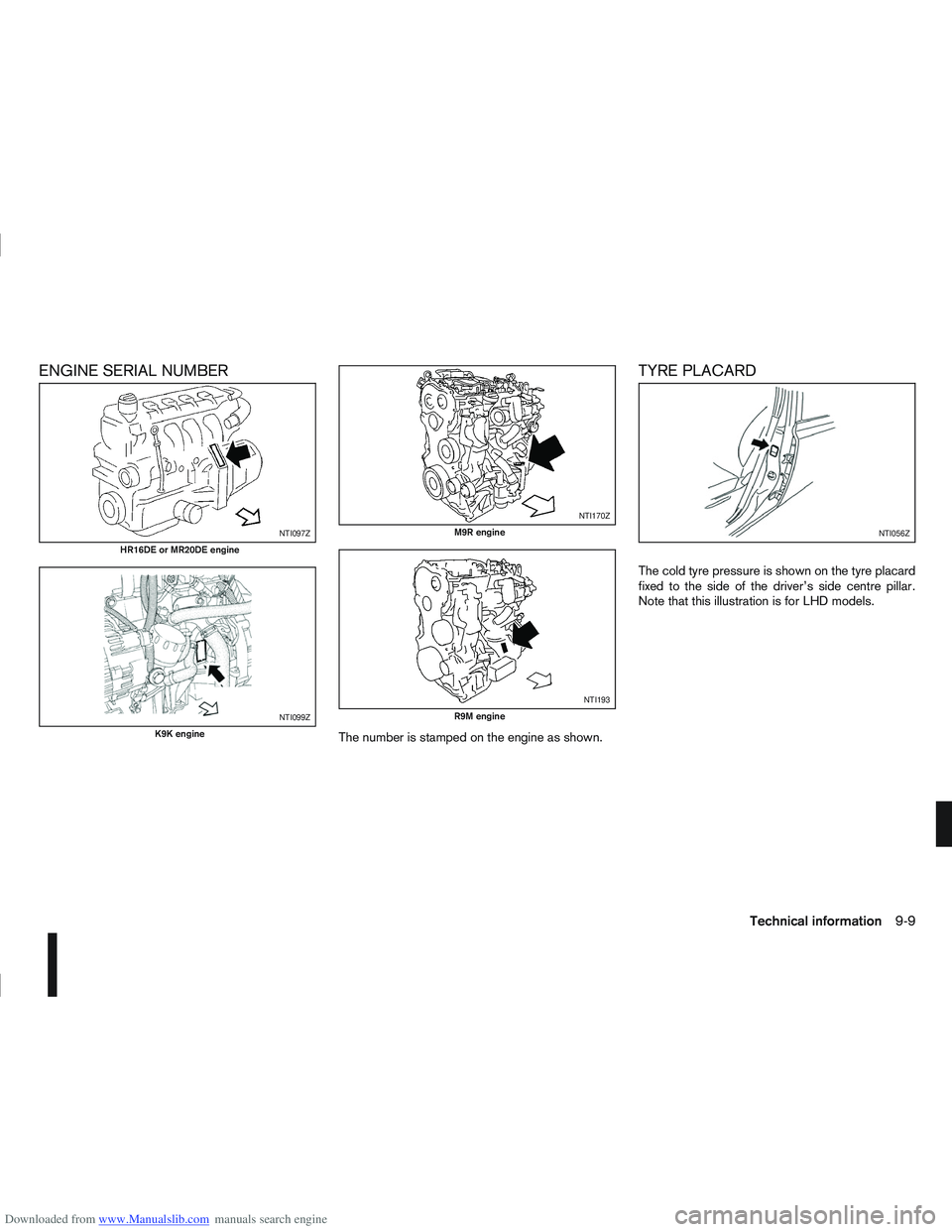

Downloaded from www.Manualslib.com manuals search engine ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
TYRE PLACARD
The cold tyre pressure is shown on the tyre placard
fixed to the side of the driver’s side centre pillar.
Note that this illustration is for LHD models.
NTI097Z
HR16DE or MR20DE engine
NTI099Z
K9K engine
NTI170Z
M9R engine
NTI193
R9M engine
NTI056Z
Technical information9-9

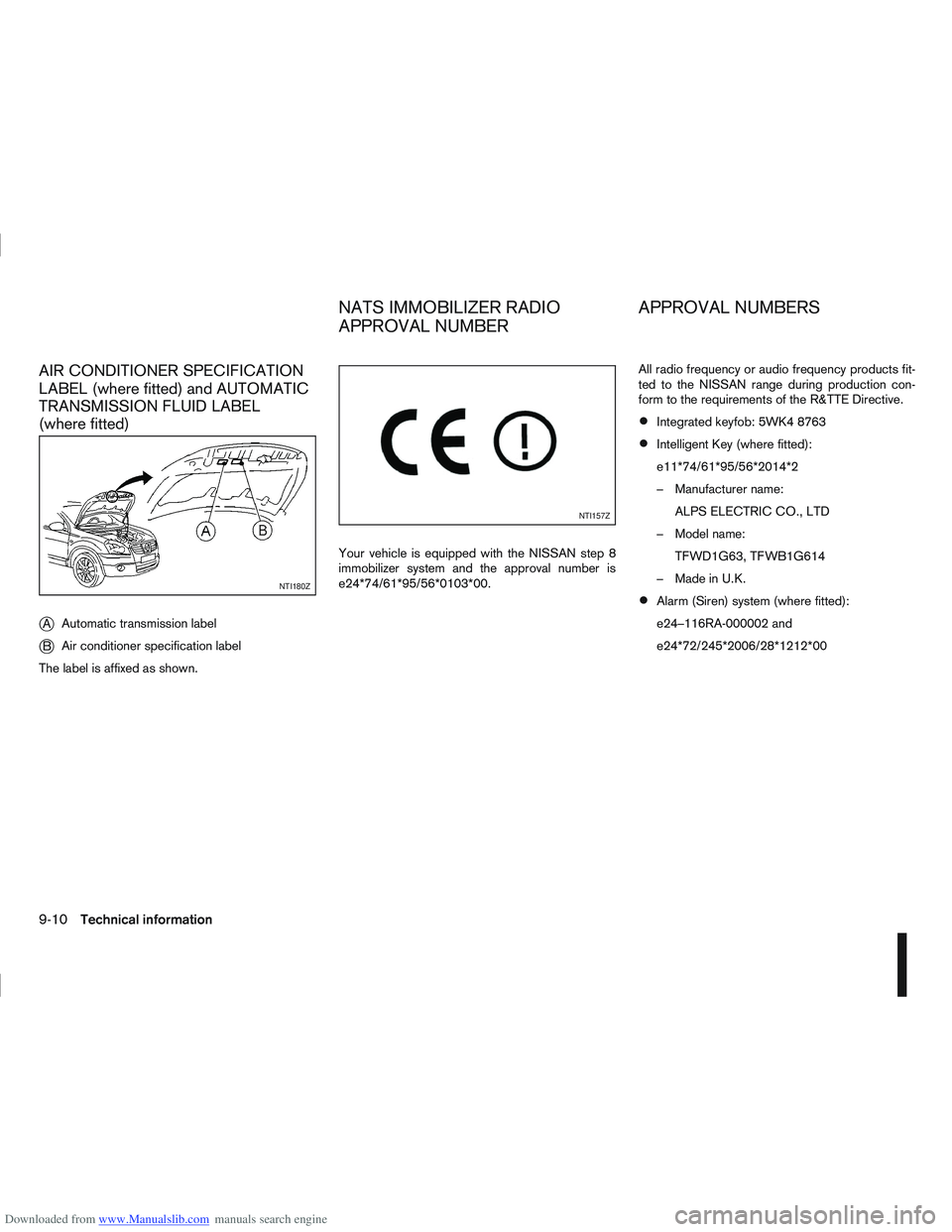

Downloaded from www.Manualslib.com manuals search engine AIR CONDITIONER SPECIFICATION
LABEL (where fitted) and AUTOMATIC
TRANSMISSION FLUID LABEL
(where fitted)
j
AAutomatic transmission label
jB Air conditioner specification label
The label is affixed as shown. Your vehicle is equipped with the NISSAN step 8
immobilizer system and the approval number is
e24*74/61*95/56*0103*00.All radio frequency or audio frequency products fit-
ted to the NISSAN range during production con-
form to the requirements of the R&TTE Directive.
Integrated keyfob: 5WK4 8763
Intelligent Key (where fitted):
e11*74/61*95/56*2014*2
– Manufacturer name:
ALPS ELECTRIC CO., LTD
– Model name: TFWD1G63, TFWB1G614
– Made in U.K.
Alarm (Siren) system (where fitted):
e24–116RA-000002 and
e24*72/245*2006/28*1212*00
NTI180Z
NTI157Z
NATS IMMOBILIZER RADIO
APPROVAL NUMBER APPROVAL NUMBERS
9-10Technical information
