2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the seat belt
retractor is in the automatic locking mode
(child restraint mode) . It reverts to emer-
gency locking mode when the seat belt is
fully retracted.4. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.
Rear Facing — step 2
WRS0309
Rear Facing — step 3
WRS0324
Rear Facing — step 4
WRS0253
Safety—Seats, seat belts and supplemental restraint system1-35
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 52 of 328
5. Before placing the child in the child restraint,
use force to tilt the child restraint from side
to side, and tug it forward to make sure that
it is securely held in place. It should not move
more than 1 inch (25mm) . If it does move
more than 1 inch (25 mm) , pull again on the
shoulder belt to further tighten the child re-
straint. If unable to properly secure the re-
straint move the restraint to another seating
position and try again , or try a different child
restraint. Not all child restraints fit in all types
of vehicles.6. Check that the retractor is in the automatic
locking mode by trying to pull more seat belt
out of the retractor. If you cannot pull any
more seat belt webbing out of the retractor,
the retractor is in the automatic locking
mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt fully retracted, the automatic locking mode
(child restraint mode) is canceled.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Rear Facing — step 5
WRS0254
LATCH anchor point label
(2nd row captain’s chairs)
WRS0295
1-36Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 53 of 328

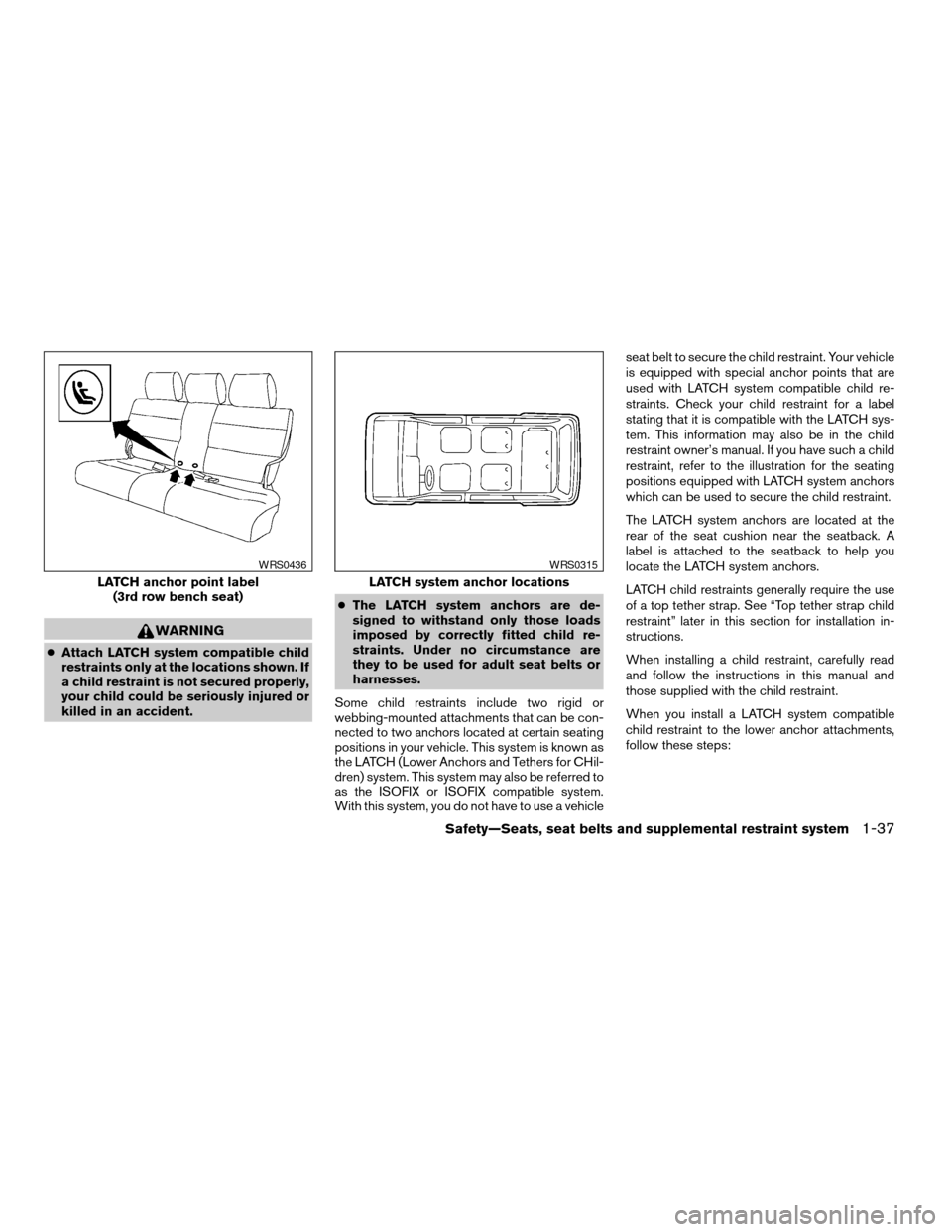

WARNING
cAttach LATCH system compatible child
restraints only at the locations shown. If
a child restraint is not secured properly,
your child could be seriously injured or
killed in an accident.cThe LATCH system anchors are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance are
they to be used for adult seat belts or
harnesses.
Some child restraints include two rigid or
webbing-mounted attachments that can be con-
nected to two anchors located at certain seating
positions in your vehicle. This system is known as
the LATCH (Lower Anchors and Tethers for CHil-
dren) system. This system may also be referred to
as the ISOFIX or ISOFIX compatible system.
With this system, you do not have to use a vehicleseat belt to secure the child restraint. Your vehicle
is equipped with special anchor points that are
used with LATCH system compatible child re-
straints. Check your child restraint for a label
stating that it is compatible with the LATCH sys-
tem. This information may also be in the child
restraint owner’s manual. If you have such a child
restraint, refer to the illustration for the seating
positions equipped with LATCH system anchors
which can be used to secure the child restraint.
The LATCH system anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH system anchors.
LATCH child restraints generally require the use
of a top tether strap. See “Top tether strap child
restraint” later in this section for installation in-
structions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
When you install a LATCH system compatible
child restraint to the lower anchor attachments,
follow these steps:
LATCH anchor point label
(3rd row bench seat)
WRS0436
LATCH system anchor locations
WRS0315
Safety—Seats, seat belts and supplemental restraint system1-37
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 54 of 328

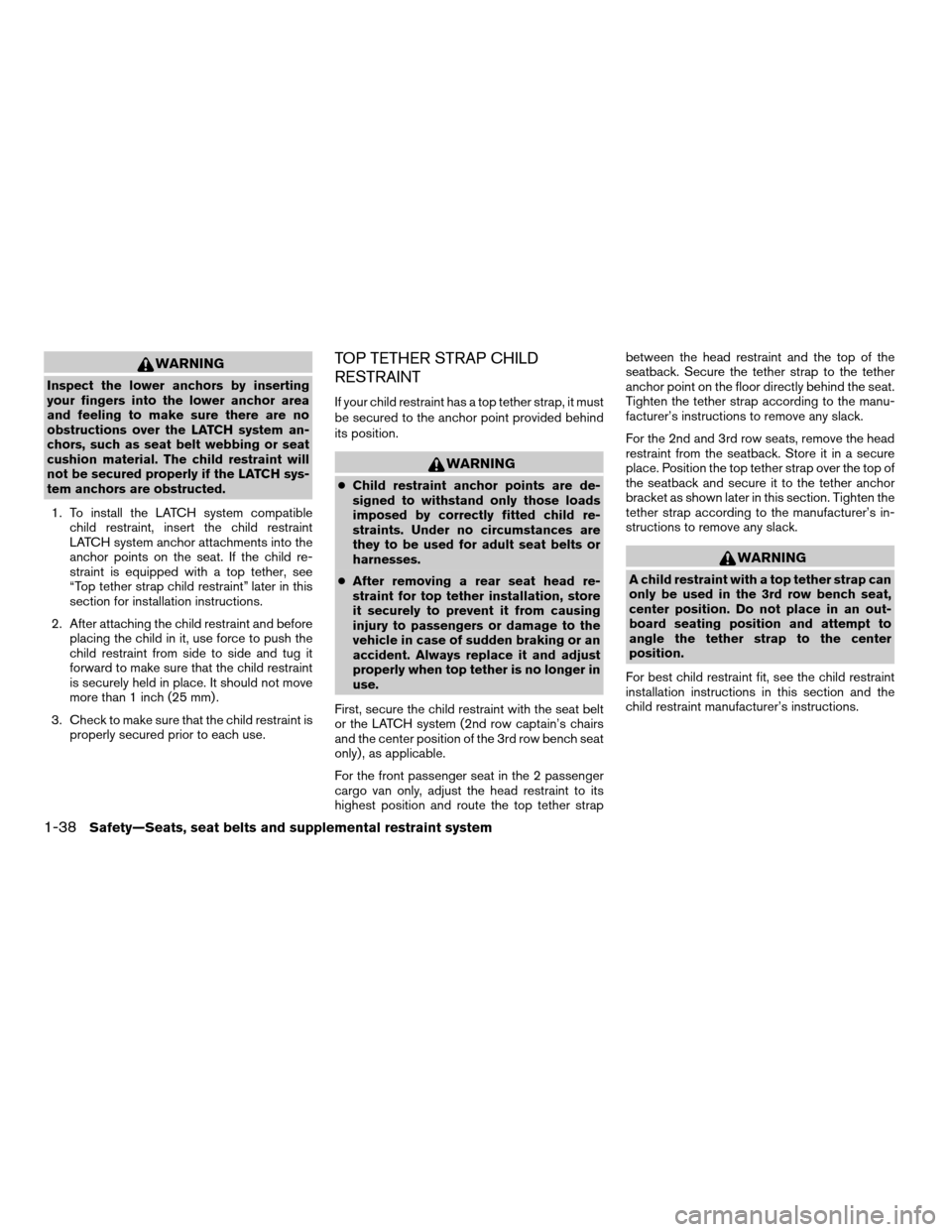

WARNING
Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH system an-
chors, such as seat belt webbing or seat
cushion material. The child restraint will
not be secured properly if the LATCH sys-
tem anchors are obstructed.
1. To install the LATCH system compatible
child restraint, insert the child restraint
LATCH system anchor attachments into the
anchor points on the seat. If the child re-
straint is equipped with a top tether, see
“Top tether strap child restraint” later in this
section for installation instructions.
2. After attaching the child restraint and before
placing the child in it, use force to push the
child restraint from side to side and tug it
forward to make sure that the child restraint
is securely held in place. It should not move
more than 1 inch (25 mm) .
3. Check to make sure that the child restraint is
properly secured prior to each use.
TOP TETHER STRAP CHILD
RESTRAINT
If your child restraint has a top tether strap, it must
be secured to the anchor point provided behind
its position.
WARNING
cChild restraint anchor points are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.
cAfter removing a rear seat head re-
straint for top tether installation, store
it securely to prevent it from causing
injury to passengers or damage to the
vehicle in case of sudden braking or an
accident. Always replace it and adjust
properly when top tether is no longer in
use.
First, secure the child restraint with the seat belt
or the LATCH system (2nd row captain’s chairs
and the center position of the 3rd row bench seat
only) , as applicable.
For the front passenger seat in the 2 passenger
cargo van only, adjust the head restraint to its
highest position and route the top tether strapbetween the head restraint and the top of the
seatback. Secure the tether strap to the tether
anchor point on the floor directly behind the seat.
Tighten the tether strap according to the manu-
facturer’s instructions to remove any slack.
For the 2nd and 3rd row seats, remove the head
restraint from the seatback. Store it in a secure
place. Position the top tether strap over the top of
the seatback and secure it to the tether anchor
bracket as shown later in this section. Tighten the
tether strap according to the manufacturer’s in-
structions to remove any slack.
WARNING
A child restraint with a top tether strap can
only be used in the 3rd row bench seat,
center position. Do not place in an out-
board seating position and attempt to
angle the tether strap to the center
position.
For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.
1-38Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 55 of 328
Anchor point locations
Anchor points are located on the floor behind the
front passenger seat (2 passenger cargo van
only) , on the back of the 2nd row captain’s chairs
and the back of the center seat position on the
3rd row bench seat as shown.
If you have any questions when installing a
top strap child restraint on the rear seat,
consult your NISSAN dealer for details.
The front passenger seat and 2nd row captain’s
chair anchor point locations are marked with the
label shown.
Front passenger seat
(2 passenger cargo van only)
LRS0322
Label
WRS0210
2nd row captain’s chairs
LRS0307
Safety—Seats, seat belts and supplemental restraint system1-39
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 56 of 328
1. Pull strap
2. Top tether anchor point
CHILD RESTRAINT INSTALLATION
ON FRONT PASSENGER SEAT
WARNING
cNever install a rear-facing child restraint in the
front passenger seat. Supplemental front air
bags inflate with great force. A rear-facing child
restraint could be struck by the supplemental
front air bag in a crash and could seriously injure
or kill your child.
cNISSAN recommends that child restraints be in-
stalled in the rear seat. However, if you must install
a forward-facing child restraint in the front passen-
ger seat, move the passenger seat to the rearmost
position. Also, be sure the front passenger air bag
status light is illuminated to indicate the passenger
air bag is OFF. See “Front passenger air bag and
status light” earlier in this section for details.
cA child restraint with a top tether strap should
not be used in the front passenger seat unless
the vehicle is the 2 passenger cargo van only.
cThe three-point seat belt in your vehicle is
equipped with an automatic locking mode re-
tractor which must be used when installing a
child restraint.
cFailure to use the retractor’s locking mode will
result in the child restraint not being properly
secured. The restraint could tip over or other-
wise be unsecured and cause injury to the child
in a sudden stop or collision. Also, it can change
the operation of the front passenger air bag. See
“Front passenger air bag and status light” ear-
lier in this section.
3rd row bench
WRS0319WRS0256WRS0378
1-40Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
08/23/04Ðarosenma
X
Page 57 of 328
cFailure to use the retractor’s locking
mode will result in the child restraint
not being properly secured. The re-
straint could tip over or otherwise be
unsecured and cause injury to the child
in a sudden stop or collision.
If you must install a child restraint in the front seat,
follow these steps:
1. Position the child restraint on the front pas-
senger seat.It should be placed in a
front-facing direction only. Move the
seat to the rearmost position.Adjust the
head restraint to its highest position. Always
follow the child restraint manufacturer’s in-
structions.Child restraints for infants
must be used in the rear-facing direc-
tion and therefore must not be used in
the front seat.
The back of the child restraint should be
secured against the vehicle seat back. Ifnecessary, adjust or remove the head re-
straint to obtain the correct child restraint fit.
See “Head restraint adjustment” earlier in
this section. If the head restraint is removed,
store it in a secure place. Be sure to install
the head restraint when the child restraint is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
Front Facing — step 1WRS0379
Safety—Seats, seat belts and supplemental restraint system1-41
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 58 of 328
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the seat belt
retractor is in the automatic locking mode
(child restraint mode) . It reverts to emer-
gency locking mode when the seat belt is
fully retracted.4. Allow the seat belt to retract slightly. Pull up
on the shoulder belt to remove any slack in
the belt.
Front Facing — step 2
WRS0159
Front Facing — step 3
WRS0160
Front Facing — step 4
LRS0457
1-42Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
07/20/04Ðdebbie
X
Page 59 of 328
5. Before placing the child in the child restraint,
use force to push the child restraint from
side to side, and tug it forward to make sure
that it is securely held in place. It should not
move more than 1 inch (25 mm) . If it does
move more than 1 inch (25 mm) , pull again
on the shoulder belt to further tighten the
child restraint. If unable to properly secure
the restraint move the restraint to another
seating position and try again , or try a differ-
ent child restraint. Not all child restraints fit in
all types of vehicles.6. Check that the retractor is in the automatic
locking mode by trying to pull more seat belt
out of the retractor. If you cannot pull any
more belt webbing out of the retractor, the
retractor is in the automatic locking mode.
7. Check to make sure the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 3
through 6.
8. Turn the ignition to the ON position. The
passenger air bag status light should say
“PASS AIR BAG OFF”
oror. If this light is not illuminated it may
indicate a malfunction.Move the child re-
straint to another seating position.
Have the system checked by a NISSAN
dealer.
After the child restraint is removed and the seat
belt is fully retracted, the automatic locking mode
(child restraint mode) is canceled.
PRECAUTIONS ON BOOSTER
SEATS
WARNING
cInfants and small children should al-
ways be placed in an appropriate child
restraint while riding in the vehicle.
Failure to use a child restraint or
booster seat can result in serious injury
or death.
cInfants and small children should never
be carried on your lap. It is not possible
for even the strongest adult to resist the
forces of a severe accident. The child
could be crushed between the adult and
parts of the vehicle. Also, do not put the
same seat belt around both your child
and yourself.
cNISSAN recommends that the booster
seat be installed in the rear seat. Ac-
cording to accident statistics, children
are safer when properly restrained in
the rear seat than in the front seat.
Front Facing — step 5
WRS0380
BOOSTER SEATS
Safety—Seats, seat belts and supplemental restraint system1-43
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
08/23/04Ðarosenma
X
Page 60 of 328

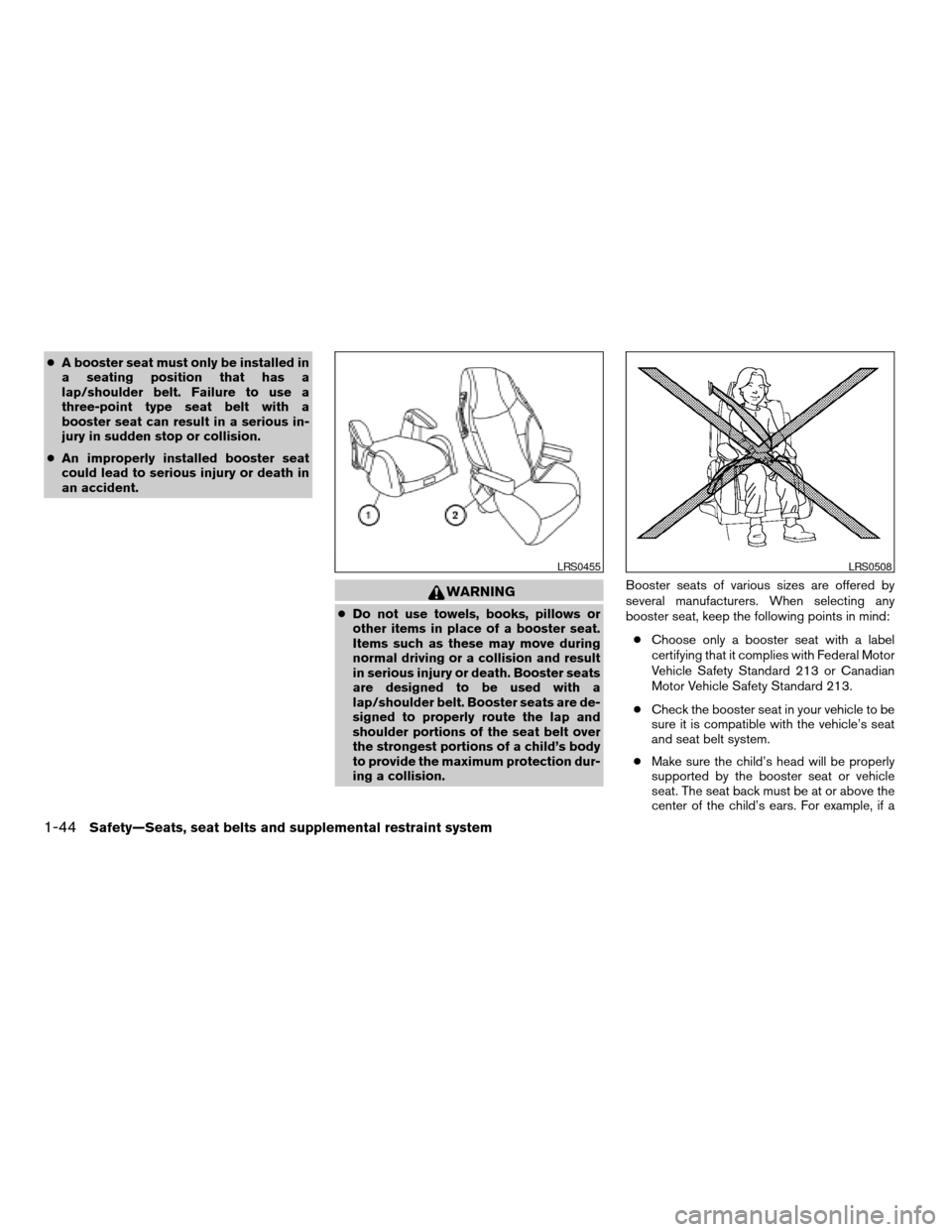

cA booster seat must only be installed in
a seating position that has a
lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious in-
jury in sudden stop or collision.
cAn improperly installed booster seat
could lead to serious injury or death in
an accident.
WARNING
cDo not use towels, books, pillows or
other items in place of a booster seat.
Items such as these may move during
normal driving or a collision and result
in serious injury or death. Booster seats
are designed to be used with a
lap/shoulder belt. Booster seats are de-
signed to properly route the lap and
shoulder portions of the seat belt over
the strongest portions of a child’s body
to provide the maximum protection dur-
ing a collision.Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
cChoose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
cCheck the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
cMake sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seat back must be at or above the
center of the child’s ears. For example, if a
LRS0455LRS0508
1-44Safety—Seats, seat belts and supplemental restraint system
ZREVIEW COPYÐ2005 Quest(van)
Owners ManualÐUSA_English(nna)
08/23/04Ðarosenma
X
