NISSAN QUEST 2008 V42 / 3.G Quick Reference Guide

REAR CTRL BUTTON
Press the REAR CTRL button to turn the rear audio controls on. Press again to turn the
rear controller off.
TUNE/FLDR·CAT BUTTON
 Press the TUNE/FLDR·CAT button to manually tune the radio.
 Press the TUNE/FLDR·CAT button if playing a CD that is formatted with MP3 folders
to skip to the next folder.
AUDIO BUTTON
Press the AUDIO buttontochange theaudio settings. AdjusttheBass, Mid,Treble,
Fade, Balance and Speed Sensitive Volume (SSV) by pressing the AUDIObutton until
the desired modeappears inthe display. Pressthe TUNE/FLDR·CAT buttonupor
down to adjust to the desired level.
SPEAKER CONTROL BUTTON
Press the speaker control
button to activate the rear headphones and turn off the
rear speakers. Press the
button again to deactivate the rear headphones and turn
on the rear speakers.
SCAN BUTTON
Press the SCAN buttontostop ateach broadcasting station(FM,AMorXM )for 5
seconds. Pressing the button again during this 5-second period will stop scan tuning
and the radio will remain tuned to that station.
FM·AM/SAT BUTTON
Pressing the FM·AM/SAT radio select button will change the band to either FM, AM or
XM  radio stations.
CD/DVD BUTTON
 Press the CD/DVD button to begin CD play.
 Press the CD/DVD button again to begin DVD play.
LOAD BUTTON
 LOAD ASINGLE DISC-Press
the
button for less than 1.5 sec-
onds. Select theloading slotby
pressing one of the CD insert select
button ( 1-6 ) , then insert the CD.
 LOAD UP TO 6 DISCS - Press and hold the
button for more than 1.5 seconds.
The slot numbers (1-6) will illuminate on the display when CDs are loaded into the
changer.
AUX JACK
Press the AUXbutton on the radio to play a compatible device such as an MP3 player
when it is plugged into the AUXjack (cable not included) .
9

EJECT BUTTON
 EJECT A SINGLE DISC - Press the
button for less than 1.5 seconds. Select the
eject slot by pressing the CD insert select button ( 1-6 ) . The CD will then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
*XM  Satellite Radioisonly available onvehicles equipped withoptional XMsatellite
subscription service.
CONTROL PANEL DISPLAY WITH NAVIGATION SYSTEM (if so
equipped)
TRIP BUTTON
When the TRIPbutton is pressed, the following
modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1(Elapsed Time,Driving Distance,
Average Speed)
 TRIP 2(Elapsed Time,Driving Distance,
Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation and Tire Pressure)
 OFF
MAINTENANCE ITEMS
You cansetthe engine oiland thetirerotation interval. Todisplay thesetting ofthe
maintenance interval, select the ENGINE OILorTIRE ROTATION key using the joystick and
press the ENTER button.Toset the maintenance interval,selecttheMAINTENANCE
SCHEDULE keyusing thejoystick andpush thejoystick tothe right orleft. Toreset the
maintenance interval, select the RESETkey using the joystick and press the ENTERbutton.
DISPLAY SCREEN SETTINGS
The SETTING screenwillappear whentheSETTING buttonispressed. Selectthe
DISPLAY key with the joystick and press the ENTERbutton to choose from various display
screen options. The DISPLAYkey will allow you to personalize the information shown on the
display screen, such as climate control or audio system display.
REARVIEW MONITOR (if so equipped)
When theautomatic transmission leverismoved tothe R
(Reverse) position,themonitor displaywillautomatically
change to show the area directly behind the vehicle.
The colored linesonthe display screenindicate approximate
distances to objects.
 Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and
10 ft (3 m) .
10

CLOCK SET/ADJUSTMENT
Press theSETTING button, then select SYSTEM
SETTINGS withthejoystick andpress theEN-
TER button. Nextselect CLOCK andpress the
ENTER button to access the following clock set-
tings:
 Hours –Adjust thetime byincreasing or
decreasing by hour.
 Minutes –Adjust thetime byincreasing or
decreasing by minute.
 Auto Adjust –The time willbereset tothe
GPS time.
 Daylight Saving Time – Turn this item on for daylight savings time application.
 Select Time Zone – Choose the time zone.
REAR SONAR SYSTEM OFF SWITCH (if so equipped)
When backing up, this system will beep to alert you to obstacles within 6
ft (1.8 m) of the rear bumper. The system beeps faster as the vehicle gets
closer to the obstacle. A continuous tone sounds when an obstacle is less
than 10 in (25 cm) away from the bumper. Turn the system off by pushing
the rear sonar system OFFswitch. Push the switch again to enable the
system. Thesystem willautomatically resetthenext time theignition
switch is turned on.
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH (if so equipped)
The Vehicle Dynamic Control (VDC) system is designed to help improve
driving stability. VDC detects wheel spin and controls braking and engine
output. VDC may need to be temporarily shut off if you are trying to free a
vehicle stuck in snow or mud.
 Push the Vehicle Dynamic Control (VDC) off switch to deactivate the
VDC system. The
lightwillilluminate inthe instrument panel
gauge area.
 Push the Vehicle Dynamic Control (VDC) off switch again to activate the VDC system.
The
light in the instrument panel gauge area will turn off.
 The VDC system is active while the vehicle is running until the switch is pressed to turn
it off.
11

AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:  Memory storage function.
 Entry/exit function.
MEMORY STORAGE FUNCTION
Two positions forthe driver’s seat,accelerator andbrake pedals, and
outside mirrors can be stored in the automatic driver positioner memory.
Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
 Set the automatic transmission lever to the P (Park) position.
 Turn theignition onand adjust thedriver’s seat,accelerator andbrake pedals, and
outside mirrors to the desired positions.
 Press the SET(memory) button and within 5 seconds press the position button (1 or2
) for at least 1 second until the indicator light illuminates. The position is now stored in
memory.
LINK TO KEYFOB
 Within 5 seconds of setting the memory position (indicator light is on and ignition is on) ,
press the
button on the remote.
 A keyfob can be linked to each memory button.
 If memory positioning is re-set to a new location, the keyfob automatically re-links.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD
With the automatic transmission lever in the P (Park) position, press the position button
( 1 or2) for at least 1 second.
FROM THE KEYFOB
 If properly linked, operation of thebutton will automatically return the driver’s seat,
accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat
more easily. The driver’s seat slides backward when:
 The key is removed from the ignition switch.
 The driver’s door is opened with the key turned to LOCK.
 The keyisturned fromACC toLOCK withthedriver’s dooropen andtheautomatic
transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
 The key is inserted into the ignition switch.
 The driver’s door is closed with the key turned to LOCK.
 The keyisturned fromACC toON while theautomatic transmission leverisin the P
(Park) position.
12

OUTSIDE MIRROR CONTROL SWITCH
Rotate the control switch to select the right or left mirror.
 Adjust themirror tothe desired position bymoving thecontrol
switch.
 The selected mirrorwillautomatically tiltdown (ifso equipped)
when the automatic transmission lever is moved to the R (Reverse)
position.
The selected mirror will return to its original position when the automatic transmission lever is
moved to any position other than R (Reverse) or if the outside mirror switch is moved to the
neutral position.
PEDAL POSITION ADJUSTMENT SWITCH
The accelerator and brake pedals can be adjusted for your driving comfort.
 Adjust the pedals when the automatic transmission lever is in P (Park) .
 Push
to move the position of the pedals forward.
 Push
to move the position of the pedals backward.
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag System.
Under some conditions, depending on the type of occupant or object
detected inthe front passenger seatbythe occupant classification
sensor, the front-passenger air bag is designed to automatically turn
OFF. When the front-passenger air bag is OFF,the front-passenger
air bag status light will illuminate*. For example:
 When thesystem detects thatthefront-passenger’s seatis
occupied by a small adult, child or child restraint as outlined in
the Owner’s Manual, the
will illuminate to indicate that the front-passenger air
bag is OFF and will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined inthe Owner’s Manual,the
willnotilluminate toindicate thatthe
front-passenger air bag is operational.
*When thesystem detects thatthefront-passenger’s seatisunoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
13

TIRE PRESSURE MONITORING SYSTEM (TPMS)
Thissystem monitors tirepressure. Ifthe low tirepressure warning
light illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended COLD tire pressure
shown on the Tire and Loading Information label located in the driver’s
door opening. After tire pressures are adjusted, the vehicle will need
to be driven at speeds above 16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light
illuminates whenevertheignition keyisturned tothe ON or
START position andremains illuminated untilthedriver’s seat
belt is fastened. At the same time, the chime sounds for approxi-
mately 6seconds unlessthedriver’s seatbeltissecurely fas-
tened.
 The seat beltwarning lightmayalso illuminate ifthe front pas-
senger’s seatbeltisnot fastened whenthefront passenger’s
seat is occupied. For 7 seconds after the ignition switch is in the ON position, the system
does not activate the warning light for the front passenger.
CHILD SAFETY REAR DOOR LOCK
Child safety lockshelpprevent therear doors frombeing
opened accidentally, especiallywhensmallchildren arein
the vehicle. The child safety lock levers are located on the
edge ofthe rear doors. Whenthelever isin the LOCK
position, the door can only be opened from the outside.
FUEL-FILLER DOOR RELEASE
 Press theswitch located onthe driver’s doortoopen the
fuel-filler door.
 Close the fuel-filler door securely to lock it.
 The driver’s sidepower sliding doorisdisabled whenthe
fuel-filler door is open. The sliding door can be partially opened
manually.
14

FUEL-FILLER CAP
To tighten, turn the fuel-filler cap clockwise until ratcheting
clicks are heard. If the cap is not fully tightened, the service
engine soon light may illuminate.
 If
light illuminates becausefuelcap isloose or
missing, tighten or install the cap. The
should turn
off after a few driving trips.
MOONROOF CONTROLS (if so equipped)
The ignition switch must be in the ON position to operate the
moonroof controls.
TILTING THE MOONROOF
 To tiltthe moonroof up,push thetiltswitch tothe
UP
position. If the roof is open, it will automatically
close and then tilt up.
 To tiltthe moonroof down,pushthetiltswitch tothe
DOWN
position.
SLIDING THE MOONROOF
 Push the switch toward the OPENpositionto fully open the moonroof.
 Push the switch toward the CLOSEposition
to fully close the moonroof.
 Push the switch in any direction while the moonroof is sliding open or closed to stop the
moonroof in the desired position.
POWER SLIDING DOORS AND POWER LIFT GATE (if so equipped)
POWER SLIDING DOORS
The power sliding doorscanbeacti-
vated bythe buttons onthe keyfob, the
overhead console, and the door pillars.
 Toopen, closeorreverse asliding
door, the ignition switch must be off or the automatic transmission selector lever must be
in P (Park) .
 To open, close or reverse a sliding door with the keyfob, press and hold the keyfob button
for longer than 0.5 seconds.
 To activate a sliding door with the button on the door pillar, the main ON/OFFswitch
must be on, the door must be unlocked, and the child safety door lock must be in the
unlock position.
15

To activate the power assist feature, manually move a sliding door toward the open or
close position using the inside or outside handle. The power assist feature will automati-
cally complete the motion.
POWER LIFT GATE
The power lift gate can be activated by the buttons on the keyfob, the overhead console, and
the rear door pillar.
 Toopen, closeorreverse theliftgate, theautomatic transmission levermust beinP
(Park) .
 To open, close or reverse the lift gate with the keyfob, press and hold the keyfob button
for longer than 0.5 seconds.
 To close the lift gate with the rear door pillar button, the main ON/OFFswitch must be
on.
The power sliding doors and the power lift gate have an anti-pinch safety feature. Please refer
to your Owner’s Manual for more information regarding this feature.
FRONT SEAT ADJUSTMENTS
With manual seats (if so equipped):
 Pull up on the lever
under the front of the seat
and slide backward or forward; release.
 Lift the lever
on the side of the seat to adjust
your seatback backward or forward; release when
you have found a comfortable angle and the seat
belt fits properly.
 Use the dials
at the side of the driver’s seat to adjust the angle and height of the
seat cushion.
With power seats (if so equipped)
 Move thecontrol
forward orbackward to
adjust the seat cushion forward or backward.
 Pull uptoraise thedriver’s seatcushion; press
down to lower the cushion.
 Push the switchforward to move the seatback forward; press it back to move the
seatback backward.
Your driver’s seathasalumbar support; adjustitby
moving the lever
forward or backward.
16

ADJUSTING AND FOLDING THE 2ND ROW SEAT
To move the 2nd row seats forward of backward:  Pull thelever
upand hold itwhile youslide theseat forward orbackward tothe
desired position.
 Release the lever to lock the seat in position.
To recline the 2nd row seatbacks:
 Pull the lever
up and lean forward or back.
The 2nd row seats can be tipped forward for easy entry or exit from the 3rd row
seat:
 To enter the 3rd row seats, lift up on the lever
located on the lower base of the seat;
this tips the seat forward.
 To exit the 3rd row seats, pull back on the lever on the lower base of the seat and push
the seat forward.
To fold the 2nd row seats flat to the floor for maximum cargo hauling:
 Lift up on the recline lever
to fold the seatback down on the seat base.
 Press down on the small lever
on the back of the seat to release the base of the
seat.
 Then fold the entire seat forward into the stowed position on the floor
.
 Reverse thisprocess toreturn the2nd rowseats toaseating position. Makesureto
press the seats down to the floor until they latch into place.
17

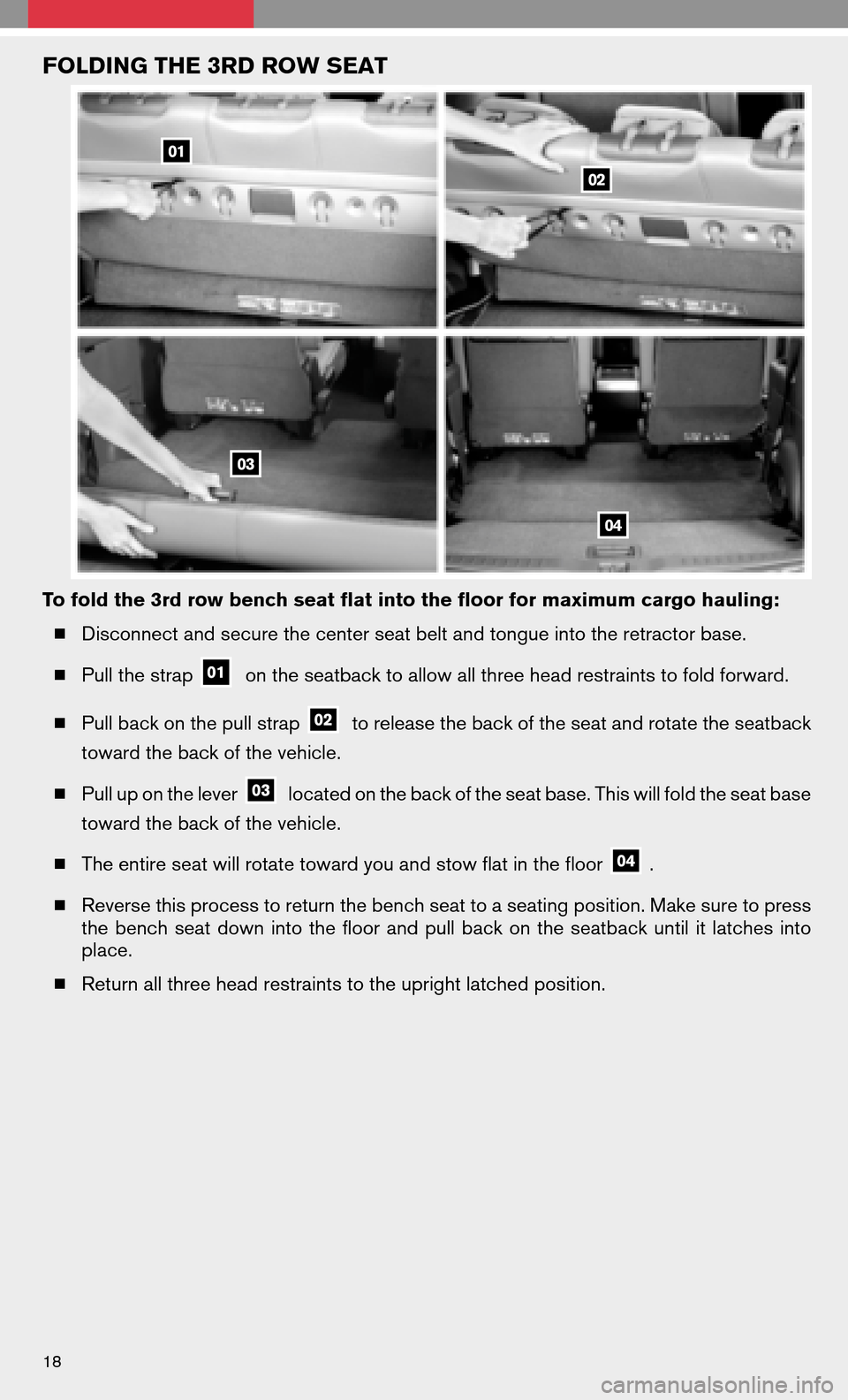

FOLDING THE 3RD ROW SEAT
To fold the 3rd row bench seat flat into the floor for maximum cargo hauling:  Disconnect and secure the center seat belt and tongue into the retractor base.
 Pull the strap
on the seatback to allow all three head restraints to fold forward.
 Pull back on the pull strap
to release the back of the seat and rotate the seatback
toward the back of the vehicle.
 Pull up on the lever
located on the back of the seat base. This will fold the seat base
toward the back of the vehicle.
 The entire seat will rotate toward you and stow flat in the floor
.
 Reverse this process to return the bench seat to a seating position. Make sure to press
the bench seatdown intothefloor andpullback onthe seatback untilitlatches into
place.
 Return all three head restraints to the upright latched position.
18
