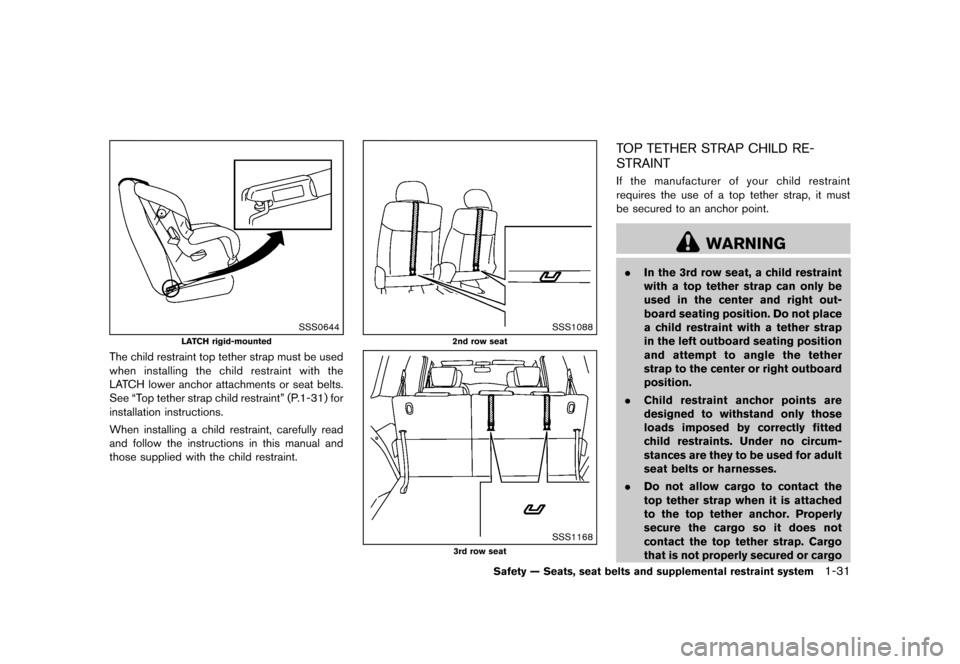

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (47,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0644
LATCH rigid-mounted
The child restraint top tether strap must be used
when installing the child restraint with the
LATCH lower anchor atta NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (47,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0644
LATCH rigid-mounted
The child restraint top tether strap must be used
when installing the child restraint with the
LATCH lower anchor atta](/img/5/336/w960_336-50.png)
Black plate (47,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0644
LATCH rigid-mounted
The child restraint top tether strap must be used
when installing the child restraint with the
LATCH lower anchor attachments or seat belts.
See “Top tether strap child restraint” (P.1-31) for
installation instructions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
SSS1088
2nd row seat
SSS1168
3rd row seat
TOP TETHER STRAP CHILD RE-
STRAINT
GUID-109C01AC-C875-4742-9286-A1B99AFF5463If the manufacturer of your child restraint
requires the use of a top tether strap, it must
be secured to an anchor point.
WARNING
.In the 3rd row seat, a child restraint
with a top tether strap can only be
used in the center and right out-
board seating position. Do not place
a child restraint with a tether strap
in the left outboard seating position
and attempt to angle the tether
strap to the center or right outboard
position.
. Child restraint anchor points are
designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts or harnesses.
. Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or cargo
Safety — Seats, seat belts and supplemental restraint system1-31
Condition:
Page 52 of 485

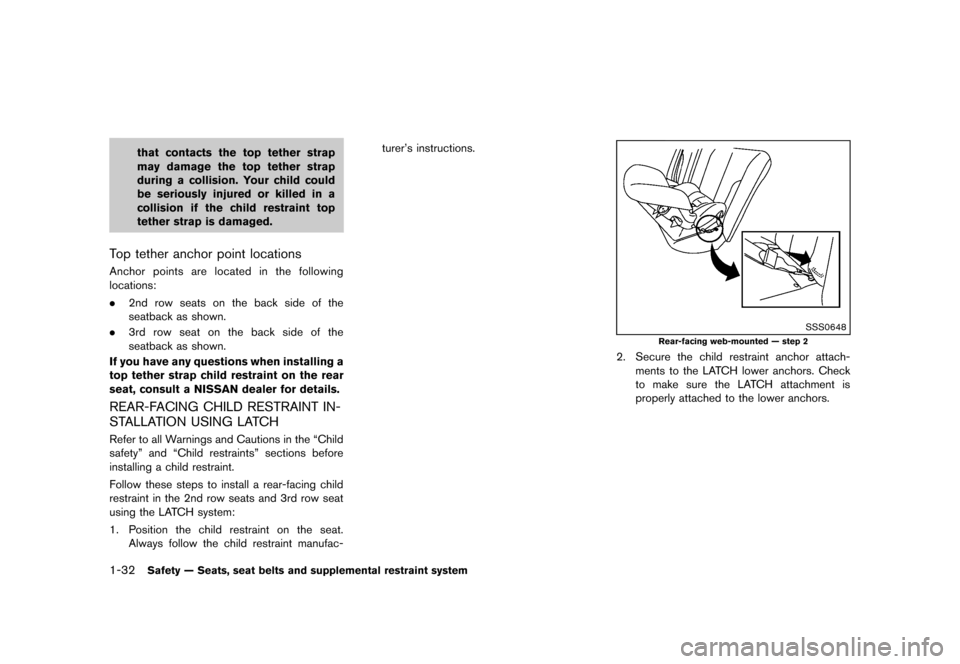

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (48,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-32Safety — Seats, seat belts and supplemental restraint system
that contacts the top tether strap
may damage the top tether strap
during a col NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (48,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-32Safety — Seats, seat belts and supplemental restraint system
that contacts the top tether strap
may damage the top tether strap
during a col](/img/5/336/w960_336-51.png)
Black plate (48,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-32Safety — Seats, seat belts and supplemental restraint system
that contacts the top tether strap
may damage the top tether strap
during a collision. Your child could
be seriously injured or killed in a
collision if the child restraint top
tether strap is damaged.
Top tether anchor point locationsGUID-01EFACA8-9789-48D7-B6A7-9A47A9D648AAAnchor points are located in the following
locations:
.2nd row seats on the back side of the
seatback as shown.
. 3rd row seat on the back side of the
seatback as shown.
If you have any questions when installing a
top tether strap child restraint on the rear
seat, consult a NISSAN dealer for details.
REAR-FACING CHILD RESTRAINT IN-
STALLATION USING LATCH
GUID-713C96B5-0F76-4F02-8CC4-BE4ACF8A1F65Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a rear-facing child
restraint in the 2nd row seats and 3rd row seat
using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac- turer’s instructions.
SSS0648
Rear-facing web-mounted — step 2
2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
Condition:
Page 53 of 485

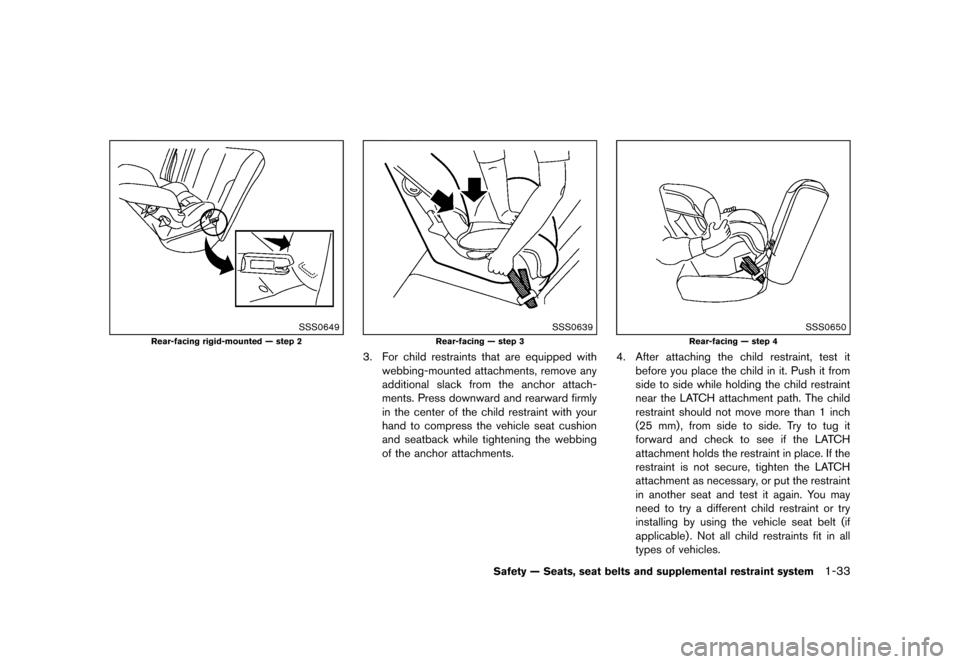

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (49,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0649
Rear-facing rigid-mounted — step 2
SSS0639
Rear-facing — step 3
3. For child restraints that are equipped withwebbing-mounted attachme NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (49,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0649
Rear-facing rigid-mounted — step 2
SSS0639
Rear-facing — step 3
3. For child restraints that are equipped withwebbing-mounted attachme](/img/5/336/w960_336-52.png)
Black plate (49,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0649
Rear-facing rigid-mounted — step 2
SSS0639
Rear-facing — step 3
3. For child restraints that are equipped withwebbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.
SSS0650
Rear-facing — step 4
4. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint or try
installing by using the vehicle seat belt (if
applicable) . Not all child restraints fit in all
types of vehicles.
Safety — Seats, seat belts and supplemental restraint system1-33
Condition:
Page 54 of 485

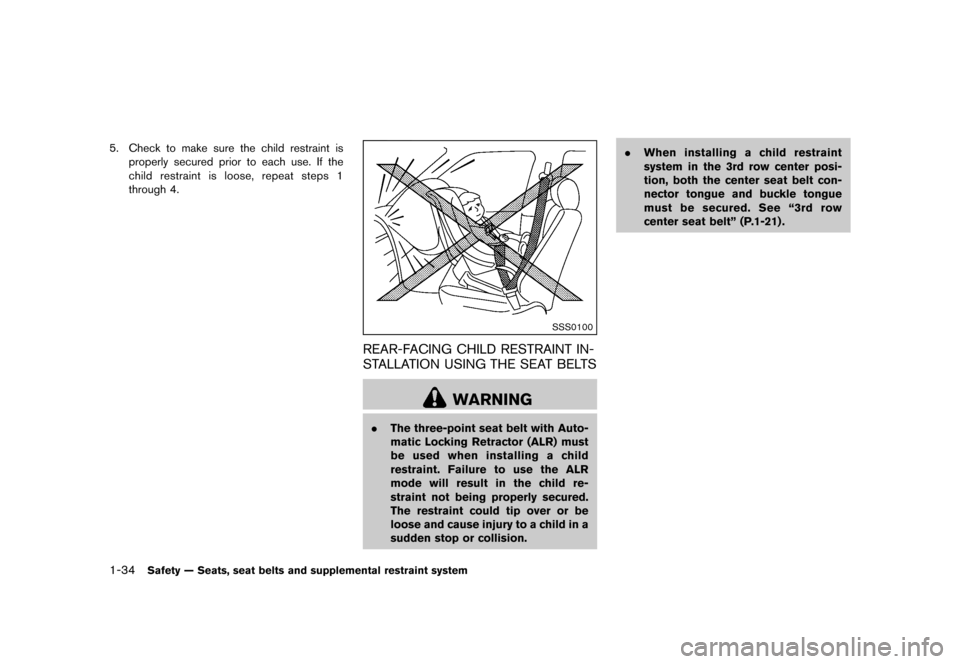

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (50,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-34Safety — Seats, seat belts and supplemental restraint system
5. Check to make sure the child restraint isproperly secured prior to each use. NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (50,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-34Safety — Seats, seat belts and supplemental restraint system
5. Check to make sure the child restraint isproperly secured prior to each use.](/img/5/336/w960_336-53.png)
Black plate (50,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-34Safety — Seats, seat belts and supplemental restraint system
5. Check to make sure the child restraint isproperly secured prior to each use. If the
child restraint is loose, repeat steps 1
through 4.
SSS0100
REAR-FACING CHILD RESTRAINT IN-
STALLATION USING THE SEAT BELTS
GUID-9D01B0AD-A5EB-45F0-AA4D-2ABC619F297E
WARNING
.The three-point seat belt with Auto-
matic Locking Retractor (ALR) must
be used when installing a child
restraint. Failure to use the ALR
mode will result in the child re-
straint not being properly secured.
The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. .
When installing a child restraint
system in the 3rd row center posi-
tion, both the center seat belt con-
nector tongue and buckle tongue
must be secured. See “3rd row
center seat belt” (P.1-21) .
Condition:
Page 55 of 485

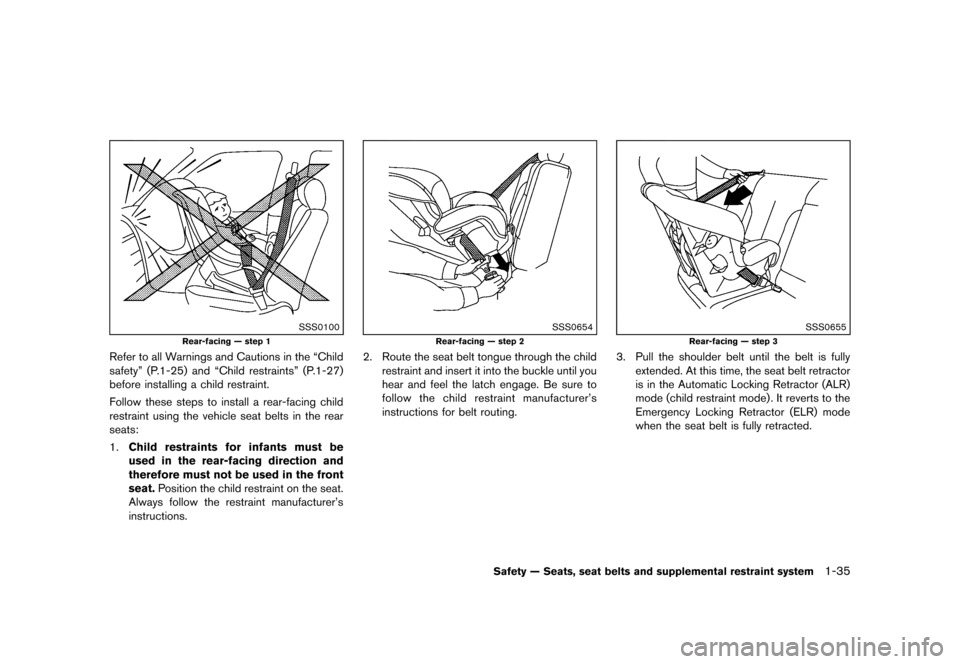

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (51,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0100
Rear-facing — step 1
Refer to all Warnings and Cautions in the “Child
safety” (P.1-25) and “Child restraints” (P.1-27)
before in NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (51,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0100
Rear-facing — step 1
Refer to all Warnings and Cautions in the “Child
safety” (P.1-25) and “Child restraints” (P.1-27)
before in](/img/5/336/w960_336-54.png)
Black plate (51,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSS0100
Rear-facing — step 1
Refer to all Warnings and Cautions in the “Child
safety” (P.1-25) and “Child restraints” (P.1-27)
before installing a child restraint.
Follow these steps to install a rear-facing child
restraint using the vehicle seat belts in the rear
seats:
1.Child restraints for infants must be
used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the seat.
Always follow the restraint manufacturer’s
instructions.
SSS0654
Rear-facing — step 2
2. Route the seat belt tongue through the child restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.
SSS0655
Rear-facing — step 3
3. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to the
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
Safety — Seats, seat belts and supplemental restraint system1-35
Condition:
Page 56 of 485

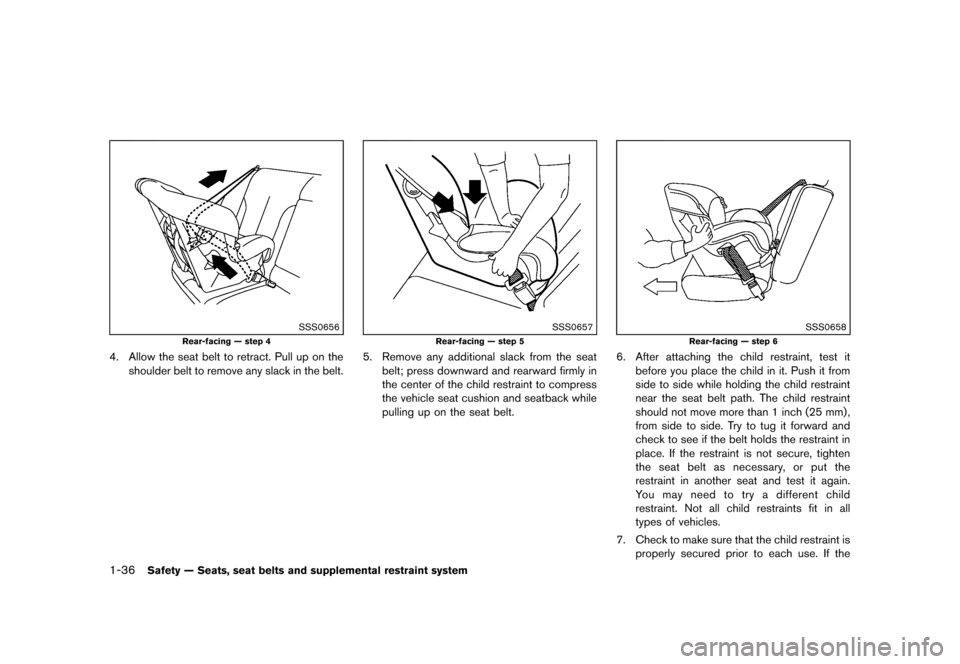

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (52,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-36Safety — Seats, seat belts and supplemental restraint system
SSS0656
Rear-facing — step 4
4. Allow the seat belt to retract. Pull up on th NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (52,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-36Safety — Seats, seat belts and supplemental restraint system
SSS0656
Rear-facing — step 4
4. Allow the seat belt to retract. Pull up on th](/img/5/336/w960_336-55.png)
Black plate (52,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-36Safety — Seats, seat belts and supplemental restraint system
SSS0656
Rear-facing — step 4
4. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt.
SSS0657
Rear-facing — step 5
5. Remove any additional slack from the seatbelt; press downward and rearward firmly in
the center of the child restraint to compress
the vehicle seat cushion and seatback while
pulling up on the seat belt.
SSS0658
Rear-facing — step 6
6. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm) ,
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
7. Check to make sure that the child restraint is properly secured prior to each use. If the
Condition:
Page 57 of 485

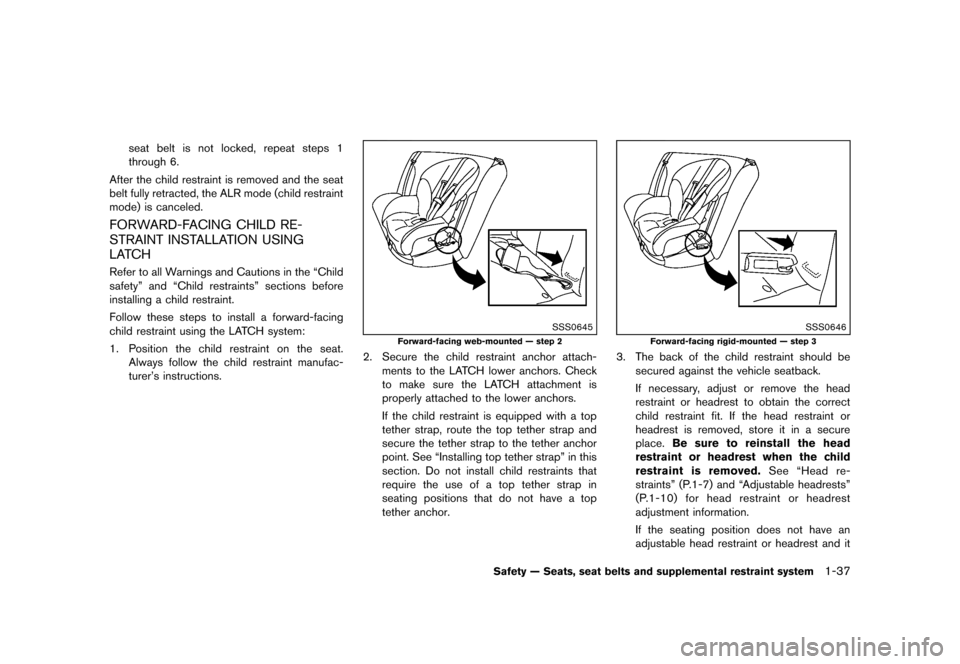

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (53,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child res NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (53,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child res](/img/5/336/w960_336-56.png)
Black plate (53,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
seat belt is not locked, repeat steps 1
through 6.
After the child restraint is removed and the seat
belt fully retracted, the ALR mode (child restraint
mode) is canceled.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING
LATCH
GUID-9BB88067-053A-4C95-ACDC-6FD5C84BE466Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the LATCH system:
1. Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
SSS0645
Forward-facing web-mounted — step 2
2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchors.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point. See “Installing top tether strap” in this
section. Do not install child restraints that
require the use of a top tether strap in
seating positions that do not have a top
tether anchor.
SSS0646
Forward-facing rigid-mounted — step 3
3. The back of the child restraint should besecured against the vehicle seatback.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
child restraint fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the child
restraint is removed. See “Head re-
straints” (P.1-7) and “Adjustable headrests”
(P.1-10) for head restraint or headrest
adjustment information.
If the seating position does not have an
adjustable head restraint or headrest and it
Safety — Seats, seat belts and supplemental restraint system1-37
Condition:
Page 58 of 485

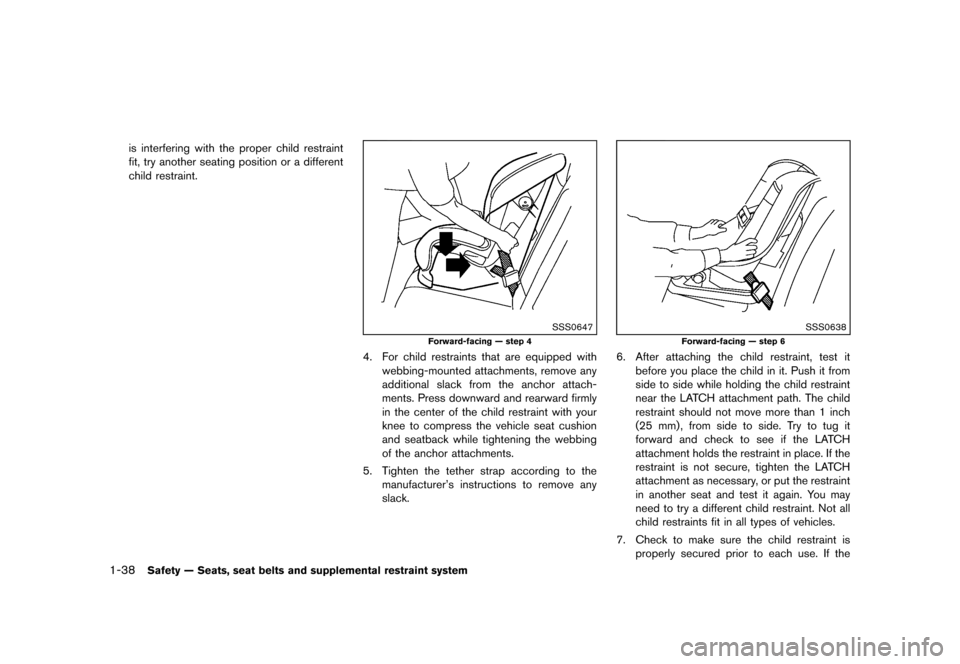

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (54,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-38Safety — Seats, seat belts and supplemental restraint system
is interfering with the proper child restraint
fit, try another seating positio NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (54,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-38Safety — Seats, seat belts and supplemental restraint system
is interfering with the proper child restraint
fit, try another seating positio](/img/5/336/w960_336-57.png)
Black plate (54,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-38Safety — Seats, seat belts and supplemental restraint system
is interfering with the proper child restraint
fit, try another seating position or a different
child restraint.
SSS0647
Forward-facing — step 4
4. For child restraints that are equipped withwebbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.
5. Tighten the tether strap according to the manufacturer’s instructions to remove any
slack.
SSS0638
Forward-facing — step 6
6. After attaching the child restraint, test itbefore you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint. Not all
child restraints fit in all types of vehicles.
7. Check to make sure the child restraint is properly secured prior to each use. If the
Condition:
Page 59 of 485

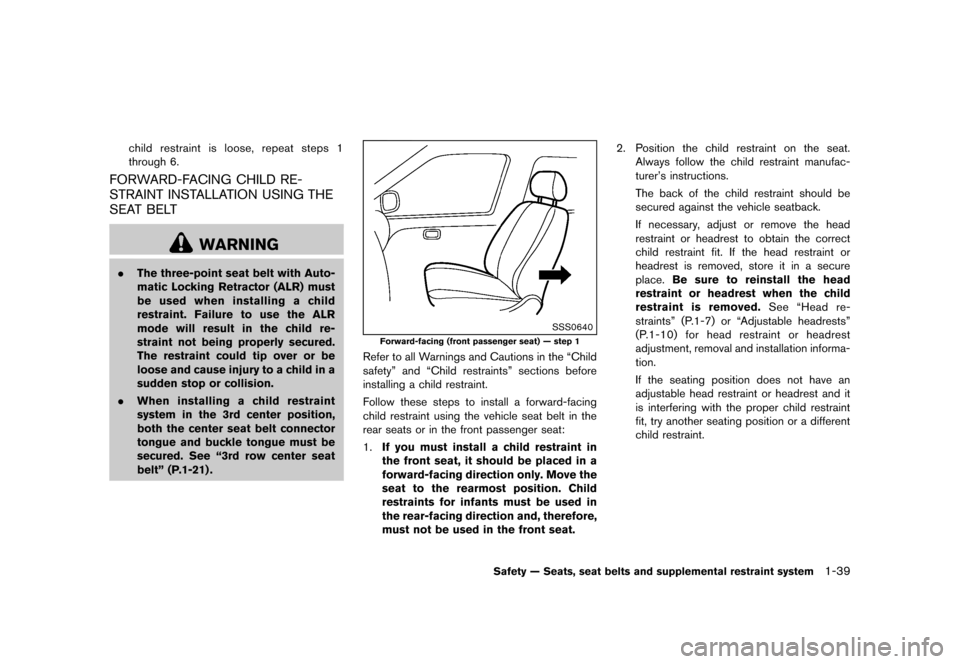

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (55,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
child restraint is loose, repeat steps 1
through 6.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE
SEAT BELT
GUID-B5BA121C-5140-48A0-824E NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (55,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
child restraint is loose, repeat steps 1
through 6.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE
SEAT BELT
GUID-B5BA121C-5140-48A0-824E](/img/5/336/w960_336-58.png)
Black plate (55,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
child restraint is loose, repeat steps 1
through 6.
FORWARD-FACING CHILD RE-
STRAINT INSTALLATION USING THE
SEAT BELT
GUID-B5BA121C-5140-48A0-824E-FEE9660B2B8C
WARNING
.The three-point seat belt with Auto-
matic Locking Retractor (ALR) must
be used when installing a child
restraint. Failure to use the ALR
mode will result in the child re-
straint not being properly secured.
The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision.
. When installing a child restraint
system in the 3rd center position,
both the center seat belt connector
tongue and buckle tongue must be
secured. See “3rd row center seat
belt” (P.1-21) .
SSS0640
Forward-facing (front passenger seat) — step 1
Refer to all Warnings and Cautions in the “Child
safety” and “Child restraints” sections before
installing a child restraint.
Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:
1.If you must install a child restraint in
the front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and, therefore,
must not be used in the front seat. 2.
Position the child restraint on the seat.
Always follow the child restraint manufac-
turer’s instructions.
The back of the child restraint should be
secured against the vehicle seatback.
If necessary, adjust or remove the head
restraint or headrest to obtain the correct
child restraint fit. If the head restraint or
headrest is removed, store it in a secure
place. Be sure to reinstall the head
restraint or headrest when the child
restraint is removed. See “Head re-
straints” (P.1-7) or “Adjustable headrests”
(P.1-10) for head restraint or headrest
adjustment, removal and installation informa-
tion.
If the seating position does not have an
adjustable head restraint or headrest and it
is interfering with the proper child restraint
fit, try another seating position or a different
child restraint.
Safety — Seats, seat belts and supplemental restraint system1-39
Condition:
Page 60 of 485

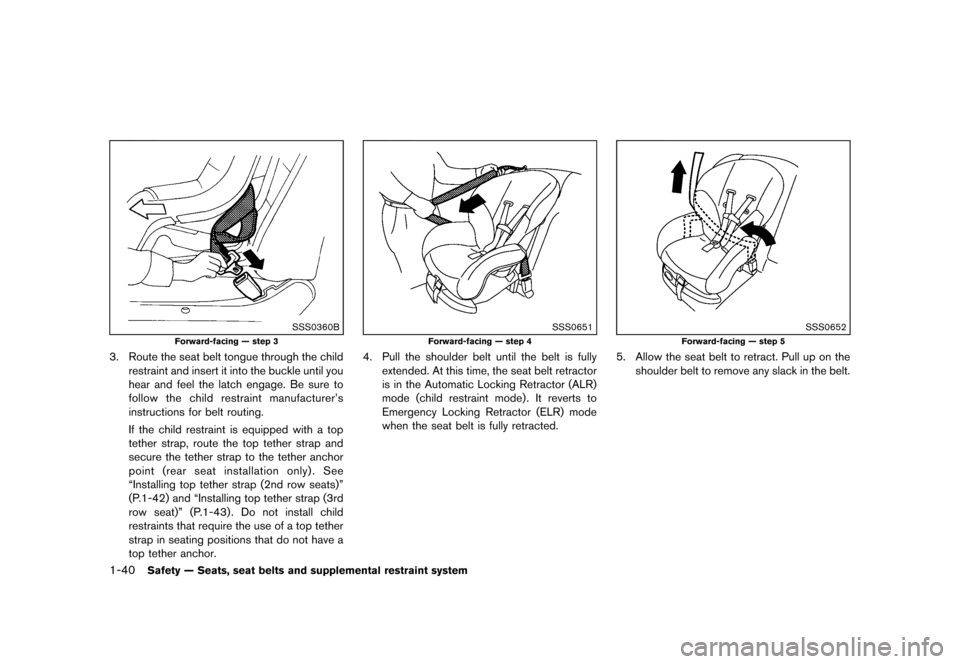

![NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (56,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-40Safety — Seats, seat belts and supplemental restraint system
SSS0360B
Forward-facing — step 3
3. Route the seat belt tongue through the ch NISSAN QUEST 2013 RE52 / 4.G Workshop Manual Black plate (56,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-40Safety — Seats, seat belts and supplemental restraint system
SSS0360B
Forward-facing — step 3
3. Route the seat belt tongue through the ch](/img/5/336/w960_336-59.png)
Black plate (56,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-40Safety — Seats, seat belts and supplemental restraint system
SSS0360B
Forward-facing — step 3
3. Route the seat belt tongue through the childrestraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s
instructions for belt routing.
If the child restraint is equipped with a top
tether strap, route the top tether strap and
secure the tether strap to the tether anchor
point (rear seat installation only) . See
“Installing top tether strap (2nd row seats)”
(P.1-42) and “Installing top tether strap (3rd
row seat)” (P.1-43) . Do not install child
restraints that require the use of a top tether
strap in seating positions that do not have a
top tether anchor.
SSS0651
Forward-facing — step 4
4. Pull the shoulder belt until the belt is fullyextended. At this time, the seat belt retractor
is in the Automatic Locking Retractor (ALR)
mode (child restraint mode) . It reverts to
Emergency Locking Retractor (ELR) mode
when the seat belt is fully retracted.
SSS0652
Forward-facing — step 5
5. Allow the seat belt to retract. Pull up on theshoulder belt to remove any slack in the belt.
Condition:
