driver seat adjustment NISSAN QUEST 2013 RE52 / 4.G Owners Manual

Black plate (18,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
GUID-DE2C7BDD-4D98-4DFC-BCAF-32596CEFB86B
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” (P.1-16) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
Do not adjust the driver’s seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
SEATS
Condition:

Black plate (40,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-24Safety — Seats, seat belts and supplemental restraint system
WARNING
.After adjustment, release the ad-
justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.
. The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.
SSS1076
Seat belt hooksGUID-7D30C133-7430-471B-9D7B-10BF001437EEWhen the 2nd or 3rd row seat belts are not in
use and when folding down the 2nd or 3rd row
seats, hook the 2nd and 3rd outer seat belts on
the seat belt hooks.
SEAT BELT EXTENDERSGUID-15D1A71E-FD3F-4ACD-B546-C496A242B8B1If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8
in (200 mm) of length and may be used for either
the driver or front passenger seating position.
See a NISSAN dealer for assistance with purchasing an extender if an extender is
required.
WARNING
.
Only NISSAN seat belt extenders,
made by the same company which
made the original equipment seat
belts, should be used with the
NISSAN seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal
injury in the event of an accident.
. Never use seat belt extenders to
install child restraints. If the child
restraint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop.
SEAT BELT MAINTENANCEGUID-2CF601B2-9F89-42D3-8CB2-6AE797300E6C.To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then, wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.
Condition:

Black plate (145,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFFGUID-44136B17-07DF-4D0F-92F0-BD778BE9A8E0When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Remove the mechanical key from the In-telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
For glove box lock, see “Storage” (P.2-43) .
GUID-18907FBD-5AB8-42C1-B853-0AF0F135729D
WARNING
. Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2527-B
LOCKING WITH MECHANICAL KEYGUID-CFBC7CA1-1570-4282-A02B-C90C789270FDThe power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
.Turning the driver’s door key cylinder to the
rear of the vehicle
*1will lock all doors.
. Turning the driver’s door key cylinder once
to the front of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the front
again within 5 seconds will unlock all doors.
. Models with center multi-function control
panel:
You can switch the lock system to the mode
that allows you to open all the doors when
Pre-driving checks and adjustments3-5
DOORS
Condition:

Black plate (172,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-32Pre-driving checks and adjustments
SPA2833
LOOSE FUEL CAP warningGUID-D54C2F61-6C72-4B15-9740-B6A0DD544BCFThe LOOSE FUEL CAP warning appears on the
dot matrix liquid crystal display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be displayed. To
turn off the warning, perform the following steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “Fuel-filler cap” (P.3-30) .)
2. Tighten the fuel-filler cap until it clicks.
3. Push the reset switch
*Aon the right side
of the combination meter for about 1 second
to turn off the LOOSE FUEL CAP warning
after tightening the fuel cap.
GUID-069AD6A7-46A9-4905-AAAB-02A7C1D8C33D
WARNING
. Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
SPA2854
TILT OR TELESCOPIC OPERATIONGUID-BD604F52-3900-4557-8124-CE7156DB8A68While pulling the lock lever down*1, adjust the
steering wheel up, down, forward or rearward
*2until the desired position is achieved.
Push the lock lever up
*3firmly to lock the
steering wheel in place.
TILT/TELESCOPIC STEERING
Condition:

Black plate (177,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

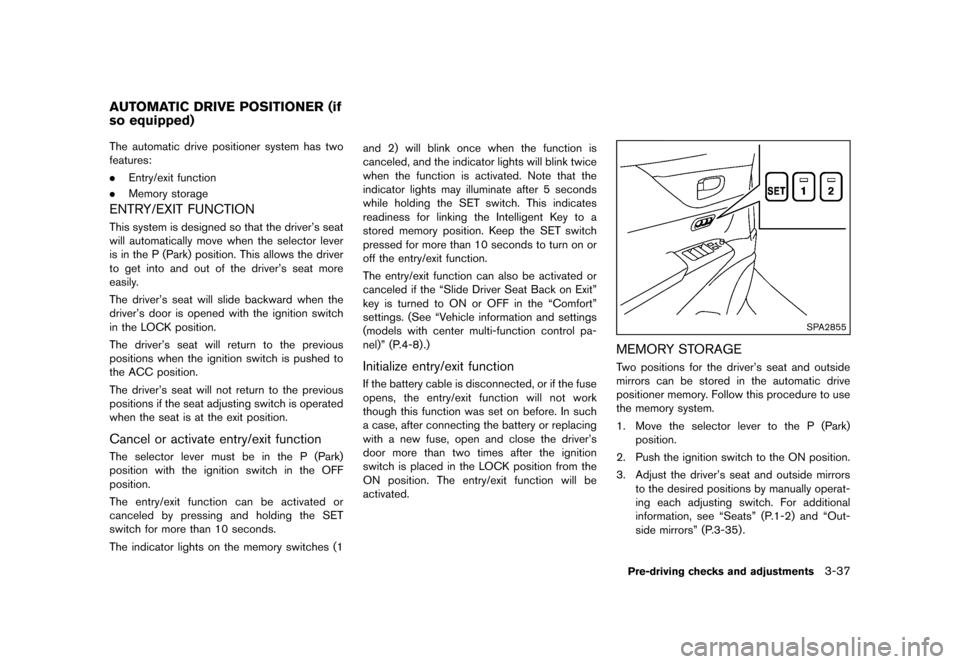

GUID-D7276E5F-FB84-463B-BDF9-A346295A447BThe automatic drive positioner system has two
features:
.Entry/exit function
. Memory storage
ENTRY/EXIT FUNCTIONGUID-5F29AE45-A8DA-42BF-A7C8-04256D167074This system is designed so that the driver’s seat
will automatically move when the selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward when the
driver’s door is opened with the ignition switch
in the LOCK position.
The driver’s seat will return to the previous
positions when the ignition switch is pushed to
the ACC position.
The driver’s seat will not return to the previous
positions if the seat adjusting switch is operated
when the seat is at the exit position.
Cancel or activate entry/exit functionGUID-97B13C13-98B1-43DA-BF4E-6CC11E5EE734The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1 and 2) will blink once when the function is
canceled, and the indicator lights will blink twice
when the function is activated. Note that the
indicator lights may illuminate after 5 seconds
while holding the SET switch. This indicates
readiness for linking the Intelligent Key to a
stored memory position. Keep the SET switch
pressed for more than 10 seconds to turn on or
off the entry/exit function.
The entry/exit function can also be activated or
canceled if the “Slide Driver Seat Back on Exit”
key is turned to ON or OFF in the “Comfort”
settings. (See “Vehicle information and settings
(models with center multi-function control pa-
nel)” (P.4-8) .)
Initialize entry/exit functionGUID-E526DD89-2FEC-4DC6-8386-CED70B431AFFIf the battery cable is disconnected, or if the fuse
opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is placed in the LOCK position from the
ON position. The entry/exit function will be
activated.
SPA2855
MEMORY STORAGEGUID-BEDCA7A8-8409-4EC2-8EAE-7F30A20C2AA8Two positions for the driver’s seat and outside
mirrors can be stored in the automatic drive
positioner memory. Follow this procedure to use
the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON position.
3. Adjust the driver’s seat and outside mirrors to the desired positions by manually operat-
ing each adjusting switch. For additional
information, see “Seats” (P.1-2) and “Out-
side mirrors” (P.3-35) .
Pre-driving checks and adjustments3-37
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Condition:

Black plate (178,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
3-38Pre-driving checks and adjustments
4. Push the SET switch and, within 5 seconds,push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will stay on for approximately 5
seconds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored mem-
ory position
GUID-04712762-5C07-46C9-89DF-7F2803A498EBThe Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow one of the steps for storing a memoryposition.
. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, push the
button on the Intelligent
Key.
. Push the ignition switch to the OFF position,
and then push the SET switch. Push the
button while pushing the memory button
while the indicator light stays on for approxi-
mately 5 seconds.
If the indicator light blinks, the Intelligent Key is
linked to that memory setting.
Push the ignition switch to the OFF position, and
then push the
button on the Intelligent Key.
The driver’s seat and outside mirrors will move to
the memorized position.
Confirming memory storageGUID-C7D22E67-E6D7-436F-A7E9-FBD8970F3E83. Push the ignition switch to the ON position
and push the SET switch. If the main
memory has not been stored, the indicator
light will come on for approximately 0.5
second. When the memory has stored in
position, the indicator light will stay on for
approximately 5 seconds.
. If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
. If optional keys are added to your vehicle,
the memory storage procedure to switch 1
or 2 and linking Intelligent Key procedure to
a stored memory position should be per-
formed again for each Intelligent Key. For
additional Intelligent Key information, see
“Keys” (P.3-3) .
Selecting the memorized positionGUID-66874194-881E-4A22-96FF-EE790B2F0E221. Move the selector lever to the P (Park)
position.
2. Use one of the following methods to move the driver’s seat and outside mirrors.
.Push the ignition switch to the ONposition and push the memory switch (1
or 2) .
.Within 45 seconds of opening thedriver’s door, push the memory switch
(1 or 2) .
The driver’s seat and outside mirrors will
move to the memorized position with the
indicator light flashing, and then the light will
stay on for approximately 5 seconds.
SYSTEM OPERATIONGUID-B0CC6635-8934-4D55-BA9A-D54FF3D35461The automatic drive positioner system will not
work or will stop operating under the following
conditions:
. When the vehicle speed is above 4 MPH (7
km/h) (entry/exit function) .
. When the vehicle is driven (memory sto-
rage).
. When the adjusting switch for the driver’s
seat is turned on while the automatic drive
positioner is operating.
. When the driver’s seat and outside mirrors
have already been moved to the memorized
position.
. When no position is stored in the memory
switch.
. When the engine is started while moving the
automatic drive positioner.
. When the selector lever is moved from the P
(Park) position to any other position. (How-
ever, it will not be canceled while the driver’s
Condition:

Black plate (179,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
seat is returning to the previous positions
(entry/exit function).)
. When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
Pre-driving checks and adjustments3-39
Condition:

Black plate (477,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
FM-AM radio with Compact Disc
(CD) player...
............................................................ 4-73
FM-AM-SAT radio with Compact Disc
(CD) player ...
............................................................ 4-81
Rapid air pressure loss ...
................................................ 5-7
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-27
Rear personal lights ...
.................................................... 2-56
Rear window and outside mirror
defroster switch ...
........................................................... 2-32
Rear window wiper and washer switch ...
................ 2-31
Rearview monitor ...
......................................................... 4-23
Recorders, Event data ...
............................................... 9-27
Registering your vehicle in another country ...
........... 9-8
Remote controller (DVD) ...
....................................... 4-113
Remote keyless entry system ...
................................... 3-21
Reporting safety defects (US only) ...
........................ 9-26
Rollover ...
............................................................................ 5-6
Roof, Roof rack ...
............................................................ 2-49
S
Safety
Child seat belts ...
.................................................... 1-25
Reporting safety defects (US only) ...
................. 9-26
Towing safety ...
......................................................... 9-20
Satellite radio operation ...
............................................ 4-82
Seat adjustment Front manual seat adjustment ...
.............................. 1-3
Front power seat adjustment ...
............................... 1-3
Front seats ...
................................................................ 1-3
Seat belt(s) Child safety ...
............................................................ 1-25
Infants ...
...................................................................... 1-26
Injured persons ...
..................................................... 1-18
Larger children ...
...................................................... 1-26
Precautions on seat belt usage ...
........................ 1-16 Pregnant women
...
.................................................. 1-18
Seat belt cleaning ...
................................................... 7-6
Seat belt extenders ...
.............................................. 1-24
Seat belt hooks ...
.................................................... 1-24
Seat belt maintenance ...
........................................ 1-24
Seat belt warning light and chime ...
................... 2-15
Seat belts ...
............................................................... 1-16
Seat belts with pretensioners ...
........................... 1-59
Shoulder belt height adjustment ...
...................... 1-23
Small children ...
........................................................ 1-26
Three-point type ...
................................................... 1-18
Seat(s) Driver-side memory ...
.............................................. 3-37
Heated seats ...
......................................................... 2-38
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-28
Security system, Vehicle security system ...
............. 2-27
Selector lever Shift lock release ...
.................................................. 5-16
Servicing air conditioner ...
............................................ 4-52
SETTING button ...
.......................................................... 4-13
Shift lock release, Transmission ...
.............................. 5-16
Shifting, CVT (Continuously
Variable Transmission) ...
............................................... 5-13
Shoulder belt height adjustment ...
............................. 1-23
Sliding doors ...
.................................................................. 3-7
SOURCE select switch ...
.......................................... 4-103
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-12 STATUS button
...
.............................................................. 4-8
Status light, Front passenger air bag ...
.................... 1-54
Steering Power steering fluid ...
............................................. 8-11
Steering-wheel-mounted controls
for audio ...
............................................................... 4-102
Tilt/telescopic steering ...
........................................ 3-32
Storage ...
.......................................................................... 2-43
Sun visors ...
..................................................................... 3-33
Sunglasses holder ...
...................................................... 2-45
Supplemental air bag warning labels ...
..................... 1-60
Supplemental air bag warning light ...
............ 1-61, 2-15
Supplemental restraint system ...
................................. 1-47
Precautions on supplemental
restraint system ...
..................................................... 1-47
Switch Autolight switch ...
.................................................... 2-33
Fog light switch ...
.................................................... 2-37
Hazard warning flasher switch ...
............................. 6-2
Headlight aiming control ...
.................................... 2-36
Headlight switch ...
................................................... 2-33
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-32
Turn signal switch ...
................................................ 2-37
Vehicle dynamic control (VDC) off switch ...
..... 2-40
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
.................................................... 2-25
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-28
Three-way catalyst ...
........................................................ 5-3
10-5
Condition:
