1. Front view camera* (P.4-29)
2. Hood (P.3-25)
3. Windshield wiper and washer— Switch operation (P.2-30)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-13)
4. Moonroof* (P.2-53) 5. Outside mirrors (P.3-35)
- Side view camera* (P.4-29)
6. Power windows (P.2-51)
7. Side turn signal light* — Switch operation (P.2-37)
— Bulb replacement (P.8-26)
8. Roof rack (rail)* (P.2-49) 9. Recovery hook (P.6-16)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-37)
— Bulb replacement (P.8-26)
12. Headlight and turn signal lights — Switch operation (P.2-33)
— Bulb replacement (P.8-26)
13. Tires — Wheel and tires (P.8-29, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
14. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-13)
— Security system (P.2-27)
15. Child safety rear door lock (P.3-9)
16. Sliding doors (P.3-7)
*: if so equipped
Illustrated table of contents0-3

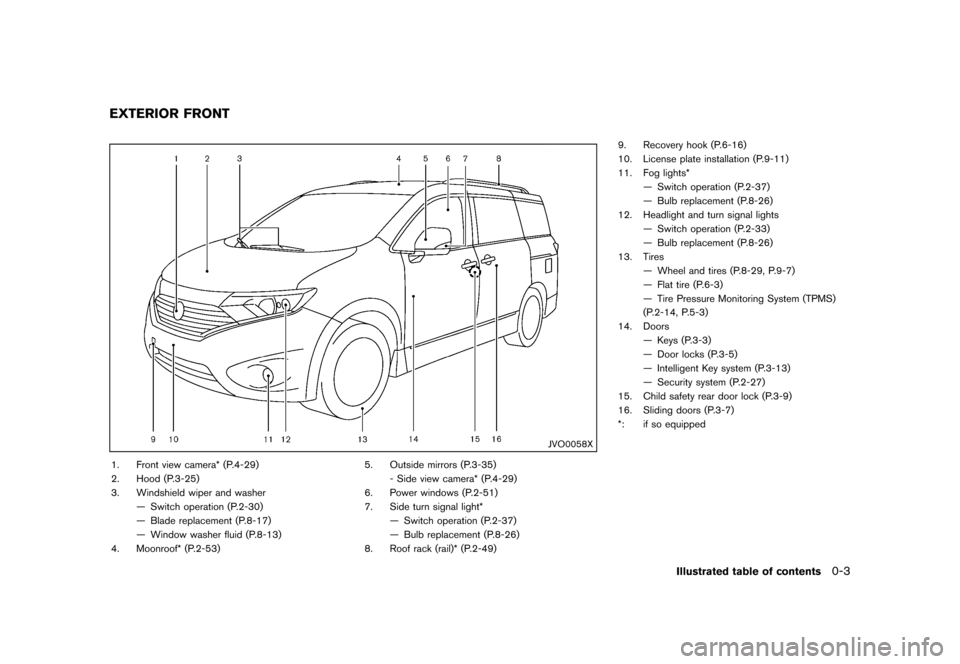

EXTERIOR FRONT
Condition:

Black plate (12,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
0-6Illustrated table of contents
GUID-F7B216D8-F960-48DA-8767-559E890BB396
SSI0825

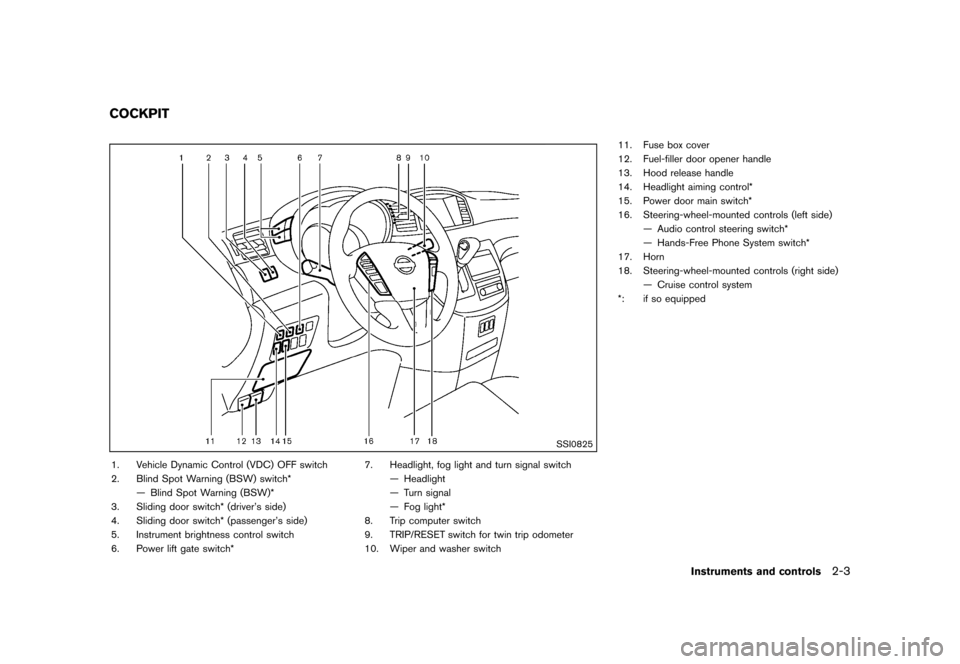

1. Vehicle Dynamic Control (VDC) OFF switch(P.2-40)
2. Blind Spot Warning (BSW) switch* (P.2-39) — Blind Spot Warning (BSW)* (P.5-17)
3. Sliding door switch* (driver’s side) (P.3-9)
4. Sliding door switch* (passenger’s side) (P.3-9)
5. Instrument brightness control switch (P.2-37) 6. Power lift gate switch* (P.3-26)
7. Headlight, fog light and turn signal switch
— Headlight (P.2-33)
— Turn signal (P.2-37)
— Fog light* (P.2-37)
8. Trip computer switch (P.2-22) 9. TRIP/RESET switch for twin trip odometer
(P.2-6)
10. Wiper and washer switch (P.2-30)
11. Fuse box cover (P.8-20)
12. Fuel-filler door opener handle (P.3-30)
13. Hood release handle (P.3-25)
14. Headlight aiming control* (P.2-36)
15. Power door main switch* (P.3-9, P.3-27)
16. Steering-wheel-mounted controls (left side) — Audio control steering switch* (P.4-102)
— Hands-Free Phone System switch* (P.4-115,
P.4-126)
17. Horn (P.2-38)
18. Steering-wheel-mounted controls (right side) — Cruise control system (P.5-24)
*: if so equipped

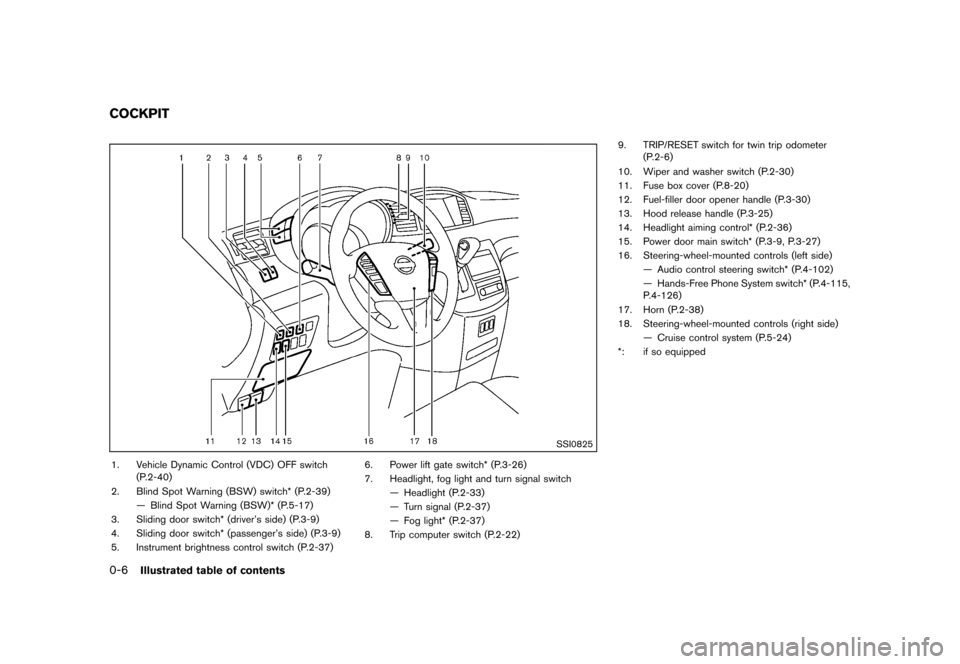

COCKPIT
Condition:

Black plate (79,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

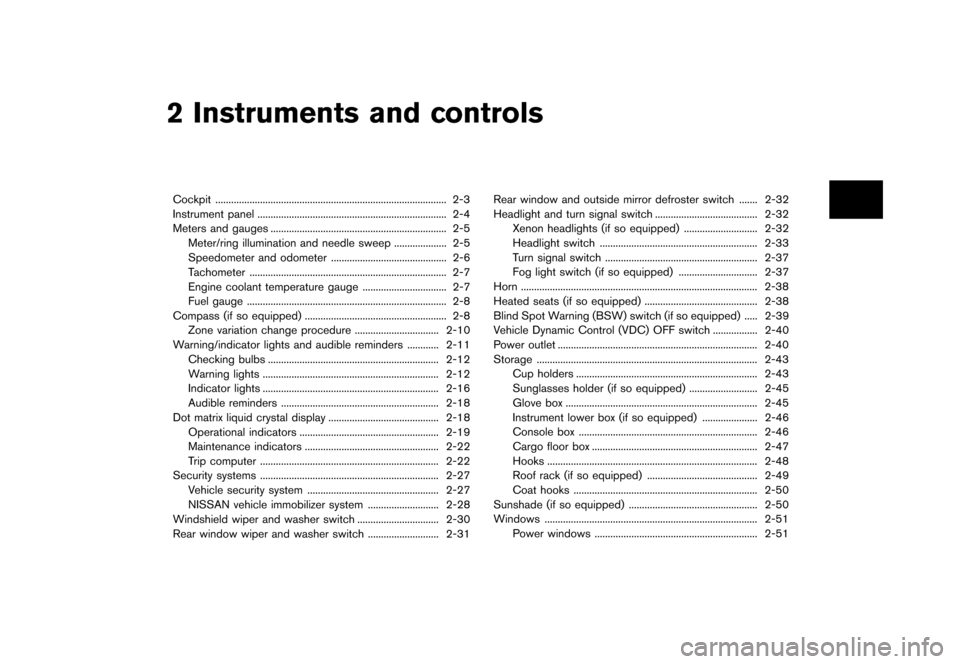

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Meter/ring illumination and needle sweep ...
.................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Compass (if so equipped) ...
...................................................... 2-8
Zone variation change procedure ...
................................ 2-10
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Dot matrix liquid crystal display ...
.......................................... 2-18
Operational indicators ...
..................................................... 2-19
Maintenance indicators ...
................................................... 2-22
Trip computer ...
.................................................................... 2-22
Security systems ...
.................................................................... 2-27
Vehicle security system ...
.................................................. 2-27
NISSAN vehicle immobilizer system ...
........................... 2-28
Windshield wiper and washer switch ...
............................... 2-30
Rear window wiper and washer switch ...
........................... 2-31 Rear window and outside mirror defroster switch
...
....... 2-32
Headlight and turn signal switch ...
....................................... 2-32
Xenon headlights (if so equipped) ...
............................ 2-32
Headlight switch ...
............................................................ 2-33
Turn signal switch ...
.......................................................... 2-37
Fog light switch (if so equipped) ...
.............................. 2-37
Horn ...
........................................................................\
.................. 2-38
Heated seats (if so equipped) ...
........................................... 2-38
Blind Spot Warning (BSW) switch (if so equipped) ...
..... 2-39
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-40
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-43
Cup holders ...
..................................................................... 2-43
Sunglasses holder (if so equipped) ...
.......................... 2-45
Glove box ...
........................................................................\
. 2-45
Instrument lower box (if so equipped) ...
..................... 2-46
Console box ...
.................................................................... 2-46
Cargo floor box ...
............................................................... 2-47
Hooks ...
........................................................................\
........ 2-48
Roof rack (if so equipped) ...
.......................................... 2-49
Coat hooks ...
...................................................................... 2-50
Sunshade (if so equipped) ...
................................................. 2-50
Windows ...
........................................................................\
......... 2-51
Power windows ...
.............................................................. 2-51
Condition:
>

Black plate (81,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-DCC2794A-4B62-4A96-BA3A-A529DCB296EE
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch
2. Blind Spot Warning (BSW) switch*— Blind Spot Warning (BSW)*
3. Sliding door switch* (driver’s side)
4. Sliding door switch* (passenger’s side)
5. Instrument brightness control switch
6. Power lift gate switch* 7. Headlight, fog light and turn signal switch
— Headlight
— Turn signal
— Fog light*
8. Trip computer switch
9. TRIP/RESET switch for twin trip odometer
10. Wiper and washer switch 11. Fuse box cover
12. Fuel-filler door opener handle
13. Hood release handle
14. Headlight aiming control*
15. Power door main switch*
16. Steering-wheel-mounted controls (left side)
— Audio control steering switch*
— Hands-Free Phone System switch*
17. Horn
18. Steering-wheel-mounted controls (right side) — Cruise control system
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:

Black plate (96,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-18Instruments and controls
Vehicle Dynamic Control (VDC) off
indicator light
GUID-36C6A5CB-7D96-42B6-B569-12EA0CD78A19The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This
indicates that the vehicle dynamic control
system and traction control system are not
operating.

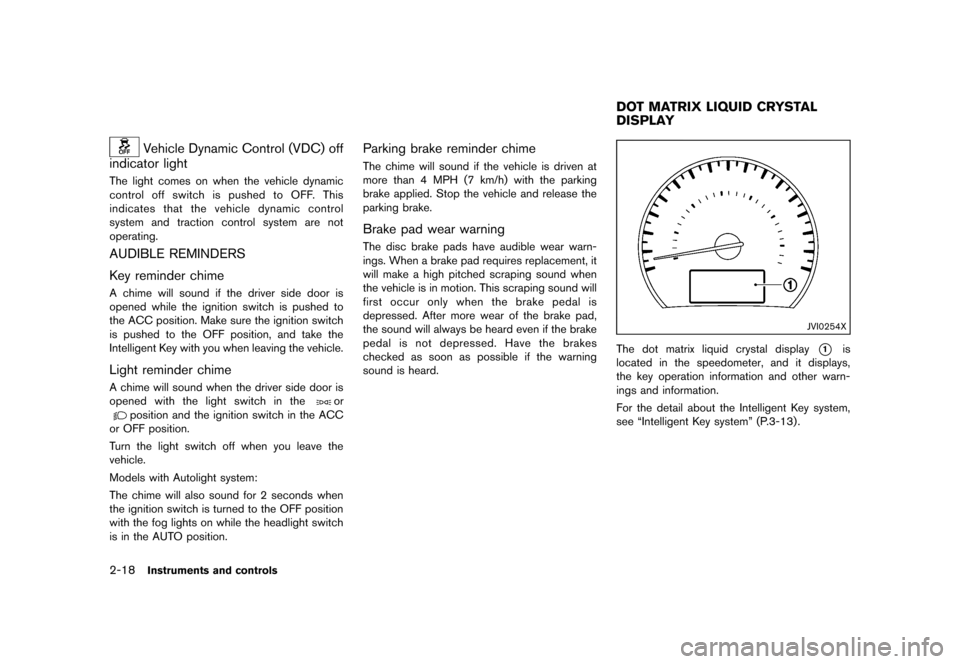

AUDIBLE REMINDERSGUID-5CBEA2B2-B021-4887-B30F-E3C585323EDD
Key reminder chimeGUID-2453E6AA-C9B7-4D05-8394-0F1BB506FF53A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition switch
is pushed to the OFF position, and take the
Intelligent Key with you when leaving the vehicle.
Light reminder chimeGUID-BFB5E744-D2B8-408B-834A-688BCF472327A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Models with Autolight system:
The chime will also sound for 2 seconds when
the ignition switch is turned to the OFF position
with the fog lights on while the headlight switch
is in the AUTO position.
Parking brake reminder chimeGUID-B170CCAE-51B0-4C2A-93DA-57D00974E4A8The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Brake pad wear warningGUID-11093B54-7D84-4D73-B07E-6FB94DF62F91The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-DF977CB1-DA21-4D82-92AC-EC347BF184E2
JVI0254X
The dot matrix liquid crystal display*1is
located in the speedometer, and it displays,
the key operation information and other warn-
ings and information.
For the detail about the Intelligent Key system,
see “Intelligent Key system” (P.3-13) .
DOT MATRIX LIQUID CRYSTAL
DISPLAY
Condition:

Black plate (110,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
2-32Instruments and controls
SIC3666

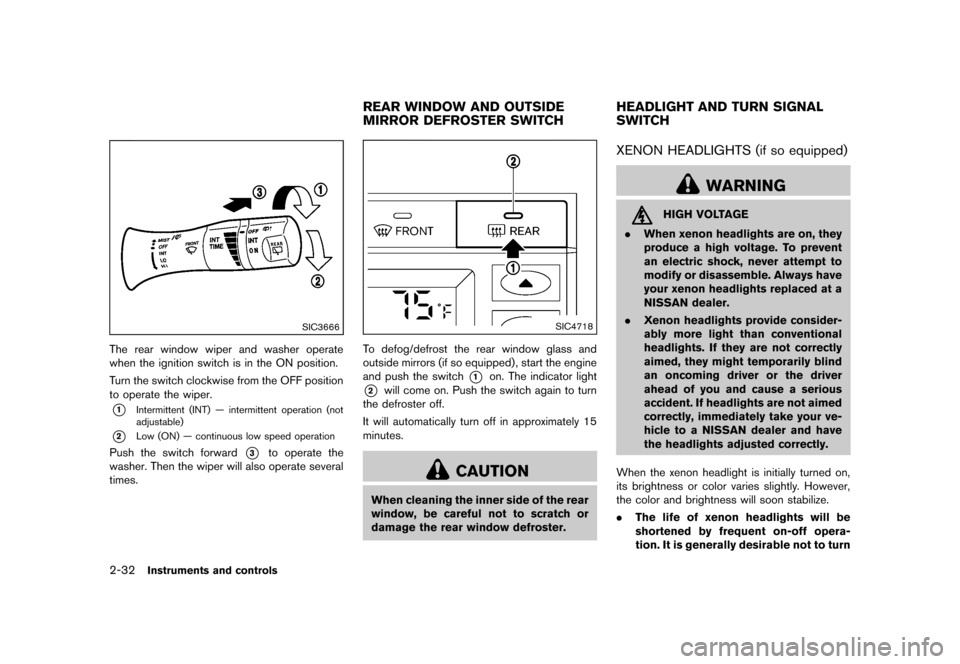

The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-68222C06-7E77-4CA2-9366-C9EF650F0773
SIC4718
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch
*1on. The indicator light
*2will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
GUID-CC0390FD-A90C-4063-BD6B-CECF22FC578FXENON HEADLIGHTS (if so equipped)GUID-D9DAF618-DD19-4AB8-A7E7-0771E1807CBF
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
. Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
. The life of xenon headlights will be
shortened by frequent on-off opera-
tion. It is generally desirable not to turn
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL
SWITCH
Condition:

Black plate (115,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SIC3585
Instrument brightness controlGUID-A65C412F-FD20-42F2-A214-3FED3B1999C2The instrument brightness control operates
when the ignition switch is in the ON position.
To adjust the brightness of instrument panel
lights, push the control switches. Pushing the
upper switch
*Awill brighten the lights. When
the brightness reaches the maximum level, a
beep will sound. The lower switch
*Bdims the
lights. Repeatedly pushing the lower switch will
turn the lights off and a beep will sound.
SIC3671

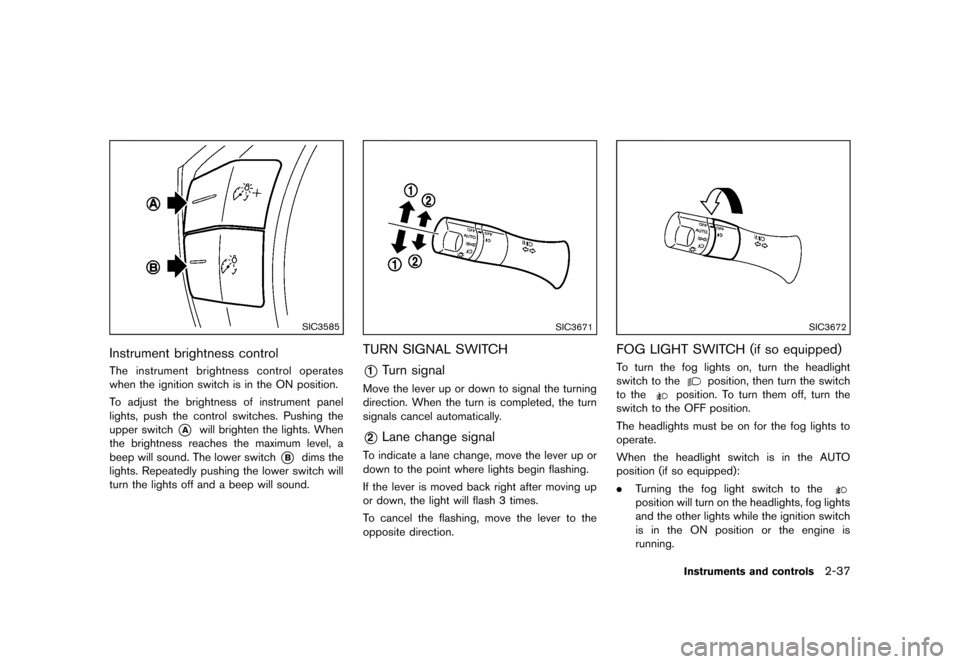

TURN SIGNAL SWITCHGUID-5783ED17-A386-4FAB-974F-C071ADBFA146
*1Turn signalGUID-AC2E834A-6733-443E-8A5A-3FA51FB86FC9Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-5C53C7BE-DDE1-434D-B0DB-47BE677A5D27To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
If the lever is moved back right after moving up
or down, the light will flash 3 times.
To cancel the flashing, move the lever to the
opposite direction.
SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-3FD59AE7-AF99-47FD-9F2C-FC49B3C023B2To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position (if so equipped):
. Turning the fog light switch to the
position will turn on the headlights, fog lights
and the other lights while the ignition switch
is in the ON position or the engine is
running.
Instruments and controls2-37
Condition:

Black plate (223,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

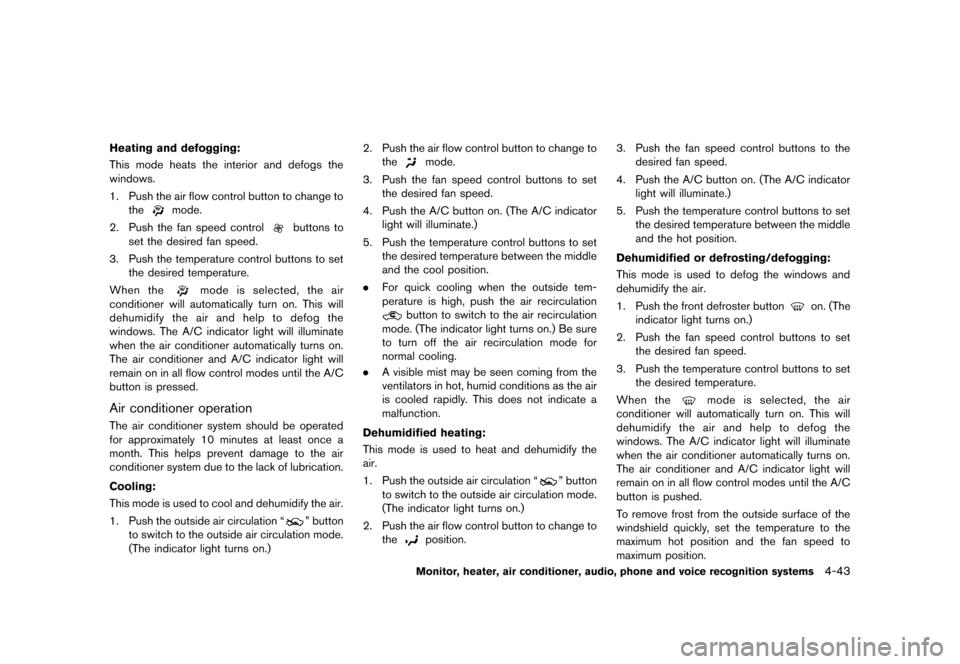

Heating and defogging:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows.
1. Push the air flow control button to change tothe
mode.
2. Push the fan speed control
buttons to
set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows. The A/C indicator light will illuminate
when the air conditioner automatically turns on.
The air conditioner and A/C indicator light will
remain on in all flow control modes until the A/C
button is pressed.
Air conditioner operationGUID-803CA434-5D0E-4D2D-BEE1-1F3BD1B898F7The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to cool and dehumidify the air.
1. Push the outside air circulation “
” button
to switch to the outside air circulation mode.
(The indicator light turns on.) 2. Push the air flow control button to change to
the
mode.
3. Push the fan speed control buttons to set the desired fan speed.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the cool position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button to switch to the air recirculation
mode. (The indicator light turns on.) Be sure
to turn off the air recirculation mode for
normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the outside air circulation “
” button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
position. 3. Push the fan speed control buttons to the
desired fan speed.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the hot position.
Dehumidified or defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Push the front defroster button
on. (The
indicator light turns on.)
2. Push the fan speed control buttons to set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows. The A/C indicator light will illuminate
when the air conditioner automatically turns on.
The air conditioner and A/C indicator light will
remain on in all flow control modes until the A/C
button is pushed.
To remove frost from the outside surface of the
windshield quickly, set the temperature to the
maximum hot position and the fan speed to
maximum position.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-43
Condition:

Black plate (228,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
4-48Monitor, heater, air conditioner, audio, phone and voice recognition systems

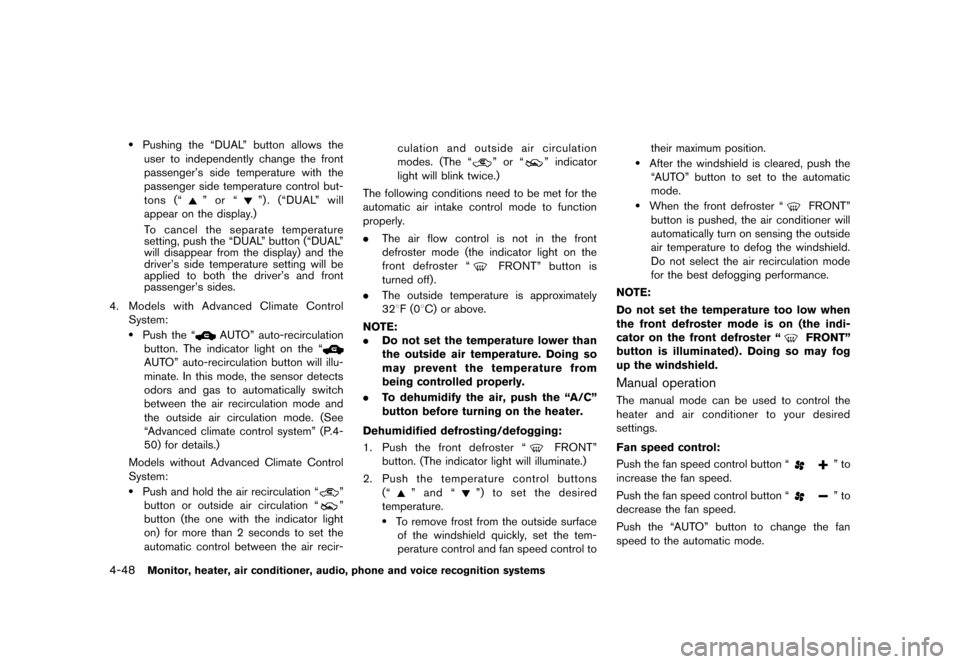

.Pushing the “DUAL” button allows theuser to independently change the front
passenger’s side temperature with the
passenger side temperature control but-
tons (“
” or “”) . (“DUAL” will
appear on the display.)
To cancel the separate temperature
setting, push the “DUAL” button (“DUAL”
will disappear from the display) and the
driver’s side temperature setting will be
applied to both the driver’s and front
passenger’s sides.
4. Models with Advanced Climate Control
System:
.Push the “AUTO” auto-recirculation
button. The indicator light on the “
AUTO” auto-recirculation button will illu-
minate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and
the outside air circulation mode. (See
“Advanced climate control system” (P.4-
50) for details.)
Models without Advanced Climate Control
System:
.Push and hold the air recirculation “”
button or outside air circulation “
”
button (the one with the indicator light
on) for more than 2 seconds to set the
automatic control between the air recir- culation and outside air circulation
modes. (The “
” or “” indicator
light will blink twice.)
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster “
FRONT” button is
turned off).
. The outside temperature is approximately
328F (08C) or above.
NOTE:
. Do not set the temperature lower than
the outside air temperature. Doing so
may prevent the temperature from
being controlled properly.
. To dehumidify the air, push the “A/C”
button before turning on the heater.
Dehumidified defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the front defroster “FRONT”
button. (The indicator light will illuminate.)
2. Push the temperature control buttons
(“
” and “”) to set the desired
temperature.
.To remove frost from the outside surface
of the windshield quickly, set the tem-
perature control and fan speed control to their maximum position.
.After the windshield is cleared, push the
“AUTO” button to set to the automatic
mode.
.When the front defroster “FRONT”
button is pushed, the air conditioner will
automatically turn on sensing the outside
air temperature to defog the windshield.
Do not select the air recirculation mode
for the best defogging performance.
NOTE:
Do not set the temperature too low when
the front defroster mode is on (the indi-
cator on the front defroster “
FRONT”
button is illuminated) . Doing so may fog
up the windshield.
Manual operationGUID-5BB422CA-6F6D-4204-8723-4A4B9231097DThe manual mode can be used to control the
heater and air conditioner to your desired
settings.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed control button “” to
increase the fan speed.
Push the fan speed control button “
” to
decrease the fan speed.
Push the “AUTO” button to change the fan
speed to the automatic mode.
Condition:

Black plate (365,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
SSD1037

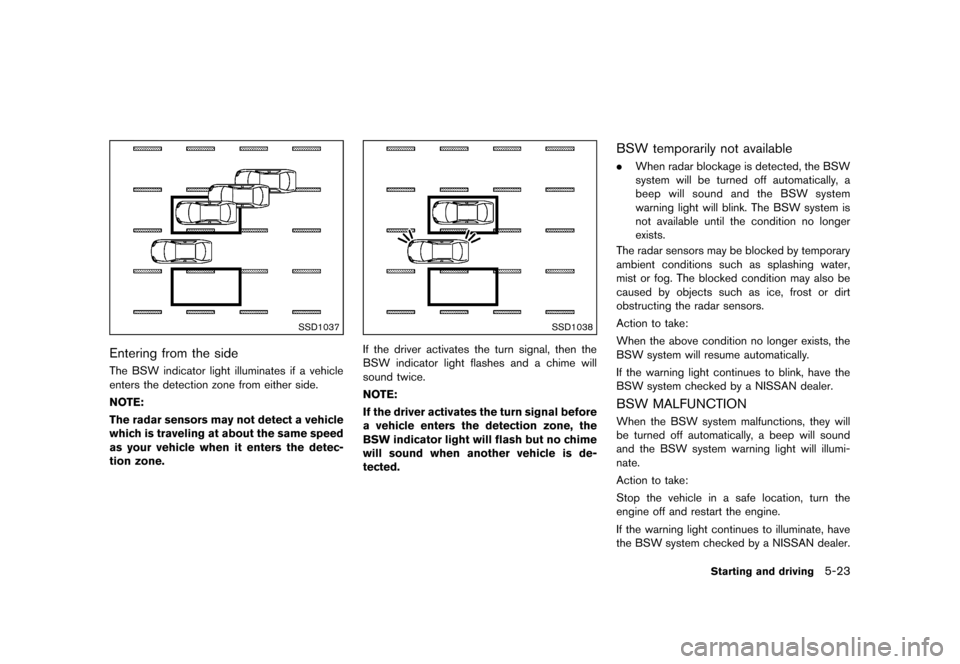

Entering from the sideGUID-DEED5F74-389E-401F-9A0E-6B1D93E23F41The BSW indicator light illuminates if a vehicle
enters the detection zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detec-
tion zone.
SSD1038
If the driver activates the turn signal, then the
BSW indicator light flashes and a chime will
sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
BSW indicator light will flash but no chime
will sound when another vehicle is de-
tected.
BSW temporarily not availableGUID-6D4D6EF8-1DF9-4D89-8011-E54A25724E70.When radar blockage is detected, the BSW
system will be turned off automatically, a
beep will sound and the BSW system
warning light will blink. The BSW system is
not available until the condition no longer
exists.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be
caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above condition no longer exists, the
BSW system will resume automatically.
If the warning light continues to blink, have the
BSW system checked by a NISSAN dealer.
BSW MALFUNCTIONGUID-1F7A26C5-A202-469B-81D0-8B3F6C47D612When the BSW system malfunctions, they will
be turned off automatically, a beep will sound
and the BSW system warning light will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, turn the
engine off and restart the engine.
If the warning light continues to illuminate, have
the BSW system checked by a NISSAN dealer.
Starting and driving5-23
Condition:
